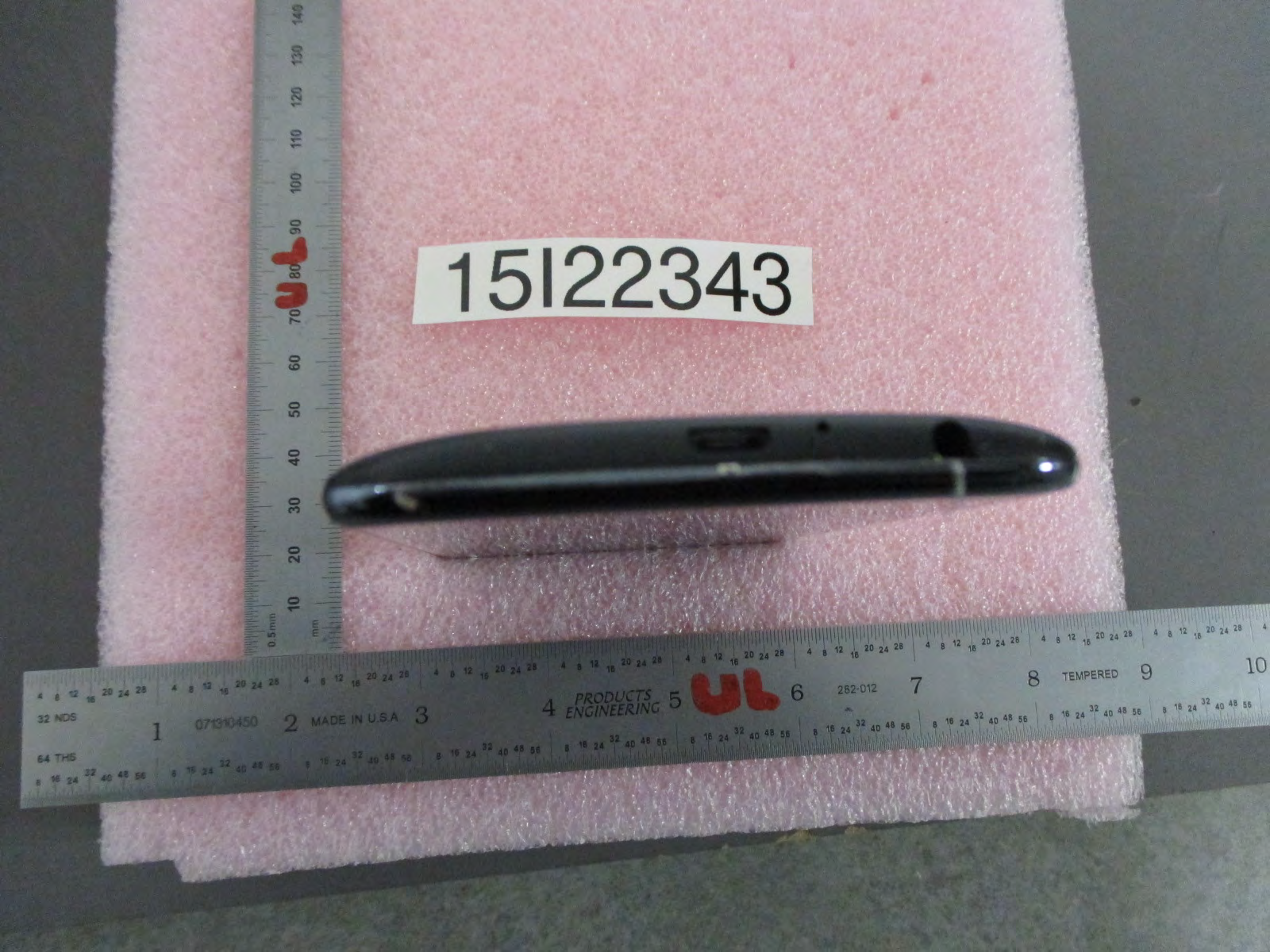

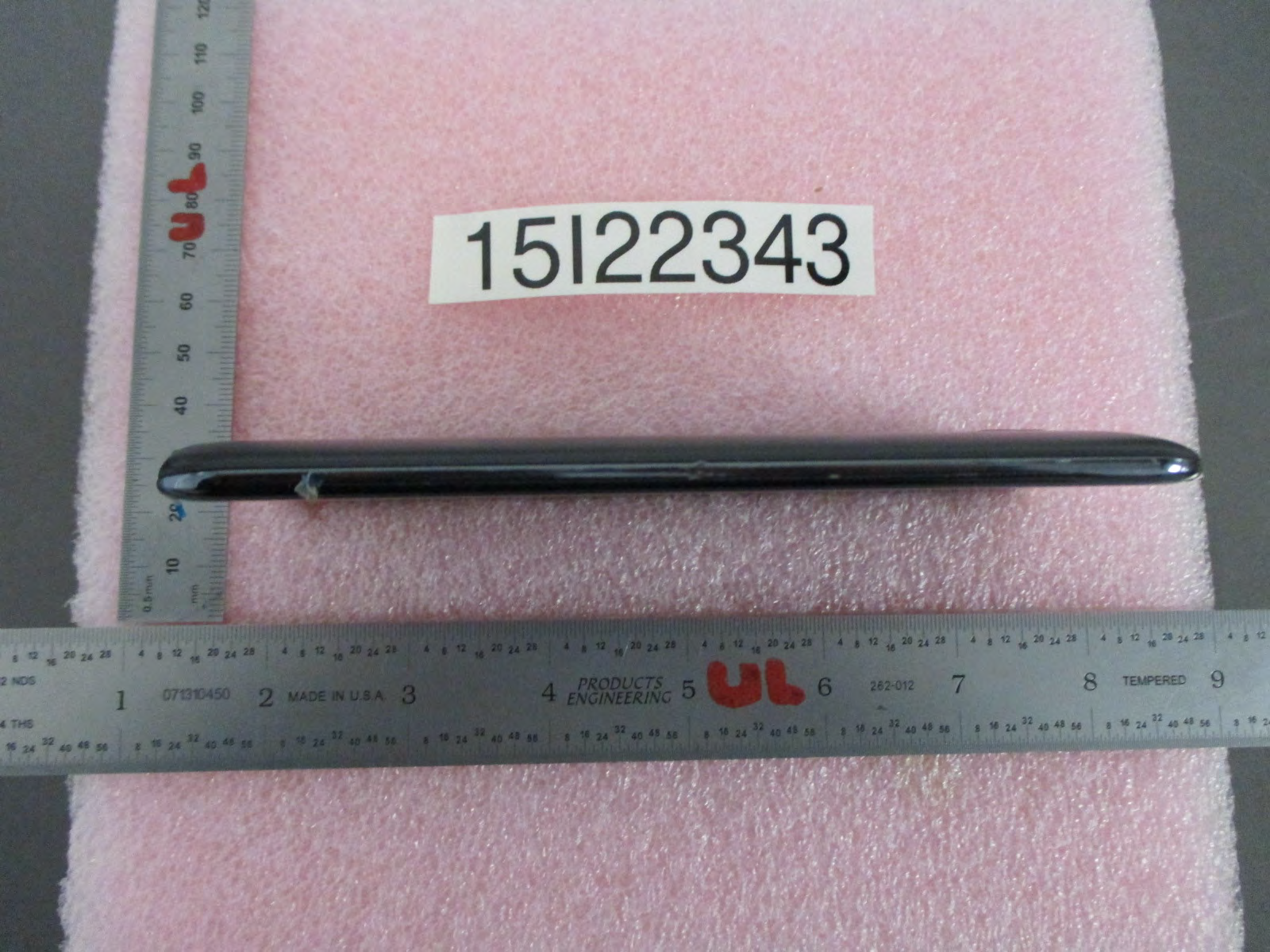

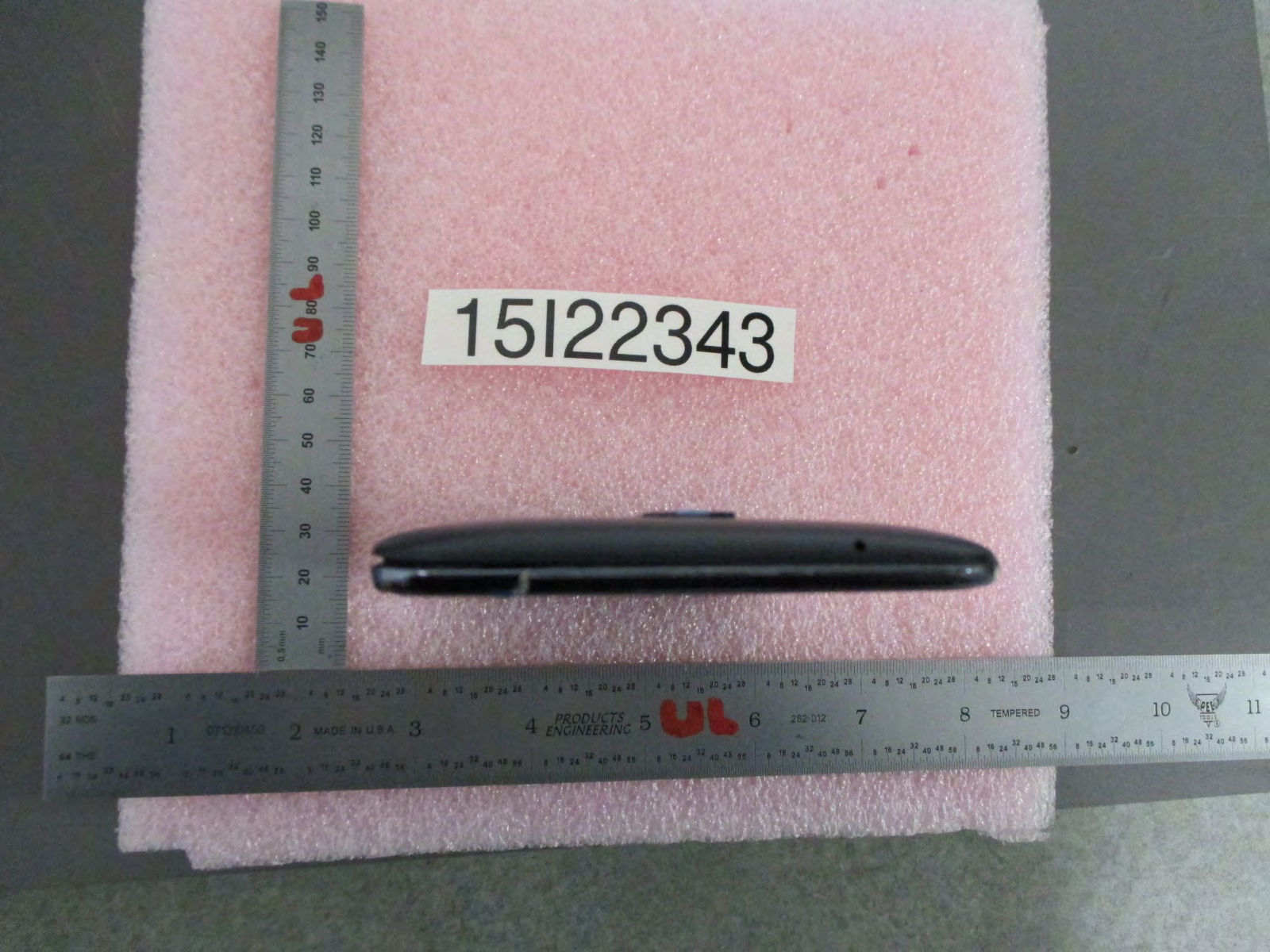

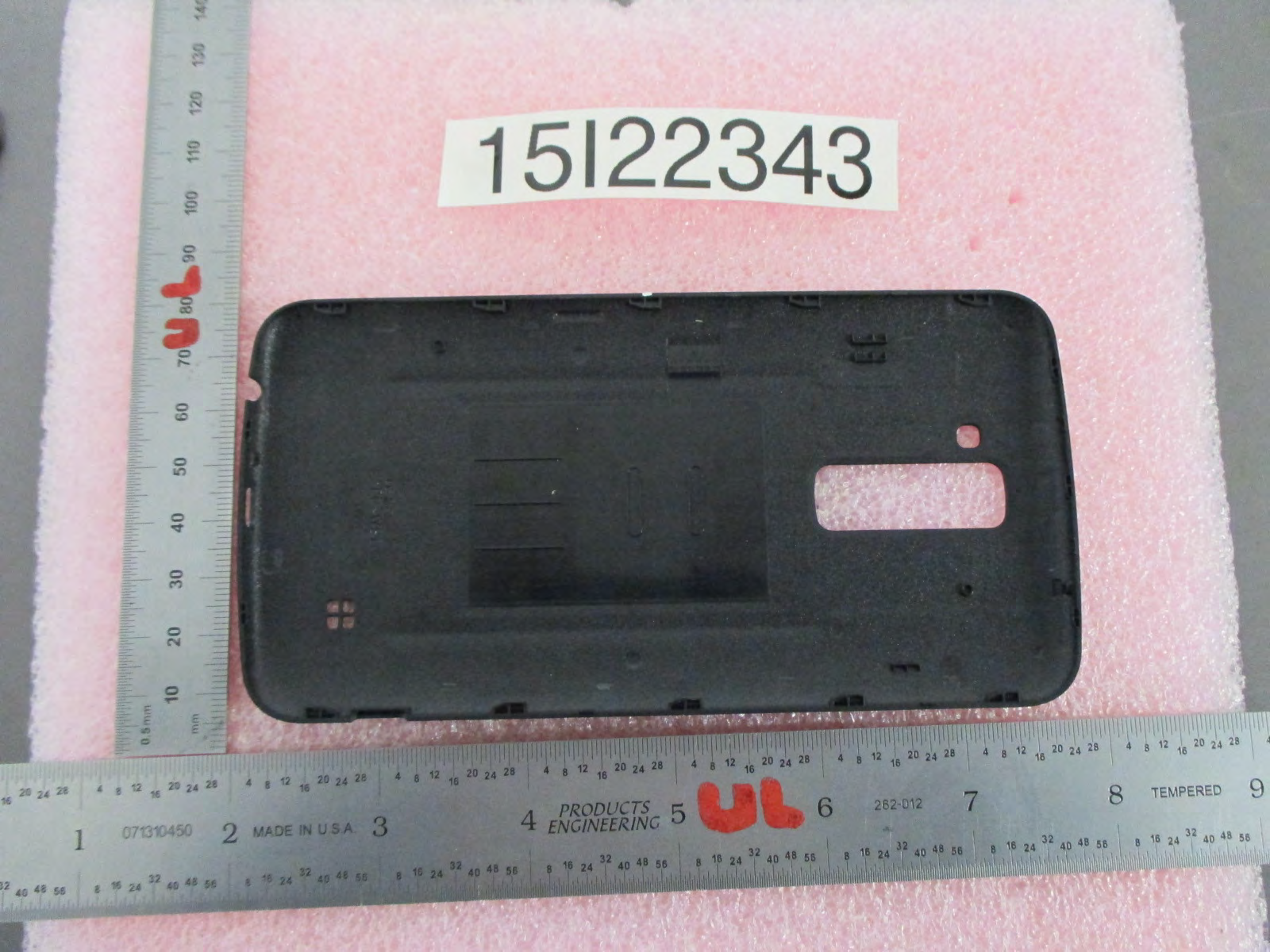

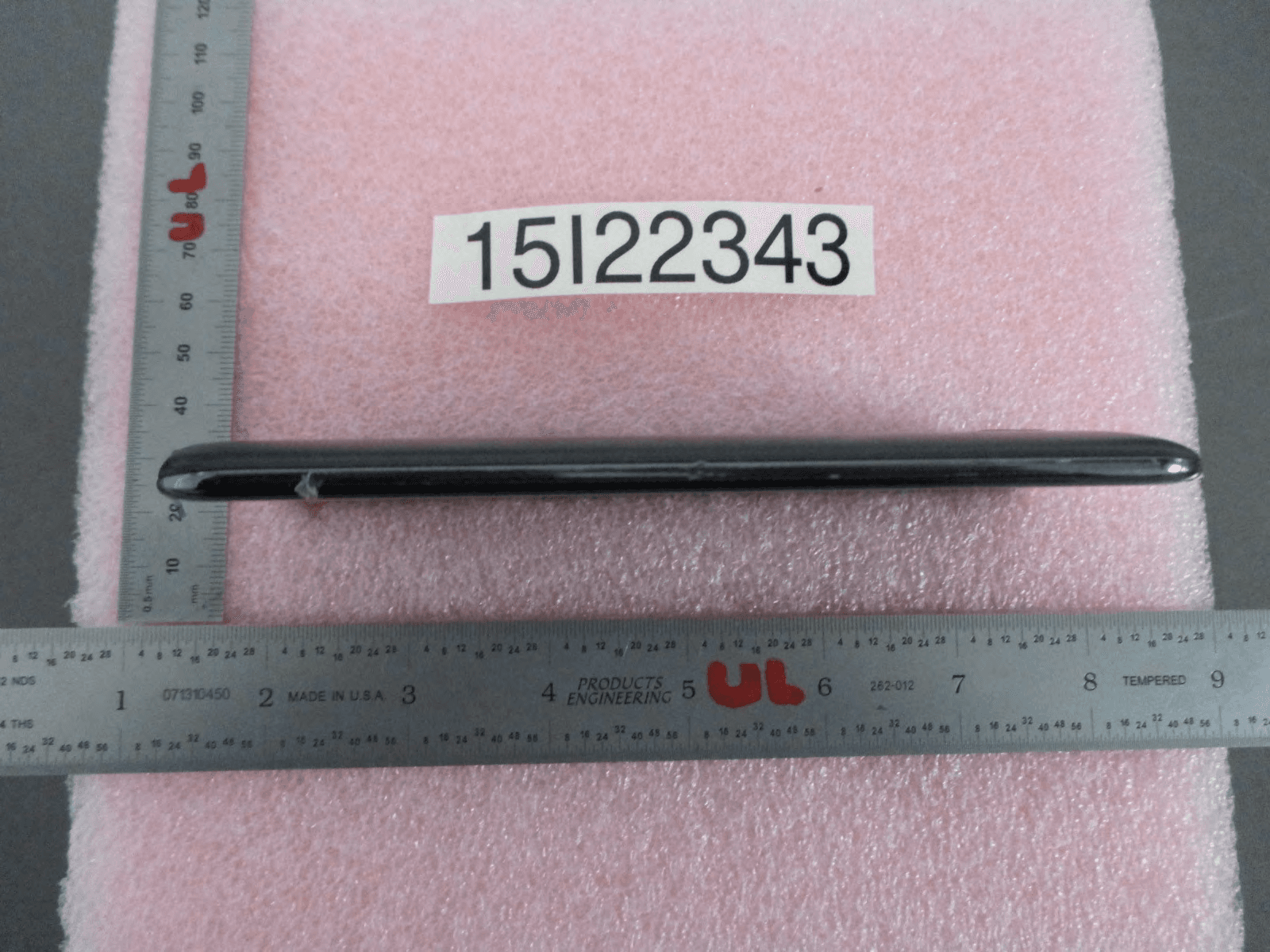

ZNFL61ALGSM/WCDMA/LTE Phone With BT and DTS WLAN b/g/n

Printed in China www.lg.com MFLXXXXXXXX (1.0) LG L61AL LG L61AL User GUide www.lg.com LG L61AL LG L61AL GUíA deL UsUArio e NGL is H esPAÑoL About this user guide Thank you for choosing LG. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. Ţ Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. Ţ This device is not suitable for people who have a visual impairment due to the touchscreen keyboard. Ţ Descriptions are based on the device default settings. Ţ Default apps on the device are subject to updates and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact a LG Service center. For user-installed apps, please contact the relevant service provider. Ţ Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. Ţ Some contents and illustrations may differ from your device depending on the region, service provider, software version, or OS version, and are subject to change without prior notice. Ţ Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully are entirely responsible for the illegal use of media. Ţ Additional charges may apply for data services, such as messaging, uploading,downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. ENGLISH 2 Instructional notices WARNING Situations that could cause injury to yourself or others, or damage to phone or other property. NOTE Notices or additional information. 3 LIMITED WARRANTY STATEMENT ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW. Warranty Laws The following laws govern warranties that arise in retail sales of consumer goods: Ţ The California Song-Beverly Consumer Warranty Act [CC §§1790 et seq], Ţ The California Uniform Commercial Code, Division Two [Com C §§2101 et seq], and Ţ The federal Magnuson-Moss Warranty Federal Trade Commission Improvement Act [15 USC §§2301 et seq; 16 CFR Parts 701– 703]. A typical Magnuson-Moss Act warranty is a written promise that the product is free of defects or a written promise to refund, repair, or replace defective goods. [See 15 USC §2301(6).] Remedies include damages for failing to honor a written warranty or service contract or for violating disclosure provisions. [See 15 USC §2310(d).] Except for some labeling and disclosure requirements, the federal Act does not preempt state law. [See 15 USC §2311.] 4 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for TWELVE (12) MONTHS beginning on the date of purchase of the product with valid proof of purchase, or absent valid proof of purchase, FIFTEEN (15) MONTHS from date of manufacture as determined by the unit's manufacture date code. (2) The limited warranty extends only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall be free of defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 5 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was not notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) This limited warranty is in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. (10) Products used or obtained in a rental program. (11) Con…

Text truncated - open the document above for the full version.

          !"# Date: Dec 14#5 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFL61AL Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Di agram and Antenna specification 2 Operational Descriptions and PCB layout 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jongchul Lee Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Date: Dec 14, 2015 Federal Comm unica tions Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : LG Electronics MobileComm U.S.A. FCC ID : ZNFL61AL Part 20.19 Certification To Whom It May Concern: The f ollowing are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID: ZNFL61AL Air Interface: GSM/WCDMA/LTE Wireless Technologies: GPRS/EDGE/HSDPA/HSUPA Band: GSM850/1900, WCDMA B2/B5, LTE B2,4,5,17 Key Features: Bluetooth 4.1+LE, WIFI802.11b/g/n 2.4GHz Camera, MP3, GPS Should you ha ve any questions or comments concerning the above, please contact the undersigned Sincerely Yours, Jongchul Lee Director On behalf of LG El ectronics Mobilecomm U.S.A.,Inc

※ FCC ID Label Form Note: The FCC ID shown will be readily visible at the time of purchase. Note! The label of the EUT is made of a white polypropylene laminate film and it's attached to the EUT by an adhesive. The adhesive is permanent type with strong strength. Additionally, the FCC ID is readily visible to the purchaser at the time of purchase because the phone will be marketed without the battery installed. Model No : LGL61AL FCC ID : ZNFL61AL S/N : Made in Korea

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/WCDMA/LTE PHONE WITH BT & DTS WLAN b/g/n FCC ID: ZNFL61AL Model Name: LG-L61AL, L61AL, LGL61AL Report Number: 15I22343-S1V2 Issue Date: 12/28/2015 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC. 1000 Sylvan Avenue Englewood Cliffs, New Jersey 07632 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15I22343-S1V2 Issue Date: 12/28/2015 Page 2 of 46 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By V1 12/21/2015 Initial Issue -- V2 12/28/2015 Section 2: Updated KDB revision numbers Section 4.3: Updated Equipment lists according to dates tested Section 7: Removed Note Section 9.3: Replaced Target MPR with MPR Coltyce Sanders Report No.: 15I22343-S1V2 Issue Date: 12/28/2015 Page 3 of 46 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 12 6.1. DUT Description ...................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................. 12 6.3. Maximum Output Power from Tune-up Procedure ................................................................... 13 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 14 7. RF Exposure Conditions (Test Configurations) ...................................................................... 15 8. Dielectric Property Measurements & System Check .............................................................. 16 8.1. Dielectric Property Measurements ........................................................................................... 16 8.2. System Check.......................................................................................................................... 20 9. Conducted Output Power Measurements ................................................................................ 23 9.1. GSM ........................................................................................................................................ 23 9.2. W-CDMA ................................................................................................................................. 24 9.3. LTE .......................................................................................................................................... 29 9.4. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 37 9.5. Bluetooth ................................................................................................................................. 37 10. Measured and Reported (Scaled) SAR Results ....................................................................... 38 10.1. GSM850 ............................................................................................................................... 40 10.2. GSM1900 ............................................................................................................................. 40 10.3. W-CDMA Band II .................................................................................................................. 40 10.4. W-CDMA Band V ................................................................................................................. 40 10.6. LTE Band 2 (20MHz Bandwidth) .......................................................................................... 41 10.7. LTE Band 4 (20MHz Bandwidth) .......................................................................................... 41 10.8. LTE Band 5 (10MHz Bandwidth) .......................................................................................... 41 10.9. LTE Band 17 (10MHz Bandwidth) ........................................................................................ 42 10.10. Wi-Fi (DTS Band) ................................................................................................................. 42 Report No.: 15I22343-S1V2 Issue Date: 12/28/2015 Page 4 of 46 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 10.11. Bluetooth .............................................................................................................................. 43 11. SAR Measurement Variability .…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 12/1/2015 2:01:17 PM 20151201 SystemPerformanceCheck-D835V2 SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 835 MHz; σ = 1.006 S/m; ε r = 53.297; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(9.5, 9.5, 9.5); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.17 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.59 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.964 W/kg; SAR(10 g) = 0.634 W/kg 0 dB = 1.17 W/kg = 0.68 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 12/1/2015 2:19:19 PM 20151201 SystemPerformanceCheck-D835V2 SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.16 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab B Date/Time: 12/4/2015 1:23:04 PM 20151204_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 2.001 S/m; ε r = 50.958; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1360; Calibrated: 3/12/2015 - Probe: EX3DV4 - SN3686; ConvF(6.86, 6.86, 6.86); Calibrated: 8/28/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.48 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.182 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.28 W/kg; SAR(10 g) = 2.43 W/kg Maximum value of SAR (measured) = 7.55 W/kg 0 dB = 7.55 W/kg = 8.78 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab B Date/Time: 12/4/2015 1:43:14 PM 20151204_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.35 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 11/30/2015 3:21:10 PM 20151130_SystemPerformanceCheck-D1750V2 SN 1050 Frequency: 1750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1750 MHz; σ = 1.511 S/m; ε r = 51.093; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn500; Calibrated: 5/22/2015 - Probe: EX3DV4 - SN7356; ConvF(8.47, 8.47, 8.47); Calibrated: 4/22/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.07 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.285 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 6.77 W/kg SAR(1 g) = 3.74 W/kg; SAR(10 g) = 1.97 W/kg Maximum value of SAR (measured) = 4.98 W/kg 0 dB = 4.98 W/kg = 6.97 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 11/30/2015 3:40:11 PM 20151130_SystemPerformanceCheck-D1750V2 SN 1050 Frequency: 1750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.11 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 12/2/2015 10:34:53 AM 20151202_SystemPerformanceCheck-D1900V2 SN 5d140 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1900 MHz; σ = 1.571 S/m; ε r = 50.749; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn500; Calibrated: 5/22/2015 - Probe: EX3DV4 - SN7356; ConvF(7.94, 7.94, 7.94); Calibrated: 4/22/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.98 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.100 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 7.64 W/kg SAR(1 g) = 4.2 W/kg; SAR(10 g) = 2.2 W/kg Maximum value of SAR (measured) = 5.63 W/kg 0 dB = 5.63 W/kg = 7.51 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 12/2/2015 10:57:08 AM 20151202_SystemPerformanceCheck-D1900V2 SN 5d140 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.13 W/kg Plot No. 9 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 12/17/2015 11:07:28 PM 20151217_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 2.044 S/m; ε r = 51.604; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a pea…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 12/3/2015 12:10:13 AM GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.917 S/m; ε r = 41.196; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(9.59, 9.59, 9.59); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CD; Serial: 1602 RHS/Touch_GSM Voice/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.572 W/kg RHS/Touch_GSM Voice/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 25.21 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.656 W/kg SAR(1 g) = 0.520 W/kg; SAR(10 g) = 0.390 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.580 W/kg 0 dB = 0.580 W/kg = -2.37 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 12/2/2015 9:35:45 PM GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.917 S/m; ε r = 41.196; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(9.59, 9.59, 9.59); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CD; Serial: 1602 RHS/Touch_GPRS 2 Slots/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.557 W/kg RHS/Touch_GPRS 2 Slots/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.80 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.634 W/kg SAR(1 g) = 0.503 W/kg; SAR(10 g) = 0.378 W/kg Info: Interpolated medium parameters used for SAR evaluation. 0 dB = 0.557 W/kg = -2.54 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 12/3/2015 12:48:55 AM GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.008 S/m; ε r = 53.279; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(9.5, 9.5, 9.5); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Rear/GSM Voice Ch. 190/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.502 W/kg Rear/GSM Voice Ch. 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.74 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.570 W/kg SAR(1 g) = 0.449 W/kg; SAR(10 g) = 0.341 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.507 W/kg Rear/GSM Voice Ch. 190/Zoom Scan 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.74 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.302 W/kg SAR(1 g) = 0.182 W/kg; SAR(10 g) = 0.116 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.232 W/kg 0 dB = 0.232 W/kg = -6.35 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 12/2/2015 8:47:57 PM GSM 850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.008 S/m; ε r = 53.279; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/20/2015 - Probe: EX3DV4 - SN3901; ConvF(9.5, 9.5, 9.5); Calibrated: 1/27/2015; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Rear/GPRS 2 Slots Ch. 190/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.489 W/kg Rear/GPRS 2 Slots Ch. 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.44 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.559 W/kg SAR(1 g) = 0.439 W/kg; SAR(10 g) = 0.332 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.496 W/kg Rear/GPRS 2 Slots Ch. 190/Zoom Scan 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.44 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.299 W/kg SAR(1 g) = 0.179 W/kg; SAR(10 g) = 0.114 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.223 W/kg 0 dB = 0.223 W/kg = -6.52 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 3 Date/Time: 12/2/2015 3:42:31 PM GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 1880 MHz; σ = 1.408 S/m; ε r = 40.734; ρ = 10…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil

FCC CFR47 PART 22 SUBPART H FCC CFR47 PART 24 SUBPART E FCC CFR47 PART 27 SUBPART L CERTIFICATION TEST REPORT FOR GSM/WCDMA/LTE PHONE WITH BT and DTS WLAN b/g/n MODEL NUMBER: LG-L61AL, L61AL, LGL61AL FCC ID: ZNFL61AL REPORT NUMBER: 15I22343-E1V2 ISSUE DATE: 12/28/2015 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC 1000 SYLVAN AVENUE ENGLEWOOD CLIFFS, NEW JERSEY, 07632, U.S.A Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 15I22343-E1V2 DATE: 12/28/2015 FCC ID: ZNFL61AL Page 2 of 168 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By V1 12/21/15 Initial Issue D. Coronia V2 12/28/15 Updated Section 5.5, 10.1.1 and 11.1.1 D. Coronia REPORT NO: 15I22343-E1V2 DATE: 12/28/2015 FCC ID: ZNFL61AL Page 3 of 168 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reprodu…

Text truncated - open the document above for the full version.
