ZNFL96GCellular/PCS GSM/WCDMA Phone with WLAN and Bluetooth

LGL96G User Guide This guide helps you to get started using your phone. • Some of the contents of this manual may not apply to your phone, depending on the software and your service provider. • This handset is not suitable for people who have a visual impairment due t o the touch screen keyboard. • Copyright ©2012 LG Electronics, Inc. All rights reserved. LG and the LG l ogo are registered trademarks of LG Group and its related entities. All o ther trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Android Market™ are trademarks of Google, Inc. ENGLISH Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Part 15 Class B Compliance This device and its accessories comply with part 15 of FCC rules and ICES-003 Class B digital apparatus requirements for Industry Canada. Operation is subject to the following two conditions:(1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept cm (0.9 inches) between the user’s body and the back of the phone. To comply with FCC RF exposure requirements, a minimum separation distance of cm (0.9 inches) must be maintained between the user's body and the back of the phone. Third-party belt-clips, holsters, and similar accessories containing metallic components PD\ not be used. Body-worn accessories that cannot maintain cm (0.9 inches) separation distance between the user's body and the back of the phone, and have not been tested for typical body- worn operations may not comply with FCC RF exposure limits and should be avoided. 20 Please check to see whether any problems you e ncountered with your phone are described in this section before taking the phone in for service or calling a service representative. 1. Phone memory When there is less than 10% of space available in your phone memory, your phone cannot receive new messages. You need to check your phone memory and delete some data, such as applications or messages, to make more memory available. To uninstall applications: 1 Touch > Apps t ab > Settings > Apps from the DEVICE category. 2 Once all applications appear, scroll to and s elect the application you want to uninstall. 3 Touch Uninstall. Getting to know your phone Before you start using the phone, please read this! 21 2. Optimising battery life Extend your battery's life between charges by t urning off features that you don't need to having running constantly in the background. You c an monitor how applications and system resources consume battery power. Extending your phone's battery life: • Turn off radio communications you are not using. If you are not using Wi-Fi, Bluetooth or G PS, turn them off. • Reduce screen brightness and set a shorter screen timeout. • Turn off automatic syncing for Google Mail™, Calendar, Contacts and other applications. • Some applications you have downloaded may reduce battery power. To check the battery power level: • Touch > Apps t ab > Settings > About phone f rom the SYSTEM > Status The battery status (charging or not charging) and l evel (percentage charged) is displayed at t he top of the screen. 22 Getting to know your phone To monitor and control how battery power is being used: • Touch > Apps t ab > Settings > Power Saver f rom the DEVICE > Battery use f rom the BATTERY Battery usage time is displayed at the top of the s creen. It tells you how long it has been since you last connected your phone to a power source or, if currently connected, how long the phone was last running on battery power. The screen shows the applications or services using battery power, listed in order from the greatest to smallest amount used. 3. Using folders You c an combine several app icons in a folder. Drop one app icon over another on a H ome screen, and the two icons will be combined. NOTE: To see a smaller collection of frequently used apps, touch the Google Apps folder near the bottom of the screen. As with any folder, you can customize its contents. 23 NOTE: After you open an app, you can usually adjust its settings by choosing items from its Menu icon near the top or bottom of the screen. 4. Before installing an open source application and OS WARNING If you install and use an OS other than the one provided by the manufacturer it may cause your phone to malfunction. In addition, your phone will no longer be covered by the warranty. 24 Getting to know your phone WARNING To protect your phone and personal data, only download applications from trusted sources, such as Android Market™. If there are improperly installed applications on your…

Text truncated - open the document above for the full version.

Date: May 12, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Co nfidentiality for FCC ID: ZNFL96G Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain informatio n accompanying this application. The materials contain trad e secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The reque sted Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

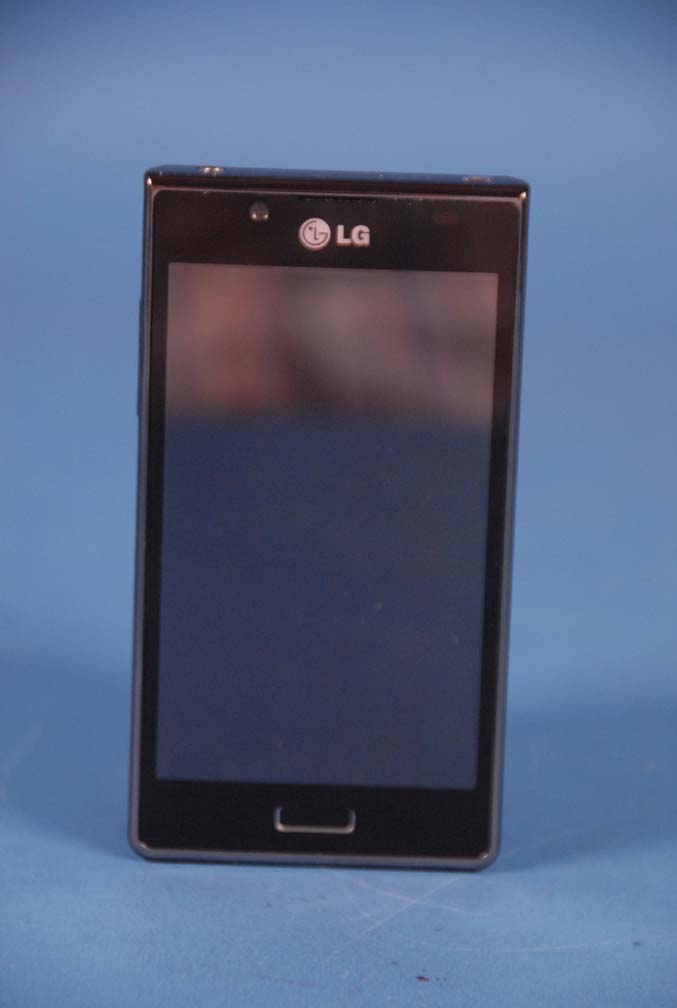

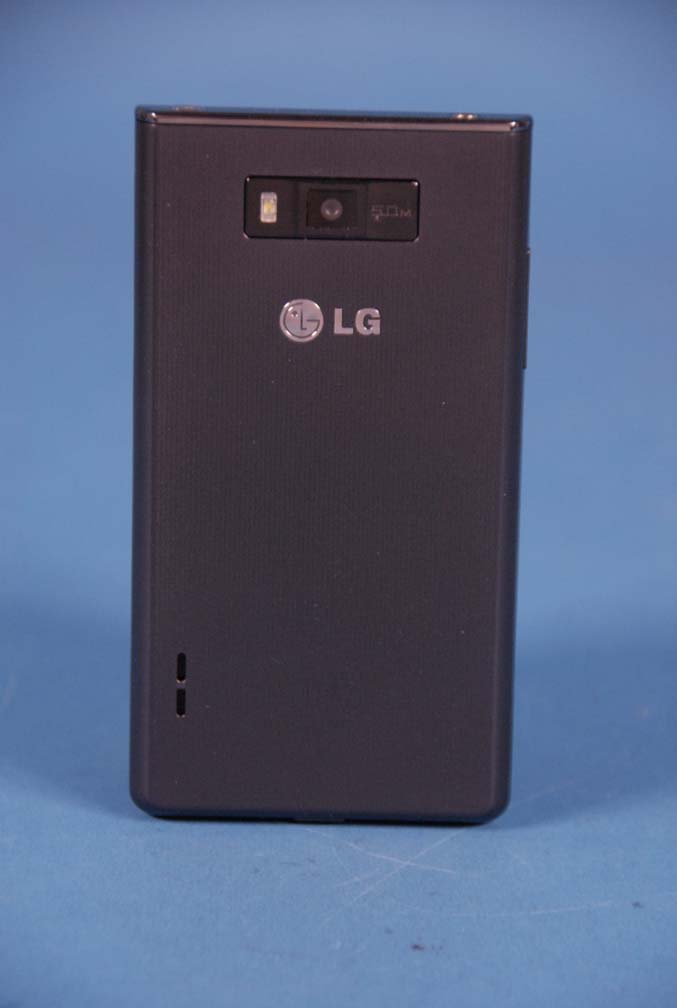

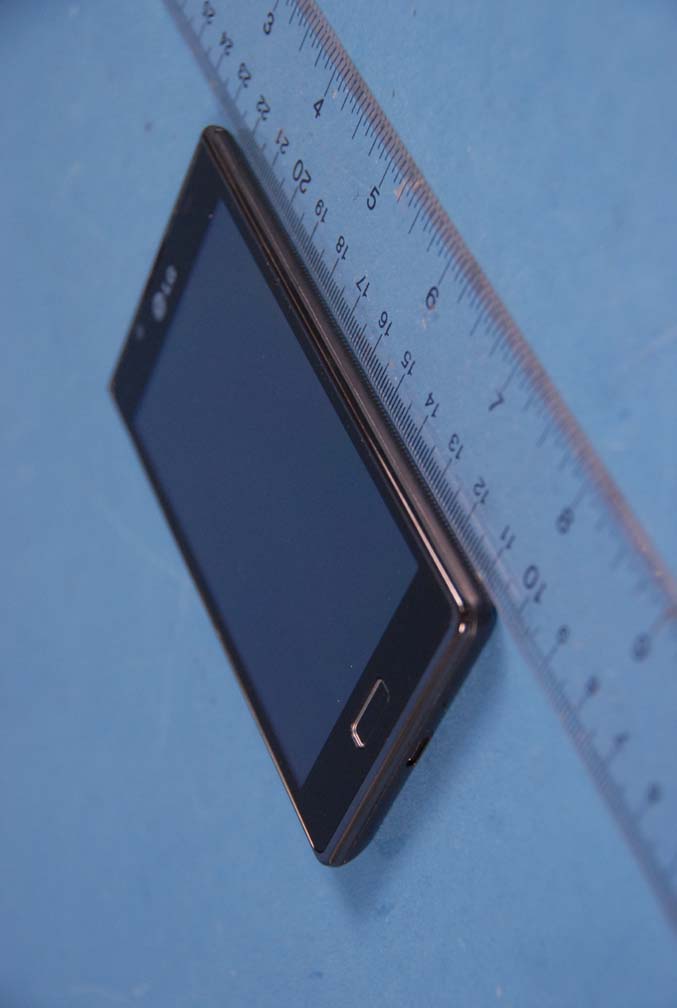

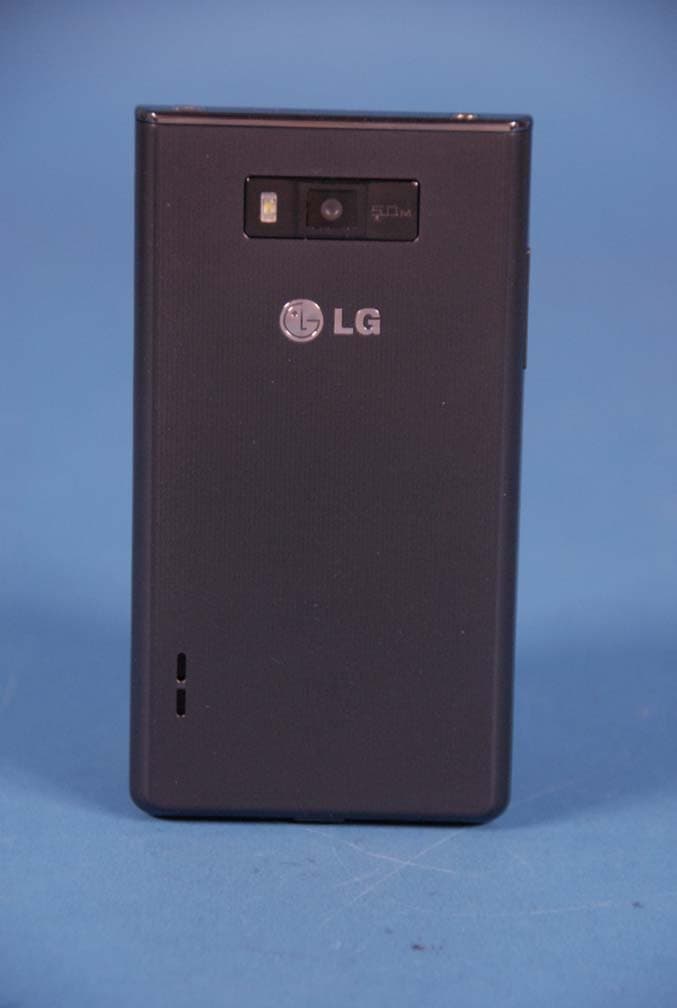

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G External Photos EUT Type: Portable Handset Page 1 of 4 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G External Photos EUT Type: Portable Handset Page 2 of 4 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G External Photos EUT Type: Portable Handset Page 3 of 4 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G External Photos EUT Type: Portable Handset Page 4 of 4 © 2012 PCTEST Engineering Laboratory Inc.

Model No: LGL96G FCC ID : ZNFL96G S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 1 of 9 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 2 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 3 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 4 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 5 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 6 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 7 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 8 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Internal Photos EUT Type: Portable Handset Page 9 of 9 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: ZNFL96G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 30 0Y1204100444.ZNF 04/09/12 - 04/16/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 04/09/12 - 04/16/12 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Document Serial No.: 0Y1204100444.ZNF FCC ID: ZNFL96G APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 LG-L96G, LG-L96g, LGL96G, LGL96g, L96g, L96G Test Device Serial No.: Pre-Production [S/N: 203KPGS162039] 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) GSM/GPRS/EDGE Rx Only 824.20 - 848.80 MHz33.46 0.390.50 WCDMA 850826.40 - 846.60 MHz23.360.41 0.59 GSM/GPRS/EDGE Rx Only 1850.20 - 1909.80 MHz29.530.44 0.27 WCDMA 19001852.4 - 1907.6 MHz23.330.69 0.34 2.4 GHz WLAN2412 - 2462 MHz15.140.31 0.05 Bluetooth2402 - 2480 MHz8.05 0.870.64 SAR N/A Band & ModeTx Frequency Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFL96G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 30 0Y1204100444.ZNF 04/09/12 - 04/16/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................5 3 SAR MEASUREMENT SETUP ........................................................................................................6 4 DOSIMETRIC ASSESSMENT .........................................................................................................7 5 DEFINITION OF REFERENCE POINTS .........................................................................................8 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 7 FCC RF EXPOSURE LIMITS ........................................................................................................ 12 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 9 RF CONDUCTED POWERS ......................................................................................................... 15 10 SYSTEM VERIFICATION .............................................................................................................. 18 11 SAR DATA SUMMARY ................................................................................................................. 20 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 24 13 EQUIPMENT LIST ......................................................................................................................... 26 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 27 15 CONCLUSION ............................................................................................................................... 28 16 REFERENCES .............................................................................................................................. 29 FCC ID: ZNFL96G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 30 0Y1204100444.ZNF 04/09/12 - 04/16/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS 850824.20 - 848.80 MHz WCDMA 850826.40 - 846.60 MHz GSM/GPRS 19001850.20 - 1909.80 MHz WCDMA 19001852.4 - 1907.6 MHz 2.4 GHz WLAN2412 - 2462 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Figure 1-1 DUT Antenna Locations FCC ID: ZNFL96G SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 30 0Y1204100444.ZNF 04/09/12 - 04/16/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1.3 SAR Test Exclusions Applied (A) WIFI/BT The separation between the main antenna and the Bluetooth and WLAN antennas is 94.1 mm. RF Conducted Power of Bluetooth Tx is 6.383 mW. RF Conducted Power of WLAN is 33.04 mW. 2.4 GHz WIFI and Bluetooth share the same antenna path and cannot transmit simultaneously. Please refer to DSS EMC report fi…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFL96G FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1204100446.ZNF Apr. 23 - May 9, 2012 Portable Handset Page 1 of 40 © 2012 PCTEST Engineering Laboratory, Inc. REV 2.0WBGNFI 04/12/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A Apr. 23 - May 9, 2012 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1204100446.ZNF FCC ID: ZNFL96G APPLICANT: LG Electronics MobileComm U.S.A Application Type: Certification Model(s): LGL96G, LGL96g, LG-L96G, LG-L96g, L96G, L96g EUT Type: Portable Handset FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Procedure(s): ANSI C63.4-2003, KDB 558074 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 802.11b 2412 - 246233.03715.1964.12118.07 802.11g 2412 - 246220.98913.22113.76320.56 802.11n 2412 - 246217.14012.3497.05119.87 Avg Conducted Mode Tx Frequency (MHz) Peak Conducted This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: ZNFL96G FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1204100446.ZNF Apr. 23 - May 9, 2012 Portable Handset Page 2 of 40 © 2012 PCTEST Engineering Laboratory, Inc. REV 2.0WBGNFI 04/12/2012 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 TEST CONFIGURATION ........................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.5 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS......................................................................................................... 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G/N............................................................................... 17 6.4 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 18 6.5 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 24 6.6 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 28 6.7 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 32 6.8 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 36 6.9 LINE-CONDUCTED TEST DATA................................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFL96G SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 04/09/12 - 04/16/12 Portable Handset Page D1 of D4 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 A P P E N D I X D : S A R T E S T S E T U P P H O T O G R A P H S Reviewed by: FCC ID: ZNFL96G SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 04/09/12 - 04/16/12 Portable Handset Page D2 of D4 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 1 – Right Touch SAR Test Setup Photo 2 – Right Tilt Reviewed by: FCC ID: ZNFL96G SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 04/09/12 - 04/16/12 Portable Handset Page D3 of D4 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 3 – Left Touch SAR Test Setup Photo 4 – Left Tilt Reviewed by: FCC ID: ZNFL96G SAR EVALUATION REPORT Quality Manager Test Dates: DUT Type: 04/09/12 - 04/16/12 Portable Handset Page D4 of D4 © 2012 PCTEST Engineering Laboratory, Inc. REV 11.1M 02/20/2012 SAR Test Setup Photo 5 – Body-Worn at 1.5 cm Note: Headset Cable is connected to the device during body-worn SAR assessment, as seen above.

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2012 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFL96G Model: LGL96G Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2012 PCTEST Engineering Laboratory Inc.
