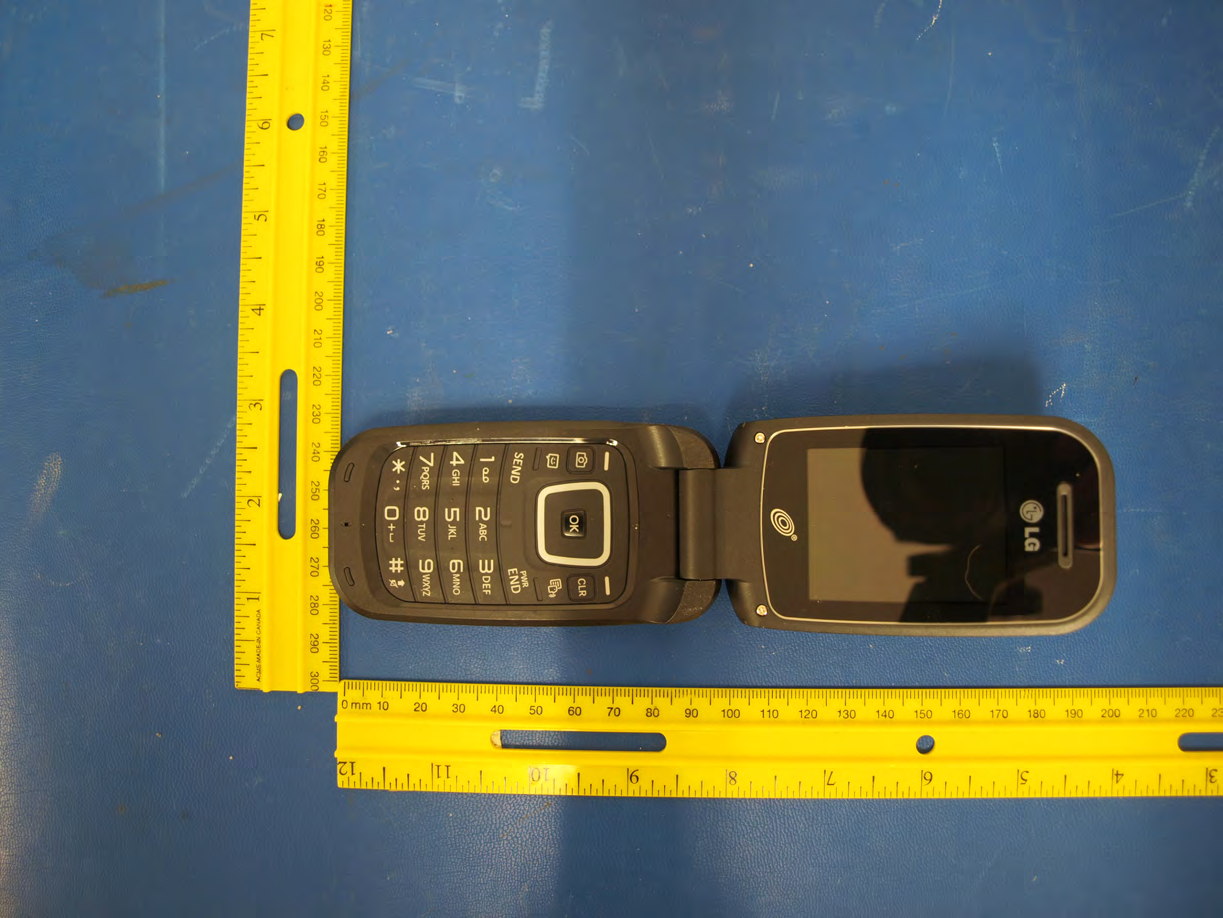

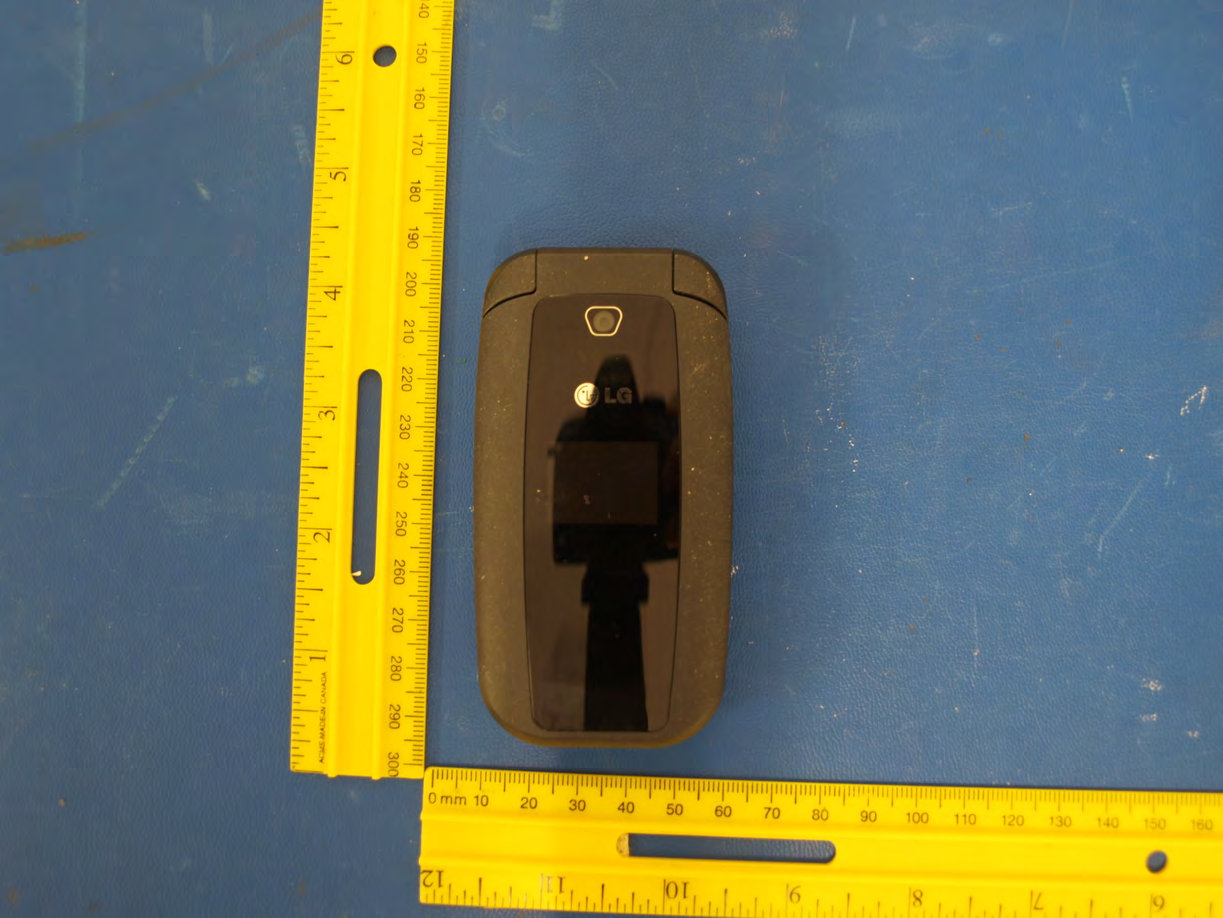

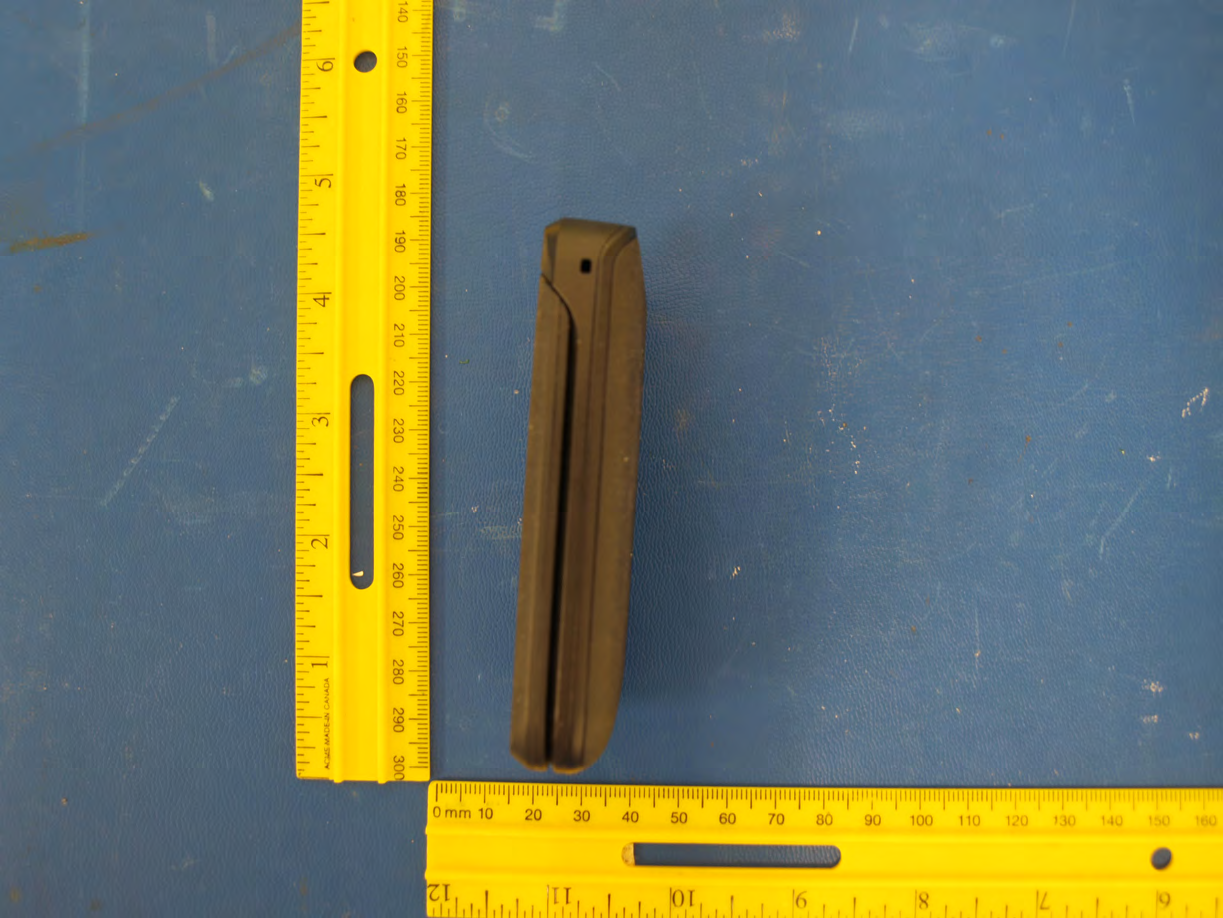

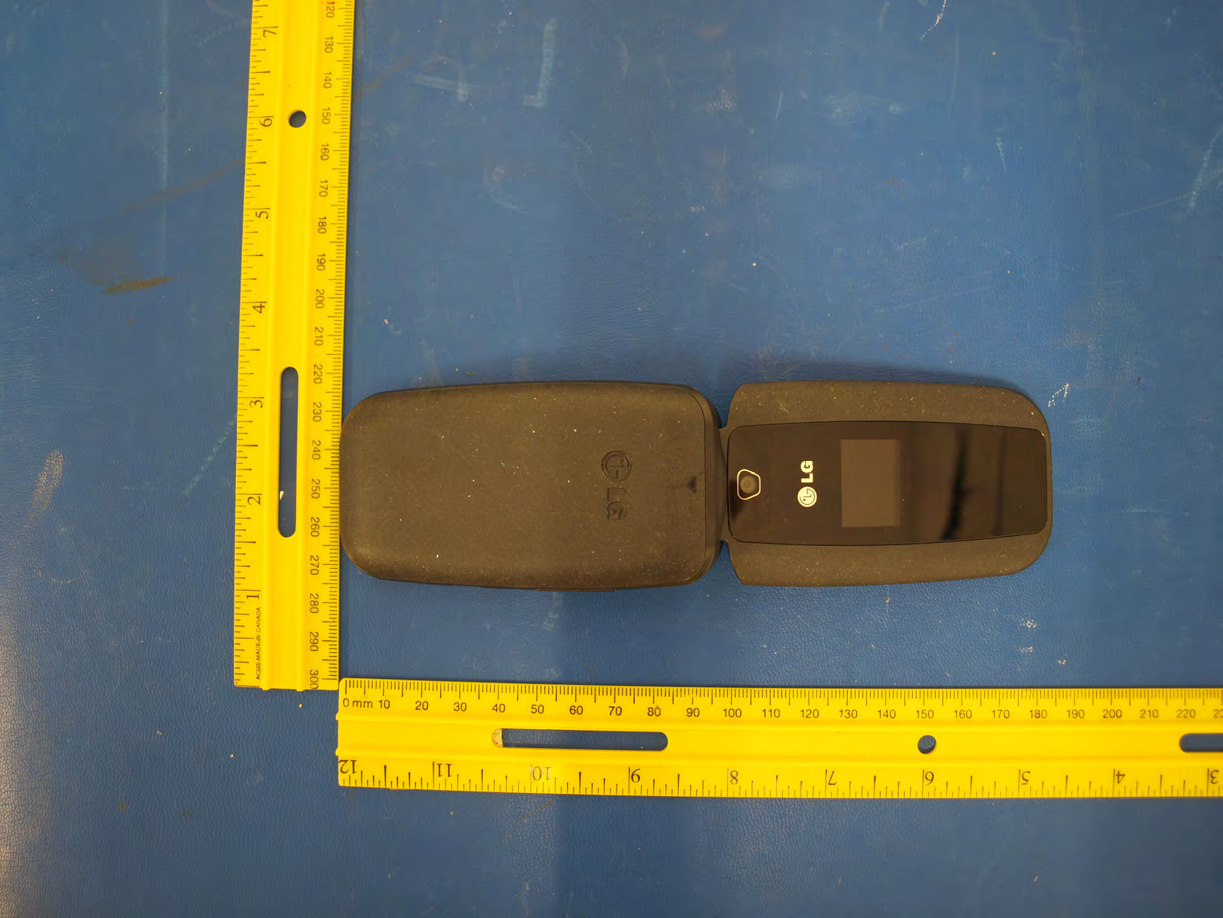

ZNFLG440GDUAL BAND PHONE + BT 2.1 EDR

LG 440G User Guide All screen shots in this guide are simulated. Actual displays and the color of the phone may vary. Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. www.lg.comP/NO: MFL (1.0) LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS : LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: 1.The limited warranty for the product extends for TWELVE (12) MONTHS beginning on the date of purchase of the product with valid proof of purchase, or absent valid proof of purchase, FIFTEEN (15) MONTHS from date of manufacture as determined by the unit’s manufacture date code. 2.The limited warranty extends only to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. 3.This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S, including Alaska, Hawaii, U.S. Territories and Canada. 4.The external housing and cosmetic parts shall be free of defects at the time of shipment and, therefore, shall not be covered under these limited warranty terms. 5.Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. 6.The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER : 1.Defects or damages resulting from use of the product in other than its normal and customary manner. 2.Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping, blown fuses, spills of food or liquid. 3.Breakage or damage to antennas unless caused directly by defects in material or workmanship. 4. That the Customer Service Department at LG was not notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. 5.Products which have had the serial number removed or made illegible. 6.This limited warranty is in lieu of all other warranties, express or implied either in fact or by operations of law, statutory or otherwise, including, but not limited to any implied warranty of marketability or fitness for a particular use. 7.Damage resulting from use of non-LG approved accessories. 8.All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. 9.Products operated outside published maximum ratings. 10.Products used or obtained in a rental program. 11.Consumables (such as fuses). 3. WHAT LG WILL DO: LG will, at its sole option, either repair, replace or refund the purchase price of any unit that does not conform to this limited warranty. LG may choose at its option to use functionally equivalent reconditioned, refurbished or new units or parts or any units. In addition, LG will not re-install or back-up any data, applications or software that you have added to your phone. It is therefore recommended that you back-up any such data or information prior to sending the unit to LG to avoid the permanent loss of such information. 4. STATE LAW RIGHTS : No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of limitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 5. HOW TO GET WARRANTY SERVICE : To obtain warranty service, please call or fax to the following telephone numbers from anywhere in the continental United States: Tel. 1-800-793-8896 or Fax. 1-800-448-4026 Or visit www.lg.com. Correspondence may also be mailed to: LG Electronics MobileComm U.S.A., Inc. 201 James Record Road Huntsville, AL 35824 DO NOT RETURN YOUR PRODUCT TO THE ABOVE ADDRESS. Please call or write for the location of the LG authorized service center nearest you and for the procedures for obtaining warranty claims. Table of Contents Your Phone ......................8 Phone Components ................... 8 Rear view .......................... 10 Getting Started ..................11 Installing the SIM card and battery ..... 11 Charging your phone ................. 13 General Functions ...............15 Making a Call ....................... 15 Answering a Call .................... 16 Adjusting the Volume ................. 17 Entering Text ........................ 17 In-Call Menu ....................22 During a Call ........................ 22 Making a Second Call .................. 22 Swapping Between Two Calls ............. 22 Answering an Incoming Call .............. 22 Rejecting an Incoming Call ............... 22 Muting the Microphone ................. 23 Using the Speakerphone ................ 23 Conference Calls .................... 23 Making a Second Call .................. 24 Setting Up a Conference Call ............. 24 Place the Conference Call on Hold ......…

Text truncated - open the document above for the full version.

Date: May 15, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc REMARK: 1.This authorization letter will be sent along with your application when filing with the Certification Division. 2.Please follow the format and type it on company letterhead and send original to us. 3.Authorized signature must be in agreement with grantee code contact in FCC database.

          !"# Date: April 13#2 Federal Communications Commission Authorization and Evaluation Division 7435 Oakl and Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFLG440G Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying thi s application. The materi als contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Date: April 13, 2012 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFLG440G Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Christopher Johnson Senior Manager On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LGElectronicsMobileCommU.S.A FCCID:ZNFLG440G Part20.19Certification ToWhomItMayConcern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. Date: April 13, 2012 Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Christopher Johnson Senior Manager On behalf of LG Electronics MobileComm U.S.A, Inc. FCC ID: ZNFLG440G Model: LG440G, LG440g Air Interfaces: GSM/WCDMA Wireless Technologies: GPRS/EDGE/HSDPA Bands: GSM850/GSM1900/W850/W1900 Key Features: Bluetooth MP3 player, Camera GPS

1 Briggs, Mark From:Zaffar, Aliza <[email protected]> Sent: Wednesday, September 12, 2012 4:36 PM To: Chris Harvey; Jain, Neena; 'Chris Harvey -TCB' Cc: Hoque, Claire; mark Briggs Subject: RE: LG TCB C2PC submission AN12T0619//Grants attached AN12T0619 - FCC Audit Attachments: 12U14353-1C FCC 22_24 Report Final_No photos.pdf Mark and Chris, Please find attached WWAN report. Report is revised for: Updated GSM / GPRS PCS Band on Power Table. The original summary table showed highest power as 29.8dBm for the 1900 MHz GSM data but the actual highest measured conducted power was 30.30dBm. Regards, Aliza

Model No: LG440G FCC ID : ZNFLG440G S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 20120404_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.975 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(8.84, 8.84, 8.84); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1017 Body, Pin=100 mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.21 mW/g Body, Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.9 V/m; Power Drift = -0.052 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.01 mW/g; SAR(10 g) = 0.664 mW/g Maximum value of SAR (measured) = 1.22 mW/g 0 dB = 1.22mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 20120404_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Body, Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.22 mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 20120404_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.883 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(8.68, 8.68, 8.68); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM B (Twin); Type: SAM B; Serial: TP-105 Head, Pin=100 mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.19 mW/g Head, Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 37.6 V/m; Power Drift = -0.029 dB Peak SAR (extrapolated) = 1.46 W/kg SAR(1 g) = 0.992 mW/g; SAR(10 g) = 0.652 mW/g Maximum value of SAR (measured) = 1.20 mW/g 0 dB = 1.20mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 20120404_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Head, Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.20 mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 20120404_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.51 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(6.97, 6.97, 6.97); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1017 Body, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.97 mW/g Body, Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.0 V/m; Power Drift = 0.090 dB Peak SAR (extrapolated) = 7.35 W/kg SAR(1 g) = 4.02 mW/g; SAR(10 g) = 2.11 mW/g Maximum value of SAR (measured) = 5.37 mW/g 0 dB = 5.37mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 20120404_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Body, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.33 mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/5/2012 20120405_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.42 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(7.67, 7.67, 7.67); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A (Twin); Type: SAM A; Serial: 1050 Head, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.05 mW/g Head, Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.1 V/m; Power Drift = 0.142 dB Peak SAR (extrapolated) = 7.79 W/kg SAR(1 g) = 4.08 mW/g; SAR(10 g) = 2.1 mW/g Maximum value of SAR (measured) = 5.51 mW/g 0 dB = 5.51mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/5/2012 20120405_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Head, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.48 mW/g

Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(8.68, 8.68, 8.68); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM B (Twin); Type: SAM B; Serial: TP-105 Left Touch/GMSK (Voice)/Ch 190/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.783 mW/g Left Touch/GMSK (Voice)/Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 30.2 V/m; Power Drift = 0.065 dB Peak SAR (extrapolated) = 1.00 W/kg SAR(1 g) = 0.679 mW/g; SAR(10 g) = 0.444 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.828 mW/g 0 dB = 0.828mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8 Left Touch/GMSK (Voice)/Ch 190/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.739 mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(8.68, 8.68, 8.68); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used))Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM B (Twin); Type: SAM B; Serial: TP-105 Left Tilt/GMSK (Voice)/Ch 190/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.277 mW/g Left Tilt/GMSK (Voice)/Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.0 V/m; Power Drift = 0.060 dB Peak SAR (extrapolated) = 0.309 W/kg SAR(1 g) = 0.254 mW/g; SAR(10 g) = 0.187 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.278 mW/g 0 dB = 0.278mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(8.68, 8.68, 8.68); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM B (Twin); Type: SAM B; Serial: TP-105 Right Touch/GMSK (Voice)/Ch 190/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.592 mW/g Right Touch/GMSK (Voice)/Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.8 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 0.850 W/kg SAR(1 g) = 0.494 mW/g; SAR(10 g) = 0.326 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.605 mW/g 0 dB = 0.605mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.884 mho/m; ε r = 41.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(8.68, 8.68, 8.68); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM B (Twin); Type: SAM B; Serial: TP-105 Right Tilt/GMSK (Voice)/Ch 190/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.223 mW/g Right Tilt/GMSK (Voice)/Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.4 V/m; Power Drift = 0.044 dB Peak SAR (extrapolated) = 0.254 W/kg SAR(1 g) = 0.207 mW/g; SAR(10 g) = 0.150 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.229 mW/g 0 dB = 0.229mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.976 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(8.84, 8.84, 8.84); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1017 Rear/GPRS 2 slots/Ch 190/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.521 mW/g Rear/GPRS 2 slots/Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.3 V/m; Power Drift = -0.126 dB Peak SAR (extrapolated) = 0.635 W/kg SAR(1 g) = 0.482 mW/g; SAR(10 g) = 0.345 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.551 mW/g 0 dB = 0.551mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4 Rear/GPRS 2 slots/Ch 190/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.513 mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/201…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab D Date: 4/5/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(7.67, 7.67, 7.67); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A (Twin); Type: SAM A; Serial: 1050 Left Touch/GMSK (Voice)/Ch 661/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.259 mW/g Left Touch/GMSK (Voice)/Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.1 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 0.361 W/kg SAR(1 g) = 0.239 mW/g; SAR(10 g) = 0.144 mW/g Maximum value of SAR (measured) = 0.295 mW/g Left Touch/GMSK (Voice)/Ch 661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.1 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 0.347 W/kg SAR(1 g) = 0.195 mW/g; SAR(10 g) = 0.104 mW/g Maximum value of SAR (measured) = 0.261 mW/g 0 dB = 0.261mW/g Cube 0 Cube 1 Test Laboratory: UL CCS SAR Lab D Date: 4/5/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8 Left Touch/GMSK (Voice)/Ch 661/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.259 mW/g Left Touch/GMSK (Voice)/Ch 661/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.275 mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/5/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(7.67, 7.67, 7.67); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A (Twin); Type: SAM A; Serial: 1050 Left Tilt/GMSK (Voice)/Ch 661/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.125 mW/g Left Tilt/GMSK (Voice)/Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.63 V/m; Power Drift = 0.008 dB Peak SAR (extrapolated) = 0.158 W/kg SAR(1 g) = 0.104 mW/g; SAR(10 g) = 0.063 mW/g Maximum value of SAR (measured) = 0.126 mW/g 0 dB = 0.126mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/5/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(7.67, 7.67, 7.67); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A (Twin); Type: SAM A; Serial: 1050 Right Touch/GMSK (Voice)/Ch 661/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.215 mW/g Right Touch/GMSK (Voice)/Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.4 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 0.269 W/kg SAR(1 g) = 0.184 mW/g; SAR(10 g) = 0.116 mW/g Maximum value of SAR (measured) = 0.217 mW/g Right Touch/GMSK (Voice)/Ch 661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.4 V/m; Power Drift = 0.030 dB Peak SAR (extrapolated) = 0.229 W/kg SAR(1 g) = 0.130 mW/g; SAR(10 g) = 0.073 mW/g Maximum value of SAR (measured) = 0.177 mW/g 0 dB = 0.177mW/g Cube 0 Cube 1 Test Laboratory: UL CCS SAR Lab D Date: 4/5/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.4 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(7.67, 7.67, 7.67); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A (Twin); Type: SAM A; Serial: 1050 Right Tilt/GMSK (Voice)/Ch 661/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.120 mW/g Right Tilt/GMSK (Voice)/Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.36 V/m; Power Drift = -0.004 dB Peak SAR (extrapolated) = 0.159 W/kg SAR(1 g) = 0.103 mW/g; SAR(10 g) = 0.061 mW/g Maximum value of SAR (measured) = 0.124 mW/g 0 dB = 0.124mW/g Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:4; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.49 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 ; DASY4 Configuration: - Electronics: DAE3 Sn427; Calibrated: 1/17/2012 - Probe: EX3DV4 - SN3749; ConvF(6.97, 6.97, 6.97); Calibrated: 1/27/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: Flat Phantom ELI4.0; Type: QDOVA001BB; Serial: SN:1017 Rear/GPRS 2 slots/Ch 661/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.168 mW/g Rear/GPRS 2 slots/Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 0.212 W/kg SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.090 mW/g Maximum value of SAR (measured) = 0.172 mW/g Rear/GPRS 2 slots/Ch 661/Zoom Scan 2 (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.8 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 0.194 W/kg SAR(1 g) = 0.113 mW/g; SAR(10 g) = 0.063 mW/g Maximum value of SAR (measured) = 0.147 mW/g 0 dB = 0.147mW/g Cube 0 Cube 1 Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:4 Rear/GPRS 2 slots/Ch 661/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of S…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab D Date: 4/4/2012 W-CDMA (UMTS) Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room …
