ZNFLGL25Cellular/PCS GSM/EDGE and Cellular WCDMA Phone with WLAN, Bluetooth and RFID

LGL25 Notes on Usage MFL68687301 December 2014, 1st Edition In case above numbers are not available, call numbers below. (toll free) 0077-7-111157 0077-7-113113 For general, charge, operations (toll free) Business hours 9:00-20:00 (7 days a week) For service canceling procedure in case of loss or theft (toll free) Business hours 24-hour (7 days a week) From fixed-line phones: PRESSING ZERO WILL CONNECT YOU TO AN OPERATOR AFTER CALLING 157 ON YOUR au CELL PHONE From au cell phones: From fixed-line phones:From au cell phones: area code not required area code not required (except Okinawa) (Okinawa) 0120-977-033 0120-977-699 Business hours 9:00-21:00 (7 days a week) 0120-925-919 For loss, theft or damage(toll free) From fixed-line phones/au cell phones, Cell phone and PHS operators collect and recycle unused telephones, batteries and battery chargers at stores bearing the lo go regardless of brand and manufacturer to protect the environment and reuse valuable resources. Exemptions • The Company is not liable for any damages arising from earthquakes, lightning, storms, floods or other natural disasters, as well as fires, actions by third parties, other accidents, intentional or mistaken misoperation by the customer, or use under other unusual conditions outside the responsibility of the Company. • The Company is not liable for any incidental damages (change/disappearance of described content, loss of business income, disruption of business, etc.) arising from use or inability to use the product. • The Company is not liable for any damages arising from failure to observe the described content of the "Instruction Manual". • The Company is not liable for any damages arising, for example, from malfunction caused by combination with connected devices or software not related to the Company. • Captured image data or downloaded data may sometimes be altered or lost due to malfunctions, repair or other handling of the product. The Company is not liable for any damage or lost income resulting from recovery of these data. • It is recommended you keep a copy of important data on your PC's hard disk, etc. Whatever the cause of the defect or malfunction may be, the Company assumes no responsibility for alteration or loss of saved data. * "The Company" as appears in this manual refers to the following companies: Sold by: KDDI CORPORATION, OKINAWA CELLULAR TELEPHONE COMPANY Imported by: LG Electronics Japan, Inc. Manufactured by: LG Electronics Inc. • Reproduction of the content of this manual in part or in whole is prohibited. • The content of this manual is subject to change without notice. • Every effort has been made in the preparation of this manual. Should you notice any unclear points, omissions, etc., feel free to contact us. Safety Precautions (Observe Strictly) ■■ Before■using■the■product,■thoroughly■read■these■safety■precautions■for■proper■ use.■After■reading,■store■the■precautions■in■a■safe■place. ●These "Safety Precautions" describe instructions that should be observed to prevent damage to property or injury to the customer or others using the product. ●These instructions are divided into the following categories. ■■ Explanation■of■instructions This symbol indicates "the potential and imminent danger of death or serious injury *1 to a person". This symbol indicates "the possibility of death or serious injury to a person". This symbol indicates "the possibility of personal minor injury *2 to a person or physical damage *3 ". *1 Serious injury : This refers to loss of sight, injury, burns (high- and low-temperature), electric shock, broken bones, injuries with residual aftereffects from poisoning, etc., and injuries requiring hospital admission for treatment or long term hospital attendance as an outpatient. *2 Minor injury: This refers to injuries, burns (high- and low-temperature), electric shock, etc. that do not require hospital admission for treatment or long-term hospital attendance as an outpatient. *3 Physical damage: This refers to extended damage to buildings, furniture, livestock, or pets. ■■ Explanation■of■graphic■symbols Don’t Indicates■an■action■that■is■ not■allowed. Not liquids Indicates■that■use■in■a■place■ where■the■product■is■likely■to■ get■wet■or■allowing■the■product■ to■get■wet■is■not■allowed. No wet hands Indicates■that■handling■with■ wet■hands■is■not■allowed. Do Indicates■an■action■that■must■ be■done. Not disassembly Indicates■that■disassembly■ is■not■allowed. Unplug Indicates■that■the■power■plug■ must■be■disconnected■from■the■ power■outlet. ■■ Precautions■common■to■the■main■unit,■battery■pack,■charging■equipment,■au■ Micro■ IC■Card■(LTE),■peripheral■devices Be■sure■to■read■the■following■hazards■before■use. Do Be sure to use only the specified peripheral devices. Use of other devices might cause overheating, ignition, rupture, malfunction, or leakage of liquid. Don’t Do not use, store or leave the product in hot places (e.g. by the fire, near a heater, under a kotatsu, in direct sunlight, in a car in the hot sun). Doing so might cause ignition, rupture, malfunction, fire or injury. Do Before entering an area where flammable gas is generated such as a gas station, be sure to turn off this product. Do not charge the battery. Failure to do so might cause the gas to catch fire. Don’t Do not put the product in a cooking apparatus such as a microwave oven or a pressure vessel. Doing so might cause ignition, rupture, malfunction, fire or injury. Don’t Do not throw the product into a fire or heat it. Doing so might cause ignition, rupture or fire. Don’t Do not short-circuit the external connection terminal, earphone jack, etc. Do not allow conductive foreign objects (metal fragments, pencil leads, etc.) to come into contact with or get inside the connection terminal, earphone jack, etc. Doing so might cause fire, malfunction or burns due to overheating. Don’t When using metal accessories, etc., do not let the metal part come in contact with the connection terminal or power outlet whi…

Text truncated - open the document above for the full version.

Date: October 31, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. PCTEST TCB 6660-A Dobbin Road Columbia, MD 21045, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong or Hyunchae You of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong or Hyunchae You of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the cer tification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, in specti on, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which cert ific ation has been granted; d)do not use our product certification in such a manner as to bring the Certification Division int o disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthori zed;  LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A., Inc.

Date: October 31, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFLGL25 Equipment Class: DXX: Low Power Communications Device Transmitter To Whom It May Concern: Pu rsuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. Th e materials contain trade secrets and proprietary information not c ustomarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhib its are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics Mobilecomm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

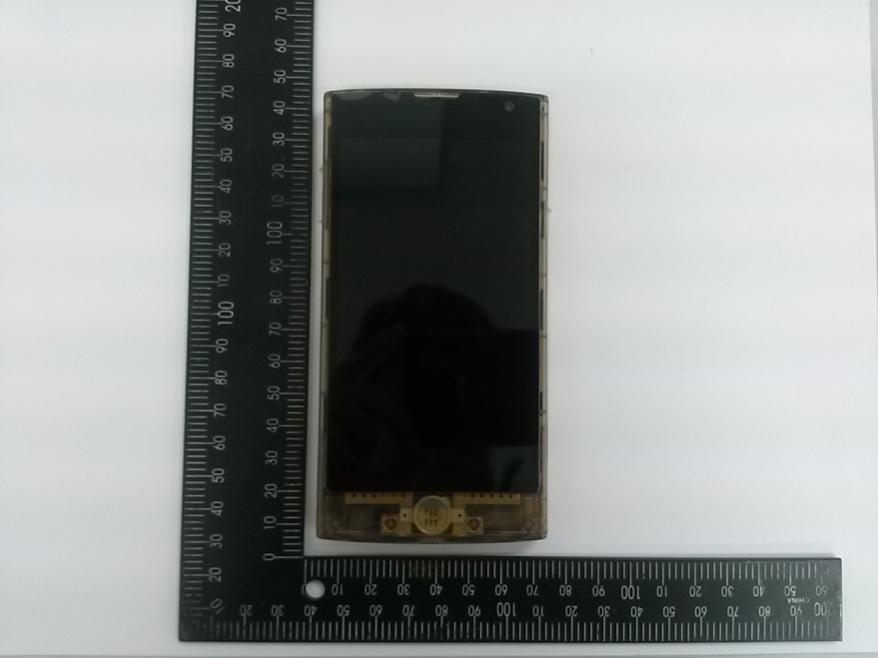

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

Model No: LGL25 FCC ID : ZNFLGL25 S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

Report Number : F690501/RF-RTL008133 Page: 2 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) INDEX TABLE OF CONTENTS Page 1. General Information ------------------------------------------------------------------------------- 3 2. AC Power Line Conducted Emissions -------------------------------------------------------- 6 3. Radiated Emissions ------------------------------------------------------------------------------- 11 4. Frequency Stability -------------------------------------------------------------------------------- 16 5. 20 ㏈ Bandwidth ---------------------------------------------------------------------------------- 19 Report Number : F690501/RF-RTL008133 Page: 3 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 2FL, 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-837 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : + 82 31 688 0901 Fax No. : + 82 31 688 0921 1.2. Details of Applicant Applicant : LG Electronics MobileComm U.S.A., Inc. Address : 10101 Old Grove Road, San Diego, CA 92131 Contact Person : An, Hee-Ju Phone No. : +82 2 2033 1103 1.3. Description of EUT Kind of Product Cellular/PCS GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA Smart Phone Model Name LGL25 Power Supply DC 3.8 V Frequency Range 13.56 ㎒ (NFC) Modulation Technique ASK Number of Channels 1 channel (NFC) Antenna Type Internal type (SISO) Report Number : F690501/RF-RTL008133 Page: 4 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.4. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator Agilent E8257D MY51501169 Jul. 17, 2014 Annual Jul. 17, 2015 Spectrum Analyzer Agilent N9030A MY53120526 Jul. 17, 2014 Annual Jul. 17, 2015 Spectrum Analyzer R&S FSV30 100768 Mar. 27, 2014 Annual Mar. 27, 2015 High Pass Filter Mini circuits NHP-25+ V9741901107 Mar. 21, 2014 Annual Mar. 21, 2015 Attenuator MCLI FAS-12-10 1 Jun. 20, 2014 Annual Jun. 20, 2015 DC Power Supply Agilent U8002A MY49030063 Dec. 12, 2013 Annual Dec. 12, 2014 Temperature Chamber ESPEC CORP. PL-1J 15000793 Jun. 25, 2014 Annual Jun. 25, 2015 Preamplifier H.P. 8447F 2944A03909 Aug. 27, 2014 Annual Aug. 27, 2015 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 396 Jun. 07, 2013 Biennial Jun. 07, 2015 Loop Antenna SCHWARZBECK MESSELEKTRONIK FMZB 1519 1519-039 Jul. 09, 2013 Biennial Jul. 09, 2015 Test Receiver R&S ESU26 100109 Mar. 04, 2014 Annual Mar. 04, 2015 Test Receiver R&S ESCI 7 100911 Jan. 24, 2014 Annual Jan. 24, 2015 Antenna Master INN-CO MM4000 N/A N/A N/A N.C.R. Turn Table INN-CO DS 1200 S N/A N/A N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N/A N/A N.C.R. Two-Line V-Network R&S ENV216 100190 Jan. 02, 2014 Annual Jan. 02, 2015 Shield Room SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/A N.C.R. N/A N.C.R. Report Number : F690501/RF-RTL008133 Page: 5 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Summary of Test Results The EUT has been tested according to the following specifications: Applied standard : FCC Part15 subpart C Standard section Test item Result 15.207 AC Power Line Conducted Emissions Complied 15.225(a)(b)(c)(d) 15.209 Radiated emissions Complied 15.225(e) Frequency Stability Complied 15.215(c) 20 ㏈ Bandwidth - 1.6. Sample calculation Where relevant, the following sample calculation is provided: 1.6.1. Conducted test Offset value (㏈) = Attenuator (㏈) + Cable loss (㏈) 1.6.2. Radiation test Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) - amplifier (㏈) 1.7. Test report revision Revision Report number Date of Issue Description 0 F690501/RF-RTL008133 2014.10.31 Initial Report Number : F690501/RF-RTL008133 Page: 6 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. AC power line conducted emissions 2.1. Test Setup 2.1.1. Actual equipment used for AC power line conducted emission Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Gener…

Text truncated - open the document above for the full version.

Test setup photos of EUT 1. Orthogonal planes of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). A. X- axis B. Z-axis C. Y-axis 2. Worst case of orthogonal planes each frequency band - Test setup photos for each mode were reported as representative worst axis after radiated measurements for each position were complete. 2.1. WLAN, BT, NFC, DFS GSM850, GSM1900, WCDMA850 Setup photos A. Radiated Spurious Emission (Below 30 MHz) B. Radiated Spurious Emission (30 MHz – 1 GHz) C. Radiated Spurious Emission (Above 1 GHz) D. AC Power Line Conducted Emission (WLAN, NFC) E. AC Power Line Conducted Emission (BT) F. DFS
