ZNFLN272Cellular/PCS CDMA Phone with Bluetooth

User Manual LN272 Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.79 inches (2 cm) from the body. To comply with FCC RF exposure requirements, a minimum s eparation distance of 0.79 inches (2 cm) must be maintained between the user’s body and the ba ck of the phone, including the antenna, whether extended or retracted. Third-party belt-clips, holsters and similar accessories containing metallic components should not be used. Body-worn accessories that cannot maintain 0.79 inch (2 cm) separation distance between the user’s body and t he back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. FCC Part 15.19 statement This device and its accessories comply with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that cause undesired operation. FCC Part 15.21 statement Changes or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. FCC Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Getting Started Unlocking Your Phone If you received your LN272 in the mail, you may need to unlock it before making calls. 1. Press the END/PWR Switch for 23 seconds. 2. Press soft key Unlock. 3. Enter your four-digit lock code. For security purposes, the code will not be visible as you type. Note: If you can’t recall your lock code, try using the last four digits of your Social Security number, the last four digits of your Phone Number or 0000. View of Phone 1. END/PWR Switch: Lets you power the phone on or off. 2. Antenna: Retractable antenna provides optimum reception for 800 MHz & 1900 MHz frequencies. 3. Power On Indicator: Illuminates red when the phone powers on or when you receive incoming calls. Flashes red when you have messages of scheduled alarms. 4. Headset Jack: Provides connection for an optional headset. 5. Volume Control Keys: Adjust the Ring Volume in the Main Menu or the Voice Volume during a call. The keys also scroll through mouths in the Calendar or pages in the MiniBrowser. Installing and Removing the Battery To install the battery, insert the bottom of the battery into the opening on the back of the phone. Then, push the battery down until the latch clicks. To remove the battery, press down on the latch and remove the battery from the phone. Turning Your Phone On and Off To turn your phone on, move the On/Off Switch (near the antenna) to the ON position. Your phone performs a short self-test before letting you know it is operational. If your phone does not turn on, make sure the battery is installed correctly and is adequately charged or has external power (via the AC Adapter, Cigarette Lighter Adapter or Hands-Free Car Kit). To turn your phone off, move the On/Off Switch to the OFF position. Main Menu When your phone acquires Service, the Greeting (a banner of text), the current time and date and the Main Menu are displayed. If you are in authorized analog cellular provider’s service area, you are ready to send and receive calls. Power Save Mode When the phone is in an area without service for 15 minutes, it stops searching for service and enters into the power Save Mode. When your phone activates this feature, Power Save is displayed on your screen. The phone automatically checks for service periodically or you can check manually by pressing any key. Entering Characters Using the Keypad(T9) To enter a letter, punctuation or number when creating Phone Book or Scheduler entries, press the corresponding key until the desired character appears. By default, the first letter of a word is capitalized and following letters are lowercase. Characters in the following order: 1 . ? , ‘ & - @ ( ) / P Q R S 7 p q r s A B C 2 a b c 2 T U V 8 t u v 8 D E F 3 d e f 3 W X Y Z 9 w x y z 9 G H I 4 g h i 4 Next 0 J K L 5 j k l 5 Shift M N O 6 m n o 6 Space After a character is entered, the cursor automatically advances to the next space after two seconds. You can also advance the cursor by pressing or entering a character not on the same key. If you make a mistake, press to move the cursor left or [CLR] to erase a character. To clear the entire entry, press and hold [CLR] for two seconds. 1 7PQRS 9WXYZ 8TUV 6MNO 5J 4G 3DEF ABC 1 * 0Space Display Icons Display icons are the symbols your phone uses to communicate important information. They are as follows: ICON DESCRIPTION 3G Icon DO Icon Alarm Battery Antenna No service Location On/Off Voice Privacy Ringer Roaming TTY Antenna The antenna on your phone provides maximum reception by extending of retracting it. !!! WARNING – CHOKING HAZARD – ANTENNA MAY BECOME DISLODGED Attempting to remove or repeated twisting of the antenna will loos…

Text truncated - open the document above for the full version.

Date: August 29 2011 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LGElectronicsMobileCommUSA Date: August 29, 2011 SUBJECT:LGElectronicsMobileCommU.S.A FCC ID: ZNFLN272 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID: ZNFLN272 Air Interfaces: CDMA Wireless Technologies: EVDO Bands: CDMA835/PCS1900/BC10 Bluetooth Should you have any questions or comments concerning the above Key Features: Bluetooth MP3 player, Camera GPS Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Christopher Johnson Senior Manager LG Electronics USA

Date: August 29, 2011 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFLN272 Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Christopher Johnson Senior Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: August 29#1 Federal Communications Commission Authorization and Evaluation Division 7435 Oaklan d Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFLN272 Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercia lly sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Christopher Johnson Senior Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

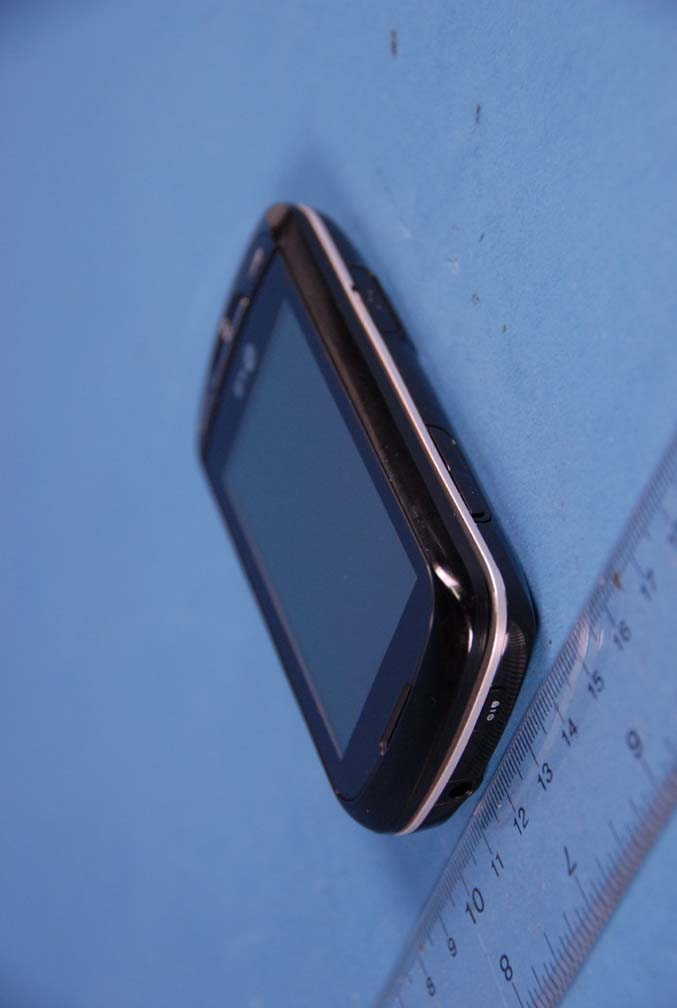

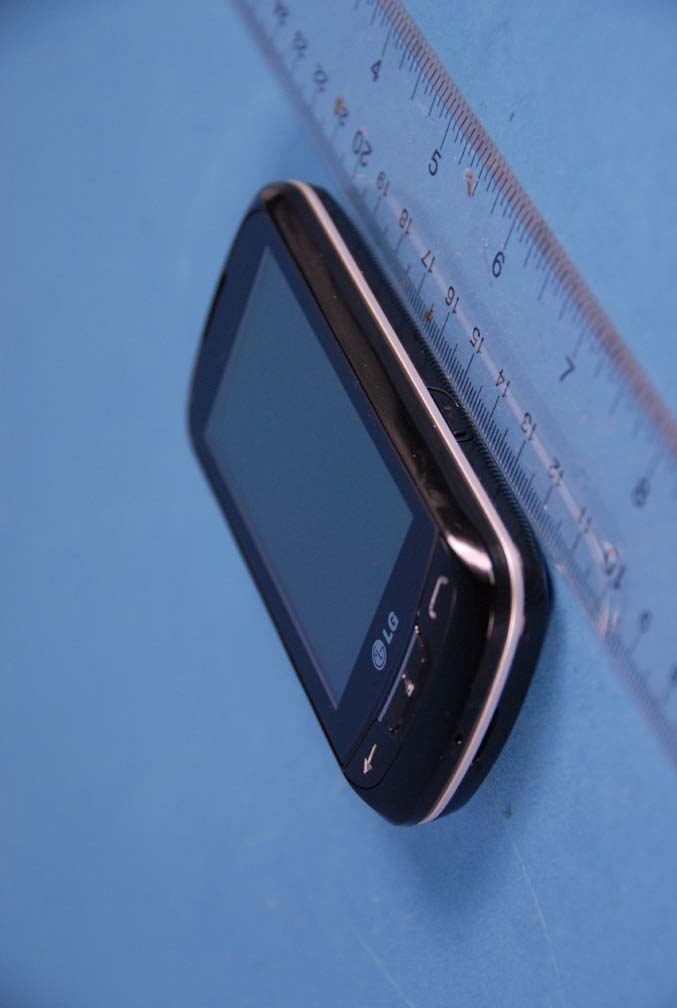

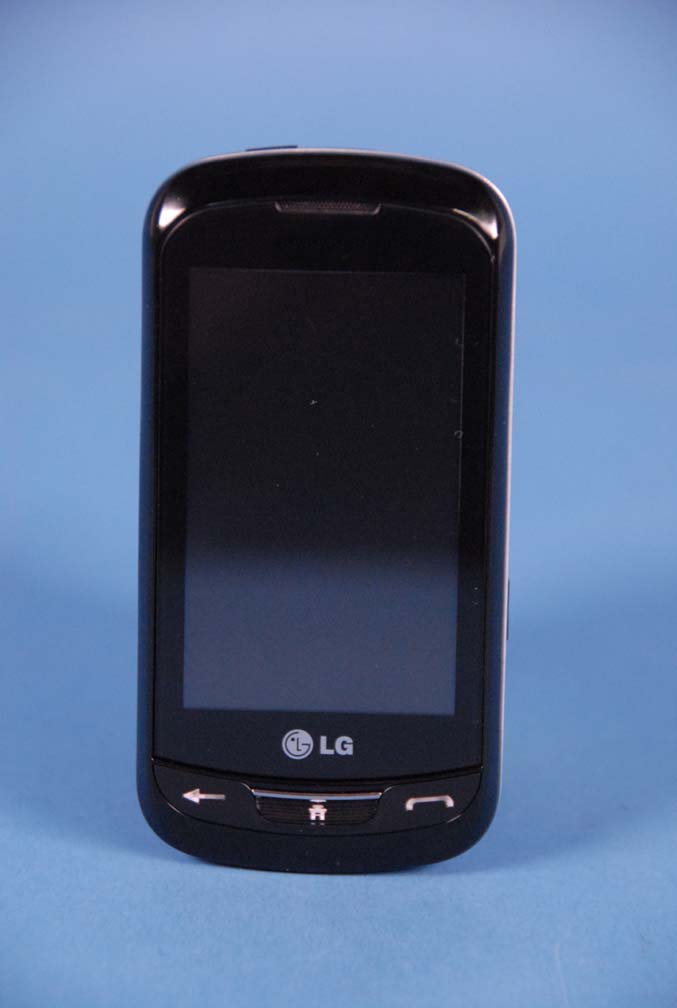

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 External Photos EUT Type: Portable Handset Page 1 of 5 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 External Photos EUT Type: Portable Handset Page 2 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 External Photos EUT Type: Portable Handset Page 3 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 External Photos EUT Type: Portable Handset Page 4 of 5 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 External Photos EUT Type: Portable Handset Page 5 of 5 © 2011 PCTEST Engineering Laboratory Inc.

Model No: LN272 FCC ID : ZNFLN272 S/N : Made in Korea LG Electronics Inc. LGE

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 1 of 13 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 2 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 3 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 4 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 5 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 6 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 7 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 8 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 9 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 10 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 11 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 12 of 13 © 2011 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFLN272 Model: LN272 Internal Photos EUT Type: Portable Handset Page 13 of 13 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: ZNFLN272 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 30 0Y1109021526.ZNF 09/15/11 - 09/21/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 09/15/11 - 09/21/11 10101 Old Grove Road, Test Site/Location: San Diego, CA 92131 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0Y1109021526.ZNF F C C I D : ZNF LN2 7 2 AP P L I C AN T : LG E LE CT RO NI CS MO B ILE CO M M U. S . A., I NC. EUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] LN272, LG-LN272, LGLN272, LG272 Test Device Serial No.: Pre-Production [S/N: RF] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) Cell. CDMA - FCC Rule Part 90S817.90 - 823.10 MHz25.49 0.270.20 Cell. CDMA - FCC Rule Part 22H824.70 - 848.31 MHz25.470.28 0.25 PCS CDMA - FCC Rule Part 24E1851.25 - 1908.75 MHz25.000.72 0.52 Bluetooth2402 - 2480 MHz8.37 SAR N/A 0.52 W/kg Simultaneous SAR per draft KDB publication 690783 DR01 Band & ModeTx Frequency Conducted Power [dBm] All models are confirmed to be identical per the manufacturer. Note: Powers in the above table represent output powers for the SAR test configurations applicable and may not represent the highest output powers for all capabilities. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: ZNFLN272 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 30 0Y1109021526.ZNF 09/15/11 - 09/21/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SYSTEM VERIFICATION .............................................................................................................. 19 13 SAR DATA SUMMARY ................................................................................................................. 21 14 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 25 15 EQUIPMENT LIST ......................................................................................................................... 26 16 MEASUREMENT UNCERTAINTIES ............................................................................................ 27 17 CONCLUSION ............................................................................................................................... 28 18 REFERENCES .............................................................................................................................. 29 FCC ID: ZNFLN272 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 30 0Y1109021526.ZNF 09/15/11 - 09/21/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. [1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect t…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFLN272 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1109021523.ZNF September 26 - 28, 2011 Portable Handset Page 1 of 37 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.4CFI 09/15/2011 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. September 26 - 28, 2011 10101 Old Grove Road, Test Site/Location: San Diego, CA 92131 PCTEST Lab., Columbia, MD, USA USA Test Report Serial No.: 0Y1109021523.ZNF FCC ID: ZNFLN272 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. Application Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E) IC Specification(s): RSS-132 Issue 2; RSS-133 Issue 5 EUT Type: Portable Handset Model(s): LN272, LG-LN272, LGLN272, LG272 Test Device Serial No.: identical prototype [S/N: A0000031057465] Max. Power (W) Max. Power (dBm) CDMA850824.70 - 848.311M27F9W0.29924.76 CDMA19001851.25 - 1908.751M27F9W0.42226.25 ERP/EIRP Mode Tx Frequency (MHz) Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 / IC RSS-132/RSS-133 Reviewed by: FCC ID: ZNFLN272 FCC Pt. 22/24 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1109021523.ZNF September 26 - 28, 2011 Portable Handset Page 2 of 37 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.4CFI 09/15/2011 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT...........................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.4 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 7 3.5 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.6 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.7 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.8 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.9 PEAK-AVERAGE RATIO ..................................................................................................................... 8 3.10 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS .............................................................................................................................11 6.1 SUMMARY......................................................................................................................................... 11 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 12 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 13 6.4 CELLULAR CDMA RADIATED MEASUREMENTS........................................................................... 14 6.5 PCS CDMA RADIATED MEASUREMENTS........................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFLN272 BC10 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1109021524.ZNF September 26 - 28, 2011 Portable Handset Page 1 of 22 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3CFI 10/26/2010 Applicant: Date of Testing: LG Electronics MobileComm U.S.A., Inc. September 26 - 28, 2011 10101 Old Grove Road, Test Site/Location: San Diego, CA 92131 PCTEST Lab., Columbia, MD, USA USA Test Report Serial No.: 0Y1109021524.ZNF FCC ID: ZNFLN272 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. Applicant Type: Certification FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part: §90.691 EUT Type: Portable Handset Model(s): LN272, LG-LN272, LGLN272, LG272 Tx Frequency Range: 817.9 - 823.1 MHz (CDMA) Max. RF Output Power: 0.238 W ERP CDMA (23.76 dBm) Emission Designator(s): 1M27F9W (CDMA) Test Device Serial No.: identical prototype [S/N: A0000031057465] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 90. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 90 Band Class 10 CDMA Reviewed by: FCC ID: ZNFLN272 BC10 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1109021524.ZNF September 26 - 28, 2011 Portable Handset Page 2 of 22 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3CFI 10/26/2010 TABLE OF CONTENTS FCC PART 90 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH ................................................................................................................... 6 3.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 6 3.4 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 6.0 TEST RESULTS .............................................................................................................................10 6.1 SUMMARY......................................................................................................................................... 10 6.2 EFFECTIVE RADIATED POWER OUTPUT DATA ........................................................................... 11 6.3 BC10 CDMA RADIATED MEASUREMENTS .................................................................................... 12 6.4 BC10 CDMA FREQUENCY STABILITY MEASUREMENTS ............................................................. 14 7.0 PLOT(S) OF EMISSIONS ..............................................................................................................16 8.0 CONCLUSION................................................................................................................................22 Reviewed by: FCC ID: ZNFLN272 BC10 CDMA / EvDO MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1109021524.ZNF September 26 - 28, 2011 Portable Handset Page 3 of 22 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.3CFI 10/26/2010 MEASUREMENT REPORT BC10 CDMA §2.1033 General Information APPLICANT: LG Electronics MobileComm U.S.A., Inc. APPLICANT ADDRESS: 10101 Old Grove Road, San Diego, CA 92131, USA TEST SITE: PCTEST ENGINEE…
