ZNFLS665CDMA/LTE Phone + Bluetooth and DTS WLAN b/g/n

LG-LS665 User Guide <UG template version 13b> TOC i Table of Contents Get Started ................................................................................................................................ 1 Your Phone at a Glance ...................................................................................................... 1 Set Up Your Phone ............................................................................................................. 1 Install the Battery ......................................................................................................... 1 Charge your Battery ..................................................................................................... 1 Activation and Service ........................................................................................................ 2 Create Your Account and Pick Your Plan .................................................................... 2 Activate Your Phone .................................................................................................... 2 Manage Your Account ................................................................................................. 2 Re-Boost ..................................................................................................................... 3 Additional Information .................................................................................................. 4 Complete the Setup Screens .............................................................................................. 4 Set Up Voicemail ................................................................................................................ 5 Phone Basics ............................................................................................................................. 6 Your Phone's Layout ........................................................................................................... 6 Turn Your Phone On and Off .............................................................................................. 7 Turn Your Screen On and Off ............................................................................................. 7 Touchscreen Navigation ..................................................................................................... 8 Lock and Unlock Your Phone .............................................................................................10 Your Home Screen ............................................................................................................10 Home Screen Overview ..............................................................................................10 Customize Your Home Screen....................................................................................10 Add and Remove Widgets on the Home Screen .........................................................12 Change the Phone's Wallpaper ..................................................................................12 Customize Applications Icons on the Home Screen ....................................................13 Access Recently-Used Applications ............................................................................13 Home Screen Clean View ...........................................................................................13 Quick Access ..............................................................................................................14 Change the Screen Orientation...................................................................................14 Status Bar ..........................................................................................................................14 TOC ii Enter Text With the On-screen Keyboard ...........................................................................17 Phone Calls ..............................................................................................................................19 Make Phone Calls ..............................................................................................................19 Call Using the Phone Dialer ........................................................................................19 Call from Call Logs .....................................................................................................19 Call from Contacts ......................................................................................................19 Call Using a Speed Dial Number ................................................................................20 Call a Number in a Text Message or Email Message ..................................................20 Call Emergency Numbers ...........................................................................................20 Receive Phone Calls ..........................................................................................................21 Voicemail ...........................................................................................................................22 Voicemail Setup ..........................................................................................................22 Voicemail Notification .................................................................................................22 Retrieve Your Voicemail Messages ............................................................................23 Visual Voicemail ................................................................................................................23 Set Up Visual Voicemail..............................................................................................23 Review Visual Voicemail .............................................................................................24 Listen to Multiple Voicemail Messages .......................................................................24 Visual Voicemail Options ..…

Text truncated - open the document above for the full version.

Date : April 26, 2015 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. In authorizing UL Verification Services Inc as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use c ertification only to indicate the products are certified as being in conformity with specified standards; LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)e nsure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)t ake appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)doc ument the actions taken. T his authorization is valid until further written notice from the applicant. Sincerely Yours, S ignature J ongchul Lee Director, NA Regulatory & Environmental Affairs. LG Electronics USA, Inc.

D ate : March 31, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality ZNFLS665 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG ELECTRONICS MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG ELECTRONICS MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Part List 5 Antenna Specification 6. 7 PCB Layout SHORT-TERM 1 External Photos 2 Internal Photos Test-Setup Photos 4 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Antenna distance 3 5 Tune-Up Procedure

Date: April 26, 2015 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFLS665 Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

※ LG-LS665 FCC ID Label Form MODEL : LG-LS665 FCC ID : ZNFLS665 Position of FCC ID Label MEID DEC MEID HEX *Note! We, LG Electronics MobileComm USA, state that our device, FCC ID: ZNFLS665, has a battery and has a FCC ID label inside of the battery compartment. Additionally, the battery will not be assembled with the device when delivery, so FCC ID label is visible to the uesrs as they purchase the product and install the battery. The label is attached permanently to the EUT by an adhesive since the adhesive is a permanent type with strong strength.

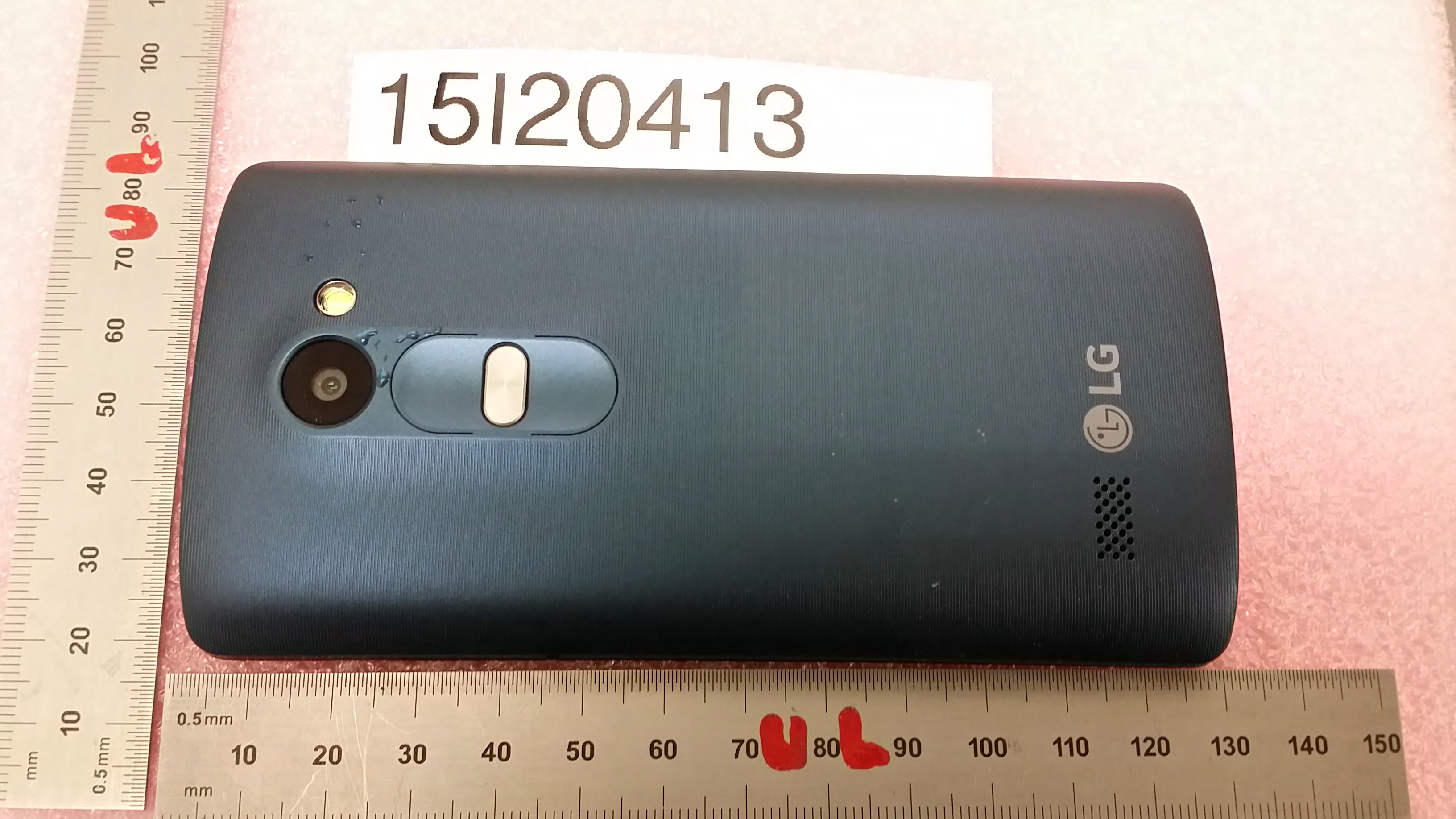

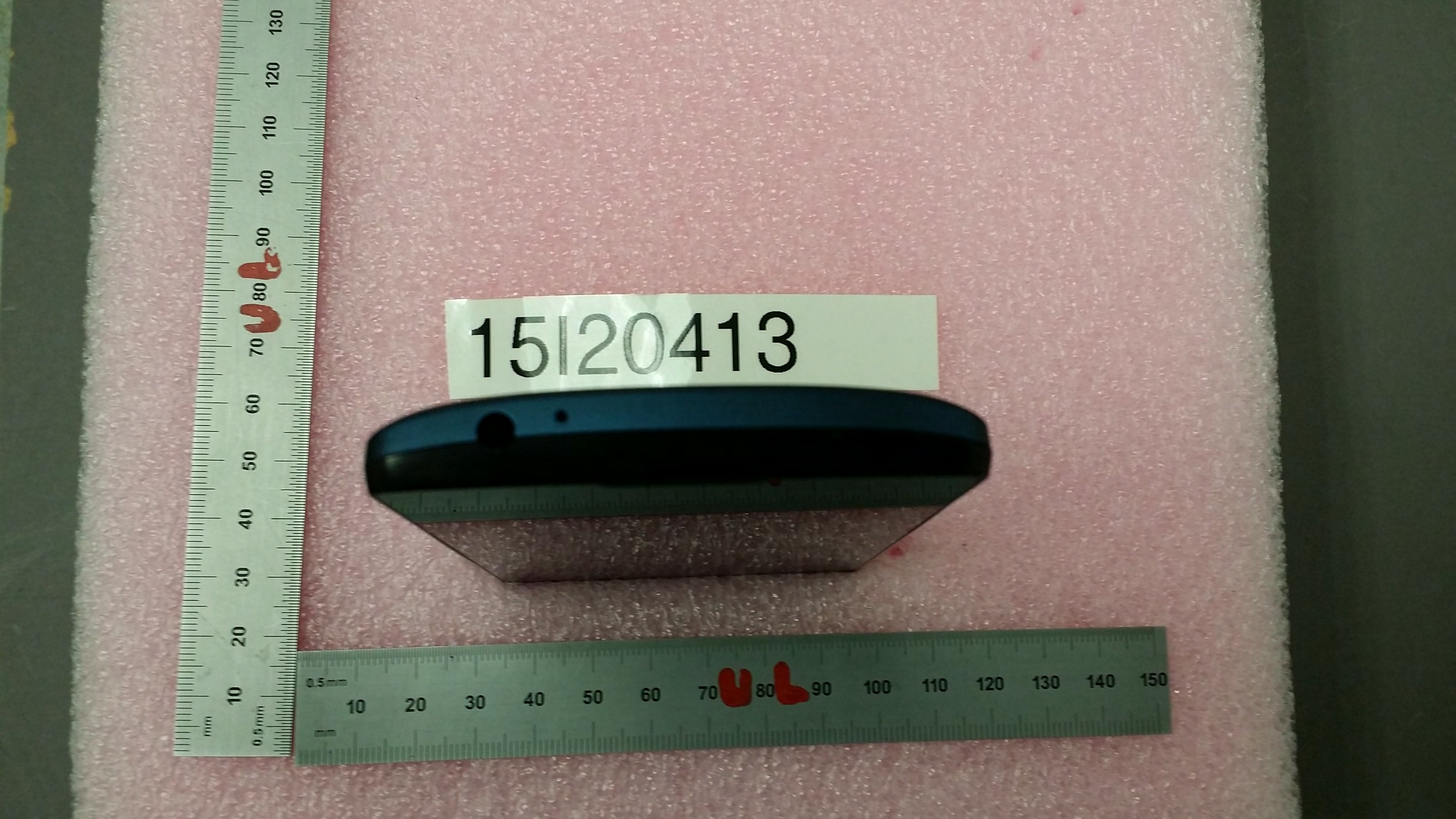

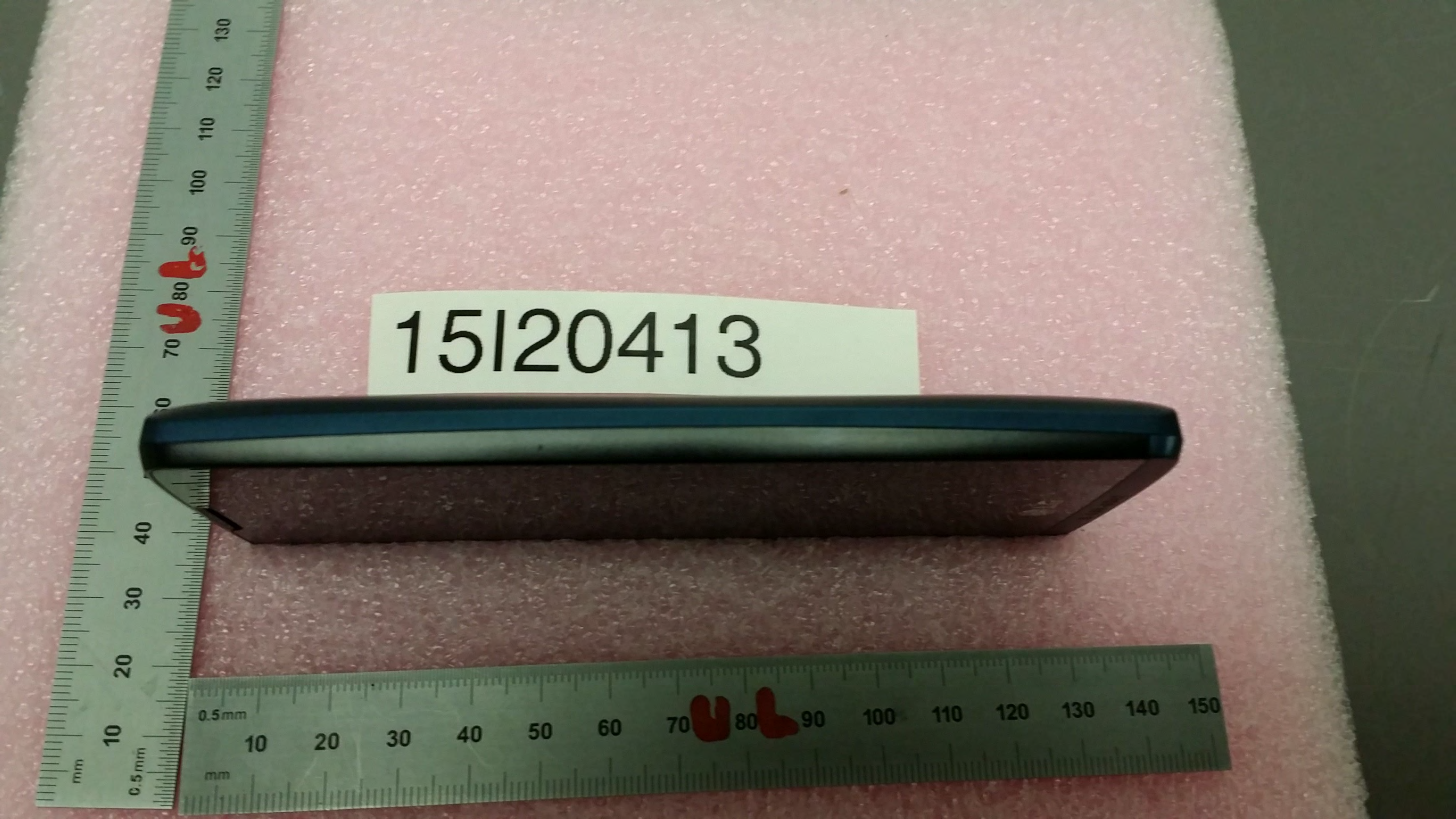

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For CDMA/LTE Phone + Bluetooth and DTS b/g/n FCC ID: ZNFLS665 Model Name: LG-LS665, LGLS665, LS665 Report Number: 15I20413-S1A Issue Date: 4/29/2015 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC. 1000 Sylvan Avenue Englewood Cliffs, New Jersey 07632 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15U20413-S1A Issue Date: 4/29/2015 Page 2 of 44 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 4/28/2015 Initial Issue -- A 4/29/2015 Updated Bluetooth Version Coltyce Sanders Report No.: 15U20413-S1A Issue Date: 4/29/2015 Page 3 of 44 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 10 6. Device Under Test (DUT) Information ...................................................................................... 11 6.1. DUT Description ...................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................. 11 6.3. Nominal and Maximum Output Power ...................................................................................... 12 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 13 6.5. LTE (TDD) Considerations ....................................................................................................... 15 7. RF Exposure Conditions (Test Configurations) ...................................................................... 16 8. Dielectric Property Measurements & System Check .............................................................. 17 8.1. Dielectric Property Measurements ........................................................................................... 17 8.2. System Check.......................................................................................................................... 20 9. Conducted Output Power Measurements ................................................................................ 22 9.1. CDMA ...................................................................................................................................... 22 9.2. LTE .......................................................................................................................................... 24 9.3. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 34 9.4. Bluetooth ................................................................................................................................. 34 10. Measured and Reported (Scaled) SAR Results ....................................................................... 35 10.1. CDMA BC0........................................................................................................................... 37 10.2. CDMA BC1........................................................................................................................... 37 10.3. CDMA BC10 ......................................................................................................................... 38 10.4. LTE Band 2 (20MHz Bandwidth) .......................................................................................... 38 10.5. LTE Band 4 (20MHz Bandwidth) .......................................................................................... 38 10.6. LTE Band 5 (10MHz Bandwidth) .......................................................................................... 38 10.7. LTE Band 12 (10MHz Bandwidth) ........................................................................................ 39 10.8. LTE Band 25 (20MHz Bandwidth) ........................................................................................ 39 10.9. LTE Band 26 (15MHz Bandwidth) ........................................................................................ 40 Report No.: 15U20413-S1A Issue Date: 4/29/2015 Page 4 of 44 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 10.10. LTE Band 41 (20MHz Bandwidth) ........................................................................................ 40 10.11. Wi-Fi (DTS Band) ................................................................................................................. 40 10.12. Bluetooth .............................................................................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/30/2015 12:56:04 PM 20150330 SystemPerformanceCheck-D2600V2 SN 1006 Frequency: 2600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2600 MHz; σ = 1.908 S/m; ε r = 38.454; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(7.21, 7.21, 7.21); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: TWIN SAM v5.0; Type: QD000P40CD; Serial: TP:1829 Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 7.50 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.02 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 12.3 W/kg SAR(1 g) = 5.48 W/kg; SAR(10 g) = 2.4 W/kg Maximum value of SAR (measured) = 8.03 W/kg 0 dB = 8.03 W/kg = 9.05 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/30/2015 1:13:18 PM 20150330 SystemPerformanceCheck-D2600V2 SN 1006 Frequency: 2600 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 6.22 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/30/2015 2:25:45 PM 20150330 SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.014 S/m; ε r = 51.186; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(7.23, 7.23, 7.23); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Body/Pin=100 mW 2/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.33 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.14 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 11.0 W/kg SAR(1 g) = 5.24 W/kg; SAR(10 g) = 2.41 W/kg Maximum value of SAR (measured) = 7.46 W/kg 0 dB = 7.46 W/kg = 8.73 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/30/2015 2:40:40 PM 20150330 SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.40 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/31/2015 11:15:00 AM 20150331 SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.574 S/m; ε r = 52.269; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(7.65, 7.65, 7.65); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW 2/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.25 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.45 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 7.14 W/kg SAR(1 g) = 3.93 W/kg; SAR(10 g) = 2.05 W/kg Maximum value of SAR (measured) = 5.33 W/kg 0 dB = 5.33 W/kg = 7.27 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/31/2015 11:30:00 AM 20150331 SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.23 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 4/1/2015 12:50:29 AM 20150401 SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 1 S/m; ε r = 54.22; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(9.7, 9.7, 9.7); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.17 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.75 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.997 W/kg; SAR(10 g) = 0.658 W/kg Maximum value of SAR (measured) = 1.21 W/kg 0 dB = 1.21 W/kg = 0.83 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 4/1/2015 1:06:55 AM 20150401 SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.19 W/kg Plot No. 9 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 4/2/2015 10:21:10 AM 20150402 SystemPerformanceCheck-D1750V2 SN 1077 Frequency: 1750 MHz; Duty Cycle: 1:1; Room…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 4/6/2015 5:46:26 PM CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.878 S/m; ε r = 39.606; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(9.94, 9.94, 9.94); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: TWIN SAM v5.0; Type: QD000P40CD; Serial: TP:1829 RHS/Touch_1xEVDO Rel 0_ch 384/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.744 W/kg RHS/Touch_1xEVDO Rel 0_ch 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.19 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.878 W/kg SAR(1 g) = 0.683 W/kg; SAR(10 g) = 0.511 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.778 W/kg 0 dB = 0.778 W/kg = -1.09 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 4/6/2015 7:17:49 PM CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.992 S/m; ε r = 53.687; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(9.7, 9.7, 9.7); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Rear/1xRTT SO32_ch 384/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.966 W/kg Rear/1xRTT SO32_ch 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 31.74 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.877 W/kg; SAR(10 g) = 0.662 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.974 W/kg 0 dB = 0.974 W/kg = -0.11 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/31/2015 5:44:24 PM CDMA BC1 Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.373 S/m; ε r = 38.815; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(8.55, 8.55, 8.55); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: TWIN SAM v5.0; Type: QD000P40CD; Serial: TP:1829 LHS/Touch_1xEVDO Rel 0_ch 600/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.601 W/kg LHS/Touch_1xEVDO Rel 0_ch 600/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.33 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.880 W/kg SAR(1 g) = 0.550 W/kg; SAR(10 g) = 0.333 W/kg Maximum value of SAR (measured) = 0.688 W/kg 0 dB = 0.688 W/kg = -1.62 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 4/1/2015 4:45:45 PM CDMA BC1 Frequency: 1908.75 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1908.75 MHz; σ = 1.586 S/m; ε r = 52.182; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(7.65, 7.65, 7.65); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Front/1xRTT SO32_ch 1175/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.32 W/kg Front/1xRTT SO32_ch 1175/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 29.28 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 1.08 W/kg; SAR(10 g) = 0.672 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.34 W/kg 0 dB = 1.34 W/kg = 1.27 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 4/1/2015 10:33:05 PM CDMA BC10 Frequency: 820.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 820.5 MHz; σ = 0.9 S/m; ε r = 42.183; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(9.94, 9.94, 9.94); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: TWIN SAM v5.0; Type: QD000P40CD; Serial: TP:1829 RHS/Touch_1xRTT SO55_ch 580/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.645 W/kg RHS/Touch_1xRTT SO55_ch 580/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.72 V/m; Power Drift = 0.02 dB Peak SAR (extrapolate…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequenc…

Text truncated - open the document above for the full version.
