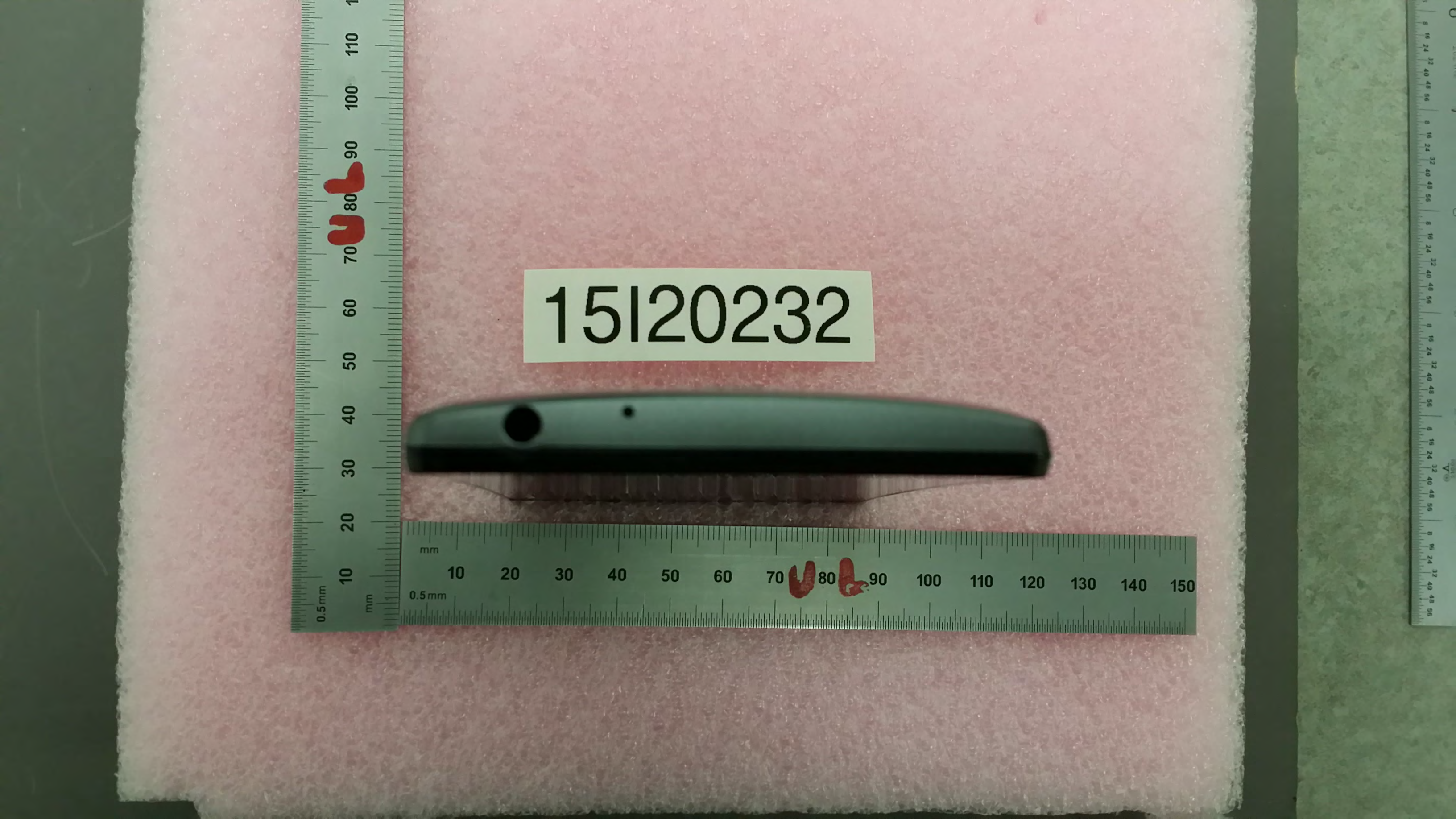

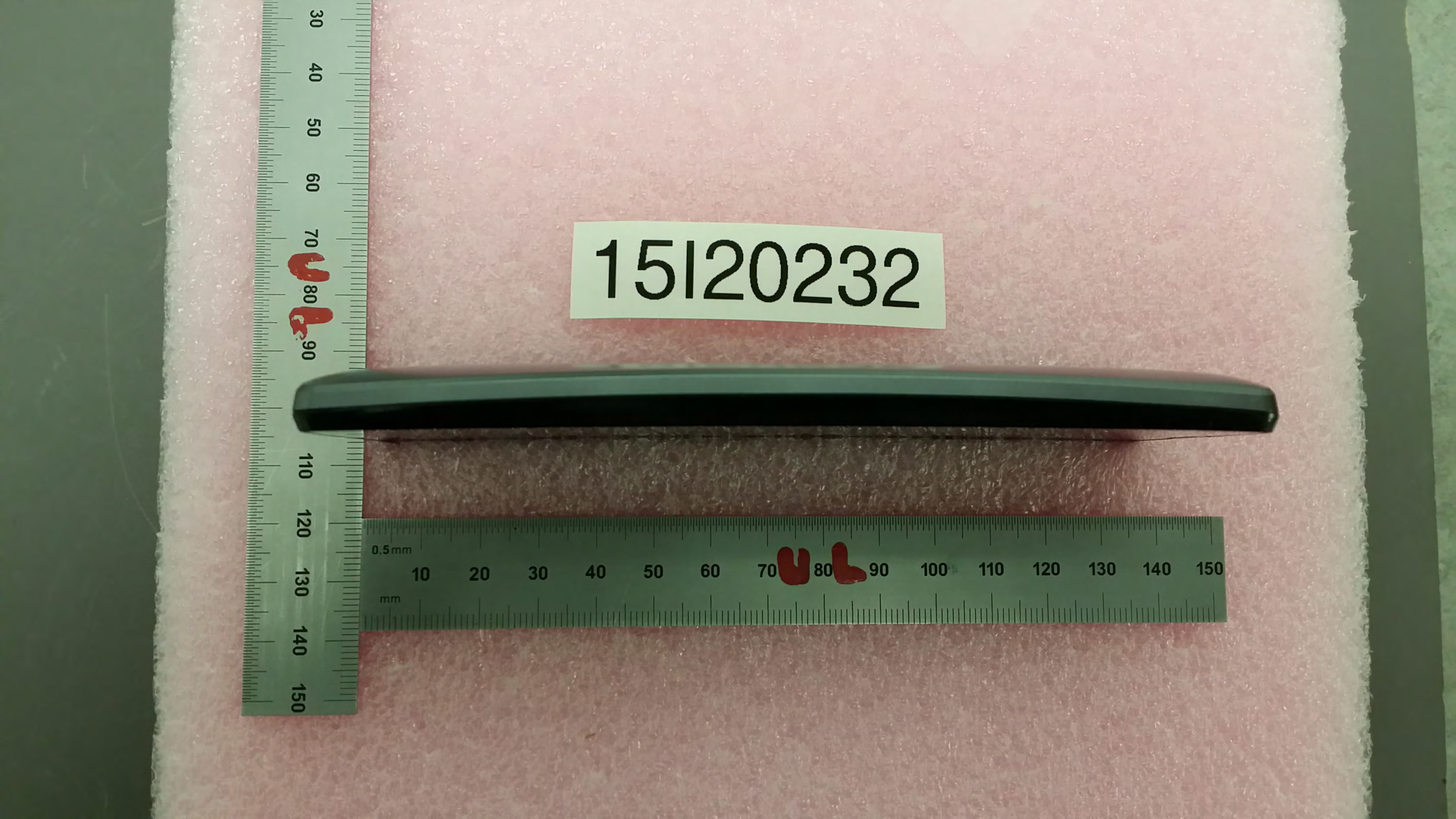

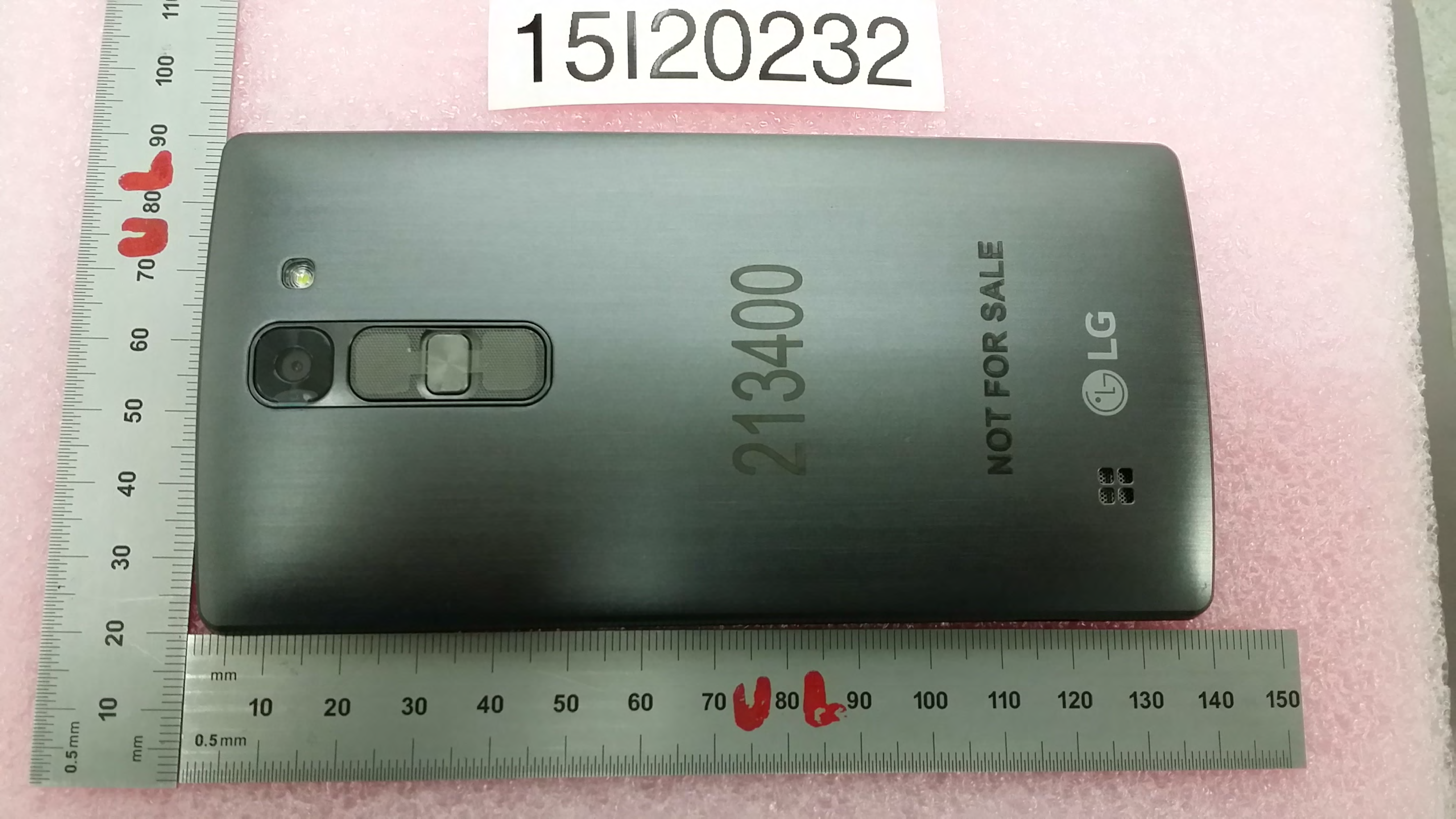

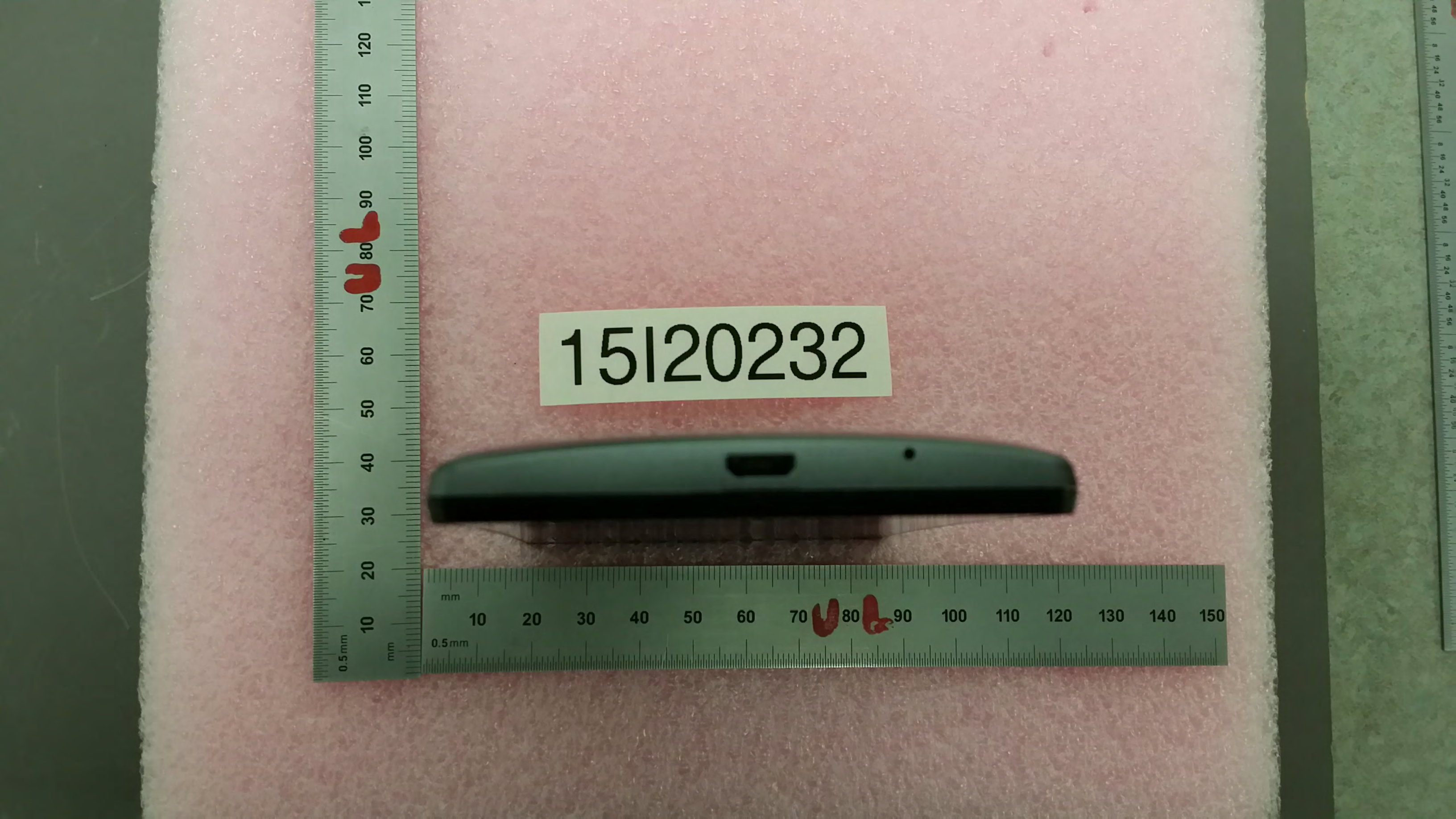

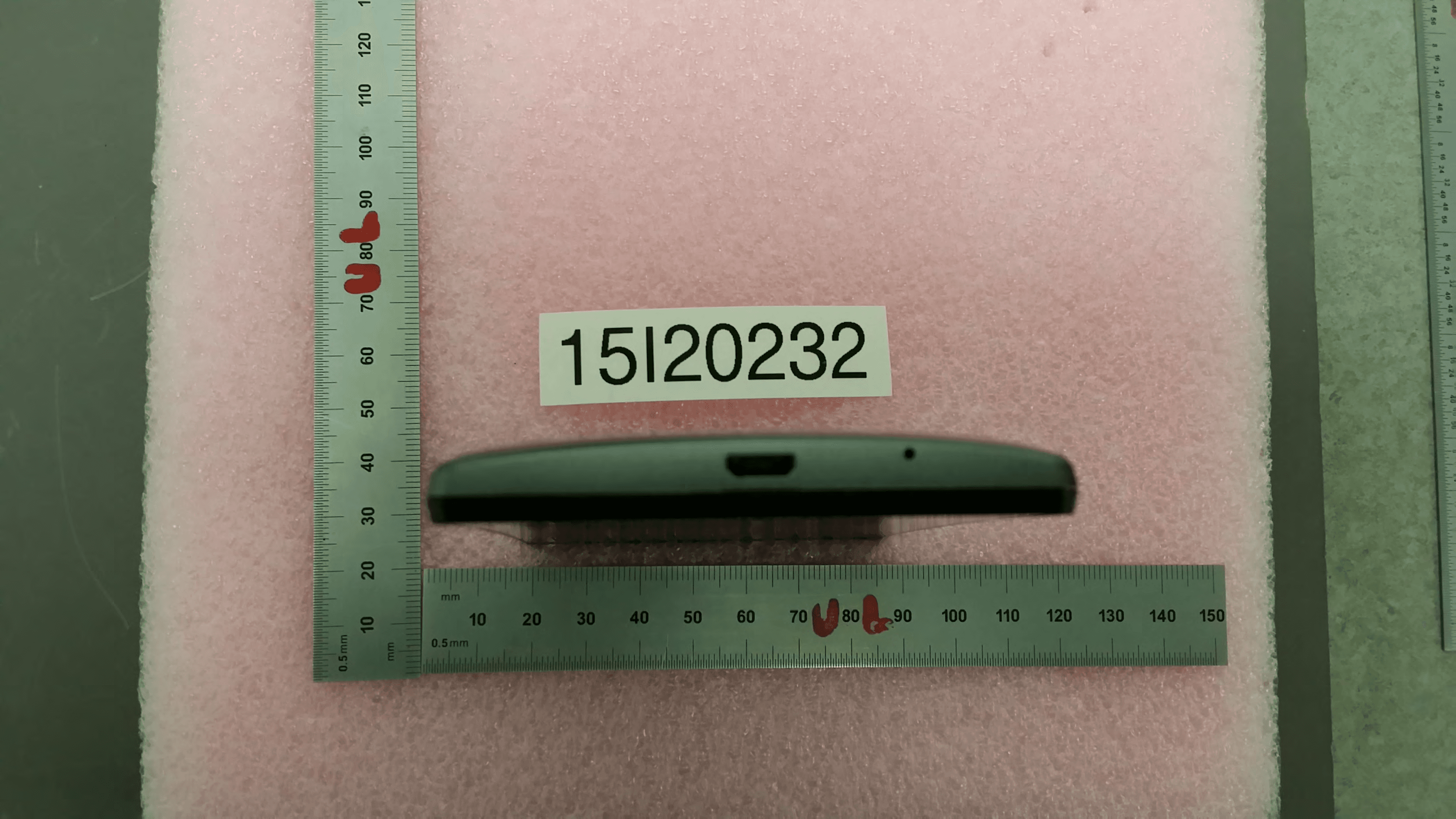

ZNFLS751CDMA/LTE PHONE + BLUETOOTH, DTS b/g/n

LGLS751 User Guide [UG template version 15a] TOC i Table of Contents Get Started .................................................................................................................................................... 1 Phone Layout ........................................................................................................................................ 1 microSIM Card ...................................................................................................................................... 2 Handling the microSIM Card ......................................................................................................... 2 Insert microSIM Card .................................................................................................................... 3 microSD Card ........................................................................................................................................ 3 Insert microSD Card ..................................................................................................................... 3 Unmount the microSD Card .......................................................................................................... 4 Remove microSD Card ................................................................................................................. 4 Format microSD Card ................................................................................................................... 4 Battery Use ........................................................................................................................................... 5 Battery Capacity ............................................................................................................................ 5 Charge the Battery ........................................................................................................................ 5 Turn Your Phone On and Off ................................................................................................................ 6 Use the Touchscreen ............................................................................................................................ 6 Activate Your Phone ............................................................................................................................. 7 Complete the Setup Screens ................................................................................................................ 8 Basic Operations ......................................................................................................................................... 10 Basics .................................................................................................................................................. 10 Home Screen and Applications List ............................................................................................ 10 Select Options and Navigate Screens ........................................................................................ 10 Menu Operations ........................................................................................................................ 10 Phone Settings Menu .................................................................................................................. 10 Portrait and Landscape Screen Orientation ................................................................................ 10 Capture Screenshots .................................................................................................................. 11 Applications ......................................................................................................................................... 11 Phone Number .................................................................................................................................... 13 Enter Text ............................................................................................................................................ 13 Tips for Editing Text .................................................................................................................... 14 Search Your Phone and the Web ....................................................................................................... 15 Phone and Web Search Using Text Entry .................................................................................. 15 Phone and Web Search Using Voice Command ........................................................................ 16 TOC ii Using Clip Tray .................................................................................................................................... 16 Google Account ................................................................................................................................... 16 Create a Google Account ............................................................................................................ 16 Sign into Your Google Account ................................................................................................... 17 Google Play Store ............................................................................................................................... 17 Lock and Unlock Your Screen ............................................................................................................ 19 Unlock Your Screen Using the Knock Code Feature .......................................................................... 19 Update Your Phone............................................................................................................................. 19 Update PRL................................................................................................................................. 20 Update Profile .................................................................................…

Text truncated - open the document above for the full version.

Date : March 31, 2015 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA T o whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. In authorizing UL Verification Services Inc as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)us e certification only to indicate the products are certified as being in conformity with specified standards; LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)e nsure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)t ake appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)doc ument the actions taken. T his authorization is valid until further written notice from the applicant. Sincerely Yours, S ignature J ongchul Lee Director, NA Regulatory & Environmental Affairs. LG Electronics USA, Inc.

Date: March 31, 2015 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFLS751 Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date:March 31, 2015 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics MobileComm U.S.A FCC ID: ZNFLS751 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB guidance issued on June 20, 2008. FCC ID:FCC ID: ZNFLS751 Air Interfaces: CDMA/LTE Wireless Technologies: EVDO/LTE Release 9 Band: CDMA BC0/1/10, LTE B2/4/5/12/25/26/41 Key Features: Bluetooth 4.1, WiFi (802.11b/g/n) WiFi Hotspot, WiFi direct GPS CMP3 l Should you have any questions or comments concerning the above, please contact the undersigned. GPS, Camera,MP3 player Sincerely, Jongchul Lee Director On behalf of LG Electronics MobileComm U.S.A, Inc.

D ate : March 31, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality ZNFLS751 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG ELECTRONICS MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG ELECTRONICS MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions 3 Schematics 4 Part List 5 Antenna Specification 6. 7 PCB Layout SHORT-TERM 1 External Photos 2 Internal Photos Test-Setup Photos 4 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Antenna distance 3 5 Tune-Up Procedure

* Simultaneous Transmission Scenario No. Capable TX Configration CDMA BC0/1/10 voice CDMA BC0/1/10 data LTE B2,B4,B5,B 12,B25,B26 WIFI 2.4Ghz 802.11 Bluetooth 2.4Ghz 1 CDMA BC0, BC1, BC10 voicenono yesyes 2 CDMA BC0, BC1, BC10 datanono yesyes 3 LTE B2,B4,B5,B12,B25,B26,B41nono yesyes 4 WIFI 802.11b/g/n/ac 2.4Ghzyesyes yes no 5 Bluetooth 2.4Ghzyesyesyesno * Simultaneous Transmission Scenario - WiFi direct No. Capable scenario 1 WiFi-Direct + voice call 2 WiFi-Direct + data call 3 WiFi-Direct + hotspot(tethering) * Simultaneous SAR Cases No. Capable TX Configration Head SAR Body Worn SAR Hotspot SAR 1 CDMA BC0 voice + WiFi 2.4GHzyesyesN/A 2 CDMA BC1 voice + WiFi 2.4GHzyesyesN/A 3 CDMA BC10 voice + WiFi 2.4GHzyesyesN/A 4 CDMA BC0 data + WiFi 2.4GHzyesyesyes 5 CDMA BC1 data + WiFi 2.4GHzyesyesyes 6 CDMA BC10 data + WiFi 2.4GHzyesyesyes 7 LTE B2 + WiFi 2.4Ghzyesyesyes 8 LTE B4 + WiFi 2.4Ghzyesyesyes 9 LTE B5 + WiFi 2.4Ghzyesyesyes 10 LTE B12 + WiFi 2.4Ghzyesyesyes 11 LTE B25 + WiFi 2.4Ghzyesyesyes 12 LTE B26 + WiFi 2.4Ghzyesyesyes ` 13 LTE B41 + WiFi 2.4Ghzyesyesyes Note LTE + WiFi 2.4Ghz 1. WiFi 2.4Ghz is supported Hotspot and WiFi-Direct(GO/GC). 2. EVDO, LTE is supported Hotspot. 3. VoIP is supported in EVDO, LTE (e.g. 3rd part VoIP and VoLTE) 4. Bluetooth and WiFi can not transmit simultaneously since they share the same chip. 5. CDMA and LTE can not transmit simultaneously since they share the same chip. CDMA voice + WiFi 2.4Ghz CDMA data + WiFi 2.4Ghz no support yes yes

※ LGLS751 FCC ID Label Form MODEL : LGLS751 FCC ID : ZNFLS751 Position of FCC ID Label MEID DEC MEID HEX *Note! We, LG Electronics MobileComm USA, state that our device, FCC ID: ZNFLS751, has a battery and has a FCC ID label inside of the battery compartment. Additionally, the battery will not be assembled with the device when delivery, so FCC ID label is visible to the uesrs as they purchase the product and install the battery. The label is attached permanently to the EUT by an adhesive since the adhesive is a permanent type with strong strength.

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For CDMA/LTE PHONE + BLUETOOTH, DTS/b/g/n FCC ID: ZNFLS751 Model Name: LGLS751, LG-LS751, LS751 Report Number: 15I20232-S1 Issue Date: 4/1/2015 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC. 1000 SYLVAN AVE. ENGLEWOOD CLIFFS, NJ 07632 Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15I20232-S1 Issue Date: 4/1/2015 Page 2 of 47 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 4/1/2015 Initial Issue -- Report No.: 15I20232-S1 Issue Date: 4/1/2015 Page 3 of 47 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 12 6.1. DUT Description ...................................................................................................................... 12 6.2. Wireless Technologies ............................................................................................................. 12 6.3. Nominal and Maximum Output Power ...................................................................................... 13 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 14 6.5. LTE (TDD) Considerations ....................................................................................................... 16 7. RF Exposure Conditions (Test Configurations) ...................................................................... 17 8. Dielectric Property Measurements & System Check .............................................................. 18 8.1. Dielectric Property Measurements ........................................................................................... 18 8.2. System Check.......................................................................................................................... 22 9. Conducted Output Power Measurements ................................................................................ 25 9.1. CDMA ...................................................................................................................................... 25 9.2. LTE .......................................................................................................................................... 27 9.3. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 37 9.4. Bluetooth ................................................................................................................................. 37 10. Measured and Reported (Scaled) SAR Results ....................................................................... 38 10.1. CDMA BC0........................................................................................................................... 40 10.2. CDMA BC1........................................................................................................................... 40 10.3. CDMA BC10 ......................................................................................................................... 40 10.4. LTE Band 2 .......................................................................................................................... 40 10.5. LTE Band 4 (20MHz Bandwidth) .......................................................................................... 41 10.6. LTE Band 5 .......................................................................................................................... 41 10.7. LTE Band 12 (10MHz Bandwidth) ........................................................................................ 41 10.8. LTE Band 25 (20MHz Bandwidth) ........................................................................................ 42 10.9. LTE Band 26 (15MHz Bandwidth) ........................................................................................ 42 Report No.: 15I20232-S1 Issue Date: 4/1/2015 Page 4 of 47 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. 10.10. LTE Band 41 (20MHz Bandwidth) ........................................................................................ 43 10.11. Wi-Fi (DTS Band) ................................................................................................................. 43 10.12. Bluetooth .............................................................................................................................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 3 Date/Time: 3/10/2015 1:11:08 AM 20150310_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 1.012 S/m; ε r = 53.295; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1380; Calibrated: 7/23/2014 - Probe: EX3DV4 - SN3773; ConvF(8.77, 8.77, 8.77); Calibrated: 4/22/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.11 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.46 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 0.993 W/kg; SAR(10 g) = 0.652 W/kg Maximum value of SAR (measured) = 1.21 W/kg 0 dB = 1.21 W/kg = 0.83 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 3 Date/Time: 3/10/2015 1:29:03 AM 20150310_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.11 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 3/3/2015 11:42:10 AM 20150303_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.43 S/m; ε r = 39.779; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1377; Calibrated: 8/27/2014 - Probe: EX3DV4 - SN3929; ConvF(7.23, 7.23, 7.23); Calibrated: 5/9/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.87 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.37 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 8.34 W/kg SAR(1 g) = 4.45 W/kg; SAR(10 g) = 2.29 W/kg Maximum value of SAR (measured) = 6.03 W/kg 0 dB = 6.03 W/kg = 7.80 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 3/3/2015 11:59:35 AM 20150303_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.90 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/3/2015 10:54:24 AM 20150303 SystemPerformanceCheck-D1750V2 SN 1077 Frequency: 1750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1750 MHz; σ = 1.459 S/m; ε r = 52.212; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1439; Calibrated: 5/14/2014 - Probe: EX3DV4 - SN3991; ConvF(8.08, 8.08, 8.08); Calibrated: 5/16/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.96 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.86 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 6.76 W/kg SAR(1 g) = 3.82 W/kg; SAR(10 g) = 2.04 W/kg Maximum value of SAR (measured) = 5.10 W/kg 0 dB = 5.10 W/kg = 7.08 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 5 Date/Time: 3/3/2015 11:10:38 AM 20150303 SystemPerformanceCheck-D1750V2 SN 1077 Frequency: 1750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.99 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 3/3/2015 12:16:54 PM 20150303_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.871 S/m; ε r = 38.393; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1434; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3990; ConvF(7.65, 7.65, 7.65); Calibrated: 4/15/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM A; Type: SAM; Serial: 1831 Head/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.07 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.657 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 12.0 W/kg SAR(1 g) = 5.56 W/kg; SAR(10 g) = 2.53 W/kg Maximum value of SAR (measured) = 8.02 W/kg 0 dB = 8.02 W/kg = 9.04 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 3/3/2015 12:36:02 PM 20150303_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.97 W/kg Plot No. 9 Test Laboratory: UL Verification Services Inc. SAR Lab G Date/Time: 3/4/2015 12:16:48 PM 03042015_SystemPerformanceCheck-D2600V2 SN 1006 Frequency: 2600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2600 MHz; σ = 2.148 S/m; ε r = 50.601; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 3 Date/Time: 3/3/2015 10:01:55 AM CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.895 S/m; ε r = 39.732; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1380; Calibrated: 7/23/2014 - Probe: EX3DV4 - SN3773; ConvF(8.91, 8.91, 8.91); Calibrated: 4/22/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: QD000P40CD; Serial: 1768 RHS/Touch_ 1xRTT_RC3 SO55_ch 384/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.527 W/kg RHS/Touch_ 1xRTT_RC3 SO55_ch 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.61 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.611 W/kg SAR(1 g) = 0.474 W/kg; SAR(10 g) = 0.356 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.534 W/kg 0 dB = 0.534 W/kg = -2.72 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 3 Date/Time: 3/3/2015 12:45:16 AM CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 1.011 S/m; ε r = 53.535; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1380; Calibrated: 7/23/2014 - Probe: EX3DV4 - SN3773; ConvF(8.77, 8.77, 8.77); Calibrated: 4/22/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1213 Rear/1xRTT_RC3 SO32_ch 384/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.679 W/kg Rear/1xRTT_RC3 SO32_ch 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.22 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.770 W/kg SAR(1 g) = 0.611 W/kg; SAR(10 g) = 0.466 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.684 W/kg Rear/1xRTT_RC3 SO32_ch 384/Zoom Scan 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.22 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.751 W/kg SAR(1 g) = 0.442 W/kg; SAR(10 g) = 0.267 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.575 W/kg 0 dB = 0.575 W/kg = -2.40 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 3/3/2015 11:29:02 PM CDMA BC1 Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.401 S/m; ε r = 39.859; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1377; Calibrated: 8/27/2014 - Probe: EX3DV4 - SN3929; ConvF(7.23, 7.23, 7.23); Calibrated: 5/9/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; LHS/Touch_ 1xEVDO_Rel.0_ch 600/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.788 W/kg LHS/Touch_ 1xEVDO_Rel.0_ch 600/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.63 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.689 W/kg; SAR(10 g) = 0.426 W/kg Maximum value of SAR (measured) = 0.850 W/kg 0 dB = 0.850 W/kg = -0.71 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 4 Date/Time: 3/4/2015 12:50:10 AM CDMA BC1 Frequency: 1851.25 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1851.25 MHz; σ = 1.48 S/m; ε r = 52.391; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Se…

Text truncated - open the document above for the full version.
