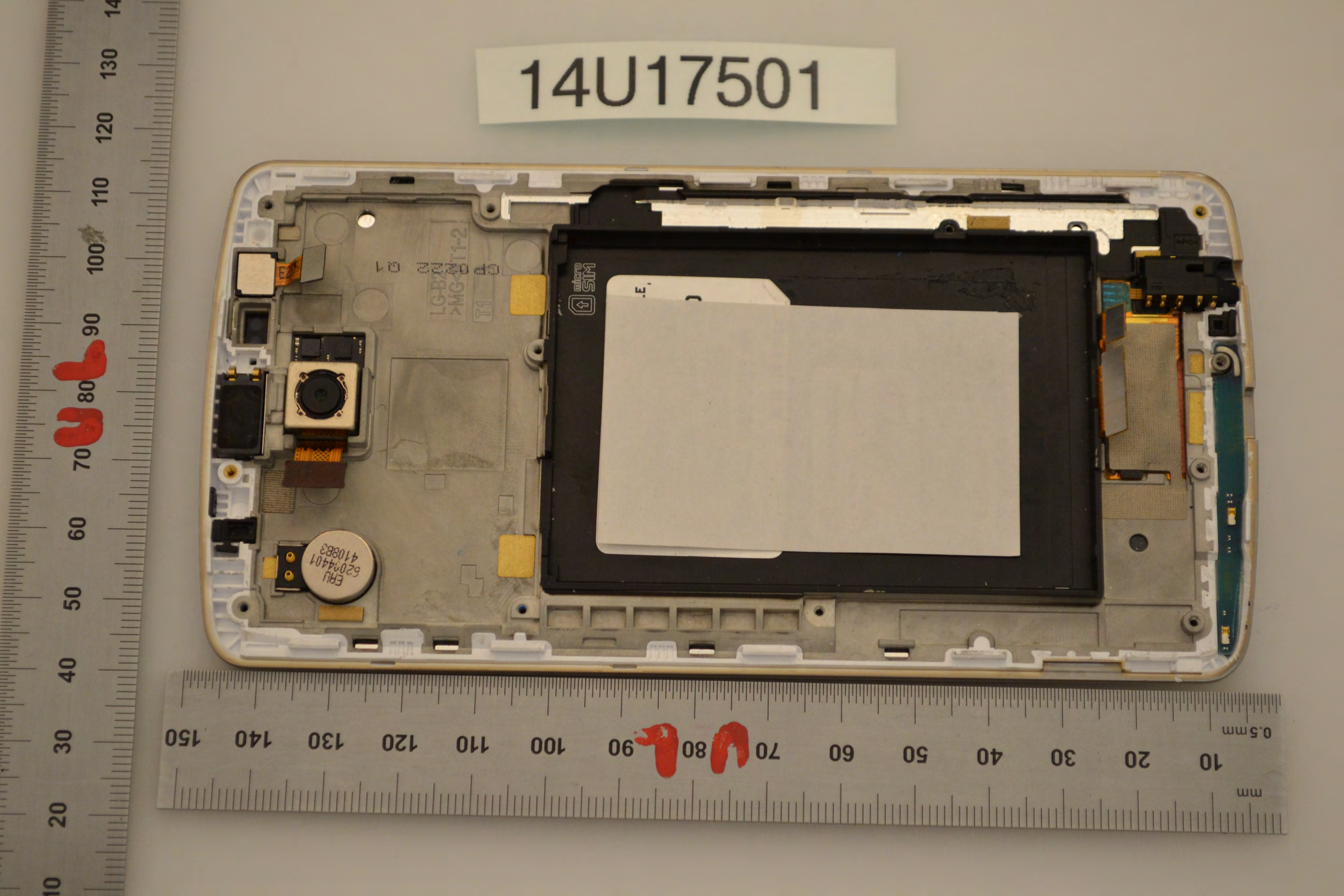

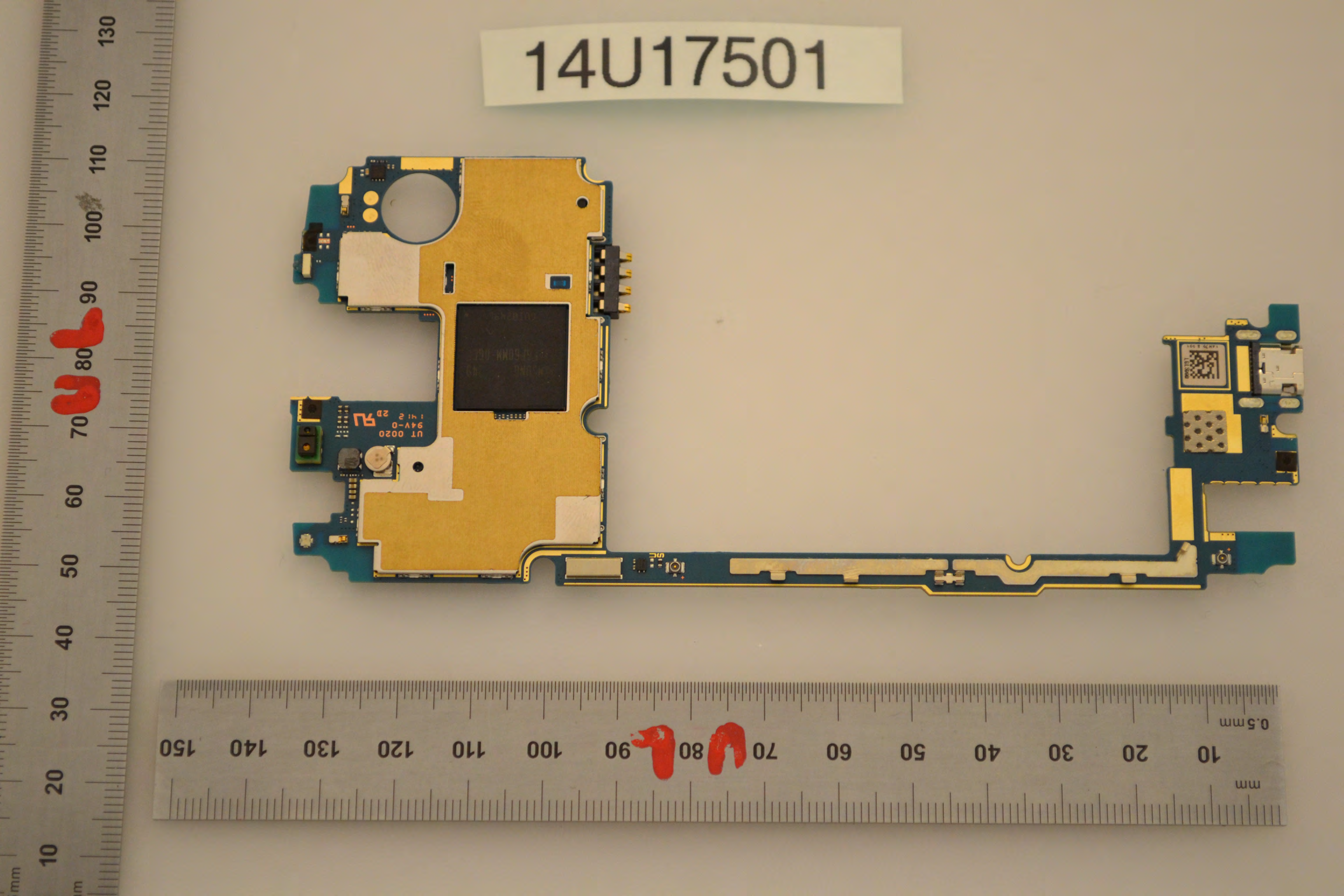

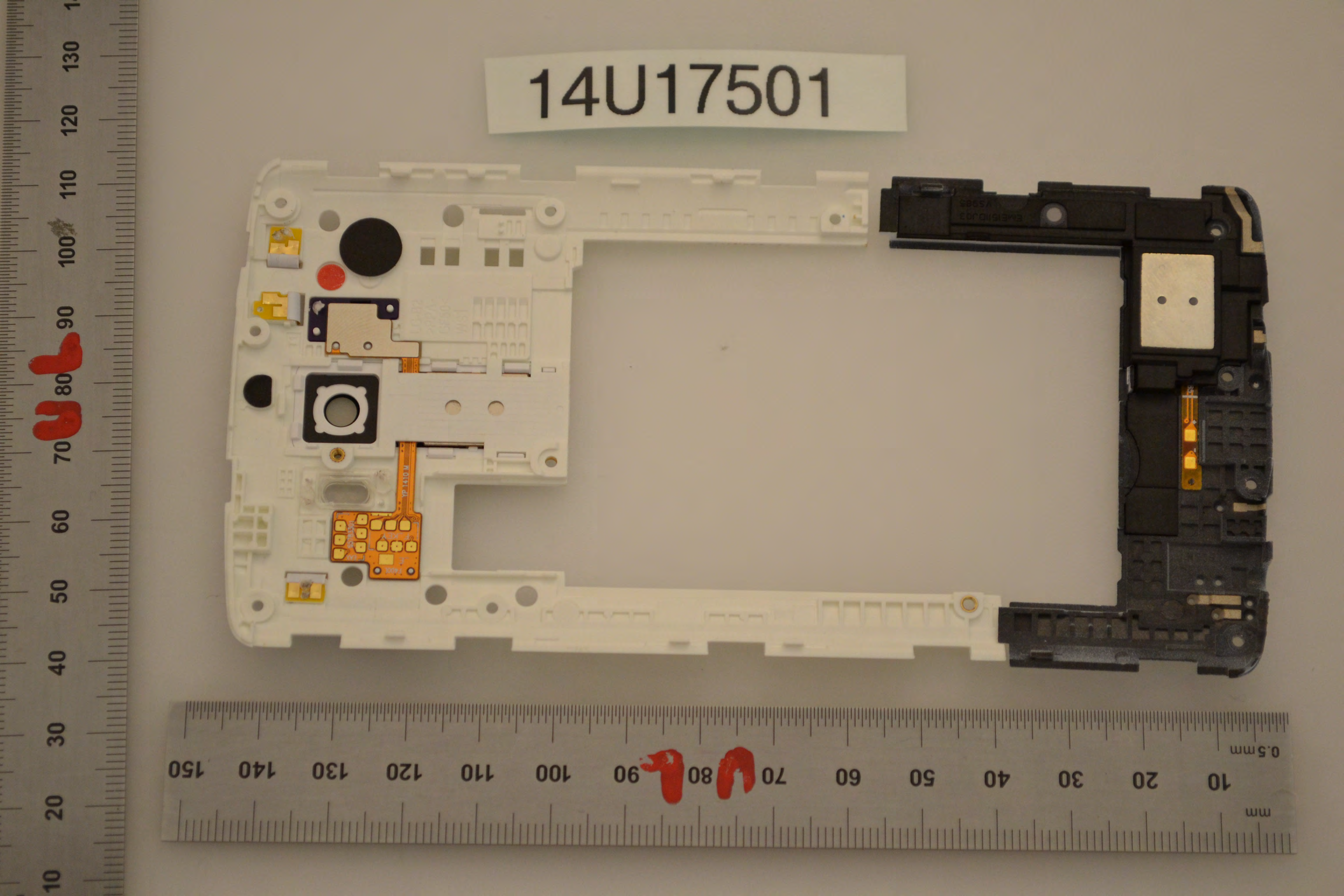

ZNFLS990GSM/CDMA/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac & NFC

LGLS990 User Guide [UG template version 14a] [draft version for review control] [carrier_OEM_model name or number_document type_language_date_draft number] example: [sprint_abc_XYZ-123_ug_en_123113_d1] TOC i Table of Contents Your Phone at a Glance ........................................................................................................................ 1 Set Up Your Phone ............................................................................................................................... 1 Activate Your Phone ............................................................................................................................. 4 Complete the Setup Screens ................................................................................................................ 4 Make Your First Call.............................................................................................................................. 5 Set Up Your Voicemail .......................................................................................................................... 6 Sprint Account Information and Help .................................................................................................... 6 Sprint Account Passwords ............................................................................................................ 6 Manage Your Account .................................................................................................................. 7 Sprint Support Services ................................................................................................................ 7 Your Phone's Layout ............................................................................................................................. 9 Turn Your Phone On and Off .............................................................................................................. 11 Screen On/Off ............................................................................................................................. 11 Lock and Unlock Your Phone ..................................................................................................... 12 Unlock Your Screen Using the Knock Code Feature .......................................................................... 13 Guest Mode ......................................................................................................................................... 13 Set Up Guest Mode .................................................................................................................... 14 Use Guest Mode ......................................................................................................................... 14 Hardware Key Control Mode ............................................................................................................... 14 Battery and Charger ............................................................................................................................ 15 Extend Your Battery Life ............................................................................................................. 16 Phone Function Keys .......................................................................................................................... 16 Menu Key .................................................................................................................................... 17 Work with Menus ........................................................................................................................ 17 Notifications Panel ...................................................................................................................... 18 Home Key ................................................................................................................................... 19 Back Key ..................................................................................................................................... 19 Touchscreen Navigation ..................................................................................................................... 19 Your Home Screen.............................................................................................................................. 20 Home Screen .............................................................................................................................. 20 Extended Home Screen .............................................................................................................. 22 Use the Applications Key ............................................................................................................ 22 TOC ii Applications: How to View, Open and Switch ............................................................................. 22 Applications ................................................................................................................................. 24 Customize Your Home Screen ................................................................................................... 27 Add and Remove Widgets on the Home Screen ........................................................................ 28 Change the Phone's Wallpaper .................................................................................................. 28 Customize Applications Icons on the Home Screen ................................................................... 29 Access Recently-Used Applications ........................................................................................... 30 Home Screen Clean View ........................................................................................................... 30 Quick Access .............................................................................................................................. 30 Change the Screen Orientation ..................…

Text truncated - open the document above for the full version.

Date: Jan 12, 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc.as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certific ation which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s complianc e with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacob Cho Director On behalf of LG Electronics MobileComm USA, Inc.

Date : May 13, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNFLS990 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG ELECTRONICS MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG ELECTRONICS MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions and Tune-Up Procedure 3 Schematics 4 Part List 5 Antenna Specification 6. Antenna distance 7 PCB Layout 8 simultaneous scenarios for SAR analysis SHORT-TERM 1 External Photos 2 Internal Photos 3 Test-Setup Photos 4 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this a pplication. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc.

Date: May 13, 2014 CCS TCB Div . of UL CCS Engineering Lab., Inc. 47173 Benicia Street Fremont, CA 94538-7366 SUBJECT : LG Electronics MobileComm U.S.A. FCC ID : ZNFLS990 LTE MPR for FCC SAR testing To whom it may concern: We, LG Electronics MobileComm USA, hereby confirm that MPR specified in 3GPP will be permanently implemented in ZNFLS990 so that the powers found in this application will not be found to exceed the levels indicated. Additionally, A-MPR(Additional MPR) was disabled for all SAR samples for SAR testing purposes. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc.

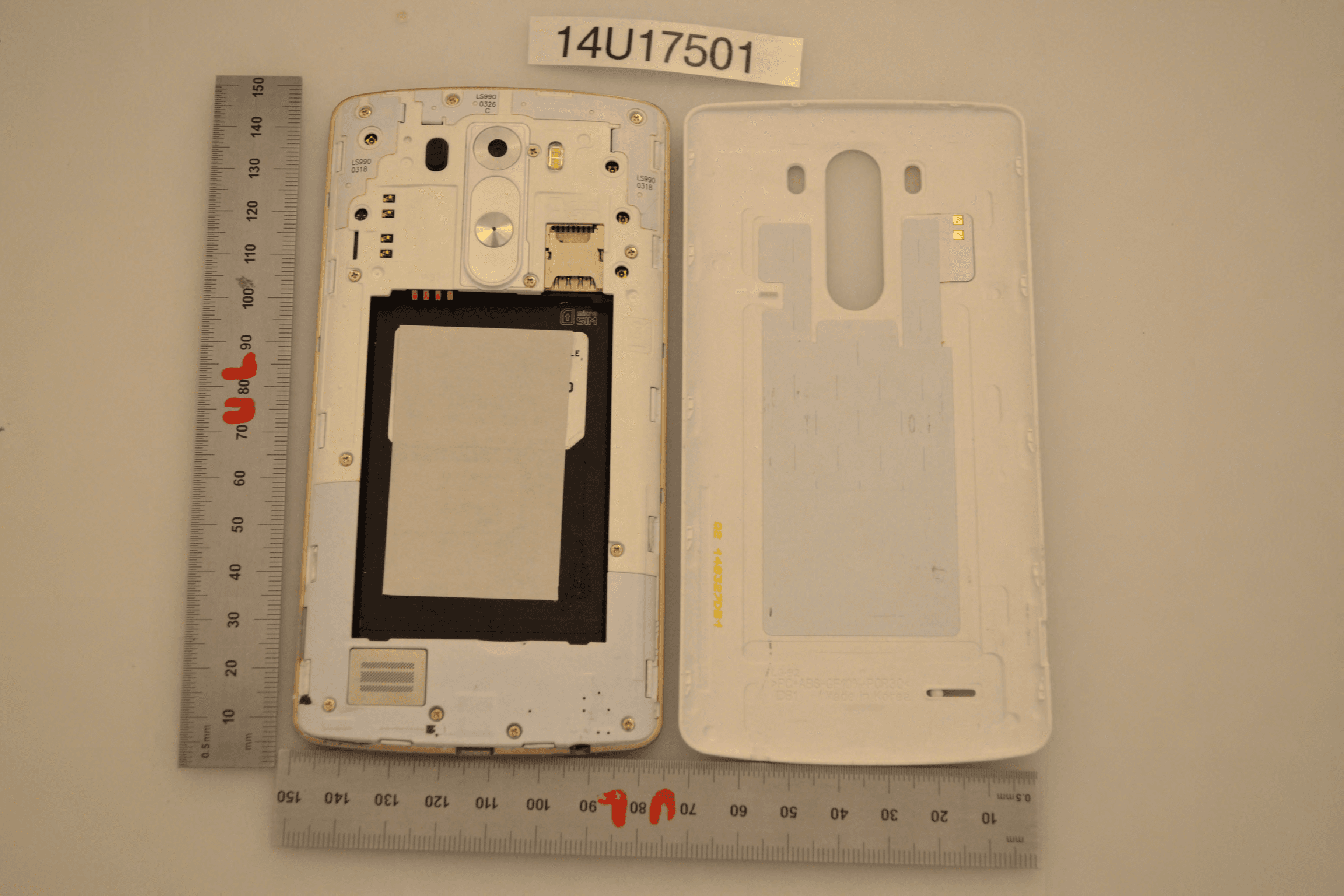

*Note! We, LG Electronics MobileComm USA, state that our device, FCC ID: ZNFLS990, has a battery and has a FCC ID label inside of the battery compartment. Additionally, the battery will not be assembled with the device when delivery, so FCC ID label is visible to the uesrs as they purchase the product and install the battery. The label is attached permanently to the EUT by an adhesive since the adhesive is a permanent type with strong strength. ※ FCC ID Label Form Model No: LGLS990 FCC ID : ZNFLS990 H/W : S/N IMEI :

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Std 1528-2013 SAR EVALUATION REPORT For GSM/CDMA/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac and NFC Model: LG-LS990, LS990, LGLS990 FCC ID: ZNFLS990 Report Number: 14U17501-S7 Issue Date: 5/15/2014 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC. 1000 SYLVAN AVE. ENGLEWOOD CLIFFS, NJ 07632 Prepared by UL Verification Services Inc. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 14U17501-S7 Issue Date: 5/15/2014 FCC ID: ZNFLS990 Page 2 of 81 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 5/15/2014 Initial Issue -- Report No.: 14U17501-S7 Issue Date: 5/15/2014 FCC ID: ZNFLS990 Page 3 of 81 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................. 6 2. Test Methodology ........................................................................................................................... 7 3. Facilities and Accreditation ........................................................................................................... 7 4. Calibration and Uncertainty ........................................................................................................... 8 4.1. Measuring Instrument Calibration .............................................................................................. 8 4.2. Measurement Uncertainty .......................................................................................................... 8 5. Measurement System Description and Setup ............................................................................... 9 6. SAR Measurement Procedure ...................................................................................................... 10 6.1. Normal SAR Measurement Procedure ..................................................................................... 10 6.2. Volume Scan Procedures ........................................................................................................ 12 7. Device Under Test ......................................................................................................................... 13 7.1. General Information ................................................................................................................. 13 7.2. Wireless Technologies ............................................................................................................. 14 7.3. RF Output Power Tolerance .................................................................................................... 15 7.4. Simultaneous Transmission Condition ..................................................................................... 16 7.5. General LTE SAR Test and Reporting Considerations ............................................................. 17 7.5.1. TDD LTE Considerations .................................................................................................. 18 8. RF Exposure Conditions .............................................................................................................. 19 8.1. Head Exposure Conditions ...................................................................................................... 19 8.2. Body-worn Accessory Exposure Conditions ............................................................................. 19 8.3. Hotspot Exposure Conditions ................................................................................................... 20 8.4. Wi-Fi Direct Exposure Conditions ............................................................................................ 20 9. RF Output Power Measurement ................................................................................................... 21 9.1. GSM ........................................................................................................................................ 21 9.2. CDMA ...................................................................................................................................... 22 9.3. W-CDMA ................................................................................................................................. 24 9.4. LTE Band ................................................................................................................................. 28 9.5. Wi-Fi (2.4 GHz Band) ............................................................................................................... 39 9.6. Wi-Fi (5 GHz Bands) ................................................................................................................ 40 9.7. Bluetooth ................................................................................................................................. 45 10. Tissue Dielectric Properties ..................................................................................................... 46 10.1. Composition of Ingredients for the Tissue Material Used in the SAR Tests .......................... 47 Report No.: 14U17501-S7 Issue Date: 5/15/2014 FCC ID: ZNFLS990 Page 4 of 81 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 10.2. Tissue Dielectric Parameter Check Res…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 4/9/2014 SystemPerformanceCheck-D835V2 SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 1.007 S/m; ε r = 53.674; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1352; Calibrated: 9/11/2013 - Probe: EX3DV4 - SN3749; ConvF(8.59, 8.59, 8.59); Calibrated: 1/29/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW 2/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 34.704 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 0.986 W/kg; SAR(10 g) = 0.663 W/kg Maximum value of SAR (interpolated) = 1.17 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.704 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.981 W/kg; SAR(10 g) = 0.649 W/kg Maximum value of SAR (measured) = 1.19 W/kg 0 dB = 1.19 W/kg = 0.76 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 4/9/2014 SystemPerformanceCheck-D835V2 SN 4d117 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.17 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/5/2014 20140505_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 5.177 S/m; ε r = 36.312; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1352; Calibrated: 9/11/2013 - Probe: EX3DV4 - SN3749; ConvF(4.28, 4.28, 4.28); Calibrated: 1/29/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000PCD; Serial: 1632 Head/5.8 GHz, Pin=100mW/Area Scan (61x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 51.601 V/m; Power Drift = 0.08 dB Fast SAR: SAR(1 g) = 6.79 W/kg; SAR(10 g) = 1.86 W/kg Maximum value of SAR (interpolated) = 19.0 W/kg Head/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 51.601 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 33.5 W/kg SAR(1 g) = 7.29 W/kg; SAR(10 g) = 2.08 W/kg Maximum value of SAR (measured) = 18.0 W/kg 0 dB = 18.0 W/kg = 12.55 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/5/2014 20140505_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1 Head/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 12.7 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab C Date: 4/8/2014 20140408 SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.491 S/m; ε r = 51.797; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn500; Calibrated: 5/28/2013 - Probe: EX3DV4 - SN3751; ConvF(6.74, 6.74, 6.74); Calibrated: 11/21/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 62.430 V/m; Power Drift = 0.07 dB Fast SAR: SAR(1 g) = 4.26 W/kg; SAR(10 g) = 2.14 W/kg Maximum value of SAR (interpolated) = 5.70 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 62.430 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 7.62 W/kg SAR(1 g) = 4.25 W/kg; SAR(10 g) = 2.23 W/kg Maximum value of SAR (measured) = 5.73 W/kg 0 dB = 5.73 W/kg = 7.58 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab C Date: 4/8/2014 20140408 SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.70 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab D Date: 4/11/2014 20140411_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.023 S/m; ε r = 51.553; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1258; Calibrated: 3/18/2014 - Probe: EX3DV4 - SN3686; ConvF(6.79, 6.79, 6.79); Calibrated: 3/18/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A v5.0; Type: QDOVA002AA; Serial: TP:xxxx Body/Pin=100 mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Reference Value = 65.884 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 5.46 W/kg; SAR(10 g) = 2.35 W/kg Maximum value of SAR (interpolated) = 8.03 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 65.884 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 11.3 W/kg SAR(1 g) = 5.5 W/kg; SAR(10 g) = 2.55 W/kg Maximum value of SAR (measured) = 7.82 W/kg 0 dB = 7.82 W/kg = 8.93 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc., SAR Lab D Date: 4/11/2014 20140411_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Bod…

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART E CERTIFICATION TEST REPORT FOR GSM/CDMA/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac and NFC MODEL NUMBER: LGLS990, LG-LS990, LS990 FCC ID: ZNFLS990 REPORT NUMBER: 14U17501-5 REVISION A ISSUE DATE: MAY 28, 2014 Prepared for LG ELECTRONICS MOBILECOMM U.S.A., INC 1000 SYLVAN AVENUE ENGLEWOOD CLIFFS, NEW JERSEY, 07632, U.S.A. Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 14U17501-5A DATE: MAY 28, 2014 FCC ID: ZNFLS990 Page 2 of 311 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . Revision History Rev. Issue Date Revisions Revised By -- 5/5/14 Initial Issue P. KIM A 5/28/14 Updated straddling channel portion P. Zhang REPORT NO: 14U17501-5A DATE: MAY 28, 2014 FCC ID: ZNFLS990 Page 3 of 311 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. SAMPLE CALCULATION ............................................................................................ 7 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 9 5.4. WORST-CASE CONFIGURATION AND MODE .........................................................10 5.5. DESCRIPTION OF TEST SETUP ...............................................................................11 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................13 7. SUMMARY TABLE ...........................................................................................................14 8. ON TIME, DUTY CYCLE AND MEASUREMENT METHODS ...........................................15 8.1. ON TIME AND DUTY CYCLE RESULTS ....................................................................15 8.2. DUTY CYCLE PLOTS ................................................................................................16 9. MEASUREMENT METHOD...............................................................................................19 10. ANTENNA PORT TEST RESULTS ...............................................................................20 10.1. 26 dB BANDWIDTH ................................................................................................20 10.1.1. 802.11a MODE IN THE 5.2 GHz BAND ...........................................................20 10.1.2. 802.11n HT20 MODE IN THE 5.2 GHz BAND ..................................................20 10.1.3. 802.11n HT40 MODE IN THE 5.2 GHz BAND ..................................................20 10.1.4. 802.11ac HT80 MODE IN THE 5.2 GHz BAND ................................................20 10.1.5. 802.11a MODE IN THE 5.3 GHz BAND ...........................................................21 10.1.6. 802.11n HT20 MODE IN THE 5.3 GHz BAND ..................................................21 10.1.7. 802.11n HT40 MODE IN THE 5.3 GHz BAND ..................................................21 10.1.8. 802.11ac HT80 MODE IN THE 5.3 GHz BAND ................................................21 10.1.9. 802.11a MODE IN THE 5.5 GHz BAND ...........................................................22 10.1.10. 802.11n HT20 MODE IN THE 5.5 GHz BAND ..................................................22 10.1.11. 802.11n HT40 MODE IN THE 5.5 GHz BAND ..................................................22 10.1.12. 802.11ac HT80 MODE IN THE 5.5 GHz BAND ................................................22 10.1.13. 802.11a MODE IN THE 5.8 GHz BAND ...........................................................23 10.1.14. 802.11n HT20 MODE IN THE 5.8 GHz BAND ..................................................23 10.1.15. 802.11n HT40 MODE IN THE 5.8 GHz BAND ..................................................23 REPORT NO: 14U17501-5A DATE: MAY 28, 2014 FCC ID: ZNFLS990 Page 4 of 311 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. . 10.1.16. 802.11ac HT80 MODE IN THE 5.8 GHz BAND ................................................23 10.2. 99% BANDWIDTH ..................................................................................................32 10.2.1. 802.11a MODE IN THE 5.2 GHz BAND ...........................................................32 10.2.2. 802.11n HT20 MODE IN THE 5.2 GHz BAND ..................................................32 10.2.3. 802.11n HT40 MODE IN THE 5.2 GHz BAND ...............................…

Text truncated - open the document above for the full version.

REPORT NO: 14U17501-5A DATE: MAY 28, 2014 FCC ID: ZNFLS990 Page 305 of 311 UL VERIFICATION SERVICES INC. FORM NO: CCSUP4701J 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Ser…
