ZNFP710Cellular/PCS GSM and PCS WCDMA Phone with WLAN, Bluetooth and RFID

User Guide LG-P710 MFL00000000 (1.0) www.lg.com ENGLISH Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Part 15 Class B Compliance This device comply with part 15 of FCC UXOHVDQG ICES-003 Class B digital apparatus requirements for Industry Canada. Operation is subject to the following two conditions:(1) This device may not FDXVH harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept cm (0.9 inches) between the user’s body and the back of the phone. To comply with FCC RF exposure requirements, a minimum separation distance of cm (0.9 inches) must be maintained between the user's body and the back of the phone. Third-party belt-clips, holsters, and similar accessories containing metallic components may not be used. Body-worn accessories that cannot maintain cm (0.9 inches) separation distance between the user's body and the back of the phone, and have not been tested for typical body- worn operations may not comply with FCC RF exposure limits and should be avoided. Conformité aux normes FCC Part 15 Class B Cet appareil et ses accessoires sont conformes aux normes FCC Part 15 Class B de la Federal Communications Commission et aux exigences pour appareils numériques ICES-003 Class B d’Industrie Canada.Son fonctionnement est sujet aux deux conditions suivantes :(1) Cet appareil et ses accessoires ne doivent pas provoquer de brouillage préjudiciable, et (2) cet appareil et ses accessoires doivent accepter toutes les interférences reçues, y compris celles pouvant causer un fonctionnement indésirable. Utilisation comme appareil portatif Ce téléphone a été testé en vue d’une utilisation type comme appareil portatif, avec une distance de cm (0,9 pouces) entre l’arrière de l’appareil et le corps de l’utilisateur. Pour satisfaire aux exigences de la FCC en matière d’exposition aux radiofréquences, une distance d’au moins cm (0,9 pouces) doit être maintenue entre le corps de l’utilisateur et l’arrière du téléphone. Les pinces de ceinture, les étuis et autres accessoires semblables d’autres marques et contenant des composantes métalliques ne doivent pas être utilisés.Les accessoires portatifs empêchant le maintien d’une distance de cm (0,9 pouces) entre le corps de l’utilisateur et l’arrière du téléphone et qui n’ont pas été testés en vue d’une utilisation type comme accessoires portatifs peuvent ne pas satisfaire aux limites d’exposition aux radiofréquences stipulées par la FCC et, par conséquent, ne doivent pas être utilisés. User Guide • Screen displays and illustrations may differ from those you see on actual phone. • Some of the contents of this guide may not apply to your phone, depending on the software and your service provider. All information in this document is subject to change without notice. • This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Google Talk™ and Play Store™ are trademarks of Google, Inc. ENGLISH 13 Getting to know your phone Please check to see whether any problems you encountered with your phone are described in this section before taking the phone in for service or calling a service representative. 1. Phone memory When there is less than 10% of space available in your phone memory, your phone cannot receive new messages. You need to check your phone memory and delete some data, such as applications or messages, to make more memory available. To uninstall applications: 1 Touch > Apps tab > Settings > Apps from the DEVICE category. 2 Once all applications appear, scroll to and select the application you want to uninstall. 3 Touch Uninstall. 2. Optimising battery life Extend your battery's life between charges by turning off features that you don't need to having running constantly in the background. You can monitor how applications and system resources consume battery power. Extending your phone's battery life: • Turn off radio communications you are not using. If you are not using Wi-Fi, Bluetooth or GPS, turn them off. • Reduce screen brightness and set a shorter screen timeout. Before you start using the phone, please read this! 14 • Turn off automatic syncing for Google Mail™, Calendar, Contacts and other applications. • Some applications you have downloaded may reduce battery power. To check the battery power level: • Touch > Apps tab > Settings > About phone from the SYSTEM > Status The battery status (…

Text truncated - open the document above for the full version.

51 Camera Getting to know the viewfinder Swap lens – Allows you to swap between the rear camera lens and the front camera lens. Cheese shutter – Allows you to turn on or off the voice shot. When on, you just say "Cheese" to take a photo. Shot mode – Choose from Normal, Panorama or Continuous shot. Flash – Choose from Off, On, or Auto. Settings – Touch this icon to open the Settings menu. Mode Switch – Touch this icon to switch between Camera mode and Video mode. Capture – Allows you to take a photo. Gallery – Touch to view the last photo you captured. This enables you to access your gallery and view saved photos within camera mode. 52 Taking a quick photo 1 Open the Camera application. 2 Hold the phone, point the lens towards the subject you want to photograph. 3 Touch the screen and a focus box will appear in the centre of the viewfinder screen. 4 When the focus box turns green, the camera has focused on your subject. 5 Click on the to capture the image. Once you've taken the photo Your captured photo will appear on the screen if Auto review is set to On (refer to Using the advanced settings). Share – Touch to share your photo using Bluetooth, E-mail, FileShare, Gmail, Google+, Memo, Messaging, Picasa, SmartShare or any other downloaded applications that is supported. Set as – Touch to use the image as a Contact photo, Home screen Wallpaper or Lock screen wallpaper. – Touch to delete the image. – Touch to take another photo immediately. – Touch to view the Gallery of your saved photos. Using the advanced settings In the viewfinder, touch to open all advanced options. Touch if you want to change the viewfinder menu. Zoom in or out. Camera 53 Defines and controls the amount of sunlight entering the photo. Selects photo resolution. If you choose high resolution, file size will increase, which means you will be able to store fewer photos in the memory. Finds the appropriate color and light settings for the current environment. The ISO rating determines the sensitivity of the camera's light sensor. The higher the ISO, the more sensitive the camera. This is useful in darker conditions when you cannot use the flash. Improves color quality in various lighting conditions. Applies artistic effects to your pictures. Sets a delay after the capture button is pressed. This is ideal if you want to be in the photo. Activate this to use your phone's location-based services. Take pictures wherever you are and tag them with the location. If you upload tagged pictures to a blog that supports geo tagging, you can see the pictures displayed on a map. NOTE: This function is only available when the GPS function is active. Selects a shutter sound. Automatically shows you the picture you just took. Choose where to save your pictures. Restore all camera default settings. Touch this whenever you want to know how a function works. This icon will provide you with a quick guide. 54 TIP! • When you exit the camera, some settings return to their defaults, such as white balance, color effect, timer and scene mode. Check these before you take your next photo. • The setting menu is superimposed over the viewfinder, so when you change photo color or quality elements, you will see a preview of the changed image behind the Settings menu. Camera 55 Video camera Getting to know the viewfinder Swap lens – Allows you to swap between the rear camera lens and the front camera lens. Video size – Touch to set the size (in pixels) of the video you record. Select the video size from TV(720x480), VGA(640x480), MMS(320x240), and MMS(176x144). Flash – Allows you to turn on the flash when taking a photo in a dark place. Zoom – Zoom in or zoom out. Settings – Touch this icon to open the settings menu. Mode switch – Touch this icon to switch between Camera mode and Video mode. Record – Allows you to start recording. Gallery – Touch to view the last video you recorded. This enables you to access your gallery and view your saved videos from within video mode. 56 Video camera Shooting a quick video 1 Touch the Camera mode button. 2 The video camera viewfinder appears on the screen. 3 Holding the phone, point the lens towards the subject you want to capture in your video. 4 Press the Record button once to start recording. 5 A red light appears at the top corner of the viewfinder with a timer showing the length of the video. 6 Touch on the screen to stop recording. After shooting a video A still image representing your video will appear on the screen if Auto review is set to On. Play – Touch to play the video. Share – Touch to share the video Bluetooth, E-mail, FileShare, Gmail, Google+, Messaging, Picasa, SmartShare, YouTube, or any other downloaded application that is supported. NOTE: Additional charges may apply when MMS messages are downloaded while roaming. Touch to delete the video you just made. – Touch to record another video right away. Your current video will be saved. – Touch to view the Gallery of your saved videos. 57 Using the advanced settings Using the viewfinder, touch to open all the advanced options. Touch if you want to change the viewfinder menu. Defines and controls the amount of sunlight entering the video. Improves color quality in various lighting conditions. Choose a colour tone to use for your new view. Activate this to use your phone's location-based services. Choose Off to record a video without sound. Auto review automatically shows you the video you just recorded. Choose where to save your videos. Restore all video camera default settings. Touch this if you want to know how this function works. This icon will provide you with a quick guide. Adjusting the volume when viewing a video To adjust the volume of a video while it is playing, use the volume keys on the left-hand side of the phone. 58 You can store multimedia files on a memory card for easy access to all your image and video files. Gallery Touch > Apps tab > Gallery. Open a list of catalogue bars that store all your multimedia files. Music Player Your LG-P71…

Text truncated - open the document above for the full version.

          !"# Date: February 08, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFP710 Equipment Class:%&%   '  (   )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secret s and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

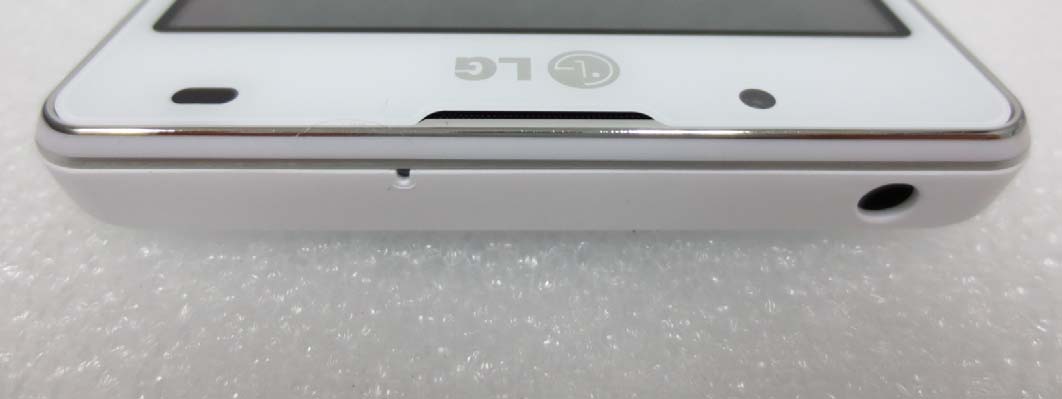

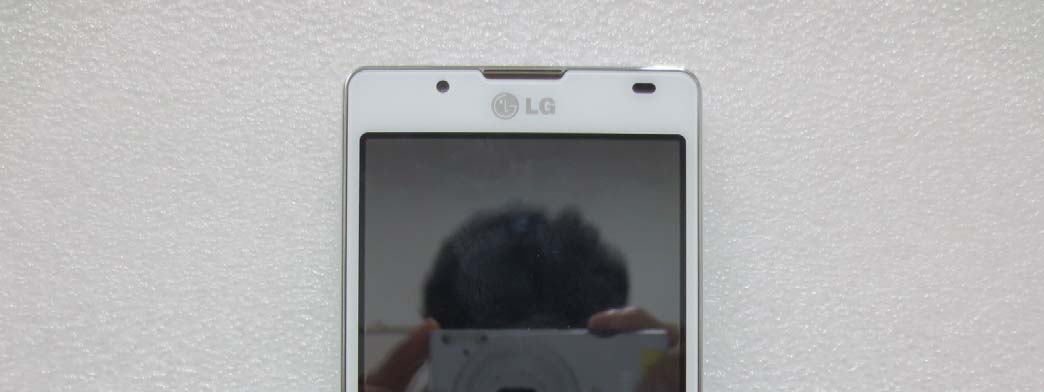

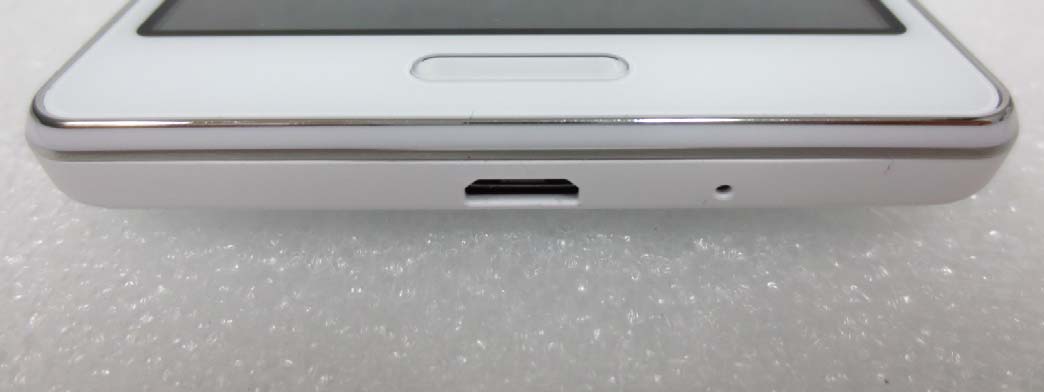

FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO

Model No: LG-P710 FCC ID : ZNFP710 S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 15 INTERNAL PHOTOGRAPHS FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 15 ■ INTERNAL PHOTO BT / WiFi FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ８ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ９ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １０ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １１ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １２ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １３ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １４ of 15 ■ INTERNAL PHOTO FCC ID: ZNFP710 HCT CO., LTD 105-1, JANGAM-RI, MAJANG-MYEON, ICHEON-SI, KYUNGGI-DO, 467-811 KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １５ of 15 ■ INTERNAL PHOTO

SAR TEST REPORT HCT CO., LTD EUT Type: Cellular/PCS GSM/GPRS/EDGE Rx only/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth, WLAN/NFC FCC ID: ZNFP710 Model: LG-P710 Additional: P710,LGP710 Date of Issue: Mar,.15, 2013 Test report No.: HCTA1301FS06 Test Laboratory: HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 Applicant : LG Electronics, MobileComm U.S.A., Inc. 1000 Sylvan Avenue, Englewood Cliffs NJ 07632 Testing has been carried out in accordance with: RSS-102 Issue 4; Health Canada Safety Code 6 47CFR §2.1093 FCC OET Bulletin 65(Edition 97-01), Supplement C (Edition 01-01) ANSI/ IEEE C95.1 – 1992 IEEE 1528-2003 Test result: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Signature Report prepared by Approved by : Young-Soo Jang : Jae-Sang So Test Engineer of SAR Part Manager of SAR Part Report No.: HCTA1301FS06 FCC ID: ZNFP710 Date of Issue: Mar. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 152 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ４ 2. TEST METHODOLOGY ............................................................................................................................... ５ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ６ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ７ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １４ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... １６ 7. MEASUREMENT UNCERTAINTY ........................................................................................................... １８ 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １９ 9. SAR SYSTEM VALIDATION .................................................................................................................... ２０ 10. SYSTEM VERIFICATION ....................................................................................................................... ２１ 10. SYSTEM VERIFICATION ....................................................................................................................... ２１ 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... ２２ 11.4 Bluetooth Average Power .................................................................................................................. ３０ 12. SAR Test configuration & Antenna Information ................................................................................ ３１ 13. SAR TEST DATA SUMMARY ................................................................................................................ ３２ 13.1 Measurement Results (GSM850 Head SAR) ............................................................................ ３２ 13.2 Measurement Results (GSM1900 Head SAR) .......................................................................... ３３ 13.3 Measurement Results (WCDMA1900 Head SAR)..................................................................... ３４ 13.4 Measurement Results (802.11b/g/n Head) ................................................................................ ３５ 13.5 Measurement Results (GSM850 Hotspot SAR) ........................................................................ ３６ 13.6 Measurement Results (GSM1900 Hotspot SAR) ...................................................................... ３７ 13.7 Measurement Results (WCDMA1900 Hotspot SAR) ................................................................. ３８ 13.8 Measurement Results (802.11b/g/n Hotspot SAR) .................................................................... ３９ 14. SAR Summation Scenario ................................................................................................................... ４０ 15. SAR Measurement Variability and Uncertainty ................................................................................. ４５ 16. CONCLUSION ........................................................................................................................................ ４６ 17. REFERENCES ....................................................................................................................................... ４７ Attachment 1. – SAR Test Plots ................................................................................................................ ４８ Attachment 2. – Dipole Verification Plots.............................................................................................. １０３ Attachment 3. – Probe Calibration Data ................................................................................................ １１６ Attachment 4. – Dipole Calibration Data ............................................................................................... １２８ Report No.: HCTA1301FS06 FCC ID: ZNFP710 Date of Issue: Mar. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 152 Revision History Rev. Issue DATE DESCRIPTION - Jan.31, 2013 Initial Issue 1 Mar.15,2013 1. Revised Sec. 2. 2. Revised Sec. 9. System Validation Table Report No.: HCTA1301FS06 FCC ID: ZNFP710 Date of Issue: …

Text truncated - open the document above for the full version.

Report No.: HCTA1301FS06 FCC ID: ZNFP710 Date of Issue: Mar. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 80 of 152 Test Laboratory: HCT CO., LTD EUT Type: Cellular/PCS GSM/GPRS/EDGE Rx only/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth, WLAN/NFC Liquid Temperature: 21.3 °C Ambient Temperature: 21.5 °C Test Date: Jan.18, 2013 Separation Distance: 1.0 cm Plot NO. 32 DUT: LG-P710; Type: bar; Serial: #1 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(4.55, 4.55, 4.55); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2012-09-18 - Phantom: Triple Flat Phantom 5.1C_20120905; Type: QD 000 P51 CA GSM1900 Body rear GPRS 3Tx/Area Scan (71x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.131 mW/g GSM1900 Body rear GPRS 3Tx/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.08 V/m; Power Drift = -0.064 dB Peak SAR (extrapolated) = 0.167 W/kg SAR(1 g) = 0.117 mW/g; SAR(10 g) = 0.073 mW/g Maximum value of SAR (measured) = 0.126 mW/g 0 dB = 0.126mW/g Report No.: HCTA1301FS06 FCC ID: ZNFP710 Date of Issue: Mar. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 81 of 152 Test Laboratory: HCT CO., LTD EUT Type: Cellular/PCS GSM/GPRS/EDGE Rx only/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth, WLAN/NFC Liquid Temperature: 21.3 °C Ambient Temperature: 21.5 °C Test Date: Jan.18, 2013 Separation Distance: 1.0 cm Plot NO. 33 DUT: LG-P710; Type: bar; Serial: #1 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(4.55, 4.55, 4.55); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2012-09-18 - Phantom: Triple Flat Phantom 5.1C_20120905; Type: QD 000 P51 CA GSM1900 Body front GPRS 3Tx/Area Scan (71x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.137 mW/g GSM1900 Body front GPRS 3Tx/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.57 V/m; Power Drift = -0.029 dB Peak SAR (extrapolated) = 0.188 W/kg SAR(1 g) = 0.112 mW/g; SAR(10 g) = 0.064 mW/g Maximum value of SAR (measured) = 0.133 mW/g 0 dB = 0.133mW/g Report No.: HCTA1301FS06 FCC ID: ZNFP710 Date of Issue: Mar. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 82 of 152 Test Laboratory: HCT CO., LTD EUT Type: Cellular/PCS GSM/GPRS/EDGE Rx only/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth, WLAN/NFC Liquid Temperature: 21.3 °C Ambient Temperature: 21.5 °C Test Date: Jan.18, 2013 Separation Distance: 1.0 cm Plot NO. 34 DUT: LG-P710; Type: bar; Serial: #1 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(4.55, 4.55, 4.55); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2012-09-18 - Phantom: Triple Flat Phantom 5.1C_20120905; Type: QD 000 P51 CA GSM1900 Body Left side 3Tx 661/Area Scan (101x41x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.105 mW/g GSM1900 Body Left side 3Tx 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.98 V/m; Power Drift = -0.174 dB Peak SAR (extrapolated) = 0.127 W/kg SAR(1 g) = 0.084 mW/g; SAR(10 g) = 0.049 mW/g Maximum value of SAR (measured) = 0.094 mW/g 0 dB = 0.094mW/g Report No.: HCTA1301FS06 FCC ID: ZNFP710 Date of Issue: Mar. 15, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 83 of 152 Test Laboratory: HCT CO., LTD EUT Type: Cellular/PCS GSM/GPRS/EDGE Rx only/PCS WCDMA/HSDPA/HSUPA Phone with Bluetooth, WLAN/NFC Liquid Temperature: 21.3 °C Ambient Temperature: 21.5 °C Test Date: Jan.18, 2013 Separation Distance: 1.0 cm Plot NO. 35 DUT: LG-P710; Type: bar; Serial: #1 Communication System: GSM1900; Frequency: 1880 MHz;Duty Cycle: 1:2.77 Medium parameters used: f = 1880 MHz; σ = 1.53 mho/m; ε r = 52.1; ρ = 1000 kg/m 3 Phantom section: Center Section ; Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 184 DASY4 Configuration: - Probe: ET3DV6 - SN1609; ConvF(4.55, 4.55, 4.55); Calibrated: 2012-03-19 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn869; Calibrated: 2012-09-18 - Phantom: Triple Flat Phantom 5.1C_20120905; Type: QD 000 P51 CA GSM1900 Body Right side 3Tx 661/Area Scan (101x41x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.029 mW/g GSM1900 Body Right side 3Tx 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.45 V/m; Power Drift = 0.185 dB Peak SAR (extrapolated) = 0.038 W/kg SAR(1 g) = 0.026 mW/g; SAR(10 g) = 0.016 mW/g Maximum value of SAR (measured)…
