MFLXXXXXXXX (1.0) Copyright ©2020 LG Electronics Inc. All rights reserved. www.lg.com ENGLISH USER GUIDE LM-Q630EAW 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Centre. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licenced for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. • This user guide is written in major languages for each country. Depending on the language used, content may partly differ. ENGLISH 2About this user guide Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. Adapter shall be installed near the equipment and shall be easily accessible 3 Table of contents 01 Custom-designed Features 16 Camera features 19 Galler y features 22 Sound qualit y and effects features 22 Google Assistant 24 Fingerprint recognition 27 Multi- tasking feature 02 Basic Functions 29 Product components and accessories 30 Parts overview 33 T urning the power on or off 34 Installing the SIM card 37 Inserting the memory card 38 Removing the memory card 38 Battery 40 T ouch screen 44 Home scr een 54 Screen lock 59 Memory card encryption 60 Taking screenshots 60 Entering text 65 Cont ent sharing 03 Useful Apps 67 Installing and uninstalling apps 68 App trash 69 App Shortcuts 70 Phone 74 Messaging 75 Camera 85 Gallery 89 Contacts 91 QuickMemo+ 93 Clock 95 Music 5 Guidelines for safe and efficient use 4Table of contents 96 Calculator 96 ThinQ 96 Game Launcher 97 Audio R ecorder 97 Update centre 97 Smart Doctor 98 LG Mobile Switch 98 App trash 99 SmartWorld 99 RemoteCall Service 100 Cell Broadcast 100 Google apps 04 Settings 104 Settings 104 Network & internet 111 Connect ed devices 114 Sound 115 Display 116 Lock scr een & security 118 Extensions 120 Digital W ellbeing & parental controls 120 Apps & no tifications 121 Battery 122 Storage 122 Accounts 122 Google 123 System 127 Accessibility 05 Appendix 130 Language Settings 130 LG Bridge 131 Phone so ftware update 133 Anti- Theft Guide 134 Open Sour ce Software Notice Information 134 R egulatory information (Regulation ID number, E-labeling, etc.) 135 Trademarks 136 DE CLARATION OF CONFORMITY 136 Contact office for compliance of this product 136 Wi-Fi (WL AN) 137 Mor e information 141 FAQ 5 Guidelines for safe and efficient use Please read these simple guidelines. Not following these guidelines may be dangerous or illegal. Should a fault occur, a software tool is built into your device that will gather a fault log. This tool gathers only data specific to the fault, such as signal strength, cell ID position in sudden call drop and applications loaded. The log is used only to help determine the cause of the fault. These logs are encrypted and can only be accessed by an authorised LG Repair centre should you need to return your device for repair. Exposure to radio frequency energy Radio wave exposure and Specific Absorption Rate (SAR) information. This device has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health. •The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the device transmitting at its highest certified power level in all used frequency bands. •While there may be differences between the SAR levels of various LG device models, they are all designed to meet the relevant guidelines for exposure to radio waves. •The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2 W/kg averaged over 10 g of tissue. •The highest SAR value for this model tested for use at the ear is 0.453W/kg (10 g) and when worn on the body is1.287W/kg (10 g). 6Guidelines for safe and efficient use • This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 5 mm away from the body. When a carry case, belt clip or holder is used for body-worn operation, it should not contain metal and should position the product at least 5 mm away from your body. In order to transmit data files or messages, this device requires a quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure the abo…

Text truncated - open the document above for the full version.

Rev. 1/1/03 LG Electronics USA, Inc. 1000 Sylvan Ave.Englewood Cliffs,New Jersey,United States 07632 Tel: 201-266-2215; Fax: 201-816-2003 Date: March 18, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZNFQ630EAW FCC ID: ZNFQ630HA Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Parts List Operation Description Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _______________________ Kyung-Su Han [email protected]

LG Electronics USA, Inc. 1000 Sylvan Ave.Englewood Cliffs,New Jersey,United States 07632 Tel: 201-266-2215; Fax: 201-816-2003 Date: March 18, 2020 Power of Attorney To whom it may concern, Please be notified that I, Kyung-Su Han , have designated Jim Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jim Tsai in Sporton International Inc., on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C 862. This authorization is limited to the product of as following: FCC ID: ZNFQ630EAW FCC ID: ZNFQ630HA If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ____ Contact Person: Kyung-Su Han E-mail: [email protected]

1/1 LG Electronics USA, Inc. 1000 Sylvan Ave.Englewood Cliffs,New Jersey,United States 07632 Tel: 201-266-2215; Fax: 201-816-2003 Date: March 18, 2020 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID: ZNFQ630EAW FCC ID: ZNFQ630HA To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47, Public Notice DA 04-1705 of the Commission’s policy and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test set-up photos  Users Manual The application contains technical information, which LG Electronics USA, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, ____ Contact Person: Kyung-Su Han E-mail: [email protected]

LG Electronics USA, Inc. 1000 Sylvan Ave.Englewood Cliffs,New Jersey,United States 07632 Tel: 201-266-2215; Fax: 201-816-2003 Statement We hereby declare the following product: FCC ID: ZNFQ630EAW For the equipment authorization of LTE band 41, the design and the implementation of the device limits the operation in the range of 2535MHz to 2655 MHz. We ensure the device will operate strictly in accordance with the frequency range stated on the grant. Should you have any questions, please have my best attention. Sincerely yours, Contact Person: Kyung-Su Han E-mail: [email protected]

LG Electronics USA, Inc. 1000 Sylvan Ave.Englewood Cliffs,New Jersey,United States 07632 Tel: 201-266-2215; Fax: 201-816-2003 Statement We, LG Electronics USA, Inc., states that our device, FCC ID: ZNFQ630EAW. The hardware supports LTE band7/38/40 but it will be disabled by software and are not available in US market. Contact Person: Kyung-Su Han E-mail: [email protected]

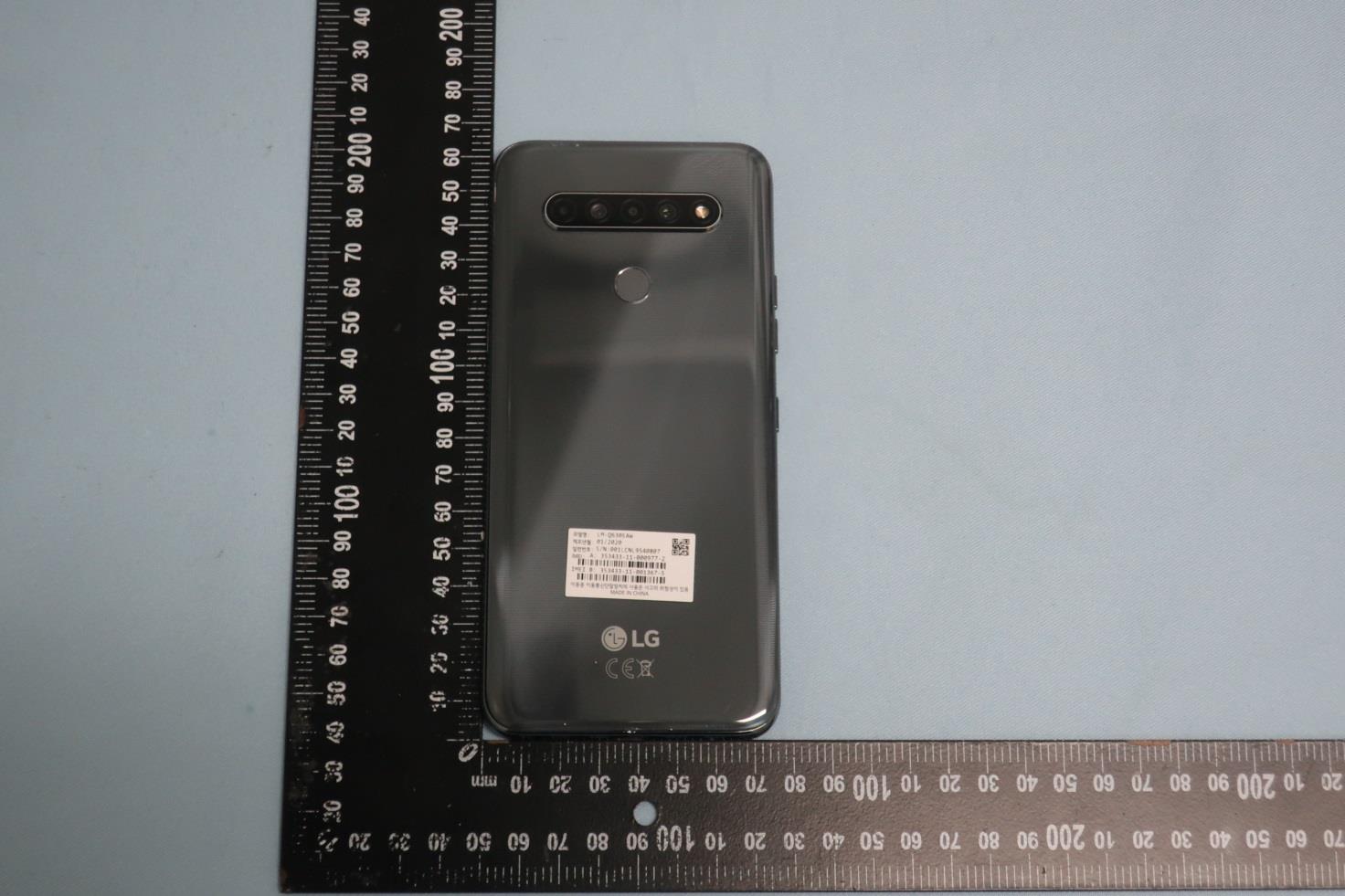

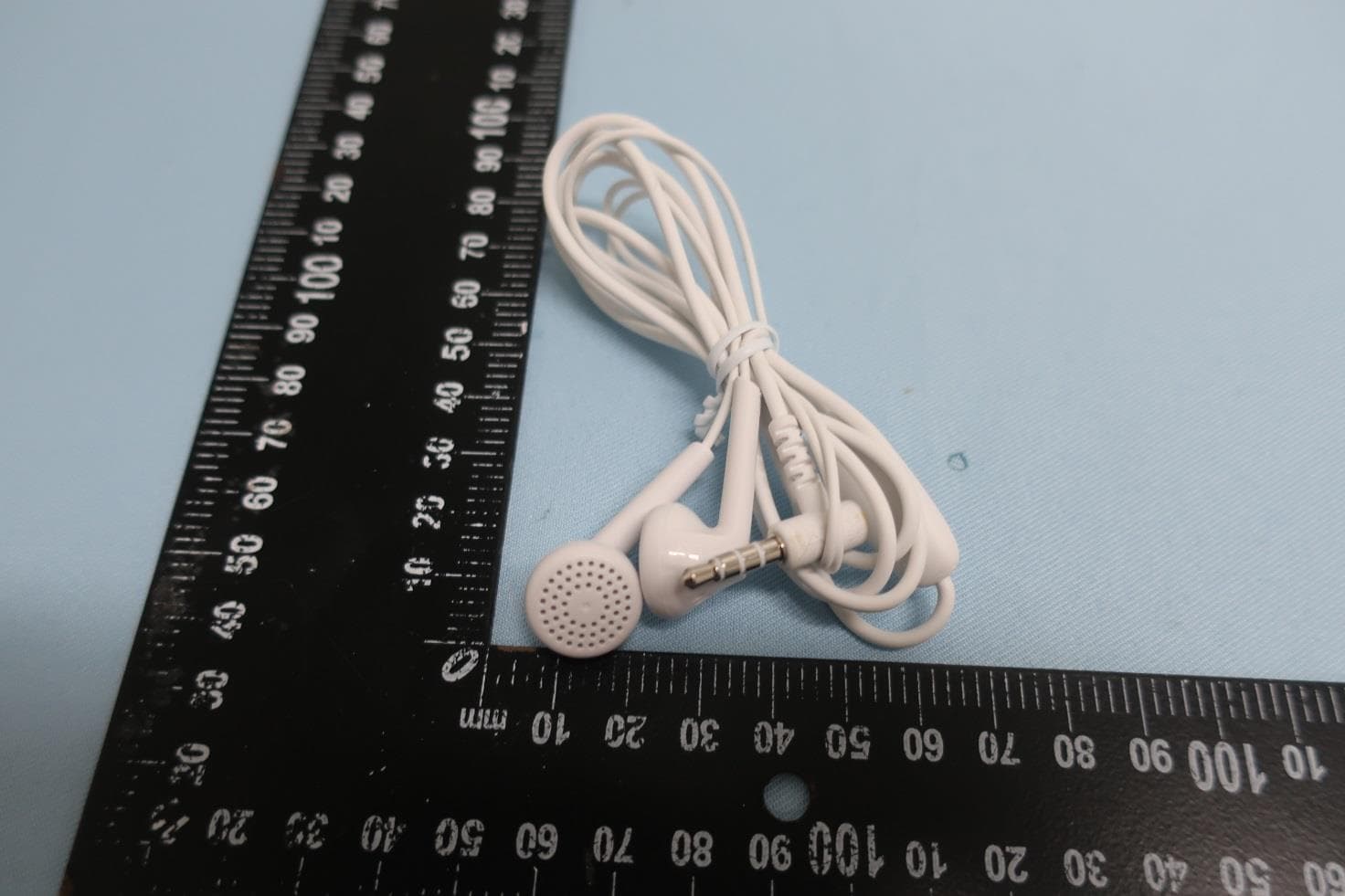

Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 1 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW 1. External Photograph of EUT Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 2 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 3 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 4 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 5 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 6 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 7 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW List of Accessory: Specification of Accessory AC Adapter 1(EU) Brand Name LG (Sunlin) Model Name MCS-V02ER Power Rating I/P: 100 - 240 Vac, 0.4 A; O/P: 5.0V, 2.0A AC Adapter 1(UK) Brand Name LG (Sunlin) Model Name MCS-V02UR Power Rating I/P: 100 - 240 Vac, 0.4 A; O/P: 5.0V, 2.0A AC Adapter 1(US) Brand Name LG (Sunlin) Model Name MCS-V02WR Power Rating I/P: 100 - 240 Vac, 0.4 A; O/P: 5.0V, 2.0A Battery Brand Name LG Model Name BL-T49 Power Rating 3.8V, 3880mAh Type Li-ion, Polymer USB Cable Brand Name LG (Luxshare) Model Name DC15WX-G Signal Line 1.0 meter, shielded cable, without ferrite core Earphone 1 Brand Name Cresin Model Name EAB64468444 Signal Line 1.1 meter, non-shielded cable, without ferrite core Earphone 2 Brand Name Bujeon Model Name EAB64468445 Signal Line 1.1 meter, non-shielded cable, without ferrite core Earphone 3 Brand Name Lisuntech Model Name EAB64468447 Signal Line 1.1 meter, non-shielded cable, without ferrite core Remark: For adapter, there are different kinds of plugs that designed for different countries, the others are the same. So we evaluate it is not affect any test item, for FCC test, we only evaluate the adapter with the US plug to test. 2. Photograph of Accessory Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 8 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW 720510 Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 9 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW AC Adapter 1(EU) Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 10 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW AC Adapter 1(UK) Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 11 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW AC Adapter 1(US) Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 12 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Battery Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 13 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 14 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW USB Cable Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 15 of 65 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Ve…

Text truncated - open the document above for the full version.

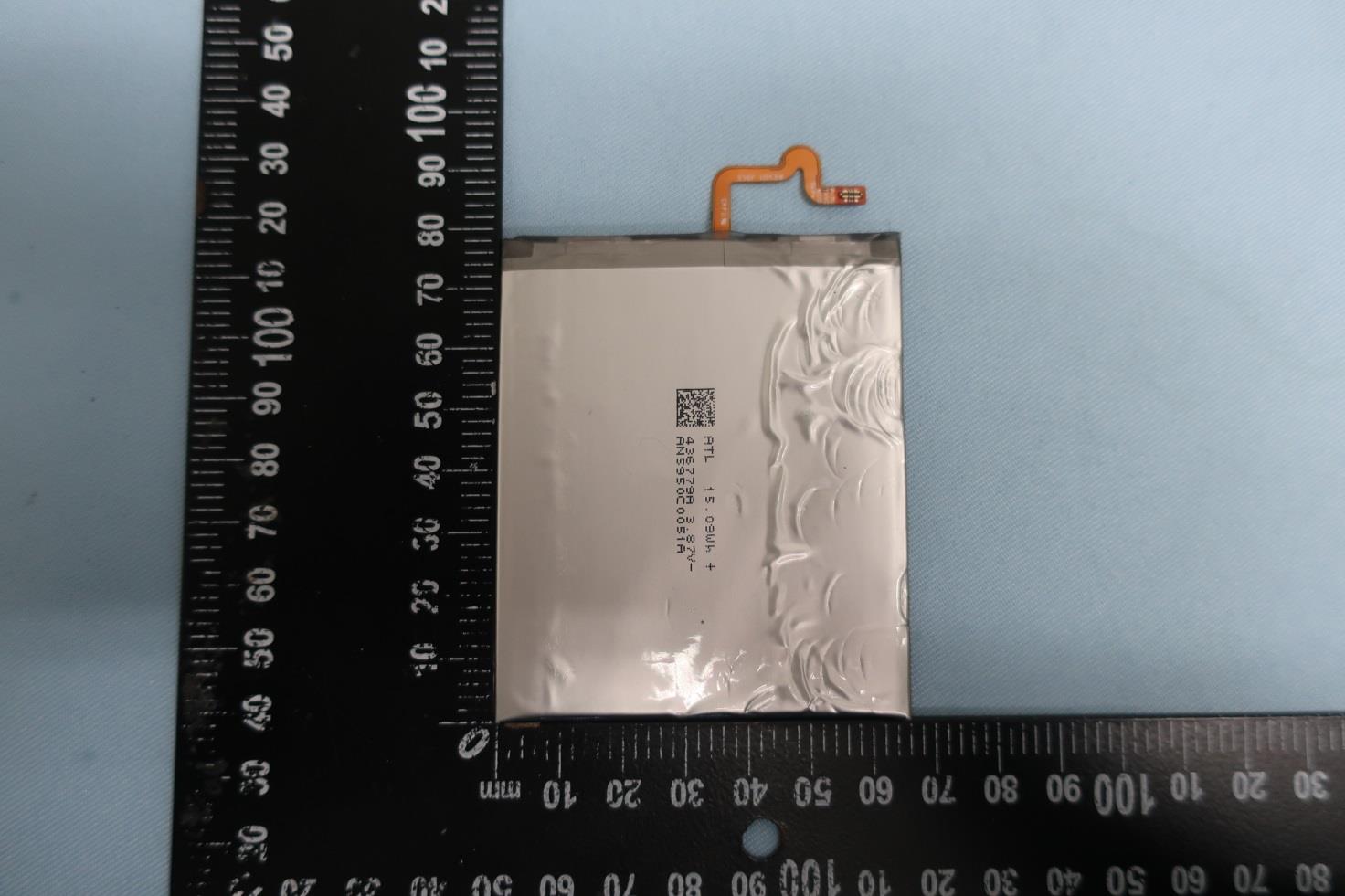

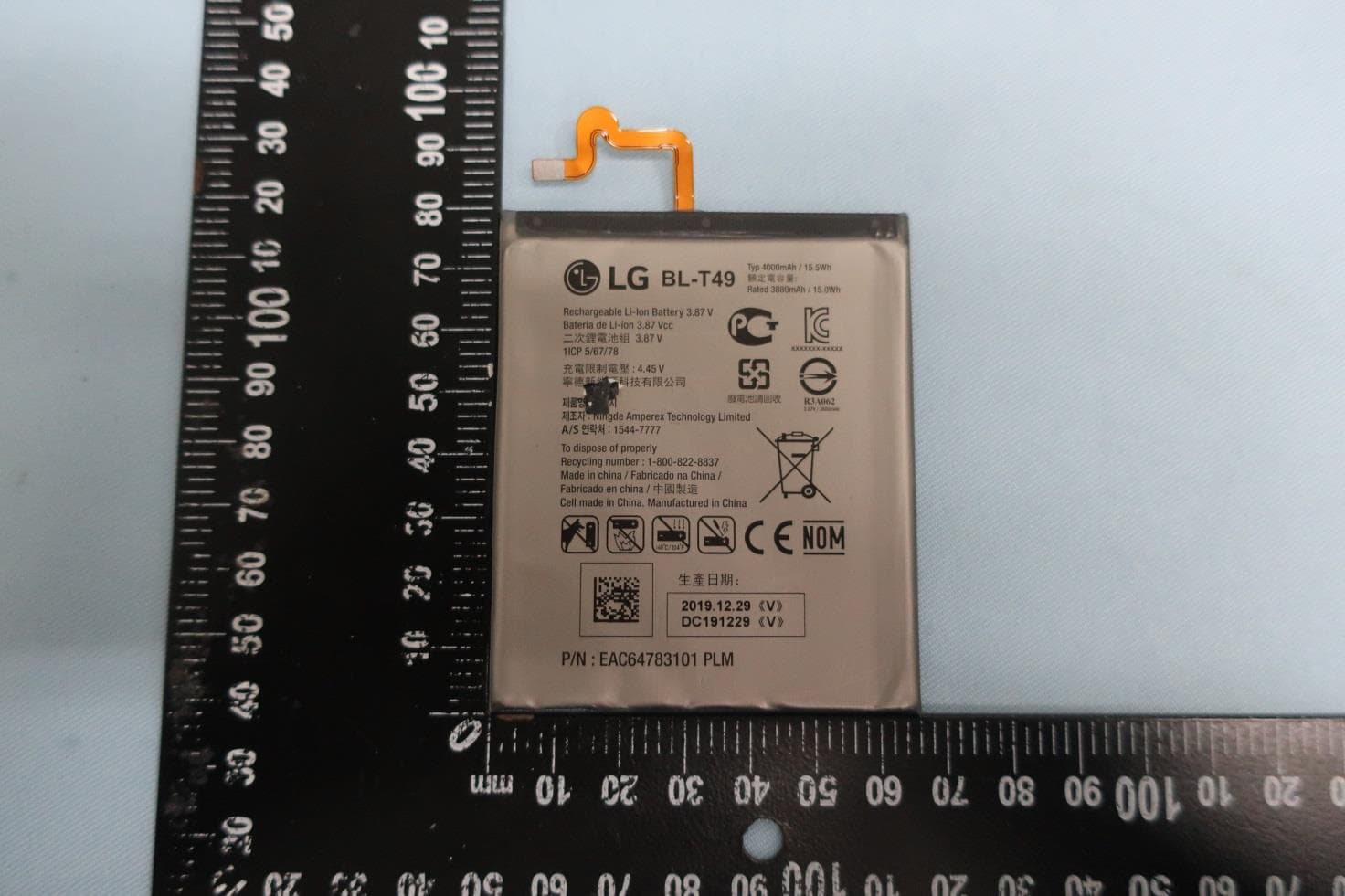

Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 1 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW 3. Internal Photograph of EUT MB Main Antenna <Tx/Rx> L/HB Main Antenna <Tx/Rx> Bluetooth & WLAN 2.4GHz Antenna <Tx/Rx> GNSS Antenna <Rx> L/HB Diversity Antenna <Rx> MB Diversity Antenna <Rx> WLAN 5GHz Antenna <Tx/Rx> NFC Antenna <TX/Rx> Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 2 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 3 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 4 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 5 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 6 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 7 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 8 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 9 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 10 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 11 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 12 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 13 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 14 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 15 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 16 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 17 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA Sporton International Inc. (KunShan) Page Number : 18 of 48 TEL : 86-0512-5790-0158 Report Issued Date : Mar. 19, 2020 FAX : 86-0512-5790-0958 Report Version : Rev. 01 FCC ID : ZNFQ630EAW Photographs of EUT Report No.: EP9D2305 Brand Name: LG Model Name: LM-Q630EAW, LMQ630EAW, Q630EAW, LM…

Text truncated - open the document above for the full version.

Sporton International (Kunshan) Inc. Report Version : Rev.01 TEL : 86-512-57900158 / FAX : 86-512-57900958 Report Template No.: : 181113 FCC ID : ZNFQ630EAW Page 1 of 54 Issued Date : Mar. 19, 2020 FCC SAR Test Report Report No. : FA9D2305 FCC SAR Test Report APPLICANT : LG Electronics USA, Inc. EQUIPMENT : Mobile Phone BRAND NAME : LG MODEL NAME : LM-Q630EAW, LMQ630EAW, Q630EAW, LM-Q630EA, LMQ630EA, Q630EA FCC ID : ZNFQ630EAW STANDARD : FCC 47 CFR PART 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Jan. 01, 2020 and testing was started from Feb. 04, 2020 and completed on Feb. 26, 2020. We, Sporton International (Kunshan) Inc., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International (Kunshan) Inc., the test report shall not be reproduced except in full. Reviewed by: Rose Wang / Supervisor Approved by: Kat Yin / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Report Version : Rev.01 TEL : 86-512-57900158 / FAX : 86-512-57900958 Report Template No.: : 181113 FCC ID : ZNFQ630EAW Page 2 of 54 Issued Date : Mar. 19, 2020 FCC SAR Test Report Report No. : FA9D2305 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Applied .......................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 General LTE SAR Test and Reporting Considerations ........................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 9 5.1 Uncontrolled Environment ...................................................................................................................................... 9 5.2 Controlled Environment .......................................................................................................................................... 9 6. Specific Absorption Rate (SAR) ..................................................................................................................................10 6.1 Introduction ...........................................................................................................................................................10 6.2 SAR Definition .......................................................................................................................................................10 7. System Description and Setup ...................................................................................................................................11 7.1 E-Field Probe ........................................................................................................................................................12 7.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 7.3 Phantom ................................................................................................................................................................13 7.4 Device Holder........................................................................................................................................................14 8. Measurement Procedures ...........................................................................................................................................15 8.1 Spatial Peak SAR Evaluation ................................................................................................................................15 8.2 Power Reference Measurement............................................................................................................................16 8.3 Area Scan .............................................................................................................................................................16 8.4 Zoom Scan ............................................................................................................................................................17 8.5 Volume Scan Procedures ......................................................................................................................................17 8.6 Power Drift Monitoring ...........................................................................................................................................17 9. Test Equipment List .....................................................................................................................................................18 10. System Verification ....................................................................................................................................................19 10.1 Tissue Simulating Liquids ................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.2.15 29_LTE Band 4_20M_QPSK_1RB_49Offset_Back_10mm_Ch20175 Communication System: UID 0, LTE-FDD (0); Frequency: 1732.5 MHz;Duty Cycle: 1:1 Medium: HSL_1750 Medium parameters used: f = 1732.5 MHz; σ = 1.326 S/m; ε r = 38.619; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3293; ConvF(5.53, 5.53, 5.53); Calibrated: 2019.11.25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1338; Calibrated: 2019.11.20 - Phantom: SAM2; Type: SAM; Serial: TP-1503 - Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Ch20175/Area Scan (81x81x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.729 W/kg Ch20175/Zoom Scan (5x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.39 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.948 W/kg SAR(1 g) = 0.560 W/kg; SAR(10 g) = 0.335 W/kg Maximum value of SAR (measured) = 0.663 W/kg 0 dB = 0.663 W/kg = -1.78 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020.2.22 30_LTE Band 41_20M_QPSK_1RB_49Offset_Front_10mm_Ch40140 Communication System: UID 0, LTE-TDD (0); Frequency: 2545 MHz;Duty Cycle: 1:1.59 Medium: HSL_2600 Medium parameters used: f = 2545 MHz; σ = 1.982 S/m; ε r = …
