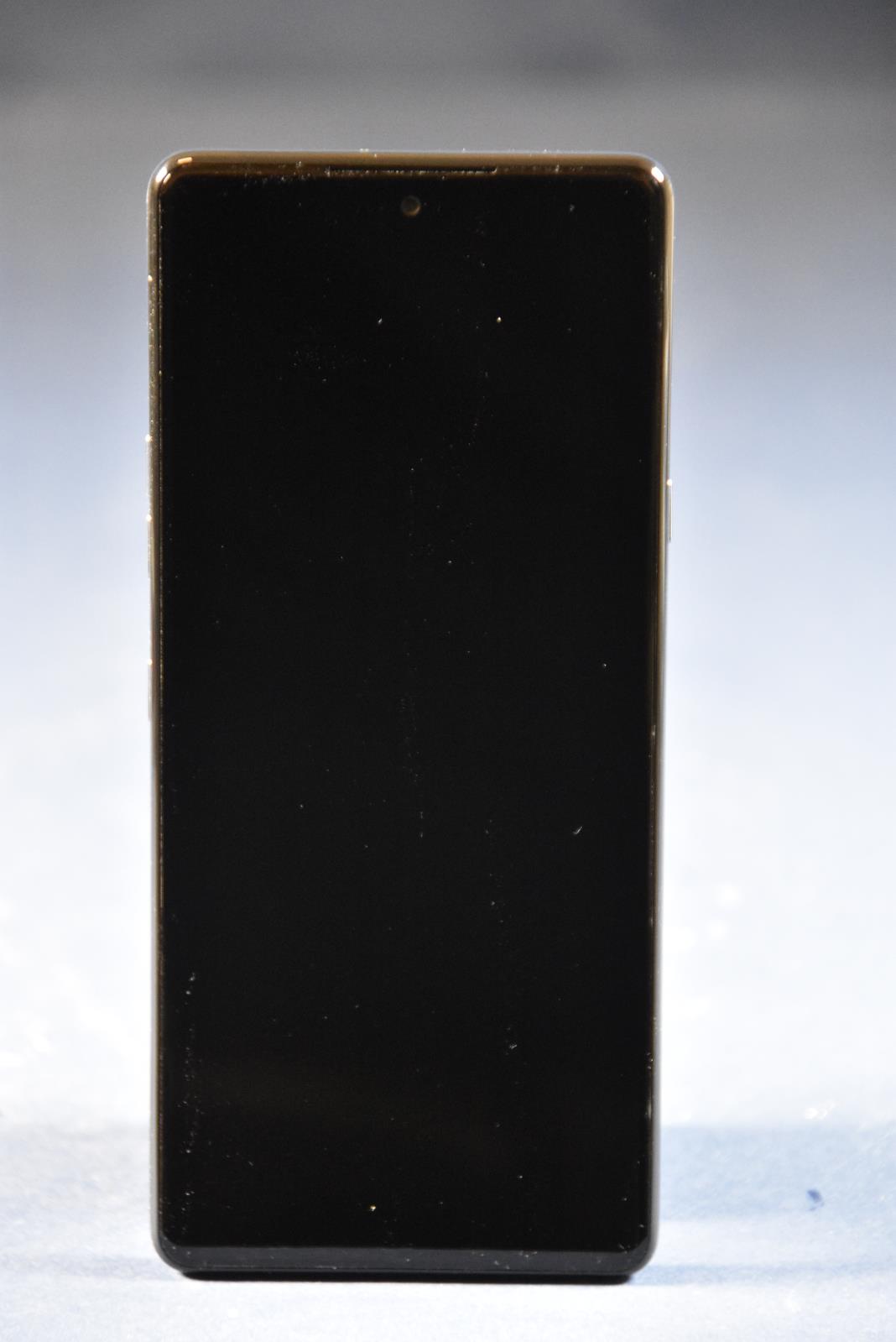

LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM External Photos EUT Type: Portable Handset Page 1 of 5 © 2020 PCTEST V 9.0 02/01/2019 E X T E R N A L P H O T O G R A P H S LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM External Photos EUT Type: Portable Handset Page 2 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM External Photos EUT Type: Portable Handset Page 3 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM External Photos EUT Type: Portable Handset Page 4 of 5 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM External Photos EUT Type: Portable Handset Page 5 of 5 © 2020 PCTEST V 9.0 02/01/2019

Description of E-Label on the ZNFQ730AM 1. FCC ID is applied by E-label on device. [Step2] [Step3] FCC ID E-Label display Step1Select Settings Step2Select System Step 3Select Regulatory& safety [Step1] FCC ID : ZNFQ730AM 2. FCC ID is applied on packaging. FCC ID : ZNFQ730AM 3. Instruction of E-label on the user manual Description of E-Label on the ZNFQ730AM

LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM Internal Photos EUT Type: Portable Handset Page 1 of 6 © 2020 PCTEST V 9.0 02/01/2019 I N T E R N A L P H O T O G R A P H S LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM Internal Photos EUT Type: Portable Handset Page 2 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM Internal Photos EUT Type: Portable Handset Page 3 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM Internal Photos EUT Type: Portable Handset Page 4 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM Internal Photos EUT Type: Portable Handset Page 5 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730AM Model: LM-Q730AM Internal Photos EUT Type: Portable Handset Page 6 of 6 © 2020 PCTEST V 9.0 02/01/2019

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 Fax. +82 31 645 6401 On your side TEST REPORT EMI Test for FCC Certification of LM-Q730AM Model APPLICANT LG Electronics USA, Inc. REPORT NO. HCT-EM-2003-FC018 DATE OF ISSUE March 24, 2020 F-TP22-03 (Rev. 02) Page 3 of 26 Report No. HCT-EM-2003-FC018 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 24, 2020 Initial Release The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. (See Test Report if any modifications were made for compliance) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT certifies that no party to application has been denial the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C 862 This Test Report is not related to the accredited test result by KOLAS (Korea Laboratory Accreditation Scheme) / A2LA (American Association for Laboratory Accreditation), which signed the ILAC-MRA. F-TP22-03 (Rev. 02) Page 4 of 26 Report No. HCT-EM-2003-FC018 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. CONTENTS 1. GENERAL INFORMATION 5 1.1 Description of EUT 5 1.2 Tested System Details 6 1.3 Cable Description 7 1.4 Noise Suppression Parts on Cable. (I/O Cable) 7 1.5 Test Facility 8 1.6 Calibration of Measuring Instrument 8 1.7 Measurement Uncertainty 8 2. DESCRIPTION OF TEST 9 2.1 Measurement of Conducted Emission 9 2.2 Measurement of Radiated Emission 10 2.3 Configuration of Tested System 11 3. PRELIMINARY TEST 12 3.1 Conducted Emission 12 3.2 Radiated Emission 12 4. CONDUCTED EMISSION AND RADIATED EMISSION TEST SUMMARY 13 4.1 Conducted Emission 13 4.2 Radiated Emission Below 1 GHz 20 4.3 Radiated Emission Above 1 GHz 22 5. CONCLUSION 25 6. APPENDIX A. TEST SETUP PHOTO 26 F-TP22-03 (Rev. 02) Page 5 of 26 Report No. HCT-EM-2003-FC018 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1. GENERAL INFORMATION 1.1 Description of EUT FCC ID ZNFQ730AM Model Name LM-Q730AM Series Model Name LMQ730AM, Q730AM Product Name Multi-band GSM/WCDMA/LTE Phone with WLAN, Bluetooth TX Frequency 824.20 MHz to 848.80 MHz (GSM 850) 1 850.20 MHz to 1 909.80 MHz (GSM 1 900) 1 852.4 MHz to 1 907.6 MHz (WCDMA B2) 1712.4 MHz to 1752.6 MHz (WCDMA B4) 826.40 MHz to 846.60 MHz (WCDMA B5) 1 850 MHz to 1 910 MHz (LTE B2) 1 710 MHz to 1 755 MHz (LTE B4) 824 MHz to 849 MHz (LTE B5) 699 MHz to 716 MHz (LTE B12) 788 MHz to 798 MHz (LTE B14) 2 305 MHz to 2 315 MHz (LTE B30) 1 710 MHz to 1 780 MHz (LTE B66) 2 402 MHz to 2 480 MHz (Bluetooth) 2 412 MHz to 2 462 MHz (WiFi 2.4 GHz) 5 180 MHz to 5 240 MHz (WiFi 5 GHz_UNII 1) 5 260 MHz to 5 320 MHz (WiFi 5 GHz_UNII 2A) 5 500 MHz to 5 720 MHz (WiFi 5 GHz_UNII 2C) 5 745 MHz to 5 825 MHz (WiFi 5 GHz_UNII 3) RX Frequency 869.20 MHz to 893.80 MHz (GSM 850) 1 930.20 MHz to 1 989.80 MHz (GSM 1 900) 1 932.4 MHz to 1 987.6 MHz (WCDMA B2) 2 112.4 MHz to 2 152.6 MHz (WCDMA B4) 871.40 MHz to 891.60 MHz (WCDMA B5) 1 930 MHz to 1 990 MHz (LTE B2) 2 110 MHz to 2 155 MHz (LTE B4) 869 MHz to 894 MHz (LTE B5) 729 MHz to 746 MHz (LTE B12) 758 MHz to 768 MHz (LTE B14) 717 MHz to 728 MHz (LTE B29) 2 350 MHz to 2 360 MHz (LTE B30) 2 110 MHz to 2 200 MHz (LTE B66) 2 402 MHz to 2 480 MHz (Bluetooth) 2 412 MHz to 2 462 MHz (WiFi 2.4 GHz) 5 180 MHz to 5 240 MHz (WiFi 5 GHz_UNII 1) 5 260 MHz to 5 320 MHz (WiFi 5 GHz_UNII 2A) 5 500 MHz to 5 720 MHz (WiFi 5 GHz_UNII 2C) 5 745 MHz to 5 825 MHz (WiFi 5 GHz_UNII 3) F-TP22-03 (Rev. 02) Page 6 of 26 Report No. HCT-EM-2003-FC018 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1.2 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Model Name Serial Number Manufacturer EUT LM-Q730AM - LG Notebook PC ProBook6560b 5CB2053MXF HP Notebook PC Adaptor Series PPP009L-E - LITE-ON Technology (CHANGZHOU) Gateway DIR-806M - D-Link Gateway Adaptor AMS1-0501200FK - D-Link Serial Mouse Serial 2 Button mouse 02031069 Radio Shack RJ45 cable - - - Data Cable EAD64746101 NINGBO Data Cable EAD64746102 LUXSHARE Data Cable EAD64746105 KSD Earphone EAB64468445 BUJEON Micro SD Card SANSUNG EVO+microSDXC CLASS10 UHS-I (256 GB) - SANSUNG F-TP22-03 (Rev. 02) Page 7 of 26 Report No. HCT-EM-2003-FC018 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1.3 Cable Description Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) EUT USB Type C Y Y (P,D) 1.0 Earphone N/A N (D) 1.2 Notebook PC RJ 45 N/A N (D) 1.6 Serial (Mouse) N/A Y (D) 1.8 DC IN N N/A (P) 1.8 Gateway DC IN N N/A (P) 1.8 NOTE. The marked “(D)” means the data cable and “(P)” means the power cable. 1.4 Noise Suppression Parts on Cable (I/O Cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location EUT USB Type C N N/A Y Both End Earphone N N/A Y EUT End Notebook PC RJ 45 N N/A N N/A Serial (Mouse) N N/A Y Notebook PC End F-TP22-03 (Rev. 02) Page 8 of 26 Report No. HCT-EM-2003-FC018 This report only responds to the tested sample and may not be reproduced, except in full, …

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 Fax. +82 31 645 6401 On your side TEST REPORT EMI Test for FCC Certification of LM-Q730AM Model APPLICANT LG Electronics USA, Inc. REPORT NO. HCT-EM-2003-FC019 DATE OF ISSUE March 24, 2020 F-TP22-03 (Rev. 02) Page 3 of 25 Report No. HCT-EM-2003-FC019 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 24, 2020 Initial Release The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. (See Test Report if any modifications were made for compliance) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT certifies that no party to application has been denial the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C 862 This Test Report is not related to the accredited test result by KOLAS(Korea Laboratory Accreditation Scheme) / A2LA(American Association for Laboratory Accreditation), which signed the ILAC-MRA. F-TP22-03 (Rev. 02) Page 4 of 25 Report No. HCT-EM-2003-FC019 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. CONTENTS 1. GENERAL INFORMATION 5 1.1 Description of EUT 5 1.2 Tested System Details 5 1.3 Cable Description 6 1.4 Noise Suppression Parts on Cable. (I/O Cable) 6 1.5 Test Facility 7 1.6 Calibration of Measuring Instrument 7 1.7 Measurement Uncertainty 7 2. DESCRIPTION OF TEST 8 2.1 Measurement of Conducted Emission 8 2.2 Measurement of Radiated Emission 9 2.3 Configuration of Tested System 10 3. PRELIMINARY TEST 11 3.1 Conducted Emission 11 3.2 Radiated Emission 11 4. CONDUCTED EMISSION AND RADIATED EMISSION TEST SUMMARY 12 4.1 Conducted Emission 12 4.2 Radiated Emission Below 1 GHz 19 4.3 Radiated Emission Above 1 GHz 21 5. CONCLUSION 24 6. APPENDIX A. TEST SETUP PHOTO 25 F-TP22-03 (Rev. 02) Page 5 of 25 Report No. HCT-EM-2003-FC019 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1. GENERAL INFORMATION 1.1 Description of EUT FCC ID ZNFQ730AM Model Name LM-Q730AM Series Model Name LMQ730AM, Q730AM Product Name Multi-band GSM/WCDMA/LTE Phone with WLAN, Bluetooth TX Frequency 824.20 MHz to 848.80 MHz (GSM 850) 1 850.20 MHz to 1 909.80 MHz (GSM 1 900) 1 852.4 MHz to 1 907.6 MHz (WCDMA B2) 1712.4 MHz to 1752.6 MHz (WCDMA B4) 826.40 MHz to 846.60 MHz (WCDMA B5) 1 850 MHz to 1 910 MHz (LTE B2) 1 710 MHz to 1 755 MHz (LTE B4) 824 MHz to 849 MHz (LTE B5) 699 MHz to 716 MHz (LTE B12) 788 MHz to 798 MHz (LTE B14) 2 305 MHz to 2 315 MHz (LTE B30) 1 710 MHz to 1 780 MHz (LTE B66) 2 402 MHz to 2 480 MHz (Bluetooth) 2 412 MHz to 2 462 MHz (WiFi 2.4 GHz) 5 180 MHz to 5 240 MHz (WiFi 5 GHz_UNII 1) 5 260 MHz to 5 320 MHz (WiFi 5 GHz_UNII 2A) 5 500 MHz to 5 720 MHz (WiFi 5 GHz_UNII 2C) 5 745 MHz to 5 825 MHz (WiFi 5 GHz_UNII 3) RX Frequency 869.20 MHz to 893.80 MHz (GSM 850) 1 930.20 MHz to 1 989.80 MHz (GSM 1 900) 1 932.4 MHz to 1 987.6 MHz (WCDMA B2) 2 112.4 MHz to 2 152.6 MHz (WCDMA B4) 871.40 MHz to 891.60 MHz (WCDMA B5) 1 930 MHz to 1 990 MHz (LTE B2) 2 110 MHz to 2 155 MHz (LTE B4) 869 MHz to 894 MHz (LTE B5) 729 MHz to 746 MHz (LTE B12) 758 MHz to 768 MHz (LTE B14) 717 MHz to 728 MHz (LTE B29) 2 350 MHz to 2 360 MHz (LTE B30) 2 110 MHz to 2 200 MHz (LTE B66) 2 402 MHz to 2 480 MHz (Bluetooth) 2 412 MHz to 2 462 MHz (WiFi 2.4 GHz) 5 180 MHz to 5 240 MHz (WiFi 5 GHz_UNII 1) 5 260 MHz to 5 320 MHz (WiFi 5 GHz_UNII 2A) 5 500 MHz to 5 720 MHz (WiFi 5 GHz_UNII 2C) 5 745 MHz to 5 825 MHz (WiFi 5 GHz_UNII 3) F-TP22-03 (Rev. 02) Page 6 of 25 Report No. HCT-EM-2003-FC019 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1.2 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Model Name Serial Number Manufacturer EUT LM-Q730AM - LG Travel Adaptor MCS-H06WR - SUNLIN Data Cable EAD64746105 KSD Earphone EAB64468445 BUJEON Micro SD Card SANSUNG EVO+microSDXC CLASS10 UHS-I (256 GB) - SANSUNG 1.3 Cable Description Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) EUT USB Type C Y N/A (P) 1.0 Earphone N/A N (D) 1.2 NOTE. The marked “(D)” means the data cable and “(P)” means the power cable. 1.4 Noise Suppression Parts on Cable (I/O Cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location EUT USB Type C N N/A Y Both End Earphone N N/A Y EUT End F-TP22-03 (Rev. 02) Page 7 of 25 Report No. HCT-EM-2003-FC019 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1.5 Test Facility Test site is located at 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, South Korea. Those measurement facilities are constructed in conformance with the requirements of ANSI C63.4-2014. The Normalized site attenuations (30 MHz to 1 GHz) and Site validation (1 GHz to 18 GHz) were performed in accordance with the standard in ANSI C63.4-2014 Measurement Facilities Designation No. Radiated Field strength measurement facility 3 m Semi Anechoic chamber KR0032 Radiated Field strength measurement facility 10 m Semi Anechoic chamber #1 Radiated Field strength measurement f…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 645 6300 Fax. +82 31 645 6401 On your side TEST REPORT EMI Test for FCC Certification of LM-Q730AM Model APPLICANT LG Electronics USA, Inc. REPORT NO. HCT-EM-2003-FC020 DATE OF ISSUE March 24, 2020 F-TP22-03 (Rev. 02) Page 3 of 25 Report No. HCT-EM-2003-FC020 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 March 24, 2020 Initial Release The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. (See Test Report if any modifications were made for compliance) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. HCT certifies that no party to application has been denial the FCC benefits pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C 862 This Test Report is not related to the accredited test result by KOLAS(Korea Laboratory Accreditation Scheme) / A2LA(American Association for Laboratory Accreditation), which signed the ILAC-MRA. F-TP22-03 (Rev. 02) Page 4 of 25 Report No. HCT-EM-2003-FC020 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. CONTENTS 1. GENERAL INFORMATION 5 1.1 Description of EUT 5 1.2 Tested System Details 5 1.3 Cable Description 6 1.4 Noise Suppression Parts on Cable. (I/O Cable) 6 1.5 Test Facility 7 1.6 Calibration of Measuring Instrument 7 1.7 Measurement Uncertainty 7 2. DESCRIPTION OF TEST 8 2.1 Measurement of Conducted Emission 8 2.2 Measurement of Radiated Emission 9 2.3 Configuration of Tested System 10 3. PRELIMINARY TEST 11 3.1 Conducted Emission 11 3.2 Radiated Emission 11 4. CONDUCTED EMISSION AND RADIATED EMISSION TEST SUMMARY 12 4.1 Conducted Emission 12 4.2 Radiated Emission Below 1 GHz 19 4.3 Radiated Emission Above 1 GHz 21 5. CONCLUSION 24 6. APPENDIX A. TEST SETUP PHOTO 25 F-TP22-03 (Rev. 02) Page 5 of 25 Report No. HCT-EM-2003-FC020 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1. GENERAL INFORMATION 1.1 Description of EUT FCC ID ZNFQ730AM Model Name LM-Q730AM Series Model Name LMQ730AM, Q730AM Product Name Multi-band GSM/WCDMA/LTE Phone with WLAN, Bluetooth TX Frequency 824.20 MHz to 848.80 MHz (GSM 850) 1 850.20 MHz to 1 909.80 MHz (GSM 1 900) 1 852.4 MHz to 1 907.6 MHz (WCDMA B2) 1712.4 MHz to 1752.6 MHz (WCDMA B4) 826.40 MHz to 846.60 MHz (WCDMA B5) 1 850 MHz to 1 910 MHz (LTE B2) 1 710 MHz to 1 755 MHz (LTE B4) 824 MHz to 849 MHz (LTE B5) 699 MHz to 716 MHz (LTE B12) 788 MHz to 798 MHz (LTE B14) 2 305 MHz to 2 315 MHz (LTE B30) 1 710 MHz to 1 780 MHz (LTE B66) 2 402 MHz to 2 480 MHz (Bluetooth) 2 412 MHz to 2 462 MHz (WiFi 2.4 GHz) 5 180 MHz to 5 240 MHz (WiFi 5 GHz_UNII 1) 5 260 MHz to 5 320 MHz (WiFi 5 GHz_UNII 2A) 5 500 MHz to 5 720 MHz (WiFi 5 GHz_UNII 2C) 5 745 MHz to 5 825 MHz (WiFi 5 GHz_UNII 3) RX Frequency 869.20 MHz to 893.80 MHz (GSM 850) 1 930.20 MHz to 1 989.80 MHz (GSM 1 900) 1 932.4 MHz to 1 987.6 MHz (WCDMA B2) 2 112.4 MHz to 2 152.6 MHz (WCDMA B4) 871.40 MHz to 891.60 MHz (WCDMA B5) 1 930 MHz to 1 990 MHz (LTE B2) 2 110 MHz to 2 155 MHz (LTE B4) 869 MHz to 894 MHz (LTE B5) 729 MHz to 746 MHz (LTE B12) 758 MHz to 768 MHz (LTE B14) 717 MHz to 728 MHz (LTE B29) 2 350 MHz to 2 360 MHz (LTE B30) 2 110 MHz to 2 200 MHz (LTE B66) 2 402 MHz to 2 480 MHz (Bluetooth) 2 412 MHz to 2 462 MHz (WiFi 2.4 GHz) 5 180 MHz to 5 240 MHz (WiFi 5 GHz_UNII 1) 5 260 MHz to 5 320 MHz (WiFi 5 GHz_UNII 2A) 5 500 MHz to 5 720 MHz (WiFi 5 GHz_UNII 2C) 5 745 MHz to 5 825 MHz (WiFi 5 GHz_UNII 3) F-TP22-03 (Rev. 02) Page 6 of 25 Report No. HCT-EM-2003-FC020 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1.2 Tested System Details All equipment descriptions used in the tested system (including inserted cards) are: Device Type Model Name Serial Number Manufacturer EUT LM-Q730AM - LG Travel Adaptor MCS-H06WA - AOHAI Data Cable EAD64746105 KSD Earphone EAB64468445 BUJEON Micro SD Card SANSUNG EVO+microSDXC CLASS10 UHS-I (256 GB) - SANSUNG 1.3 Cable Description Product Name Port Power Cord Shielded (Y/N) I/O Cable Shielded (Y/N) Length (m) EUT USB Type C Y N/A (P) 1.0 Earphone N/A N (D) 1.2 NOTE. The marked “(D)” means the data cable and “(P)” means the power cable. 1.4 Noise Suppression Parts on Cable (I/O Cable) Product Name Port Ferrite Bead (Y/N) Location Metal Hood (Y/N) Location EUT USB Type C N N/A Y Both End Earphone N N/A Y EUT End F-TP22-03 (Rev. 02) Page 7 of 25 Report No. HCT-EM-2003-FC020 This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. 1.5 Test Facility Test site is located at 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, South Korea. Those measurement facilities are constructed in conformance with the requirements of ANSI C63.4-2014. The Normalized site attenuations (30 MHz to 1 GHz) and Site validation (1 GHz to 18 GHz) were performed in accordance with the standard in ANSI C63.4-2014 Measurement Facilities Designati…
