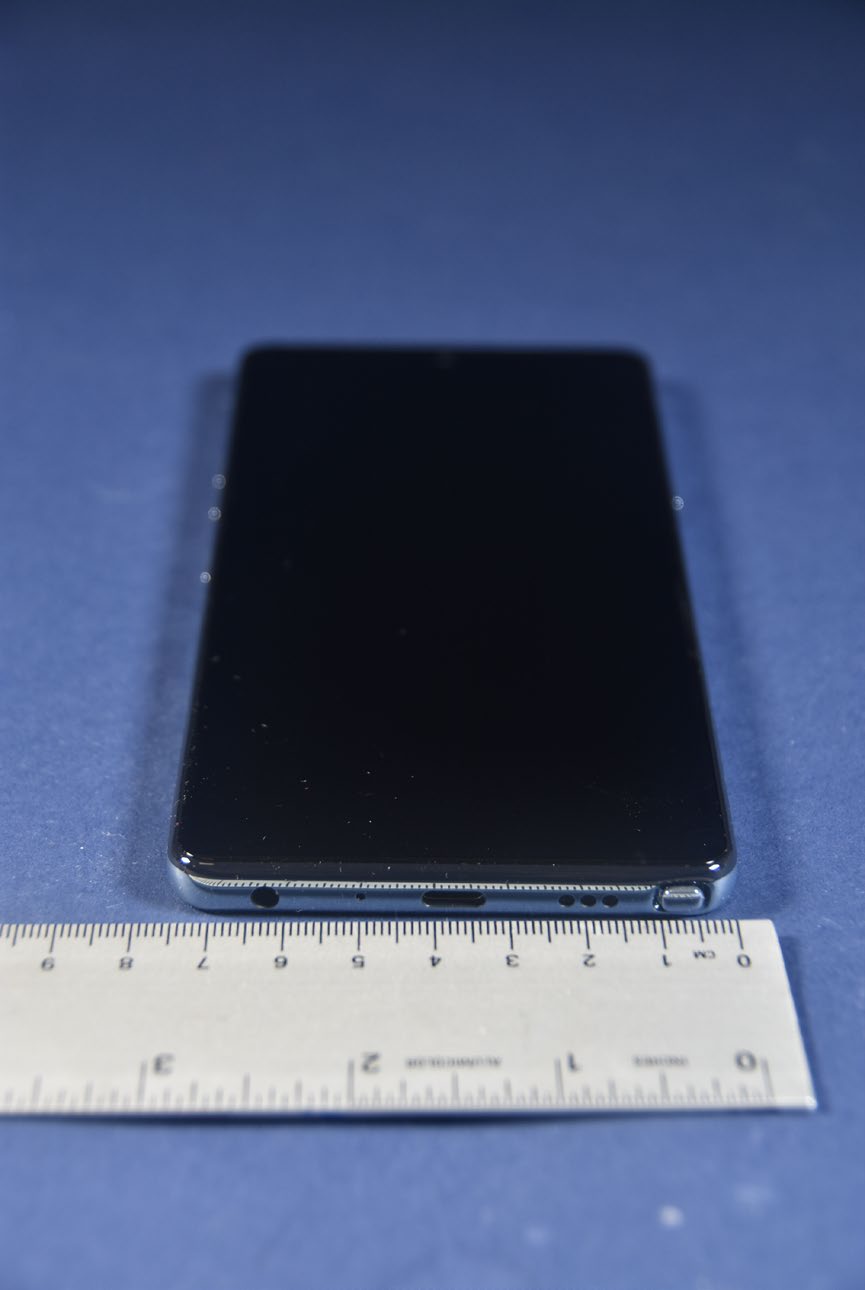

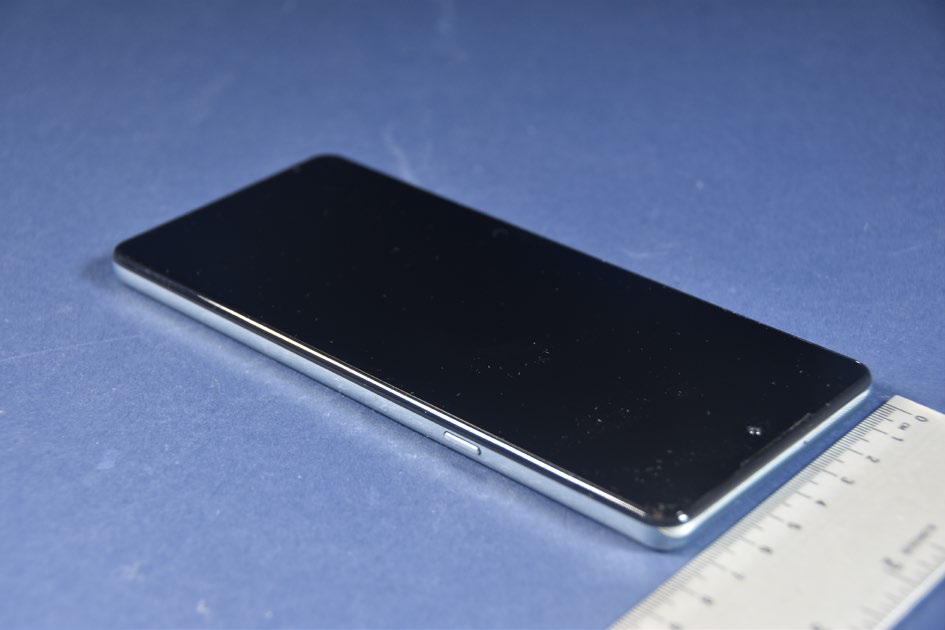

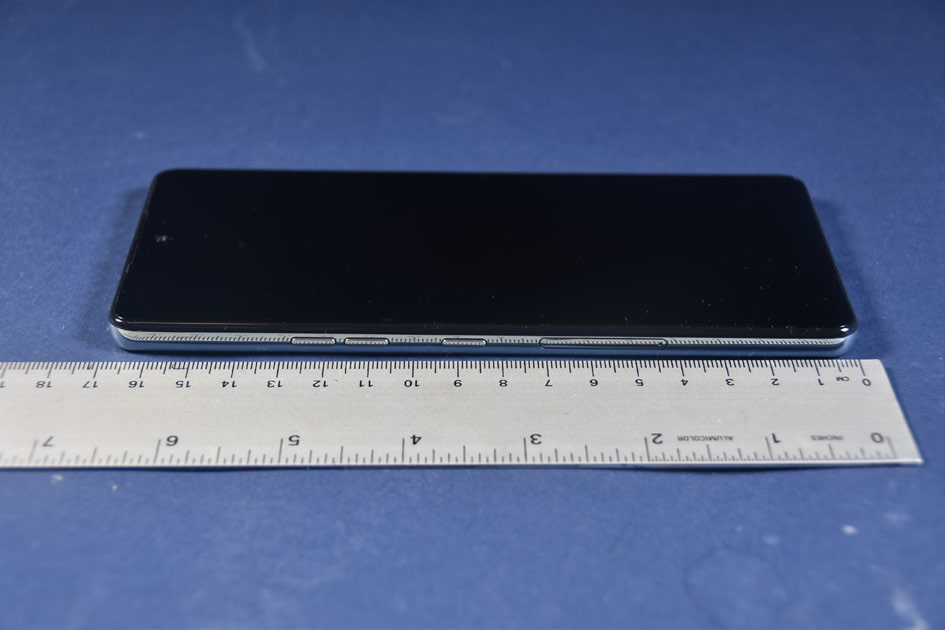

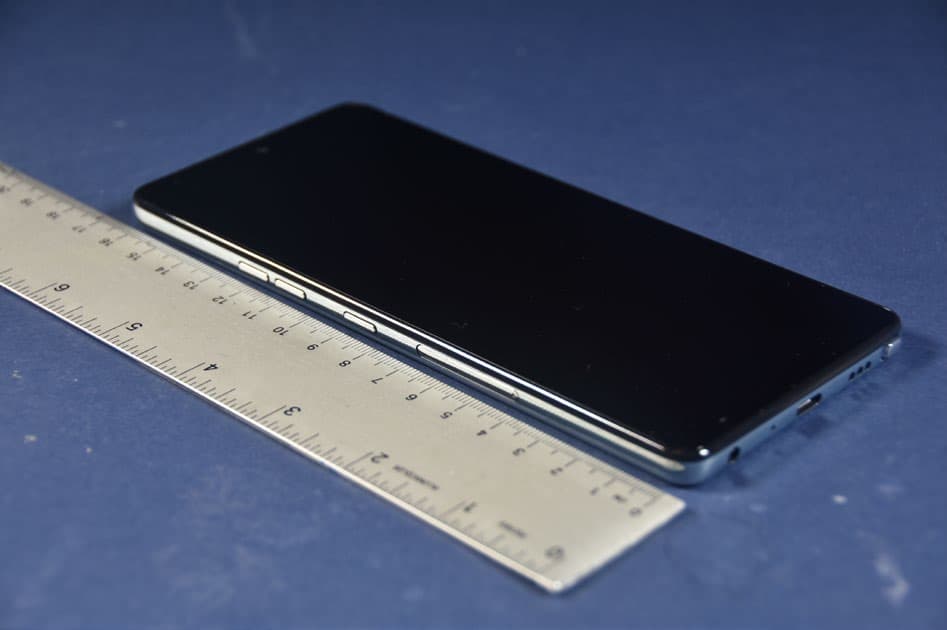

LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM External Photos EUT Type: Portable Handset Page 1 of 6 © 2020 PCTEST V 9.0 02/01/2019 EXTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM External Photos EUT Type: Portable Handset Page 2 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM External Photos EUT Type: Portable Handset Page 3 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM External Photos EUT Type: Portable Handset Page 4 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM External Photos EUT Type: Portable Handset Page 5 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM External Photos EUT Type: Portable Handset Page 6 of 6 © 2020 PCTEST V 9.0 02/01/2019

Description of E-Label on the ZNFQ730VM 1. FCC ID is applied by E-label on device. [Step2] [Step3] FCC ID E-Label display Step1Select Settings Step2Select System Step 3Select Regulatory& safety [Step1] FCC ID : ZNFQ730VM 2. FCC ID is applied on packaging. FCC ID : ZNFQ730VM 3. Instruction of E-label on the user manual Description of E-Label on the ZNFQ730VM

LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 1 of 13 © 2020 PCTEST V 9.0 02/01/2019 INTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 2 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 3 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 4 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 5 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 6 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 7 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 8 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 9 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 10 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 11 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 12 of 13 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFQ730VM Model: LM-Q730VM Internal Photos EUT Type: Portable Handset Page 13 of 13 © 2020 PCTEST V 9.0 02/01/2019

FCC ID ZNFQ730VM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 116 1M2003310054-01-R1.ZNF 04/12/20 - 05/06/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: LG Electronics U.S.A., Inc. 04/12/20 - 05/06/20 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 1M2003310054-01-R1.ZNF FCC ID: ZNFQ730VM APPLICANT: LG ELECTRONICS U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: LM-Q730VM Additional Model(s): LM-Q730QM, LM-Q730QM5, LM-Q730QM6, LM-Q730QN, LM-Q730UM, LMQ730VM, LMQ730QM, LMQ730QM5, LMQ730QM6, LMQ730QN, LMQ730UM, Q730VM, Q730QM, Q730QM5, Q730QM6, Q730QN, Q730UM This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body- Worn (W/kg) 1g Hotspot (W/kg) 10g Phablet (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.290.600.64N/A PCEGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz< 0.10.360.55N/A PCEUMTS 850826.40 - 846.60 MHz0.200.410.44N/A PCEUMTS 17501712.4 - 1752.6 MHz0.100.670.852.70 PCEUMTS 19001852.4 - 1907.6 MHz0.130.630.712.36 PCECDMA/EVDO BC0 (§22H)824.70 - 848.31 MHz0.230.470.35N/A PCECDMA/EVDO BC10 (§90S)817.90 - 823.10 MHz0.250.440.38N/A PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz0.160.710.742.23 PCELTE Band 71665.5 - 695.5 MHz0.150.270.52N/A PCELTE Band 12699.7 - 715.3 MHz0.180.280.37N/A PCELTE Band 13779.5 - 784.5 MHz0.150.270.32N/A PCELTE Band 26 (Cell)814.7 - 848.3 MHz0.170.380.42N/A PCELTE Band 5 (Cell)824.7 - 848.3 MHzN/AN/AN/AN/A PCELTE Band 66 (AWS)1710.7 - 1779.3 MHz0.130.760.972.70 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHzN/AN/AN/AN/A PCELTE Band 25 (PCS)1850.7 - 1914.3 MHz0.130.560.782.49 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHzN/AN/AN/AN/A PCELTE Band 412498.5 - 2687.5 MHz0.130.530.402.63 DTS2.4 GHz WLAN2412 - 2462 MHz1.000.480.78N/A NIIU-NII-15180 - 5240 MHzN/AN/A0.50N/A NIIU-NII-2A5260 - 5320 MHz0.390.36N/A1.56 NIIU-NII-2C5500 - 5720 MHz0.750.55N/A1.86 NIIU-NII-35745 - 5825 MHz0.910.420.80N/A DSS/DTSBluetooth2402 - 2480 MHz0.10< 0.1< 0.1N/A 1.291.341.593.79 Equipment Class SAR Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID ZNFQ730VM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 116 1M2003310054-01-R1.ZNF 04/12/20 - 05/06/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................................ 3 2 LTE INFORMATION ................................................................................................................................... 11 3 INTRODUCTION ........................................................................................................................................ 12 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 13 5 DEFINITION OF REFERENCE POINTS ................................................................................................... 14 6 TEST CONFIGURATION POSITIONS ...................................................................................................... 15 7 RF EXPOSURE LIMITS ............................................................................................................................. 19 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 20 9 RF CONDUCTED POWERS ...................................................................................................................... 27 10 SYSTEM VERIFICATION ........................................................................................................................... 66 11 SAR DATA SUMMARY ...................................................................................................…
