ZNFT600TSPortable Tablet

ENGLISH XXXXXXXXXXX (1.0)www.lg.com Copyright ©2019 LG Electronics Inc. All rights reserved. USER GUIDE LM-T600TS 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Center. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG license agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. • Failure to follow the instructions in this guide and improper use may damage the device. 2 Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. 3 30 Home screen 39 Screen lock 42 Memory card encryption 43 Taking screenshots 44 Entering text 52 Do not disturb 03 Useful Apps 54 Installing and uninstalling apps 55 App tr ash 56 App Shortcuts 57 Camera 66 Gallery 69 Chrome 69 Google apps 72 Contacts 74 QuickMemo+ 76 Clock 77 Tasks 78 Calendar 79 Music Table of contents 01 Custom-designed Features 6 Camera features 9 Galler y features 12 Google Assistant 13 Fingerprint recognition 16 Multi-tasking feature 02 Basic Functions 19 Product components and accessories 20 Parts overview 22 Turning the power on or off 23 Inserting the memory card 24 Removing the memory card 24 Charging the battery 26 Using the battery efficiently 27 Touch screen 4Table of contents 80 Calculator 80 FM Radio 80 File Manager 81 Audio R ecorder 82 Smart cleaning 82 Downloads 04 Settings 84 Settings 84 Net work & internet 93 Connect ed devices 95 Sound 96 Display 97 Lock scr een & security 98 Extensions 100 Apps & notifications 101 Battery 101 Storage 102 Accounts 102 Accessibility 103 Google 104 System 05 Appendix 109 LG Language Settings 109 Phone so ftware update 111 Anti-Theft Guide 112 Open Source Software Notice Information 112 Regulatory information (FCC ID number, etc.) 112 Trademarks 113 FAQ 06 For Your Safety 07 LIMITED WARRANTY - USA Custom-designed Features 01 Custom-designed Features6 Camera features AI CAM You can use the AI Cam feature to automatically recognize the object when taking a photo or recording a video for an optimal quality. 1 Tap , then tap AI CAM. 2 When the object is recognized, the best effect for the scene is applied. • To apply other effects, tap the scene icon. • A wide range of categories, such as portrait, pets, food, sunrise, sunset, scenery, city view, flowers and text, can be recognized automatically. • Associated keywords for the object are displayed on the screen. Keywords do not appear on the actual photos or videos. • This feature is available only when the front and rear cameras are in the Auto mode. Custom-designed Features7 Google Lens You can get more information or take desired actions on items around you using Google Lens, like landmarks, posters, restaurant menus, animals, flowers, or barcodes, directly in the Camera app. For example, when you use Google Lens on a: • Business card: You can save the phone number or address to a contact. • Book: You can get reviews and other details about it. • Landmark or building: You can get more details about it. • Painting in a museum: You can get details about it. • Plant or animal: You can learn more about it. • Flyer or event billboard: You can add that event to your calendar. • Google Lens is available only when your device is connected to the internet. If you use mobile data, you may be charged for data usage, depending on your pricing plan. Use Google Lens 1 Tap , and tap Google Lens. 2 Point your camera at an item. 3 To get details or take action: • Tap the item on your screen. • To select text: Tap a word, and select a desired option. If the result is not shown, tap it again and drag the blue dots, if needed, and take desired actions. Tap Speak. Custom-designed Features8 Portrait You can take a sharp portrait by applying the camera lens blur effect. 1 Tap , switch to the front camera, then tap Portrait. 2 When Portrait is available appears on the screen, tap to take a photo. • To adjust blur strength, drag the slide bar up, down, left or right (depending on the orientation of the phone). • This feature is not available if the surroundings are too dark. • After applying this feature, touch and hold the the desired position on the preview screen to automatically apply the exposure value and focus. In this case, the Portrait feature and blur strength stay the same. Custom-designed Features9 Gallery features Creating a movie You can create a new movie by putting images and videos together. 1 Tap , select an album, then tap Create movie. 2 Select images or videos for your mo…

Text truncated - open the document above for the full version.

PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFT600TS HPUE configurations for FCC SAR testing To Whom It May Concern: We, LG Electronics USA, Inc. hereby confirm that frame configuration 0 and 6 will be permanently disabled when the UE is operating as Power Class 2 (HPUE mode). Additionally, these configuration 0 and 6 can not be enabled for by any third party including end-user or carrier. Date: March 04, 2020 S hou ld you have any questions o r comm ents concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA,Inc LG Electronics Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 LG Electronics USA, Inc.

          !"# Date: Feb 28#20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Subject : E-Label FCC ID : ZNFT600TS To Whom It May Concern: We, LG Electronics USA, Inc. state that at the time of purchase, the FCC ID is readily and physically visible to the purchaser on the packaging Label per 2.925(d). The FCC ID will be able to survive normal shipping and handling, so it is visible for inspection at the time of import. We have programmed the e-label and it is not able to be modified by any third party. Also, SIM Card in is not required to access the FCC ID number. Sincerely, LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Kyung-Su Han Director LG Electronics USA,Inc

PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFT600TS LTE MPR for FCC SAR testing To Whom It May Concern: We, LG Electronics USA, Inc. hereby confirm that MPR specified in 3GPP will be permanently implemented in ZNFT600TS so that the powers found in this application will not be found to exceed the levels indicated. Additionally, A-MPR(Additional MPR) was disabled for all SAR samples for SAR testing purposes. Date: Feb 28, 2020 Should you have any questions or comm ents co ncernin g the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: Feb 28#20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE:  Request of Confidentiality for FCC ID: ZNFT600TS Equipment Class:%B&%  '  (  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,   USA, Inc.hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  USA, Inc.temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 LG Electronics USA, Inc.

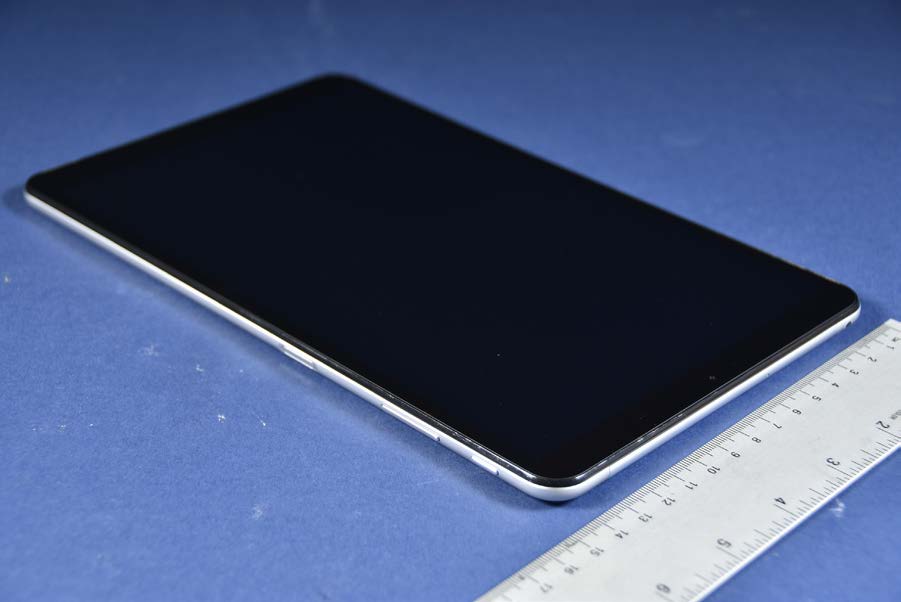

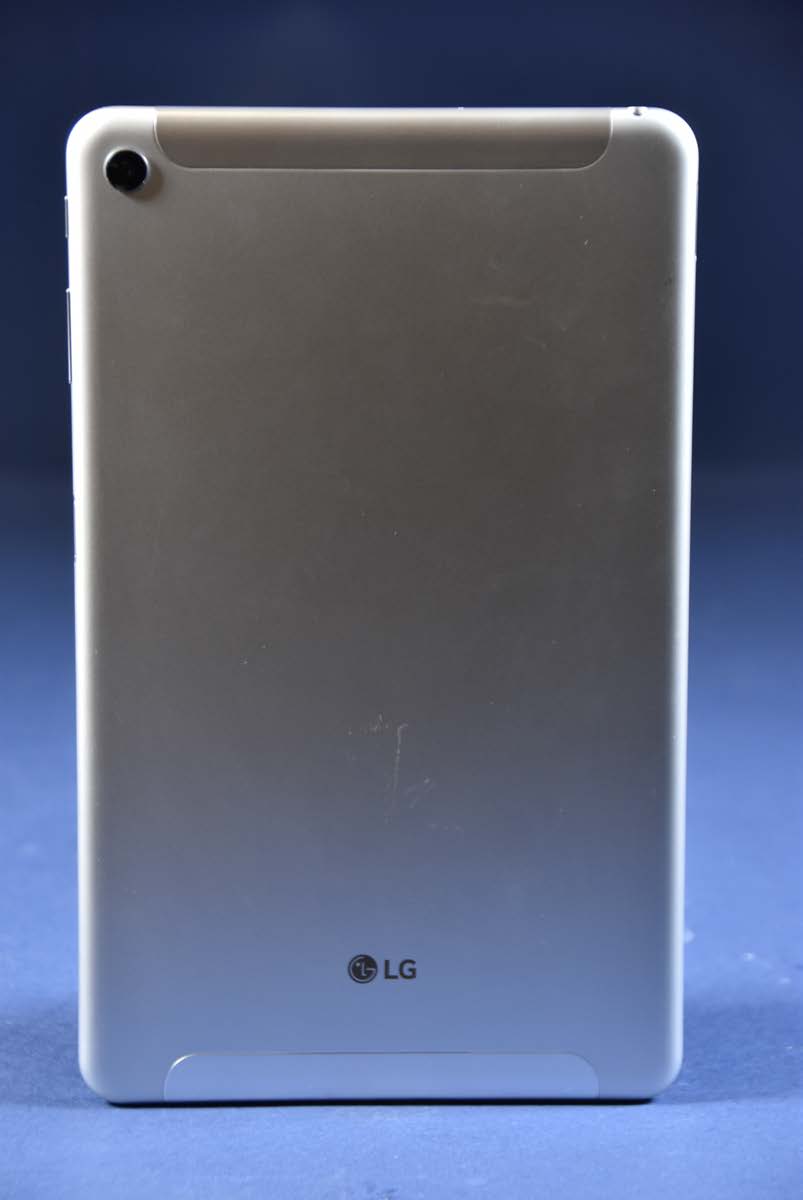

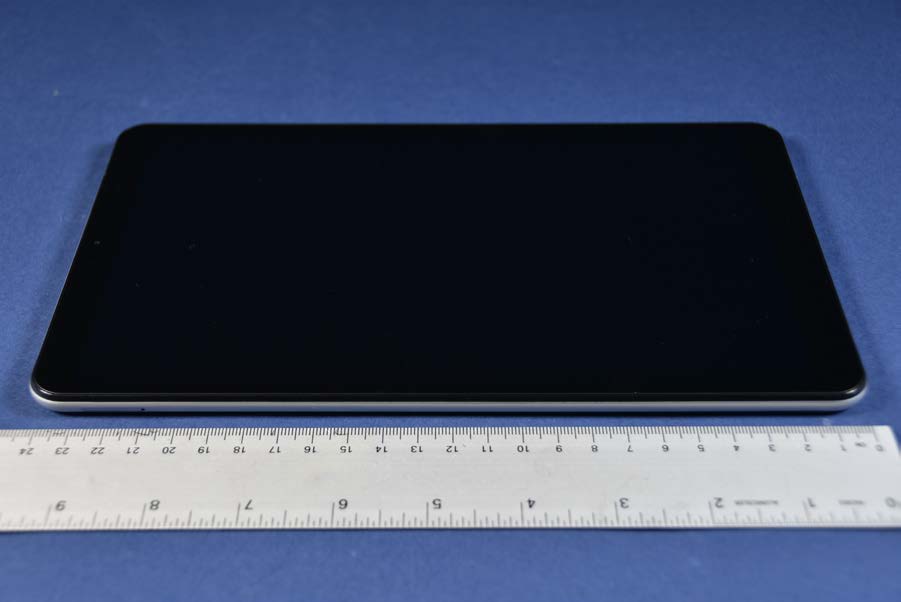

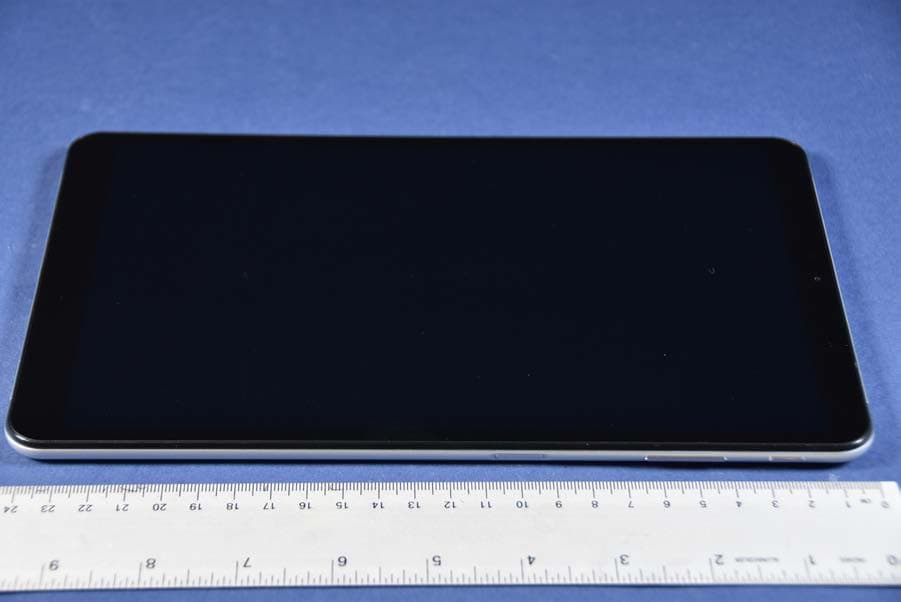

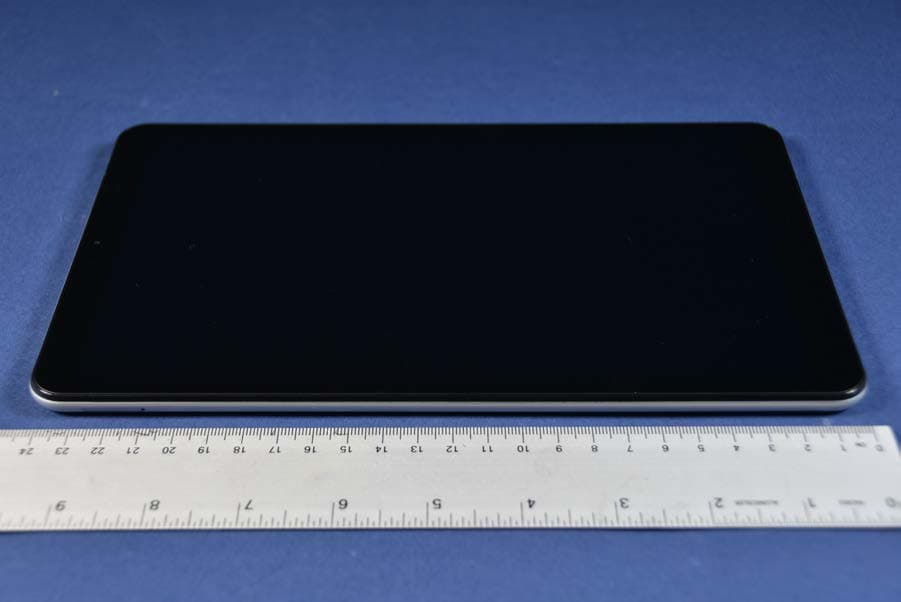

LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS External Photos EUT Type: Portable Tablet Page 1 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 EXTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS External Photos EUT Type: Portable Tablet Page 2 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS External Photos EUT Type: Portable Tablet Page 3 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS External Photos EUT Type: Portable Tablet Page 4 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS External Photos EUT Type: Portable Tablet Page 5 of 5 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019

Description of E-Label on the ZNFT600TS ※FCC ID is applied by E-Label on the device ※Instruction of E-Label on the user manual ※FCC ID is Applied on packaging Label SettingsMenu Step1Select “System” Step2Select“Regulatory&Safety” FCC ID : ZNFT600TS

LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS Internal Photos EUT Type: Portable Tablet Page 1 of 6 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 INTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS Internal Photos EUT Type: Portable Tablet Page 2 of 6 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS Internal Photos EUT Type: Portable Tablet Page 3 of 6 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS Internal Photos EUT Type: Portable Tablet Page 4 of 6 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS Internal Photos EUT Type: Portable Tablet Page 5 of 6 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFT600TS Model: LM-T600TS Internal Photos EUT Type: Portable Tablet Page 6 of 6 © 2020 PCTEST Engineering Laboratory, Inc. V 9.0 02/01/2019

FCC ID: ZNFT600TS SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 95 1M2001100004-01-R1.ZNF 01/21/20 - 02/24/20 Portable Tablet © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: LG Electronics USA 01/21/20 - 02/24/20 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 1M2001100004-01-R1.ZNF F C C I D : ZNFT 600T S A P P L I C A N T : LG ELE CT RONI CS U.S. A, IN C. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: Additional Models: LM-T600TS LMT600TS, T600TS Note: This revised Test Report (S/N: 1M2001100004-01-R1.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Body (W/kg) PCB UMTS 850 826.40 - 846.60 MHz 0.88 PCB UMTS 1750 1712.4 - 1752.6 MHz 0.85 PCB UMTS 1900 1852.4 - 1907.6 MHz 1.21 PCB LTE Band 71 665.5 - 695.5 MHz 0.93 PCB LTE Band 12 699.7 - 715.3 MHz 0.71 PCB LTE Band 13 779.5 - 784.5 MHz 0.82 PCB LTE Band 26 (Cell) 814.7 - 848.3 MHz 0.82 PCB LTE Band 5 (Cell) 824.7 - 848.3 MHz N/A PCB LTE Band 66 (AWS) 1710.7 - 1779.3 MHz 1.04 PCB LTE Band 4 (AWS) 1710.7 - 1754.3 MHz N/A PCB LTE Band 25 (PCS) 1850.7 - 1914.3 MHz 1.28 PCB LTE Band 2 (PCS) 1850.7 - 1909.3 MHz N/A PCB LTE Band 41 2498.5 - 2687.5 MHz 1.30 DTS 2.4 GHz WLAN 2412 - 2462 MHz 0.43 NII U-NII-1 5180 - 5240 MHz N/A NII U-NII-2A 5260 - 5320 MHz 0.51 NII U-NII-2C 5500 - 5720 MHz 0.66 NII U-NII-3 5745 - 5825 MHz 0.64 DSS/DTS Bluetooth 2402 - 2480 MHz 0.23 1.59 Simultaneous SAR per KDB 690783 D01v01r03: Band & Mode Tx Frequency Equipment Class SAR PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID: ZNFT600TS SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 95 1M2001100004-01-R1.ZNF 01/21/20 - 02/24/20 Portable Tablet © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST .................................................................................................................................3 2 LTE INFORMATION ................................................................................................................................... 11 3 INTRODUCTION ........................................................................................................................................ 12 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 13 5 TEST CONFIGURATION POSITIONS....................................................................................................... 14 6 RF EXPOSURE LIMITS ............................................................................................................................. 15 7 FCC MEASUREMENT PROCEDURES ..................................................................................................... 16 8 RF CONDUCTED POWERS ...................................................................................................................... 21 9 SYSTEM VERIFICATION ........................................................................................................................... 69 10 SAR DATA SUMMARY .............................................................................................................................. 72 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ...................................................................... 83 12 SAR MEASUREMENT VARIABILITY ........................................................................................................ 89 13 ADDITIONAL TESTING PER FCC GUIDANCE ........................................................................................ 90 14 EQUIPMENT LIST ......................................................…

Text truncated - open the document above for the full version.

© 2020 PCTEST A P P E N D I X A : S A R T E S T D A T A A1 PCTEST DUT: ZNFT600TS; Type: Portable Tablet; Serial: 00309 Communication System: UID 0, UMTS; Frequency: 826.4 MHz; Duty Cycle: 1:1 Medium: 835 Body; Medium parameters used (interpolated): f = 826.4 MHz; σ = 0.987 S/m; ε r = 53.18; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 02/19/2020; Ambient Temp: 21.9°C; Tissue Temp: 20.7°C Probe: EX3DV4 - SN7552; ConvF(9.94, 9.94, 9.94) @ 826.4 MHz; Calibrated: 9/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1449; Calibrated: 9/12/2019 Phantom: Left Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: UMTS 850, Body SAR, Back side, Low.ch Area Scan (14x17x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (9x9x8)/Cube 0: Measurement grid: dx=4.2mm, dy=4.2mm, dz=1.4mm; Graded Ratio: 1.4 Reference Value = 31.26 V/m; Power Drift = 0.00 dB Peak SAR (extrapolated) = 2.34 W/kg SAR(1 g) = 0.883 W/kg 0 dB = 1.60 W/kg = 2.04 dBW/kg A2 PCTEST DUT: ZNFT600TS; Type: Portable Tablet; Serial: 00408 Communication System: UID 0, UMTS; Frequency: 1732.4 MHz; Duty Cycle: 1:1 Medium: 1750 Body; Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.48 S/m; ε r = 56.12; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 02-17-2020; Ambient Temp: 21.9°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN7357; ConvF(8.26, 8.26, 8.26) @ 1732.4 MHz; Calibrated: 4/24/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1407; Calibrated: 4/18/2019 Phantom: Right Back Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1692 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: UMTS 1750, Body SAR, Back side, Mid.ch Area Scan (8x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 24.36 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 1.63 W/kg SAR(1 g) = 0.756 W/kg 0 dB = 1.26 W/kg = 1.00 dBW/kg A3 PCTEST DUT: ZNFT600TS; Type: Portable Tablet; Serial: 00408 Communication System: UID 0, UMTS; Frequency: 1907.6 MHz; Duty Cycle: 1:1 Medium: 1900 Body; Medium parameters used (interpolated): f = 1907.6 MHz; σ = 1.584 S/m; ε r = 51.889; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.7 cm Test Date: 01-21-2020; Ambient Temp: 22.0°C; Tissue Temp: 21.4°C Probe: EX3DV4 - SN7551; ConvF(7.69, 7.69, 7.69) @ 1907.6 MHz; Calibrated: 9/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1333; Calibrated: 9/17/2019 Phantom: Twin-SAM V5.0; Type: QD 000 P40 CD; Serial: 1792 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: UMTS 1900, Body SAR, Top Edge, High.ch Area Scan (10x13x1): Measurement grid: dx=5mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.12 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 1.84 W/kg SAR(1 g) = 1.07 W/kg 0 dB = 1.56 W/kg = 1.93 dBW/kg A4 PCTEST DUT: ZNFT600TS; Type: Portable Tablet; Serial: 00309 Communication System: UID 0, LTE Band 71; Frequency: 680.5 MHz; Duty Cycle: 1:1 Medium: 700 Body; Medium parameters used (interpolated): f = 680.5 MHz; σ = 0.933 S/m; ε r = 53.619; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 02/24/2020; Ambient Temp: 22.7°C; Tissue Temp: 19.7°C Probe: EX3DV4 - SN3589; ConvF(8.49, 8.49, 8.49) @ 680.5 MHz; Calibrated: 1/21/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1558; Calibrated: 1/13/2020 Phantom: Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1647 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 71, Body SAR, Back side, Mid.ch 20 MHz Bandwidth, QPSK, 1 RB, 0 RB Offset Area Scan (12x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (12x15x8)/Cube 0: Measurement grid: dx=3mm, dy=3mm, dz=1.4mm; Graded Ratio: 1.4 Reference Value = 29.86 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.27 W/kg SAR(1 g) = 0.890 W/kg 0 dB = 1.76 W/kg = 2.46 dBW/kg A5 PCTEST DUT: ZNFT600TS; Type: Portable Tablet; Serial: 00309 Communication System: UID 0, LTE Band 12; Frequency: 707.5 MHz; Duty Cycle: 1:1 Medium: 700 Body; Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.933 S/m; ε r = 53.583; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 02/03/2020; Ambient Temp: 23.1°C; Tissue Temp: 19.5°C Probe: EX3DV4 - SN7547; ConvF(9.81, 9.81, 9.81) @ 707.5 MHz; Calibrated: 7/15/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1323; Calibrated: 7/11/2019 Phantom: LeftTwin-SAM V5.0; Type: QD 000 P40 CD; Serial: TP1375 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 12, Body SAR, Back side, Mid.ch 10 MHz Bandwidth, QPSK, 1 RB, 0 RB Offset Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (11x11x8)/Cube 0: Measurement grid: dx=3.8mm, dy=3.8mm, dz=1.4mm; Graded Ratio: 1.4 Reference Value = 27.08 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 1.95 W/kg SAR(1 g) = 0.683 W/kg 0 dB = 1.21 W/kg = 0.83 dBW/kg A6 PCTEST DUT: ZNFT600TS; Type: Portable Tablet; Serial: 00309 Communication System: UID 0, LTE Band 13; Frequency: 782 MHz; Duty Cycle: 1:1 Medium: 700 Body; Medium parameters used (interpolated): f = 782 MHz; σ = 0.971 S/m; ε r = 53.366; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 0.0 cm Test Date: 02/24/2020; Ambient Temp: 22.7°C; Tissue Temp: 19.7°C Probe: EX3DV4 - SN3589; ConvF(8.49, 8.49, 8.49) @ 782 MHz; Calibrated: 1/21/2020 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1558; Calibrated: 1/13/2020 Phantom: Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1647 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 13, Body SAR, Back side, Mid.ch 10 MHz Bandwidth, QPSK, 25 RB, 0 RB Offset Area Scan (12x14x…
