ZNFUN272Cellular/PCS/AWS CDMA Phone with Bluetooth

User Manual UN272 Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 0.59 inches (1.5cm ) from the body. To comply with FCC RF exposure requirements, a minimum se p aration distance of 0.59 inches (1.5cm) must be maintained between the user’s body and the bac k of the phone. T hird-party belt-clips, holsters and similar accessories containing metallic components may not be used. Body-worn accessories that cannot maintain 0.59 inch (1.5cm) separation distance between the user’s body and the back of the phone, and have not been tested for typical body-worn operations may not comply with FCC RF exposure limits and should be avoided. FCC Part 15.19 statement This device and its accessories comply with part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device and its accessories may not cause harmful interference, and (2) this device and its accessories must accept any interference received, including interference that cause undesired operation. FCC Part 15.21 statement Changes or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. FCC Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules . These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be d etermined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Getting Started Unlocking Your Phone If you received your LN272 in the mail, you may need to unlock it before making calls. 1. Press the END/PWR Switch for 23 seconds. 2. Press soft key Unlock. 3. Enter your four-digit lock code. For security purposes, the code will not be visible as you type. Note: If you can’t recall your lock code, try using the last four digits of your Social Security number, the last four digits of your Phone Number or 0000. View of Phone 1. END/PWR Switch: Lets you power the phone on or off. 2. Antenna: Retractable antenna provides optimum reception for 800 MHz & 1900 MHz frequencies. 3. Power On Indicator: Illuminates red when the phone powers on or when you receive incoming calls. Flashes red when you have messages of scheduled alarms. 4. Headset Jack: Provides connection for an optional headset. 5. Volume Control Keys: Adjust the Ring Volume in the Main Menu or the Voice Volume during a call. The keys also scroll through mouths in the Calendar or pages in the MiniBrowser. Installing and Removing the Battery To install the battery, insert the bottom of the battery into the opening on the back of the phone. Then, push the battery down until the latch clicks. To remove the battery, press down on the latch and remove the battery from the phone. Turning Your Phone On and Off To turn your phone on, move the On/Off Switch (near the antenna) to the ON position. Your phone performs a short self-test before letting you know it is operational. If your phone does not turn on, make sure the battery is installed correctly and is adequately charged or has external power (via the AC Adapter, Cigarette Lighter Adapter or Hands-Free Car Kit). To turn your phone off, move the On/Off Switch to the OFF position. Main Menu When your phone acquires Service, the Greeting (a banner of text), the current time and date and the Main Menu are displayed. If you are in authorized analog cellular provider’s service area, you are ready to send and receive calls. Power Save Mode When the phone is in an area without service for 15 minutes, it stops searching for service and enters into the power Save Mode. When your phone activates this feature, Power Save is displayed on your screen. The phone automatically checks for service periodically or you can check manually by pressing any key. Entering Characters Using the Keypad(T9) To enter a letter, punctuation or number when creating Phone Book or Scheduler entries, press the corresponding key until the desired character appears. By default, the first letter of a word is capitalized and following letters are lowercase. Characters in the following order: 1 . ? , ‘ & - @ ( ) / P Q R S 7 p q r s A B C 2 a b c 2 T U V 8 t u v 8 D E F 3 d e f 3 W X Y Z 9 w x y z 9 G H I 4 g h i 4 Next 0 J K L 5 j k l 5 Shift M N O 6 m n o 6 Space After a character is entered, the cursor automatically advances to the next space after two seconds. You can also advance the cursor by pressing or entering a character not on the same key. If you make a mistake, press to move the cursor left or [CLR] to erase a character. To clear the entire entry, press and hold [CLR] for two seconds. 1 7PQRS 9WXYZ 8TUV 6MNO 5J 4G 3DEF ABC 1 * 0Space Display Icons Display icons are the symbols your phone uses to communicate important information. They are as follows: ICON DESCRIPTION 3G Icon DO Icon Alarm Battery Antenna No service Location On/Off Voice Privacy Ringer Roaming TTY Antenna The antenna on your phone provides maximum reception by extending of retracting it. !!! WARNING – CHOKING HAZARD – ANTENNA MAY BECOME DISLODGED Attempting to remove or repeated twisting of the antenna will loosen the materials securing it into antenna. Once th…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ElectronicsMobileCommU S ASUBJECT: LG ElectronicsMobileCommU.S.A FCC ID: ZNFUN272 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID: ZNFUN272 Air Interfaces: CDMA Wireless Technologies: 1x data Bands: CDMA835/AWS1700/PCS1900 Should you have any questions or comments concerning the above Key Features: Bluetooth MP3 player, Camera GPS Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc.

Date: May 08, 2012 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Mobilecomm U.S.A FCC ID: ZNFUN272 Part 20.19 Certification Gentlemen: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: Mary 08#2 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFUN272 Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this applicati on. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The request ed Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

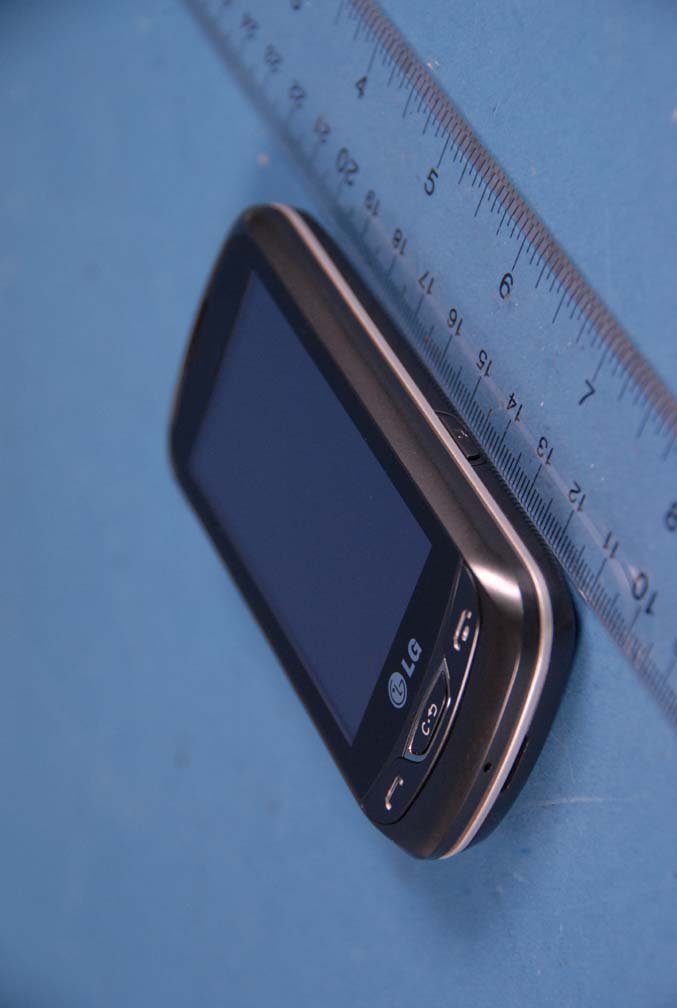

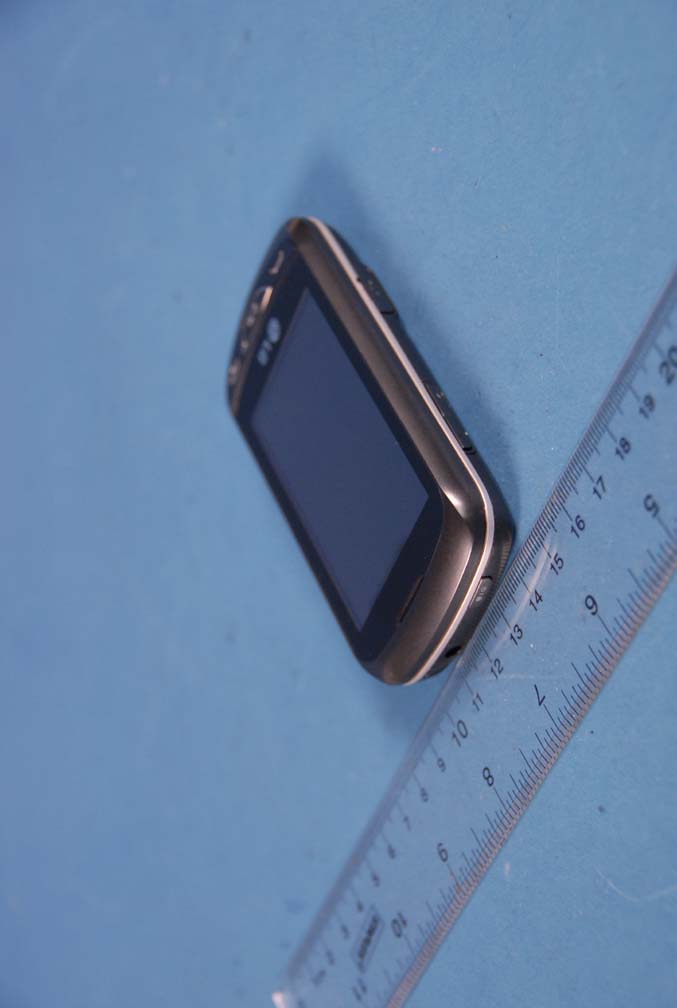

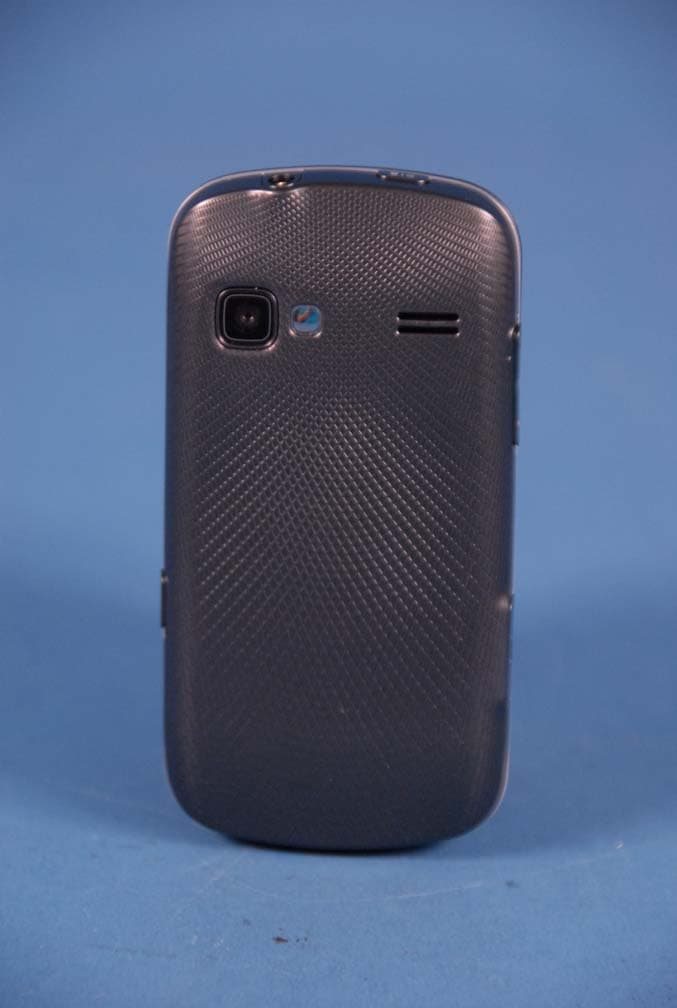

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 External Photos EUT Type: Portable Handset Page 1 of 5 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 External Photos EUT Type: Portable Handset Page 2 of 5 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 External Photos EUT Type: Portable Handset Page 3 of 5 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 External Photos EUT Type: Portable Handset Page 4 of 5 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 External Photos EUT Type: Portable Handset Page 5 of 5 © 2012 PCTEST Engineering Laboratory Inc.

Model No: UN272 FCC ID : ZNFUN272 S/N : Made in Korea LG Electronics MobileComm USA, Inc. LGE

LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 1 of 12 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 2 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 3 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 4 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 5 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 6 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 7 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 8 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 9 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 10 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 11 of 12 © 2012 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A., Inc. FCC ID: ZNFUN272 Model: UN272 Internal Photos EUT Type: Portable Handset Page 12 of 12 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID: ZNFUN272 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 24 0Y1204090434.ZNF 04/09/12 - 04/11/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 04/09/12 - 04/11/12 10101 Old Grove Road, Test Site/Location: San Diego, CA 92131 PCTEST Lab, Columbia, MD, USA USA Document Serial No.: 0Y1204090434.ZNF FCC ID: ZNFU N272 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093 UN272, LG-UN272, LGUN272 Test Device Serial No.: Pre-Production [S/N: RF#2] 1 gm Head (W /kg) 1 gm Body-Worn (W /kg) Cell. CDMA824.70 - 848.31 MHz25.210.410.72 AWS CDMA1711.25 - 1753.75 MHz24.311.100.64 PCS CDMA1851.25 - 1908.75 MHz24.300.980.79 Bluetooth2402 - 2480 MHz8.81 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFUN272 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 24 0Y1204090434.ZNF 04/09/12 - 04/11/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................5 3 SAR MEASUREMENT SETUP ........................................................................................................6 4 DOSIMETRIC ASSESSMENT .........................................................................................................7 5 DEFINITION OF REFERENCE POINTS .........................................................................................8 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ...............................................................9 7 FCC RF EXPOSURE LIMITS ........................................................................................................ 11 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 12 9 RF CONDUCTED POWERS ......................................................................................................... 14 10 SYSTEM VERIFICATION .............................................................................................................. 15 11 SAR DATA SUMMARY ................................................................................................................. 17 12 EQUIPMENT LIST ......................................................................................................................... 20 13 MEASUREMENT UNCERTAINTIES ............................................................................................ 21 14 CONCLUSION ............................................................................................................................... 22 15 REFERENCES .............................................................................................................................. 23 FCC ID: ZNFUN272 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 24 0Y1204090434.ZNF 04/09/12 - 04/11/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CDMA824.70 - 848.31 MHz AWS CDMA1711.25 - 1753.75 MHz PCS CDMA1851.25 - 1908.75 MHz Bluetooth2402 - 2480 MHz Band & ModeTx Frequency 1.2 DUT Antenna Locations Cell/AWS/PCS CDMA Tx/Rx Ant To p Left Bottom MRD Rx Ant 54.3 mm 107.7 mm RightFront of Device BT Tx/Rx & GPS Rx Ant Figure 1-1 DUT Antenna Locations FCC ID: ZNFUN272 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 4 of 24 0Y1204090434.ZNF 04/09/12 - 04/11/12 Portable Handset © 2012 PCTEST Engineering Laboratory, Inc. REV 11.2 M 03/28/2012 1.3 SAR Test Exclusions Applied (A) Bluetooth The separation between the main antenna and the Bluetooth Antenna is 86mm. RF Conducted Power of Bluetooth Tx is 7.60 mW (please refer to the DSS EMC report filed for this EUT for a complete set of Bluetooth powers). Per KDB Publication 648474, Bluetooth SAR was not required based on the maximum conducted power, the Bluetooth/WLAN to main antenna separation distance and Body-SAR of the main antenna. 1.4 Simultaneous Transmission Analysis Since SAR measurement was not required for Bluetooth, no further analysis was necessary to determine if simultaneous transmission cases would…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFUN272 FCC Pt. 22/24/27 Cell, PCS, AWS MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1204090432.ZNF 4/17/2012 - 4/26/2012 Portable Handset Page 1 of 49 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.4CAPC 02/13/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 4/17/2012 - 4/26/2012 10101 Old Grove Road, Test Site/Location: San Diego, CA 92131 PCTEST Lab., Columbia, MD, USA USA Test Report Serial No.: 0Y1204090432.ZNF FCC ID: ZNFUN272 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. Application Type: Certification Model(s): UN272, LG-UN272, LGUN272 EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §22(H), §24(E), §27(C) Test Procedure(s): ANSI/TIA-603-C-2004 Test Device Serial No.: identical prototype [S/N: RF #1, RF #2] Maxi mum Power (Watts) Maxi mum Power (dBm) CDMA850824.70 - 848.311M27F9W0.27024.32 CDMA17001711.25 - 1753.751M27F9W0.53327.27 CDMA19001851.25 - 1908.751M27F9W0.25023.98 Mode Tx Frequency (M Hz) Emission Designator ER P/ E IR P This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22, 24, & 27 / IC RSS-132/RSS-133/RSS-139 Reviewed by: FCC ID: ZNFUN272 FCC Pt. 22/24/27 Cell, PCS, AWS MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1204090432.ZNF 4/17/2012 - 4/26/2012 Portable Handset Page 2 of 49 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.4CAPC 02/13/2012 TABLE OF CONTENTS FCC PART 22, 24 & 27 MEASUREMENT REPORT......................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.5 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 EVALUATION PROCEDURE.............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 7 3.5 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 7 3.6 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 7 3.7 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 8 3.8 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 8 3.9 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 8 3.10 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 9 3.11 PEAK-AVERAGE RATIO ................................................................................................................... 10 3.12 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 10 4.0 TEST EQUIPMENT CALIBRATION DATA ....................................................................................11 5.0 SAMPLE CALCULATIONS ............................................................................................................12 6.0 TEST RESULTS .............................................................................................................................13 6.1 SUMMARY.........................................................................................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFUN272 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1204090435.ZNF April 10-11, 2012 Portable Handset Page 1 of 81 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. April 10-11, 2012 10101 Old Grove Road, Test Site/Location: San Diego, CA 92131 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0Y1204090435.ZNF FCC ID: ZNFUN272 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. Scope of Test: RF Emissions Testing Application Type: Certification FCC Rule Part(s): § 20.19(b) HAC Standard: ANSI C63.19-2007 §6.3(v), §7.3(v); EUT Type: Portable Handset Model(s): UN272, LG-UN272, LGUN272 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1711.25 - 1753.75 MHz (AWS CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: HAC RFE] C63.19-2007 HAC Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested and are for North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: ZNFUN272 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1204090435.ZNF April 10-11, 2012 Portable Handset Page 2 of 81 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. FCC 3G MEASUREMENTS .......................................................................................................... 20 10. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 11. EQUIPMENT LIST......................................................................................................................... 24 12. MEASUREMENT UNCERTAINTY ................................................................................................ 25 13. TEST DATA ................................................................................................................................... 26 14. CALIBRATION CERTIFICATES.................................................................................................... 39 15. CONCLUSION............................................................................................................................... 76 16. REFERENCES .............................................................................................................................. 77 17. TEST PHOTOGRAPHS ................................................................................................................79 Reviewed by: FCC ID: ZNFUN272 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1204090435.ZNF April 10-11, 2012 Portable Handset Page 3 of 81 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service providers to provide digital wireless phones that are compatible with hearing aids. The FCC has modified the exemption for wireless phones under the Hearing Aid Compatibility Act of 1998 (HAC Act) in WT Docket 01-309 RM-8658 1 to extend the benefits of wireless telecommunications to individuals with hearing disabilities. These benefits encompass business, social and emergency communications, which increase the value of the wireless network for everyone. An estimated more than 10% of the population in the United States show signs of hearing impairment and of that fraction, almost 80% use hearing aids…

Text truncated - open the document above for the full version.
