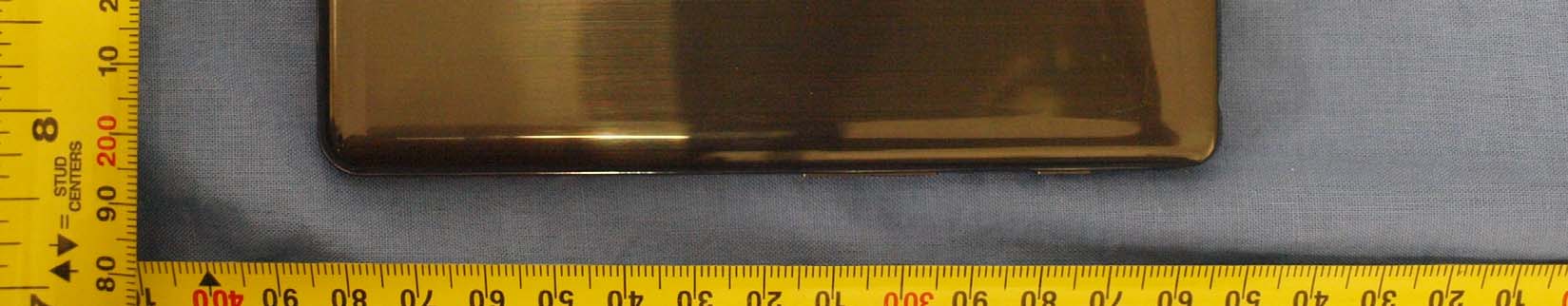

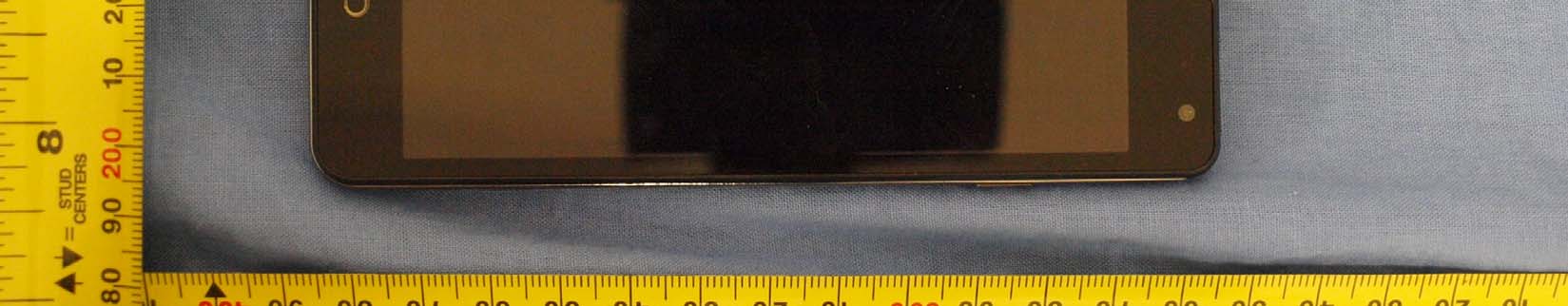

ZNFUS780LTE Phone Bluetooth and WLAN

- 1 - User Manual US780 - 2 - LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the date of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. - 3 - (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following telephone number from anywhere in the continental United States: LG Infocomm Inc. 201 James Record Road Huntsville, AL 35824 Tel. 1-800-793-8896 Fax. 1-800-448-4026 www.lgeservice.com DO NOT RETURN YOUR PRODUCT TO THE ABOVE ADDRESS. Please call or write for the location of the LG Electronics, Inc authorized service center nearest you and for the procedures for obtaining warranty claims. - 4 - SUBJECT The phone has been designed to operate on the latest digital mobile communication technology, Code Division Multiple Access (CDMA). The phone supports fully Multimedia - color LCDs, 128poly Audio, 2.0M pixels Digital Camera on the front-side, 5.0M pixels Digital Camera on the rear-side, MPEG-4, Photo album, etc. This phone is the one of tri band Quad mode - 800Mhz CDMA, 1900Mhz PCS, 1500Mhz GPS. CDMA Standard Designator Description Basic air interface TIA/EIA-95A TSB-74 ANSI J-STD-008 TIA/EIA-IS2000 CDM A D ual-Mode Air Interface 14.4kbps radio link protocol and inter-band operations IS-95 adapted for PCS frequency band CDMA2000 1xRTT Air Interface Network TIA/EIA/IS-634 TIA/EIA/IS/651 TIA/EIA/IS-41-C TIA/EIA/IS-124 MAS-BS PCSC-RS Intersystem operations Nom-signaling data comm. Service TIA/EIA/IS-96-B TIA/EIA/IS-99 TIA/EIA/IS-637 TIA/EIA/IS-657 IS-801 Speech CODEC Assign data and fax Short message service Packet data Position Determination Service (gpsOne) Performance TIA/EIA/IS-97 TIA/EIA/IS-98 ANSI J-STD-018 ANSI J-STD-019 TIA/EIA/IS-125 Cellular base station Cellular mobile station PCS personal station PCS base station Speech CODEC * TSB –74: Protocol between an IS-95A system and ANSI J-STD-008 - 5 - Table of Contents Introduction Highlights Important Information Check Accessories Before You Start Safety Instructions SUBJECT........................................................................................ 4 Introduction ................................................................................... 7 Highlights .................................................................................................... 7 Important Information ................................................................................ 7 Check Accessories .................................................................................... 7 Before You Start ............................................................................. 8 Safety Instructions ........................................…

Text truncated - open the document above for the full version.

Date: August 24, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc REMARK: 1.This authorization letter will be sent along with your application when filing with the Certification Division. 2.Please follow the format and type it on company letterhead and send original to us. 3.Authorized signature must be in agreement with grantee code contact in FCC database.

Date : February 18, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNFUS780 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG ELECTRONICS MobileComm USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG ELECTRONICS MobileComm USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions and Tune-Up Procedure 3 Schematics 4 Part List 5 Antenna Specification 6. Antenna distance SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc

FCC ID label form ZNFUS780

Plot No. 1 Test Laboratory: UL CCS SAR Lab E Date: 1/15/2013 20130115_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5600 MHz; σ = 5.901 mho/m; ε r = 47.872; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1343; Calibrated: 8/20/2012 - Probe: EX3DV4 - SN3871; ConvF(3.89, 3.89, 3.89); Calibrated: 8/20/2012; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 A; Type: QDOVA002AA; Serial: 1180 Body/5.6 GHz, Pin=100mW/Area Scan (61x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 51.442 V/m; Power Drift = -0.06 dB Fast SAR: SAR(1 g) = 6.85 W/kg; SAR(10 g) = 1.87 W/kg Maximum value of SAR (interpolated) = 18.8 W/kg Body/5.6 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 51.442 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 29.9 W/kg SAR(1 g) = 7.4 W/kg; SAR(10 g) = 2.08 W/kg Maximum value of SAR (measured) = 17.4 W/kg 0 dB = 17.4 W/kg = 12.41 dBW/kg Plot No. 2 Test Laboratory: UL CCS SAR Lab E Date: 1/15/2013 20130115_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5600 MHz; Duty Cycle: 1:1 Body/5.6 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 13.3 W/kg Plot No. 3 Test Laboratory: UL CCS SAR Lab E Date: 1/15/2013 20130115_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 6.191 mho/m; ε r = 47.564; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1343; Calibrated: 8/20/2012 - Probe: EX3DV4 - SN3871; ConvF(3.89, 3.89, 3.89); Calibrated: 8/20/2012; - Sensor-Surface: 1.4mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 A; Type: QDOVA002AA; Serial: 1180 Body/5.8 GHz, Pin=100mW/Area Scan (61x61x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Reference Value = 48.703 V/m; Power Drift = -0.01 dB Fast SAR: SAR(1 g) = 6.37 W/kg; SAR(10 g) = 1.76 W/kg Maximum value of SAR (interpolated) = 17.8 W/kg Body/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 48.703 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 29.4 W/kg SAR(1 g) = 6.98 W/kg; SAR(10 g) = 1.97 W/kg Maximum value of SAR (measured) = 17.1 W/kg 0 dB = 17.1 W/kg = 12.33 dBW/kg Plot No. 4 Test Laboratory: UL CCS SAR Lab E Date: 1/15/2013 20130115_SystemPerformanceCheck-D5GHzV2 SN 1003 Frequency: 5800 MHz; Duty Cycle: 1:1 Body change probe/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 12.3 W/kg Plot No. 5 Test Laboratory: UL CCS SAR Lab F Date: 1/15/2013 20130115_SystemPerformanceCheck-D1750V2 SN 1053 Frequency: 1750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1750 MHz; σ = 1.516 mho/m; ε r = 52.273; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(8.03, 8.03, 8.03); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 56.435 V/m; Power Drift = -0.05 dB Fast SAR: SAR(1 g) = 3.68 W/kg; SAR(10 g) = 1.93 W/kg Maximum value of SAR (interpolated) = 4.82 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.435 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 6.42 W/kg SAR(1 g) = 3.6 W/kg; SAR(10 g) = 1.92 W/kg Maximum value of SAR (measured) = 4.81 W/kg 0 dB = 4.81 W/kg = 6.82 dBW/kg Plot No. 6 Test Laboratory: UL CCS SAR Lab F Date: 1/15/2013 20130115_SystemPerformanceCheck-D1750V2 SN 1053 Frequency: 1750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.64 W/kg Plot No. 7 Test Laboratory: UL CCS SAR Lab E Date: 1/16/2013 20130116 SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.975 mho/m; ε r = 51.76; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1343; Calibrated: 8/20/2012 - Probe: EX3DV4 - SN3871; ConvF(7.44, 7.44, 7.44); Calibrated: 8/20/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 B; Type: QDOVA002AA; Serial: 1163 Body/Pin=100 mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Reference Value = 61.725 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 5.21 W/kg; SAR(10 g) = 2.27 W/kg Maximum value of SAR (interpolated) = 7.61 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.725 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.31 W/kg; SAR(10 g) = 2.47 W/kg Maximum value of SAR (measured) = 7.53 W/kg 0 dB = 7.53 W/kg = 8.77 dBW/kg Plot No. 8 Test Laboratory: UL CCS SAR Lab E Date: 1/16/2013 20130116 SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL CCS SAR Lab F Date: 1/20/2013 CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.883 mho/m; ε r = 39.969; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(9.35, 9.35, 9.35); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; V5 S/N:1740 LHS/Touch_1xEVDO Rel. 0_Ch 384/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.377 W/kg LHS/Touch_1xEVDO Rel. 0_Ch 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.490 V/m; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.445 W/kg SAR(1 g) = 0.346 W/kg; SAR(10 g) = 0.261 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.389 W/kg 0 dB = 0.389 W/kg = -4.10 dBW/kg Plot No. 2 Test Laboratory: UL CCS SAR Lab F Date: 1/20/2013 CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.984 mho/m; ε r = 52.988; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(9.36, 9.36, 9.36); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Rear/1xEVDO_Rel. 0_Ch 384/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.734 W/kg Rear/1xEVDO_Rel. 0_Ch 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.990 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 0.843 W/kg SAR(1 g) = 0.652 W/kg; SAR(10 g) = 0.496 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.735 W/kg 0 dB = 0.735 W/kg = -1.34 dBW/kg

Plot No. 1 Test Laboratory: UL CCS SAR Lab F Date: 1/16/2013 CDMA BC1 Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1880 MHz; σ = 1.409 mho/m; ε r = 39.739; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(7.66, 7.66, 7.66); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; V5 S/N:1740 LHS/Touch_1xRTT_RC3_SO55_Ch 600/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.593 W/kg LHS/Touch_1xRTT_RC3_SO55_Ch 600/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.620 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.794 W/kg SAR(1 g) = 0.516 W/kg; SAR(10 g) = 0.319 W/kg Maximum value of SAR (measured) = 0.638 W/kg 0 dB = 0.638 W/kg = -1.95 dBW/kg Plot No. 2 Test Laboratory: UL CCS SAR Lab F Date: 1/18/2013 CDMA BC1 Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1880 MHz; σ = 1.495 mho/m; ε r = 51.831; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(7.67, 7.67, 7.67); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA002AA; Serial: TP:xxxx Rear/1xRTT_RC3_SO32_Ch 600/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.786 W/kg Rear/1xRTT_RC3_SO32_Ch 600/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.429 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.989 W/kg SAR(1 g) = 0.669 W/kg; SAR(10 g) = 0.435 W/kg Maximum value of SAR (measured) = 0.812 W/kg 0 dB = 0.812 W/kg = -0.90 dBW/kg

Plot No. 1 Test Laboratory: UL CCS SAR Lab F Date: 1/21/2013 CDMA BC15 Frequency: 1732.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.405 mho/m; ε r = 40.405; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(7.98, 7.98, 7.98); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; V5 S/N:1740 LHS/Touch_1xRTT_RC3_SO55_Ch 450/Area Scan (8x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.384 W/kg LHS/Touch_1xRTT_RC3_SO55_Ch 450/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.943 V/m; Power Drift = 0.19 dB Peak SAR (extrapolated) = 0.569 W/kg SAR(1 g) = 0.376 W/kg; SAR(10 g) = 0.239 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.456 W/kg 0 dB = 0.456 W/kg = -3.41 dBW/kg Plot No. 2 Test Laboratory: UL CCS SAR Lab F Date: 1/15/2013 CDMA BC15 Frequency: 1732.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 1732.5 MHz; σ = 1.497 mho/m; ε r = 52.275; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(8.03, 8.03, 8.03); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Rear/1xEVDO_Rel 0_Ch 450/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.768 W/kg Rear/1xEVDO_Rel 0_Ch 450/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.380 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.970 W/kg SAR(1 g) = 0.635 W/kg; SAR(10 g) = 0.409 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.782 W/kg 0 dB = 0.782 W/kg = -1.07 dBW/kg

Plot No. 1 Test Laboratory: UL CCS SAR Lab F Date: 1/16/2013 LTE Band 2 Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 39.295; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(7.66, 7.66, 7.66); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; RHS/Touch_QPSK_RB_1/24 Ch 18900/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.331 W/kg RHS/Touch_QPSK_RB_1/24 Ch 18900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.439 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.474 W/kg SAR(1 g) = 0.313 W/kg; SAR(10 g) = 0.199 W/kg Maximum value of SAR (measured) = 0.385 W/kg 0 dB = 0.385 W/kg = -4.15 dBW/kg Plot No. 2 Test Laboratory: UL CCS SAR Lab F Date: 1/18/2013 LTE Band 2 Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used: f = 1880 MHz; σ = 1.495 mho/m; ε r = 51.831; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(7.67, 7.67, 7.67); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA002AA; Serial: TP:xxxx Rear/QPSK_RB 1/24 Ch 18900/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.543 W/kg Rear/QPSK_RB 1/24 Ch 18900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.177 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 0.714 W/kg SAR(1 g) = 0.484 W/kg; SAR(10 g) = 0.310 W/kg Maximum value of SAR (measured) = 0.585 W/kg 0 dB = 0.585 W/kg = -2.33 dBW/kg

Plot No. 1 Test Laboratory: UL CCS SAR Lab F Date: 1/20/2013 LTE Band 5 Frequency: 836.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 836.5 MHz; σ = 0.883 mho/m; ε r = 39.969; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(9.35, 9.35, 9.35); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; LHS/Touch_QPSK_RB_1/0 Ch 20525/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.342 W/kg LHS/Touch_QPSK_RB_1/0 Ch 20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.106 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.553 W/kg SAR(1 g) = 0.302 W/kg; SAR(10 g) = 0.188 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.382 W/kg 0 dB = 0.382 W/kg = -4.18 dBW/kg Plot No. 2 Test Laboratory: UL CCS SAR Lab F Date: 1/17/2013 LTE Band 5 Frequency: 836.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 836.5 MHz; σ = 0.993 mho/m; ε r = 53.596; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(9.36, 9.36, 9.36); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Rear/QPSK_RB 1/0 Ch 20525/Area Scan (8x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.297 W/kg Rear/QPSK_RB 1/0 Ch 20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.237 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.376 W/kg SAR(1 g) = 0.265 W/kg; SAR(10 g) = 0.188 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.307 W/kg 0 dB = 0.307 W/kg = -5.13 dBW/kg

Plot No. 1 Test Laboratory: UL CCS SAR Lab F Date: 1/22/2013 LTE Band 12 Frequency: 707.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.865 mho/m; ε r = 42.987; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 10/8/2012 - Probe: EX3DV4 - SN3885; ConvF(9.68, 9.68, 9.68); Calibrated: 10/9/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM with CRP; Type: SAM; RHS/Touch_QPSK_RB_1/24 Ch 23095/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.207 W/kg RHS/Touch_QPSK_RB_1/24 Ch 23095/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.894 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.219 W/kg SAR(1 g) = 0.169 W/kg; SAR(10 g) = 0.130 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.189 W/kg 0 dB = 0.189 W/kg = -7.24 dBW/kg Plot No. 2 Test Laboratory: UL CCS SAR Lab F Date: 1/17/2013 LTE Band 12 Frequency: 707.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.933 mho/m; ε r = 53.929; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated…
