MFL00000000 (1.0) User Guide LG-V410 www.lg.com ENGLISH User Guide ENGLISH • Screen displays and illustrations may differ from those you see on actual device. • Some of the contents of this guide may not apply to your device, depending on the software and your service provider. All information in this document is subject to change without notice. • This device is not suitable for people who have a visual impairment due to the touch screen keyboard. • Copyright ©2014 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Google Play™ are trademarks of Google, Inc. 2 About this user guide .........................5 About this user guide ...........................5 Trademarks .............................................5 DivX HD ..................................................6 Dolby Digital Plus ..................................6 Important notice .................................7 Getting to know your device ............12 Tablet Overview .....................................12 Charging your tablet ............................14 Optimizing Battery Life .......................15 To extend the life of your battery .........15 To view the battery charge level ...........16 To monitor and control what uses the battery .....................................................16 Inserting a microSD card .....................16 Removing the microSD card ...............17 Formatting the microSD card .............18 Locking and unlocking the screen......18 Your Home screen .............................19 Touch screen tips ..................................19 Tap or touch .................................................19 Touch and hold ...........................................19 Drag .................................................................19 Swipe or slide .............................................20 Double-tap ..................................................20 Pinch-to-Zoom .........................................20 Rotate the screen .....................................20 KnockON .......................................................21 Home screen ........................................22 Customizing the Home screen ..........23 Customizing app icons on the Home screen ........................................23 Home screen clean view .....................25 Quick access ........................................25 Returning to recently-used applications ..........................................26 Notifications .........................................26 Accessing notifications ..........................26 Quick Settings on the Notifications Panel ..............................................................27 To rearrange Quick Setting options on the Notification Panel ........................27 QSlide apps on the Notifications Panel ..............................................................27 Using the QSlide apps ...........................28 Notification icons on the Status Bar ..................................................................28 Multiple Users ......................................29 Slide Aside .............................................31 Plug & Pop ...........................................32 Capturing a Screenshot ......................32 Using QuickMemo to capture a screenshot ..................................................33 Using Capture plus to capture a screenshot ..................................................33 Entering Text.........................................33 Entering special characters ..................34 Google account setup .......................35 Connecting to Networks and Devices ...............................................36 Table of contents 3 Wi-Fi .....................................................36 Connecting to Wi-Fi networks ............36 Turning Wi-Fi on and connecting to a Wi-Fi network ....................................36 Bluetooth ..............................................36 Turning on Bluetooth and pairing up your tablet with a Bluetooth device ....37 Send data using the Bluetooth feature ...........................................................38 Receive data using the Bluetooth feature ...........................................................38 SmartShare ..........................................38 Enjoying the content via a variety of devices .........................................................39 Playing/Sending .......................................39 Enjoying the content from Nearby devices ..................................................39 Connecting devices ................................39 Searching other devices........................39 Using the content from the Cloud ....40 Using the Cloud .......................................40 PC connections with a USB cable .....40 Transferring music, photos and videos using the USB mass storage mode ............................................40 Synchronize with Windows Media Player ..............................................................41 Contacts ............................................42 Searching for a contact ......................42 Adding a new contact .........................42 Favorite Contacts .................................42 Creating a group ..................................43 Email ..................................................44 Managing an email account ...............44 Working with account folders ............45 Composing and sending email ..........45 Receiving emails ..................................45 Camera ...............................................46 Getting to know the viewfinder ..........46 Using the advanced settings ..............47 Taking a photo ......................................48 Once you've taken a photo .................49 Viewing your saved photos .................50 Video cam…

Text truncated - open the document above for the full version.

61 QPair By connecting your tablet and mobile phone via QPair, you can sync incoming calls, messages, and social networking notifications between your tablet and mobile phone. 1 Run QPair and tap Get started > Start on your tablet first and then run the same steps on your phone. TIP! QPair may not be pre-installed on the phone. Go to Google Play Store and search for QPair and install it. NOTE: QPair works with phones running Android 4.1 or later. Some features may be limited depending on your phone model. 2 Bluetooth connection will be turned on automatically. Tools 62 QPair features Call notifications – Sends the tablet a notification when the phone receives a call. The notification displays the caller's number and allows you to decline the call. Message notifications – Sends the tablet a notification when the phone receives a message. Social network notifications – Displays a social networking notification on your tablet's Status Bar when it arrives on your phone. NOTE: To enable this feature, turn the QPair social network notifications option on your phone (Settings > Accessibility > QPair social network notifications). This option allows you to be notified of social networking notifications on your tablet. QuickMemo transfer – Saves your current QuickMemo in the tablet's Gallery, and then syncs the tablet's Gallery with the Gallery on your phone. Recent app sticker – When the paired device's screen is unlocked, a sticker will display the last app used on the other device if the app is installed both on the tablet and the phone. QSlide The QSlide function enables an overlay window on your tablet’s display for easy multi-tasking. QSlide windows can be opened from the QSlide apps bar on the Notifications panel, or directly from the applications that support the QSlide function. 63 1 Open the Notifications Panel and tap the desired app from the QSlide apps section. OR While using an application that supports QSlide, tap . The function will be displayed continuously as a small window on your screen. 2 Slide to adjust the transparency level. Drag the QSlide title bar to move it to another position on the screen. OR Tap to run QSlide. Tap to exit the QSlide and return to full window. Tap to adjust transparency. Tap to end the QSlide. Tap to adjust the size. NOTE: The QSlide function can support up to two windows at the same time. QSlide only supports the following applications: Videos, Internet, Memo, Calendar, Calculator, Email, File Manager, and QVoice. 64 QuickMemo The QuickMemo feature allows you to create memos and capture screen shots. Capture screens, draw on them, and share them with family and friends with QuickMemo. Creating a QuickMemo 1 To access the QuickMemo feature, slide the Status Bar downwards and touch . OR Press both of the Volume Keys at the same time for one second. 2 Select the desired menu option from the toolbar and create a memo. 3 Tap to save the memo. To exit QuickMemo at any time, tap the Back Key . 65 NOTE: Please use a fingertip while using the QuickMemo. Do not use your fingernail. Using the QuickMemo options The following options are available in the QuickMemo toolbar at the top of the screen. Touch to keep the current memo on the screen and use the tablet simultaneously. Allows you to choose the type of background you want to use. Allows you to undo and redo previous actions. Selects the pen type and color and the cropping tool. Erases edits you've made to the memo. Touch to send your memo to others or share it via social networking services. Saves the memo in the Notebook or Gallery. Viewing the saved QuickMemo From the Home screen, tap Apps > Gallery or Notebook and select the QuickMemo album. 66 QuickRemote QuickRemote turns your tablet into a Universal Remote for your home TV or cable box. NOTE: QuickRemote may not be available for some devices and areas. To open the QuickRemote application and set up your QuickRemote(s) 1 From the Home screen, tap the Apps > Apps tab > QuickRemote . You can also perform the initial set up of your QuickRemote from the Notifications Panel. Swipe the Status Bar downward, tap the QuickRemote icon , then tap ADD REMOTE. Touch to select a room type and touch to add the device. 2 Select the type and brand of device, then follow the on-screen instructions to configure the device(s). 67 NOTE: The QuickRemote operates the same way as an ordinary infrared (IR) remote control in your region or country. Be careful not to cover the infrared sensor at the top of the tablet when you use the QuickRemote function. This function may not be supported depending on the model, the manufacturer or service company. Using QuickRemote 1 Open QuickRemote and choose the room where you configured the remote. 2 Select the remote you want by tapping its type/name on the QuickRemote bar along the left side of the screen. 3 Tap the buttons on the displayed remote. NOTE: When adding the TV remote control, QuickRemote can use the INPUT button to configure appropriate remote control. When configuring the INPUT button, the TV input source can be changed. To reset the TV input source, tap the INPUT button on QuickRemote several times (depending on the number of devices connected to the TV). QuickRemote options To access the QuickRemote options menu, tap the Menu Key to select the desired option. NOTE: While playing music in the background, pressing any QuickRemote button will mute the sound for a second. 68 QuickTranslator Simply aim the camera of your smart tablet at the foreign sentence you want to understand. You can get the real-time translation anywhere and anytime. You can buy additional dictionaries for offline translation from the Google Play Store. Home language. Destination language. Switches to Voice mode. Tap the language button, then speak. Translation of a written word. Translation of a written sentence. Translation of a paragraph. Accesses the QuickTranslator settings. You can set the home and destination languages here. 1 From the Home scree…

Text truncated - open the document above for the full version.

Date: June 17, 2014 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT: LG Electronics MobileComm USA FCC ID: ZNFV410 LTE MPR for FCC SAR testing To whom it may concern: We, LG Electronics MobileComm USA, hereby confirm that MPR specified in 3GPP will be permanently implemented in ZNFV410 so that the powers found in this application will not be found to exceed th e levels indicated. Additionally, A-MPR(Additional MPR) was disabled for all SAR samples for SAR testing purposes. Should you have any ques tions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Date: June 17, 2014 PCTEST TCB/CB Div. of PCTES T Engineerin g Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT: LG Electronics MobileComm USA FCC ID: ZNFV410 To whom it may concern: We, LG Ele ctronics MobileComm USA, hereby confirm that For this device, the only Rel.10 feature supported is downlink carrier aggregation; no other features from Rel.10 are supported by this device. Other capabilities are unchanged from Rel.8. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: June 17#4 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFV410 Equipment Class:%B&%  '  (  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary info rmation not customarily released to the public. Th e public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

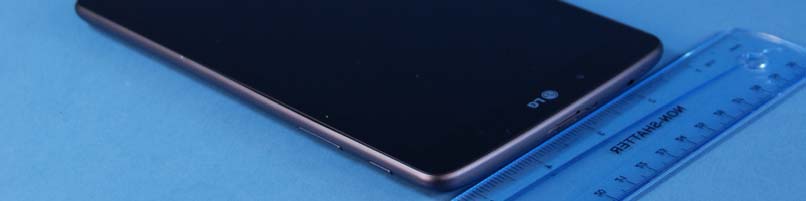

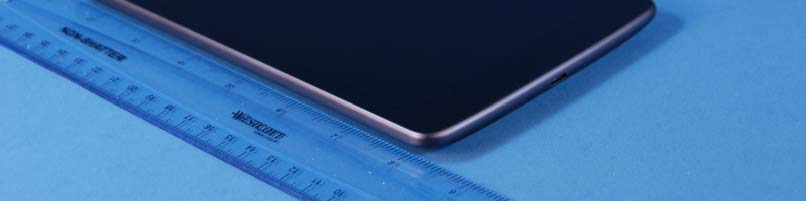

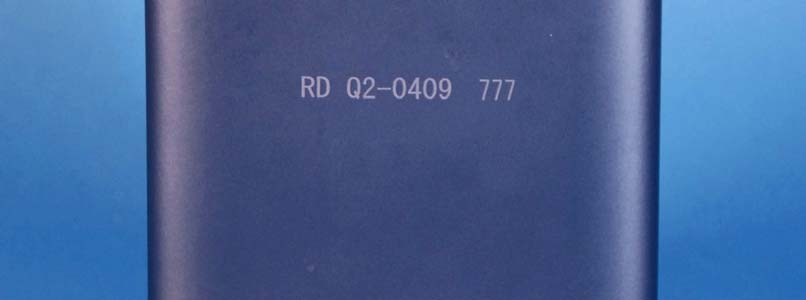

LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 External Photos EUT Type: Portable Tablet Page 1 of 4 © 2014 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 External Photos EUT Type: Portable Tablet Page 2 of 4 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 External Photos EUT Type: Portable Tablet Page 3 of 4 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 External Photos EUT Type: Portable Tablet Page 4 of 4 © 2014 PCTEST Engineering Laboratory Inc.

The FCC ID shown will be readily visible at the time of purchase because it’s printed on the bottom of the device. ※ LG-V410 FCC ID Label Form * Printed on the bottom of the device IMEI Barcode Sticker Top Bottom

LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 1 of 11 © 2014 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 2 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 3 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 4 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 5 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 6 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 7 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 8 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 9 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 10 of 11 © 2014 PCTEST Engineering Laboratory Inc. LG Electronics MobileComm U.S.A FCC ID: ZNFV410 Model: LG-V410 Internal Photos EUT Type: Portable Tablet Page 11 of 11 © 2014 PCTEST Engineering Laboratory Inc.

FCC ID: ZNFV410 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 56 0Y1404210801-R1.ZNF 04/22/14 - 05/01/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.4 M 03/24/2014 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 04/22/14 - 05/01/14 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1404210801-R2.ZNF F C C I D : ZNFV 4 1 0 AP P L I C AN T : LG E LE CT RO NI CS MO B ILE CO M M U. S . A., I NC. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LG-V410, V410, LGV410 This revised Test Report (S/N: 0Y1404210801-R2.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. 1 gm Body (W/kg) PCBUMTS 850826.40 - 846.60 MHz0.51 PCBUMTS 19001852.4 - 1907.6 MHz0.44 PCBLTE Band 17706.5 - 713.5 MHz0.47 PCBLTE Band 5 (Cell)826.5 - 846.5 MHz0.48 PCBLTE Band 4 (AWS)1712.5 - 1752.5 MHz0.61 PCBLTE Band 2 (PCS)1852.5 - 1907.5 MHz0.42 DTS2.4 GHz WLAN2412 - 2462 MHz0.47 DTS5.8 GHz WLAN5745 - 5825 MHz0.43 NII5.2 GHz WLAN5180 - 5240 MHz0.49 NII5.3 GHz WLAN5260 - 5320 MHz0.63 NII5.5 GHz WLAN5500 - 5700 MHz0.95 DSS/DTSBluetooth2402 - 2480 MHz 1.57 N/A SAR Band & ModeTx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: ZNFV410 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 56 0Y1404210801-R1.ZNF 04/22/14 - 05/01/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.4 M 03/24/2014 T A B L E O F C O N T E N T S 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION .........................................................................................................................8 3 INTRODUCTION ..............................................................................................................................9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 SAR TESTING PROCEDURES .................................................................................................... 11 6 RF EXPOSURE LIMITS ................................................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 17 9 SYSTEM VERIFICATION .............................................................................................................. 37 10 SAR DATA SUMMARY ................................................................................................................. 39 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 43 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 50 13 EQUIPMENT LIST ......................................................................................................................... 51 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 52 15 CONCLUSION ............................................................................................................................... 54 16 REFERENCES .............................................................................................................................. 55 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID: ZNFV410 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 56 0Y1404210801-R1.ZNF 04/22/14 - 05/01/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.4 M 03/24/2014 1 D E V I C E U N D E R T E S T 1.1 Device Overview 1.2 Power Reduction for SAR This device uses a sensor for SAR compliance. The sensor is activated when used in close proximity to the user’s body. The sensor triggers power reduction for data modes and is only applicable for tablet operations. Since the device is a full size tablet, the Body SAR was evaluated per FCC KDB Publication 616217 D04 for full sized tablets. 1.3 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB P…

Text truncated - open the document above for the full version.

FCC ID: ZNFV410 FCC Pt. 22 & 24 / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 39 0Y1404210802.ZNF 04/23 - 05/05/14; 6/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 04/23 - 05/05/14; 6/20/14 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1404210802.ZNF FCC ID: ZNFV410 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Application Type: Certification Model(s): LG-V410, V410, LGV410 EUT Type: Portable Tablet FCC Classification: PCS Licensed Transmitter (PCB) FCC Rule Part(s): §2 §22(H) §24(E) Test Procedure(s): ANSI/TIA-603-C-2004, KDB 971168 v02r01 Test Device Serial No.: identical prototype [S/N: EIRP#1, RF Cond.#1, RF Cond.#3] WCDMA850826.4 - 846.64M15F9W0.05016.97 WCDMA1900 1852.4 - 1907.64M17F9W0.33225.21 ERP/EIRP Max. Power (W) Max. Power (dBm) Tx Frequency (MHz) Mode Emission Designator This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 22 & 24 FCC ID: ZNFV410 FCC Pt. 22 & 24 / WCDMA MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 39 0Y1404210802.ZNF 04/23 - 05/05/14; 6/20/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 22 & 24 MEASUREMENT REPORT .......................................................................................... 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 TEST CONFIGURATION ..................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 EVALUATION PROCEDURE .............................................................................................................. 6 3.2 CELLULAR - BASE FREQUENCY BLOCKS ....................................................................................... 6 3.3 CELLULAR - MOBILE FREQUENCY BLOCKS ................................................................................... 6 3.4 PCS - BASE FREQUENCY BLOCKS .................................................................................................. 6 3.5 PCS - MOBILE FREQUENCY BLOCKS .............................................................................................. 7 3.6 RADIATED MEASUREMENTS ............................................................................................................ 7 4.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 8 5.0 SAMPLE CALCULATIONS .............................................................................................................. 9 6.0 TEST RESULTS ............................................................................................................................. 10 6.1 SUMMARY ......................................................................................................................................... 10 6.2 OCCUPIED BANDWIDTH ................................................................................................................. 11 6.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................................ 13 6.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ...................................................................... 20 6.5 PEAK-AVERAGE RATIO ................................................................................................................... 24 6.6 RADIATED POWER (ERP/EIRP) ...................................................................................................... 26 6.7 RADIATED SPURIOUS EMISSIONS MEASUREMENTS ................................................................. 29 6.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ............................................................... 34 7.0 CONCLUSION ................................................................................................................................ 39 FCC ID: ZNFV410 FCC Pt. 22 & 24 / WCDMA MEASUREMENT …
