ZNFV600AMPortable Handset

Copyright ©2019 LG Electronics Inc. All rights reserved. MFLXXXXXXXXX (1.0) www.lg.com ENGLISH USER GUIDE LM-V600AM 1 About this user guide Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use. • Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices. • Descriptions are based on the device default settings. • Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Center. For user-installed apps, please contact the relevant service provider. • Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty. • Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice. • Software, audio, wallpaper, images, and other media supplied with your device are licenced for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media. • Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details. • Failure to follow the instructions in this guide and improper use may damage the device. 2About this user guide Instructional notices WARNING: Situations that could cause injury to the user and third parties. CAUTION: Situations that may cause minor injury or damage to the device. NOTE: Notices or additional information. 3 Table of contents 01 Custom-designed Features 7 Camera features 10 Gallery features 16 Floating Bar 19 Google Assistant 21 HD Audio R ecorder 23 Finger print recognition 27 Multi- tasking feature 28 AOD (alw ays-on display) 29 No tes on Water Resistant Properties 02 Basic Functions 33 Product components and accessories 34 P arts overview 38 Turning the power on or off 39 Installing the SIM c ard and memory card 41 R emoving the memory card 41 Battery 45 T ouch screen 49 Home scr een 59 Scr een lock 63 Memor y card encryption 65 Ent ering text 72 Cont ent sharing 74 D o not disturb 4Table of contents 03 Useful Apps 76 Installing and uninstalling apps 78 App Shor tcuts 79 Phone 84 Messages 91 Camera 120 Gallery 124 Chrome 124 Google apps 127 Contacts 130 QuickMemo+ 132 Clock 133 Music 134 Calculator 134 Game Launcher 135 LG Health 137 FM Radio 137 LG Mobile Switch 138 App trash 138 SmartWorld 04 Settings 140 Settings 140 Network & internet 148 Connected devices 153 Sound 155 Display 157 Lock screen & security 159 Extensions 163 Digital W ellbeing 163 Apps & no tifications 163 Battery 164 Storage 164 Accounts 165 Google 168 Accessibility 5Table of contents 05 Appendix 172 LG Language Settings 172 LG Bridge 173 Phone software update 175 Anti- Theft Guide 176 Open Source Software Notice Information 176 Regulatory information (FCC ID number, etc.) 177 Trademarks 178 Laser safety statement 179 More information 181 FAQ 06 For Your Safety 07 LIMITED WARRANTY STATEMENT 08 LG Dual Screen (LM-V515N) 220 Getting to Know LG Dual Screen 221 Guidelines for safe and efficient use 226 Product components and accessories 227 Parts overview 228 Inserting the mobile phone to Dual Screen 230 R emoving the mobile phone from Dual Screen 233 Using Char ging Adapter 235 Using the Dual Scr een 256 More Dual Screen information 257 Trademarks Custom-designed Features 01 Custom-designed Features7 Camera features Main features This chapter describes the main features that the camera app provides. Open the camera and explore various features. 1 Tap . Switch between front and rear cameras Switch between standard angle and wide-angle cameras Take photos Open Gallery Set camera options Apply filter/sticker effects Change flash settings Change timer settings 2 Tap More on the camera screen to view various camera modes. • Select a desire mode from Night view, Panorama, Story shot, Manual Video, Slo-mo, Time-lapse, Jump-Cut, YouTube Live and AR Stickers. Tap More Custom-designed Features8 Dual cameras The dual cameras, which are located on the back of the device, allow you to take photos or record videos with two different angles of view. Tap , and select / while taking photos or recording videos with the rear camera. Rear Camera Steady recording Use Steady recording to prevent the camera from shaking when recording a video while walking or making large movements. Activate Anti-shake to reduce or eliminate motion blur in videos. 1 Tap Video. 2 Tap . 3 Tap to record a video. Recording ASMR With the high-sensitivity microphone installed on the device, you can pick up even the softest sound to record an ASMR video with vivid and clear sound quality. 1 Tap Video. 2 Tap to activate the function. 3 Tap to start recording an ASMR video. Custom-designed Features9 Portrait You can create an artistic portrait photo, whereby the subject is in focus and the background is blurred. You can also edit the image by applying lighting or color effect to the background. • While taking a photo, keep the distance to your subject to 1.3 ~ 5 feet. • This feature is not available if the surroundings are too dark. 1 Tap , and tap Portrait. 2 Drag the slide bar to the left or right to adjust the blur strength. Adjust blur strength. 3 When Portrait is available. appears on the screen, tap or to take a photo. • The Portrait feature may not work if the camera cannot recognize the subject. Custom-designed Features10 Gallery featur…

Text truncated - open the document above for the full version.

Date: Feb. 17, 2020 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Electronics USA, Inc. FCC ID: ZNFV600AM Part 20.19 Certification Gentlemen: We, LG Electronics USA, Inc. hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics Inc. LGE LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Date: Feb. 17, 2020 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFV600AM Equipment Class: NII-Unlicensed National Information Infrastructure TX To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA, Inc. hereby requests confidentiality and confidential treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA, Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Kyung-Su Han Director LG Electronics USA, Inc. LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions 3 Schematics SHORT-TERM 1 External Photos 2 Internal Photos 3 Test-Setup Photos 4 User’s Manual

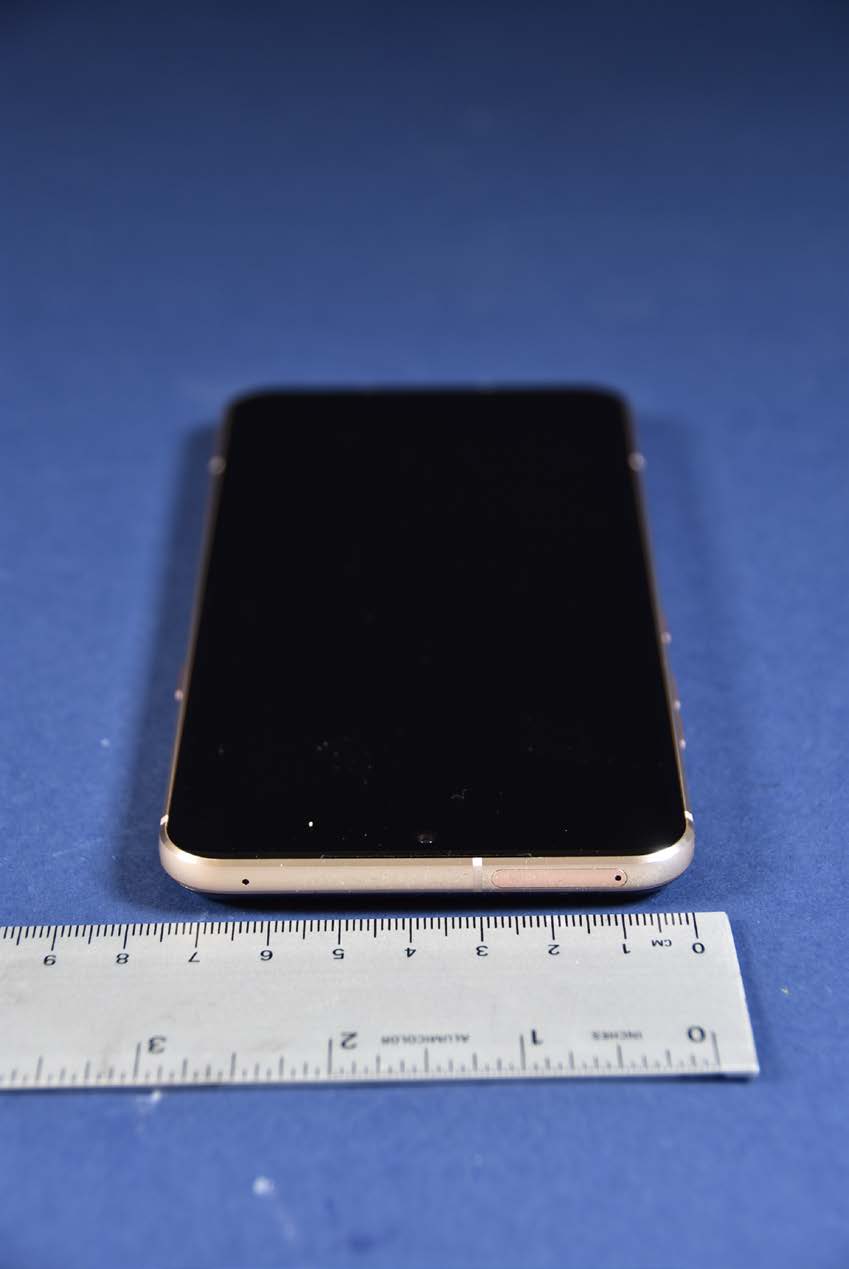

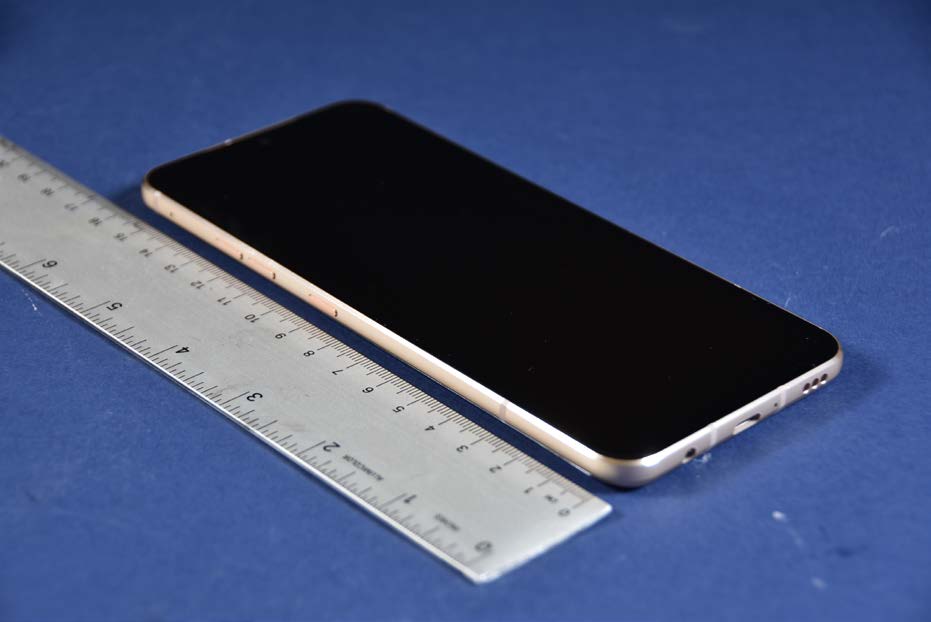

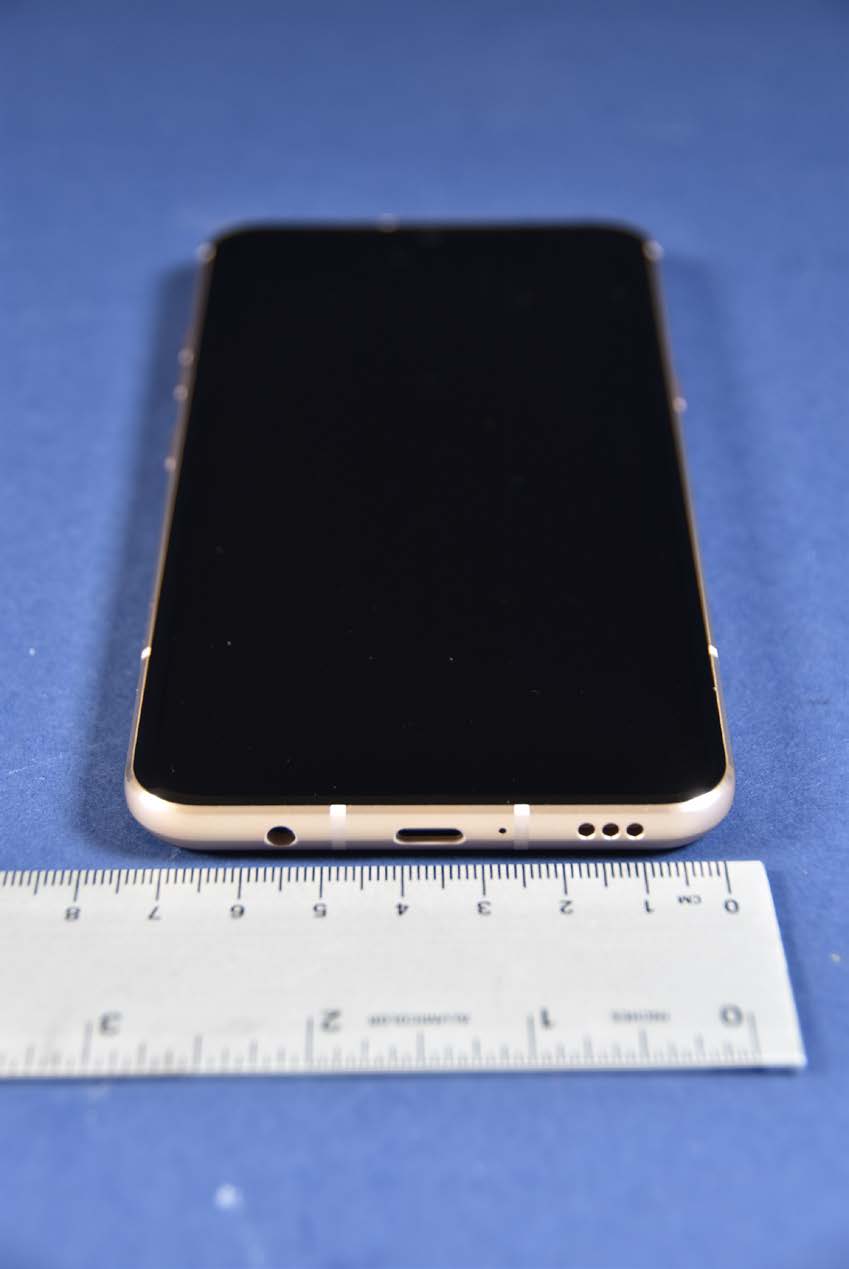

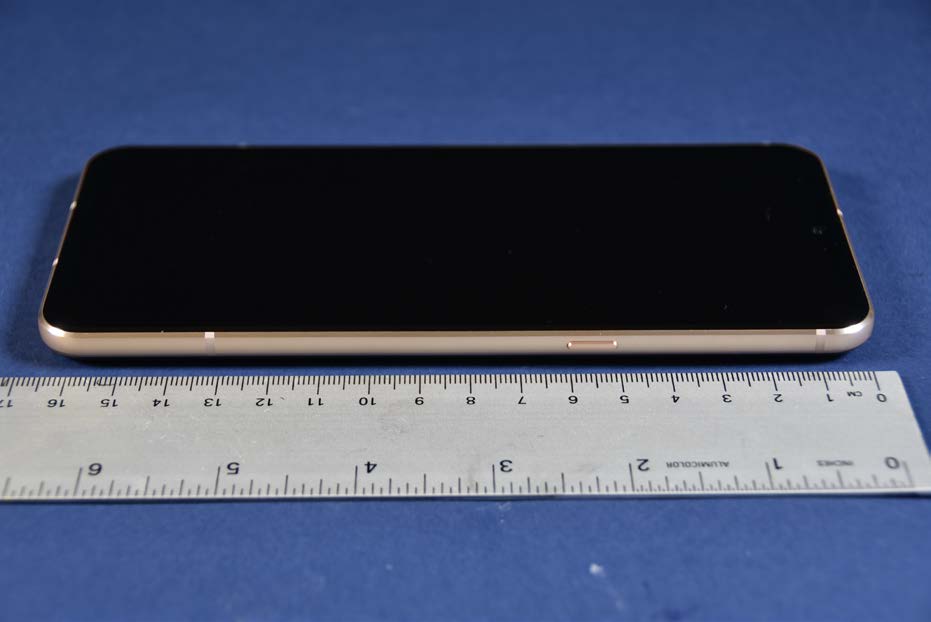

LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM External Photos EUT Type: Portable Handset Page 1 of 6 © 2020 PCTEST V 9.0 02/01/2019 EXTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM External Photos EUT Type: Portable Handset Page 2 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM External Photos EUT Type: Portable Handset Page 3 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM External Photos EUT Type: Portable Handset Page 4 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM External Photos EUT Type: Portable Handset Page 5 of 6 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM External Photos EUT Type: Portable Handset Page 6 of 6 © 2020 PCTEST V 9.0 02/01/2019

LGE Internal Use Only Description of E-Label for ZNFV600AM ※FCC ID is applied by E-Label on the device Settings Menu Step1Select “Setting” Step 2Select“System” Step 3Select “Regulatory& safety” ※FCC ID is applied on the packaging Label FCC ID: ZNFV600AM ※Instruction of E-Label on the User Manual United States of America FCC ID: ZNFV600AM

LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 1 of 11 © 2020 PCTEST V 9.0 02/01/2019 INTERNAL PHOTOGRAPHS LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 2 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 3 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 4 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 5 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 6 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 7 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 8 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 9 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 10 of 11 © 2020 PCTEST V 9.0 02/01/2019 LG Electronics USA, Inc. FCC ID: ZNFV600AM Model: LG-V600AM Internal Photos EUT Type: Portable Handset Page 11 of 11 © 2020 PCTEST V 9.0 02/01/2019

© 2020 PCTEST APPENDIX A: SAR TEST DATA A1 PCTEST DUT: ZNFV600AM; Type: Portable Handset; Serial: 00018 Communication System: UID 0, GSM GPRS; 2 Tx slots; Frequency: 836.6 MHz; Duty Cycle: 1:4.15 Medium: 835 Head Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.934 S/m; ε r = 41.048; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 02/02/2020; Ambient Temp: 24.3°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN7417; ConvF(10.07, 10.07, 10.07) @ 836.6 MHz; Calibrated: 2/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 2/13/2019 Phantom: Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1647 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: GPRS 850, Left Head, Cheek, Mid.ch, 2 Tx slots Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.52 V/m; Power Drift = -0.20 dB Peak SAR (extrapolated) = 0.155 W/kg SAR(1 g) = 0.118 W/kg A2 PCTEST DUT: ZNFV600AM; Type: Portable Handset; Serial: 00216 Communication System: UID 0, GSM GPRS; 2 Tx slots; Frequency: 1880 MHz; Duty Cycle: 1:4.15 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.452 S/m; ε r = 39.667; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 01/31/2020; Ambient Temp: 22.2°C; Tissue Temp: 20.7°C Probe: EX3DV4 - SN7410; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: GPRS 1900, Right Head, Cheek, Mid.ch, 2 Tx slots Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.328 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.0790 W/kg SAR(1 g) = 0.053 W/kg A3 PCTEST DUT: ZNFV600AM; Type: Portable Handset; Serial: 00018 Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.934 S/m; ε r = 41.048; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 02/02/2020; Ambient Temp: 24.3°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN7417; ConvF(10.07, 10.07, 10.07) @ 836.6 MHz; Calibrated: 2/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 2/13/2019 Phantom: Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1647 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: UMTS 850, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.60 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.243 W/kg SAR(1 g) = 0.189 W/kg A4 PCTEST DUT: ZNFV600AM; Type: Portable Handset; Serial: 00224 Communication System: UID 0, UMTS; Frequency: 1732.4 MHz; Duty Cycle: 1:1 Medium: 1750 Head; Medium parameters used (interpolated): f = 1732.4 MHz; σ = 1.359 S/m; ε r = 41.638; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 02/10/2020; Ambient Temp: 23.1°C; Tissue Temp: 21.3°C Probe: EX3DV4 - SN7406; ConvF(8.57, 8.57, 8.57) @ 1732.4 MHz; Calibrated: 5/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn728; Calibrated: 5/8/2019 Phantom: Twin-SAM V5.0 Left 20; Type: QD 000 P40 CD; Serial: 1715 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: UMTS 1750, Left Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.608 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 0.187 W/kg SAR(1 g) = 0.120 W/kg A5 PCTEST DUT: ZNFV600AM; Type: Portable Handset; Serial: 00216 Communication System: UID 0, UMTS; Frequency: 1880 MHz; Duty Cycle: 1:1 Medium: 1900 Head; Medium parameters used: f = 1880 MHz; σ = 1.439 S/m; ε r = 41.163; ρ = 1000 kg/m 3 Phantom section: Right Section Test Date: 01/22/2020; Ambient Temp: 21.8°C; Tissue Temp: 21.8°C Probe: EX3DV4 - SN7417; ConvF(8.11, 8.11, 8.11) @ 1880 MHz; Calibrated: 2/19/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 2/13/2019 Phantom: Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1647 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: UMTS 1900, Right Head, Cheek, Mid.ch Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.920 V/m; Power Drift = 0.20 dB Peak SAR (extrapolated) = 0.178 W/kg SAR(1 g) = 0.115 W/kg A6 PCTEST DUT: ZNFV600AM; Type: Portable Handset; Serial: 00257 Communication System: UID 0, LTE Band 12; Frequency: 707.5 MHz; Duty Cycle: 1:1 Medium: 750 Head; Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.868 S/m; ε r = 41.483; ρ = 1000 kg/m 3 Phantom section: Left Section Test Date: 02/05/2020; Ambient Temp:22.3°C; Tissue Temp: 20.6°C Probe: EX3DV4 - SN7410; ConvF(9.95, 9.95, 9.95) @ 707.5 MHz; Calibrated: 7/16/2019 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1322; Calibrated: 7/11/2019 Phantom: Twin-SAM V8.0; Type: QD 000 P41 Ax; Serial: 1966 Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Mode: LTE Band 12, Left Head, Cheek, Mid.ch, QPSK, 10 MHz Bandwidth, 1 RB, 25 RB Offset Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.53 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.189 W/kg SAR(1 g) = 0.160 W/kg A7 PCTEST DUT: ZNFV600AM; Type: Portable Handset; Serial: 00257 Communication System: UID 0, LTE Band 14; Frequency: 793 MHz; Duty Cycle: 1:1 Medium: 750 Head; Medium parameters used (interpolated): f = 793 MHz; σ …

Text truncated - open the document above for the full version.

Object: Date Issued: Page 1 of 4 D1750V2 – SN:1150 10/18/2019 Certification of Calibration Object D1750V2 – SN:1150 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extended Calibration date: October 18, 2019 Description: SAR Validation Dipole at 1750 MHz. Calibration Equipment used: Note: CBT (Calibrated Before Testing). Prior to testing, the measurement paths containing a cable, amplifier, attenuator, coupler or filter were connected to a calibrated source (i.e. a signal generator) to determine the losses of the measurement path. Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Team Lead Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Control Company 4040Therm./Clock/Humidity Monitor 6/29/2019 Biennial 6/29/2021 192291470 Control Company 4352Ultra Long Stem Thermometer 8/2/2018 Biennial 8/2/2020 181334684 Amplifier Research 15S1G6 Amplifier CBTN/A CBT433971 Narda 4772-3 Attenuator (3dB) CBTN/A CBT9406 Keysight Technologies 85033E Standard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 7/2/2019 Annual 7/2/2020 MY53401181 Rohde & Schwarz ZNLE6 Vector Network Analyzer 10/11/2019 Annual 10/11/2020 101307 Mini-Circuits BW-N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A SPEAG DAKS-3.5 Portable Dielectric Assessment Kit 8/13/2019 Annual 8/13/2020 1041 Anritsu MA2411B Pulse Power Sensor 8/14/2019 Annual 8/14/2020 1315051 Anritsu MA2411B Pulse Power Sensor 8/8/2019 Annual 8/8/2020 1339008 Anritsu ML2495A Power Meter 11/20/2018 Annual 11/20/2019 1039008 Agilent N5182A MXG Vector Signal Generator 8/19/2019 Annual 8/19/2020 MY47420837 Seekonk NC-100 Torque Wrench 5/9/2018 Biennial 5/9/2020 22217 Mini-Circuits NLP-2950+ Low Pass Filter DC to 2700 MHz CBTN/A CBTN/A MiniCircuits ZHDC-16-63-S+Bidirectional Coupler CBTN/ACBTN/A MiniCircuits VLF-6000+ Low Pass Filter CBTN/ACBTN/A SPEAG EX3DV4 SAR Probe 8/16/2019 Annual 8/16/2020 7308 SPEAG EX3DV4 SAR Probe 4/24/2019 Annual 4/24/2020 7357 SPEAG DAE4 Dasy Data Acquisition Electronics 4/18/2019 Annual 4/18/2020 1407 SPEAG DAE4 Dasy Data Acquisition Electronics 8/14/2019 Annual 8/14/2020 1450 PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com Object: Date Issued: Page 2 of 4 D1750V2 – SN:1150 10/18/2019 DIPOLE CALIBRATION EXTENSION Per KDB 865664 D01, calibration intervals of up to three years may be considered for reference dipoles when it is demonstrated that the SAR target, impedance and return loss of a dipole have remained stable according to the following requirements: 1. The measured SAR does not deviate more than 10% from the target on the calibration certificate. 2. The return-loss does not deviate more than 20% from the previous measurement and meets the required 20dB minimum return-loss requirement. 3. The measurement of real or imaginary parts of impedance does not deviate more than 5Ω from the previous measurement. The following dipole was checked to pass the above 3 requirements to have 2-year calibration period from the calibration date: Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Head (1g) W/kg @ 20.0 dBm Measured Head SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Head (10g) W/kg @ 20.0 dBm Measured Head SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Head (Ohm) Real Measured Impedance Head (Ohm) Real Difference (Ohm) Real Certificate Impedance Head (Ohm) Imaginary Measured Impedance Head (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Head (dB) Measured Return Loss Head (dB) Deviation (%) PASS/FAIL 10/22/201810/18/20191.2173.653.84.11%1.9224.17%50.949.31.60.4-0.71.1-40.1-40.2-0.20%PASS Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Body (1g) W/kg @ 20.0 dBm Measured Body SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Body (10g) W/kg @ 20.0 dBm Measured Body SAR (10g) W/kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Body (Ohm) Real Measured I mpedance Body (Ohm) Real Difference (Ohm) Real Certificate Impedance Body (Ohm) Imaginary Measured Impedance Body (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Body (dB) Measured Return Loss Body (dB) Deviation (%) PASS/FAIL 10/22/201810/18/20191.2173.663.824.37%1.942.024.12%46.644.71.9-0.1-0.80.7-29.2-2514.40%PASS Object: Date Issued: Page 3 of 4 D1750V2 – SN:1150 10/18/2019 Impedance & Return-Loss Measurement Plot for Head TSL Object: Date Issued: Page 4 of 4 D1750V2 – SN:1150 10/18/2019 Impedance & Return-Loss Measurement Plot for Body TSL Object: Date Issued: Page 1 of 4 D1765V2 – SN: 1008 05/17/2019 Certification of Calibration Object D1765V2 – SN: 1008 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extension Calibration date: 5/17/2019 Description: SAR Validation Dipole at 1750 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Agilent 8753ES S-Parameter Network Analyzer 3/11/2019 Annual 3/11/2020 US39170122 Agilent N5182A MXG Vector Signal Generator 11/28/2018 Annual 11/28/2019 MY47420603 Amplifier Research 15S1G6 Amplifier CBTN/A CBT433971 Anritsu MA2411B Pulse Power Sensor 11/20/2018 Annual 11/20/2019 1027293 Anritsu MA2411B Pulse Power Sensor 10/30/2018 Annual 10/30/2019 1126066 Anritsu ML2495A Power Meter 10/21/2018 Annual 10/21/2019 941001 Control Company 4040Therm./ Clock/ Humidity Monitor 10/9/2018 Biennial 10/9/2020 181647811 Control Company 4352Ultra Long Stem Thermometer 6/6/2018 Biennial 6/6/2020 181334678 Keysight 772D Dual Directional Coupler CBTN/A CBT MY52180215 Keysight Tech…

Text truncated - open the document above for the full version.

FCC ID:ZNFV600AM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 145 1M1912300229-01-R2.ZNF 01/19/20 - 02/26/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: LG Electronics U.S.A., Inc. 01/19/20 - 02/26/20 1000 S ylvan Avenue Test Site/Location: En glewood Cliffs, NJ 07632 PCTEST, Columbia, MD, USA United States Document Serial No.: 1M1912300229-01-R2.ZNF FCC ID: ZNFV600AM APPLICANT: LG ELECTRONICS U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model: LM-V600AM Additional Model(s): LMV600AM, V600AM Note: This revised Test Report (S/N: 1M1912300229-01-R2.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.10 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. 1g Head (W/kg) 1g Body-Worn (W/kg) 1g Hotspot (W/kg) 10g Phablet (W/kg) PCEGSM/GPRS/EDGE 850824.20 - 848.80 MHz0.130.390.39N/A PCEGSM/GPRS/EDGE 1900 1850.20 - 1909.80 MHz< 0.10.520.93N/A PCEUMTS 850826.40 - 846.60 MHz0.210.710.71N/A PCEUMTS 17501712.4 - 1752.6 MHz0.130.880.762.29 PCEUMTS 19001852.4 - 1907.6 MHz0.130.840.782.96 PCELTE Band 12699.7 - 715.3 MHz0.170.340.35N/A PCELTE Band 14790.5 - 795.5 MHz0.160.420.42N/A PCELTE Band 5 (Cell)824.7 - 848.3 MHz0.170.550.55N/A PCELTE Band 66 (AWS)1710.7 - 1779.3 MHz0.120.860.872.59 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHzN/AN/AN/AN/A PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz0.110.790.883.05 PCELTE Band 302307.5 - 2312.5 MHz< 0.10.400.64N/A PCELTE Band 412498.5 - 2687.5 MHz< 0.10.560.88N/A PCENR Band n5 (Cell)826.5 - 846.5 MHz< 0.10.260.26N/A PCENR Band n66 (AWS)1712.5 - 1777.5 MHz0.150.360.862.67 PCENR Band n2 (PCS)1852.5 - 1907.5 MHz0.210.290.58N/A DTS2.4 GHz WLAN2412 - 2462 MHz0.950.220.53N/A NIIU-NII-15180 - 5240 MHzN/AN/A0.32N/A NIIU-NII-2A5260 - 5320 MHz0.840.41N/A1.25 NIIU-NII-2C5500 - 5720 MHz0.520.30N/A0.91 NIIU-NII-35745 - 5825 MHz0.560.230.23N/A DSS/DTSBluetooth2402 - 2480 MHz0.19< 0.10.13N/A 1.581.521.593.97 Equipment Class SAR Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctest.com SAR EVALUATION REPORT FCC ID:ZNFV600AM SAR EVALUATION REPORT Approved by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 145 1M1912300229-01-R2.ZNF 01/19/20 - 02/26/20 Portable Handset © 2020 PCTEST REV 21.4 M 09/11/2019 © 2020 PCTEST All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................................ 3 2 LTE AND NR INFORMATION .................................................................................................................... 14 3 INTRODUCTION ........................................................................................................................................ 16 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 17 5 DEFINITION OF REFERENCE POINTS ................................................................................................... 18 6 TEST CONFIGURATION POSITIONS ...................................................................................................... 19 7 RF EXPOSURE LIMITS ............................................................................................................................. 23 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 24 9 RF CONDUCTED POWERS ...................................................................................................................... 30 10 SYSTEM VERIFICATION ........................................................................................................................... 88 11 SAR DATA SUMMARY ....................................................................................…

Text truncated - open the document above for the full version.

FCC ID: ZNFV600AM MEASUREMENT REPORT (C ERTIFICATION) Approved by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 22 1M1912300229-09.ZNF 12/30/2019 - 2/03/2020 Portable Handset © 2020 PCTEST V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: LG Electronics USA, Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 United States Date of Testing: 12/30/2019 - 2/03/2020 Test Site/Location: PCTEST Lab. Columbia, MD, USA T…
