ZNFVK810Portable Tablet with Multi-band LTE, WLAN and Bluetooth

XXXXXXXXXXX (1.0) User Guide www.lg.com ENGLISH VK810 User Guide ENGLISH ţ
Screen displays and illustrations may differ from those you see on actual device. ţ
Some of the contents of this guide may not apply to your device, depending on the software and your service provider. All information in this document is subject to change without notice. ţ
This handset is not suitable for people who have a visual impairment due to the touch screen keyboard. ţ
Copyright ©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. ţ
Google™, Google Maps™, Gmail™, YouTube™, Hangouts™ and Play Store™ are trademarks of Google, Inc. 2 About this user guide ......................... 5 About this user guide ........................... 5 Trademarks ............................................. 5 DivX HD .................................................. 6 Dolby Digital Plus .................................. 6 Important notice ................................. 7 Getting to know your device ............ 12 Tablet Overview .....................................12 Charging your tablet ............................14 Optimizing Battery Life .......................15 To extend the life of your battery .........15 To view the battery charge level ...........16 To monitor and control what uses the battery .....................................................16 Inserting a microSD card .....................16 Removing the microSD card ............... 17 Formatting the microSD card .............18 Locking and unlocking the screen......18 Your Home screen ............................. 19 Touch Screen tips .................................19 KnockON .......................................................19 Slide Aside .................................................. 20 Tap or touch ............................................... 20 Touch and hold ...........................................21 Drag .................................................................21 Swipe or slide ...............................................21 Double-tap ....................................................21 Pinch-to-Zoom ......................................... 22 Rotate the screen ..................................... 22 Home screen ........................................22 Customizing the Home screen ...........24 Customizing apps icons on the Home screen ........................................24 Home screen clean view .....................26 Quick access ........................................26 Returning to recently-used applications .......................................... 27 Notifications ......................................... 27 Accessing notifications ...........................27 Quick Settings on the Notifications Panel ............................................................. 28 To rearrange Quick Setting options on the Notification Panel ...... 28 QSlide apps on the Notifications Panel ............................................................. 28 Using the QSlide apps ........................... 29 Notification icons on the Status Bar .................................................................. 29 Plug & Pop ...........................................30 Capturing a Screenshot .......................31 Using QuickMemo to capture a screenshot ....................................................31 Using Capture plus to capture a screenshot ....................................................31 Entering Text.........................................32 Entering special characters .................. 32 Google account setup .......................33 Connecting to Networks and Devices .............................................. 34 Wi-Fi .....................................................34 Table of contents 3 Connecting to Wi-Fi networks ............ 34 Turning Wi-Fi on and connecting to a Wi-Fi network .................................... 34 Bluetooth ..............................................35 Turning on Bluetooth and pairing up your tablet with a Bluetooth device ... 35 Send data using the Bluetooth wireless feature .......................................... 36 Receive data using the Bluetooth wireless feature .......................................... 36 SmartShare .......................................... 37 To send content from your tablet to other devices .............................................. 37 To enjoy content from nearby devices such as a computer or mobile device on your tablet ................ 37 PC connections with a USB cable .....38 Transferring music, photos and videos using the USB mass storage mode ............................................................ 38 Synchronize with Windows Media Player ............................................................ 38 Contacts ............................................ 40 Searching for a contact ......................40 Adding a new contact .........................40 Favorite Contacts .................................40 Creating a group ...................................41 Email .................................................. 42 Managing an email account ...............42 Working with account folders ............43 Composing and sending email ..........43 Camera .............................................. 44 Getting to know the viewfinder ..........44 Using the advanced settings ..............45 Taking a quick photo ..........................46 Once you've taken a photo ................. 47 Viewing your saved photos .................48 Video camera .....................................49 Getting to know the viewfinder ..........49 Using the advanced settings ..............50 Recording a quick video .....................50 After recording a video ........................51 Watching your saved videos ................51 Live Zooming ........................................51 Adjusting th…

Text truncated - open the document above for the full version.

          !"# Date: JAN 22#4 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia , MD 21046 RE: Request of Confidentiality for FCC ID: ZNFVK810 Equipment Class:TNB  Non-Broadcast Station '  (  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trad e secrets and proprietary information no t customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: The Applicant understands tha t pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions and Tune-Up Procedure 3 Schematics 4 Part List 5 Antenna Specification 6. Antenna distance 7 PCB Layout 8 simultaneous scenarios for SAR analysis SHORT-TERM 1 External Photos 2 Internal Photos 3 Test-Setup Photos 4 User’s Manual

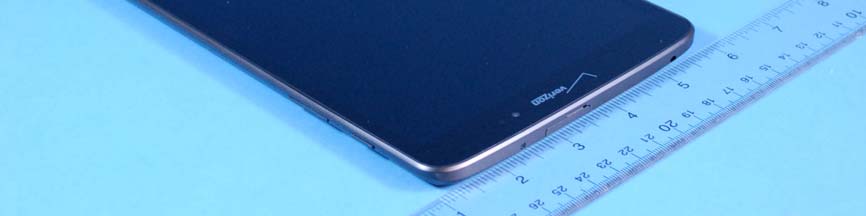

LG FCC ID: ZNFVK810 Model: LG-VK810 External Photos EUT Type: Portable Tablet Page 1 of 4 © 2014 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG FCC ID: ZNFVK810 Model: LG-VK810 External Photos EUT Type: Portable Tablet Page 2 of 4 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 External Photos EUT Type: Portable Tablet Page 3 of 4 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 External Photos EUT Type: Portable Tablet Page 4 of 4 © 2014 PCTEST Engineering Laboratory Inc.

※ FCC ID Label Form *Note: The FCC ID shown will be readily visible at the time of purchase Because it’s printed on the bottom of the device. LG-VK810 FCC ID: ZNFVK810 LG - VK810 FCC ID: ZNFVK810 Made in xxxxx FCC ID is printed on the bottom of device surface. Additionally this printing is indelible, except intentional damage.

LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 1 of 14 © 2014 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 2 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 3 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 4 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 5 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 6 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 7 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 8 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 9 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 10 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 11 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 12 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 13 of 14 © 2014 PCTEST Engineering Laboratory Inc. LG FCC ID: ZNFVK810 Model: LG-VK810 Internal Photos EUT Type: Portable Tablet Page 14 of 14 © 2014 PCTEST Engineering Laboratory Inc.

FCC ID:ZNFVK810 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 46 0Y1312092369-R3.ZNF 12/10/2013 - 12/16/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 12/10/2013 - 12/16/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Document Serial No.: 0Y1312092369-R3.ZNF FCC ID: ZNFVK810 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): VK810, LGVK810, LG-VK810 Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. This revised Test Report (S/N: 0Y1312092369-R3.ZNF) supersedes and replaces the previously issued test report on the same subject device for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. SAR 1 gm Body (W/kg) TNBLTE Band 13782 MHz24.090.84 TNBLTE Band 4 (AWS)1712.5 - 1752.5 MHz24.181.06 DTS2.4 GHz WLAN2412 - 2462 MHz10.960.63 DTS5.8 GHz WLAN5745 - 5825 MHz8.810.51 NII5.2 GHz WLAN5180 - 5240 MHz9.070.24 NII5.3 GHz WLAN5260 - 5320 MHz9.200.21 NII5.5 GHz WLAN5500 - 5700 MHz9.220.34 DSS/DTSBluetooth2402 - 2480 MHz8.67 1.57 N/A Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID:ZNFVK810 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 46 0Y1312092369-R3.ZNF 12/10/2013 - 12/16/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 8 3 INTRODUCTION ............................................................................................................................. 9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 RF EXPOSURE LIMITS ................................................................................................................ 11 6 FCC MEASUREMENT PROCEDURES ........................................................................................ 12 7 FCC MEASUREMENT PROCEDURES ........................................................................................ 13 8 RF CONDUCTED POWERS ......................................................................................................... 16 9 SYSTEM VERIFICATION .............................................................................................................. 29 10 SAR DATA SUMMARY ................................................................................................................. 31 11 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 34 12 SAR MEASUREMENT VARIABILITY ........................................................................................... 40 13 EQUIPMENT LIST ......................................................................................................................... 41 14 MEASUREMENT UNCERTAINTIES ............................................................................................ 42 15 CONCLUSION ............................................................................................................................... 44 16 REFERENCES .............................................................................................................................. 45 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING DATA SUMMARY FCC ID:ZNFVK810 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 46 0Y1312092369-R3.ZNF 12/10/2013 - 12/16/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 1 DEVICE UNDER TEST 1.1 Device Overview 1.2 Power Reduction for SAR This device uses a proximity sensor for SAR compliance. The capacitive grip sensor is activated when used in close proximity to the user’s body. The capacitive sensor is only applicable for tablet operations. There are no body worn accessories for this device. Since the device is a full tablet size, the Body SAR was evaluated per FCC KDB Publication 616217 D04v01 for full sized tablets. 1.3 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR…

Text truncated - open the document above for the full version.

FCC ID: ZNFVK810 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 58 0Y1312092370.ZNF 12/16 - 12/18/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A 12/16 - 12/18/2013 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1312092370.ZNF FCC ID : ZNFVK810 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A FCC Classification: Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §2; §27 EUT Type: Portable Tablet Model(s): LG-VK810, VK810, LGVK810 Test Device Serial No.: identical prototype [S/N: LTE B4, B17 (Conducted), LTE B4, B17 (Radiated)] Max. Power (W) Max. Power (dBm) LTE Band 137829M01G7DQPSK0.03815.81 LTE Band 137828M97W7D16QAM0.03214.99 LTE Band 41712.5 - 1752.54M52G7DQPSK0.33325.23 LTE Band 41712.5 - 1752.54M52W7D16QAM0.26224.19 LTE Band 41715 - 17509M00G7DQPSK0.36725.65 LTE Band 41715 - 17508M98W7D16QAM0.29024.62 LTE Band 41717.5 - 1747.513M4G7DQPSK0.36125.57 LTE Band 41717.5 - 1747.513M5W7D16QAM0.28524.55 LTE Band 41720 - 174518M0G7DQPSK0.30024.77 LTE Band 41720 - 174518M0W7D16QAM0.23823.76 Mode Tx Frequency (MHz) Emission Designator ERP/EIRP Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 LTE FCC ID: ZNFVK810 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 58 0Y1312092370.ZNF 12/16 - 12/18/2013 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V4.5 04/15/2013 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION .............................................................................................................................. 4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY ............................................................................................................................. 4 2.0 PRODUCT INFORMATION .............................................................................................................. 5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 DEVICE CAPABILITIES....................................................................................................................... 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS .............................................................................................................. 5 3.0 DESCRIPTION OF TESTS .............................................................................................................. 6 3.1 MEASUREMENT PROCEDURE ......................................................................................................... 6 3.1 BLOCK C FREQUENCY RANGE ........................................................................................................ 6 3.2 AWS - BASE FREQUENCY BLOCKS ................................................................................................. 6 3.3 AWS - MOBILE FREQUENCY BLOCKS ............................................................................................. 6 3.4 OCCUPIED BANDWIDTH ................................................................................................................... 7 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL .............................................. 7 3.6 PEAK-AVERAGE RATIO ..................................................................................................................... 7 3.7 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 8 3.8 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 9 4.0 TEST EQUIPMENT CALIBRATION DATA .................................................................................... 10 5.0 SAMPLE CALCULATIONS ............................................................................................................ 11 6.0 TEST RESULTS ............................................................................................................................. 12 6.1 SUMMARY ......................................................................................................................................... 12 6.2 EFFECTIVE RADIATED POWER (ERP) ........................................................................................... 13 6.3 EQUIVALENT ISOTROPIC RADIATED POWER (EIRP) .................................................................. 14 6.4 BAND 13 RADIATED SPURIOUS EMISSIONS ................................................................................ 15 BAND 13 RADIATED SPURIOUS EMISSIONS 1559 – 1610MHZ BAND ..................................................... 16 6.5 BAND 4 …

Text truncated - open the document above for the full version.

FCC IDZNFVK810 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 4 12/10/2013 - 12/16/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC IDZNFVK810 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 4 12/10/2013 - 12/16/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 1 – Back Side at 0.0 cm SAR Test Setup Photo 2 – Back Side at 1.2 cm FCC IDZNFVK810 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 4 12/10/2013 - 12/16/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 3 – Top Edge at 0.0 cm SAR Test Setup Photo 4 – Top Edge at 1.2 cm FCC IDZNFVK810 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 4 of 4 12/10/2013 - 12/16/2013 Portable Tablet © 2013 PCTEST Engineering Laboratory, Inc. REV 13.0 M 12/04/2013 SAR Test Setup Photo 5 – Right Edge at 0.0 cm SAR Test Setup Photo 6 – Left Edge at 0.0 cm

LG FCC ID: ZNFVK810 Model: LG-VK810 Test Set-Up Photos EUT Type: Portable Tablet Page 1 of 2 © 2013 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG FCC ID: ZNFVK810 Model: LG-VK810 Test Set-Up Photos EUT Type: Portable Tablet Page 2 of 2 © 2013 PCTEST Engineering Laboratory Inc.
