ZNFVS870Cellular/PCS CDMA and LTE Phone with WLAN and Bluetooth

User Guide MFL67696901 (1.0) User Guide User Guide Guía del Usuario User Guide This booklet is made from 60% post-consumer recycled paper. This booklet is printed with soy ink. Printed in Korea Copyright©2013 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities are registered. Intuition is a trademark of LG Electronics, Inc. All other trademarks are the property of their respective owners. 1 Important Customer Information When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the product operating instructions. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. ELECTRICAL SAFETY This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB cable for connecting to a desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. 2 Important Customer Information Handle battery packs carefully This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60°C (140°F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. Take extra precautions O Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. O Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. O The phone should be only connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. O Do not use a battery that appears damaged, deformed, or discolored, or one that has any rust on its casing, overheats, or emits a foul odor. O Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult a doctor immediately if the battery is swallowed. O Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725-200x. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard. O Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725-200x. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. 3 Important Customer Information O Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. O If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If contact occurs, flush the affected area immediately with clean water and seek medical advice. Do not allow the leaking fluid to come in contact with eyes. If contact occurs, DO NOT rub; rinse with clean water immediately and seek medical advice. Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 140°F (60°C), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. PREVENTION OF HEARING LOSS CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. SAFETY IN AIRCRAFT Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when its use is restricted on board an aircraft, remember to switch to Airplane Mode which turns off RF functions that could cause interference. 4 Important Customer Information ENVIRONMENT RESTRICTIONS Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fueling areas, f…

Text truncated - open the document above for the full version.

Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Electronics MobileComm U.S.A FCC ID: ZNFVS870 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. Date: Jan.09, 2013 Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. FCC ID: ZNFVS870 Air Interfaces: CDMA/LTE Model Name LG-VS870, LGVS870, VS870 Wireless Technologies: EVDO Bands: CDMA835/CDMA1900/LTE B13 Key Features: Bluetooth/NFC WIFI 802.11a/b/g/n MP3 player, Camera GPS LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Electronics MobileComm U.S.A FCC ID: ZNFVS870 Part20.19 Certification To Whom It May Concern: We, LG Electronics MobileComm USA, hereby declare the samples evaluated in this application are equivalent to production samples. Date: Jan.09, 2013 Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

PCTEST TCB/CB Div. Of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT:LG Electronics MobileComm U.S.A FCC ID: ZNFVS870 LTE MPR for FCC SAR testing To Whom It May Concern: We, LG Electronics MobileComm USA, hereby confirm that MPR specified in 3GPP will be permanently implemented in ZNFVS870 so that the powers found in this application will not be found to exceed the levels indicated. Additionally, A-MPR(additional MPR) was disabled for all SAR samples for SAR testing purposes. Date: Jan.09, 2013 Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics Inc. LGE LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

          !"# Date: Jan. 09#3 Federal Communications Commission Authorization and Evaluation Division 7435 Oakl and Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: ZNFVS870 Equipment Class:%&%  '  (  )  To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act,  MobileComm hereby requests confidentiality and treatment of certain information accompanying thi s application. The materi als contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for * days after the grant as outlined in Public Notice DA 04-1705. This provision will give  MobileComm temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: %+,'-./+'0'+,/12-'22' 3) 4 - 5  1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure %+,' 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos ./+'0'+, 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A, Inc. LG Electronics MobileComm U.S.A 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

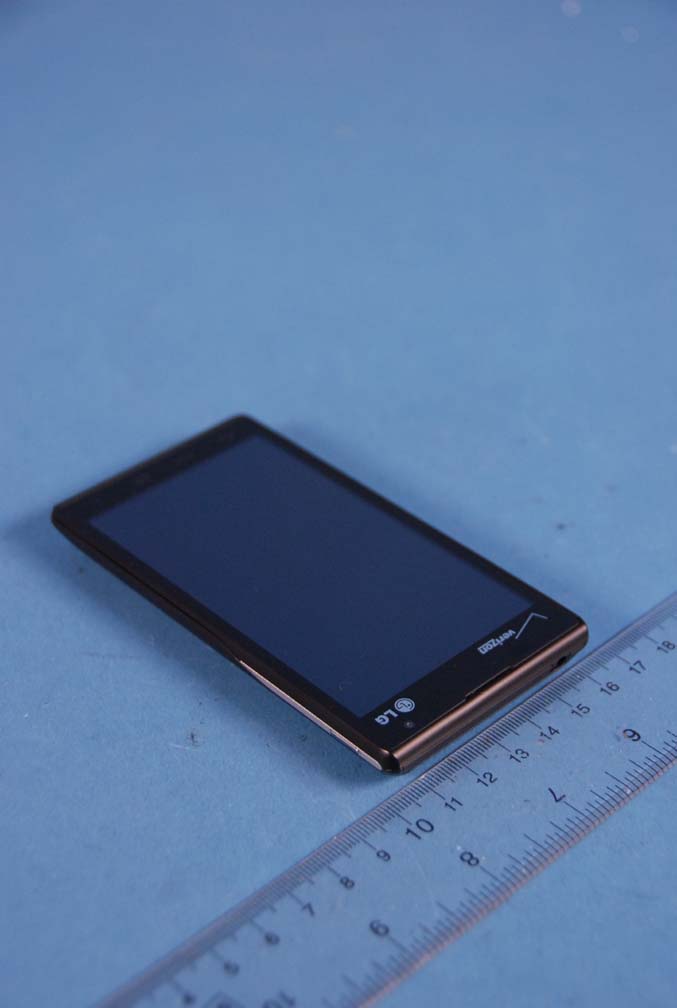

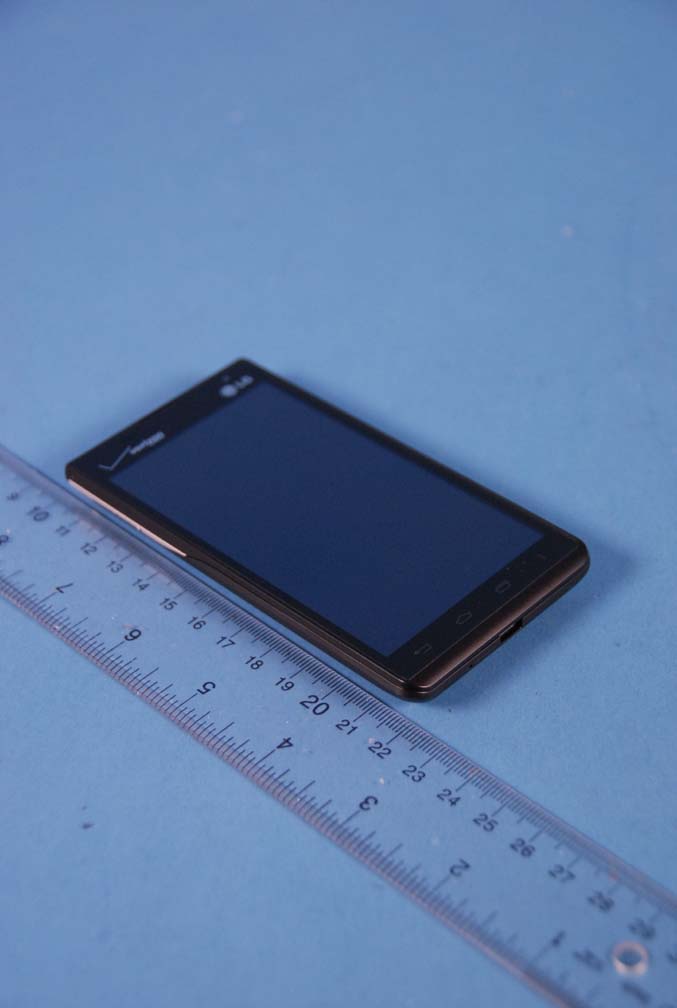

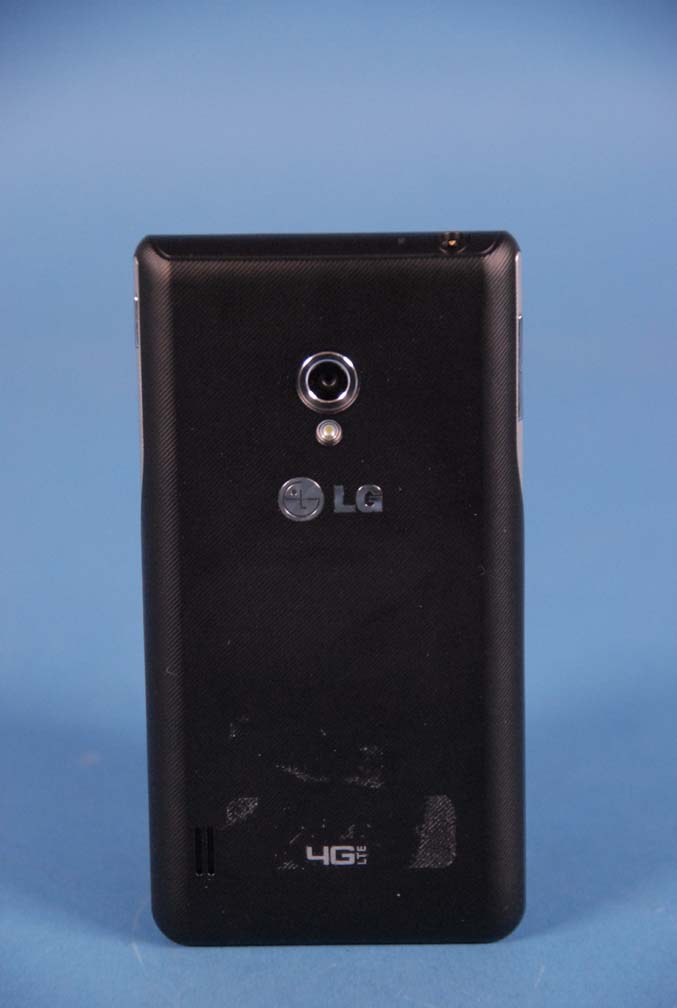

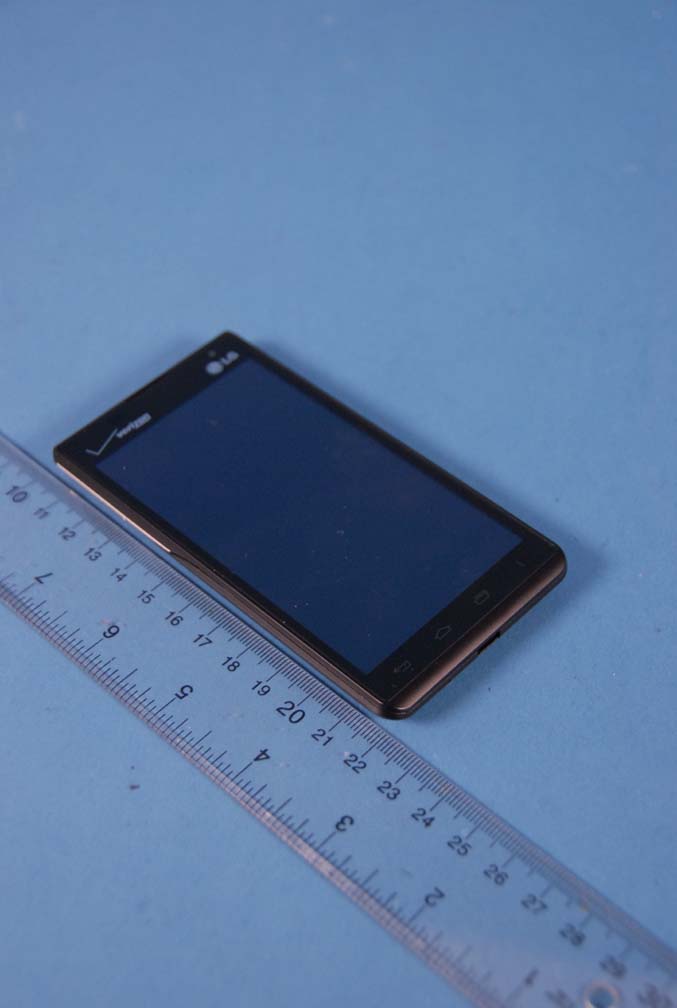

LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 External Photos EUT Type: PORTABLE HANDSET Page 1 of 7 © 2012 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 External Photos EUT Type: PORTABLE HANDSET Page 2 of 7 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 External Photos EUT Type: PORTABLE HANDSET Page 3 of 7 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 External Photos EUT Type: PORTABLE HANDSET Page 4 of 7 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 External Photos EUT Type: PORTABLE HANDSET Page 5 of 7 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 External Photos EUT Type: PORTABLE HANDSET Page 6 of 7 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 External Photos EUT Type: PORTABLE HANDSET Page 7 of 7 © 2012 PCTEST Engineering Laboratory Inc.

FCC ID label form LG-VS870 ZNFVS870

LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 1 of 9 © 2012 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 2 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 3 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 4 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 5 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 6 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 7 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 8 of 9 © 2012 PCTEST Engineering Laboratory Inc. LG ELECTRONICS MOBILECOMM USA FCC ID: ZNFVS870 Model: VS-870 Internal Photos EUT Type: PORTABLE HANDSET Page 9 of 9 © 2012 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID:ZNFVS870 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1211261701-R3.ZNF 11/26/12 - 12/04/12 Portable Handset Page 1 of 50 © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A., Inc. 11/26/12 - 12/04/12 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA USA Document Serial No.: 0Y1211261701-R3.ZNF FCC ID: ZNFVS870 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A., INC. DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): LG-VS870, LGVS870, VS870 1 gm Head (W/kg) 1 gm Body- Worn (W/kg) 1 gm Hotspot (W/kg) PCECell. CDMA/EVDO824.70 - 848.31 MHz24.69 0.250.360.42 PCEPCS CDMA/EVDO1851.25 - 1908.75 MHz24.570.28 0.690.72 PCELTE Band 13782 MHz23.650.35 0.440.44 DTS2.4 GHz WLAN2412 - 2462 MHz16.240.55 0.150.15 DTS5.8 GHz WLAN5745 - 5825 MHz13.19< 0.1< 0.10.00 UNII5.2 GHz WLAN5180 - 5240 MHz12.990.180.180.00 UNII5.3 GHz WLAN5260 - 5320 MHz13.190.150.180.00 UNII5.5 GHz WLAN5500 - 5700 MHz13.26< 0.1< 0.10.00 DSSBluetooth2402 - 2480 MHz11.07 0.97 1.241.07 Equipment Class N/ A SAR Band & ModeTx Frequency Measured Conducted Power [dBm] Simultaneous SAR per KDB 690783 D01v01r02: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all configurations for each mode. Note: This revised Test Report (S/N: 0Y1211261701-R3.ZNF) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.8 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT Reviewed by: FCC ID:ZNFVS870 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1211261701-R3.ZNF 11/26/12 - 12/04/12 Portable Handset Page 2 of 50 © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 TABLE OF CONTENTS 1 DEVICE UNDER TEST ................................................................................................................... 3 2 LTE INFORMATION ........................................................................................................................ 8 3 INTRODUCTION ............................................................................................................................. 9 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 10 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 12 7 RF EXPOSURE LIMITS ................................................................................................................ 15 8 FCC MEASUREMENT PROCEDURES........................................................................................ 16 9 RF CONDUCTED POWERS......................................................................................................... 20 10 LTE POWER REDUCTION ........................................................................................................... 24 11 SYSTEM VERIFICATION.............................................................................................................. 28 12 SAR DATA SUMMARY ................................................................................................................. 30 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 38 14 SAR MEASUREMENT VARIABILITY ........................................................................................... 44 15 EQUIPMENT LIST......................................................................................................................... 45 16 MEASUREMENT UNCERTAINTIES ............................................................................................ 46 17 CONCLUSION............................................................................................................................... 48 18 REFERENCES .............................................................................................................................. 49 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID:ZNFVS870 SAR EVALUATION REPORT Quality Manager Document S/N: Test Dates: DUT Type: 0Y1211261701-R3.ZNF 11/26/12 - 12/04/12 Portable Handset Page 3 of 50 © 2013 PCTEST Engineering Laboratory, Inc. REV 11.3 M 04/23/2012 1 DEVICE UNDER TEST 1.1 Device Overview Cell. CD…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFVS870 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1211261702.ZNF December 5-21, 2012 Portable Handset Page 1 of 20 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A December 5-21, 2012 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0Y1211261702.ZNF FCC ID : ZNFVS870 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) FCC Rule Part(s): §2; §27 EUT Type: Portable Handset Model(s): VS870, LG-VS870, LGVS870 Test Device Serial No.: identical prototype [S/N: RF#1, SVLTE Sample] Max. Power (W) Max. Power (dBm) LTE Band 137828M95G7WQPSK0.07618.82 LT E Band 13782 8M98W7W16QAM0.07218.55 Mode Tx Frequency (MHz) Emission Designator ERP/EIRP Modulation This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 LTE Reviewed by: FCC ID: ZNFVS870 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1211261702.ZNF December 5-21, 2012 Portable Handset Page 2 of 20 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT................................................................................................4 1.0 INTRODUCTION..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................4 1.2 TESTING FACILITY.............................................................................................................................4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION ..............................................................................................................5 2.2 DEVICE CAPABILITIES.......................................................................................................................5 2.3 TEST CONFIGURATION.....................................................................................................................5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...........................................................................5 2.5 LABELING REQUIREMENTS..............................................................................................................5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE.........................................................................................................6 3.1 BLOCK C FREQUENCY RANGE........................................................................................................6 3.2 OCCUPIED BANDWIDTH ...................................................................................................................6 3.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL..............................................6 3.4 SVLTE..................................................................................................................................................7 3.5 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................7 3.6 FREQUENCY STABILITY / TEMPERATURE VARIATION .................................................................8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS.............................................................................................................................11 6.1 SUMMARY.........................................................................................................................................11 6.2 EFFECTIVE RADIATED POWER (ERP)...........................................................................................12 6.3 BAND 13 RADIATED SPURIOUS EMISSIONS ................................................................................13 6.4 BAND 13 FREQUENCY STABILITY MEASUREMENTS...................................................................14 7.0 BAND 13 PLOTS OF EMISSIONS.................................................................................................16 8.0 CONCLUSION................................................................................................................................20 Reviewed by: FCC ID: ZNFVS870 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1211261702.ZNF December 5-21, 2012…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: ZNFVS870 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1211261706.ZNF December 3-4, 2012 Portable Handset Page 1 of 81 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 Applicant Name: Date of Testing: LG Electronics MobileComm U.S.A December 3-4, 2012 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1211261706.ZNF FCC ID: ZNFVS870 APPLICANT: LG ELECTRONICS MOBILECOMM U.S.A Scope of Test: RF Emissions Testing Application Type: Certification FCC Rule Part(s): § 20.19(b) HAC Standard: ANSI C63.19-2007 §6.3(v), §7.3(v); CTIA Test Plan for Hearing Aid Compatibility Rev 2.0, April 2010 EUT Type: Portable Handset Model(s): VS870, LG-VS870, LGVS870 Tx Frequencies Tested: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Test Device Serial No.: Pre-Production Sample [S/N: HAC / Tcoil] C63.19-2007 HAC Category: M4 (RF EMISSIONS CATEGORY) This wireless portable device has been shown to be hearing-aid compatible under the above rated category, specified in ANSI/IEEE Std. C63.19-2007 and had been tested in accordance with the specified measurement procedures. Hearing-Aid Compatibility is based on the assumption that all production units will be designed electrically identical to the device tested in this report. Test results reported herein relate only to the item(s) tested and are for North American Bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com HEARING AID COMPATIBILITY Reviewed by: FCC ID: ZNFVS870 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1211261706.ZNF December 3-4, 2012 Portable Handset Page 2 of 81 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 TABLE OF CONTENTS 1. INTRODUCTION ............................................................................................................................. 3 2. TEST SITE LOCATION ................................................................................................................... 4 3. EUT DESCRIPTION ........................................................................................................................ 5 4. ANSI/IEEE C63.19 PERFORMANCE CATEGORIES .................................................................... 6 5. SYSTEM SPECIFICATIONS...........................................................................................................7 6. TEST PROCEDURE ..................................................................................................................... 13 7. SYSTEM CHECK .......................................................................................................................... 15 8. MODULATION FACTOR...............................................................................................................18 9. FCC 3G MEASUREMENTS .......................................................................................................... 20 10. OVERALL MEASUREMENT SUMMARY ..................................................................................... 21 11. EQUIPMENT LIST......................................................................................................................... 25 12. MEASUREMENT UNCERTAINTY ................................................................................................ 26 13. TEST DATA ................................................................................................................................... 27 14. CALIBRATION CERTIFICATES.................................................................................................... 40 15. CONCLUSION............................................................................................................................... 76 16. REFERENCES .............................................................................................................................. 77 17. TEST PHOTOGRAPHS ................................................................................................................79 Reviewed by: FCC ID: ZNFVS870 HAC (RF EMISSIONS) TEST REPORT Quality Manager HAC Filename: Test Dates: EUT Type: 0Y1211261706.ZNF December 3-4, 2012 Portable Handset Page 3 of 81 © 2012 PCTEST Engineering Laboratory, Inc. REV 8.4C 08/10/10 1. INTRODUCTION On July 10, 2003, the Federal Communications Commission (FCC) adopted new rules requiring wireless manufacturers and service …

Text truncated - open the document above for the full version.
