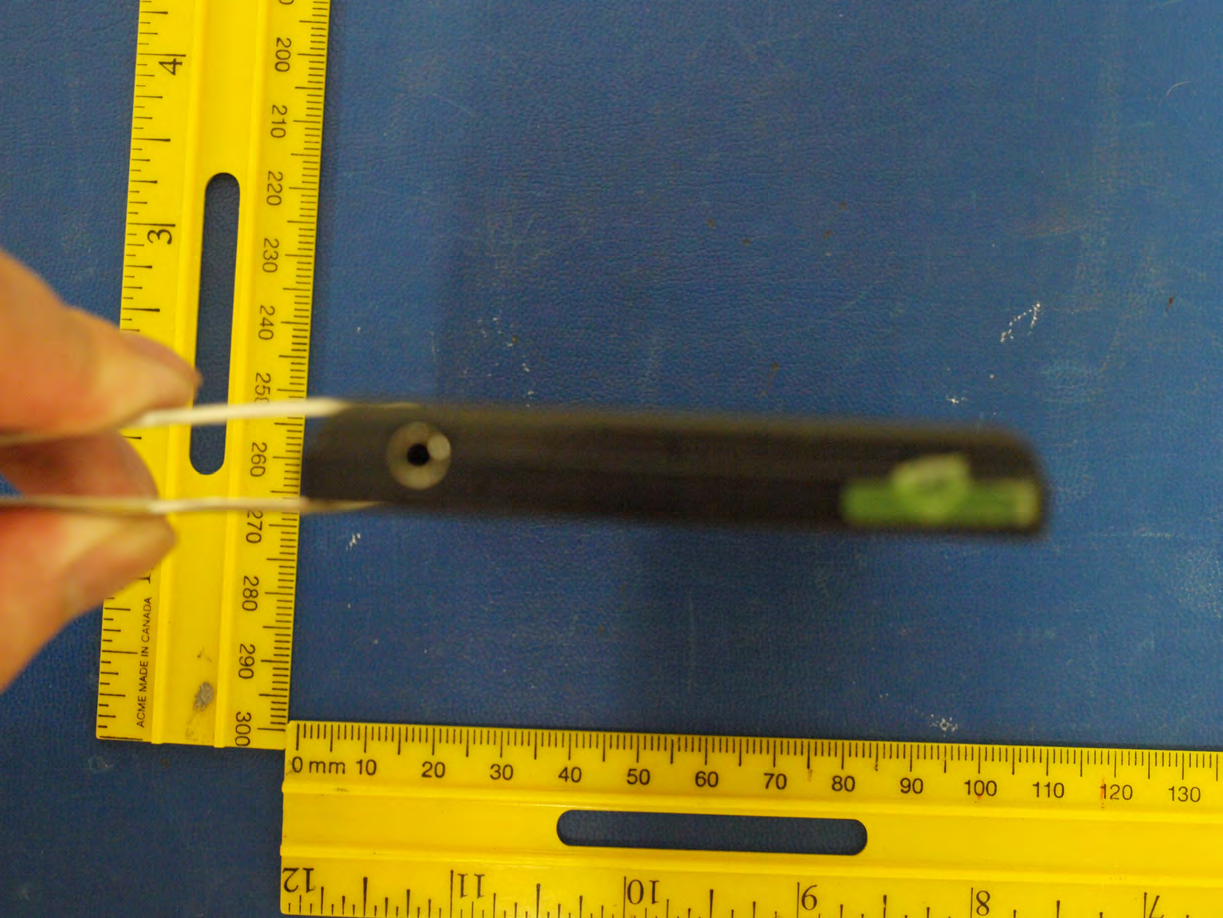

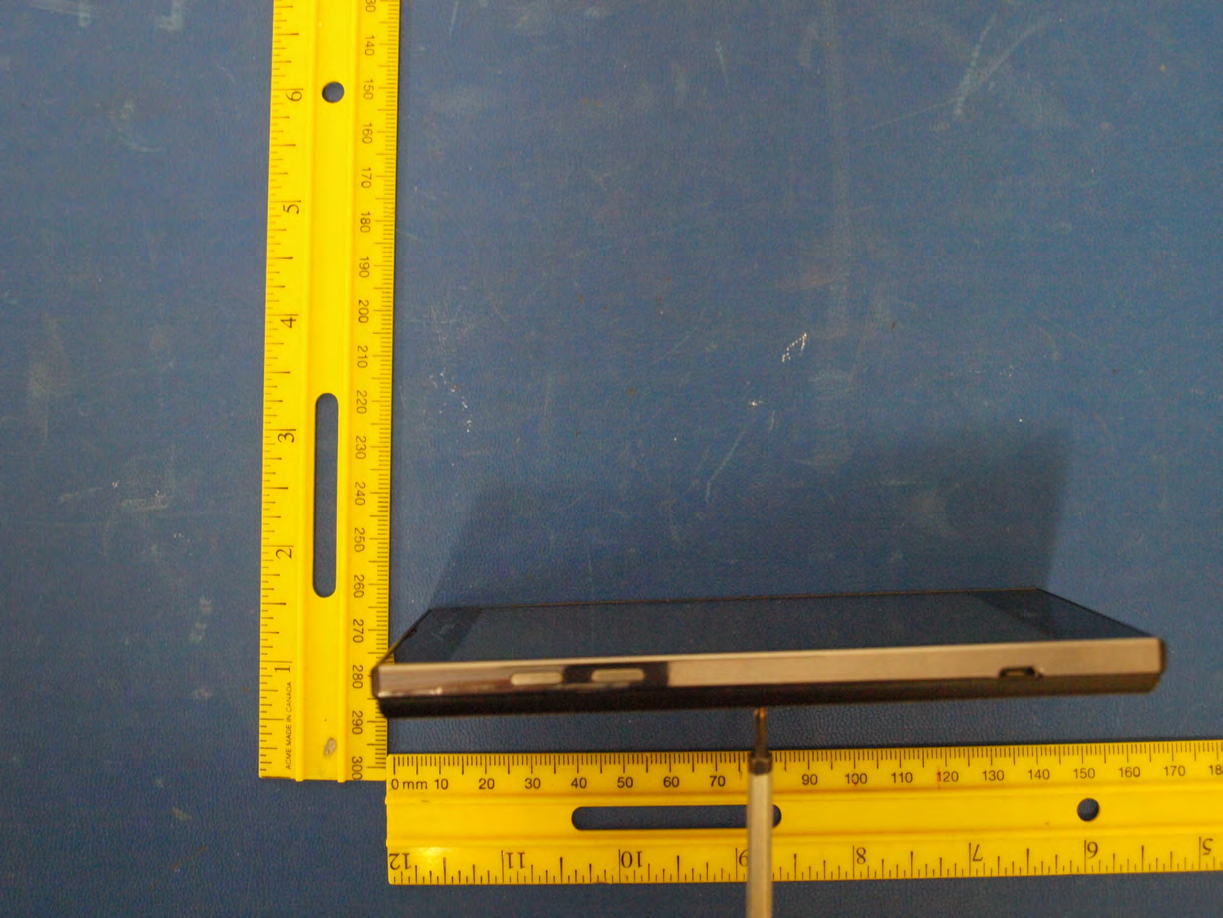

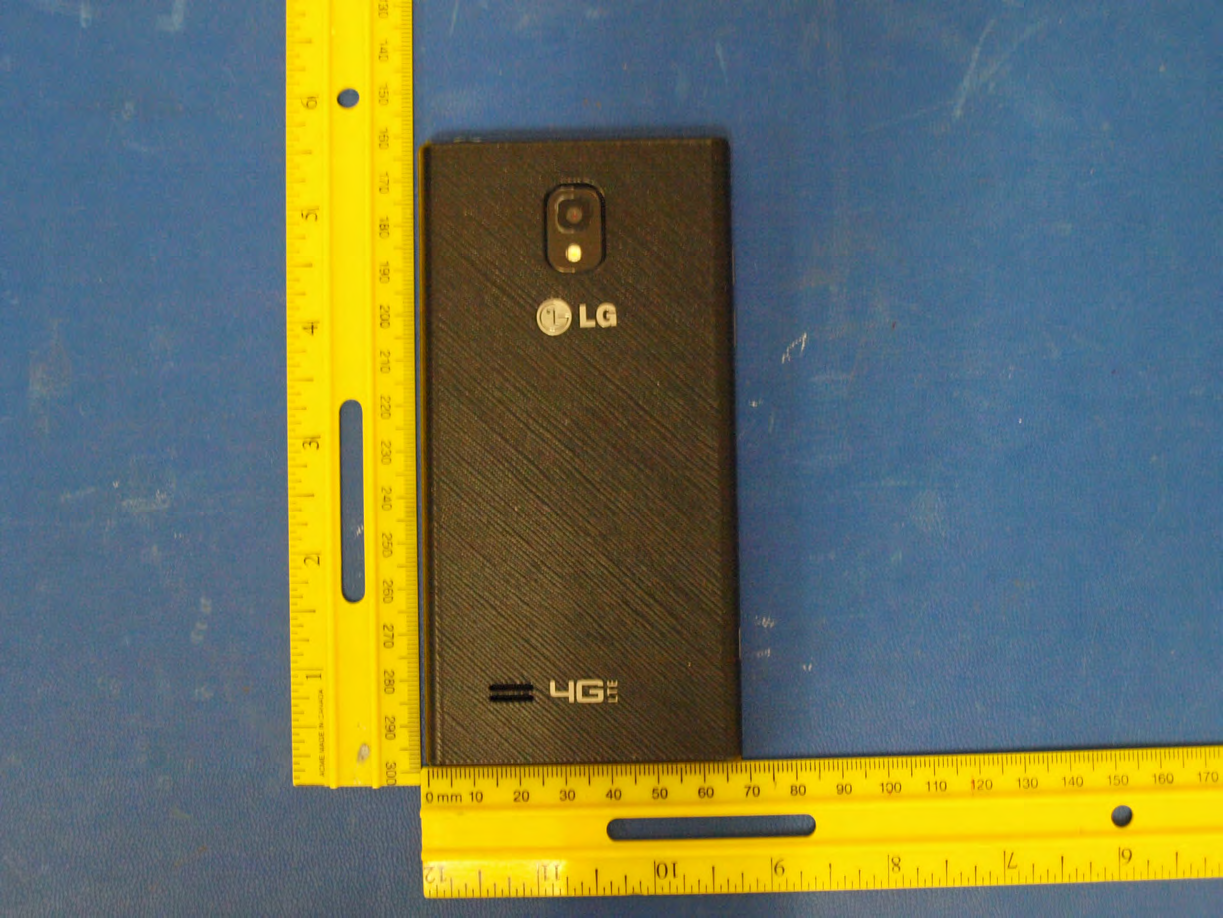

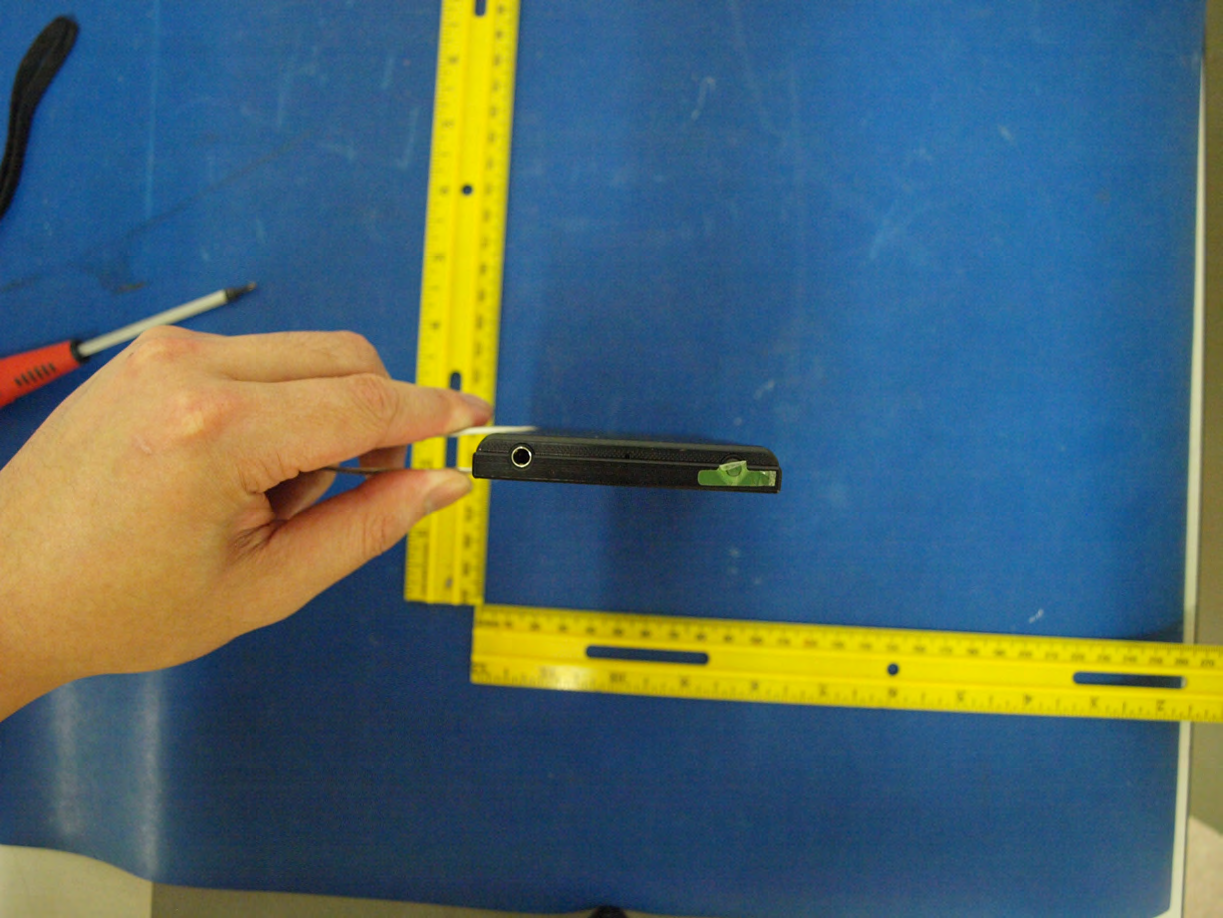

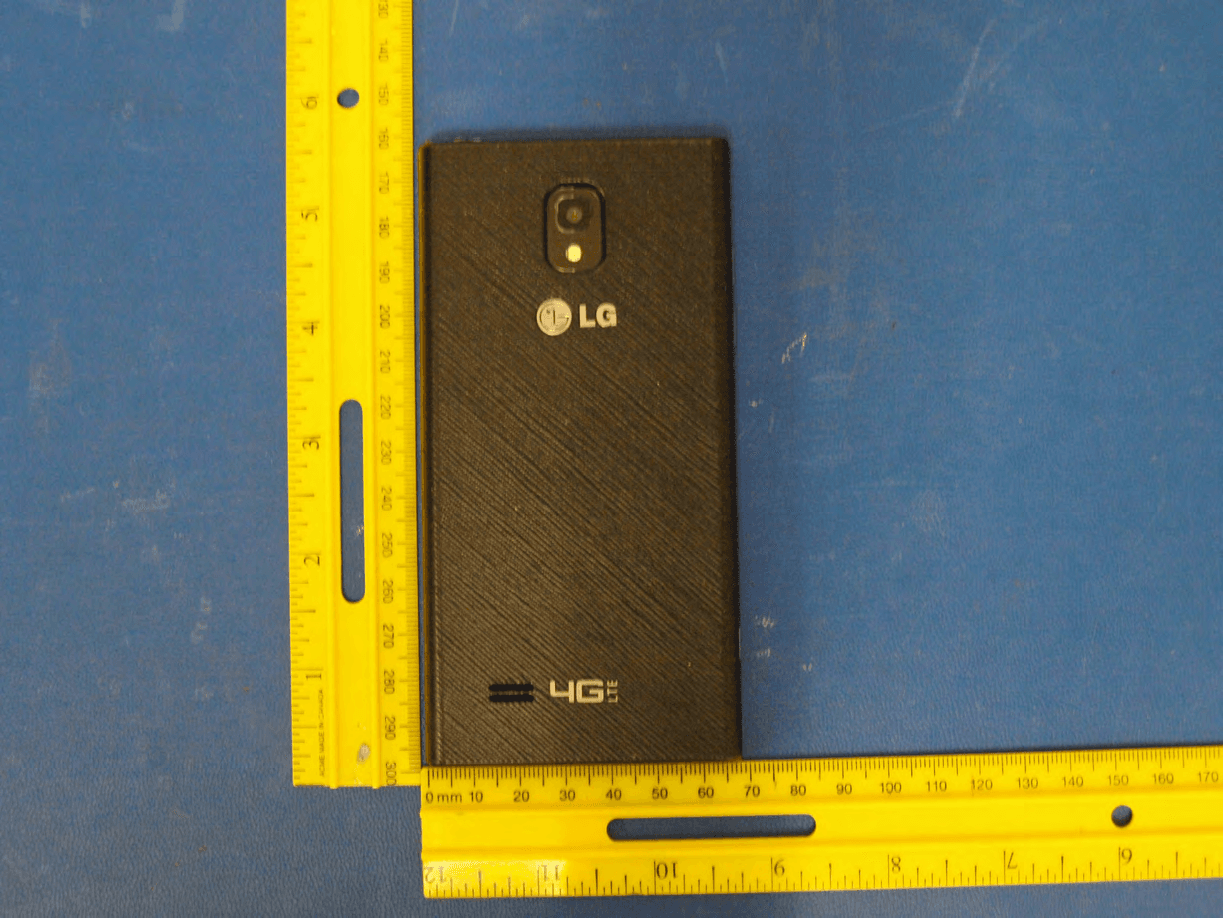

ZNFVS930Cell Phone GSM/CDMA/WCDMA/LTE+BT+WLAN+NFC

1 Important Customer Information When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the product operating instructions. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. ELECTRICAL SAFETY This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB cable for connecting to a desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. 2 Important Customer Information Handle battery packs carefully This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60°C (140°F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. Take extra precautions O Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. O Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. O The phone should be only connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. O Do not use a battery that appears damaged, deformed, or discolored, or one that has any rust on its casing, overheats, or emits a foul odor. O Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult a doctor immediately if the battery is swallowed. O Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725-200x. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard. O Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725-200x. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. 3 Important Customer Information O Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. O If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If contact occurs, flush the affected area immediately with clean water and seek medical advice. Do not allow the leaking fluid to come in contact with eyes. If contact occurs, DO NOT rub; rinse with clean water immediately and seek medical advice. Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 140°F (60°C), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. PREVENTION OF HEARING LOSS CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. SAFETY IN AIRCRAFT Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when its use is restricted on board an aircraft, remember to switch to Airplane Mode which turns off RF functions that could cause interference. 4 Important Customer Information ENVIRONMENT RESTRICTIONS Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fueling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. EXPLOSIVE ATMOSPHERES When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNFVS930 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operation Descriptions Tune-up Procedure Antenna Specification Parts list PCB Layout Antenna distance Power Reduction Table for SVDO & SVLTE Wireless Charging Scenario Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the grant as outlined in Public Notice DA 04-1705. External Photos Internal Photos Test Setup Photos Wireless charging cover Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Jacob Cho Director On behalf of LG Electronics MobileComm U.S.A., Inc.

Date: May 15, 2012 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc REMARK: 1.This authorization letter will be sent along with your application when filing with the Certification Division. 2.Please follow the format and type it on company letterhead and send original to us. 3.Authorized signature must be in agreement with grantee code contact in FCC database.

FCC ID label form LG-VS930 ZNFVS930

Test Laboratory: UL CCS SAR Lab A Date: 3/27/2012 20120327_SystemPerformanceCheck-D750V3 SN 1019 Frequency: 750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 750 MHz; σ = 0.902 mho/m; ε r = 42.184; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1239; Calibrated: 10/18/2011 - Probe: EX3DV4 - SN3772; ConvF(9.01, 9.01, 9.01); Calibrated: 2/16/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CC; Serial: 1602 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.911 mW/g Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.345 V/m; Power Drift = -0.0035 dB Peak SAR (extrapolated) = 1.3080 SAR(1 g) = 0.870 mW/g; SAR(10 g) = 0.571 mW/g Maximum value of SAR (measured) = 1.061 mW/g 0 dB = 1.060mW/g = 0.51 dB mW/g Test Laboratory: UL CCS SAR Lab A Date: 3/27/2012 20120327_SystemPerformanceCheck-D750V3 SN 1019 Frequency: 750 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.654 mW/g Test Laboratory: UL CCS SAR Lab A Date: 3/28/2012 20120328_SystemPerformanceCheck-D750V3 SN 1019 Frequency: 750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 750 MHz; σ = 0.956 mho/m; ε r = 55.531; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1239; Calibrated: 10/18/2011 - Probe: EX3DV4 - SN3772; ConvF(8.94, 8.94, 8.94); Calibrated: 2/16/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.011 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.336 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.3210 SAR(1 g) = 0.903 mW/g; SAR(10 g) = 0.601 mW/g Maximum value of SAR (measured) = 1.092 mW/g 0 dB = 1.090mW/g = 0.75 dB mW/g Test Laboratory: UL CCS SAR Lab A Date: 3/28/2012 20120328_SystemPerformanceCheck-D750V3 SN 1019 Frequency: 750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.921 mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/28/2012 20120328_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.536 mho/m; ε r = 52.87; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(6.83, 6.83, 6.83); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1121 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.010 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 63.239 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 8.0380 SAR(1 g) = 4.47 mW/g; SAR(10 g) = 2.34 mW/g Maximum value of SAR (measured) = 6.026 mW/g 0 dB = 6.030mW/g = 15.61 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/28/2012 20120328_SystemPerformanceCheck-D1900V2 SN 5d043 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.888 mW/g Test Laboratory: UL CCS SAR Lab A Date: 3/29/2012 20120329_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.792 mho/m; ε r = 37.865; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE4 Sn1239; Calibrated: 11/17/2010 - Probe: EX3DV4 - SN3772; ConvF(6.64, 6.64, 6.64); Calibrated: 2/16/2012 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 (A); Type: QD000P40CC; Serial: 1602 Head/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 6.092 mW/g Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 67.079 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 11.8590 SAR(1 g) = 5.58 mW/g; SAR(10 g) = 2.56 mW/g Maximum value of SAR (measured) = 8.004 mW/g 0 dB = 8.000mW/g = 18.06 dB mW/g Test Laboratory: UL CCS SAR Lab A Date: 3/29/2012 20120329_SystemPerformanceCheck-D2450V2 SN 748 Frequency: 2450 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.946 mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/29/2012 20120329_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.967 mho/m; ε r = 54.148; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.64, 8.64, 8.64); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1120 Body/Pin=100 mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.064 mW/g Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.809 V/m; Power Drift = -0.0019 dB Peak SAR (extrapolated) = 1.3970 SAR(1 g) = 0.941 mW/g; SAR(10 g) = 0.619 mW/g Maximum value of SAR (measured) = 1.145 mW/g 0 dB = 1.140mW/g = 1.14 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/29/2012 20120329_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.828 mW/g Test Labo…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab C Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.889 mho/m; ε r = 42.404; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Left/Touch_GSM_Ch 190/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.335 mW/g Left/Touch_GSM_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 19.424 V/m; Power Drift = 0.0072 dB Peak SAR (extrapolated) = 0.3730 SAR(1 g) = 0.311 mW/g; SAR(10 g) = 0.240 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.342 mW/g 0 dB = 0.340mW/g = -9.37 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.889 mho/m; ε r = 42.404; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Left/Tilt_GSM_Ch 190/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.199 mW/g Left/Tilt_GSM_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.138 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.2150 SAR(1 g) = 0.183 mW/g; SAR(10 g) = 0.144 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.200 mW/g 0 dB = 0.200mW/g = -13.98 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.889 mho/m; ε r = 42.404; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right/Touch_GSM_Ch 190/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.373 mW/g Right/Touch_GSM_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.702 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.4090 SAR(1 g) = 0.332 mW/g; SAR(10 g) = 0.255 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.367 mW/g 0 dB = 0.370mW/g = -8.64 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.889 mho/m; ε r = 42.404; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right/Touch_GSM_Ch 190_w/Wireless Charging Cover/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.364 mW/g Right/Touch_GSM_Ch 190_w/Wireless Charging Cover/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 20.689 V/m; Power Drift = 0.00073 dB Peak SAR (extrapolated) = 0.4090 SAR(1 g) = 0.335 mW/g; SAR(10 g) = 0.257 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.369 mW/g 0 dB = 0.370mW/g = -8.64 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018 Right/Touch_GSM_Ch 190_w/Wireless Charging Cover/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.363 mW/g Test Laboratory: UL CCS SAR Lab C Date: 4/4/2012 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.889 mho/m; ε r = 42.404; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(8.35, 8.35, 8.35); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right/Tilt_GSM_Ch 190/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.223 mW/g Right/Tilt_GSM_Ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.090 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.2370 SAR(1 g) = 0.204 mW/g; SAR(10 g) = 0.161 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.221 mW/g 0 dB = 0.220mW/g = -13.15 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/29/2012 GSM850 Frequency: 836.6 MHz; Duty Cyc…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab C Date: 3/30/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.407 mho/m; ε r = 40.381; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Left/Touch_GSM_Ch 661/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.161 mW/g Left/Touch_GSM_Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 10.948 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.2080 SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.094 mW/g Maximum value of SAR (measured) = 0.169 mW/g 0 dB = 0.170mW/g = -15.39 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/30/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.407 mho/m; ε r = 40.381; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Left/Tilt_GSM_Ch 661/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.067 mW/g Left/Tilt_GSM_Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.847 V/m; Power Drift = 0.13 dB Peak SAR (extrapolated) = 0.0930 SAR(1 g) = 0.060 mW/g; SAR(10 g) = 0.036 mW/g Maximum value of SAR (measured) = 0.073 mW/g 0 dB = 0.070mW/g = -23.10 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/30/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.407 mho/m; ε r = 40.381; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right/Touch_GSM_Ch 661/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.288 mW/g Right/Touch_GSM_Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.941 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.4120 SAR(1 g) = 0.269 mW/g; SAR(10 g) = 0.169 mW/g Maximum value of SAR (measured) = 0.330 mW/g 0 dB = 0.330mW/g = -9.63 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/30/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.407 mho/m; ε r = 40.381; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right/Touch_GSM_Ch 661_w/Wireless Charging Cover/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.332 mW/g Right/Touch_GSM_Ch 661_w/Wireless Charging Cover/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.408 V/m; Power Drift = -0.0077 dB Peak SAR (extrapolated) = 0.4680 SAR(1 g) = 0.300 mW/g; SAR(10 g) = 0.185 mW/g Maximum value of SAR (measured) = 0.369 mW/g 0 dB = 0.370mW/g = -8.64 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/30/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018 Right/Touch_GSM_Ch 661_w/Wireless Charging Cover/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 0.327 mW/g Test Laboratory: UL CCS SAR Lab C Date: 3/30/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.407 mho/m; ε r = 40.381; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Right/Tilt_GSM_Ch 661/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.092 mW/g Right/Tilt_GSM_Ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.132 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.1130 SAR(1 g) = 0.078 mW/g; SAR(10 g) = 0.051 mW/g Maximum value of SAR (measured) = 0.090 mW/g 0 dB = 0.090mW/g = -20.92 dB mW/g Test Laboratory: UL CCS SAR Lab C Date: 4/4/2012 GSM1900 Frequency: 1880 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.502 mho/m; ε r = 51.869; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(6.83, 6.83, 6.83); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1121 Rear/GPRS 2 Slot_Ch 661/Area Scan (10x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.840 mW/g Rear/GPRS 2 Slot_Ch 661/Zoom Scan (5x5x7…

Text truncated - open the document above for the full version.

Test Laboratory: UL CCS SAR Lab C Date: 3/30/2012 WCDMA Band II Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.407 mho/m; ε r = 40.381; ρ = 1000 kg/m 3 DASY5 Configuration: - Electronics: DAE3 Sn500; Calibrated: 7/14/2011 - Probe: EX3DV4 - SN3751; ConvF(7.33, 7.33, 7.33); Calibrated: 12/19/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1632 Left/Touch_R99 RMC_Ch 9400/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.381 mW/g Left/Touch_R99 RMC_Ch 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.107 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.5300 SAR(1 g) = 0.340 mW/g; SAR(10 g) = 0.211 mW/g Maximum value of SAR (measured) = 0.409 mW/g 0 dB = 0.410mW/g = -7.74 dB mW/g Test Laboratory: UL CCS SAR Lab C …

Text truncated - open the document above for the full version.
