ZNFVS980GSM/CDMA/WCDMA+LTE Phone BT , WLAN (2.4/5GHZ) NFC

User Guide MFLXXXXXXXX (1.0) User Guide Guía del Usuario This booklet is made from 60% post-consumer recycled paper. This booklet is printed with soy ink. Printed in Mexico VS980 VS980 VS980 &RS\ULJKW‹/*(OHFWURQLFV,QF$OOULJKWVUHVHUYHG /*DQGWKH/*ORJRDUHUHJLVWHUHGWUDGHPDUNVRI/**URXS DQGLWVUHODWHGHQWLWLHVDUHUHJLVWHUHG/XFLGLVDWUDGHPDUN RI/*(OHFWURQLFV,QF$OORWKHUWUDGHPDUNVDUHWKH SURSHUW\RIWKHLUUHVSHFWLYHRZQHUV 1 Important Customer Information Before you begin Before reading this user guide and getting started, please review the separate Product Safety and Warranty Information guide for important product safety and warranty information about your device. 2 Important Customer Information...............................................1 Table of Contents .......................................................................2 The Basics ...................................................................................5 Phone Overview .................................................................................................... 5 Help ....................................................................................................................... 8 Charging the Phone ............................................................................................. 8 Optimizing Battery Life ....................................................................................... 9 Turning the Phone On and Off ...........................................................................11 Phone’s Status Icons .......................................................................................... 17 Getting to Know the Home Screen ..................................................................20 Touchscreen ........................................................................................................22 Applications: How to View, Open and Switch .................................................. 27 Working with Menus ..........................................................................................32 Managing Notifications .....................................................................................33 Searching Your Phone and the Web .................................................................36 Locking the Screen ............................................................................................ 37 Customizing the Home Screen .........................................................................42 QuickMemo™ ......................................................................................................44 Connecting Quickly With Your Contacts ..........................................................45 Connecting to Networks and Devices ................................... 47 Connecting to Mobile Networks ....................................................................... 47 Connecting to Wi-Fi Networks .........................................................................48 microSD Card ........................................................................... 51 Sending data from your phone using Bluetooth .............................................53 Calls .......................................................................................... 54 Placing and Ending Calls ..................................................................................54 Answering or Rejecting Calls ............................................................................56 Working With the Recent tab ...........................................................................58 Calling Your Contacts......................................................................................... 59 Voice Dialer .........................................................................................................60 Options During a Call .........................................................................................61 Managing Multiple Calls ....................................................................................62 Listening to Your Voicemail ...............................................................................63 Table of Contents 3 Table of Contents Web ........................................................................................... 65 Chrome ................................................................................................................65 Maps ..........................................................................................74 Weather .....................................................................................77 Checking the Weather ....................................................................................... 77 Changing Weather Settings .............................................................................. 78 Communication ....................................................................... 79 Contacts .............................................................................................................. 79 Email ....................................................................................................................86 Voicemail .............................................................................................................89 Gmail ...................................................................................................................90 Messaging ........................................................................................................... 96 Talk ..................................................................................................................... 102 Voice Dialer ....................................................................................................... 105 Entertainment .........................................................................106 Camera ..................................................................…

Text truncated - open the document above for the full version.

QCT Technical Memo about MPR Date: April 15, 2013 Case Number: 01156900 Subject: [PMH2_VZW] Request for QCT Technical Letter about MPR QMC Technical Explanation: For HSUPA, the following table lists the MPR target values: HSPA MPR Targets HSUPA 3GPP Subtest Band VIII MPR Target(dB) Band V MPR Target(dB) Band II MPR Target(dB) Band I MPR Target(dB) 1 0 0 0 0 2 2 2 2 2 3 1 1 1 1 4 2 2 2 2 5 0 0 0 0 Based on the device hardware characteristics and HSUPA measurement error inherent in the 34.121procedure, Qualcomm expects HSUPA transmit power results to be within +/- 1.0 dB of the expected MPR target values. Beyond measurement uncertainties, the hardware/software design for device is such that HSUPA or HSDPA transmit power will not exceed R99 UMTS maximum transmit power based the module’s power control implementation and RF calibration design.

Date: June 12, 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc.as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jacob Cho Director On behalf of LG Electronics MobileComm USA, Inc.

Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: ZNFVS980 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operation Descriptions Tune-up Procedure Antenna Specification Parts list PCB Layout Antenna distance Multi Tx Scenario Power Reduction Table for SVLTE modes WiFi channel information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the grant as outlined in Public Notice DA 04-1705. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely Yours, Jacop Cho Director On behalf of LG Electronics Mobilecomm U.S.A.,Inc June 26, 2013

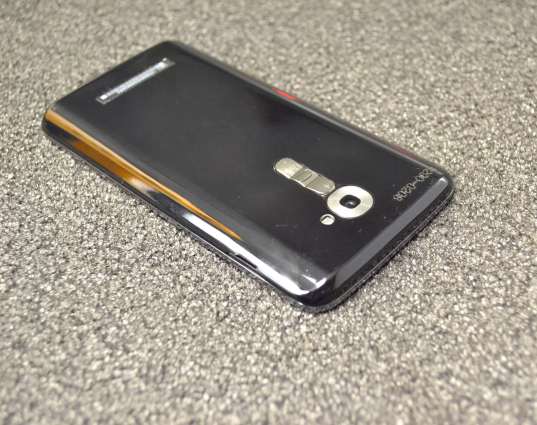

Report No.: 13U15118-6A Issue Date: 7/11/2013 FCC ID: ZNFVS980 Page 124 of 132 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. 16. External Photos Overall Dimensions 70.9 mm 138.5 mm 147.8 mm 132.9 mm Earpiece Report No.: 13U15118-6A Issue Date: 7/11/2013 FCC ID: ZNFVS980 Page 125 of 132 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Front View of the DUT Rear View of the DUT

location FCC ID is etched, near the bottom of the EUT. And customer do not remove this back cover.Below Fig.1 is representation of FCC Label information,Other informations may be include on the label. Top Bottom Back plate of Product ■ FCC ID Label Model No: LG-VS980FCC ID: ZNFVS980Maid in Korea *Note: This label and its location complies with 47 CFR 2.925(d) that F CC ID is readily visible to the purchaser at the time of purchase, and be permanently affixed to the prod uct. Fig.1 Representation of FCC Label information

Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 5/23/2013 20130523_SystemPerformanceCheck-D1750V2 SN 1050 Frequency: 1750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1750 MHz; σ = 1.479 mho/m; ε r = 51.555; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1343; Calibrated: 8/20/2012 - Probe: EX3DV4 - SN3749; ConvF(7.36, 7.36, 7.36); Calibrated: 1/15/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1119 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 59.300 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 3.93 W/kg; SAR(10 g) = 2.04 W/kg Maximum value of SAR (interpolated) = 5.16 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.300 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 6.93 W/kg SAR(1 g) = 3.84 W/kg; SAR(10 g) = 2.04 W/kg Maximum value of SAR (measured) = 5.17 W/kg 0 dB = 5.17 W/kg = 7.13 dBW/kg Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 5/23/2013 20130523_SystemPerformanceCheck-D1750V2 SN 1050 Frequency: 1750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.13 W/kg Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 5/30/2013 20130530_SystemPerformanceCheck-D750V3 SN 1071 Frequency: 750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 750 MHz; σ = 0.965 mho/m; ε r = 54.406; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1343; Calibrated: 8/20/2012 - Probe: EX3DV4 - SN3749; ConvF(8.78, 8.78, 8.78); Calibrated: 1/15/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (B); Type: QDOVA001BB; Serial: 1118 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 33.892 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 0.936 W/kg; SAR(10 g) = 0.633 W/kg Maximum value of SAR (interpolated) = 1.10 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.892 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.34 W/kg SAR(1 g) = 0.917 W/kg; SAR(10 g) = 0.610 W/kg Maximum value of SAR (measured) = 1.11 W/kg 0 dB = 1.11 W/kg = 0.45 dBW/kg Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 5/30/2013 20130530_SystemPerformanceCheck-D750V3 SN 1071 Frequency: 750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.11 W/kg Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/22/2013 20130522_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.908 S/m; ε r = 41.284; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(8.6, 8.6, 8.6); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 35.500 V/m; Power Drift = -0.02 dB Fast SAR: SAR(1 g) = 1.02 W/kg; SAR(10 g) = 0.691 W/kg Maximum value of SAR (interpolated) = 1.21 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 35.500 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 1.51 W/kg SAR(1 g) = 0.998 W/kg; SAR(10 g) = 0.654 W/kg Maximum value of SAR (measured) = 1.21 W/kg 0 dB = 1.21 W/kg = 0.83 dBW/kg Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/22/2013 20130522_SystemPerformanceCheck-D835V2 SN 4d002 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.12 W/kg Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/25/2013 20130525_SystemPerformanceCheck-D1900V2 SN 5d140 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.439 S/m; ε r = 39.466; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(7.18, 7.18, 7.18); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 57.937 V/m; Power Drift = 0.04 dB Fast SAR: SAR(1 g) = 4.1 W/kg; SAR(10 g) = 2.16 W/kg Maximum value of SAR (interpolated) = 5.47 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.937 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 7.58 W/kg SAR(1 g) = 4.01 W/kg; SAR(10 g) = 2.08 W/kg Maximum value of SAR (measured) = 5.46 W/kg 0 dB = 5.46 W/kg = 7.37 dBW/kg Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/25/2013 20130525_SystemPerformanceCheck-D1900V2 SN 5d140 Frequency: 1900 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 4.77 W/kg Test Laboratory: UL Ver…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/23/2013 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.91 S/m; ε r = 41.266; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(8.6, 8.6, 8.6); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 RHS/Touch_Voice_ch 190/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.210 W/kg RHS/Touch_Voice_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.445 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.252 W/kg SAR(1 g) = 0.199 W/kg; SAR(10 g) = 0.152 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.223 W/kg 0 dB = 0.223 W/kg = -6.52 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/23/2013 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.91 S/m; ε r = 41.266; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(8.6, 8.6, 8.6); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 RHS/Touch_GPRS 2 slots_ch 190/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.223 W/kg RHS/Touch_GPRS 2 slots_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.300 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.273 W/kg SAR(1 g) = 0.218 W/kg; SAR(10 g) = 0.168 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.242 W/kg 0 dB = 0.242 W/kg = -6.16 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab E Date: 5/21/2013 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:8.00018; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.004 S/m; ε r = 53.451; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/5/2013 - Probe: EX3DV4 - SN3901; ConvF(9.82, 9.82, 9.82); Calibrated: 2/13/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 A; Type: QDOVA002AA; Serial: 1180 Rear/GSM_Voice ch 190/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.309 W/kg Rear/GSM_Voice ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.720 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.348 W/kg SAR(1 g) = 0.274 W/kg; SAR(10 g) = 0.213 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.306 W/kg Rear/GSM_Voice ch 190/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.720 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.375 W/kg SAR(1 g) = 0.228 W/kg; SAR(10 g) = 0.146 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.292 W/kg 0 dB = 0.292 W/kg = -5.35 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab E Date: 5/22/2013 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.004 S/m; ε r = 53.451; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/5/2013 - Probe: EX3DV4 - SN3901; ConvF(9.82, 9.82, 9.82); Calibrated: 2/13/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 A; Type: QDOVA002AA; Serial: 1180 Rear/GPRS 2 slots_ch 190/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.296 W/kg Rear/GPRS 2 slots_ch 190/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.325 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.401 W/kg SAR(1 g) = 0.244 W/kg; SAR(10 g) = 0.154 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.312 W/kg Rear/GPRS 2 slots_ch 190/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.325 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.332 W/kg SAR(1 g) = 0.262 W/kg; SAR(10 g) = 0.205 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.295 W/kg 0 dB = 0.295 W/kg = -5.30 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab E Date: 5/22/2013 GSM850 Frequency: 836.6 MHz; Duty Cycle: 1:4.00037; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.004 S/m; ε r = 53.451; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1357; Calibrated: 2/5/2013 - Probe: EX3DV4 - SN3901; ConvF(…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab B Date: 5/23/2013 CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.909 S/m; ε r = 41.267; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/9/2013 - Probe: EX3DV4 - SN3751; ConvF(8.6, 8.6, 8.6); Calibrated: 11/15/2012; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: 1629 RHS/Touch_1xRT_RC3/3_SO 55_Ch.384/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.313 W/kg RHS/Touch_1xRT_RC3/3_SO 55_Ch.384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.905 V/m; Power Drift = 0.16 dB Peak SAR (extrapolated) = 0.371 W/kg SAR(1 g) = 0.293 W/kg; SAR(10 g) = 0.220 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.326 W/kg 0 dB = 0.326 W/kg = -4.87 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab D Date: 5/24/2013 CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.891 S/m; ε r = 40.448; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1257; Calibrated: 8/28/2012 - Probe: EX3DV4 - SN3686; ConvF(9.13, 9.13, 9.13); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM v5.0 ; Type: QD000P40CD; Serial: TP:xxxx RHS/Touch_1xEVDO_Rel.0_Ch.384/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.277 W/kg RHS/Touch_1xEVDO_Rel.0_Ch.384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.540 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.324 W/kg SAR(1 g) = 0.262 W/kg; SAR(10 g) = 0.203 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.291 W/kg 0 dB = 0.291 W/kg = -5.36 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab D Date: 5/25/2013 CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.998 S/m; ε r = 53.937; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1257; Calibrated: 8/28/2012 - Probe: EX3DV4 - SN3686; ConvF(9.04, 9.04, 9.04); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A v5.0; Type: QDOVA002AA; Serial: TP:xxxx Rear/1xRTT_RC3/3_SO32_ch 384/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.355 W/kg Rear/1xRTT_RC3/3_SO32_ch 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.905 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.529 W/kg SAR(1 g) = 0.323 W/kg; SAR(10 g) = 0.198 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.404 W/kg Rear/1xRTT_RC3/3_SO32_ch 384/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.905 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.425 W/kg SAR(1 g) = 0.332 W/kg; SAR(10 g) = 0.246 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.371 W/kg 0 dB = 0.371 W/kg = -4.31 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab D Date: 5/24/2013 CDMA BC0 Frequency: 836.52 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.998 S/m; ε r = 53.937; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1257; Calibrated: 8/28/2012 - Probe: EX3DV4 - SN3686; ConvF(9.04, 9.04, 9.04); Calibrated: 3/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI A v5.0; Type: QDOVA002AA; Serial: TP:xxxx Front/1xEVDO_Rel.0_ch 384/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.506 W/kg Front/1xEVDO_Rel.0_ch 384/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.799 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.682 W/kg SAR(1 g) = 0.403 W/kg; SAR(10 g) = 0.236 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.503 W/kg Front/1xEVDO_Rel.0_ch 384/Zoom Scan (5x5x7)/C…

Text truncated - open the document above for the full version.
