Nautilus Lifeline VHF-GPS Radio for Divers Operations Manual Model: DIVER Web: www.nautiluslifeline.com Email: [email protected] Call: 001-604-241-1918 Skype: nautiluslifeline WARNING! The Nautilus Lifeline is an aid to your safety. It is not a life-saving device. It is not intended to save your life. Contents Introduction...............................................................................................................................3 About this Manual.............................................................................................................................................3 Important Safety Considerations.......................................................................................3 Federal Communications Commission Notice..............................................................3 Radio Frequency Exposure Safety Statement...............................................................4 Operator Warnings..................................................................................................................4 Licensing ....................................................................................................................................5 Maritime Mobile Service Identity .....................................................................................5 Parts Supplied...........................................................................................................................5 Optional Accessories..............................................................................................................5 How the Radio and GPS Work.............................................................................................6 Controls and Features ...........................................................................................................7 Front of Unit.........................................................................................................................................................7 Top of Unit with Cap Open............................................................................................................................8 Before You Start .......................................................................................................................9 Check the Unit.....................................................................................................................................................9 Charge the Unit...................................................................................................................................................9 Install the Software .........................................................................................................................................9 Register Your Nautilus Lifeline ..................................................................................................................9 After registration ...........................................................................................................................................10 Getting Started.......................................................................................................................11 Open the Cap.....................................................................................................................................................11 Extend the Antenna.......................................................................................................................................11 Power On ...........................................................................................................................................................11 Use the Menu....................................................................................................................................................12 Power Off............................................................................................................................................................12 Using the Radio......................................................................................................................13 Chat to Other Boats or Divers...................................................................................................................13 Change the Chat Button Channel............................................................................................................13 Hail Boats in the Area...................................................................................................................................13 Change the Hail + Distress Button Channel.......................................................................................14 Transmitting a Distress Message ...................................................................................14 Turn Distress Mode On................................................................................................................................14 Turn Distress Mode Off................................................................................................................................15 Selecting and Adjusting Settings on the Computer..................................................15 Selecting and Adjusting Settings on the Unit..............................................................16 Adjust Volume and Squelch.......................................................................................................................16 Select GPS Polling...........................................................................................................................................16 Change the Chat Button Channel............................................................................................................16 Change the Hail + Distress Button Channel......................................................................................…

Text truncated - open the document above for the full version.

Celltech Labs Inc. 21-364 Lougheed Road, Kelowna, B.C. Canada V1X 7R8 Tel. 250-765-7650 • Fax. 250-765-7645 • e-mail: [email protected] www.celltechlabs.com Date: October 03, 2011 Timco Engineering, Inc. Telecommunication Certification Body 849 NW State Road 45 Newberry, FL 32669 SUBJECT: Nautilus Lifeline Ltd. FCC ID: ZNJ0020926606 Part 80 - Certification Dear Application Reviewer: On behalf of Nautilus Lifeline Ltd. is an application for FCC Part 80 Certification of the DIVER Portable Push-To-Talk (PTT) VHF Marine Radio Transceiver with GPS, described below. This device has been tested and complies with the requirements for certification under FCC Rule Part 80. Device Classification(s): Licensed Non-Broadcast Transmitter Held to Face (TNF) - Part 80 Device Description: Portable FM VHF PTT Marine Radio Transceiver with GPS Model Name / No.(s): DIVER Tx Frequency Range(s): 156.025 - 157.425 MHz (VHF Marine Band) Max. Rated RF Output Power: 1.85 Watts Conducted (+0/-3.5 dB) Antenna Type: External Whip (VHF) Submitted within this application is the TCB Form 731, applicant’s authorization letter, applicant’s long-term confidentiality request, applicant’s Part 80.203(b) attestation letter, FCC Part 80 measurement report and test setup photographs, FCC ID label and location, internal and external device photographs, block diagrams (confidential), schematic diagrams (confidential), circuit description (confidential), parts list (confidential), tune-up information and the user manual (draft). Please note that a SAR RF Exposure test report is not required for this TCB Certification based on KDB Inquiry #151186. If you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jonathan Hughes Project Manager Celltech Labs Inc. cc: Nautilus Lifeline Ltd.

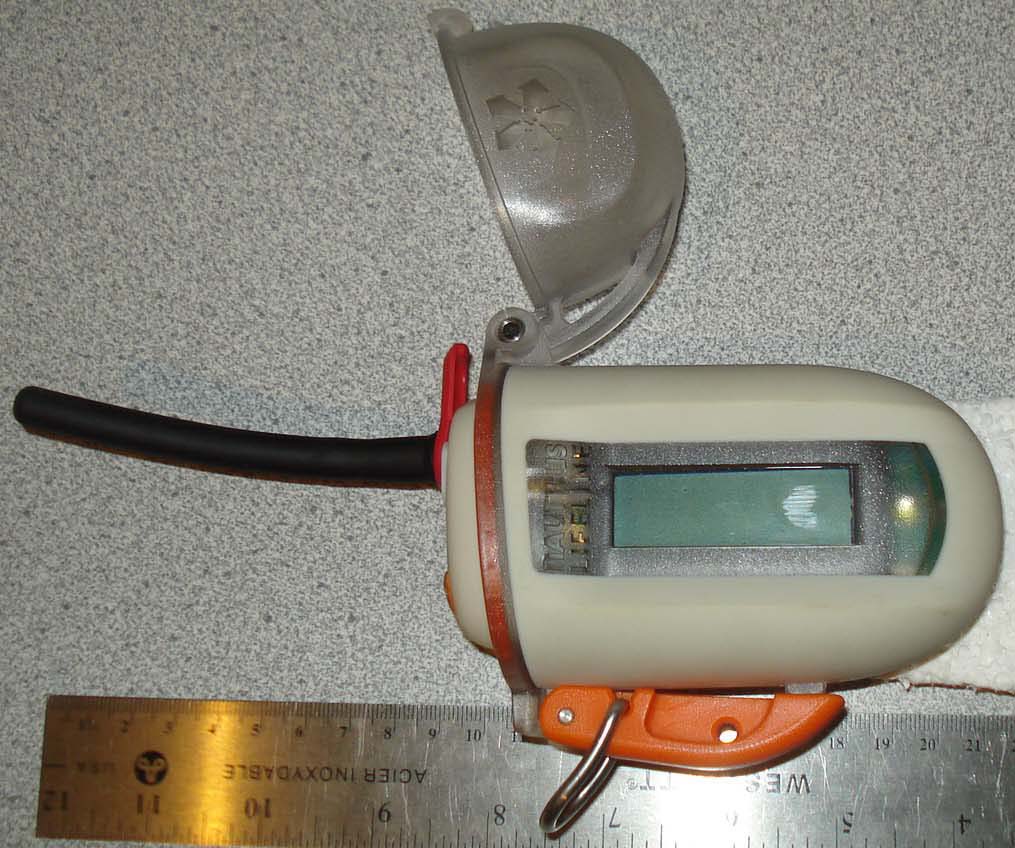

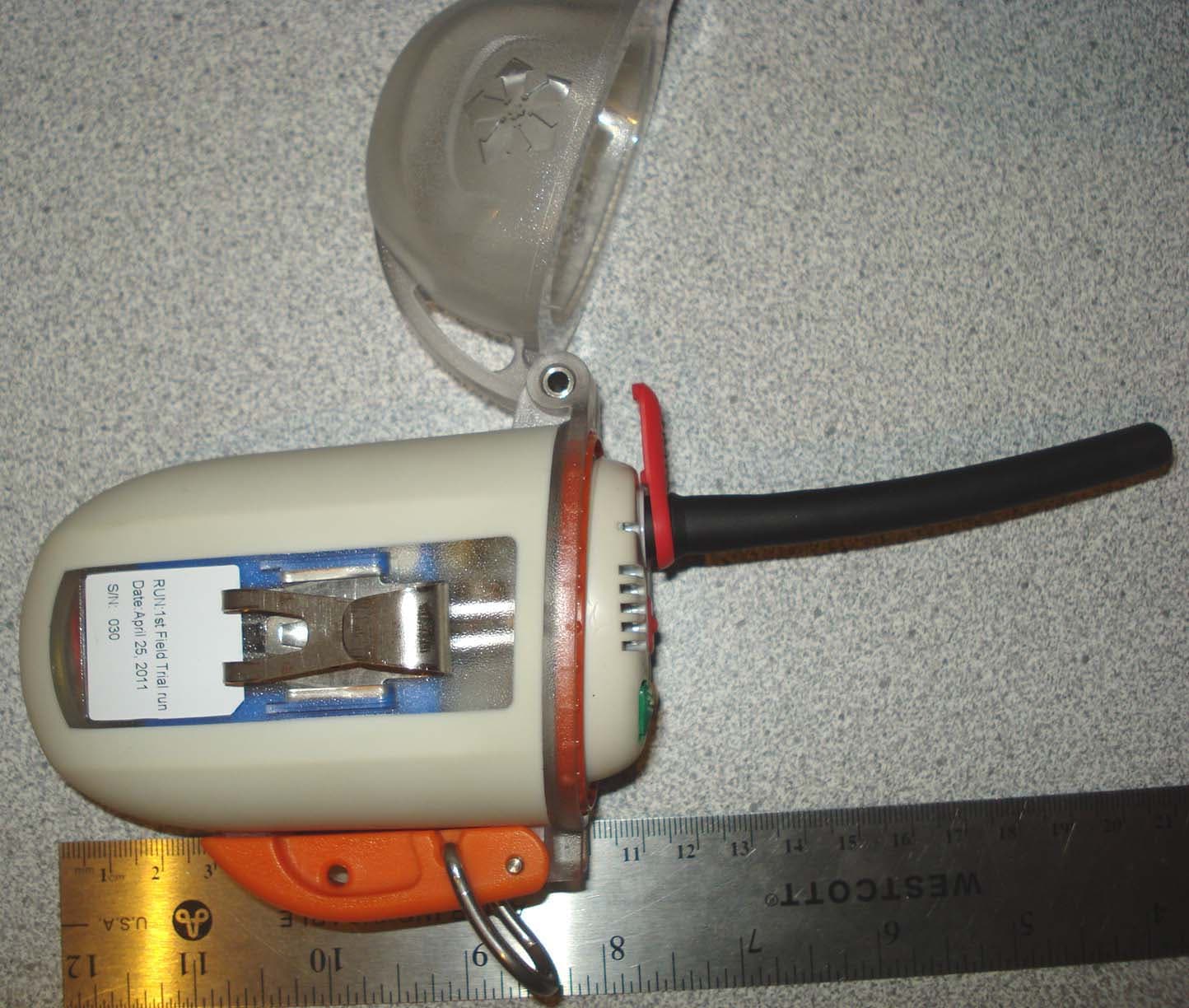

Front Side of DUT Back Side of DUT Top end of DUT Top end of DUT (antenna removed) Bottom end of DUT Whip Antenna Side of DUT Side of DUT

FCC & IC LABEL LOCATION (SEE LABEL NEXT PAGE) Designed by Nautilus Lifeline in Canada Assembled in China Model: DIVER FCC ID: ZNJ0020926606 IC: 9904A-NLDIVER01

Test Report Serial No.: 052611ZNJ-T1101-E80V Test Report Issue Date: October 03, 2011 Measurement Date(s): June 06 - 08, 2011 Test Report Revision No.: Rev. 1.1 (2nd Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Site Registration No. 3874A-1 Applicant: Nautilus Lifeline Ltd. FCC ID: ZNJ0020926606 IC: 9904A-NLDIVER01 DUT Type: Portable VHF PTT Marine Radio Transceiver Model: DIVER Tx Freq. 156.025-157.425 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 1 of 32 J DECLARATION OF COMPLIANCE - FCC Part 80 & IC RSS-182 Issue 4 Name CELLTECH LABS INCORPORATED Test Lab Information Address 21-364 Lougheed Road, Kelowna, British Columbia V1X 7R8 Canada FCC Accredited Site (ISO 17025:2005 - A2LA Test Lab Certificate No. 2470.01) Test Site Registration No.(s) IC 3874A-1 Name NAUTILUS LIFELINE LTD. Applicant Information Address P.O. Box 97182, Richmond, British Columbia, V6X 8H3 Canada FCC 47 CFR Part 2; Part 80 IC RSS-182 Issue 4; RSS-Gen Issue 3 Standard(s) & Procedure(s) ANSI TIA/EIA-603-C-2004; C63.4-2003 FCC Licensed Non-Broadcast Transmitter Held to Face (TNF) Device Classification(s) IC Maritime Radio Transmitter/Receiver in the Band 156-162.5 MHz RF Exposure Classification FCC/IC Portable RF Exposure Category FCC/IC General Population / Uncontrolled Application Type FCC/IC New Certification FCC ID: ZNJ0020926606 Device Identifier(s) IC: 9904A-NLDIVER01 Device Under Test (DUT) Portable VHF PTT Marine Diver Radio Transceiver with GPS Date of Sample Receipt March 11, 2011 Date(s) of Evaluations June 06-08, 2011 Device Model(s) DIVER Test Sample Serial No.(s) No. 4 (Identical Prototype) Hardware Revision No. REV E PCB modified to REV F assembly Firmware Revision No. V 0.31 Transmit Frequency Range(s) 156.025 - 157.425 MHz (VHF Marine Band) Manuf. Rated Output Power 1.85 W atts Conducted (+0/-3.5 dB) RF Output Power Tested 1.85 W atts Conducted Modulation Type(s) FM Emission Designator(s) 16K0G3E, 16K0G2B Antenna Type(s) Tested External Whip Power Source(s) Tested Li-Ion Battery Pack (3.7V, 1800mAh) This wireless device has demonstrated compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 47 CFR Rule Parts 2 and Part 80; Industry Canada RSS-182 Issue 4 and RSS-Gen Issue 3; ANSI TIA/EIA-603-C-2004 and C63.4-2003. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results and statements contained in this report pertain only to the device(s) evaluated. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. Test Report Approved By Sean Johnston Lab Manager Celltech Labs Inc. Test Report Serial No.: 052611ZNJ-T1101-E80V Test Report Issue Date: October 03, 2011 Measurement Date(s): June 06 - 08, 2011 Test Report Revision No.: Rev. 1.1 (2nd Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Site Registration No. 3874A-1 Applicant: Nautilus Lifeline Ltd. FCC ID: ZNJ0020926606 IC: 9904A-NLDIVER01 DUT Type: Portable VHF PTT Marine Radio Transceiver Model: DIVER Tx Freq. 156.025-157.425 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 2 of 32 TABLE OF CONTENTS 1.0 SCOPE.......................................................................................................................................................... 5 2.0 REFERENCES .............................................................................................................................................. 5 2.1 Normative References ................................................................................................................................... 5 3.0 PASS/FAIL CRITERIA ................................................................................................................................... 5 4.0 FACILITIES AND ACCREDITATIONS........................................................................................................... 6 5.0 GENERAL INFORMATION............................................................................................................................ 6 5.1 Applicant Information ..................................................................................................................................... 6 5.2 DUT Description ............................................................................................................................................ 6 5.3 Rule Part(s) & Classification(s) ...................................................................................................................... 6 5.4 Mode(s) of Operation Tested......................................................................................................................... 7 5.5 Modification(s) ............................................................................................................................................... 7 6.0 RANGE OF OPERATING POWER (FCC §2.1033(C)(6))............................................................................... 7 Appendix A RF Output Power Measurement.................................................................................................. 8 Appendix B Spurious Emissions at the Antenna Terminal.............................................................................10 Append…

Text truncated - open the document above for the full version.

Test Report Serial No.: 052611ZNJ-T1101-E80V Test Report Issue Date: September 27, 2011 Measurement Date(s): June 06 - 08, 2011 Test Report Revision No.: Rev. 1.0 (Initial Release) Rule Part(s) Applied: FCC 47 CFR §2, §80 Industry Canada RSS-182 Issue 4, RSS-Gen Issue 3 Test Site Registration(s): FCC Accredited Site Industry Canada Site Registration No. 3874A-1 Applicant: Nautilus Lifeline Ltd. FCC ID: ZNJ0020926606 IC: 9904A-NLDIVER01 DUT Type: Portable VHF PTT Marine Radio Transceiver Model: DIVER Tx Freq. 156.025-157.425 MHz 2011 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc. Page 26 of 32 G.10 TEST SETUP PHOTOGRAPH
