ZNU-SR182-652Induction Cooktop

Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: • GUANGMAO must be notified of the fault. • Proof of purchase must be presented to GUANGMAO’s nominated representative. • The warranty will be void if the product if modified, misused or repaired by an unauthorized person. • The warranty after repair will not be extended beyond the original one- year period. • All replacement parts will be new or reconditioned. • Parts, which are replaced, become the property of GUANGMAO. • The warranty applies for the use of the product in the USA only. What is NOT COVERED: • Warranty does not include freight charges. • Incidental or consequential damage caused by possible defects with this product. • Damage to product caused by improper power supply voltage, accident, fire, floods or acts of nature. • Failure of product resulting from unauthorized modifications to the product. • Improper installation or failure to perform the necessary maintenance. This GUARANTEE is in addition to your Statutory Rights SMARTSCAN SR-182C INSTRUCTION MANUAL Thank you for purchasing your SMARTSCAN induction cooker by GUANGMAO. Make full use of your new induction range. Please carefully read this manual and keep on hand for future reference. IMPORTANT SAFEGUARDS A. Read all instructions. B. Do not touch hot surfaces. Use handles or knobs. C. To protect against electrical shock, do not immerse cord or appliance in water or other liquid. D. Close supervision is necessary when any appliance is used by or near children. E. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts. F. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. G. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. H. Do not use outdoors. I. Do not let cord hang over edge of table or counter, or touch hot surfaces. J. Do not place on or near a hot gas or electric burner, or in a heated oven. K. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. L. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then removed plug from wall outlet. M. Do not use appliance for other than intended use. N. Save these instructions. NOTE: Do not use extension cord. If one must be used, use a cord with a minimum of 14 gauge and no longer than 10 feet. SPECIFICATIONS Model SR-182C Voltage 120V~ / 60Hz Consumption 1800W Dimension 12 5/8” (W) x 15 1/8” (D) x 4.5” (H) Weight 13.42 LBS Power Range 350~1800W Cord Length 6.56 feet Protection Designs Overheat protection. Automatic hazard detection. Circuit protection sensor. High voltage. 15A fuse. Small object heat prevention. Thermostat. Pan material detection 1 10 TROUBLESHOOTING If LED displays any of the following error codes, unit ne eds to be sent in for service: E0, E1, E2, E3, E5, E6 . PROBLEM CHECK POINTS No power or cooktop does not read the command ƒ Is the cooktop plugged firmly into a correct outlet? ƒ Does the cooktop have a dedicated 20-amp line? The cooktop needs 15 amps to operate and should be on a 20-amp dedicated circuit. If the circuit is not 20-amps or if there are other electrical draws on the circuit, the unit is not getting enough power. ƒ Has the unit been dropped or handled roughly? If so, we suggest sending it in for evaluation. ƒ Are the buttons broken? ƒ Was there a power shortage in the building? Cook / Temp indicator continues to flash even with a pan on the unit and the unit does not heat up ƒ Is the pan an induction compatible pan? These symptoms suggest the cooktop is not sensing a pan. ƒ The pan may be too small or too large for the electromagnetic field. The pan should be no smaller than 4.5” or larger than 12”. ƒ Is the pan centered in the electromagnetic field? Cooktop suddenly stops heating during normal operation ƒ There may have been a power shortage (blow out) at the facility where the unit is being used and starving the unit of power. This may also occur if you are not using a dedicated line. ƒ Has another electrical appliance begun to draw from the same circuit therefore starving the cooktop of power? ƒ Check the fan to see if it is still running. ƒ Are the air vents blocked? The vents can be blocked on the outside by a wall or something similar OR on the inside by dust, grease and food residue. The unit must have a 2” clearance for air circulation around the sides and back. Otherwise, the internal temperature will become too high. The unit has a Safety Shut-Off, which lasts for 15-20 minutes before returning to full power. If it is necessary to leave an empty pan on the unit, the power must be set below 300 watts. ƒ Was the unit on cook mode for more than 2 hours but with no settings changed? Pan does not get hot enough even though temperature is set on high ƒ Check if the “TEMP” button is on, which means the cooktop will generate no more than 1100watts of power. If so, switch to COOK. ƒ Are you using an extension cord? Any use of an extension cord over 10 feet will affect the power reaching cooktop. ƒ It is possible that the internal coil supports may have “dropped” due to the cooktop being mishandled or frequently moved. If this is the case, please send in for repair. Pan cooks unevenly or does not maintain heat level and overheats ƒ Is it an induction compatible pan? ƒ Pan may be the wrong shape (too convex/concave) or the wrong size (smaller than 4.5” or larger than 12”). ƒ Pan may not be centered on the cooktop. Fan continues to run when the unit is turned off ƒ The fan will continue to run until unit is completely cooled down. This is…

Text truncated - open the document above for the full version.

Difference Description The submitted samples SR-182C, SR-183C, SR-652C, SR-182R, SR-183R, SR-652R, IH-11A, IH-11B, IH-11C, IH-11D and IH-11E are Induction Cookers with electronic control. The differences among them are as below: ¾ The five basic models SR-182C, SR-183C, SR-652C, SR-182R and SR-652R have the same main control PCB, but display PCB is different ¾ The models SR-183R are the same as SR-182R except the model name. ¾ The five basic models all have another manufacturer names, the relationship is as below: SR-182C--------- IH-11A SR-183C--------- IH-11B SR-652C--------- IH-11C SR-182R--------- IH-11D SR-652R--------- IH-11E

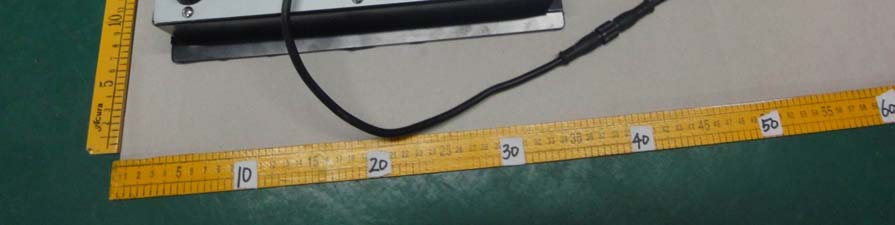

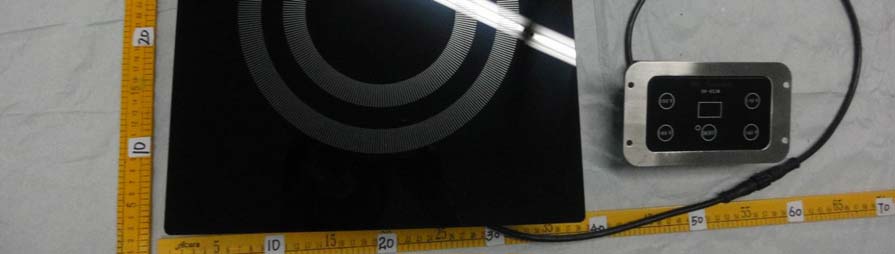

External Photo SR-182C, IH-11A SR-183C, IH-11B SR-652C, IH-11C SR-182R, SR-183R, IH-11D SR-652R, IH-11E

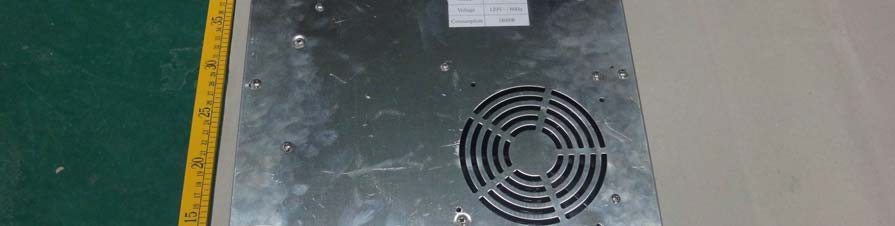

Label Location

Internal Photo SR-182C, IH-11A SR-183C, IH-11B SR-652C, IH-11C SR-182R, SR-183R, IH-11D SR-652R, IH-11E

1. Product description 2. Control Plate: 3. HOW TO USE 1. Plug in power cord (120V / 60Hz) - unit will beep once. 2. Please use suitable cookware and add food contents. 3. Press ON/OFF button (red indicator light will illuminate) AND turn knob clockwise away from OFF position. (COOK mode by default) 4. Press COOK or TEMP button to select setting COOK mode: LED displays power level: 1~20 TEMP mode: LED displays temperature: 90° F ～ 440°F or 32°C ～ 226°C By Pressing the button of C/F 5. Turn knob clockwise/counter-clockwise to set power level or temperature. 6. When cooking is done, turn unit off by pressing ON/OFF button or turn knob all the way left to “OFF” position. NOTE: ƒ If unit is off and knob is turned to OFF position, you must press ON/OFF button AND turn knob clockwise pass OFF position to turn on unit. ƒ If unit is off and knob is not in the OFF position, simply press ON/OFF button to turn on unit. ƒ Unit will cook until: manually shut off or unit will shut off when there has been no change to any setting for 2 hours. ƒ if no cookware or unsuitable cookware is placed, unit will shut off after 2 minutes. ƒ To avoid temperature jump, please cook at least 1 quart of food/content. Operation description MODEL: SR-182C 1. Product description 2. Control Plate: 3. HOW TO USE 1. Plug in power cord (120V / 60Hz) - unit will beep once. 2. Please use suitable cookware and add food contents. 3. Press ON/OFF button (red indicator light will illuminate) and then press COOK/TEMP button.(COOK mode by default) 4. Press COOK/TEMP button to select setting COOK mode: LED displays power level: 1~20 TEMP mode: LED displays temperature: 90° F ～ 440°F or 32°C ～ 226°C By Pressing the button of C/F 5. Press ＋ or － button to set power level or temperature. 6. When cooking is done, turn unit off by pressing ON/OFF button 7. When cooking is done, pause the cooking by pressing PAUSE button , Press the PAUSE button again, unit restore cooking NOTE: ƒ Unit will cook until: manually shut off or unit will shut off when there has been no change to any setting for 2 hours. ƒ if no cookware or unsuitable cookware is placed, unit will shut off after 2 minutes. ƒ To avoid temperature jump, please cook at least 1 quart of food/content. Operation description MODEL: SR-183C 1. Product description 2. Control Plate: 3. HOW TO USE 1. Plug in power cord (120V / 60Hz) unit will beep once. 2. Please use suitable cookware and add food contents. 3. Press ON/OFF button (red indicator light will illuminate) and then Press 150F or 160F or 170F or 180F button. 4. Press 150F or 160F or 170F or 180F button to set temperature. LED displays a three digit number: 150°F, 160°F, 170°F, 180°F 5 When cooking is done, turn unit off by pressing ON/OFF button NOTE: ƒ Unit will cook until: manually shut off or unit will shut off when there has been no change to any setting for 2 hours. ƒ if no cookware or unsuitable cookware is placed, unit will shut off after 2 minutes. ƒ To avoid temperature jump, please cook at least 1 quart of food/content. Operation description MODEL: SR-652C 1. Product description 2. Installation ƒ The cooktop can be surface-mounted into the countertop. ƒ The cooktop can be flush with the countertop 3. Control Plate: 4. HOW TO USE 1. Plug in power cord (120V / 60Hz) - unit will beep once. 2. Please use suitable cookware and add food contents. 3. Press ON/OFF button (red indicator light will illuminate) AND turn knob clockwise away from OFF position. (COOK mode by default) 4. Press COOK/TEMP button to select setting COOK mode: LED displays power level: 1~20 TEMP mode: LED displays temperature: 90° F ～ 440°F or 32°C ～ 226°C By Pressing the button of C/F 5. Turn knob clockwise/counter-clockwise to set power level or temperature. 6. When cooking is done, turn unit off by pressing ON/OFF button or turn knob all the way left to “OFF” position. NOTE: ƒ If unit is off and knob is turned to OFF position, you must press ON/OFF button AND turn knob clockwise pass OFF position to turn on unit. ƒ If unit is off and knob is not in the OFF position, simply press ON/OFF button to turn on unit. ƒ Unit will cook until: manually shut off or unit will shut off when there has been no change to any setting for 2 hours. ƒ if no cookware or unsuitable cookware is placed, unit will shut off after 2 minutes. ƒ To avoid temperature jump, please cook at least 1 quart of food/content. Operation description MODEL: SR-182R 1. Product description 2. Installation ƒ The cooktop can be surface-mounted into the countertop. ƒ The cooktop can be flush with the countertop 3. Control Plate: 4. HOW TO USE 1. Plug in power cord (120V / 60Hz) unit will beep once. 2. Please use suitable cookware and add food contents. 3. Press ON/OFF button (red indicator light will illuminate) and then Press 150F or 160F or 170F or 180F button. 4. Press 150F or 160F or 170F or 180F button to set temperature. LED displays a three digit number: 150°F, 160°F, 170°F, 180°F 5 When cooking is done, turn unit off by pressing ON/OFF button NOTE: ƒ Unit will cook until: manually shut off or unit will shut off when there has been no change to any setting for 2 hours. ƒ if no cookware or unsuitable cookware is placed, unit will shut off after 2 minutes. ƒ To avoid temperature jump, please cook at least 1 quart of food/content. Operation description MODEL: SR-652R

FORM ENG001-4 ZHONGSHAN GUANGMAO ELECTRIC APPLIANCES CO., LTD PARTLIST PRODUCT :INDUCTION OVEN DATE :12/4/2011 STANDARD : UL/CUL/ETL/CETLCUSTOMER :ALL REVISED DATE : RATING : 120VAC/60HZ 1800WMODEL NO. :SR-182C RVISION NO : 0FILENAME :SR-182C-01 PREPARED BY : 陆立彬 CHECKED BY : SYB APPROVED BY : 宋贻彬 NO. PART NO Q TY DESCRIPTION U L FILE NO . MODEL NO. MATERIAL & SPECIFICATION SUPPLIER 1 1 FILTER BOARD ASSY 1 1 CHOKE COIL TL-L1-1207 ￠ 40*15mm,180 °C ,170uH, +/-10% TAI LI * 0 CHOKE COIL QJ-T15726180171K ￠ 40*15mm,180 °C ,170uH, +/-10% QIAOJING 2 1 CHOKE COIL TL-L2-1208 ￠ 36*15mm,180 °C , ≥ 3.5mH TAI LI * 0 CHOKE COIL QJ-T362315180352N ￠ 36*15mm,180 °C , ≥ 3.5mH QIAOJING 3 1 X2 CAPACITOR E215893 MKPH 6.8uF/275VAC, +/-10% FONGMING * 0 X2 CAPACITOR E318999 MKP-X2 6.8uF/275VAC, +/-10% CHUANG GE 4 1 X2 CAPACITOR E215893 MKPH 4.7uF/275VAC, +/-10% FONGMING * 0 X2 CAPACITOR E318999 MKP-X2 4.7uF/275VAC, +/-10% CHUANG GE 5 2 Y2 CAPACITOR E208107 CE 3300PF/250VAC SHANTOU HIGH-NEW * 0 Y2 CAPACITOR E202835 CE 3300PF/250VAC CHYUN FUH 61 BNC CONNECTOR PLUG 250 OUXIER 7 1 LEAD WIRE E211048 1015 AWG 16, 300 V, 105 C,120 mm,WHITE QIFURUI * 0 LEAD WIRE E137515 1015 AWG 16, 300 V, 105 C,120 mm,WHITE LEE YUEN 8 1 LEAD WIRE E211048 1015 AWG 16, 300 V, 105 C,120 mm,BLACK QIFURUI * 0 LEAD WIRE E137515 1015 AWG 16, 300 V, 105 C,120 mm,BLACK LEE YUEN 9 1 CORE H75 RH 17.5*9.5*28.5mm MING CI 10 1 PCB E199805 PC-2 T1.6*88.5*226.6mm 94V0 S/S PROSPERITY * 0 PCB E337729 TY-1 T1.6*88.5*226.6mm 94V0 S/S TONGYU 11 4 CONNECTOR T1.0*8*12mm,COPPER OUXIER 2 1 MAIN BOARD ASSY 1 2 RESISTOR 820K Ohm,+/-2% 1/2W LEONIAN 2 1 RESISTOR 10 Ohm,+/-5% 1 W LEONIAN 3 2 RESISTOR 820K Ohm,+/-2% 1W LEONIAN * ALTERNATIVE# REVISED ITEM@ ATTACHMENT$ 按加工要求而選擇 PAGE 1 OF 7 DESTORY ALL COPY PRIOR TO THIS REVISION FORM ENG001-4 ZHONGSHAN GUANGMAO ELECTRIC APPLIANCES CO., LTD PARTLIST PRODUCT :INDUCTION OVEN DATE :12/4/2011 STANDARD : UL/CUL/ETL/CETLCUSTOMER :ALL REVISED DATE : RATING : 120VAC/60HZ 1800WMODEL NO. :SR-182C RVISION NO : 0FILENAME :SR-182C-01 PREPARED BY : 陆立彬 CHECKED BY : SYB APPROVED BY : 宋贻彬 NO. PART NO Q TY DESCRIPTION U L FILE NO . MODEL NO. MATERIAL & SPECIFICATION SUPPLIER 4 1 RESISTOR 100K Ohm,+/-1% 1/4W LEONIAN 5 1 RESISTOR 20K Ohm,+/-1% 1/4W LEONIAN 6 1 RESISTOR 12K Ohm,+/-1% 1/4W LEONIAN 7 2 RESISTOR 3K Ohm,+/-1% 1/4W LEONIAN 8 1 RESISTOR 1K Ohm,+/-5% 1/4W LEONIAN 9 1 RESISTOR 10K Ohm,+/-5% 1/4W LEONIAN 10 1 RESISTOR 3.3K Ohm,+/-5% 1/4W LEONIAN 11 1 RESISTOR 2K Ohm,+/-5% 1/4W LEONIAN 12 1 RESISTOR 10 Ohm,+/-5% 1/4W LEONIAN 13 1 RESISTOR 1.4K Ohm,+/-5% 1/4W LEONIAN 14 1 RESISTOR 39K Ohm,+/-5% 1/4W LEONIAN 15 1 RESISTOR 2.5K Ohm,+/-1% 1/4W LEONIAN 16 1 RESISTOR 2.7K Ohm,+/-1% 1/4W LEONIAN 17 1 VARIABLE RESISTOR 500 Ohm,+/-20% 1/4W LEONIAN 18 2 E.CAPACITOR 4.7uF/450VDC +/-20% JIN JIA 19 1 E.CAPACITOR 6.8uF/50VDC +/-20% JIN JIA 20 2 E.CAPACITOR 220uF/25VDC +/-20% JIN JIA 21 1 E.CAPACITOR 220uF/16VDC +/-20% JIN JIA 22 1 E.CAPACITOR 220uF/10VDC +/-20% JIN JIA 23 1 E.CAPACITOR 470uF/10VDC +/-20% JIN JIA 24 1 E.CAPACITOR 10uF/50VDC +/-20% JIN JIA 25 1 E.CAPACITOR 2.2uF/50VDC +/-20% JIN JIA 26 8 CERAMIC CAPACITOR 221 220PF/25V JUHONG 27 1 CERAMIC CAPACITOR 223 0.022uF/25V JUHONG 28 1 CERAMIC CAPACITOR 821 820PF/25V JUHONG 29 2 CERAMIC CAPACITOR 103 0.01uF/25V JUHONG 30 9 CERAMIC CAPACITOR 104 0.1uF/25V JUHONG * ALTERNATIVE# REVISED ITEM@ ATTACHMENT$ 按加工要求而選擇 PAGE 2 OF 7 DESTORY ALL COPY PRIOR TO THIS REVISION FORM ENG001-4 ZHONGSHAN GUANGMAO ELECTRIC APPLIANCES CO., LTD PARTLIST PRODUCT :INDUCTION OVEN DATE :12/4/2011 STANDARD : UL/CUL/ETL/CETLCUSTOMER :ALL REVISED DATE : RATING : 120VAC/60HZ 1800WMODEL NO. :SR-182C RVISION NO : 0FILENAME :SR-182C-01 PREPARED BY : 陆立彬 CHECKED BY : SYB APPROVED BY : 宋贻彬 NO. PART NO Q TY DESCRIPTION U L FILE NO . MODEL NO. MATERIAL & SPECIFICATION SUPPLIER 31 1 POLYESTER FILM CAPACITOR 102 1000PF/630V JUHONG 32 1 CAPACITOR MKPH 0.4uF/1200VDC, +/-10% FONGMING * 0 CAPACITOR MKPH 0.4uF/1200VDC, +/-10% CHUANG GE 33 1 X2 CAPACITOR E215893 MKPH 10uF/275VAC, +/-10% FONGMING * 0 X2 CAPACITOR E318999 MKP-X2 10uF/275VAC, +/-10% CHUANG GE 34 1 VARISTOR E330837 10D271K SHANTOU HIGH-NEW * 0 VARISTOR E317616 10D271K CERGLASS MFG INC 35 4 DIODE 1N4007 1000V, 1A MINKAY 36 2 DIODE 1N4148 MINKAY 37 2 DIODE UF4007 1000V, 1A MINKAY 38 1 DIODE BYV26C MINKAY 39 1 ZENER BZX55C18 18 V ,1/2 W MINKAY 40 1 IC 78L05 5V TO-92 QIAO AN * 0 IC LM78L05ACZ 5V TO-92 NATIONAL SEMICONDUCTOR * 0 IC MC78L05ACP 5V TO-92 ON SEMICONDUCTOR 41 1 BUZZER φ 12*8mm,2KHz XU SHENG 42 1 IC VIPER12A DIP-8 ST * 0 IC VIPER22A DIP-8 ST 43 1 TRANSISTOR SS8050 TO-92 QIAO AN 44 1 TRANSISTOR S8050 TO-92 QIAO AN 45 1 TRANSISTOR 3904 TO-92 QIAO AN 46 1 TRANSISTOR 3906 TO-92 QIAO AN 47 1 RECTIFIER D25SB80 25A/800V SHARE 48 1 IGBT IHW30N120R2 30A/1200V INFINEON 49 1 IC DKE002 DIP-20 HOLTEK 50 1 CURRENT SENSOR ø1.2*25MM YI JIA 51 1 TRANSFORMER TL/EE10 EE10 TAI LI * ALTERNATIVE# REVISED ITEM@ ATTACHMENT$ 按加工要求而選擇 PAGE 3 OF 7 DESTORY ALL COPY PRIOR TO THIS REVISION FORM ENG001-4 ZHONGSHAN GUANGMAO ELECTRIC APPLIANCES CO., LTD PARTLIST PRODUCT :INDUCTION OVEN DATE :12/4/2011 STANDARD : UL/CUL/ETL/CETLCUSTOMER :ALL REVISED DATE : RATING : 120VAC/60HZ 1800WMODEL NO. :SR-182C RVISION NO : 0FILENAME :SR-182C-01 PREPARED BY : 陆立彬 CHECKED BY : SYB APPROVED BY : 宋贻彬 NO. PART NO Q TY DESCRIPTION U L FILE NO . MODEL NO. MATERIAL & SPECIFICATION SUPPLIER * 0 TRANSFORMER DKE-006 EE10 ZHUO YI * 0 TRANSFORMER QJ-EE10H-064 EE10 QIAOJING 52 1 FLAT CABLE E314069 2468 AWG26,300V,80C,8PIN,300mm ZHONGSHAN NANTOU BOYU WIRE MFR 53 1 JACK CKM3961 2PIN PITCH:2.54mm OUXIER 54 1 JACK CKM3961 3PIN PITCH:2.54mm OUXIER 55 9 JUMPER 10mm DIA0.5 DIKAIR 56 2 JUMPER 7mm DIA0.5 DIKAIR 57 1 JUMPER 20mm DIA0.5 DIKAIR 58 4 CONNECTOR T1.0*8*12mm,COPPER OUXIER 59 1 CHOKE COIL TL-L1-1207 ￠ 40*15mm,180 °C ,170uH, +/-10% TAI LI * 0 CHOKE COIL QJ-T15726180171K ￠ 40*15mm,180 °C ,170uH, +/-10% QIAOJING 60 1 INDUCTOR QJ091085 100uH, +/-10% QIAOJING 61 2 NTC MJD-104 100K MINJIE * 0 NTC MF58-104 100K AMPRON 62 2 NTC LEA…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 2 von 21 Page 2 of 21 TEST SUMMARY 5.1 CONDUCTED EMISSION FOR FCC PART 18 PER SECTION 18.307 (A) RESULT: Pass 5.2 RADIATED EMISSION FOR FCC PART 18 PER SECTION 18.305 (B) RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 3 von 21 Page 3 of 21 Contents 1 GENERAL REMARKS........................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS......................................................................................... 4 2 TEST SITES.......................................................................................................................... 4 2.1 TEST FACILITIES................................................................................................................. 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS............................................................ 5 2.3 TRACE ABILITY................................................................................................................... 6 2.4 CALIBRATION...................................................................................................................... 6 2.5 MEASUREMENT UNCERTAINTY.......................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA........................................................................................... 6 2.7 STATUS OF FACILITY USED FOR TESTING........................................................................... 6 3 GENERAL PRODUCT INFORMATION................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE.......................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS......................................................................................... 7 3.3 INDEPENDENT OPERATION MODES.................................................................................... 8 3.4 SUBMITTED DOCUMENTS.................................................................................................... 8 4 TEST SET-UP AND OPERATION MODE................................................................................ 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION..................................................................... 9 4.2 TEST OPERATION AND TEST SOFTWARE........................................................................... 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT....................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE..................................................... 9 4.5 TEST SET-UP...................................................................................................................... 10 5 TEST RESULTS E M I S S I O N ...................................................................................... 13 5.1 CONDUCTED EMISSION FOR FCC PART 18 PER SECTION 18.307(A) .............................. 13 5.2 RADIATED EMISSION FOR FCC PART 18 PER SECTION 18.305(B) ........................................ 14 6 PHOTOGRAPHS OF THE TEST SET-UP.............................................................................. 16 7 LIST OF TABLES................................................................................................................ 21 8 LIST OF PHOTOGRAPHS.................................................................................................... 21 Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 4 von 21 Page 4 of 21 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Result 2 Test Sites 2.1 Test Facilities 1) TÜV Rheinland (Guangdong) Ltd. EMC Laboratory Guangzhou Auto Market, Yuan Gang Section of Guangshan Road Guangzhou 510650 P. R. China 2) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District Guanghzou, Guangdong, China 510663 The test at these test sites has been conducted under the supervision of a TÜV Rheinland engineer. Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 5 von 21 Page 5 of 21 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Type Manufacturer S/N Calibrated until TÜV Rheinland (Guangdong) Ltd. EMC Laboratory EMI Test Receiver ESCI Rohde & Schwarz 100216 16.03.2012 Trilog-Broadband Antenna VULB9168 Schwarzbeck 210 16.03.2012 Loop Antenna HFH2-Z2 Rohde & Schwarz 100111 16.03.2012 Band Reject Filter BRM50702 Micro-Tronics 023 16.03.2012 3m Semi-anechoic chamber --- Albatross Projects --- 16.03.2012 EMI Test Receiver ESCS30 Rohde & Schwarz 100316 16.03.2012 Noise generator DM8899 DM 607014 16.03.2012 Artificial Mains Network ESH2-Z5 Rohde&Schwarz 100114 16.03.2012 SGS-CSTC Standards Technical Services Co., Ltd. EMI Test Receiver Rohde&SchwarzESIB26 100249 28.01.2012 Bi-log Type Antenna Schaffner-ChaseCBL6112B 2966 08.10.2011 Bi-log Type Antenna Schaffner-ChaseCBL6143 5070 08.10.2011 310N Amplifier Sonama 310N 272683 10.09.2011 10m Semi-Anechoic Chamber ETS N/A N/A 10.08.2011 Active Loop Antenna EMCO 6502 00042963 09.08.2011 EMI Test Receiver Rohde&SchwarzESIB26 100249 28.01.2012 Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 6 von 21 Page 6 of 21 2.3 Trace ability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regul…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 16 von 21 Page 16 of 21 6 Photographs of the Test Set-Up Photograph 1: Set-up for Conducted Emission SR-182C SR-183C Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 17 von 21 Page 17 of 21 SR-652C SR-182R Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 18 von 21 Page 18 of 21 SR-652R Remark: The test set-up photos of all the models are the same, therefore for following test items, only one model’s photo is shown. Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 19 von 21 Page 19 of 21 Photograph 2: Set-up for Radiated Emission 9 kHz – 30 MHz (10m distance) Produkte Products Prüfbericht - Nr.: Test Report no.: 16029851 001 Seite 20 von 21 Page 20 of 21 30MHz - 1GHz (3m distance)
