ZNWFODE6MWRFODetect System with Radar in 76-77 GHz Band

FODetect ® Installation Manual ii This Document discloses subject matter in which Xsight Systems has proprietary rights. Neither the furnishing nor the receipt or possession thereof confers or transfers any right to reproduce or disclose the document, any part thereof, any information contained therein, or any physical article or device, or to practice any method or process referred to therein except by written permission form, or written agreement with Xsight Systems. 11 Haavoda St. P.O.B 1413 Rosh Haayin 48017 Israel Copyright © XSight Systems All rights reserved. Technical support 972 (3) 9102562 Contact XSight at www.xsightsys.com iii Table of Contents FCC STATEMENT .................................................................................................. 7 PREFACE .............................................................................................................. 8 About This Manual ............................................................................................... 8 Finding Your Way in This Manual ........................................................................... 8 Related Manuals .................................................................................................. 9 Acronyms ........................................................................................................... 9 CHAPTER 1 INTRODUCTION .......................................................................... 11 1.1 FODetect® System Overview ..................................................................... 11 1.2 System Components .................................................................................. 12 1.3 About the Installation Process ..................................................................... 15 CHAPTER 2 FODETECT® PARTS AND INSTALLATION TOOLS .......................... 16 2.1 Part List for One (1) SDU ........................................................................... 16 2.2 List of Tools Used During Installation ........................................................... 18 CHAPTER 3 POWER REQUIREMENTS .............................................................. 21 3.1 ACC and SOC Power Requirements .............................................................. 21 3.2 Input Power – Using a Constant Current Regulator ........................................ 21 3.3 Power Supply ........................................................................................... 22 CHAPTER 4 DATA COMMUNICATION NETWORK (LAN) REQUIREMENTS ......... 25 4.1 Communication Network Overview .............................................................. 25 4.2 Switch and Cables ..................................................................................... 27 4.3 Connection from the Field to the ACC Server ................................................ 28 CHAPTER 5 UPPER UNIT COMPONENTS ......................................................... 29 5.1 Charge-Coupled Device (CCD) Camera ........................................................ 31 5.2 Radar Component ..................................................................................... 34 5.3 Laser Beam Line Pointer............................................................................. 36 CHAPTER 6 LOWER UNIT COMPONENTS ........................................................ 37 6.1 Processor ................................................................................................. 39 6.2 SBC Specifications ..................................................................................... 40 CHAPTER 7 PRE-INSTALLATION PROCEDURES .............................................. 42 CHAPTER 8 INSTALLING THE POWER SUPPLY ............................................... 43 CHAPTER 9 INSTALLING THE LOWER UNIT TOP-PLATE (CANISTER COVER) .. 45 CHAPTER 10 INSTALLING THE LOWER UNIT ................................................... 47 CHAPTER 11 TESTING THE SDU ....................................................................... 50 11.1 Running the Lower Unit Test ....................................................................... 50 11.2 Removing the Lower Unit ........................................................................... 53 11.3 Running the OLT Power Supply Test ............................................................ 53 11.4 Running the OLT Network Test .................................................................... 53 CHAPTER 12 INSTALLING THE UPPER UNIT .................................................... 55 iv CHAPTER 13 COMPUTER SUBSYSTEM .............................................................. 60 13.1 Analysis and Control Center (ACC) .............................................................. 60 13.2 System Operator Console (SOC) ................................................................. 61 CHAPTER 14 SAFETY INSTRUCTIONS .............................................................. 63 14.1 Radar ...................................................................................................... 63 14.2 NIR Laser Beam and Pointer ....................................................................... 63 14.3 NIR (Near-Infrared) Illuminator .................................................................. 63 14.4 Electrical Systems ..................................................................................... 64 APPENDIX A - POWER SUPPLY MECHANICAL DRAWING ................................... 65 APPENDIX B – LOWER UNIT MECHANICAL DRAWING ....................................... 66 Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Table of Figures Figure 1: FODetect® system components ............................................................... 14 Figure 2: Sen…

Text truncated - open the document above for the full version.

Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Chapter 9 Installing the Lower Unit Top-Plate (Canister Cover) After infrastructure work is completed and tested, the canister cover should be mounted, to cover the canister until the other system components (lower & upper units) are supplied and ready to be installed. To mount the canister cover: 1. Remove the edge light from the present canister cover and disconnect the light power cable. 2. Remove the existing canister cover. Make sure that the canister top surface is clean before installing the new canister cover. 3. Place the canister cover (P/N XT2012000100 / 155) on top of the canister. The bottom surface includes a sealing O-ring (P/N XT2040000015 / XT2040000075). Make sure that the O-ring is in its groove before positioning the plate. 4. Adjust the position of the cover (rotation) so the line between the sensor and the runway lamp is perpendicular to the runway, with the sensor facing the scanned area. 5. Tighten the six (6) screws (P/N MS-35307-363 / MS-35307-367) of the canister cover to the canister (See figure below). The screws should be tightened with two (2) washers (flat+spring). Generally use torque 60NM. Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Figure 20: 12'' Canister cover screw holes 6. Place the protective cover (Upper Cover, Dummy, P/N XT2012000164) on top of the lower unit hole and tighten its four (4) screws (P/N XT4050000121). When the canister cover is installed before the lower units have been supplied, a protective cover is used to temporarily cover the lower unit hole. When the lower unit is eventually supplied and installed in the lower unit hole, the protective cover is removed. The screws should be tightened with 2 washers (flat P/N XT4050000122 + spring P/N XT4050000123). Generally use torque 15Nm 7. After final installation, a supervisor should visually inspect the following: • All plates are aligned with the runway. • Upper Cover Dummy is in place. • No screws are left on or next to the edge light canister. • All screws are in place and tightened according to specifications. Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Chapter 10 Installing the Lower Unit To install the lower unit: 1. Place the lower unit on the ground, next to the lower unit hole. 2. Unscrew the screws (P/N XT4050000121), which attach the protective cover to the lower unit hole, remove the cover (Upper Cover, Dummy, P/N XT2012000164), and then reach in the canister and locate the network and power supply cables. (if relevant). 3. Connect the power supply output cable to the lower unit input power connector. The unit supplies 12VDC power to the SDU system (up to 5.5A). Apply the yellow installation tape to connection points to achieve a weatherproof and airtight seal. Make sure to completely connect the cable to the power connector to prevent the power supply from overheating and burning out. 4. Use a Compressed-Air Spray to clean and dry the network cable before connecting it to the lower unit. See the lower unit connector in the following image. Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Figure 21: Lower unit’s connector panel The lower unit connectors’ configuration can be copper or fiber optic depending on the existing infrastructure. 5. Place the lower unit in its hole. Make sure that the lower unit top plate O-ring is in place (at the bottom of the plate) before placement. 6. Tighten the four (4) screws (P/N XT4050000121) to the lower unit top plate (See figure below). Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] The screws should be tightened with two (2) washers (flat P/N XT4050000122 + spring P/N XT4050000123). Generally, use torque 15Nm. Figure 22: Lower unit's four screws 7. After final installation, a supervisor should visually inspect the following: • All plates are aligned with the runway. • Upper Cover Dummy is in place. • No screws are left on or next to the edge light canister. • All screws are in place and tightened according to specifications. When the upper unit is installed at a different time than the lower unit, the main connector should be covered with a protective cover (a dummy cover). Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Chapter 11 Testing the SDU After installing an SDU lower unit and before the installation of the upper unit, the lower unit should be tested using an O-Level-Tester (OLT). An O-level Tester (OLT) is a portable unit that runs diagnostic checks on the following parts of an SDU:
Lower unit
Power supp…

Text truncated - open the document above for the full version.

Sheppard, Mullin, Richter & Hampton LLP 1300 I Street, N.W., 11 th Floor East Washington, D.C. 20005-3314 202.218.0000 main 202.218.0020 fax www.sheppardmullin.com SMRH:200735743.2 Brian D. Weimer 202.469.4904 direct [email protected] March 4, 2013 File Number: 25WA-157257 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 20146 Attn: Rashmi Doshi Re: Xsight Systems Inc. Request for Equipment Authorization (FCC ID: ZNWFODE6MWR) Dear Mr. Doshi: Enclosed on behalf of Xsight Systems Inc. (“Xsight”) please find a Form 731 Application, including a Test Report and supporting documentation requesting certification for Xsight’s FODetect ® (Foreign Object Debris Detect) system. The Xsight FODetect ® system is authorized for use in the United States pursuant to In the Matter of Amendment of Section 15.253 of the Commission’s Rules to Permit Fixed Use of Radar in the 76-77 GHz Band, FCC 12-72 (2012). Please contact the undersigned if you have any questions regarding this submission. Sincerely, /S/ Brian D. Weimer Brian D. Weimer for SHEPPARD, MULLIN, RICHTER & HAMPTON LLP Enclosures SMRH:200735743.2

Sheppard, Mullin, Richter & Hampton LLP 1300 I Street, N.W., 11 th Floor East Washington, D.C. 20005-3314 202.218.0000 main 202.218.0020 fax www.sheppardmullin.com 202.469.4904 direct [email protected] March 27, 2013 File Number: 25WA-157257 VIA ELECTRONIC FILING Evelyn Cherry Office of Engineering & Technology FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 Re: Xsight Systems, Inc. FCC Form 731 Application FCC ID # ZNWFODE6MWR, Confirmation # EA857889 Dear Ms. Cherry: By this letter, Xsight Systems, Inc. (“Xsight”) responds to correspondence (#43569) from the Federal Communications Commission (“FCC”), dated March 8, 2013, concerning its pending Form 731 application for Equipment Authorization. Specifically, the FCC requested that Xsight submit additional justification as a basis for its request for long-term confidential treatment of the exhibit titled “Internal Photos.” To resolve this issue and expedite the processing of its application, Xsight hereby withdraws the request for long-term confidential treatment of the Internal Photos exhibit. If you have any further questions regarding Xsight’s pending application, please do not hesitate to contact me. Sincerely, /s/ Brian D. Weimer for SHEPPARD, MULLIN, RICHTER & HAMPTON LLP SMRH:200803335.1

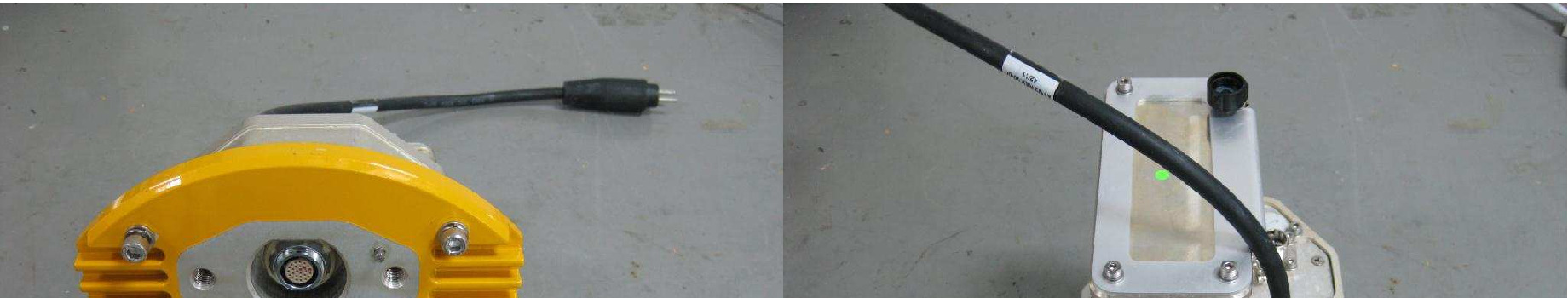

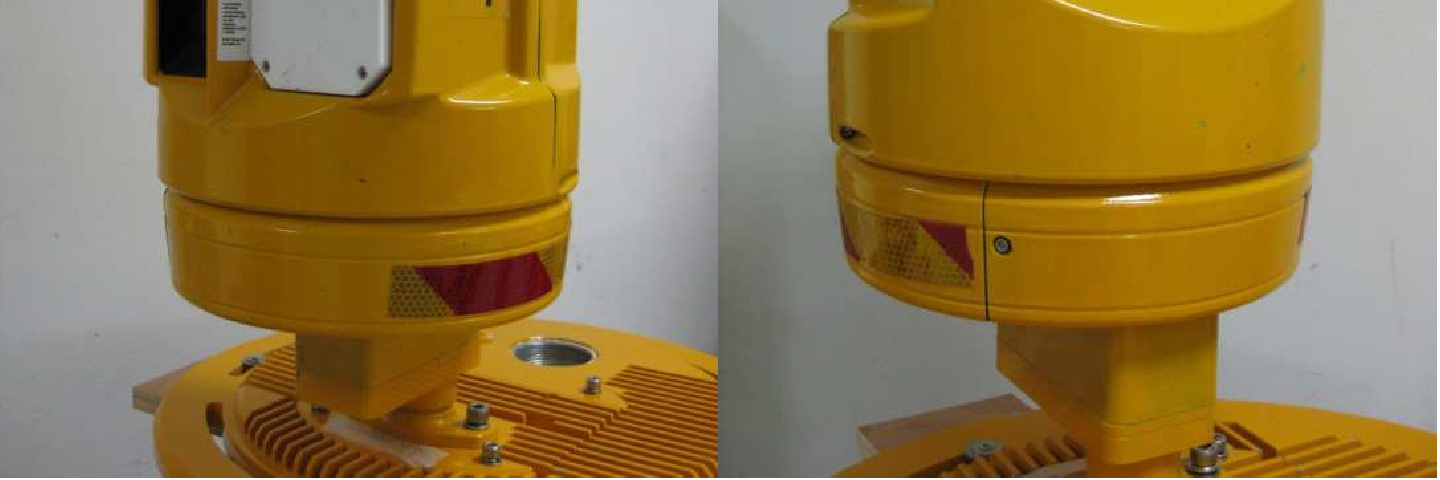

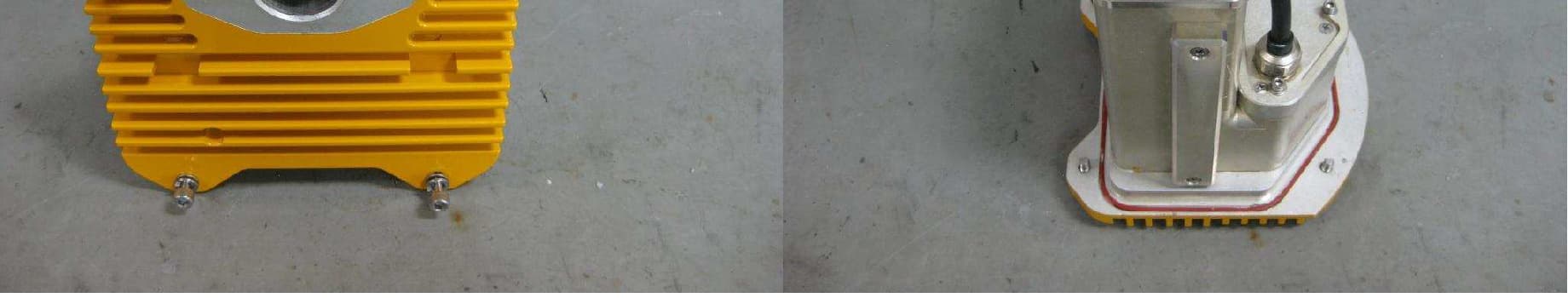

Xsight Proprietary Information / Secret Commercial Information External Photos Xsight Systems www.xsightsys.com 11 Haavoda St., Bellers House, One Post Office Square, 30th Floor, Rosh-Haayin, Israel 48017 Boston, Massachusetts 02109 Tel: +972-3-9102562 Fax: +972-3-9030590 Tel.781-330-8466 [email protected] Xsight Proprietary Information / Secret Commercial Information 1. Lower Unit Computer V7, F/O Config 02-02 2. Upper unit, ver 6.2, 14"" Config Xsight Systems www.xsightsys.com 11 Haavoda St., Bellers House, One Post Office Square, 30th Floor, Rosh-Haayin, Israel 48017 Boston, Massachusetts 02109 Tel: +972-3-9102562 Fax: +972-3-9030590 Tel.781-330-8466 [email protected]

Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Label and Label Location Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 1. The following label will be permanently attached to the upper unit with a permanent adhesive. FODetect FCC ID: ZNWFODE6MWR Manufacturer: Xsight Systems. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 6.00 cm 4.00 cm Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 2. Label Location FODetect FCC ID: ZNWFODE6MWR Manufacturer: Xsight Systems. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (3) This device may not cause harmful interference, and (4) this device must accept any interference received, including interference that may cause undesired operation.

Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Internal Photos Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 1. Upper unit, ver 6.2, 14"" Config, w/o covers 2. SDU-600/UR, Radar Assy, ver 6.2 Rev 02-00, Back side Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 3. SDU-600/UR, Radar Assy, ver 6.2 Rev 02-00, Antenna side (with Radome) 4. SDU-600/UR, Radar Assy, ver 6.2 Rev 02-00, Antenna side (w/o Radome) Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 5. Exciter Ver 2 Assy 02-00 with RF Front-End 77GHz FMCW Trans, FMCW-12-ABCD,Rev2 and Antenna, Radar Assy 3 01-00 6. RF Front-End 77GHz FMCW Trans, FMCW-12-ABCD,Rev2 and Antenna, Radar Assy 3 01-00 Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 7. Antenna, Radar Assy 3 01-00 8. RF Front-End 77GHz FMCW Trans, FMCW-12-ABCD,Rev2 Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 9. Exciter Ver 2 Assy 02-00 Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 10. Board, MRU Ver 01-02 (Digital Board) Component side 11. Board, MRU Ver 01-02 (Digital Board) Print side Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] 12. Board, RF X Band V2.0 for RF Assy, Rev 03-01 (RF Board) Component side 13. Board, RF X Band V2.0 for RF Assy, Rev 03-01 (RF Board) (Digital Board) Print side Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected]

Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] Environmental evaluation and exposure limit according to FCC CFR 47part 1, §1.1307, §1.1310 Applicant: Xsight Systems Type of equipment: FOD Detect System with Radar Operating in 76-77 GHz band Model: SDU-600-CR FCC ID: ZNWFODE6MWR Xsight Proprietary Information / Secret Commercial Information Xsight Systems 11 Haavoda St., Bellers House, Rosh-Haayin, Israel 48017 Tel: +972-3-9102562 Fax: +972-3-9030590 www.xsightsys.com One Post Office Square, 30th Floor, Boston, Massachusetts 02109 Tel.781-330-8466 [email protected] The calculation was done to confirm required safe distance for fixed device. Limit for power density for general population/uncontrolled exposure: Frequency range,
 Power Density, /  1500 - 100000 10 The power density:  ( / ) =   / π   where P T - maximum equivalent isotropically radiated power (EIRP) in Watts Results: Frequency,
 Peak field strength, / Output Power EIRP*,  Output Power EIRP,  Power Density, /  Safe distance,  76500.00 141.6 46.37 43.35 0.38 0.59 *The output power EIRP was yielded from field strength results using Field Strength to EIRP conversion factor: -95.23dB The minimum safe distance “”, was calculated as:  =  {   / (π ππ π)}, where P T - Maximum equivalent isotropically radiated power (EIRP) in Watts P - Power density limit, W/m  General public cannot be exposed to dangerous RF level.

Report ID: XSIRAD_FCC.22853.doc Date of Issue: 8/14/2012 Test specification: Section 15.253(g), RF exposure Test procedure: 47 CFR, Section 1.1307(b)1 Test mode: Compliance Verdict: PASS Date: 1/19/2012 Temperature: 20.5 º C Air Pressure: 1016 hPa Relative Humidity: 46% Power Supply: 120 VAC Remarks: 7.7 RF exposure 7.7.1 General This test was performed to determine the minimum safe distance between the transmitter antenna and human to avoid public exposure in excess of limits for general population (uncontrolled exposure). Specification test limits are given in Table 7.7.1. Table 7.7.1 RF exposure limits Frequency range, MHz Power density W/m2 76000.0 – 77000.0 10 7.7.2 Safe distance calculation for fixed transmitter The minimum safe distance was calculated from the following equation as provided in Table 7.7.2: r = sqrt[ PxG / (4xxS)], where S is power density in W/m 2 , P is the transmitter output power in W, G is the transmitter antenna numeric gain and r is distance to transmit antenna in m. With power density equal to the RF exposure limit the minimum safe distance was calculated according to the following equation: r = sqrt[ PxG / (4xxS]) Table 7.7.2 Safe distance calculation ASSIGNED FREQUENCY: 76000.0 – 77000.0 MHz EQUIPMENT INTENDED USE: Fixed* Carrier frequency, MHz Peak field strength, dB(pV/m) Average field strength, dB(pV/m) Field strength, V/m Output ower, W p , Power density, W/m Safe m Intended m 76020.0 140.6 97.67 10.72 34.44 0.30 0.52 2.0 Pass 76500.0 141.6 95.75 12.02 43.36 0.38 0.59 2.0 Pass 76980.0 139.0 97.29 8.91 23.83 0.21 0.44 2.0 Pass NOTE: RF exposure was calculated according to Peak Field Strength values obtained at 3 m test distance. The Power density was calculated according to: *The equipment deemed fixed as intended for use at a distance of more than 2.0 m from humans. Page 75 of 91 Report ID: XSIRAD_FCC.22853.doc Date of Issue: 8/14/2012 8 APPENDIX A Test equipment and ancillaries used for tests HL No Description Manufacturer Model Ser. No. Last Cal./ Check Due Cal./ Check 0163 LISN FCC/VDE/50 Ohm/50 uH + 5 Ohm, MIL-STD-461E, CISPR 16-1 Electro-Metrics ANS 25/2 1314 01-Jul-12 01-Jul-13 0446 Antenna, Loop, Active, 10 kHz - 30 MHz EMCO 6502 2857 03-Jul-12 03-Jul-13 0521 EMI Receiver (Spectrum Analyzer) with Hewlett 8546A 3617A 29-Aug-11 29-Sep-12 RF filter section 9 kHz-6.5 GHz Packard 00319, 3448A002 53 0604 Antenna BiconiLog Log-Periodic/T Bow- EMCO 3141 9611-1011 20-May-12 20-May-14 TIE, 26 - 2000 MHz 0747 Mixer, Millimeter Wave Harmonic 90 - 140 Oleson M08HW F80429-1 19-Oct-10 19-Oct-13 GHZ Microwave Labs 0768 Antenna Standard Gain Horn,18-26.5 Quinstar QWH- 110 03-Feb-12 03-Feb-15 GHz, WR-42, 25 dB gain Technology 4200-BA 0769 Antenna Standard Gain Horn, 26.5-40 Quinstar QWH- 112 03-Feb-12 03-Feb-15 GHz, WR28, 25 dB gain Technology 2800-BA 0770 Antenna Standard Gain Horn, 40-60 GHz Quinstar QWH- 118 19-Jul-12 19-Jul-13 WR-19, U-band Gain - 25 dB Technology 1900-AA 0771 Antenna Standard Gain Horn, 60-90 GHz, WR-12, Gain - 25 dB Quinstar Technology QWH- 1200-AA 111 19-Jul-12 19-Jul-13 0772 Antenna Standard Gain Horn, 75-110 Quinstar QWH- 110 19-Jul-12 19-Jul-13 GHz, WR-10, Gain - 25 dB Technology 0800-AA 0787 Transient Limiter 9 kHz-200 MHz Hewlett 11947A 3107A018 18-Oct-11 18-Oct-12 Packard 77 1194 Variac, 220 V/ 2.5 A Matsunaga 2962 05-Apr-12 05-Apr-13 1303 Transition waveguide ET28S -12R Custom ET28S - S0951 02-Aug-12 02-Aug-15 Microwave 12R 1312 Mixer Millimeter Wave Harmonic 140-220 Oleson M05HW G91112-1 19-Oct-10 19-Oct-13 GHz Microwave Labs 1425 EMI Receiver, 9 kHz - 2.9 GHz, System: Agilent 8542E 3710A002 24-Aug-11 24-Aug-12 HL1426, HL1427 Technologies 22, 3705A002 04 1513 Cable RF, 8 m, BNC/BNC Belden M17/167 1513 01-Sep-11 01-Sep-12 MIL-C-17 2358 Power Supply, 2 X 0-36VDC / 5A, 5VDC / Horizon DHR3655 767469 08-Mar-12 08-Mar-13 5A Electronics D 2883 Cable, 18 GHz N-type, M-F, 3 m Bird Electronic TC- 211539 04-Dec-11 04-Dec-12 Corp. MNFN-3.0 003 2909 Spectrum analyzer, ESA-E, 100 Hz to Agilent E4407B MY414447 08-May-12 08-May-13 26.5 GHz Technologies 62 3235 Harmonic mixer 40 to 60 GHz Agilent 11970U MY300301 18-Jul-10 18-Jul-13 Technologies 82 3286 Temperature Chamber, (-50 to +170) °C Thermotron EL-8-CH- 21-9048 11-Sep-11 11-Sep-12 1-1-CO2 3295 Tapered transition, WR-28, UG-599 to Quinstar QWP- 10381005 02-Aug-12 02-Aug-13 WR-15, UG-385 (26.5-40 GHz to 50-75 Technology AV0000 GHz) 3305 Harmonic mixer 50 to 75 GHz Agilent 11970V MY300301 18-Jul-10 18-Jul-13 Technologies 49 3306 Harmonic mixer 75 to 110 GHz Agilent 11970W MY252102 05-Aug-10 05-Aug-13 Technologies 73 3390 Microwave Cable Assembly, 26.5 GHz, 1.0 m, N type/N type Suhner Sucoflex 104EA 3390 07-Feb-12 07-Feb-13 Page 76 of 91 Report ID: XSIRAD_FCC.22853.doc Date of Issue: 8/14/2012 HL No Description Manufacturer Model Ser. No. Last Cal./ Check Due Cal./ Check 3433 Test Cable , DC-18 GHz, 1.5 m, SMA - Mini-Circuits CBL-5FT- 25679 07-Mar-12 07-Mar-13 SMA SMSM+ 3434 Test Cable , DC-18 GHz, 1.5 m, SMA - Mini-Circuits CBL-5FT- 25683 07-Mar-12 07-Mar-13 SMA SMSM+ 3531 Amplifier, low noise, 2 to 8 GHz Quinstar QLJ- 111590020 25-Dec-11 25-Dec-12 Technology 02084040 02 -J0 3535 Amplifier, low noise, 18 to 40 GHz Quinstar QLJ- 111590030 10-Jul-12 10-Jul-13 Technology 18404537 01 -J0 3536 Antenna Standard Gain Horn, 90-140 Quinstar QWH- 111590040 10-Jun-12 10-Jun-13 GHz, WR-8, Midband Gain - 24 dB Technology FPRR00 01 3612 Cable RF, 17.5 m, N type-N type Teldor RG-214/U NA 01-Dec-11 01-Dec-12 3901 Microwave Cable Assembly, 40.0 GHz, 3.5 m, SMA/SMA Huber-Suhner SUCOFLE X 102A 1225/2A 08-Feb-12 08-Feb-13 4114 Antenna, Double-Ridged Waveguide ETS Lindgren 3117 00123515 23-Jan-12 23-Jan-13 Horn, 1-18 GHz 4160 Preamplifier, 0.1 to 18 GHz, Gain 25 dB, N-type(f) in, N-type(m) out. Agilent Technologies 87405C MY470105 94 08-Aug-12 08-Aug-13 4278 Test Cable , DC-18 GHz, 4.6 m, N/M - Mini-Circuits APC- 0755A 23-Nov-11 23-Nov-12 N/M 15FT- NMNM+ 4279 Test Cable , DC-18 GHz, 4.6 m, N/M - Mini-Circuits APC- …

Text truncated - open the document above for the full version.

CETE _ C _-- O31- CETECOM ICT Services consulting - testing - certification )..›.). PARTIAL TEST REPORT (( DAkk D S /^^^eut5che Test repotr no.: 1-6133/13-01-03 Akkrethnerungsstelle D PL 12076 01 01 Testing laboratory CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 — 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: Internet: http://www.cetecom.com e-mail: ictacetecom.com + 49 681 5 98 - 9075 Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2005) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) Applicant Xsight Systems Ltd. 11 Haavoda St. Rosh Haayin 48017 / Israel Phone: +972 39 10 25 62 Fax: +972 39 03 05 90 Contact: Arik Fux e-mail: [email protected] Phone: +972 39 10 25 62 Manufacturer The accreditation is valid for the scope of testing procedures as stated in the accreditation certiifcate with the registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communications Xsight Systems Ltd. 11 Haavoda Street Rosh Haayin 48017 / Israel Test standard/s Radio Frequency Devices - Part C - Intentional Radiators CFR 47 Part 15.253 For further applied test standards please refer to section 3 of this test report . Test Item t.H77 Kind of test item: FOD Detect System with Radar operating in the 76-77 GHz band SDU-600-CR 76.0 GHz - 77.0 GHz i Model name: Frequency: Antenna: Front-feed reflector, one for Tx, one for Rx 12.0 V DC by external AC/DC Adapter -20 °C to +50 °C Power Supply: Temperature Range: This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test repotr authorised: Test performed: DN: co=Mehe7a Walla, o=CETECOM ICT Services Gm bH, ou=WAL-100930, DN: cn=Karsten Geraldy, o=Cetecom ICT Services GmbH, ou.GER-101125, [email protected], c=DE Datum: 2013.04.25 13:54:51 +02'00' 11=Mehe7a.WallaWcetecom.com , c=D…

Text truncated - open the document above for the full version.
