ZOYVDT-300Vehicle Detector

Operating manual for ITS vehicle detector Ve r s i o n N u m b e r：VDT4.2 Chinese Academy of Sciences Shanghai Internet of Things center Shanghai Microsense Information Technology Co. Ltd June 9, 2011 i Contents 1. Summarize ...................................................................................................................... 1 2. Product characteristics .................................................................................................... 2 3. ITS vehicle detector Specifications ................................................................................ 3 4. Product outside drawing ................................................................................................. 4 4.1 Open detector ......................................................................................................... 4 4.2 Receiver ................................................................................................................. 6 5. Installation guide............................................................................................................. 9 5.1 Install detector........................................................................................................ 9 5.2 Install antenna ...................................................................................................... 12 5.3 Install receiver...................................................................................................... 14 6. Connection .................................................................................................................... 15 7. Debug ............................................................................................................................ 17 7.1 Wireless transmission........................................................................................... 17 7.2 Self-adaption background control........................................................................ 17 7.3 Signal output ........................................................................................................ 18 8. appendix ........................................................................................................................ 19 9.Warning.............................................................................................19 1 1. Summarize The product consists of ITS vehicle detector (below called detector), ITS signal receiver (below called receiver), Yagi antenna (below called antenna), and feeder line. Detector (VDT-300/t) is a magnetic sensor that detects the impact of vehicles on the Earth’s magnetic field by the digital magnetic sensor to judge the vehicle passage situation in the driveway. This device can accurately sense the vehicle information in the real time, and send the collected information to the supporting receiver (VDT-300/r) via Internet of Things. This process is to complete the front-end information collection and transmission of intelligent light control, and then the receive host transmits the related information to signal controller. The signal controller use the received traffic information to analyze the share of the current lane, and smart distributes the opening and closing time of the lights. (The installation picture as Figure1) Figure1 Installation impression drawing 2 2. Product characteristics （1）This product is very small, so it will cause the minimal damage to the road. （2）The installation is simple and easy: there is wireless transmission，no power line and no data wire. （3） Self-adaption and self-learning ability is strong: Even if the road often passes large truck or bus to initiate the road flattened and deformation, it will not affect the detector to cause the big damage. By ten minutes self-adaption of equipment, the self-learning ability will normally operate again. （4） High detection precision: Whether high-speed driving or still ambling and even falling asleep, it can both accurately detec t. （5） High environment adaptability: It can continue to work properly in all weather condition (wind, rain, snow and mist) and all day (day and night) . （6） Unique algorithm, strong encryption, and strong interference immunity. （7） Stable and lasting: Low power consumption, and can work for 3-5 years (design by the daily flow of 10000 vehicles). （8） The setting is flexible and easy, and the detection range of 0 ~ 2m (radius) is adjustable . （9） It could detect trucks, trailers, buses and cars, but the bicycle and pedestrian cannot be detected . （10） It dynamically collects the vehicle traffic information of driveway in the real time. 3 3. ITS vehicle detector Specifications  Model: VDT-300/t  Work environment: -40~85°C, water-proof, protection level is IP67  Product size: 96mm (diameter)×120mm (high)  Power supply mode: 3.6V Li-SOCI2 batteries  System working voltage: DC1.8V-3.6V  Power consumption: stand-by work current is 10uA, and maximum current is 150mA  Reporting period for test data: adjustable  RF operation band: 434MHz±200KHz  Reception sensitivity: base on 1.2kbps is 110dBm (1% packets error rate)  Transmission speed: programmable data transfer rate, and highest speed is up to 500kbps  Channel bandwidth: 200KHz  Channel amount: 255 channels  Transmitting power: programmable output power, and maximum power is up to +18dBm  RF transmission distance: laid on the road, and more than 200m  Antenna polarization way: vertical polarization  Antenna gain: 0.5dBi  Antenna standing-wave ratio (SWR): 2.0 4 4. Product outside drawing Figure2 Detector outside drawing 4.1 Open detector （1）The tools for open and close as the following figure： Figure3 Flat screwdriver、scissor、703 adhesive 5 （2）Open：Use the flat screwdriver to unscrew the bolt (as Figure4), and see that there has a wire in the screw (as Figure5). Figure4 Unscrew the bolt Figure5 wire in the screw Use scissor to cut off the wire (as Figure6), and then shorten one side of the wire. The both …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Shanghai Institute of Microsystem and Information Technology 2010-6-10 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Shanghai Institute of Microsystem and Information Technology. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Vehicle Detector Model VDT-300 Freq. Range：434MHz±200KHz Series No.：ITS-VDT20110608/01A RF Output Power： 100mW Trade： We affirm that between SIEMIC and Shanghai Institute of Microsystem and Information Technology, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Lee, Lim Manager Tel： +86 (021) 62511070-5158 E-mail： [email protected]

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Shanghai Microsense Information Technology Co. Ltd 2011/6/28 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID:ZOYVDT-300 We hereby request confidential treatment of information accompanying this application as outlined below: - Operational Description - Schematic - Block Diagram - The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Lim Lee Lim / Manager Address: Building No.5 865, Level 11, Changning Road, Shanghai China

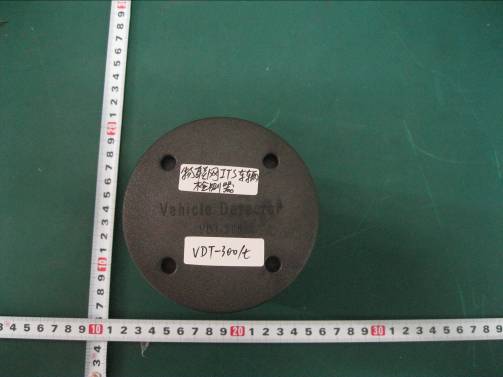

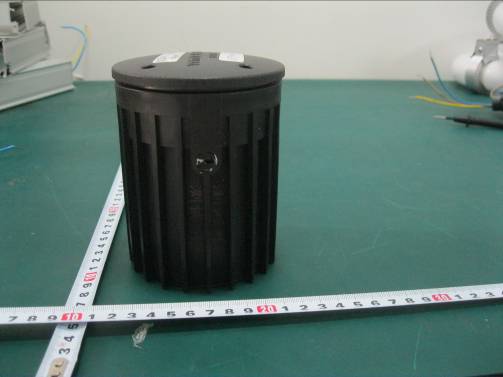

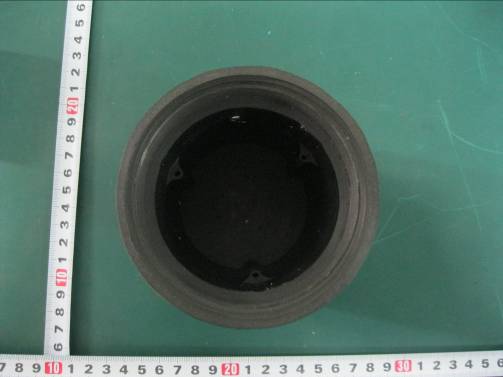

Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 23 of 55 www.siemic.com.cn Annex B. EUT AND TEST SETUP PHOTOGRAPHS Anne nex B.i. Photograph : EUT External &Internal Photo Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 24 of 55 www.siemic.com.cn

Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 25 of 55 www.siemic.com.cn Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 26 of 55 www.siemic.com.cn

Shanghai Microsense Information Technology Co. Ltd Vehicle Detector Model: VDT-300 20 June 2011 Report No.: 11020728 (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Eric Chen Compliance Engineer Spring Zhou Technical Director This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 2 of 55 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/RegionAccreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 3 of 55 www.siemic.com.cn This page has been left blank intentionally. Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 4 of 55 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION.............................................................................................................5 2 TECHNICAL DETAILS..................................................................................................................................................6 3 MODIFICATION............................................................................................................................................................7 4 TEST SUMMARY..........................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD........................................................................................................................19 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS...........................................................................................................23 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT...................................................................................................28 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST.......................................................................31 ANNEX E. SIEMIC ACCREDITATION CERTIFICATES..........................................................................................................32 Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 5 of 55 www.siemic.com.cn 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Shanghai Microsense Information Technology Co. Ltd, Vehicle Detector , and model: VDT-300 against the current Stipulated Standards. The Vehicle Detector has demonstrated compliance with the FCC 15.231:2010. EUT Information EUT Description Vehicle Detector Model No VDT-300 Input Power 3.6VDC Classification Per Stipulated Test Standard DSC Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 6 of 55 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Vehicle Detector with stipulated standard Applicant / Client Shanghai Microsense Information Technology Co. Ltd Level 11, Building No.5 865 Changning Road Shanghai China Manufacturer Shanghai Microsense Information Technology Co. Ltd Level 11, Building No.5 865 Changning Road Shanghai China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 11020728 Date EUT received 13 June2011 Standard applied FCC 15.231:2010 Dates of test 20 June 2011 No of Units: 2 Equipment Category: DSC RF Operating Frequency (ies) 434.2MHz Number of Channels : 1 Modulation : FSK FCC ID： ZOYVDT-300 Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 7 of 55 www.siemic.com.cn 3 MODIFICATION NONE Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 8 of 55 www.siemic.com.cn 4 TEST SUMMARY The product was tested in accordance with the following specifications. All Testing has been performed according to below product classification: Test Results Summary Test Standard Description Pass / Fail CFR 47 Part 15.231: 2010 15.2…

Text truncated - open the document above for the full version.

Title: RF Test Report for Vehicle Detector Model: VDT-300 To: FCC 15.231:201010 Serial#: 11020728 Issue Date: 20 June 2011 Page 27 of 55 www.siemic.com.cn Annex B.iii. Photograph: Test Setup Photo Emissions ≤1G @3m Emissions >1G @3m
