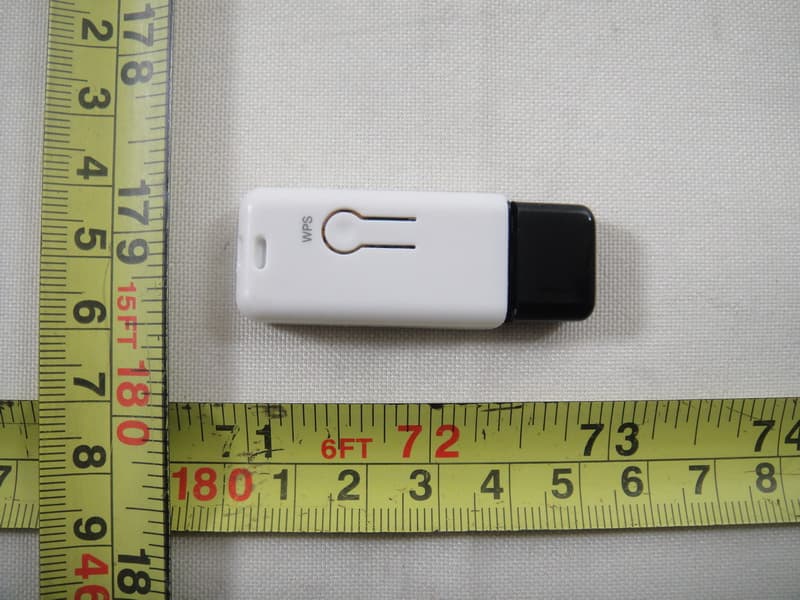

ZPYAWU101NV2150Mbps wireless-N USB Adapter

AWU101NV2 150Mbps wireless-N USB Adapter Quick Installation Guide V1.0 2011-06-29 Wireless-N USB Adapter Quick Installation Guide 1 Certification FCC CE FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices) FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment Wireless-N USB Adapter Quick Installation Guide 2 1. Package Contents The following items should be found in your package:  Wireless-N USB Adapter  Quick Installation Guide  CD-ROM Please make sure that the package contains the above items, if any of the listed items is damaged or missing, please contact with your distributor. 2. Product Overview The Wireless-N USB Adapter improves wireless transmission over long distance and fully supports the MIMO technology which enables you to connect to wireless networks at farther distances than before. It provides up to 150Mbps data transmission rate in 2.4GHz frequency, complies with IEEE 802.11n, IEEE 802.11g and IEEE802.11b and backwards compatible with all IEEE 802.11n/g/b devices. When the adapter is connecting to the standard 11n, 11g or 11b APs or Routers, it can perform much better than standard clients. It also supports wireless LAN up to 128-bit WEP, WPA/WPA2 encryption security that protects your wireless network from eavesdropping. This Wireless-N USB Adapter provides enhanced multimedia support. It is a cost-effective and best solution for you to build your wireless network 3. System Requirement You must have the following at least  A laptop computer/desktop PC with an available 32-bit USB slot  At least a 300MHz processor and 32MB of memory  Windows 98SE, ME, 2000, XP, Vista/7  A CD-ROM Drive  USB controller properly installed and working in the computer  A 802.11 、 n 802.11g or 802.11b Access Point (for infrastructure Mode) or another 、 802.11n802.11g or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking mode). Wireless-N USB Adapter Quick Installation Guide 3 4. Driver and Utility Installation Before you proceed with the installation, please notice following descriptions.  Please do not install the adapter into your computer before installing the driver from the CD.  We use driver installation in Windows XP for example. Procedures are similar for Windows 98SE/Me/2000/2003/vista/7.  If you have installed the Turbo Wireless LAN USB Adapter driver & utility before, please uninstall the old version first. Next is driver and utility installation:  Insert the Driver and Utility CD-ROM into the CD-ROM driver.  The Wizard should run automatically, and the driver installation window should appear. If not, click the Start button and choose Run and enter D:\autorun.exe (if ‘D’ is the letter of your CD-ROM drive) Figure 4-1  Select ‘I accept the terms of the license agreement’ and then click next Wireless-N USB Adapter Quick Installation Guide 4 Figure 4-2  Select ‘Install driver and Ralink WLAN Utility’, then click next. If you don’t want to use this utility to configure you network, you may select ’Install driver only’. But we suggest you use Ralink WLAN utility Figure 4-3  In Windows XP, there is a “Microsoft Zone Configuration Tool” for you to setup the wireless adapter. You can choose to configure the adapter through the Windows Zero Wireless-N USB Adapter Quick Installation Guide 5 Configuration Tool or the Ralink Configuration Tool for the adapter. It is recommended to choose the Ralink configuration tool Figure 4-4  Click install, then it will finish the installation automatically. Now you can insert you USB card into computer, it will be installed automatically 5. Connect to Wireless Network The Utility appears as an icon on the system tray of Windows while the adapter is running. You can open the utility by double-click on the icon, another way to start the Configuration Utility is to click Start>Programs> Ralink Wireless> Ralink Wireless Utility Figure 5-1 You can use the following methods to connect to a wireless network. Method1:  Select Network tab and click Rescan button to refresh current availab…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Project No.: 1106C227 Page 2 of 7 1106C227 1106C227 Neutron Engineering Inc. Project No.: 1106C227 Page 2 of 7 1106C227 1106C227 Neutron Engineering Inc. Project No.: 1106C227 Page 3 of 7 1106C227

Neutron Engineering Inc. Project No.: 1106C227 Page 4 of 7 1106C227 1106C227 Neutron Engineering Inc. Project No.: 1106C227 Page 4 of 7 1106C227 1106C227 Neutron Engineering Inc. Project No.: 1106C227 Page 5 of 7 1106C227 1106C227 Neutron Engineering Inc. Project No.: 1106C227 Page 5 of 7 1106C227 1106C227 Neutron Engineering Inc. Project No.: 1106C227 Page 6 of 7 1106C227 1106C227 Neutron Engineering Inc. Project No.: 1106C227 Page 6 of 7 1106C227 1106C227 Neutron Engineering Inc. Project No.: 1106C227 Page 7 of 7 1106C227

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1106C227 Page 1 of 123 FCC Radio Test Report FCC ID: ZPYAWU101NV2 This report concerns (check one) : Original Grant Class II Change Issued Date : Jul. 06, 2011 Project No. : 1106C227 Equipment : 150Mbps wireless-N USB Adapter Model Name : AWU101NV2 Applicant : AZIO Corporation Address : 19977 Harrison Ave. City Of Industry, CA 91789 Manufacturer : Shenzhen Netcore Industrial Ltd. Address : 9F,B Block,Tsinghua Information Park, High-tech Industrial Park,Nanshan,Shenzhen,China Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jun. 27, 2011 Date of Test: Jun. 27, 2011 ~ Jul. 05, 2011 Testing Engineer : (Ares Liu) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1106C227 Page 2 of 123 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1106C227 Page 3 of 123 Table of Contents Page 1 . CERTIFICATION 5 2 . SUMMARY OF TEST RESULTS 6 2.1 TEST FACILITY 7 2.2 MEASUREMENT UNCERTAINTY 7 3 . GENERAL INFORMATION 8 3.1 GENERAL DESCRIPTION OF EUT 8 3.2 DESCRIPTION OF TEST MODES 10 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 11 3.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 12 3.5 DESCRIPTION OF SUPPORT UNITS (RADIATED MODE) 13 3.6 DESCRIPTION OF SUPPORT UNITS (CONDUCTED MODE) 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 20 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 22 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 23 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 25 5 . BANDWIDTH TEST 73 5.1 APPLIED PROCEDURES / LIMIT 73 5.1.1 MEASUREMENT INSTRUMENTS LIST 73 5.1.2 TEST PROCEDURE 73 5.1.3 DEVIATION FROM STANDARD 73 5.1.4 TEST SETUP 74 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1106C227 Page 4 of 123 Table of Contents Page 5.1.5 EUT OPERATION CONDITIONS 74 5.1.6 TEST RESULTS 75 6 . MAXIMUM OUTPUT POWER TEST 83 6.1 APPLIED PROCEDURES / LIMIT 83 6.1.1 MEASUREMENT INSTRUMENTS LIST 83 6.1.2 TEST PROCEDURE 83 6.1.3 DEVIATION FROM STANDARD 83 6.1.4 TEST SETUP 83 6.1.5 EUT OPERATION CONDITIONS 83 6.1.6 TEST RESULTS 84 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 92 7.1 APPLIED PROCEDURES / LIMIT 92 7.1.1 MEASUREMENT INSTRUMENTS LIST 92 7.1.2 TEST PROCEDURE 92 7.1.3 DEVIATION FROM STANDARD 92 7.1.4 TEST SETUP 92 7.1.5 EUT OPERATION CONDITIONS 92 7.1.6 TEST RESULTS 93 8 . POWER SPECTRAL DENSITY TEST 113 8.1 APPLIED PROCEDURES / LIMIT 113 8.1.1 MEASUREMENT INSTRUMENTS LIST 113 8.1.2 TEST PROCEDURE 113 8.1.3 DEVIATION FROM STANDARD 113 8.1.4 TEST SETUP 113 8.1.5 EUT OPERATION CONDITIONS 113 8.1.6 TEST RESULTS 114 9 . EUT TEST PHOTO 122 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1106C227 Page 5 of 123 1. CERTIFICATION E q u i p m e n t : 150Mbps wireless-N USB Adapter Brand Name : AZIO Model Name : AWU101NV2 A p p l i c a n t : AZIO Corporation F a c t o r y : Dongguan City Netcore Network Technology Co.,Ltd. A d d r e s s : No.10-1,Sankeng Road,Qinghutou,Tangxia Town,Dongguan City Date of Test : Jun. 27, 2011 ~ Jul. 05, 2011 T e s t I t e m : ENGINEERING SAMPLE Standards : FCC Part15, Subpart C(15.247) / ANSI C63.4 : 2003 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1106C227) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of NVLAP and TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1106C227 Page 6 of 123 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious EmissionPASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.…
