ZQ5CHUANGXIANG1Radio Control Toy Transmitter (2.4GHz)

www.tuv.com Test Report No.: 14037505 001 Appendix 4 page 8 of 11 1.6 User Manual www.tuv.com Test Report No.: 14037505 001 Appendix 4 page 9 of 11 www.tuv.com Test Report No.: 14037505 001 Appendix 4 page 10 of 11 www.tuv.com Test Report No.: 14037505 001 Appendix 4 page 11 of 11

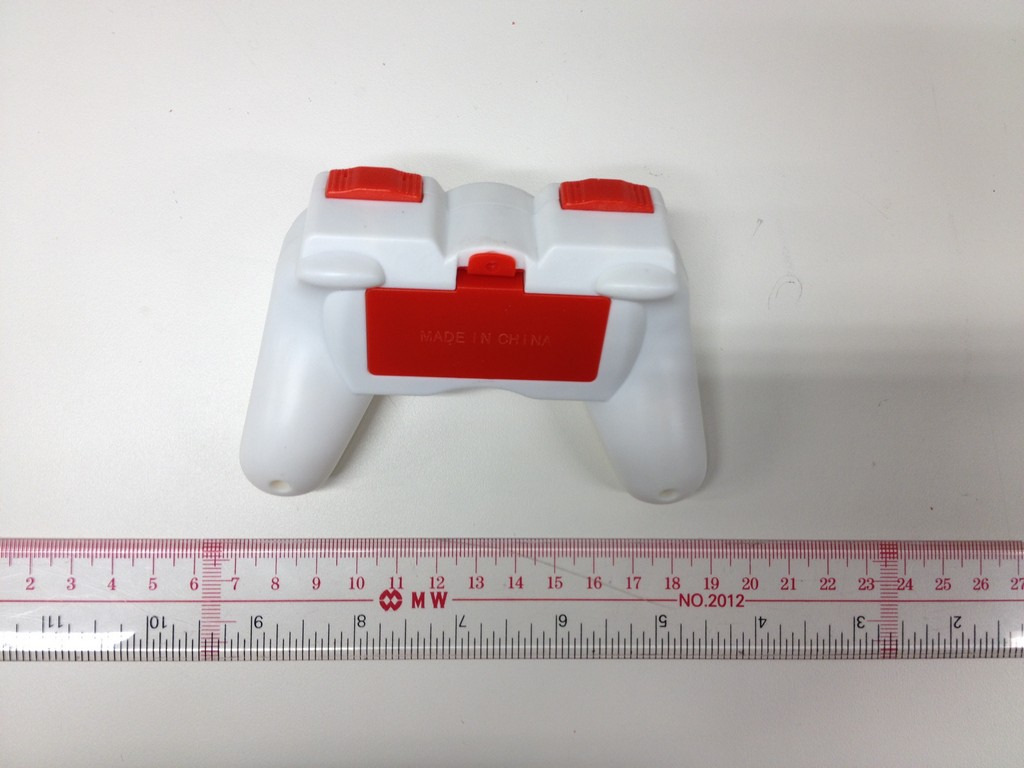

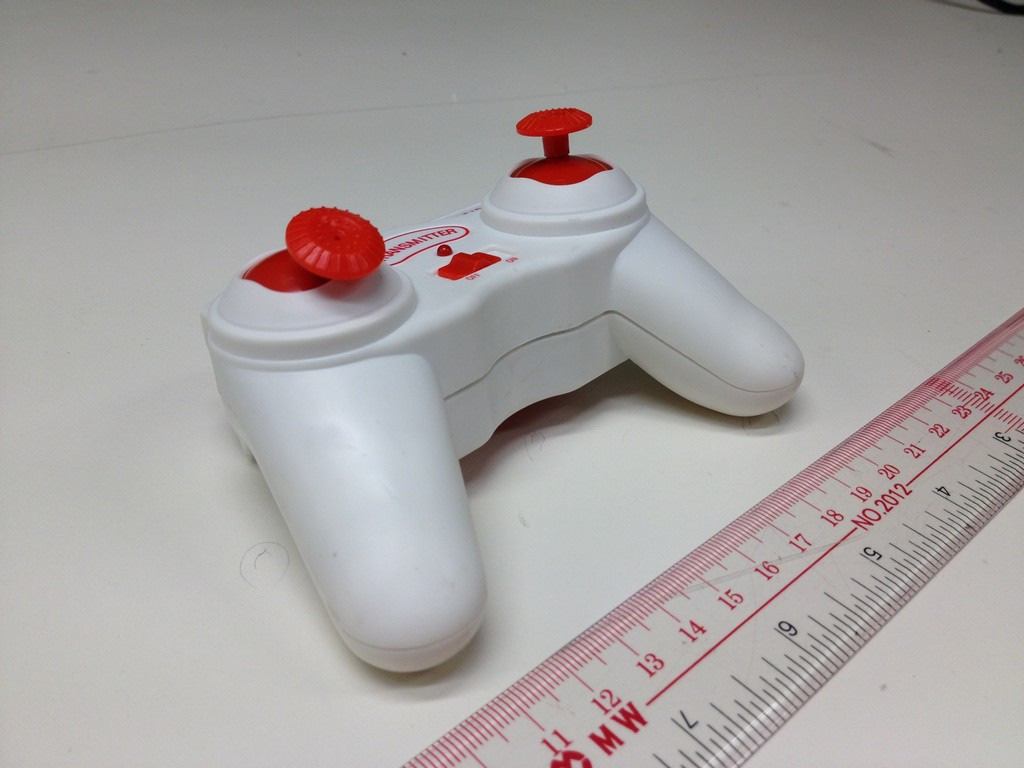

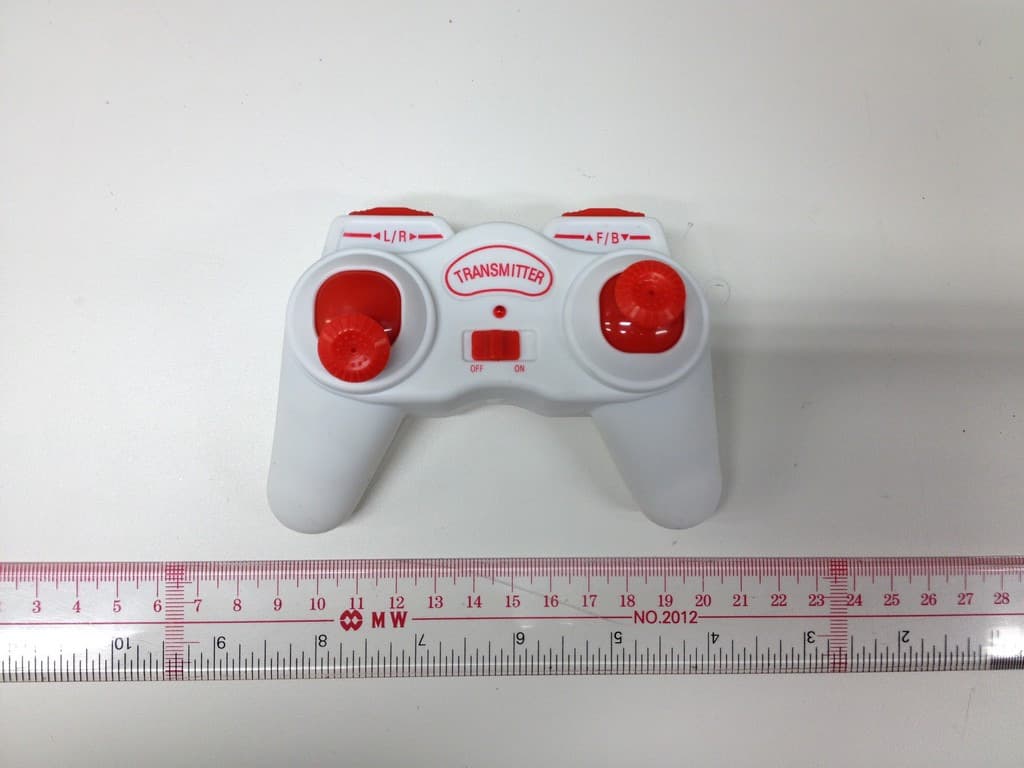

www.tuv.com Test Report No.: 14037505 001 Appendix 3 page 2 of 6 External View External View www.tuv.com Test Report No.: 14037505 001 Appendix 3 page 3 of 6 External View External View

www.tuv.com Test Report No.: 14037505 001 Appendix 4 page 2 of 11 1.1 FCCID Label Artwork

www.tuv.com Test Report No.: 14037505 001 Appendix 3 page 4 of 6 External View Internal View www.tuv.com Test Report No.: 14037505 001 Appendix 3 page 5 of 6 Internal View Internal View www.tuv.com Test Report No.: 14037505 001 Appendix 3 page 6 of 6 Internal View Internal View

www.tuv.com Test Report No.: 14037505 001 Date: 07.11.2014 page 2 of 10 Table of Content Page Cover Page ..................................................................................................................... 1 Table of Content ............................................................................................................ 2 Product information....................................................................................................... 3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use ........................................................................................................... 3 Submitted documents ................................................................................................................................. 3 Special accessories and auxiliary equipment .......................................................................................... 3 Independent Operation Modes .................................................................................................................. 4 Related Submittal(s) Grants ....................................................................................................................... 4 List of Test and Measurement Instruments ................................................................. 5 Results FCC Part 15 – Subpart C ................................................................................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains ................................................... N/A ................. 6 Subclause 15.205 – Band edge compliance of radiated emissions ............................ Pass ................. 6 Subclause 15.215 (c) – 20 dB Bandwidth ........................................................................ Pass ................. 7 Subclause 15.249 (a) – Radiated Emission (Fundamental and Harmonics) ................ Pass ................. 7 Subclause 15.249 (d) – Spurious Radiated Emissions .................................................. Pass ................. 9 Appendix 1 – Test Results 7 pages Appendix 2 – Test Setup Photos 3 pages Appendix 3 – Photo documentation 6 pages Appendix 4 – Product documentation 11 pages Appendix 5 – RF Exposure Information 2 pages www.tuv.com Test Report No.: 14037505 001 Date: 07.11.2014 page 3 of 10 Product information Manufacturers declarations Transmitter Operating frequency range 2405 - 2475 MHz Type of modulation GFSK Number of channels 71 Type of antenna Wire Antenna Power level fix Connection to public utility power line No Nominal voltage V nor : 3.0 V Product function and intended use The equipment under test (EUT) is a radio control toy transmitter operating at 2.4GHz. It is powered by batteries only. FCCID: ZQ5CHUANGXIANG1 Models Product description CX023, 003, 005, 007, 009, 010, 011, 012, 013, 015, 016, 017, 019, 020, 021, 022, 023, 025, 026, 027, 029, 030, 031, 032, 033, 035, 036, 037, 039, 040, 041, 042, 043, 045, 046, 047, 049, 050, 051, 052, 053, 055, 056, 057, 059, 060, 061, 062, 063, 065, 066, 067, 069, 070, 071, 072, 073, 075, 076, 077, 079, 080, 081, 081, 083, 085, 086, 087, 089, 090, 008, 018, 028, 038, 048, 058, 068, 078, 088, 098, 108, 118, 128, 138, 148, 158, 168, 178, 188, 198, 208, 218, 228, 238, 248, 258, 268, 278, 288, 298, 308 Radio Controlled Toy Transmitter Submitted documents Circuit Diagram Block Diagram Bill of material User manual Rating Label Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: Nil www.tuv.com Test Report No.: 14037505 001 Date: 07.11.2014 page 4 of 10 Independent Operation Modes The basic operation modes are: - Transmitting control signal for the RC toy helicopter. For further information refer to User Manual Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14037505 001 Date: 07.11.2014 page 5 of 10 List of Test and Measurement Instruments Global United Technology Services Co., Ltd. (Registration number: 600491) Equipment Manufacturer Type S/N Cal. Due date 3m Semi- Anechoic Chamber ZhongYu Electron 9.0(L)*6.0(W)* 6.0(H) --- 05 Apr 2015 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H) --- N/A ESU EMI Test Receiver R&S ESU26 --- 27 Jun 2015 Loop Antenna Zhinan ZN30900A --- 27 Jun 2015 Bi-log Hybrid Antenna SCHWARZBECK VULB9163 --- 08 Mar 2015 Double-ridged horn antenna SCHWARZBECK 9120D --- 08 Mar 2015 RF Amplifier HP 8347A --- 27 Jun 2015 RF Amplifier HP 8349B --- 27 Jun 2015 EMI Test Software AUDIX E3 --- N/A Coaxial cable GTS N/A --- 27 Jun 2015 Coaxial Cable GTS N/A --- 27 Jun 2015 Thermo meter N/A N/A --- 27 Jun 2015 FSP 30 Spectrum Analyzer Rohde & Schwarz FSP 30 100007 03 Dec 2014 www.tuv.com Test Report No.: 14037505 001 Date: 07.11.2014 page 6 of 10 Results FCC Part 15 – Subpart C Subclause 15.207 – Disturbance Voltage on AC Mains N/A There is no AC power input or output ports on the EUT. Subclause 15.205 – Band edge compliance of radiated emissions Pass Test Specification : ANSI C63.4 – 2003 Mode of operation : Tx mode Port of testing : Enclosure Detector : Peak RBW/VBW : 100 kHz / 300 kHz for f < 1 GHz 1 MHz / 3 MHz for f > 1 GHz Supply voltage : 3.0VDC, 2 x 1.5V AAA size new battery Temperature : 23ºC Humidity : 50% Requirement: Radiated emissions which fall in the restricted bands, as defined in 15.205 (a), must also comply with the radiated emission limits specified in 15.209(a). Results: For test protocols refer to Appendix 1, page 4-7. Tx frequency 2405MHz Vertical Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m No peak found --- 74.0 / P No peak found --- 54.0 / A Tx frequency 2405MHz Horizontal Polarization Freq Level Limit/ Detector MHz dBuV/m dBuV/m No peak found --- 74.0 / P No peak found --- 54.0 / A Tx frequency 2475MHz Vertical …

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14037505 001 Appendix 1 page 1 of 7 Appendix 1 Test Results www.tuv.com Test Report No.: 14037505 001 Appendix 1 page 2 of 7 20dB Bandwidth Tx frequency: 2405MHz 2.405276 GHz 2.405276 GHz 2.405276 GHz 2.405276 GHz 2.405276 GHz 2.405276 GHz 2.405276 GHz 2.405276 GHz 2.405276 GHz 1 PK 2.405276 GHz MAXH 2.405276 GHz A 2.405276 GHz Att 30 dB 2.405276 GHz * 2.405276 GHz Ref 20 dBm 2.405276 GHz Center 2.405 GHz 2.405276 GHz Span 6 MHz 2.405276 GHz 600 kHz/ 2.405276 GHz * 2.405276 GHz RBW 100 kHz 2.405276 GHzVBW 300 kHz 2.405276 GHz SWT 2 s 2.405276 GHz * 2.405276 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.405276 GHz 1 Marker 1 [T1 ] 6.04 dB m 2.405276000 GHz 2 Delta 2 [T1 ] -20.59 dB -2.258000000 MHz 3 Delta 3 [T1 ] -20.29 dB 540.000000000 kHz MARKER 1 2.405276 GHz Comment: test print Date: 24.OCT.2014 13:18:44 Tx frequency: 2445MHz 2.445288 GHz 2.445288 GHz 2.445288 GHz 2.445288 GHz 2.445288 GHz 2.445288 GHz 2.445288 GHz 2.445288 GHz 2.445288 GHz A 2.445288 GHz Att 30 dB 2.445288 GHz * 2.445288 GHz Ref 20 dBm 2.445288 GHz Center 2.445 GHz 2.445288 GHz Span 6 MHz 2.445288 GHz 600 kHz/ 2.445288 GHz * 2.445288 GHz RBW 100 kHz 2.445288 GHzVBW 300 kHz 2.445288 GHz SWT 2 s 2.445288 GHz 1 PK 2.445288 GHz MAXH 2.445288 GHz * 2.445288 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.445288 GHz 1 Marker 1 [T1 ] 6.08 dBm 2.445288000 GHz 2 Delta 2 [T1 ] -22.73 dB -1.824000000 MHz 3 Delta 3 [T1 ] -20.78 dB 504.000000000 kHz MARKER 1 2.445288 GHz Comment: test print Date: 24.OCT.2014 13:21:35 www.tuv.com Test Report No.: 14037505 001 Appendix 1 page 3 of 7 Tx frequency: 2475MHz A 2.475264 GHz Att 30 dB 2.475264 GHz * 2.475264 GHz Ref 20 dBm 2.475264 GHz 1 PK 2.475264 GHz MAXH 2.475264 GHz Center 2.475 GHz 2.475264 GHz Span 6 MHz 2.475264 GHz 600 kHz/ 2.475264 GHz * 2.475264 GHz RBW 100 kHz 2.475264 GHzVBW 300 kHz 2.475264 GHz SWT 2 s 2.475264 GHz * 2.475264 GHz 2.475264 GHz 2.475264 GHz 2.475264 GHz 2.475264 GHz 2.475264 GHz 2.475264 GHz 2.475264 GHz 2.475264 GHz 2.475264 GHz -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 2.475264 GHz 1 Marker 1 [T1 ] 6.25 dBm 2.475264000 GHz 2 Delta 2 [T1 ] -18.96 dB -1.716000000 MHz 3 Delta 3 [T1 ] -20.89 dB 576.000000000 kHz MARKER 1 2.475264 GHz Comment: test print Date: 24.OCT.2014 13:25:18 www.tuv.com Test Report No.: 14037505 001 Appendix 1 page 4 of 7 Band Edge Compliance Tx frequency: 2405MHz (radiated measurement) Vertical polarization www.tuv.com Test Report No.: 14037505 001 Appendix 1 page 5 of 7 Horizontal polarization www.tuv.com Test Report No.: 14037505 001 Appendix 1 page 6 of 7 Tx frequency: 2475MHz (radiated measurement) Vertical polarization www.tuv.com Test Report No.: 14037505 001 Appendix 1 page 7 of 7 Horizontal polarization

www.tuv.com Test Report No.: 14037505 001 Appendix 5 page 1 of 2 Appendix 5 RF Exposure Information www.tuv.com Test Report No.: 14037505 001 Appendix 5 page 2 of 2 Maximum transmitter power: Frequency (MHz) Maximum peak output power (dBuV/m) Output power (mW) 2405 92.17 0.4944 2445 93.87 0.7313 2475 92.68 0.5561 According to KDB 447498 D01: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR,24 where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below Result: (8.09/5)*√2.402 = 0.1534 <3.0 (8.34/5)*√2.441 = 0.2287 <3.0 (8.28/5)*√2.480 = 0.1750 <3.0 Conclusion: No SAR is required.

www.tuv.com Test Report No.: 14037505 001 Appendix 2 page 2 of 3 Setup for radiated emission Setup for radiated emission www.tuv.com Test Report No.: 14037505 001 Appendix 2 page 3 of 3 Setup for radiated emission
