ZQLVIRACLEVC8ONE WAY CAR ALARM WITH PKE FUNCTION

FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: The manufacturer is not responsible for any changes or modifications not expressly approved by the manufacturer for compliance, such modifications could void the user’s authority to operate the equipment.

Ant. 433.92MHz MCU TN91206A Keys LED DC 3V Battery XTAL 433.92MHz RF Filter

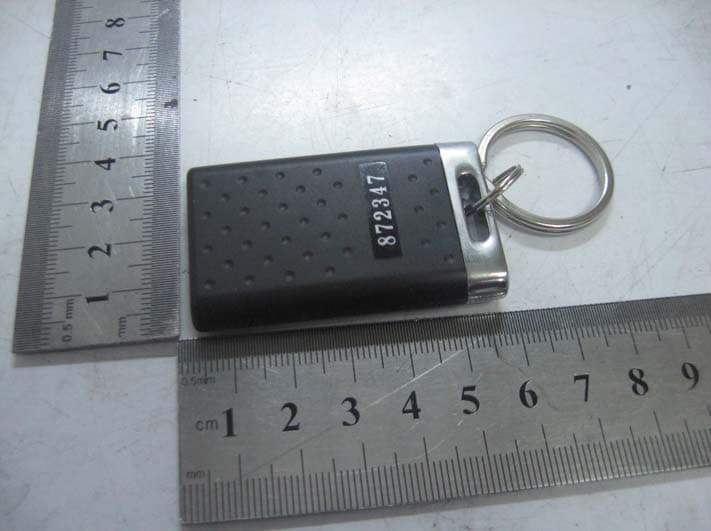

Shenzhen Viracle Electronics Co., Limited Model: VC8 REPORT NO.: STR11068247I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Shenzhen Viracle Electronics Co., Limited Model: VC8 REPORT NO.: STR11068247I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZQLVIRACLEVC8 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Viracle Electronics Co., Limited Model: VC8 REPORT NO.: STR11068247I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZQLVIRACLEVC8 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen Viracle Electronics Co., Limited Model: VC8 REPORT NO.: STR11068247I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Shenzhen Viracle Electronics Co., Limited Model: VC8 REPORT NO.: STR11068247I FCC PART 15.231 Solder Board-Component View 2

Circuit Description Model No.: VC8 Transmitter Model No.: VC8 is wireless remoter control transmit device, it has four key with control signal.Transmit encode system of the device use an advanced encode chip, and the modulation of radio frequency use a crystal control frequency modulation, circuit consisting of the following: 1， The radio control signal is produced and encoded by a encode signal generator-TA91206A. 2， The RF signal is produced and modulated by a 433.92MHz oscillistor. 3， The 433.92MHz RF signal is transmitting by antenna via a RF power amplifier of the Q1 and filter. 4, The supply voltage is DC 3V by the battery.

AGND 1 2AMP 2 LNAO 3 VCC 4 ANT2 5 ANT1 6 PDCO 7 VG 8 LVD 9 KEY2 10 KEY1 11 KEY0 12 LED 13 DGND 14 KEY3 15 RFDO 16 DIN 17 DVCC 18 DOREV 19 DATAOUT 20 PDC 21 AGCT 22 DEMT 23 AGCE 24 IC 1 TN91206A C3182P C4182P C8104P C9104P C6681PC5104P C12104P C13681P C14471P C2104P C10104P C1 L1470uHL22.38mH RKE POWER-CTRL SW1 SW2 SW3 SW4 静音 设防 解除 寻车 LED1 R94.7K L347nH C170.5P C15 2P X1 NDR43 3 .9 2 Q1H7 D R1127K R10300K 测试点 2 R4300K R3300K 测试点 3 测试点 1 C747u/6.3V C1147u/6.3V R110R R247R 3V 电池 3V 电池 BT1CR2032 VCC VCC VCC Vin 2 GND 1 OUT 3 U1 XC61CC2702MR 3V 电池 C16 R510K R610K R710K R810K Ant. 433.92MHz

Shenzhen Viracle Electronics Co., Limited Model: VC8 REPORT NO.: STR11068247I PAGE 1 OF 17 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR Shenzhen Viracle Electronics Co., Limited 5/F, Bldg.14, Lianchuang Tech-Park, Buji, Shenzhen, China. FCC ID: ZQLVIRACLEVC8 Report Concerns: Original Report Equipment Type: One Way Car Alarm With PKE Function Model: VC8 Report No.: STR11068247I Test Date: 2011-06-26 to 2011-07-08 Issue Date: 2011-07-12 Tested By: Galy He / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Shenzhen Viracle Electronics Co., Limited Model: VC8 REPORT NO.: STR11068247I PAGE 2 OF 17 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 ANTENNA REQUIREMENT ....................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (B) RADIATED EMISSION .........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................8 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................9 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. §15.231(A) DEACTIVATION TESTING..............................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................14 6.5 SUMMARY OF TEST RESULTS/PLOTS........................................…

Text truncated - open the document above for the full version.

Shenzhen Viracle Electronics Co., Limited Model: VC8 REPORT NO.: STR11068247I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
