ZQR-LC120CDMA1x 850MHz/1900MHz MPERs WRIST WATCH

Draft Lifecomm User Guide 1 User Guide Draft Lifecomm User Guide 2 Table of Contents User Guide .................................................................................................................................................... 1 Welcome to Lifecomm .................................................................................................................................. 3 About Lifecomm ............................................................................................................................................ 4 Quick Start ................................................................................................................................................. 5 Adjusting Speaker Volume ........................................................................................................................ 5 Getting Started .............................................................................................................................................. 5 Cleaning the Lifecomm Device .................................................................................................................. 6 About the Device .......................................................................................................................................... 6 Lifecomm Device Controls/Attributes: ..................................................................................................... 6 Waterproof ............................................................................................................................................... 6 Device Icons .................................................................................................................................................. 7 Calling for Help .............................................................................................................................................. 8 Automatic Fall Detection .............................................................................................................................. 9 Charging the Device .................................................................................................................................... 10 Battery......................................................................................................................................................... 11 Optional Travel Charger .............................................................................................................................. 11 Listening to Audio Messages ...................................................................................................................... 12 Testing the Device ....................................................................................................................................... 13 Airplane Mode ............................................................................................................................................ 14 User and Caregiver Web Applications ........................................................................................................ 15 General Information ................................................................................................................................... 16 Manufacturer’s Warranty ........................................................................................................................... 16 Operating Environment .............................................................................................................................. 16 Regulatory Information ............................................................................................................................... 17 FDA and FCC Requirements .................................................................................................................... 17 For the most updated User Guide, please visit www.lifecomm.com Draft Lifecomm User Guide 3 Welcome to Lifecomm Thank you for choosing the Lifecomm Mobile Personal Emergency Response System (MPERS) and congratulations on your purchase and subscription. You are now on your way to greater freedom and independence. Whether you’re at home or away, your Lifecomm Device provides a one-button connection to an Emergency Response Specialist, anywhere and anytime day or night.* This User Guide introduces you to the Lifecomm MPERS solution and explains how to use the features of your new Device. Your use of the Lifecomm Device is subject to the complete Lifecomm Terms and Conditions, a copy of which was included in the package containing your Lifecomm Device and which may be viewed at www.lifecomm.com. Included with your purchase and subscription are the following:  Lifecomm Device (Wristwatch, Pendant or Belt Clip)  Charging Station Additional Accessories:  Travel Charger Contact the Customer Care Center to purchase additional accessories at 1-800-XXX-XXXX. *IMPORTANT: The Device will operate only in the United States and may not operate in all locations at all times. Your Device works by using cellular communications networks to connect the Device with our Emergency Response Specialists and by using GPS (the Global Positioning System Satellite Network) to determine your location. The System will not work unless you are in an area that has cellular coverage. Also, location data may not be available if the Device is unable to receive GPS signals. SOME OR ALL OF THE SYSTEM FEATURES MAY NOT BE AVAILABLEAT ALL TIMES, ESPECIALLY IN ENCLOSED OR REMOTE AREAS. Draft Lifecomm User Guide 4 About Lifecomm The Lifecomm MPERS solution is a wearable, one-touch, wireless Device which provides access to emergency assistance services for the User while in and outside of the home. A User can summons assistance at any time day or night by pressing the Emergency Help Button. Even after an accidental fall, when a User might not be physically abl…

Text truncated - open the document above for the full version.

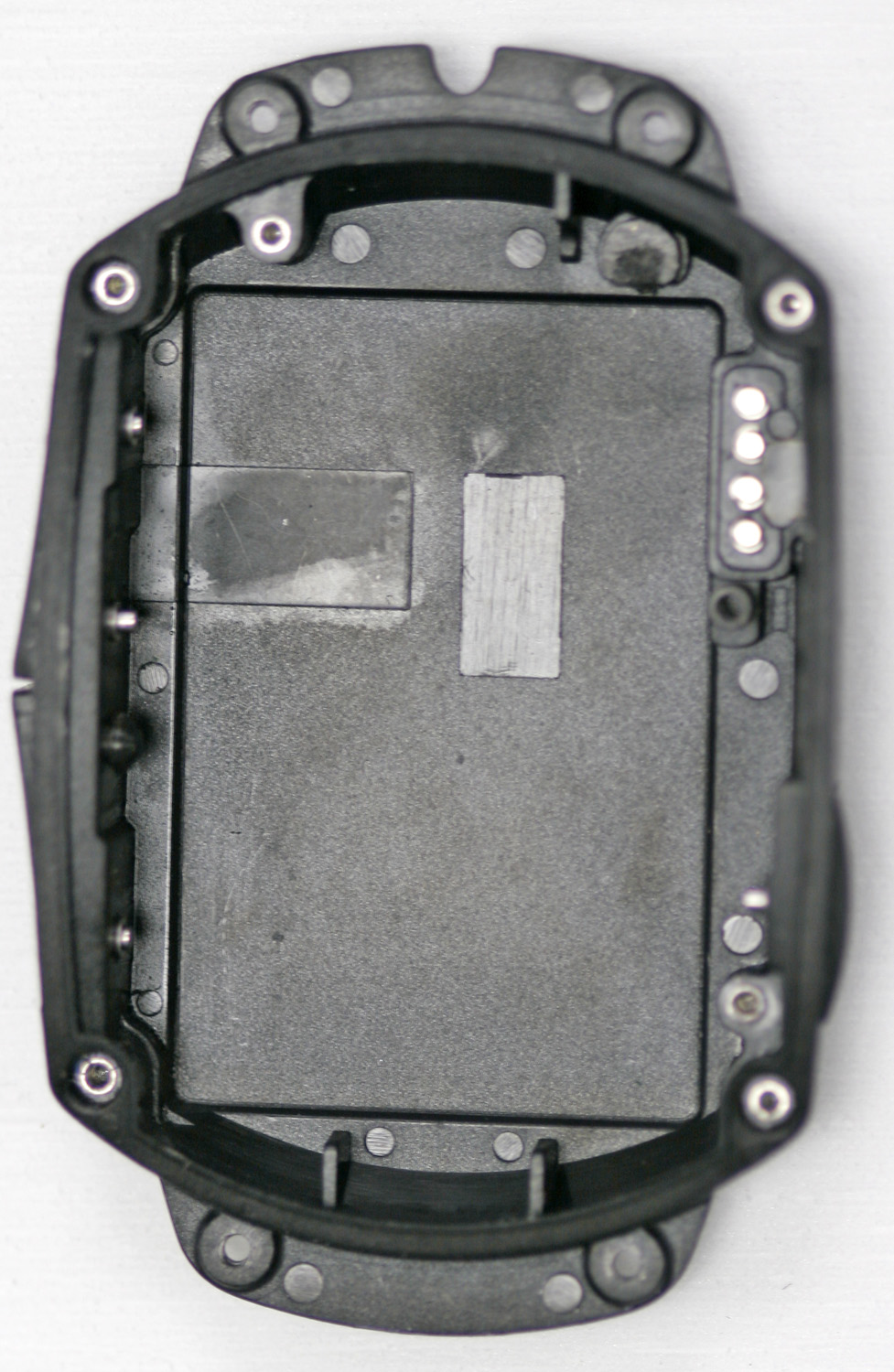

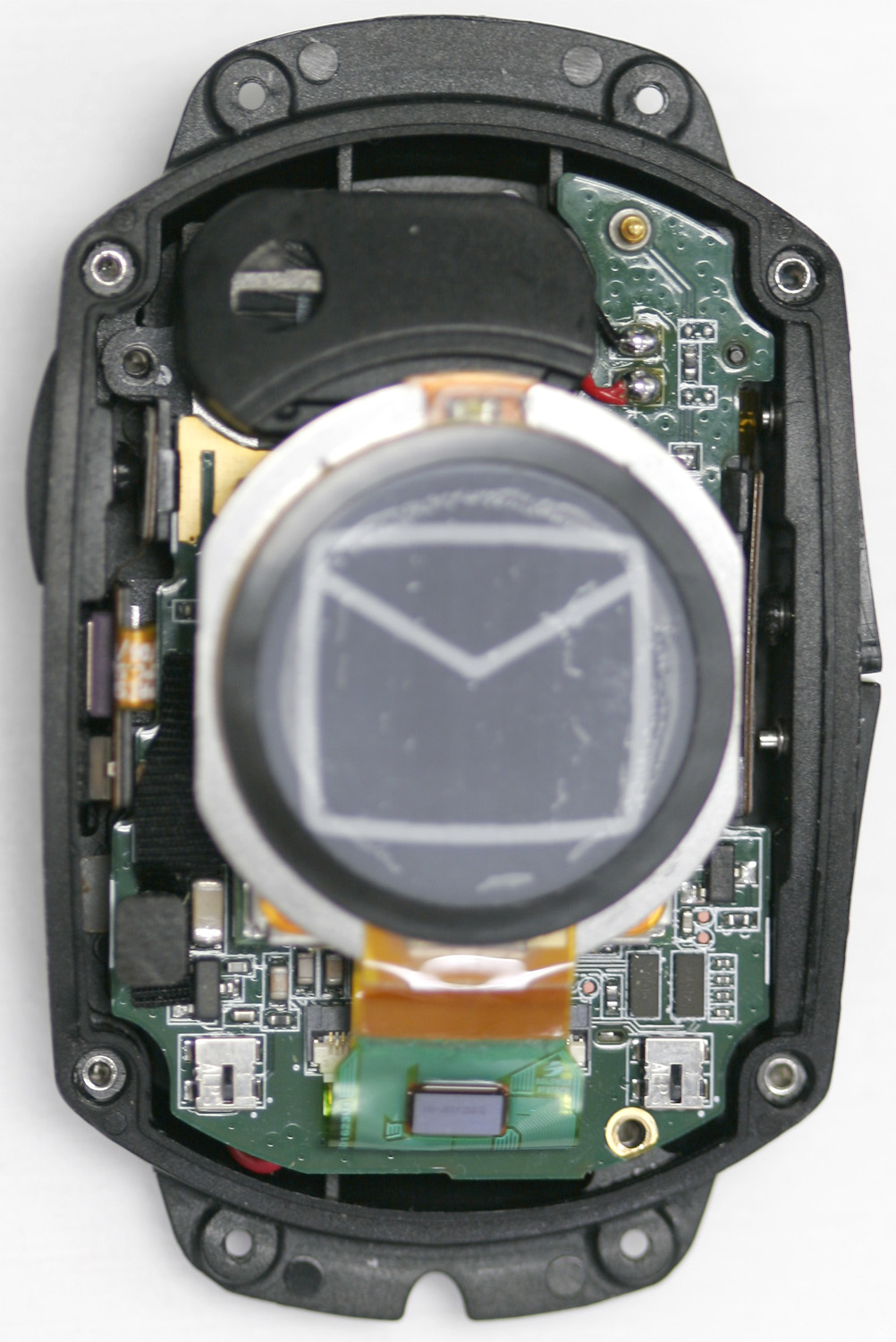

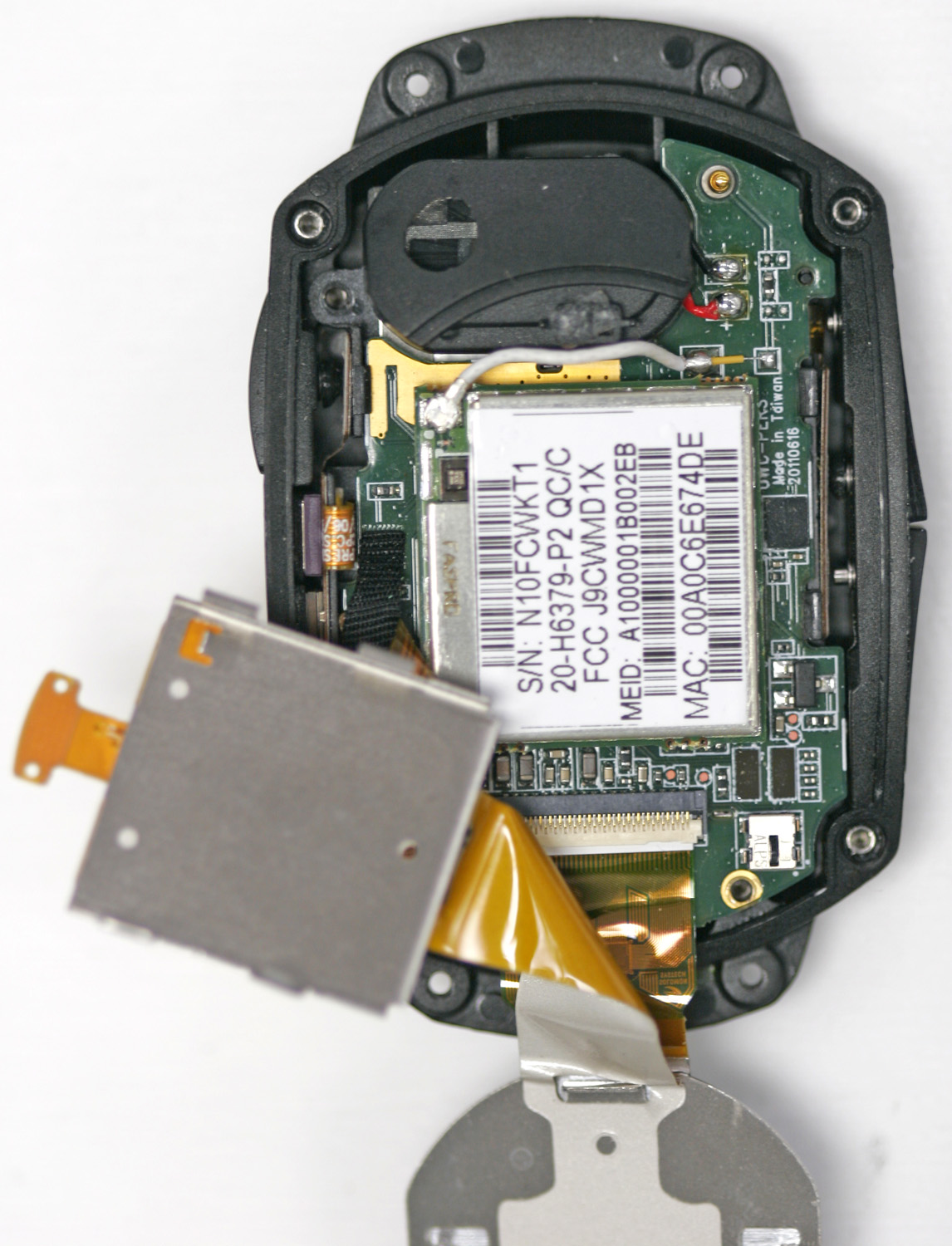

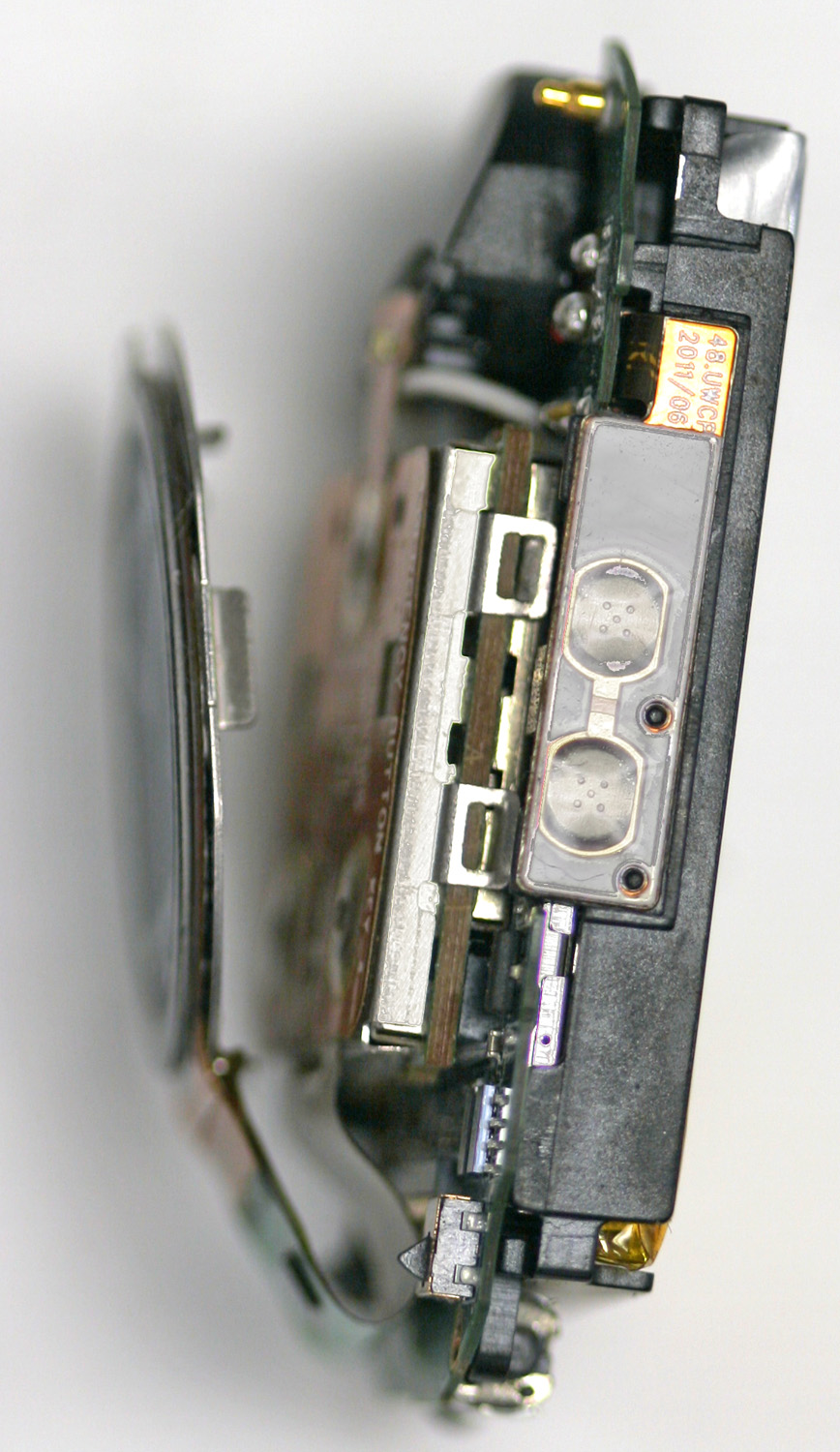

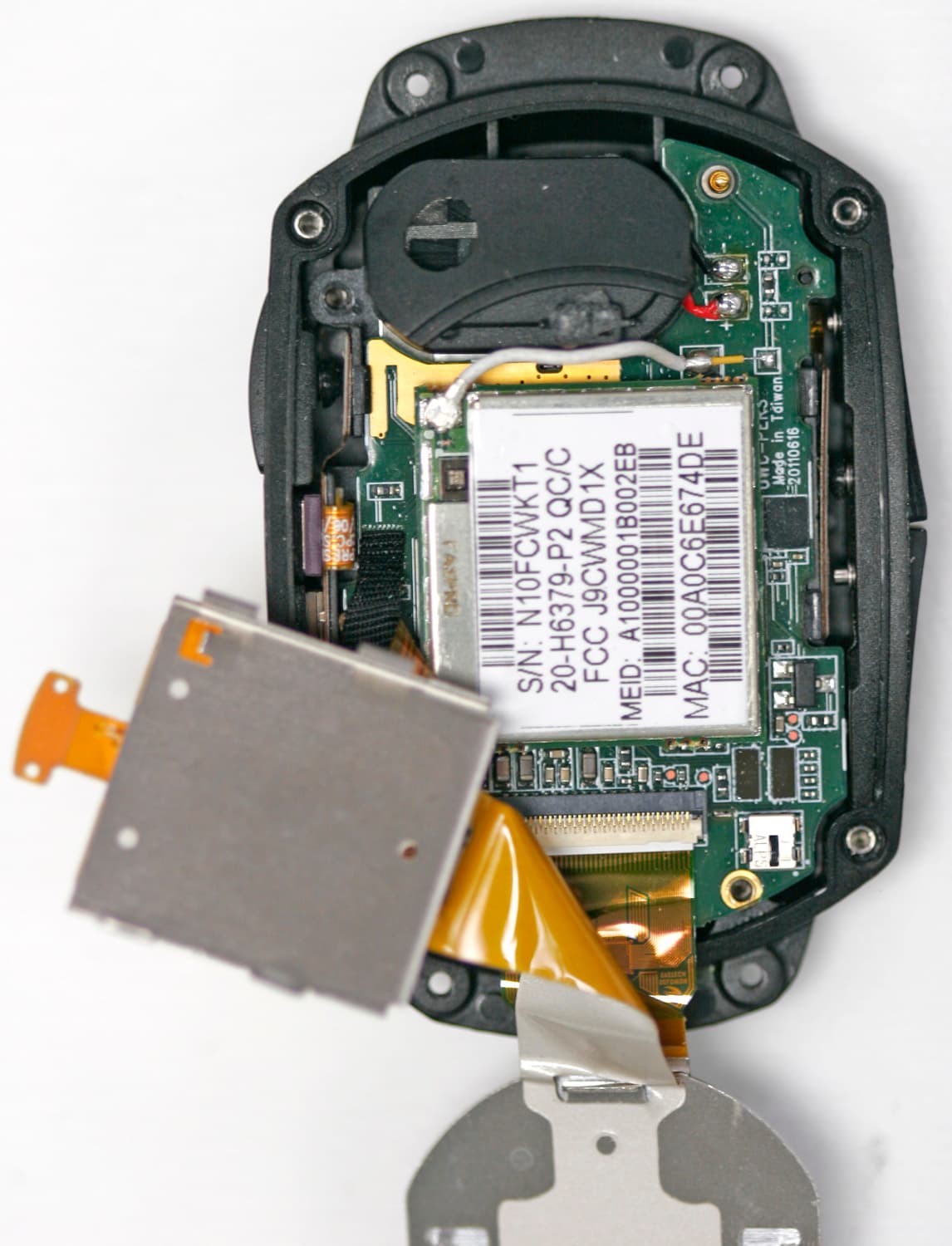

MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION mPERS Module Internal Photographs FCC IDs: ZQR-LC120 ZQR-LC130 ZQR-LC140 80-H1151-4 Rev. A October 2011 80-H1151-4 Rev. A ii MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 U.S.A. mPERS Module Internal Photographs 80-H1151-4 Rev. A October 2011 QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be registered in other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Copyright © 2011 QUALCOMM Incorporated. All rights reserved. FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 3 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Exhibit 10 mPERS Module Internal Photographs FCC Part 22 & 24 Certification FCC ID: ZQR-LC120 Model: LC120 FCC ID: ZQR-LC130 Model: LC130 FCC ID: ZQR-LC140 Model: LC140 STATEMENT OF CERTIFICATION The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Report Prepared by: QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 4 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 5 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 6 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 7 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 8 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 9 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 10 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION FCC ID: ZQR-LC120, ZQR-LC130, ZQR-LC140 80-H1151-4 Rev. A 11 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION

Not to be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without the express written permission of Qualcomm. QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be registered in other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. CDMA2000 is a registered certification mark of the Telecommunications Industry Association, used under license, ARM is a registered trademark of ARM Limited. QDSP is a registered trademark of QUALCOMM Incorporated in the United States and other countries. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 U.S.A. Copyright © 2011 QUALCOMM Incorporated. All rights reserved. Wrist-worn MPERS Device Model LC120 FCC SAR Test Report FCC ID: ZQR-LC120 80-H1151-6 Rev. B December 13, 2011 Submit technical questions to: [email protected] Wrist-worn MPERS Device Model LC120 FCC SAR Test Report FCC ID: ZQR-LC120 80-H1151-6 Rev. B 2 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Revision history Revision Date Description A November 7, 2011 Initial release B November 23, 2011 • Minor editorial corrections and clarifications • Added test dates to Overview December 13, 2011 Wrist-worn MPERS Device Model LC120 FCC SAR Test Report 80-H1151-6 Rev. B Wrist-worn MPERS Device Model LC120 FCC SAR Test Report Overview FCC ID: ZQR-LC120 80-H1151-6 Rev. B 3 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 5775 Morehouse Dr. San Diego CA 92121 Overview Test Report Reference: 80-H1151-6 Rev. B Responsible Engineer: John Forrester Signature: Test Engineer: Mark Ortlieb Signature: Date(s) of Testing: 30 August 2011 15 September 2011 Date of Report issue: 13 December 2011 Test Laboratory: QUALCOMM Incorporated 5775 Morehouse Dr. San Diego CA 92121 (General Telephone) 1 858 587 1121 Model Tested: MPERS (Mobile Personal Emergency Response System) Watch, Model LC120 Test Specification Standard(s): FCC CFR47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices FCC/OET Bulletin 65, including Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields FCC “SAR Measurement Procedures for 3G Devices” (October 2007) FCC “Mobile and Portable Device – RF Exposure Procedures and Equipment Authorization Policies” (KDB 447498) ANSI/IEEE P1528/D1.2 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques Results: The DUT complies with the above-mentioned test specifications. Wrist-worn MPERS Device Model LC120 FCC SAR Test Report Contents FCC ID: ZQR-LC120 80-H1151-6 Rev. B 4 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Contents 1. Test summary...................................................................................................................8 1.1 Introduction......................................................................................................................................8 1.2 Equipment Usage..............................................................................................................................8 1.3 Compliance Standards......................................................................................................................8 1.4 Maximum Measured SAR results (Worst Case Results)..................................................................9 1.5 SAR Limits.......................................................................................................................................9 1.6 Simultaneous Transmission..............................................................................................................9 2. EUT Description..............................................................................................................10 2.1 General............................................................................................................................................10 3. Conducted Transmit Power...........................................................................................11 4. SAR Test Program..........................................................................................................12 4.1 Test Positions..................................................................................................................................12 4.2 Test Channels.................................................................................................................................13 4.3 Dielectric Tissue Simulating Liquids.............................................................................................13 5. SAR Test Facility............................................................................................................14 5.1 General............................................................................................................................................14 5.2 Dosimetry System...........................................................................................................................14 5.3 E-field probe...................................................................................................................................15 5.4 Phantom..........................................................................................................................................15 5.5 Liquid Dielectric.............................................................................................................................15 6. System Specifications and Calibration.....................................................…

Text truncated - open the document above for the full version.

RADIATED SPURIOUS EMISSIONS PORTIONS OF FCC CFR47 PART 22 SUBPART H FCC CFR47 PART 24 SUBPART E INDUSTRY CANADA RSS-132 ISSUE 2 INDUSTRY CANADA RSS-133 ISSUE 5 CERTIFICATION TEST REPORT FOR CDMA1x 850MHz/1900MHz MPERs WRIST WATCH MODEL: LC-120 FCC ID: ZQR-LC120 REPORT NUMBER: 11U14010-1, Revision A ISSUE DATE: OCTOBER 18, 2011 Prepared for LIFECOMM, LLC 2002 SUMMIT BLVD SUITE 1800 ATLANTA, GEORGIA 30319, USA Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 11U14010-1A DATE: OCTOBER 18, 2011 FCC ID: ZQR-LC120 Page 2 of 30 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By --- 10/10/11 Initial Issue T. Chan A 10/18/11 Updated ERP and EIRP Test Results Based On Average Reading Chin Pang REPORT NO: 11U14010-1A DATE: OCTOBER 18, 2011 FCC ID: ZQR-LC120 Page 3 of 30 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION .................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 5 4.2. SAMPLE CALCULATION .............................................................................................. 5 4.3. MEASUREMENT UNCERTAINTY ................................................................................ 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................ 6 5.2. MAXIMUM OUTPUT POWER ....................................................................................... 6 5.3. SOFTWARE AND FIRMWARE ..................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 7 5.5. DESCRIPTION OF TEST SETUP ................................................................................. 8 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 10 7. LIMITS AND RESULTS ...................................................................................................... 11 7.1. RADIATED OUTPUT POWER .................................................................................... 11 7.2. FIELD STRENGTH OF SPURIOUS RADIATION ....................................................... 13 7.3. RECEIVER SPURIOUS EMISSIONS ......................................................................... 16 7.4. POWER LINE CONDUCTED EMISSION ................................................................... 21 8. SETUP PHOTOS ................................................................................................................. 28 REPORT NO: 11U14010-1A DATE: OCTOBER 18, 2011 FCC ID: ZQR-LC120 Page 4 of 30 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: Lifecomm, LLC 2002 Summit Blvd Suite 1800 Atlanta, Georgia 30319, USA EUT DESCRIPTION: CDMA1x 850MHz/1900MHz MPERs Wrist Watch MODEL: LC120 SERIAL NUMBER: module 4 DATE TESTED: SEPTEMBER 28 - 29, 2011 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 22H & 24E IC RSS-132 ISSUE 2 & RSS-133 ISSUE 5 PASS (Radiated Portion) PASS (Radiated Portion) Compliance Certification Services, Inc. (UL CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL CCS will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For UL CCS By: Tested By: THU CHAN CHIN PANG ENGINEERING MANAGER EMC ENGINEER UL CCS UL CCS REPORT NO: 11U14010-1A DATE: OCTOBER 18, 2011 FCC ID: ZQR-LC120 Page 5 of 30 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with TIA-603-C, FCC CFR 47 Part 2…

Text truncated - open the document above for the full version.

MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION mPERS FCC Part 22 & 24 Conducted Test Report FCC ID: ZQR-LC120 80-H1151-1 Rev A November 2011 mPERS FCC Part 22 & 24 Conducted Test Report 80-H1151-1 Rev. A 2 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 U.S.A. mPERS FCC Part 22 & 24 Conducted Test Report 80-H1151-1 Rev A November 2011 QUALCOMM is a registered trademark of QUALCOMM Incorporated in the United States and may be registered in other countries. Other product and brand names may be trademarks or registered trademarks of their respective owners. This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion contrary to U.S. and international law is strictly prohibited. Copyright © 2011 QUALCOMM Incorporated. All rights reserved. mPERS FCC Part 22 & 24 Conducted Test Report 80-H1151-1 Rev. A 3 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION mPERS FCC Part 22 & 24 Conducted Test Report FCC Part 22 and 24 Certification FCC ID: ZQR-LC120 (Watch) ZRQ-LC130 (Belt Clip) ZRQ-LC140 (Pendant) Model: MPERS LC120/LC130/LC140 STATEMENT OF CERTIFICATION The data, data evaluation and equipment configuration represented herein are a true and accurate representation of the measurements of the sample’s radio frequency interference emissions characteristics as of the dates and at the times of the test under the conditions herein specified. Test performed by: QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 Report Prepared by: QUALCOMM Incorporated 5775 Morehouse Drive San Diego, CA 92121-1714 Tests that required an OATS site were performed by Compliance Certification Services. mPERS FCC Part 22 & 24 Conducted Test Report 80-H1151-1 Rev. A 4 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Table of Contents 1. Introduction and Purpose................................................................................................7 2. Test Summary...................................................................................................................8 3. Test Setup Photos............................................................................................................9 4. RF Power Output Verification........................................................................................10 4.1 Base Station Emulator Settings and Measurement Procedures.......................................................................10 4.2 Test Results......................................................................................................................................................11 5. Occupied Bandwidth......................................................................................................12 5.1 Test Procedures................................................................................................................................................12 5.2 Test Results......................................................................................................................................................12 5.3 Plots.................................................................................................................................................................13 6. Band Edge Compliance..................................................................................................16 6.1 Test Procedures................................................................................................................................................16 6.2 Test Results......................................................................................................................................................16 6.3 Plots.................................................................................................................................................................17 7. Out of Band Emissions at Antenna Terminals.............................................................20 7.1 Test Procedure.................................................................................................................................................20 7.2 Test Results......................................................................................................................................................21 7.3 Plots.................................................................................................................................................................22 8. Frequency Stability.........................................................................................................31 8.1 Test Procedure.................................................................................................................................................31 8.2 Test Results......................................................................................................................................................32 9. CCDF Measurement........................................................................................................35 10. Test Equipment and Firmware....................................................................................37 mPERS FCC Part 22 & 24 Conducted Test Report 80-H1151-1 Rev. A 5 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION List of Figures Figure 3-1 Conducted Measurement Test Setup...................................................................................................9 Figure 3-2 Frequency Stability Test Setup............................................................................................................9 Figure 4-1 Conducted RF Measurements Test Setup..........................................................................................10 Figure 5-1 (Ch. 1013, RC3 SO55)..............................................…

Text truncated - open the document above for the full version.

Wrist-worn MPERS Device Model LC120 FCC SAR Test Report Photos of DUT and test setup FCC ID: ZQR-LC120 80-H1151-6 Rev. B 26 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION 12. Photos of D UT and test setup 12.1 Photos of DUT Figure 12-1 Edge View of MPERS LC120 Wrist-worn MPERS Device Model LC120 FCC SAR Test Report Photos of DUT and test setup FCC ID: ZQR-LC120 80-H1151-6 Rev. B 27 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 12-2 Front and Oblique Views of MPERS LC120 Wrist-worn MPERS Device Model LC120 FCC SAR Test Report Photos of DUT and test setup FCC ID: ZQR-LC120 80-H1151-6 Rev. B 28 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 12-3 Internal cross-section drawing of MPERS LC120 showing antenna location Wrist-worn MPERS Device Model LC120 FCC SAR Test Report Photos of DUT and test setup FCC ID: ZQR-LC120 80-H1151-6 Rev. B 29 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 12-4 DUT front toward phantom, 1.0 cm separation, set-up photo Figure 12-5 DUT front toward phantom, 1.0 cm separation, as tested Wrist-worn MPERS Device Model LC120 FCC SAR Test Report Photos of DUT and test setup FCC ID: ZQR-LC120 80-H1151-6 Rev. B 30 MAY CONTAIN U.S. AND INTERNATIONAL EXPORT CONTROLLED INFORMATION Figure 12-6 DUT rear toward phantom, 0 cm separation

REPORT NO: 11U14010-1A DATE: OCTOBER 18, 2011 FCC ID: ZQR-LC120 Page 28 of 30 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 8. SETUP PHOTOS RADIATED RF MEASUREMENT SETUP X- PHOTO Y-PHOTO REPORT NO: 11U14010-1A DATE: OCTOBER 18, 2011 FCC ID: ZQR-LC120 Page 29 of 30 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. AC MAINS LINE CONDUCTED EMISSION Z-PHOTO LINE CONDUCTED EMISSION (FRONT) REPORT NO: 11U14010-1A DATE: OCTOBER 18, 2011 FCC ID: ZQR-LC120 Page 30 of 30 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. SUPPORT LAPTOP END OF REPORT LINE CONDUCTED EMISSION (FRONT) LINE CONDUCTED EMISSION (FRONT)
