ZR4GPS-250MVKGPS Tracking Terminal

GPS-250MVK User’s Guide (version 0.1) GR Telecom Co.,Ltd. GPS-250MVK USER’S GUIDE(0.1) GR Telecom co.,Ltd Page 2. Contents 2. Product Features ................................................................. 5 2.1 General Features ..................................................................................................... 5 2.2 Product Picture ....................................................................................................... 6 3. Specification .................................................................... 7 3.1 Environment Specification ...................................................................................... 7 3.2 Hardware Specification ........................................................................................... 7 3.3 Mechanical Specification ........................................................................................ 9 3.4 Software Specification ......................................................................................... 10 4. Functions ....................................................................... 11 6. Using PST (Product Support Tool) ................................................ 22 6.1 COM PORT Set up ................................................................................................... 22 6.2 NAM Set up / Read ................................................................................................... 24 6.3 Status Screen ............................................................................................................ 26 6.4 A-Key ...................................................................................................................... 28 6.5 PRL ......................................................................................................................... 29 7. Downloader ..................................................................... 30 8. Hyper Terminal .................................................................. 33 GPS-250MVK USER’S GUIDE(0.1) GR Telecom co.,Ltd Page 3. 1. Overview This document is a summary of hardware & software specifications for GPS-250MVK, one of GR Telecom AVL handset. ▣ Contents Contents are as followings: ☞ Product Feature Describe main features & function of GPS-250MVK. ☞ Specification Describe the hardware, software and mechanical specifications. ☞ JIG for Testing (Forbidden general public to use) Describe about the JIG using method to test & read DM LOG for GPS-250MVK through the external interface. ☞ Interface Describe about Interface to use GPS-250MVK. ☞ USB Driver Installation Describe USB Driver Installation guide to connect USB cable for DM logging / debugging. ☞ PST (Product Support Tool) Describe the way to use PST. GPS-250MVK USER’S GUIDE(0.1) GR Telecom co.,Ltd Page 4. ▣ Terms and Numeric Information AKEY Authentication Key CAI Common Air Interface CDMA Code Division Multiplex Access DM Diagnostic Monitor ESN Electronic Serial Number FSC Fieled Service lock Code IS Interim Standard IS-2000 Including IS-95-B July.1999, 1X MC definition, CDMA VER6 IS-801 Position Determination IS-801 messaging layer support IS-95 The first CDMA PROTOCOL July.1993, CDMA VER1 IS-95B Everything Integration Oct.1998. High Speed Data(MDR),CDMA VER5 JTAG Joint Test Action Group MDN Mobile Directory Number MIN Mobile Identification Number SMS Short Message Service PST Product Support Tool GPS-250MVK USER’S GUIDE(0.1) GR Telecom co.,Ltd Page 5. 2. Product Features 2.1 General Features ▶ CDM A Module ▶ Support IS-95A / IS-95B / IS-2000 Release 0 ▶ Frequency : 800MHz & 1900MHz Dual Band ▶ Chipset : Qualcomm MSM6050 / GPS Sirf III ▶ Interface - 20 Pin Cable to connect with vehicle - USB DATA / USB DM (Forbidden general pubic to use) GPS-250MVK USER’S GUIDE(0.1) GR Telecom co.,Ltd Page 6. 2.2 Product Picture ▶ Mai n Body ▶ CDMA Antenna – 800 & 1900MHz ▶ GPS Antenna – 1575MHz ▶ 20 Pin Cable to connect with vehicle ▶ Emergency Button GPS-250MVK USER’S GUIDE(0.1) GR Telecom co.,Ltd Page 7. 3. Specification 3.1 Environment Specification ▶ Relative Humidity : 5% ~ 95% ▶ Storage Temperature : -40°C ~ 80°C ▶ Operation Temperature : -20°C ~ 60°C ▶ Vibration Stability: 1.5G peak 5 to 500Hz 3.2 Hardware Specification ▶ CDMA Protocol : CDMA 2000 1xRTT ▶ Power Consumption : 12V/320mA , 24V/160mA / (Tx Max Power) Status Traffic Idle GPS Active Current 320 / 160 mA 130 / 70 mA Under 100 mA ▶ IF Receiving Chip : RFR6000/RFL6000 ▶ IF Transfer Chip : RFT6100 ▶ Main Chipset : Qualcomm MSM6050 ▶ GPS Chipset : Sirf III ▶ Interface : USB ▣ RF Specification ▶ T ransmitting Part - Maximum RF Output Power: 23dBm ~ 27dBm - Frequency Range: 824 ~ 849 Mhz & 1850 Mhz~19 09 Mhz - Modulation method: OQPSK - Channel spacing: 1.23 Mhz - Occupied bandwidth: Within 1.32 Mhz - Frequency conversion method: Baseband to RF direct conversion (Zero IF) - Waveform quality: Above 0.944 ▶ Receiving Part - Frequency Range: 869 ~ 894 Mhz & 1931 Mhz~1990 Mhz GPS-250MVK USER’S GUIDE(0.1) GR Telecom co.,Ltd Page 8. - Frequency conversion method: RF to Baseband direct conversion (Zero IF) - Channel spacing: 1.23 Mhz - Modulation method: QPSK - Receiving sensitivity range: Below – 104 dBm (FER = 0.5%) - GPS Sensitivity: - 155 dBm min ▶ GPS Part - Receiver Type: L1 Frequency (1575.42 Mhz), C/A Code, 20-Channel - Max Up-date Rate: 1 Sec - Accuracy(SA off): Position < 10m 3D RMS - 3D Tracking Sensitivity: - 155 dBm at the Receiver Input (Typical) - Re-acquisition Sensitivity: - 153 dBm at the Receiver Input (Typical) - Operational Limit: Altitude < 18,000m (60,000 ft.) V elocity < 515 m/s (1,000 knots) - Time to First Fix (TTFF): Cold Start 60 Sec (Typical) Warm Start 40 Sec (Typical) Hot Start 1 Sec (Typical) - Re-acquisition Time: 3 Sec - Protocol: NMEA 9,600 bps GPS-250MVK USER’S GUIDE(0.1) GR Telecom co.,Ltd Page 9. 3.3 Mechanical Specification ▣ External Appearance & Size Size : 89.7 * 58.7 * 21.6 mm Weight : 200 g GPS-250MVK USER’S GUIDE(0.1) GR Telecom …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 GR Telecom Co., Ltd. 9F Samwoo Building 6136, Taepyeong-Dong, Soojeong-Gu, Sungnam-City, Kyunggi-Do, Korea June 21, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _Hunetec Co., Ltd_hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): GPS Tracking Terminal / GPS-250MVK We affirm that between SIEMIC and __Hunetec Co., Ltd__, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Johnson Lim / President 9F Samwoo Building 6136, Taepyeong-Dong, Soojeong-Gu, Sungnam-City, Kyunggi-Do, Korea

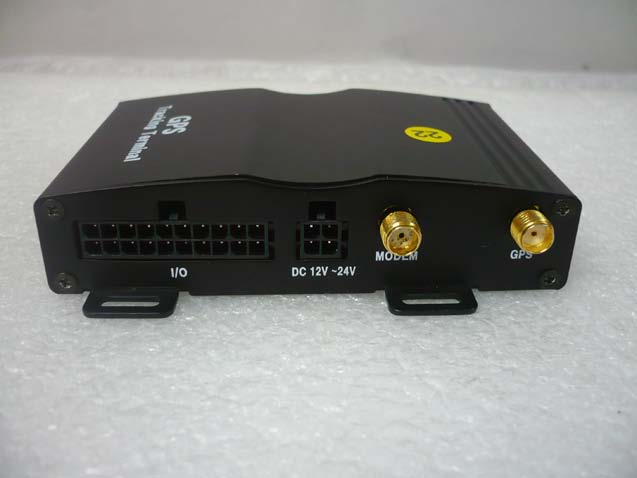

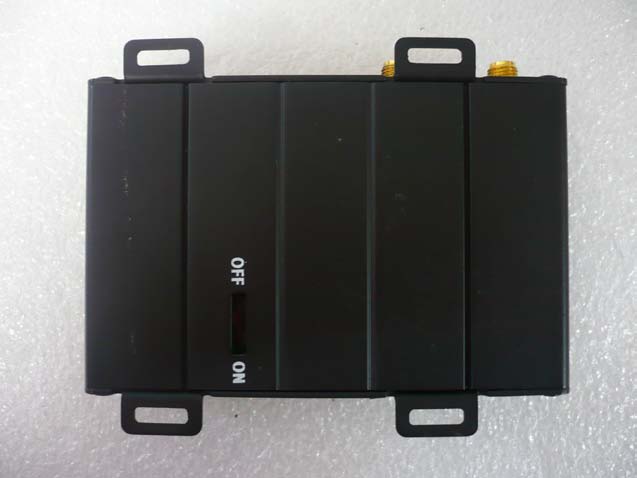

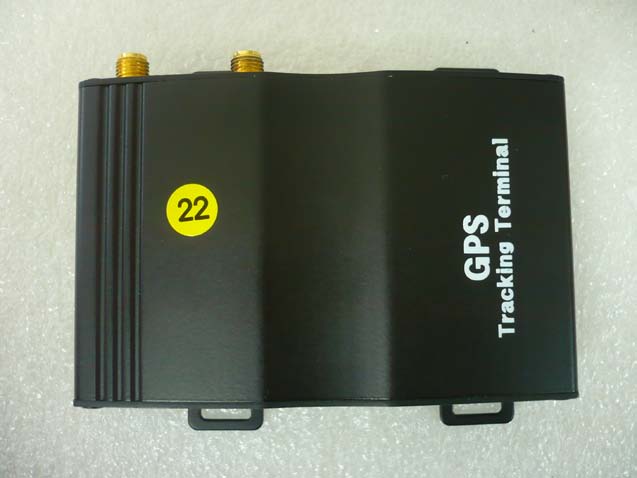

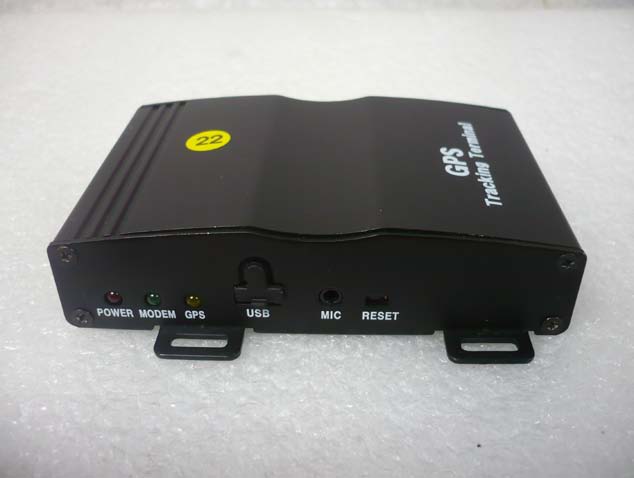

FCC ID : ZR4GPS-250MVK GR Telecom Co., Ltd. GPS Tracker Vehicle/GPS-250MVK GR Telecom Co., Ltd. GPS-250MVK Appendix 3. External Photographs of EUT GPS-250MVK 1. Front 2. Back FCC ID : ZR4GPS-250MVK GR Telecom Co., Ltd. GPS Tracker Vehicle/GPS-250MVK GR Telecom Co., Ltd. GPS-250MVK 3. Top 4. Bottom FCC ID : ZR4GPS-250MVK GR Telecom Co., Ltd. GPS Tracker Vehicle/GPS-250MVK GR Telecom Co., Ltd. GPS-250MVK 5. Left Side 6. Right Side FCC ID : ZR4GPS-250MVK GR Telecom Co., Ltd. GPS Tracker Vehicle/GPS-250MVK GR Telecom Co., Ltd. GPS-250MVK 9. GPS-250MVK

GR Telecom Co., Ltd GPS-250MVK FCC ID : ZR4GPS-250-MVK GR Telecom Co., Ltd GPS Tracker Vehicle/GPS-250MVK Appendix 2. FCC ID Label & Location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The following FCC Warning statement will be described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location(cabinet out side) on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC ID LABEL & Caution GR Telecom Co., Ltd GPS Tracker Vehicle Model : GPS-250MVK FCC ID : ZR4GPS-250MVK

FCC ID : ZR4GPS-250MVK GR Telecom Co., Ltd. GPS Tracker Vehicle/GPS-250MVK GR Telecom Co., Ltd. GPS-250MVK Appendix 4. Internal Photographs of EUT GPS-250MVK FCC ID : ZR4GPS-250MVK GR Telecom Co., Ltd. GPS Tracker Vehicle/GPS-250MVK GR Telecom Co., Ltd. GPS-250MVK FCC ID : ZR4GPS-250MVK GR Telecom Co., Ltd. GPS Tracker Vehicle/GPS-250MVK GR Telecom Co., Ltd. GPS-250MVK FCC ID : ZR4GPS-250MVK GR Telecom Co., Ltd. GPS Tracker Vehicle/GPS-250MVK GR Telecom Co., Ltd. GPS-250MVK

Appendix GR Telecom Co., Ltd. GPS Tracking Terminal GPS-250MV K Appendix. RF Exposure Requirement Page Number : 1 of 2 Appendix 11. RF Exposure Requirement § 1.1310: The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. Table 1--Limits for Maximum Permissible Exposure (MPE) ---------------------------------------------------------------------------------------------------------------- Electric field Magnetic field Power density Averaging time Frequency range (MHz) strength (V/m) strength (A/m) (mW/cm₩2₩) (minutes) ---------------------------------------------------------------------------------------------------------------- (A) Limits for Occupational/Controlled Exposures ---------------------------------------------------------------------------------------------------------------- 0.3-3.0............................. 614 1.63 *(100) 6 3.0-30.............................. 1842/f 4.89/f *(900/f₩2₩) 6 30-300.............................. 61.4 0.163 1.0 6 300-1500............................ ................. ................. f/300 6 1500-100,000........................ ................. ................. 5 6 ---------------------------------------------------------------------------------------------------------------- (B) Limits for General Population/Uncontrolled Exposure ---------------------------------------------------------------------------------------------------------------- 0.3-1.34............................ 614 1.63 *(100) 30 1.34-30............................. 824/f 2.19/f *(180/f₩2₩) 30 30-300.............................. 27.5 0.073 0.2 30 300-1500............................ ................. ................. f/1500 30 1500-100,000........................ ................. ................. 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Note 1 to Table 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. Note 2 to Table 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. 1.1 Test Procedure An MPE evaluation for was performed in order to show that the device was compliant with §2.1091. The maximum power density was calculated for each transmitter at a separation distance of 20cm. For each transmitter the maximum RF exposure at a 20 cm distance using the formula: 1.2 Results: The following calculations show that the total power density from each transmitter at 20cm is less than the limit for general population / un-controlled exposure. The device meets the RF exposure limit at a 20cm separation distance as required by part 2.1091 of the FCC rules when used with an antenna not exceeding the maximum antenna gain noted in the following table. Appendix GR Telecom Co., Ltd. GPS Tracking Terminal GPS-250MV K Appendix. RF Exposure Requirement Page Number : 2 of 2 Test Summary Frequency(Mhz) Maximum Antenna Gain(dBi) MPE @ 20cm(mW/cm^2) Test Result 837.00 1.98 0.129 Compliant 1880.00 1.98 0.136 Compliant Cell Band Frequency 837.00 Mhz Limit 0.558 mW/cm^2 Distance 20 cm Power 25.16 dBm Tx Ant Gain 1.98 dBi EIRP 27.14 dBm ERP 25.00 dBm Power Density 0.129 mW/cm^2 PCS Band Frequency 1880.00 Mhz Limit 1 mW/cm^2 Distance 20cm Power 25.39 dBm Tx Ant Gain 1.98 dBi EIRP 27.37 dBm ERP 25.23 dBm Power Density 0.136 mW/cm^2

The test report merely corresponds to the test sample(s). This report shall not be reproduced, in whole or in part without the written approval of ETL Inc. www.etl.re.kr Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement The GPS Tracking Terminal, Model GPS-250MVK has been tested in accordance with the measurement procedures specified in ANSI C63.4-2009 at the ETL Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 & 22H & 24E. I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Prepared by: Reviewed by: Jeong Hwan, Pyo (Test Engineer) Yo Han, Park (Chief Engineer) July 20, 2011 July 20, 2011 ETL Inc. #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 PRODUCT : GPS Tracking Terminal MODEL/Serial No. : GPS-250MVK / Proto type BRAND NAME : FCC ID : ZR4GPS-250MVK APPLICANT : GR Telecom Co., Ltd. 9F, Samwoo Building, 6136 Taepyeong-Dong, Soojeong-Gu, Seongnam-Si, Kyeonggi-Do, Korea Attn.: Johnson Lim MANUFACTURER : GR Telecom Co., Ltd. 9F, Samwoo Building, 6136 Taepyeong-Dong, Soojeong-Gu, Seongnam-Si, Kyeonggi-Do, Korea TYPE OF MODULATION : CDMA FREQUENCY RANGE : 22H: 824 MHz-849 MHz 24E: 1850 MHz-1909 MHz RF Output Power : 824-849Mhz: 23.22dBm(ERP) 1850-1909Mhz: 24.700dBm(EiRP) Eimmssion Designator : 1M32F9W Frequency Tolerance : ±2.5 ppm ANTENNA TYPE : Stubby Antenna RULE PART(S) : FCC Part 15 & 22H & 24E FCC PROCEDURE : ANSI C63.4-2009 / TIA-603-C-2004 TEST REPORT No. : ET110720.01 DATES OF TEST : July 03 to July 20, 2011 REPORT ISSUE DATE : July 20, 2011 TEST LABORATORY : ETL Inc. (FCC Designation Number : KR0022) Report no. ET110720.01, Page 2 of 50 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZR4GPS-250MVK Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Output Power 5.3 Radiated Output Power 5.4 Occupied Bandwidth 5.5 Spurious Emission at Antenna Terminals 5.6 Field Strength of Spurious Radiation 5.7 Frequency Stability 5.8 Radiated Emissions 6. List of test Equipment used for Measurement Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. Part list Appendix 9. User Manual Appendix 10. Tune Up Procedure Appendix 11. RF Exposure Report no. ET110720.01, Page 3 of 50 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZR4GPS-250MVK FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : GPS Tracking terminal  Model Number : GPS-250MVK  S/N : Proto type  Freq. Range : 22H: 824 MHz to 849 MHz 24E: 1 850 MHz to 1 909 MHz  Modulation Technique : CDMA  Air Data Rate : -  Antenna Type : Stubby Antenna  FCC Rule Part(s) : FCC Part 15 & 22H & 24E  Test Procedure : ANSI C63.4-2009 / TIA-603-C-2004  Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : GR Telecom Co., Ltd. Address : 9F, Samwoo Building, 6136 Taepyeong-Dong, Soojeong-Gu, Seongnam-Si, Kyeonggi-Do, Korea Attention : Johnson Lim Report no. ET110720.01, Page 4 of 50 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZR4GPS-250MVK 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2009 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2009 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2009) was used in determining radiated and conducted emissions from the GR Telecom Co., Ltd. Model: GPS-250MVK Report no. ET110720.01, Page 5 of 50 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZR4GPS-250MVK 2. PRODUCT INFORMATION Environment Specification Relative Humidity: 5 % R.H. ~ 95 % R.H. Storage Temperature: -40 °C ~ 80 °C Operation Temperature: -20 °C ~ 60 °C Vibration Stability: 1.5 G peak 5 Hz to 500 Hz Hardware Specification CDMA Protocol: CDMA 2000 1xRTT Power Consumption: 12 V/320 mA, 24 V/160 mA / (Tx Max Power) IF Receiving Chip: RFR6000/RFL6000 IF Transfer Chip: RFT6100 Main …
