ZR50001Compact Fluorescent Lamp

1 Purpose Kailin CFL has implemented three phosphors together into one compact fluorescent. It is a new type of light resource of green environment. The product’s applications are practical for supermarkets, shopping centers, retail stores, and gymnasium. 2 Directions Please read the following instruction before using the using products 1 Cut off the power once install or replace product 2 When install or replace itplease hold the plastic part in order not to damage the lamp NO holding the glass tube 3 The lamp can’t be used in dimmable circuit 4 Use environment A temperature-~+50 B humidity80% 5 Condition80V~150V 50~60HZ; If voltage is higher or lower than rated voltageit will affect lamp life. 6 If you find the lamps extinguish or twinkleplease check the connection between lamp and the lamp holder or check the power is steady or not. If all is ok, please replace it with new lamp. 3 Wa r n i n g This device complies with part 18 of the FCC Rules. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45-30MHz. If this occurs, please change outlet or move the lamp far away from other appliance.

Dongguan City Kailin Lighting Co., Ltd. FCC ID NO.: ZR50001 POWER OF ATTORNEY 2011-7-13 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize EST Compliance Laboratory Limited (Ronnie Liu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EST Compliance Laboratory Limited (Ronnie Liu) on our behalf shall have the same effect as acts of our own. This authorization expires on Aug 13,2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Dongguan City Kailin Lighting Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ..................... Shudong Lv Assistant Manager Tel: 0086-769-83201320 Fax: 0086-769-83110279

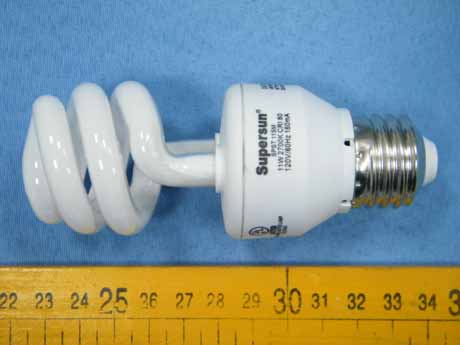

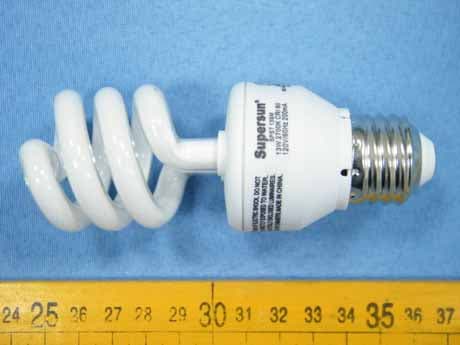

Page 19 of 23 FCC ID: ZR50001 EST COMPLIANCE LABORATORY LIMITED REPORT NO.: ESTSZ110701210F APPENDIX A. EUT PHOTOGRAPHS EUT - Overall View (Model: SPST 11SM) EUT - Overall View (Model: SPST 13SM)

FCC ID Label Sample for FCC ID: ZR50001

The proposed Label Location on EUT Proposed FCC ID Label Location (Model: SPST 11SM) Proposed FCC ID Label Location (Model: SPST 13SM)

Page 20 of 23 FCC ID: ZR50001 EST COMPLIANCE LABORATORY LIMITED REPORT NO.: ESTSZ110701210F EUT - Inside View (Model: SPST 11SM) EUT - Inside View (Model: SPST 11SM) Page 21 of 23 FCC ID: ZR50001 EST COMPLIANCE LABORATORY LIMITED REPORT NO.: ESTSZ110701210F EUT - Inside View (Model: SPST 13SM) EUT - Inside View (Model: SPST 13SM)

12345678 A B C D 87654321 D C B A Title :Compact Fluorescent Lamp 120V 11W/13W NumberRevisionSize A3 Date:19-Jul-2011Sheet of File:E:\KaiLinLighting\Backup of11-13W.ddbDrawn By: 12 F1 0.47R 1/2W D5 IN4007 D2 IN4007 D3 IN4007 D4 IN4007 E1 12uF/250V C4 223 C6 102/1250V C7 272/1200V Q1 13003 Q3 13003 DB1 DB3 D11 IN4007 D12 IN4007 R2 15R1/4W R10 15R1/4W L2A 3T L2B 5T L2C 3T 12 J2 CON2 12 J1 CON2 D10 IN4007 R5 470K 1/4W AC220V AC1 AC2 VH1 VL1 H1 L1 600~800uH C1 104/400V L3B 2.3mH R4 470K C2 473/400V TO-920 TO-920 C3 272/1200V Compact Fluorescent Lamp 120V 11w/13w magnet ring5K magnet ring5K magnet ring5K

Page 1 of 23 FCC ID: ZR50001 EST COMPLIANCE LABORATORY LIMITED REPORT NO.: ESTSZ110701210F FCC TEST REPORT For Dongguan City Kailin Lighting Co., Ltd. Compact Flourescent Lamp Model No.: SPST 11SM, SPST 13SM Test Report Number : ESTSZ110701210F EST COMPLIANCE LABORATORY LIMITED 4/F, 7 th Building, Xinyuan Industrial Park, Xinguang Road, Xili, Nanshan District, Shenzhen 518055, China Tel:+86-755-26648640 Fax:+86-755-26648637 Page 2 of 23 FCC ID: ZR50001 EST COMPLIANCE LABORATORY LIMITED REPORT NO.: ESTSZ110701210F TABLE OF CONTENTS 1 GENERAL INFORMATION.......................................................................................................................... 3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................... 3 1.2 TEST STANDARDS....................................................................................................................................................... 3 1.3 TEST SUMMARY.......................................................................................................................................................... 4 1.4 TEST METHODOLOGY.................................................................................................................................................. 4 1.5 TEST FACILITY............................................................................................................................................................ 4 1.6 TEST EQUIPMENT LIST AND DETAILS............................................................................................................................. 5 2 TEST CONFIGURATION ............................................................................................................................. 6 2.1 JUSTIFICATION............................................................................................................................................................ 6 2.2 EUT EXERCISE SOFTWARE.......................................................................................................................................... 6 2.3 SPECIAL ACCESSORIES............................................................................................................................................... 6 2.4 EQUIPMENT MODIFICATIONS......................................................................................................................................... 6 2.5 BASIC TEST SETUP BLOCK DIAGRAM............................................................................................................................ 6 3 DISTURBANCE VOLTAGE AT THE MAINS TERMINALS ........................................................................ 7 3.1 MEASUREMENT UNCERTAINTY...................................................................................................................................... 7 3.2 LIMIT OF DISTURBANCE VOLTAGE AT THE MAINS TERMINALS (FCC PART 18)................................................................... 7 3.3 EUT SETUP............................................................................................................................................................... 7 3.4 INSTRUMENT SETUP.................................................................................................................................................... 7 3.5 TEST PROCEDURE...................................................................................................................................................... 8 3.6 SUMMARY OF TEST RESULTS....................................................................................................................................... 8 3.7 DISTURBANCE VOLTAGE TEST DATA............................................................................................................................. 8 3.8 TEST RESULT............................................................................................................................................................. 8 4 RADIATED DISTURBANCES ................................................................................................................... 13 4.1 MEASUREMENT UNCERTAINTY.................................................................................................................................... 13 4.2 LIMIT OF RADIATED DISTURBANCES (FCC PART 18) .................................................................................................... 13 4.3 EUT SETUP............................................................................................................................................................. 13 4.4 TEST RECEIVER SETUP............................................................................................................................................. 13 4.5 TEST PROCEDURE.................................................................................................................................................... 14 4.6 RADIATED EMISSIONS TEST RESULT........................................................................................................................... 14 4.7 TEST RESULT........................................................................................................................................................... 14 APPENDIX A. EUT PHOTOGRAPHS .......................................................................................................... 19 EUT - OVERALL VIEW (MODEL: SPST 11SM) .................................................................................................................. 19 EUT - OVERALL VIEW (MODEL: SPST 13SM) .................................................................................................................. 19 EUT - INSIDE VIEW (MODEL: SPST 11SM) .................................................................................................…
