ZRB683219Weather Station with Outdoor Sensor

683219 Merrimack, New Hampshire USA 03054 • 800-846-3000 • Brookstone.com Find thousands more great ideas online 683219_INS_MyWeather Wireless TransmitterSize:5”Wx4.75”H_Output:100%_Prints:1/1,Blk Wireless Weather Forecaster WeaTHer aT a glaNce IS TIMe Well SPeNT Partly sunny with a chance of genius. Cyan Magenta Yellow Black www.croptima.com 683219_INS_MyWeather Wireless Transmitter.indd Sheet: 1 / 12 Date: 2011-9-12 page(s): 24, 1 1 Table of conTenTs Warnings and Cautions......................................................3 Location of Parts and Controls...............................................7 Accessories ...............................................................10 Set Up ....................................................................11 Using the Weather Beacon ................................................14 Setting the Time ...........................................................15 Preferences ...............................................................15 Reset .....................................................................15 Specifications..............................................................16 Troubleshooting............................................................17 Warranty ..................................................................21 suppliers other than Brookstone may provide their own warranties to the purchaser, but Brookstone, in so far as permitted by law, provides these products “as is.” This warranty does not apply to: a) damage caused by failure to follow instructions relating to product’s use or the installation of components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external causes; c) damage caused by service performed by anyone who is not a representative of Brookstone; d) accessories used in conjunction with a covered product; e) a product or part that has been modified to alter functionality or capability; f) items intended to be periodically replaced by the purchaser during the normal life of the product including, without limitation, batteries or light bulbs; g) any product sold “as is” including, without limitation, floor demonstration models and refurbished items; or h) a product that is used commercially or for a commercial purpose. BrOOKSTONe SHall NOT Be lIaBle FOr INcIdeNTal Or cONSeQUeNTIal daMageS reSUlTINg FrOM THe USe OF THIS PrOdUcT, Or arISINg OUT OF aNY BreacH OF THIS WarraNTY. TO THe eXTeNT PerMITTed BY aPPlIcaBle laW, BrOOKSTONe dISclaIMS aNY aNd all STaTUTOrY Or IMPlIed WarraNTIeS, INclUdINg, WITHOUT lIMITaTION, WarraNTIeS OF MercHaNTaBIlITY, FITNeSS FOr a ParTIcUlar PUrPOSe aNd WarraNTIeS agaINST HIddeN Or laTeNT deFecTS. IF BrOOKSTONe caNNOT laWFUllY dISclaIM STaTUTOrY Or IMPlIed WarraNTIeS, THeN TO THe eXTeNT PerMITTed BY laW, all SUcH WarraNTIeS SHall Be lIMITed IN dUraTION TO THe dUraTION OF THIS eXPreSS WarraNTY. Some states disallow the exclusion or limitation of incidental or consequential damages or how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. 22 Cyan Magenta Yellow Black www.croptima.com 683219_INS_MyWeather Wireless Transmitter.indd Sheet: 2 / 12 Date: 2011-9-12 page(s): 2, 23 one (1) year lIMITed WarranTy Brookstone ® warrants this product against defects in materials and/or workmanship under normal use for a period of ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If a defect arises and a valid claim is received within the Warranty Period, at its option, Brookstone will either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the product with a new product that is at least functionally equivalent to the original product, or 3) provide a store credit in the amount of the purchase price of the original product. A replacement product or part, including a user-installable part installed in accordance with instructions provided by Brookstone, assumes the remaining warranty of the original product. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes Brookstone’s property. When a store credit is given, the original product must be returned to Brookstone and becomes Brookstone’s property. Obtaining Service: To obtain warranty service, call Brookstone Limited Warranty Service at 1-800-292-9819. Please be prepared to describe the product that needs service and the nature of the problem. A purchase receipt is required. All repairs and replacements must be authorized in advance. Service options, parts availability and response times will vary. You are responsible for delivery and the cost of delivery of the product or any parts to the authorized service center for replacement, per our instructions. limits and exclusions: Coverage under this Limited Warranty is limited to the United States of America, including the District of Columbia and the U.S. Territories of Guam, Puerto Rico, and the U.S. Virgin Islands. This Limited Warranty applies only to products manufactured for Brookstone that can be identified by the “Brookstone” trademark, trade name, or logo affixed to them or their packaging. The Limited Warranty does not apply to any non-Brookstone products. Manufacturers or 212 Place the wireless transmitter outside and the base unit inside (temperature and humidity will display automatically). Initial forecast must be set. Use the + and — buttons to scroll through the forecast icons and select the one that best represents your current weather. To know the weather at a glance, learn the colors: Yellow = clear, Purple = cloudy, Green=partly cloudy, Blue = rain, Red = thunderstorm, White = snow. If you read noThIng else, read ThIs: 1 2 3 683219_INS_MyWeather Wireless TransmitterSize:5”Wx4.75”H_Output:100%_Prints:1/1,Blk Cyan Magenta Yellow Black www.croptima.c…

Text truncated - open the document above for the full version.

Brookstone, Inc.

INTERTEK TESTING SERVICE Report No.: HK11081225-1 FCC ID: ZRB683219 Equipment Photographs Model : KW9010 (External)

FCC ID: ZRB683219 Model: KW9010 Labeling Artwork

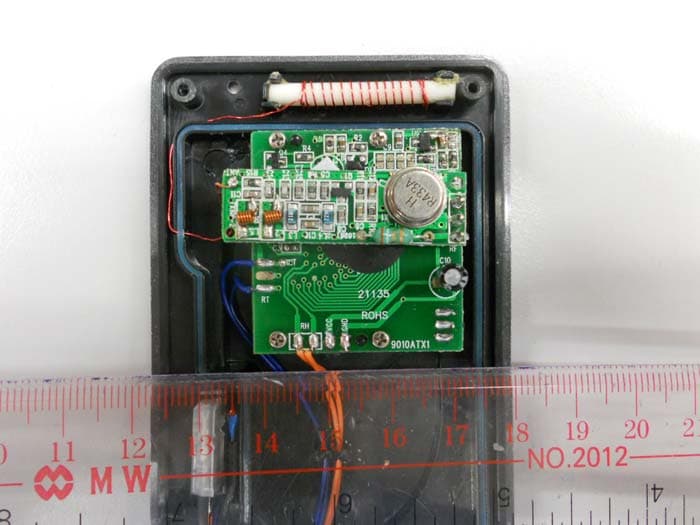

INTERTEK TESTING SERVICE Report No.: HK11081225-1 FCC ID: ZRB683219 Equipment Photographs Model: KW9010 (Internal) INTERTEK TESTING SERVICE Report No.: HK11081225-1 FCC ID: ZRB683219 Equipment Photographs Model: KW9010 (Internal) INTERTEK TESTING SERVICE Report No.: HK11081225-1 FCC ID: ZRB683219 Equipment Photographs Model: KW9010 (Internal) INTERTEK TESTING SERVICE Report No.: HK11081225-1 FCC ID: ZRB683219 Equipment Photographs Model: KW9010 (Internal) INTERTEK TESTING SERVICE Report No.: HK11081225-1 FCC ID: ZRB683219 Equipment Photographs Model: KW9010 (Internal)

FCC ID: ZRB683219 Model: KW9010 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 433 MHz. The MCU (U1) reads the temperature via resistor RT and relative humidity via resistor RH. According to the scale selector (switch C/F), the MCU (U1) transmits data via the 433MHz RF board. The data can be displayed on its own LCD. In the RF board, a crystal X1 governs the 433MHz oscillator. Q1 is the modulator and RF Amplifier; while L2, L3, L5, C11, C13 and C14 provide the impedance matching. The transmitter uses an internal, integral and non-detachable antenna.

INTERTEK TESTING SERVICES Report No. : HK11081225-1 Sample No. : 1/2 Timing Plot – Pursuant to FCC Part 15 Section 15. 231 Requirement INTERTEK TESTING SERVICES Report No. : HK11081225-1 Sample No. : 1/2 Duration of one cycle = 100ms Effective Period of the cycle = 31 x 480us = 14880us = 14.88ms Duty Cycle = Effective Period / Duration of one cycle = 14.88ms / 100ms = 0.1488 Average Factor = 20 x log ( Duty Cycle ) = 20 x log (0.1488) = -16.5479dB Timing Plot – Pursuant to FCC Part 15 Section 15. 231 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11081225-1 Brookstone, Inc. Application For Certification (Original Grant) (FCC ID: ZRB683219) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: October 03, 2011 INTERTEK TESTING SERVICES Report No.: HK11081225-1 FCC ID: ZRB683219 i GENERAL INFORMATION Brookstone, Inc. BRAND NAME: Brookstone MODEL: KW9010 FCC ID: ZRB683219 Grantee: Brookstone, Inc. Grantee Address: One Innovation Way, Merrimack, New Hampshire 03054, United State Contact Person: Jay Newcomer Tel: 603-880-9500 Fax: 603-577-8003 e-mail: N/A Manufacturer: N/A Manufacturer Address: N/A Brand Name: Brookstone Model: KW9010 Type of EUT: Transmitter Description of EUT: Weather Station with Outdoor Sensor Serial Number: N/A FCC ID: ZRB683219 Date of Sample Submitted: August 24, 2011 Date of Test: August 31, 2011 Report No.: HK11081225-1 Report Date: October 03, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11081225-1 FCC ID: ZRB683219 ii SUMMARY OF TEST RESULT Brookstone, Inc. BRAND NAME: Brookstone MODEL: KW9010 FCC ID: ZRB683219 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Antenna Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.6 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.4 N/A Transmitter Field Strength 15.227 / RSS-310 3.8 N/A Transmitter Field Strength 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement 15.231(e) / RSS-210 A1.1.5 Pass Transmitter Field Strength and Bandwidth Requirement 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Emissions 15.109 / RSS-210 2.5 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11081225-1 FCC ID: ZRB683219 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emis…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Report No. : HK11081225-1 Sample No. : 1/2 Timing Plot – Pursuant to FCC Part 15 Section 15. 231 Requirement INTERTEK TESTING SERVICES Report No. : HK11081225-1 Sample No. : 1/2 Timing Plot – Pursuant to FCC Part 15 Section 15. 231 Requirement

INTERTEK TESTING SERVICE Report No: HK11081225-1 FCC ID: ZRB683219 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: KW9010 Radiated Emission Model: KW9010 Job No.: HK11081225-1 Side A INTERTEK TESTING SERVICE Report No: HK11081225-1 FCC ID: ZRB683219 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: KW9010 Radiated Emission Model: KW9010 Job No.: HK11081225-1 Side B
