ZROJS100GSM Dual Band GPRS Digital Mobile Phone

KNOW YOUR MOBILE PHONE Display ScreenYour mobile phone has a single screen display, which consist of three main areas:„ The first line displays status icons, which indicate the signal strength, the remaining power of the battery, etc. „ The middle lines display text and images, including numbers, text, animated icons and the information you enter. „ The last line displays the currently available operations assigned to the left or right soft key. Status Icons Switching Your Phone On/Off1. Press and hold the Power key for a few seconds to switch your phone on.2. If the phone asks for a phone lock code, enter the phone lock code, and press OK. The default code is 1122 . 3. If the phone asks for a PIN code, enter the PIN code, and press OK. The PIN code is usually supplied with the SIM card. Please consult your network operator for more information.4. Press and hold Power key for a few seconds to switch your phone off. Making/Answering CallsEnter the phone number (with the area code). According to your need, enter the country code or the extension number.Press the Pick up key to make a call.To answer an incoming call, press the Pick up key or the left soft key. To end or reject an incoming/ongoing call, press the Hang up key. Select Functions and OptionsThis mobile phone provides a series of functions for you to use and custom. These functions or options are arrangedin the menu or submenu. You can use the left or right key to execute those functions indicated at the left or right ofthe prompt bar on the screen. Using The Personal Handsfree HandsetConnect the handsfree handset to your mobile phone, you can still answer calls and use the microphone withoutholding the phone. General InformationAntennaUse of other antenna devices could damage your mobile phone and reduce performance. Your phone has a built-inantenna area unnecessarily when the phone is switched on. Contact with the antenna affects call quality and maycause the phone to operate at a higher power level than otherwise needed.Network ServiceA lot of features described in this manual are called network service. They are special services provided by wirelessservice providers. You should subscribe to these services from your home service provider and learn instructions onuses before you select the network you want to use.AccessoriesLi-lon battery is the manufacturer-approved rechargeable battery available for your phone. Maybe some batteriesperform best after several full charge/discharge cycles.Use only batteries, chargers and accessories approved by the phone manufacturer for use with this particular model.The use of any other types will invalidate any approval or warranty applying to the phone, and may be dangerous.Please consult with your dealer for availability of approved accessories.Phone Lock CodeThe factory setting for the phone lock code is 1122. To avoid unauthorized use of your phone, you can change the codein the Settings > Security Settings. Remember your new code and write down in a safe place. Log(sequel)Call settingsCaller ID: (Net work Service) You can select Set By Network, Hide ID or Send ID. The default status is the Set By Network.Call Waiting > Activate, the network will notify you of a new incoming call while you have a call in progress (Net work Service).Call Divert: This network service allows you to divert your incoming calls to anther number. For details, contact your service provider.Call Barring > Activate, this network service allows you to restrict incoming calls from your phone. For details, contact your service provider.Close User Group > On, this network service specifies the group of people whom you can call and who can call you. For further information contact your network operator or service provider.Advanc e settings: Black List > On, you won’t receive the calls from the numbers entered in the blacklist. White list: you can set 20 numbers. When this white list is enabled, you can but receive the calls from the numbers entered in the White list.Auto Redial > On, the phone will automatically redial the last called number after a while if you fail to connect to the number. The times for auto redial are up to 10 times. Press Cancel to end Auto Redial.Call Time Display > On, the call time will display. Call Time Reminder: This function prompts you to end the call in time to save the call cost. You can select Off, Single, or Periodic.Auto quick end: Can set on or off and time of auto quick end. 2 3 4 5 6 7 8 9 10 11 1. Earpiece 2. Screen 15. Battery Cover 8. Right Soft Key 6. Number keys 4. Left Soft key 5. Pick up Key 3. Direction key 12. Cord hole 13. Charger and Accessories connector 1 Back LightYou can set the Back Light for the keypad through options in the menu. The backlight will be off automatically withoutany key operation after a while. Settings(sequel) Note: The SIM card will be locked if the inputs of PIN codes are wrong for three times. Then you need the PUK code to unlock the SIM card. The PIN code and PUK code are supplied together. If not, please contact your networksupplier.Phone lockThe phone lock can prevent your phone from unauthorized use.The default password of the phone lock is 1122 ; please change it into your personalized password. If you forgot the password of your phone, you would have to contact the distributor or the local service center to unlock your phone.Auto Keypad LockThe keypad will lock itself after the phone is unused for a specified time you set.Fixed DialIf activated, only the numbers set in the list or numbers started with the digits in the list can be made. (Require thesupport of SIM card.) Note: Open or close the function of Fixed Calls requires the input of PIN2 code. Please contact your network supplier for the PIN2 code. Enter Fix Calls; numbers of fixed calls will appear in the directory.Barred DialIf this function is activated, the phone numbers in the barred dial list cannot be dialed. PIN2 is required for the function.Network support is also required.Cha…

Text truncated - open the document above for the full version.

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Wirosa Group Inc Date: 2011-07-15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID : ZROJS100 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics - Block Diagram - Operational Description - BOM - Tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: WINSTON REID / PRESIDENT Contact information / address: Tel: 954-382-5700 Fax: 954-337-9253 Email: [email protected] Address: 1313 Shotgun Rd Weston USA

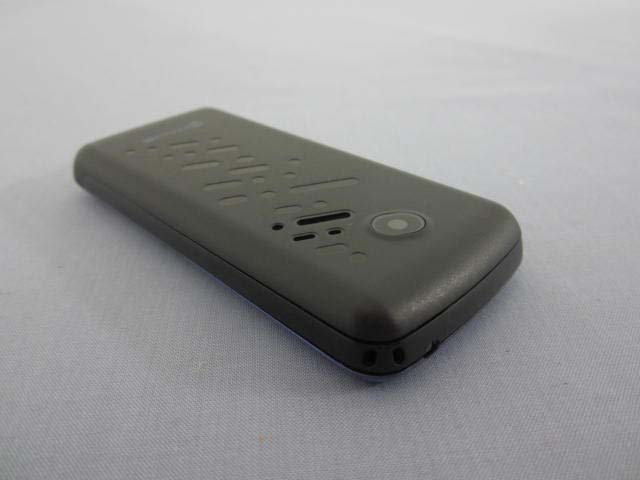

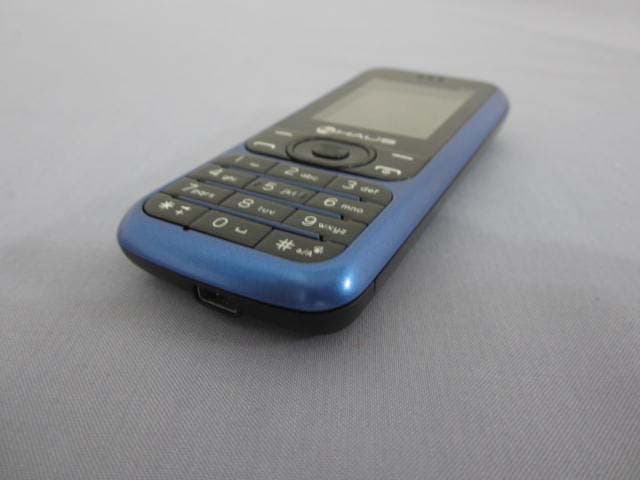

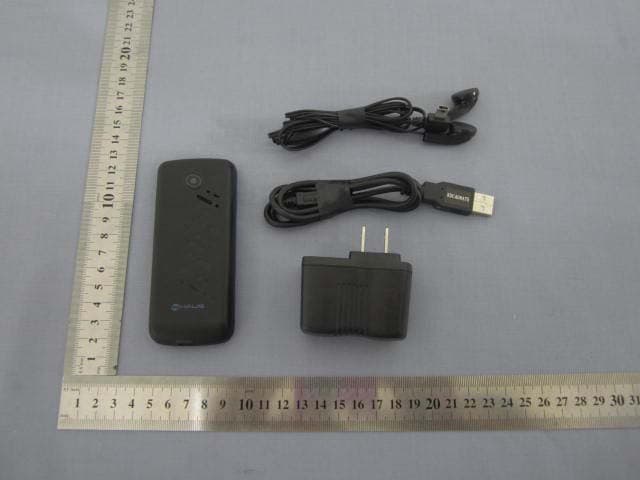

Report No: GTSE11070055501 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 54 of 59 8 EUT Constructional Details Report No: GTSE11070055501 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 55 of 59

Label Length=40mm, Width=16mm Label location

Report No: GTSE11070055501 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 56 of 59 Report No: GTSE11070055501 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 57 of 59 Report No: GTSE11070055501 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 58 of 59 Report No: GTSE11070055501 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 59 of 59 ------end------

Report No：117S044R-HP-US-P03V01 Page: 1 of 97 SAR Test Report Product Name : GSM Dual Band GPRS Digital Mobile Phone Model No. : JS100 FCC ID : ZROJS100 Applicant : Wirosa Group Inc Address : 1313 Shotgun Rd Weston USA Date of Receipt : 13/07/2011 Date of Test : 29/07/2011 Issued Date : 30/07/2011 Report No. : 117S044R-HP-US-P03V01 Report Version : V1.1 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No：117S044R-HP-US-P03V01 Page: 2 of 97 Test Report Certification Issued Date: 30/07/2011 Report No: 117S044R-HP-US-P03V01 Product Name : GSM Dual Band GPRS Digital Mobile Phone Applicant : Wirosa Group Inc Address : 1313 Shotgun Rd Weston USA Manufacturer : Shenzhen Konka Telecommunications Technology Co., Ltd Address : No.9008 Shennan Road, Overseas Chinese Town, ShenZhen, Guangdong, China Model No. : JS100 FCC ID : ZROJS100 Brand Name : HAUS EUT Voltage : DC 3.7V Applicable Standard : FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003,47CFR § 2.1093 Test Result : Max. SAR Measurement (1g) Head: 0.355 W/kg Body: 0.756 W/kg Performed Location : Suzhou EMC Laboratory No.99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 FCC Registration Number: 800392 Documented By : (Engineering ADM: Alice Ni) Reviewed By : (Senior Engineer: Robin Wu) Approved By : (Engineering Supervisor: Marlin Chen) Report No：117S044R-HP-US-P03V01 Page: 3 of 97 Laboratory Information We, QuieTek Corporation, are an independent EMC and safety consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted(audited or listed) by the following related bodies in compliance with ISO 17025, EN 45001 and specified testing scope: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site : http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory : No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory : No. 5-22, Ruei-Shu Valley, Ruei-Ping Tsuen, Lin-Kou Shiang, Taipei, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou (China) Testing Laboratory : No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. :BSMI, NCC, TAF Germany :TUV Rheinland Norway :Nemko, DNV USA :FCC, NVLAP Japan :VCCI Report No：117S044R-HP-US-P03V01 Page: 4 of 97 TABLE OF CONTENTS Description Page 1. General Information ................................................................................................. 6 1.1. EUT Description .................................................................................................. 6 1.2. Test Environment ................................................................................................. 7 2. SAR Measurement System ...................................................................................... 8 2.1. DASY5 System Description ................................................................................. 8 2.1.1. Applications ..................................................................................................... 9 2.1.2. Area Scans ...................................................................................................... 9 2.1.3. Zoom Scan (Cube Scan Averaging) ................................................................ 9 2.1.4. Uncertainty of Inter-/Extrapolation and Averaging ........................................... 9 2.2. DASY5 E-Field Probe ........................................................................................ 10 2.2.1. Isotropic E-Field Probe Specification ............................................................. 10 2.3. Boundary Detection Unit and Probe Mounting Device ...................................... 11 2.4. DATA Acquisition Electronics (DAE) and Measurement Server ........................ 11 2.5. Robot ................................................................................................................. 12 2.6. Light Beam Unit ................................................................................................. 12 2.7. Device Holder .................................................................................................... 13 2.8. SAM Twin Phantom ........................................................................................... 13 3. Tissue Simulating Liquid ....................................................................................... 14 3.1. The composition of the tissue simulating liquid ................................................. 14 3.2. Tissue Calibration Result ................................................................................... 15 3.3. Tissue Dielectric Parameters for Head and Body Phantoms ............................. 16 4. SAR Measurement Procedure ............................................................................... 17 4.1. SAR System Validation ...................................................................................... 17 4.1.1. Validation Dipoles .......................................................................................... 17 4.1.2. Validation Result ............................................................................................ 18 4.2. SAR Measurement Procedure ....................................…

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No: GTSE11070055502 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover Page FCC REPORT (Mobile phone) Applicant: Wirosa Group Inc Address of Applicant: 1313 Shotgun Rd Weston USA Equipment Under Test (EUT) Product Name: GSM Dual Band GPRS Digital Mobile Phone Model No.: JS100 Trade mark: HAUS FCC ID: ZROJS100 Applicable standards: FCC CFR Title 47 Part 2:2010 FCC CFR Title 47 Part22 Subpart H:2010 FCC CFR Title 47 Part24 Subpart E:2010 Date of sample receipt: 08 Jul., 2011 Date of Test: 11-14 Jul., 2011 Date of report issued: 15 Jul., 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: GTSE11070055502 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 52 2 Version Version No. Date Description 00 2011-07-15 Original Prepared By: Date: 2011-07-15 Project Engineer Check By: Date: 2011-07-15 Reviewer Report No: GTSE11070055502 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 52 3 Contents Page 1 COVER PAGE.............................................................................................................................................................. 1 2 VERSION....................................................................................................................................................................... 2 3 CONTENTS................................................................................................................................................................... 3 4 TEST SUMMARY......................................................................................................................................................... 5 5 GENERAL INFORMATION........................................................................................................................................ 6 5.1 CLIENT INFORMATION.............................................................................................................................................. 6 5.2 GENERAL DESCRIPTION OF E.U.T............................................................................................................................. 6 5.3 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................................... 6 5.4 TEST METHODOLOGY............................................................................................................................................... 6 5.5 TEST FACILITY.......................................................................................................................................................... 7 5.6 TEST LOCATION........................................................................................................................................................ 7 5.7 TEST INSTRUMENTS LIST........................................................................................................................................... 8 6 SYSTEM TEST CONFIGURATION.......................................................................................................................... 9 6.1 EUT CONFIGURATION.............................................................................................................................................. 9 6.2 EUT EXERCISE......................................................................................................................................................... 9 6.3 TEST PROCEDURE..................................................................................................................................................... 9 6.3.1 Conducted Emissions....................................................................................................................................... 9 6.3.2 Radiated Emissions.......................................................................................................................................... 9 6.4 CONFIGURATION OF TESTED SYSTEM....................................................................................................................... 9 6.5 DESCRIPTION OF TEST MODES......................................................................................…

Text truncated - open the document above for the full version.

Report No: GTSE11070055501 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 52 of 59 7 Test Setup Photo Radiated Emission (below 1GHz) Radiated Emission (above 1GHz) Report No: GTSE11070055501 Global United Technology Services Co., Ltd. Project No.: GTSE110700555RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 53 of 59 Conducted Emission
