ZSLS-TWINTX-HP-ABBHDTX-S-TWINTX-HP-AB

www.janteq.com User Manual BHDTX-S-TWINTX-HP-AB BHDTX-S-TWINTX-HP-AB User Manual Janteq Corporation 9272 Jeronimo Rd. Suite 124 Irvine, CA 92618 Tel: 949-215-2603 Fax: 949-215-2604 www.janteq.com Copyright © 2009-2011 Janteq Corporation. All rights reserved. This document contains proprietary information. Receipt or possession of this document does not convey any rights to reproduce, distribute, disclose its contents, or manufacture anything it may describe. It may not be reproduced, disclosed, or used without the specific written authorization of Janteq Corporation. Diversions contrary to the laws of the U.S. prohibit. Janteq Corporation Document Revisions BHDTX-S-TWINTX-HP-AB User Manual i CAUTION DO NOT REMOVE ANY COVERS REFER SERVICING TO QUALIFIED TECHNICIANS ONLY DISCONNECT ALL POWER BEFORE SERVICING READ AND PERFORM ALL INSTRUCTIONS CAREFULLY. FAILURE TO FOLLOW SUGGESTED INSTRUCTIONS AND GUIDELINES MAY VOID ALL WARRANTIES. PROPRIETRY NOTICE AND LIABILITY DISCLAIMER The information disclosed in this document, including all designs and related materials, is the valuable property of JANTEQ CORPORATION. JANTEQ CORPORATION, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use, and sales rights thereto, except to the extent said rights are expressly granted to others. To allow for design and specification improvements, the information in this document is subject to change at any time, without notice. Reproduction of this document or portions thereof without prior written approval of JANTEQ CORPORATION is prohibited. FCC RF Exposure Compliance FCC RF exposure compliance must be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). The applicable exposure limits, to demonstrate compliance, are specified in FCC Part 1.1310. Additionally, the installer of the antenna to be used with this transmitter may be required to perform an MPE evaluation and an Environmental Assessment (EA) of the location at the time of licensing per CFR 47 Part 1.1307. Fixed mounted antenna(s) that are co-located with other antenna(s) must satisfy the co-location requirements of Part 1.1307 for satisfying RF exposure compliance. Janteq Corporation Document Revisions BHDTX-S-TWINTX-HP-AB User Manual ii Document Revisions Author Description Date Revision JP/TC Initial release 08/10/2011 A Janteq Corporation Table of Contents BHDTX-S-TWINTX-HP-AB User Manual iii Table of Contents 1.0 Overview ............................................................................................................................................. 1 1.1 ...................................................................... Introduction to the BHDTX-S-TWINTX-HP-AB ...................................................................................................................................................... 2 1.2 ................................................................................ BHDTX-S-TWINTX-HP-AB Components ...................................................................................................................................................... 3 1.3 ........................................................................................................................ Key Features ...................................................................................................................................................... 5 1.4 ......................................................................... Programming the Transmitter Prior to Use ...................................................................................................................................................... 6 2.0 Basic Operation ................................................................................................................................... 7 2.1 .......................................................................... Connecting and Powering the Transmitter ...................................................................................................................................................... 8 2.2 .......................................................................................................................... Home Page ...................................................................................................................................................... 9 2.3 .................................................................................................. Accessing the User Menus .................................................................................................................................................... 10 2.4 ...................................................................................................... User Menu Descriptions .................................................................................................................................................... 10 3.0 Administrative Setup ......................................................................................................................... 13 3.1 .................................................................................... Accessing the Administrator Menus .................................................................................................................................................... 13 3.2 .......................................................................................................... Working with Profiles .................................................................................................................................................... 15 3.3 .................................................................................................. ADMIN Menu Descriptions ...................................................................…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 7/1/10 JANQ0001 Information about the Applicant Grantee (Company Name) Janteq Corp. FCC Contact Person Tom Chang Address 9272 Jeronimo Rd. Suite 124 City, State, Zip Irvine, CA 92618 Job Number JANQ0001 Model BHDTX-S-TWINTX-HP-AB FCC ID ZSLS-TWINTX-HP-AB Agent Approval Type Original Equipment Class TBC – Licensed Broadcast Station Transmitter Rule Part 74f Overview The model DHDTX-S-TWINTX-HP-AB is a dual output, licensed audio/video transmitter with 5 watts per output. The device will be operated by FCC licensed end-users. It will operated iwthin the licensed Broadcast Auxiliary channel as defined in Title 47 Cfr. Part 74.637 and 74.661. Antenna connected to the device as well as RF safety considerations are the responsibility of the licensed end user. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 8/15/2011

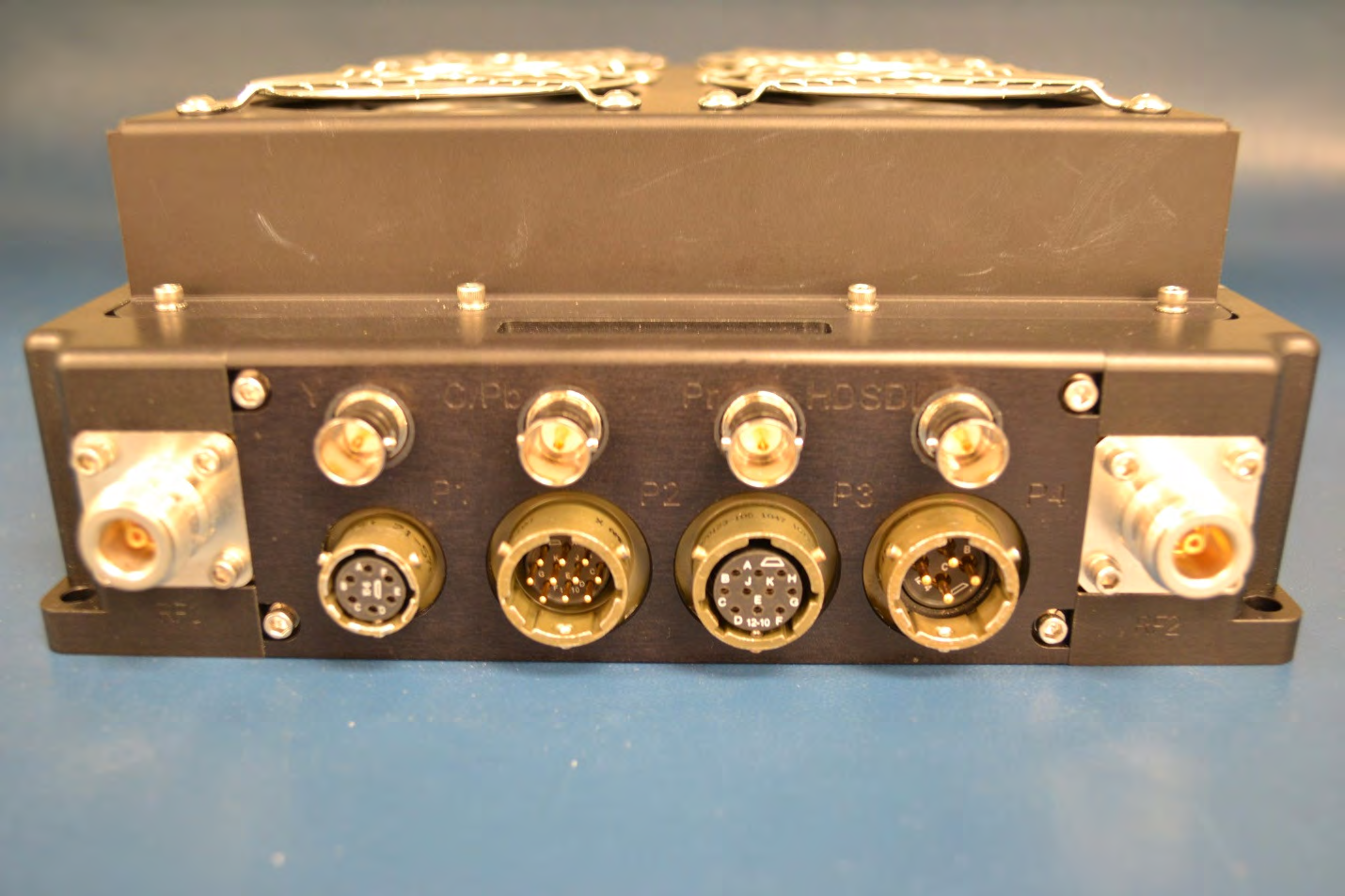

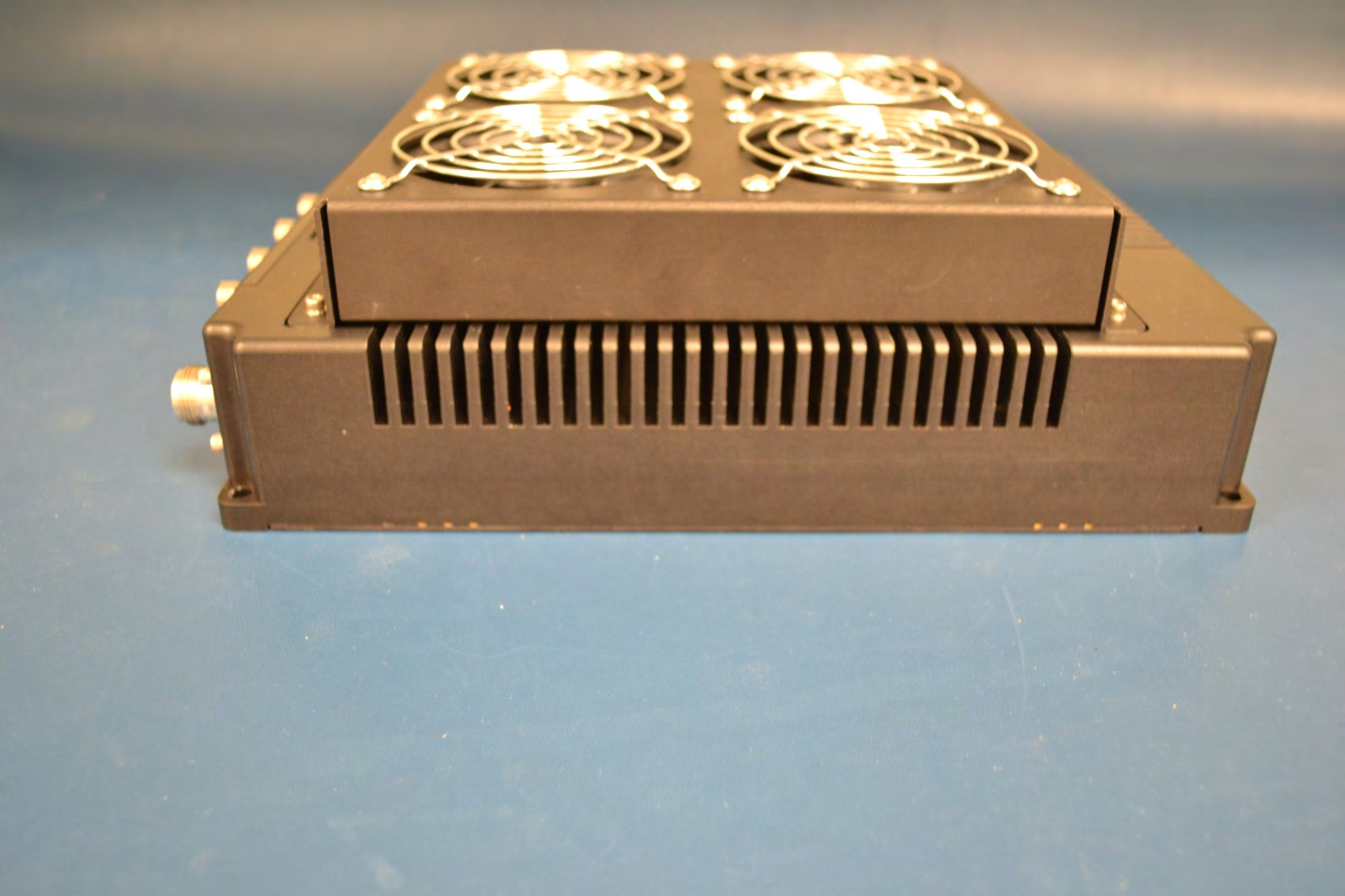

External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB External Photos FCC ID: ZSLS-TWINTX-HP-AB

FCC LABEL SCALE 4 : 1 CONTROL DRAWING SCALE 1 : 2 11 22 33 44 55 66 A A B B C C D D E E F F 7/20/2011 AVIATION PACK, FCC LABEL 1011108 1 OF 1 A O REYES J PORTER REV: PART NO: DESIGNER: ENGINEER: DATE: SHEET: TOLERANCE INFO: CONFIDENTIAL INFO: ALL DIMENSIONS ARE IN INCHES. DECIMAL .XX ±.01, .XXX±.0025, ANGULAR ± .3"HOLE SIZE +.003, -.002, CONCENTRICITY ±.001, FLATNESS ±.0025, SURFACE FINISH 63 OR BETTER THIS DOCUMENT AND INFORMATION IT CONTAINS IS CONFIDENTIAL AND THE SOLE PROPERTY OF JANTEQ INC. AND MAY NOT BE REPRODUCED OR DISTRIBUTED WITHOUT THE WRITTEN CONSENT OF JANTEQ INC. JANTEQ C O R P O R A T I O N 9272 JERONIMO RD, SUITE 124 IRVINE, CA, 92618PH: (949) 215-2603FAX: (949) 215-2604 REVISION HISTORY REV DESCRIPTION DATE APPROVED A INITIAL RELEASE 6/1/2011 O REYES NOTES: 1. MATERIAL: 0.020 THK METALPHOTO PLATE W/PSA ADHE SIVE BACKING. SILVER LETTERING ON BLACK MATTE BACKGROUND AS SHOWN. 2. OBTAIN OUTLINE AND FEATURES FROM CAD FILE. APPL Y DIMENSIONS, TOLERANCES AND HOLE DATA AS REQUIRED3. TEXT LINE 1: BONDI HD AVIATION TRANSMITTER INP UT: 20-30 VDC LINE 2: JANTEQ Corp, IRVINE, CA, USA. POWER: 120VA LINE 3: MODEL: BHDTX-S-TWINTX-HP-AB SERIAL N UMBER: 101 LINE 4: FCC ID: ZSLS-TWINTX-HP-AB 1.990 .315 R.05TYP. LABEL LOCATION

Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB Internal Photos FCC ID: ZSLS-TWINTX-HP-AB

RF Exposure RF exposure will be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3).

Janteq Corp. BONDI TwinTX Aviation Pack Report No. JANQ0001 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: August 2, 2011 Janteq Corp. Model: BONDI TwinTX Aviation Pack Emissions Test Description Specification Test Method Pass/Fail Output Power FCC 74:2011 ANSI/TIA/EIA-603-C-2004 Pass Spurious Radiated Emissions FCC 74:2011 ANSI/TIA/EIA-603-C-2004 Pass Occupied Bandwidth FCC 74:2011 ANSI/TIA/EIA-603-C-2004 Pass Emission Mask FCC 74:2011 ANSI/TIA/EIA-603-C-2004 Pass Spurious Conducted Emissions FCC 74:2011 ANSI/TIA/EIA-603-C-2004 Pass Frequency Stability FCC 74:2011 ANSI/TIA/EIA-603-C-2004 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 41 Tesla Ave. Irvine, CA 92618 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834B-1). Approved By: Tim O'Shea, Operations Manager NVLAP Lab Code: 200676-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). Accreditations and Authorizations VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T- 1658, and R-2318, Irvine: R-1943, G-85, C-2766, and T-1659, Sultan: R-871, G-83, C-3265, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification KCC Northwest EMC, Inc is a CAB designated by MRA partners and recognized by Korea. (Assigned Lab Numbers: Hillsboro: US0017, I…

Text truncated - open the document above for the full version.

NORTHWEST EMC SAM_0067.JPG SAM_0068.JPG EMISSION MASK XMit 2011.04.20 NORTHWEST EMC IMG_1457.JPG OCCUPIED BANDWIDTH XMit 2011.04.20 NORTHWEST EMC SAM_0067.JPG SAM_0068.JPG OCCUPIED BANDWIDTH XMit 2011.04.20 NORTHWEST EMC IMG_1457.JPG SPURIOUS CONDUCTED EMISSIONS XMit 2011.04.20 NORTHWEST EMC SAM_0067.JPG SAM_0068.JPG SPURIOUS CONDUCTED EMISSIONS XMit 2011.04.20 NORTHWEST EMC IMG_0175.JPG OUTPUT POWER - RADIATED XMit 2011.04.20 NORTHWEST EMC SAM_0067.JPG SAM_0068.JPG OUTPUT POWER - CONDUCTED XMit 2011.04.20 NORTHWEST EMC IMG_1455.JPG IMG_1453.JPG FREQUENCY STABILITY XMit 2010.07.29 NORTHWEST EMC IMG_1454.JPG FREQUENCY STABILITY XMit 2010.07.29 NORTHWEST EMC IMG_0172.JPG IMG_0173.JPG Spurious Radiated Emissions PSA-ESCI 2011.07.26 NORTHWEST EMC IMG_0174.JPG IMG_0175.JPG Spurious Radiated Emissions PSA-ESCI 2011.07.26 NORTHWEST EMC IMG_0176.JPG Spurious Radiated Emissions PSA-ESCI 2011.07.26
