ZT3GMTALTO2GSM Mobile Phone

AL TO II Simplified Manual V euillez trouver les instructions en français au verso. Y our ALTO II Mobile Phone Overview PrepareCharge www.goldgmt.com Speak er Battery Level Upper item Pointed item OK Lower item Reception level Mute Action of blue key Mute Loud Quiet Action of red key Screen Stop key Keyboard Microphone Menu keys (up / do wn / Ok) C all key Ear-Set c onnector USB connector Switch-On | Switch-Off C all a number R eceive an SMS C all a contact Answ er a call Stop emer gency callPress any key Emerg ency call Set a r eminder Special e vents SOS Starting 5 sec. Copyright© 2011 Gold GMT SA All Rights Reserved Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Gold GMT SA is forbidden. Statement Pictures contained in the present manual can vary from the enclosed mobile phone. Please refer to the enclosed mobile phone as the product. Gold GMT reserves the right to revise this document or withdraw it at any time without prior notice. Safety Precautions Please read these simple guidelines. Not following them may be dangerous or illegal. For further information, see the section of « W arnings and Precautions » in the c omplete manuel delivered in the attached CDROM. Do not switch the phone on when Mobile Phone use is prohibited or when it may cause interference or danger. Do not place your phone and its accessories in containers with strong electromagnetic field. Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first con- sideration while driving should be road safety. Hospitals or health car e facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Do not use the phone at a refueling point. Do not use near fuel or chemicals. Follow any restrictions. Wireless devices can cause interference in aircraft. Keep the phone and all its parts, including accessories, out of the reach of small children. Use only approved batteries and chargers. Disconnect the charger from the power source when it is not in use. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten its life. Only qualified personnel should service the phone or install the phone in a vehicle. Faulty installation or service may be dangerous and may invalidate any warranty applicable to the device. 3 sec. T3 Phone c ompatible with K eys and keyboard in > g raffiti-communication.ch FCC Warning: Any C hanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) This device may not cause harmful interference, and (2) this device must accept any Interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Specific Absorption Rate (SAR) information SAR tests ar e conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands, although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value, This because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network ,in general, the closer you are to a wireless base station antenna, the lower the power output. Before a new model phone is a available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC, Tests for each phone are performed in positions and locations (e.g. at the ear and worn on the body)as required by the FCC. For body worn operation, this model phone has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Non-compliance with the above restrictions may result in violation of RF exposure guidelines.

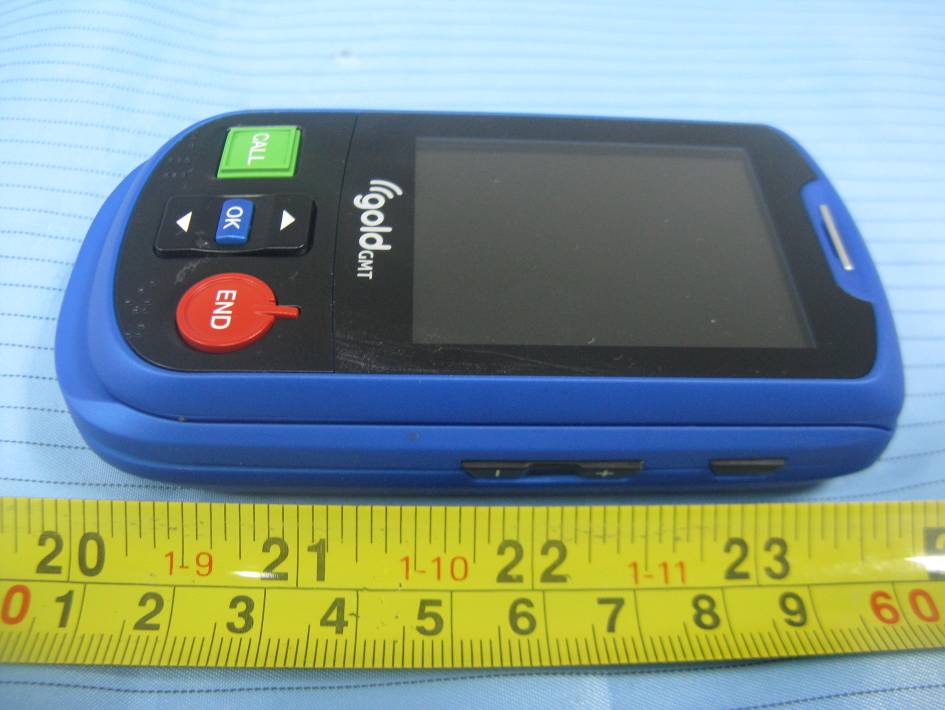

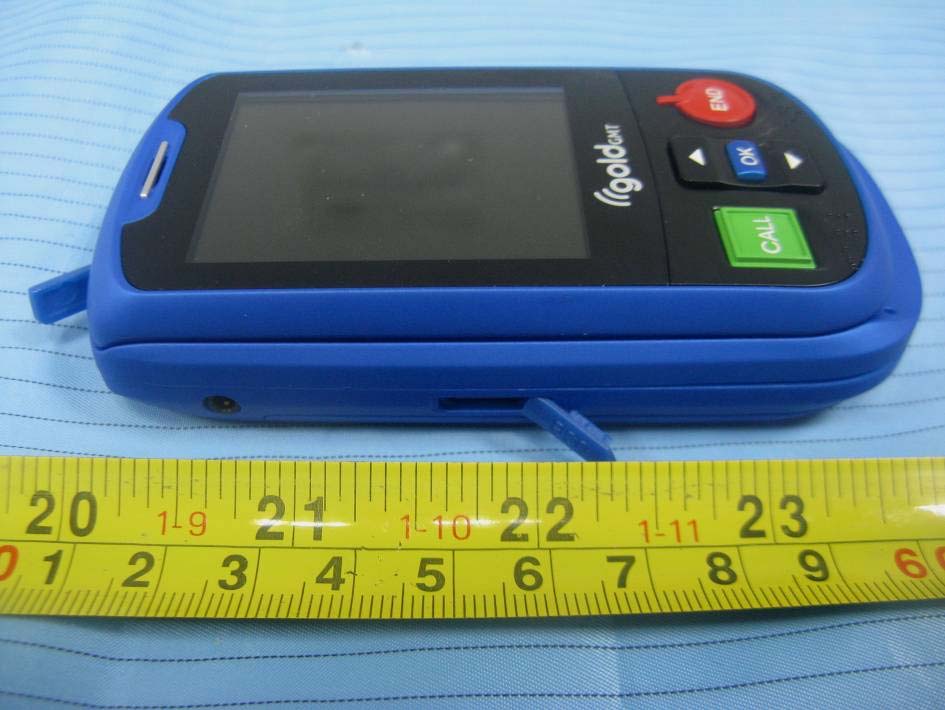

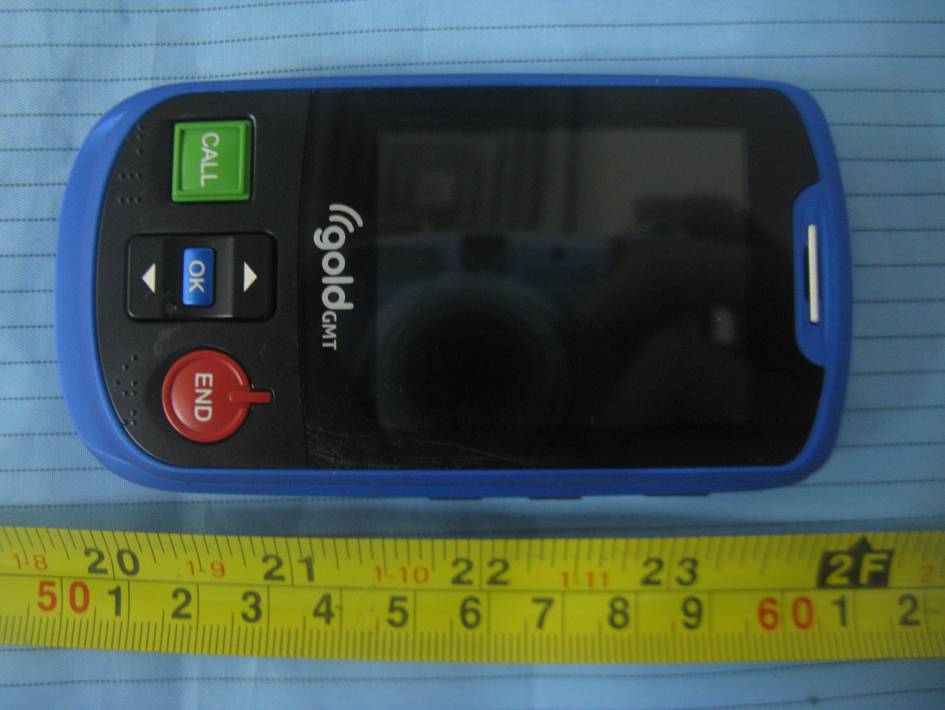

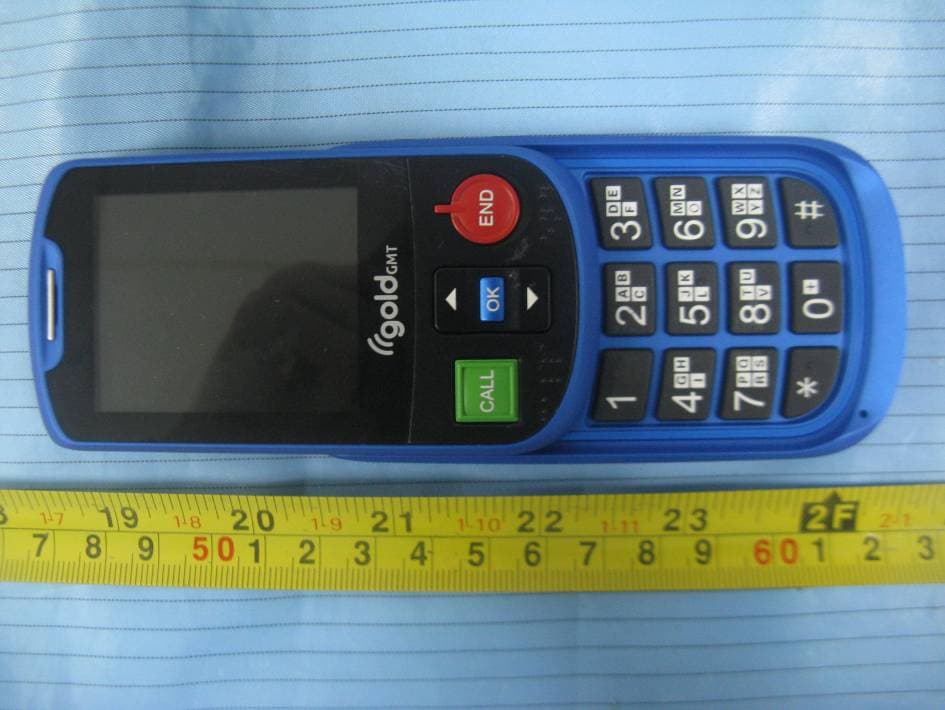

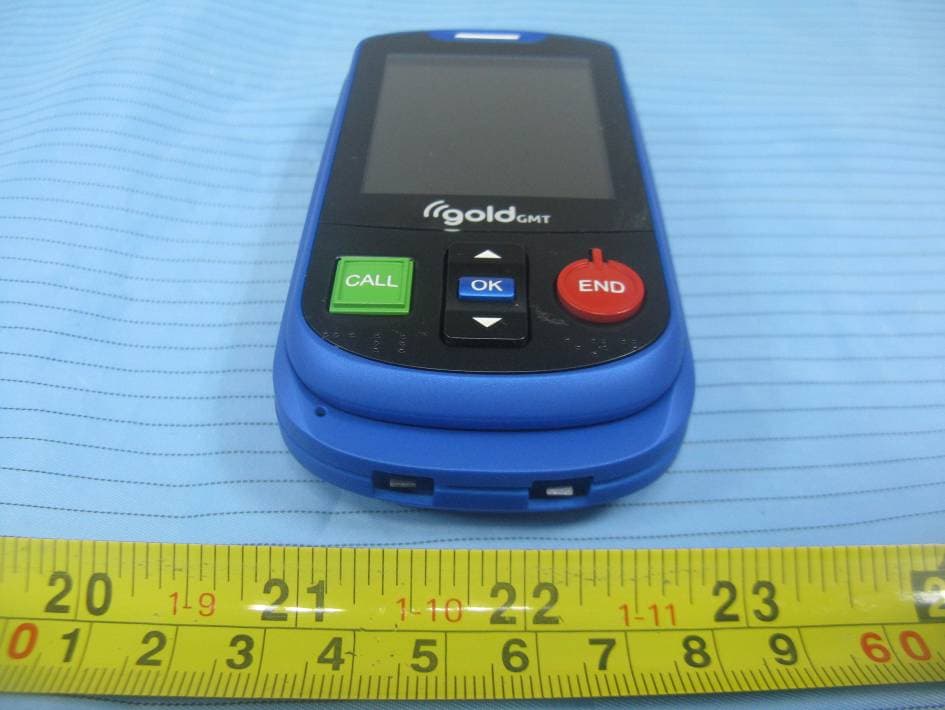

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Slide Cover Opened Front View EUT –Slide Cover Opened Rear View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery off View EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – LCD Top View EUT – LCD Bottom View EUT – GSM Antenna View EUT – Battery View

Item Edited NO Name S p ecifications Position No Q uantit y NOTE Manufacturers code Parts list Item Edited NO Name Specifications Position No Quantity NOTE Manufacturers code 1 bottom sliper PCB 91.9x47.6x1MM FR4 K3553 -V1.2 1 M 2 KR3111047085600 capacitance 4.7pF±0.25pF 50V COG 0402 C614 C616 C617 C684 4 M GRM1555C1H4R7CZ01D 3 KR3111070081900 capacitance 7pF±0.5pF 50V COG 0402 C642 1 M GRM1555C1H7R0DZ01D 4 KR3111100085100 capacitance 10pF±5% 50V COG 0402 C455 1 M GRM1555C1H100JZ01D 5 KR3111180084100 capacitance 18pF±5% 50V COG 0402 C618 C619 C620 C621 4 M GRM1555C1H180JZ01D 6 KR3111220085100 capacitance 22pF±5% 50V COG 0402 C103 C104 C610 C630C645 C653 C654 C655 8 M GRM1555C1H220JZ01D 7 KR3111270085100 capacitance 27pF±5% 50V COG 0402 C660 1 M GRM1555C1H270JZ01D 7 KR3111270085100 capacitance 27pF±5 % 50V COG 0402 C 660 1 M G RM1555 C 1H270JZ01D 8 KR3111330085100 capacitance 33pF±5% 50V COG 0402 C200 C213 C214 C215C218 C220 C221 C222C225 C226 C240 C241C452 C508 C511 C512C513 C514 C515 C516 C517 C518 C519 C520 31 M GRM1555C1H330JZ01D C517 C518 C519 C520 C521 C522 C523 C622C623 C624 C625 9 KR3111390085100 capacitance 39pF ±5% 50V COG 0402 C601 C627 2 M GRM1555C1H390JZ01D 10 KR3111470085100 capacitance 47pF ±5% 50V COG 0402 C608 1 M GRM1555C1H470JZ01D 11 KR3111560085100 capacitance 56pF±5% 50V COG 0402 C631 1 M GRM1555C1H560JZ01D 12 KR3111820085100 capacitance 82pF±5% 50V COG 0402 C603 C626 2 M GRM1555C1H820JZ01D 13 KR3111101085100 capacitance 100pF±5% 50V COG 0402 C203 C211 C217 C223 4 M GRM1555C1H101JZ01D 14 KR3111221085100 ca p acitance 220 p F±5% 50V COG 0402 C636 1 M GRM1555C1H221JZ01D 14 KR3111221085100 capacitance 220pF±5% 50V COG 0402 C636 1 M GRM1555C1H221JZ01D 15 KR3111102085200 capacitance 1nF±10% 50V X7R 0402 C102 C609 2 M GRM155R71H102KA01D 16 KR3111223055200 capacitance 22nF±10% 16V X7R 0402 C233 1 M GRM155R71C223KA01D KR3111333065200 capacitance 33nF±10% 25V X7R 0402 C605 1 M GRM155R71E333KA01D 17 KR3111333055200 capacitance 33nF±10% 16V X7R 0402 C605 1 T GRM155R71C333KA01D 18 KR3111104025200 capacitance 100nF±10% 10V X5R 0402 C101 C201 C206 C209C212 C303 C304 C402C404 C418 C419 C423C424 C427 C429 C430C431 C435 C436 C442 C445 C450 C602 C604 32 M GRM155R61A104KA01D 19 KR3111224065200 capacitance 220nF±10% 10V X5R 0402 C606 1 M GRM155R61A224KE15D C100 C232 C305 C405 C409 C412 C413 C414 20 KR3111105025200 capacitance 1uF±10% X5R 10V 0402 C409 C412 C413 C414C415 C416 C425 C426C433 C510 C615 C634 C506 C507 18 M GRM155R61A105KE15D 21 KR3111105051200 capacitance 1uF±10% X5R 16V 0603 C441 1 M GRM188R61C105KA01D 22 KR3111225011200 capacitance 2.2uF±10% X5R 6.3V 0603 C300 C302 2 M GRM188R60J225KE19D p 23 KR3111475011200 capacitance 4.7uF±10% X5R 6.3V 0603 C236 C400 C401 C406C407 C408 C410 C411C420 C421 C451 C509 12 M GRM188R60J475KE19D 24 KR3111475022200 capacitance 4.7uF±10% X5R 10V 0805 C257 1 M GRM21BR61A475KE19D KR3111106012300 capacitance 10uF±20% X5R 6.3V 0805 C202 C204 C205 C210C422 C432 6 M GRM21BR60J106ME19L KR3111106012310 capacitance 10uF±20% X5R 6.3V 0805H=0.85mm C202 C204 C205 C210C422 C432 6T 26 KR3111226012300 capacitance 22uF±20% X5R 6.3V 0805 C643 C644 2 M GRM21BR60J226ME19D R102 R307 R310 R407 2527 KR3108400900530 resistance 0 Ω 5% 1/16W 0402 R102 R307 R310 R407 R408 R412 R413 R415R416 R431 R513 R602R613 R614 L209 L210L222 L223 L606 L610L501 C458 22 M RC0402JR-070RL 28 KR3108410000530 resistance 10 Ω 5% 1/16W 0402 R609 1 M RC0402JR-0710RL 29 KR3108451000530 resistance 51 Ω 5% 1/16W 0402 R610 1 M RC0402JR-0751RL 30 KR3108482000530 resistance 82 Ω 5% 1/16W 0402 R606 R607 2 M RC0402JR-0782RL 31 KR3108422100530 resistance 220 Ω 5% 1/16W 0402 R729 R730 R731 R732R733 R734 6 M RC0402JR-07220RL 32 KR3108433100530 resistance 330 Ω 5% 1/16W 0402 R209 R211 2 M RC0402JR-07330RL 33 KR3108410200530 resistance 1K 5% 1/16W 0402 R201 R204 R205 R214R215 R219 R405 R601R608 D200 10 M RC0402JR-071KL 34 KR3108415200530 resistance 1 5K 5% 1/16W 0402 R207 R213 R216 3 M RC0402JR - 071K5L 34 KR3108415200530 resistance 1 . 5K 5% 1/16W 0402 R207 R213 R216 3 M RC0402JR - 071K5L 35 KR3108422200530 resistance 2.2K 5% 1/16W 0402 R611 R612 R621 R622 4 M RC0402JR-072K2L 36 KR3108439200530 resistance 3.9K 5% 1/16W 0402 R411 1 M RC0402JR-073K9L 37 KR3108451200130 resistance 5.1K 1% 1/16W 0402 R104 1 M RC0402FR-075K1L 39 KR3108424300530 resistance 24K 5% 1/16W 0402 R440 1 M RC0402JR-0724KL 40 KR3108430300530 resistance 30K 5% 1/16W 0402 R603 1 M RC0402JR-0730KL 41 KR3108433300530 resistance 33K 5% 1/16W 0402 R206 1 M RC0402JR-0733KL 42 KR3108447300530 resistance 47K 5% 1/16W 0402 R300 R301 R302 R303R304 R305 6 M RC0402JR-0747KL 43 KR3108451300530 resistance 51K 5% 1/16W 0402 R306 1 M RC0402JR-0751KL 44 KR3108410400530 it 100K 5% 1/16W 0402 R21 8 R2 30 R2 3 1 R4 0 4 7 M RC0402JR 07100KL 44 KR3108410400530 resistance 100K 5% 1/16W 0402 R218 R230 R231 R404 R439 R747 R508 7 M RC0402JR-07100KL 45 KR3108400021510 resistance 0 Ω 5% 1/10W 0603 L211 L216 L217 F400R501 5 M RC0603JR-070RL 46 KR3108468821510 resistance 6.8 Ω 5% 1/10W 0603 R401 1 M RC0603JR-076R8L 47 KR3108420831100 resistance 0.2 Ω 1% 1/8W 0805 R402 1 M RL0805FR-070R2L 48 KR3121400000027 magnetic bead 75 Ω ±25% 300mA/600mA 0402 B603 B604 B605 L401L402 5 M BLM15BB750SN1D 49 KR3121400000015 SMD magnetic 1000 Ω ±25% 200mA/100mA 0402 L201 L202 2 M BLM15AG102SN1D 50 KR3121440243600 inductance 4.3nH ±0.3nH 0402 L601 L602 2 M LQG15HS4N3S02D 51 KR3121412015700 inductance 15nH ±5% 0402 L603 L604 2 M LQG15HS15NJ02D 51 KR3121412015700 inductance 15nH ±5% 0402 L603 L604 2 M LQG15HS15NJ02D 52 KR3121440222700 inductance 22nH ±5% 0402 L605 1 M LQG15HS22NJ02D 53 KR3121812104750 wind inductance 4.7uH±20% 1210 L400 1 M LQH32CN4R7M53 54 KR3105520302102 diode LRB520S-30T1G D402 D401 2 M 55 KR3110115402180 piezoresistor 18V 15P 0402 T225 T220 T223 T224 4 M AVLC18S02015 55 KR3110115402180 piezoresistor 18V 15P 0402 T225 T220 T223 T224 4 M AVLC18S02015 56 KR3107005605100 stabilivolt 5.6V 0603 T404 T407 2 M EDZ TE61 5.6B 57 KR31056SD9X5V00 ROHS TVS pipe 5V 1.2P 0402 T207 T…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*＂ (Rev.2) SAR EVALUATION REPORT for GoldGMT SA (Inc.) Rue Jaquet Droz 8, 2000 Neuchatel, Switzerland FCC ID : ZT3GMTALTO2 Report Type: Original Report Product Type: GSM Mobile Phone Test Engineer: Arthur Tie Report Number: R1108022-SAR Report Date: 2011-09-16 Reviewed By: Quinn Jiang Test Engineer Prepared By: (91) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 GoldGMT SA (Inc.) FCC ID: ZT3GMTALTO2 Report Number: R1108022-SAR SAR Evaluation Report Page 2 of 81 Summary of Test Results Rule Part(s): FCC §2.1093 Test Procedure(s): FCC OET 65-C; IEEE 1528-2003 Device Category: Exposure Category: Portable Device General Population/Uncontrolled Exposure Device Type: GSM Mobile Phone Modulation Type: GMSK TX Frequency Range: GSM850: 824~849 MHz (Tx) 869~894 MHz (Rx) PCS1900: 1850~1910 MHz (Tx) 1930~1990 MHz (Rx) Conducted RF Out Power: 32.64 dBm (Cellular Band) 30.26 dBm (PCS Band) Antenna Type(s): Integrated Antenna Body-Worn Accessories: Headset Face-Head Accessories: None Battery Type (s): Li-Ion rechargeable Battery: 3.7 VDC 0.214 W/Kg, Head 1g Tissue 0.511 W/Kg, Body 1g Tissue Cellular Band Max. SAR Level (s) Measured: 0.068 W/Kg, Head 1g Tissue 0.140 W/Kg, Body 1g Tissue PCS Band GoldGMT SA (Inc.) FCC ID: ZT3GMTALTO2 Report Number: R1108022-SAR SAR Evaluation Report Page 3 of 81 TABLE OF CONTENTS 1 GENERAL DESCRIPTION ................................................................................................................................5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .......................................................................5 1.2 EUT TECHNICAL SPECIFICATION....................................................................................................................5 2 TEST FACILITY..................................................................................................................................................6 3 REFERENCE, STANDARDS AND GUILDELINES .......................................................................................7 3.1 SAR LIMITS....................................................................................................................................................8 4 DESCRIPTION OF TEST SYSTEM..................................................................................................................9 4.1 RECOMMENDED TISSUE DIELECTRIC PARAMETERS......................................................................................10 4.2 MEASUREMENT SYSTEM DIAGRAM..............................................................................................................11 4.3 SYSTEM COMPONENTS..................................................................................................................................12 4.4 DASY4 MEASUREMENT SERVER..................................................................................................................12 4.5 DATA ACQUISITION ELECTRONICS...............................................................................................................13 4.6 PROBES.........................................................................................................................................................13 4.7 ET3DV6 PROBE SPECIFICATION...................................................................................................................13 4.8 E-FIELD PROBE CALIBRATION PROCESS.......................................................................................................14 4.9 DATA EVALUATION......................................................................................................................................15 4.10 LIGHT BEAM UNIT........................................................................................................................................16 4.11 MEDIUM........................................................................................................................................................16 4.12 SAM TWIN PHANTOM..................................................................................................................................17 4.13 DEVICE HOLDER FOR SAM TWIN PHANTOM................................................................................................18 4.14 SYSTEM VALIDATION KITS...........................................................................................................................18 4.15 ROBOT..........................................................................................................................................................19 5 EQUIPMENT LIST AND CALIBRATION.....................................................................................................20 5.1 EQUIPMENTS LIST & CALIBRATION INFO......................................................................................................20 6 SAR MEASUREMENT SYSTEM VERIFICATION .....................................................................................21 6.1 SYSTEM ACCURACY VERIFICATION..............................................................................................................21 6.2 SETUP FOR SYSTEM VERIFICATION...............................................................................................................21 6.3 LIQUID AND SYSTEM VALIDATION......................................................................................…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 22H, PART 24E TEST REPORT For GoldGMT SA (Inc) Rue Jaquet-Droz 8, 2000 Neuchâtel, Switzerland FCC ID: ZT3GMTALTO2 Report Type: Original Report Product Type: Mobile Phone Test Engineer: Cabin Hu Report Number: RSZ110713004-00 Report Date: 2011-09-14 Reviewed By: Merry Zhao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110713004-00 FCC Part 22H/24E Page 2 of 31 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC §1.1307 & §2.1093 - RF EXPOSURE INFORMATION ...................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 TEST RESULT...............................................................................................................................................................8 FCC §2.1047 - MODULATION CHARACTERISTIC ..............................................................................................9 FCC §2.1046, §22.913 (A) & §24.232 (C) - RF OUTPUT POWER.........................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST DATA................................................................................................................................................................11 FCC §2.1049, §22.917, §22.905 & §24.238 - OCCUPIED BANDWIDTH ..............................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA................................................................................................................................................................13 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ..................17 APPLICABLE STANDARD............................................................................................................................................17 TEST PROCEDURE......................................................................................................................................................17 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................17 TEST DATA................................................................................................................................................................17 FCC §2.1053, §22.917 & §24…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Below 1 GHz: Radiated Emissions - Front View Below 1 GHz: Radiated Emissions - Rear View Above 1 GHz: Radiated Emissions - Front View Above 1 GHz: Radiated Emissions - Rear View Frequency Stability Test View
