ZTDAPBXGXACTIVE POSTER-VIRTUAL MOBILE COMMERCE TERMINAL

Confidentiality Notice Use or disclosure of information contained in this document is subject to the restriction contained below. This document contains information proprietary & confidential to XIUS. It shall not be duplicated, used or disclosed in whole or in part for any purpose. Any disclosure, reproduction, duplication, transmittal or distribution of this document in whole or in part, using physical, electronic or any other media, requires written consent from an authorized XIUS signatory. www.xius.com Mobile Touch Transaction (MTT™) – Active Poster™ (AP-BX-GX) User Manual XIUS ® AP-BX-GX – User Manual V1.0 AP-BX-GX User Manual V1.0 Page 2 of 8 Revision History Document ID: MAN-AP- BX-GX-02 Project Name: Mobile Touch Transaction – Active Poster Model - AP-BX-GX Product NO: AP-BX-GX Document Name: Tune Up Procedure Ver. No. Date Sec No. Page No. Revisions made Prepared ByReviewed By Approved By 1.0 11-May- 2011 Initial Version Venkateswar ulu Kishor Narkhede XIUS ® AP-BX-GX – User Manual V1.0 AP-BX-GX User Manual V1.0 Page 3 of 8 Table of Contents 1 Introduction ................................................................................................................................... 4 2 Installation of Accessories and Active Poster .......................................................................... 5 2.1 List of Accessories .............................................................................................................. 5 2.2 Installation of Active Poster ............................................................................................... 5 3 Operations of Active Poster ........................................................................................................ 5 4 Safety and Regulatory Compliance for Active Poster .............................................................. 6 4.1 Safety Information ............................................................................................................... 6 4.2 Regulatory Compliance Information .................................................................................. 7 XIUS ® AP-BX-GX – User Manual V1.0 AP-BX-GX User Manual V1.0 Page 4 of 8 1 Introduction XIUS Active Poster™ (APBx) is a ready to use anywhere, anytime Mobile e-commerce product which enables Transaction applications such as Pre-paid Recharge Top Up, Mobile Bill Payment, VAS applications etc. Designed to work with a network-agonistic Sticky also termed as RFID Tag, Mobile Touch Transaction is compliant with international industry standards in multiple verticals - GSM, Mifare ISO 14443. APBx System comprise of Integrated MCU Module, NFC Module, Touch Board, and Universal Power supply adapter. Integrated MCU Module is assembled with On board Semiconductor Devices, Interface Connectors and Plugged-in modules. On board Semiconductor Devices includes Micro Controller, EEPROM, SPI Flash, and DC-DC Switching Regulators. Interface Connectors are for SIM, Micro SD, Graphical LCD and External Interface Connectors includes NFC module and Touch Board. Plugged-in modules are Quad band GSM modem, Graphical LCD and Lithium-Ion Battery. Quad band GSM/GPRS wireless modem is a versatile, highly integrated module with RF Front end, Analog and Digital Baseband Processors, used for various mobile applications supports Voice, SMS, and data Service functions. Near Field Communication (NFC) module is a highly integrated transmission module with micro- controller for contact-less communication. The transmission module utilizes an outstanding modulation and demodulation concept completely integrated for various passive contacts-less communication methods and protocols. Touch Board is comprised with a capacitive touch controller enables streamlining of the human- machine interface through touch buttons, touch-based inputs to replace a wide variety of mechanical input types. Graphical LCD (Liquid Crystal Display) is a thin, flat electronic visual display that uses the light modulating properties of the liquid crystal (LCs). Lithium-Ion Battery (sometimes called Li-ion battery or LIB) is a family of rechargeable battery types in which lithium ions move from the negative electrode to the positive electrode during discharge, and back when charging. XIUS ® AP-BX-GX – User Manual V1.0 AP-BX-GX User Manual V1.0 Page 5 of 8 2 Installation of Accessories and Active Poster This section briefs about installation of accessories and Active Poster 2.1 List of Accessories 1. Active Poster Unit – 1 NO 2. Universal Power Supply Adapter Input:100-240VACt & Output:5VDC/3A – 1 NO 3. Rechargeable Battery 3.7V 1800mAH Lithium Polymer- 1 NO 4. Dealer login RFID sticki – 1 NO 5. User Manual – 1 NO 2.2 Installation of Active Poster XIUS Active Poster (APBx) is a wall mounted Mobile e- commerce product, 1. Installation of SIM: Insert the SIM card inside the SIM Socket. 2. Installation of Li-ion Battery: Connect the Battery supply and ground wires to Designated Connector as per polarity. Plug-in universal Power supply adapter for battery charging at designated place , push the toggle switch to ‘ON’ position to power-on the Active Poster as shown in Figure. Caution: a). The socket-out of universal power supply adapter shall be installed near the equipment and shall be easily accessible b). Max. Condition Operation Temperature: 50°C 3 Operations of Active Poster This section provides the information on the important operations of Active Poster. Active Poster operational procedure comprises of RFID Sticky enabled Mobile Tap Process and Key Touch Process. 1. Mobile Tap Process: After AP Switch on user/mobile subscriber has to tap Sticky enabled mobile. 2. Key Touch Process: The user/mobile subscriber has to touch the keys on the Active Poster. XIUS ® AP-BX-GX – User Manual V1.0 AP-BX-GX User Manual V1.0 Page 6 of 8 Whenever Active Poster unit is Power ON with test Software, Then Active Poster LCD Screen messages will guide for complete operation. Active Poster …

Text truncated - open the document above for the full version.

Date: August 18, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Megasoft Limited, the undersigned, hereby authorizes Mr.Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of Megasoft Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID #ZTDAPBXGX including the signing of documents in connection with this Application. Necessary acts carried out by Megasoft Limited on our behalf of the Megasoft Limited in connection with the Application shall have the same effect as acts of the Megasoft Limited. The Megasoft Limited also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Arun Dakhole General Manager

Date: August 18, 2011 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: TeleEpoch Limited FCC ID: ZTDAPBXGX FCC Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. TeleEpoch Limited requests that the following documents regarding this submission for FCC ID: ZTDAPBXGX be kept confidential: Exhibit Type File Name Block Diagram CONF APPENDIX ZTDAPBXGX_Block Diagram.pdf Schematics CONF APPENDIX ZTDAPBXGX_Schematics.pdf Operational Description CONF APPENDIX ZTDAPBXGX_Operational Description.pdf Part list CONF APPENDIX ZTDAPBXGX _BOM.pdf Tune-Up-Procedure CONF APPENDIX ZTDAPBXGX_Tune up procedure.pdf Those documents contain detailed system and equipment description and related information about the product which TeleEpoch Limited considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, TeleEpoch Limited considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Arun Dakhole General Manager

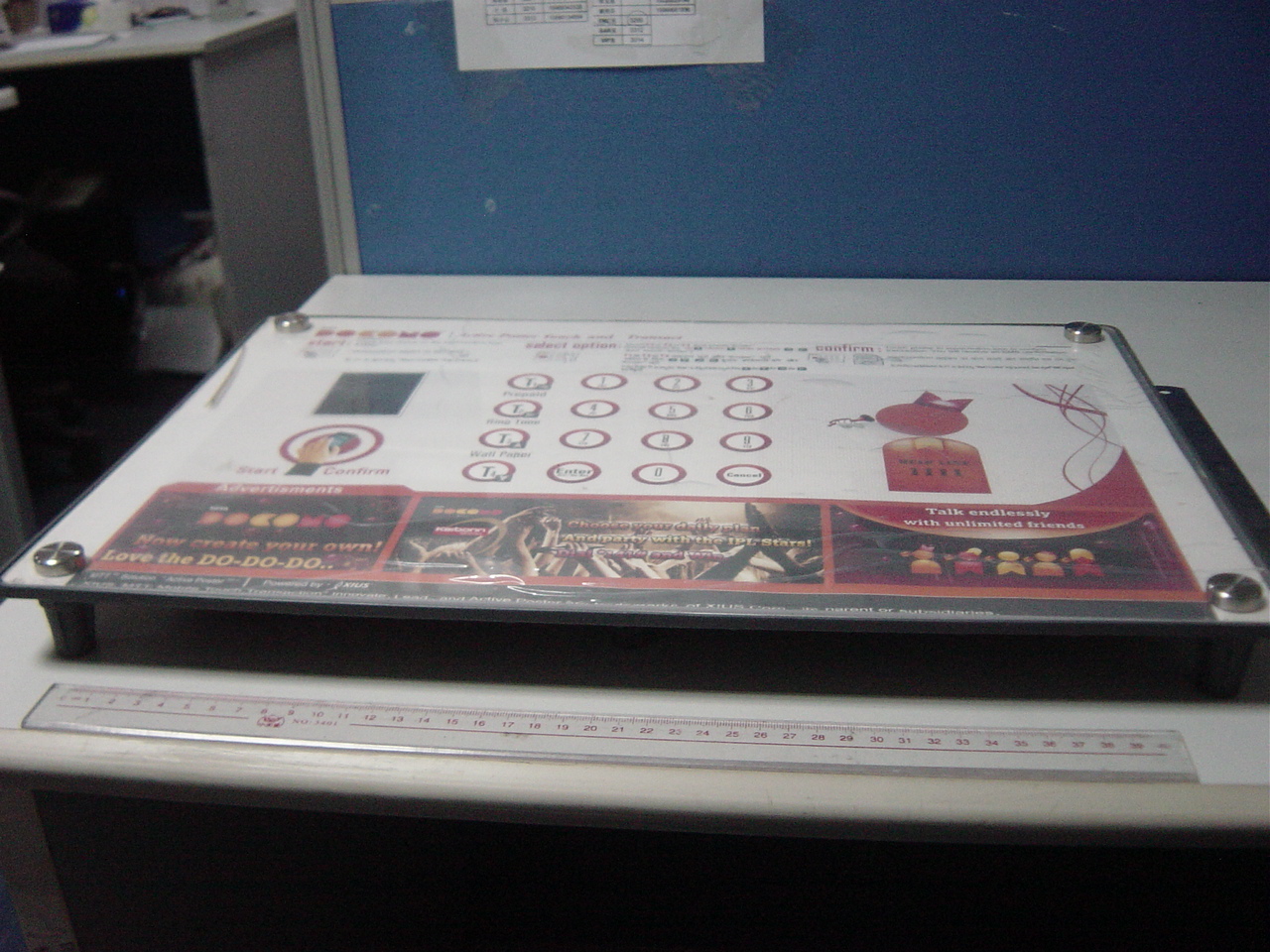

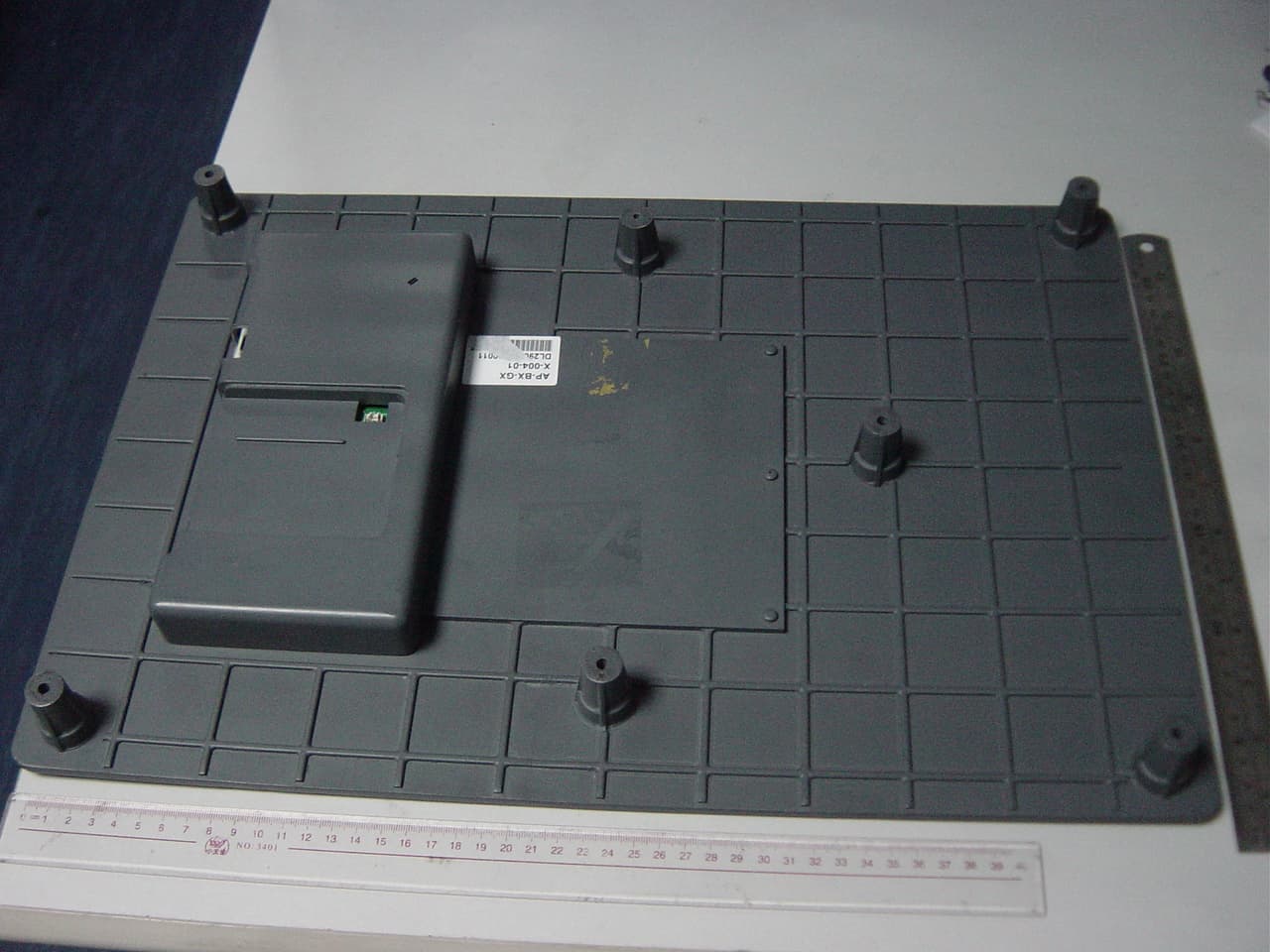

External Photos 1. Front View of EUT 2. Back View of EUT 3. Side View of EUT

FCC ID: ZTDAPBXGX, Model: AP-BX-GX; 1. Label 2．Label Location

Internal Photos

1 HANG HANG HANG HANGYU YU YU YUCOMMUNICATION COMMUNICATION COMMUNICATION COMMUNICATIONEQUIPMENT EQUIPMENT EQUIPMENT EQUIPMENTCO.,LTD CO.,LTD CO.,LTD CO.,LTD PRODUCTSPECIFICATION Name.：GSMInterncalAntenna PARTNO.：HY-GSM02 Customer：XIUS-bcgi CustomerP/N： IssueDate：Dec28,2010 CheckedStevenLiaoPreparedYlemYe CustomerApprove Department Signature SHENZHENHANGYUCOMMUNICATIONEQUIPMENTCO.,LTD TECHNOLOGYDEPARTMENT Tel:+8675589626685 Fax:+8675528216015 Web：www.hangyu-china.com 2 HANGYUCOMMUNICATIONEQUIPMENTCO.,LTD GSMInternalAntenna Productfeatures *Compactconstruction *Beautifulshape *Convenientinstallation *Stableperformance MechanicalIndex ItemIndex ConnectorUF.L Cable1.13 CableLength-mm170 AntennaRadomeMaterialPVC AntennaRadomeColorBlack WorkTemperature(°C) -30~85 Humidity(%)5~95 MountingWay3Mstickies 3 HANGYUCOMMUNICATIONEQUIPMENTCO.,LTD GSMInternalAntenna StorageEnvironment Temperature:-45to+85ºC Humidity:10to95%RH ElectricalPerformance: Underthecondition,Temperature:25±15ºC 、 Humidity:65±20%RH,Air pressure:960±100HPA 。 ItemIndex FrequencyRange-MHz800/900/1800/1900 V.S.W.R≤2.0 InputImpedance-Ω50 PolarizationVertical Gain-DBI2.0 MaxInputPower-W50 4 HANGYUCOMMUNICATIONEQUIPMENTCO.,LTD GSMInternalAntenna V.S.W.R Smith 5 HANGYUCOMMUNICATIONEQUIPMENTCO.,LTD GSMInternalAntenna ProductOutlineDrawing（mm)

Project No.: SZ1105052 Evaluation of RF Exposure for AP-BX-GX Wireless Communication Module In this application we seek approval to the AP-BX-GX fixed wireless phone for use in mobile configuration. Based on the FCC OET Bulleting 65 Supplement C and 47CFR 2.1091, we have concluded that the AP-BX-GX will comply with the FCC rules on RF exposure for mobile devices if the antenna gain does not exceed 0dBi in GSM and PCS band. The following analysis will demonstrate such compliance. Operation in cellular band (824-849MHz) The peak conducted output power of AP-BX-GX in cellular band is 31.98dBm. Take the worst case as an example, in which an antenna with 2dBi gain is used. The resulted power density at a distance of 20cm can be deducted as follows: EIRP=31.98+2=33.98=2500mW Power Density=EIRP*DutyCycle/4πR 2 =2500*0.5(4πR 2 ) =0.25mW/cm 2 where DutyCycle is 0.5 for GPRS class 12 and R is 20cm The MPE limit for General Population/Uncontrolled Exposure is shown in the FCC OET Bulletin 65 Supplement C and can be calculated as follows: MPE limit=824/1500=0.55mW/cm 2 As we can see the resulted power density is below the MPE limit, therefore AP-BX-GX in Celluar band is compliant with the FCC rules on RF exposure. Operation in cellular band (1850-1910MHz) The peak conducted output power of AP-BX-GX in cellular band is 28.69dBm. Take the worst case as an example, in which an antenna with 2dBi gain is used. The resulted ERP can be expressed as follows: ERP=28.69+2-2.15=28.54dBm=0.71W<3W The FCC OET Bulletin 65 Supplement C states that mobile devices identified in 47 CFR 2.1091 that operate at frequencies above 1.5GHz with an ERP OF 3.0 watts or more are required to perform routine environmental evaluation for RF exposure prior to equipment authorization or use; otherwise, they are categorically excluded. As we can see this resulted ERP is below 3W, therefore routine environmental evaluation for RF exposure prior to equipment authorization or use for AP-BX-GX in PCS band is categorically excluded.

Report No.: SZ11050052E03 Page 2 of 46 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 5 1.3 Facilities and Accreditations ...................................................................................................... 6 2. 47 CFR PART 2, PART 22H & 24E REQUIREMENTS ........................................................ 7 2.1 Conducted RF Output Power .................................................................................................... 7 2.2 99% Occupied Bandwidth ....................................................................................................... 21 2.3 Frequency Stability ................................................................................................................... 25 2.4 Conducted Out of Band Emissions ......................................................................................... 27 2.5 Band Edge ................................................................................................................................. 31 2.6 Transmitter Radiated Power (EIRP/ERP) ............................................................................. 34 2.7 Radiated Out of Band Emissions ............................................................................................ 41 Change History Issue Date Reason for change 1.0 August 12, 2011 First edition Report No.: SZ11050052E03 Page 3 of 46 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ............................. : Active Poster- Virtual mobile commerce terminal Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : 01 Software Version .................. : Applicant .............................. : Manufacturer ........................ : 3.10.5.8 Megasoft Limited 6-3-1192/2/1, Kundanbagh, Begumpet, Hyderabad – 500016 Megasoft Limited 6-3-1192/2/1, Kundanbagh, Begumpet, Hyderabad – 500016 Frequency Range .................. : GPRS 850MHz: Tx: 824.20 - 848.80MHz (at intervals of 200kHz); Rx: 869.20 - 893.80MHz (at intervals of 200kHz) GPRS 1900MHz: Tx: 1850.20 - 1909.80MHz (at intervals of 200kHz); Rx: 1930.20 - 1989.80MHz (at intervals of 200kHz) Modulation Type................... : GMSK Emission Designators ........... : 300KGXW Power Supply ....................... : Battery Brand Name: Wisewod Model No.: WD335585PN1800mAh Serial No.: (n.a. marked #1 by test site) Capacitance: 1800mAh Rated Voltage: 3.7V Charge Limit: 4.2V Manufacturer: Shenzhen Wisewod Technology Co. Limited Ancillary Equipment A .......... AC Adapter (Charger for Battery) Brand Name: Qiw Model Name: GFP181DA-0530-1 Serial No.: (n.a. marked #1 by test site) Rated Input: 100-240V, 50/60Hz, 0.35A Rated Output: 5V, 3A Manufacturer: DEE VAN ENTERPRISE CO., LTD. Note 1: The transmitter (Tx) frequency arrangement of the Cellular 850MHz band used by the EUT can be represented with the formula F(n)=824.2+0.2*(n-128), 128<=n<=251; the lowest, middle, highest channel numbers (ARFCHs) used and tested in this report are separately 128 (824.2MHz), 190 (836.6MHz) and 251 (848.8MHz). Note 2: The transmitter (Tx) frequency arrangement of the PCS 1900MHz band used by the EUT can be represented with the formula F(n)=1850.2+0.2*(n-512), 512<=n<=810; the lowest, Report No.: SZ11050052E03 Page 4 of 46 middle and highest channel numbers (ARFCHs) used and tested in this report are separately 512 (1850.2MHz), 661 (1880.0MHz) and 810 (1909.8MHz). Note 3: The GPRS was tested under 4 time-slots mode. Note 4: The Bhagyashree Industries of the AC Adapter is SA151102050030. Note 5: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ11050052E03 Page 5 of 46 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 2, Part 22 and Part 24 for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 2 (10-1-09 Edition) Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 47 CFR Part 22 (10-1-09 Edition) Public Mobile Services 3 47 CFR Part 24 (10-1-09 Edition) Personal Communications Services Test detailed items/section required by FCC rules and results are as below: No. Section Description Result 1 2.1046 Conducted RF Output Power PASS 2 2.1049 20dB Occupied Bandwidth PASS 3 2.1055 22.355 24.235 Frequency Stability PASS 4 2.1051 2.1057 22.917 24.238 Conducted Out of Band Emissions PASS 5 2.1051 2.1057 22.917 24.238 Band Edge PASS 6 22.913 24.232 Transmitter Radiated Power (EIPR/ERP) PASS 7 2.1053 2.1057 22.917 24.238 Radiated Out of Band Emissions PASS NOTE：Measurement method according to ANSI/TIA-603-D 2010. Report No.: SZ11050052E03 Page 6 of 46 1.3 Facilities and Accreditations 1.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 -60 Atmospheric Pressure (kPa): 86-106 Report No.: SZ11050052E03 Page 7 of 4…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2. RE (30MHz-1GHz) 3. RE(9kHz-30MHz)

Test Setup Photos 1. CSE 2. RSE
