ZTGLX6168ATouch Mouse

Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. RF-6168 (Touch Mouse) USER GUIDE Version V1.0 Date 2011-07-26 Company Lexking Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Thank you for choosing LEXKING RF-6168(RF2.4GHz Touch Mouse)! This mouse have been developed by LEXKING, a dedicated manufacturer of innovative input device product, including wireless keyboards, wireless mice, and other computer, tablet PC input device accessories. This user guide have been supplied with RF-6168 mouse and is designed to familiarize you with all aspects of our product. We hope that it will be of use to you, if there are any questions that are not answer or clarified in this user guide, please refer to our website: http://www.lexking.com or you can mail any service inquiry to our account as [email protected] 一. Product Introduction 1. Compliance USB 1.1/2.0 Spec. 2. Optical Sensor 3. 800, 1,200, 1,600 3-modes DPI switching by press mouse left/right buttons at the same time then till 3 seconds. 4. Support 9 functions key operation (left, Middle, Right, Forward, Backward, Previous Page/Next Page, Zoom in/Zoom Out）. 5. 2 wake up modes support by touch any mouse button or moving mouse. 6. Operate range up to 10 meters. Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. 7. Special buzzer design in gesture function operating, provide you know mouse is real working status r. 二.Package Contents 1.Mouse unit 2.Receiver 3.AAA Batteries*2 4.User Guide 三．Setup A)Way 1: 1.Put batteries into mouse, then open mouse power switch. 2.Insert receiver to our notebook’s or PC’s USB port. 3.Receiver will automatically paring, meanwhile please push them ID button in RF-6168 mouse back side within 60 seconds, then press mouse any keys or moving mouse by liner direction, it will show connect successfully for operation. B).Way 2 1.Put batteries into mouse according right batteries polarities. 2.Move the power button from “OFF” to “ON”, then press ID button for paring. 3.Insert USB nano receiver into Notebook’s or PC’s USB port within 5 Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. seconds after you done above action item “2”. Then press mouse any keys or moving mouse by liner, it is will shown connect successfully. Marks: All mice and receiver will be pared sequentially before product shippment , you can use the mouse when you insert receiver into Notebook or PC. 四．Main Function Operation Description 1. Mouse middle key shown function as below picture A).Middle key function Move finger to RED circle area then finger touch the surface moment then move finger out RED circle area, it shown the mouse middle key function. B).Disable middle key function After above procedure, you just touch the RED circle area, mouse middle Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. key function will be closed. 2.Left, Right buttons function(real key switch feeling, shown as below picture) Touch operating area of mouse left button Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Touch operating area of mouse right 3.Slide buttons(real switch function shown as below picture) Forward function Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Backward function 4. Previous Page/Next Page function shown as below picture a) Previous Page ------moving finger from right corner left corner finger Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Shown Previous Page function b)Next Page Function------moving finger from left corner to right corner Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Shown as Next Page function 5. Zoom In/Zoom Out (Shown as below pictures) a)Zoom In ------tow finger moving from middle are to both side area shown as below picture. Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Above picture shown Zoom In b)Zoom out------2 fingers moving out area to inside area shown as below picture. Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Above pictures shown as Zoom out function 6.Wheeling function(Shown as below picture) a)Scrolling up------scrolling from bottom to up Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Above shown scrolling up b)Scrolling down------Scrolling from up to down shown as below picture Lexking Technology Co., Ltd. Tel ： +886-2-2910-7566bExt:18 Fax+886-2-29155721 2F No.3 Baoqiang Road, Xindian Dist. New Taipei City, Taiwan R.O.C. Above shown scrolling down function FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits…

Text truncated - open the document above for the full version.

Lexking Technology Co.,Ltd. 2F, No. 3, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan(R.O.C) FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Lexking Technology Co.,Ltd. Addresss 2F, No. 3, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan(R.O.C) City New Taipei City Country Taiwan request non- di sclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: ZTG LX6168A of the following materials submitted wit h in this certification application: (please cross what is applicable, or add other documents) x Operational Description (file: OpDes.pdf, explaining the functioning of the block diagram / EUT) x Block Diagrams (file: Blk.pdf, showing the systematic building blocks of the EUT) x Schematics Diagrams (file: Schematics.pdf, showing the components, their values and interconnections) Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) New Taipei City Taiwan July 27, 2011 Lawrence Tsai General manager

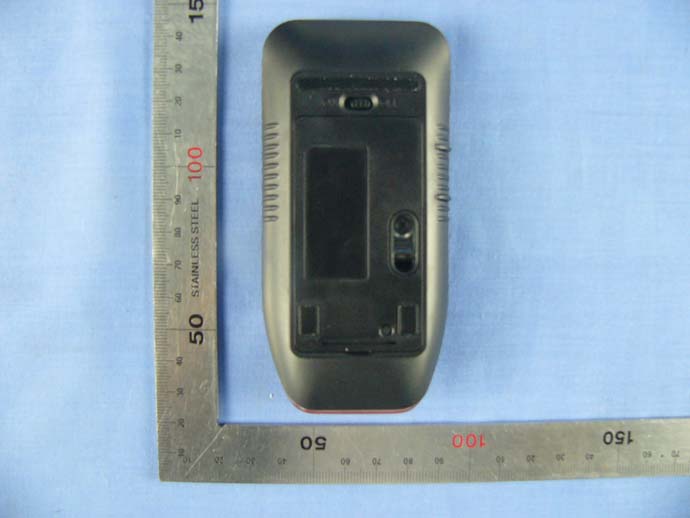

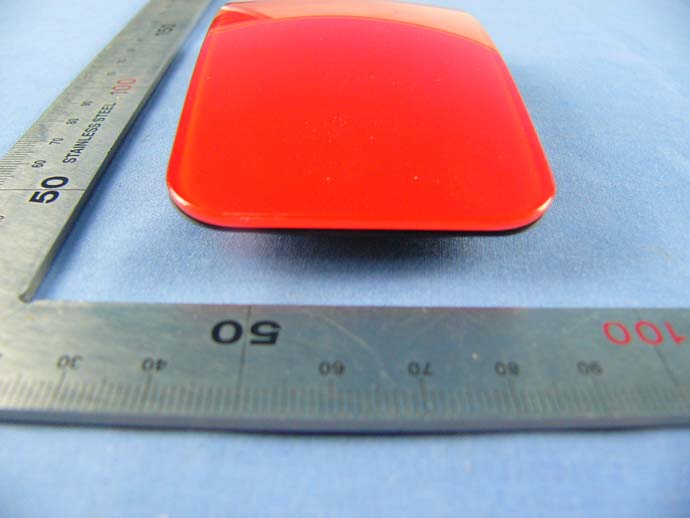

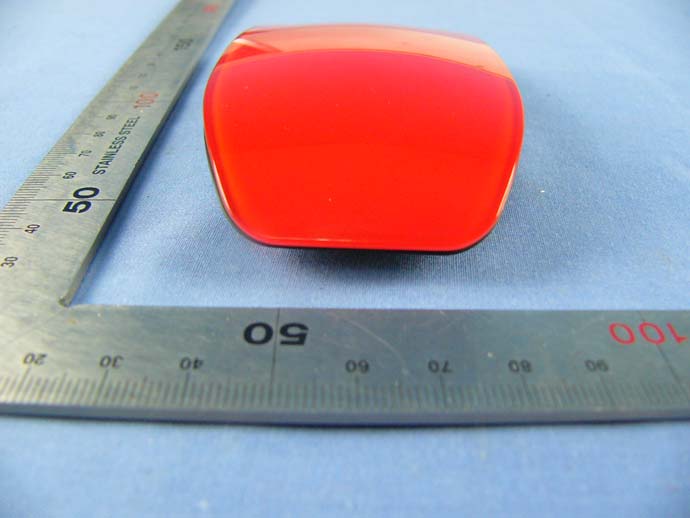

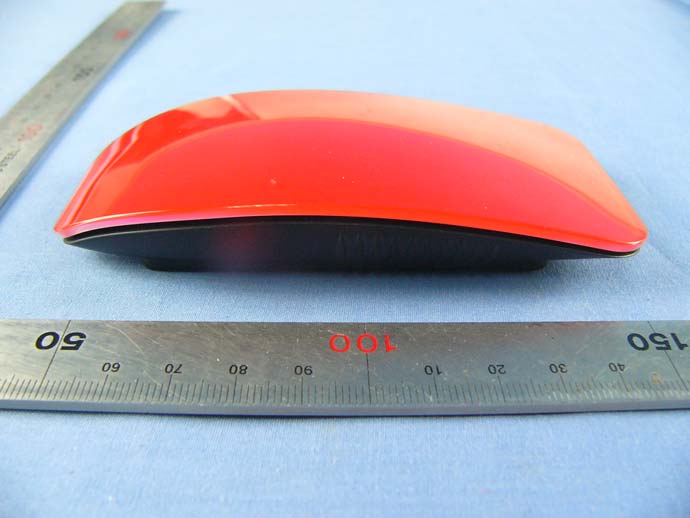

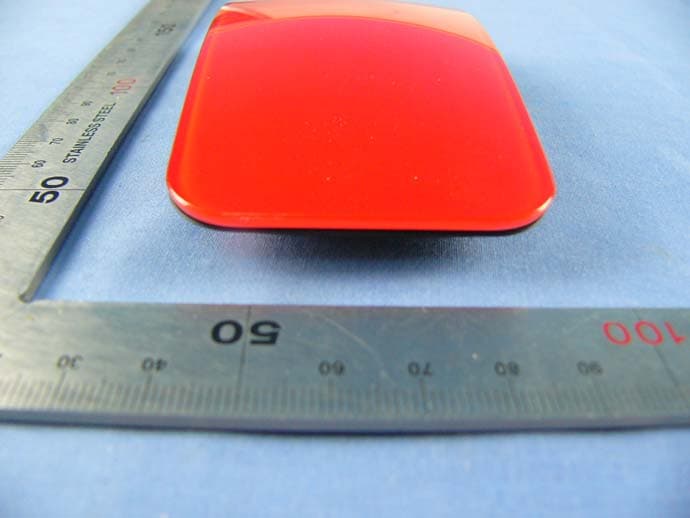

Report No: SZ110721B09-RP Page 1 / 3 Report No: SZ110721B09-RP Page 2 / 3 Report No: SZ110721B09-RP Page 3 / 3

Label Location

Report No: SZ110721B09-RP Page 1 /6 Internal Photos of EUT Report No: SZ110721B09-RP Page 2 /6 Report No: SZ110721B09-RP Page 3 /6 Report No: SZ110721B09-RP Page 4 /6 Report No: SZ110721B09-RP Page 5 /6 Report No: SZ110721B09-RP Page 6 /6

Report No: SZ110721B09-RP FCC ID: ZTGLX6168A Page 1 of 27 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC TEST REPORT for Touch Mouse Model: RF-6168 Brand: Lexking Test Report Number: SZ110721B09-RP Issued for Lexking Technology Co.,Ltd. 2F, No. 3, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan(R.O.C) Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 Report No.: SZ110721B09-RP FCC ID : ZTGLX6168A Page 2 / 26 Revision History Rev. Issue No. Revisions Effect Page Revised By 00 SZ110721B09-RP Initial Issue ALL Amay Tang Report No.: SZ110721B09-RP FCC ID : ZTGLX6168A Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION................................................................................................ 5 3 TEST METHODOLOGY .......................................................................................... 6 3.1. DESCRIPTION OF TEST MODES ...................................................................................... 6 4 TEST METHODOLOGY .......................................................................................... 7 4.1. EUT EXERCISE ...................................................................................................................7 4.2. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................... 7 5 INSTRUMENT CALIBRATION ............................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ................................................................ 8 6.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 6.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 7 FACILITIES AND ACCREDITATIONS ................................................................... 9 7.1. FACILITIES .......................................................................................................................... 9 7.2. ACCREDITATIONS ............................................................................................................. 9 7.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 8 FCC PART 15.249 REQUIREMENTS................................................................... 10 8.1. BAND EDGES MEASUREMENT....................................................................................... 10 8.2. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 16 8.3. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 19 Report No.: SZ110721B09-RP FCC ID : ZTGLX6168A Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product Touch Mouse Model RF-6168 Brand Lexking Tested July 21~25, 2011 Applicant Lexking Technology Co.,Ltd. 2F, No. 3, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan(R.O.C) Manufacturer Shen zhen vander. Science & Technology Co., Ltd. 3rd Floor, D1B., Yinfeng lndustrial Park, W. Hangcheng Rd., Xixiang, Bao an District,Shengzhen, Guangdong, PR China APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted DEVIATION FROM APPLICABLE STANDARD None We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4:2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.249. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Aven Zhou Supervisor of Report Dept. Compliance Certification Service Inc. Report No.: SZ110721B09-RP FCC ID : ZTGLX6168A Page 5 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 EUT DESCRIPTION Product Touch Mouse Trade Name Lexking Model Number RF-6168 Model Discrepancy N/A Serial Number SZ110721B09-RP Power Supply DC3V supplied by the battery(AAA*2) Frequency Range 2403-2477MHz Transmit Power Peak: 84.15 dBuV/m (Max.) Average:65.48 dBuV/m (Max.) Modulation Technique GFSK Number of Channels 6 Channels Antenna Specification PCB Antenna with 0 dBi gain(Max) Temperature Range 0°C ~ +40°C The EUT has two colors, the scarlet and the dark red. Note: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: ZTGLX6168A filing to comply with Section 15.207, 15.209 and 15.249 of the FCC Part 15, Subpart C Rules. 3. The device would match a receiver to sale. Report No.: SZ110721B09-RP…
