ZTYMRO8700MICROWAVE MOTION SENSOR

10.525GHz / X-BAND Product introduction Microwave motion sensor module consists of a microwave motion sensor and a sensor controller board in which the IF signal from the sensor is further processed to determine the motion events. The high sensitivity of the sensor module is due to the multi-stage amplification circuit on the controller board. Based on the detection of the backscattered Doppler signal, HP300 can detect any motion event in the effective power range. In addition, the backscattered Doppler signal can be sampled and then transmitted via UART interface to other advanced MCU or DSP boards for further processing. For example, the motion velocity can be obtained by the calculation of the Doppler frequency using FFT signal processing. The relay output of the sensor controller board can be used to drive the alarms or lamps easily. The microwave motion sensor module offers a number of advantages over alternative technologies such as ultrasonic, optic, magnetic switch, or infrared sensors in the senses of greater range, and better penetration, etc. Microwave Module Instruction Manual APPLICATION Intrusion Alarms Automatic Door Openers Obstruction Warning Systems Non-Contact Measurement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 10.525GHz / X-BAND Product introduction Microwave motion sensor module consists of a microwave motion sensor and a sensor controller board in which the IF signal from the sensor is further processed to determine the motion events. The high sensitivity of the sensor module is due to the multi-stage amplification circuit on the controller board. Based on the detection of the backscattered Doppler signal, HP300 can detect any motion event in the effective power range. In addition, the backscattered Doppler signal can be sampled and then transmitted via UART interface to other advanced MCU or DSP boards for further processing. For example, the motion velocity can be obtained by the calculation of the Doppler frequency using FFT signal processing. The relay output of the sensor controller board can be used to drive the alarms or lamps easily. The microwave motion sensor module offers a number of advantages over alternative technologies such as ultrasonic, optic, magnetic switch, or infrared sensors in the senses of greater range, and better penetration, etc. Microwave Module Instruction Manual

FCC ID: ZTYMRO8700 Report No.: RF110722C03 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch November 23, 2012 Dear Application Examiner, Hao Pin Technology Co. Ltd., It’s an MICROWAVE MOTION SENSOR, FCC ID: ZTYMRO8700 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in ZTYMRO8700. 3. “The modular transmitter must have its own power supply regulation.” The EUT have its own regulation in ZTYMRO8700. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: ZTYMRO8700 Report No.: RF110722C03 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

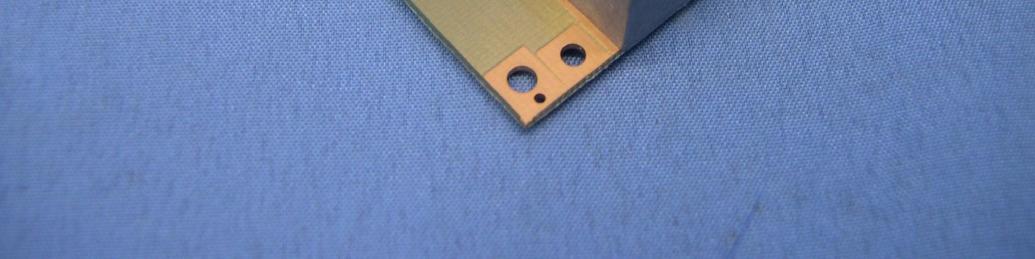

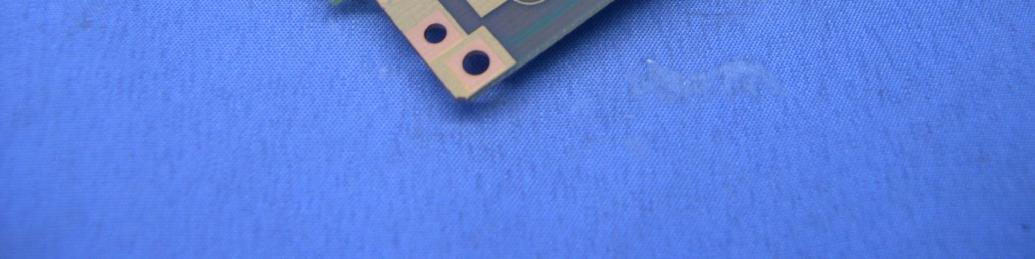

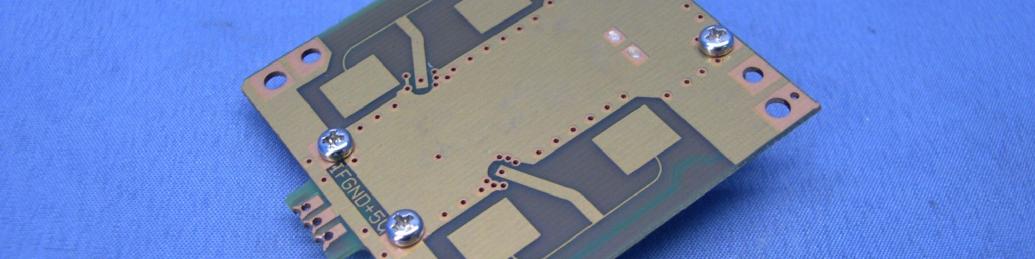

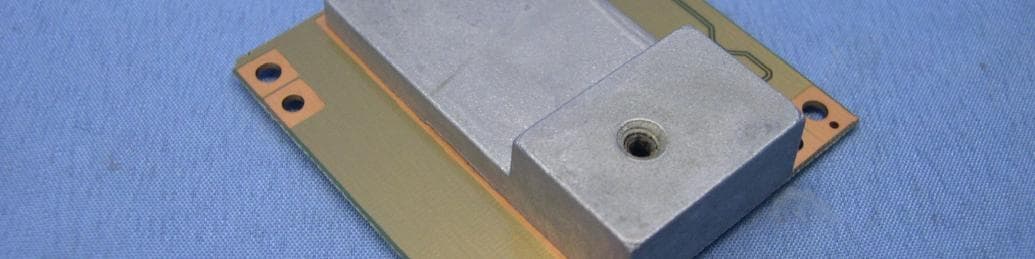

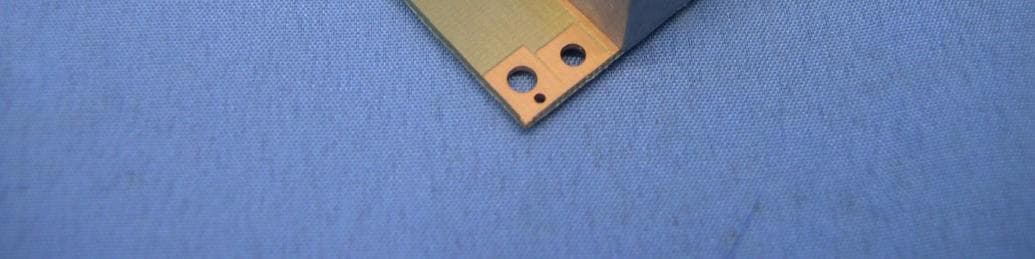

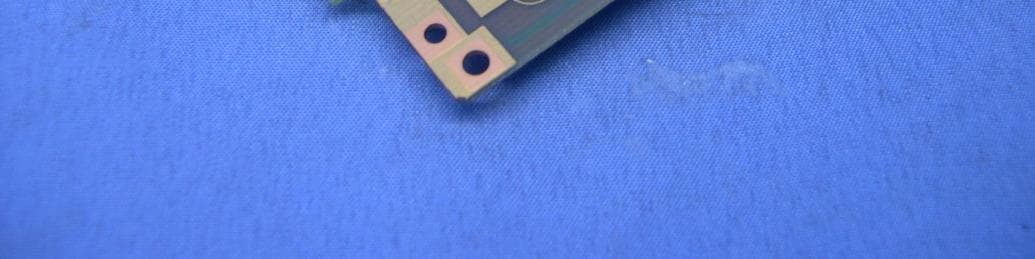

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 2 Page 3

FCC ID: ZTYMRO8700 Report No.: RF110722C13 Operational Description This device is a MICROWAVE MOTION SENSOR. The transmitter of the EUT is powered by 4.5Vdc from DC power supply. The antenna is PCB antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: RF110722C13A 1 Report Format Version 4.0.0 Reference No.:110919C27 RF EXPOSURE REPORT REPORT NO.: SA110722C13A MODEL NO.: MRO8700 FCC ID: ZTYMRO8700 RECEIVED: July 22, 2011 TESTED: Aug. 03 to 12, 2011 ISSUED: Sep. 20, 2011 APPLICANT: Hao Pin Technology Co. Ltd. ADDRESS: 1F., No.3, Aly. 37, Ln. 108, Nanfeng Rd., Pingzhen City, Taoyuan County 324, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement. The test results in the report only apply to the tested sample. Report No.: RF110722C13A 2 Report Format Version 4.0.0 Reference No.:110919C27 TABLE OF CONTENTS RELEASE CONTROL RECORD...................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT.............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. CALCULATION RESULT OF MAXIMUM POWER..................................................6 Report No.: RF110722C13A 3 Report Format Version 4.0.0 Reference No.:110919C27 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110722C13A Original release Sep. 20, 2011 Report No.: RF110722C13A 4 Report Format Version 4.0.0 Reference No.:110919C27 1. CERTIFICATION PRODUCT: MICROWAVE MOTION SENSOR BRAND NAME: HAO PIN MODEL NO.: MAS100 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Hao Pin Technology Co. Ltd. STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: MAS100) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Sep. 20, 2011 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Sep. 20, 2011 ( May Chen, Deputy Manager ) Report No.: RF110722C13A 5 Report Format Version 4.0.0 Reference No.:110919C27 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = E 2 / 3770 where Pd = power density in mW/cm 2 E = Field Strength in V/m 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: RF110722C13A 6 Report Format Version 4.0.0 Reference No.:110919C27 5. CALCULATION RESULT Channel Field Strength of Fundamental (dBuV/m) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 113.1 0.000055 1 Limit of power density = 433.9 (MHz) / 1500 = 0.289 Note: Given Pd=E 2 /3770 E:V/m --- END ---

Report No.: RF110722C13 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF110722C13 MODEL NO.: MRO8700 FCC ID: ZTYMRO8700 RECEIVED: July 22, 2011 TESTED: Aug. 03 to 12, 2011 ISSUED: Sep. 05, 2011 APPLICANT: Hao Pin Technology Co. Ltd. ADDRESS: 1F., No.3, Aly. 37, Ln. 108, Nanfeng Rd., Pingzhen City, Taoyuan County 324, Taiwan (R.O.C.) ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110722C13 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD............................................................................................3 1 CERTIFICATION.......................................................................................................4 2 SUMMARY OF TEST RESULTS...............................................................................5 2.1 MEASUREMENT UNCERTAINTY..............................................................................5 3 GENERAL INFORMATION........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT..........................................................................6 3.2 DESCRIPTION OF TEST MODES............................................................................7 3.3 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL.............................7 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS............................................8 3.5 DESCRIPTION OF SUPPORT UNITS.......................................................................9 3.6 CONFIGURATION OF SYSTEM UNDER TEST......................................................10 4 TEST PROCEDURES AND RESULTS....................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT...........................................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.........................................11 4.1.2 TEST INSTRUMENTS.............................................................................................11 4.1.3 TEST PROCEDURES.............................................................................................12 4.1.4 TEST SETUP..........................................................................................................12 4.1.5 EUT OPERATING CONDITIONS............................................................................13 4.1.6 TEST RESULTS......................................................................................................14 4.2 RADIATED EMISSION MEASUREMENT................................................................16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..............................................16 4.2.2 TEST INSTRUMENTS.............................................................................................18 4.2.3 TEST PROCEDURES.............................................................................................20 4.2.4 DEVIATION FROM TEST STANDARD....................................................................21 4.2.5 TEST SETUP..........................................................................................................22 4.2.6 EUT OPERATING CONDITIONS............................................................................22 4.2.7 TEST RESULTS......................................................................................................23 4.3 BANDEDGE MEASUREMENT................................................................................26 4.3.1 LIMITS OF BANDEDGE..........................................................................................26 4.3.2 TEST INSTRUMENTS.............................................................................................26 4.3.3 TEST PROCEDURE...............................................................................................26 4.3.4 DEVIATION FROM TEST STANDARD....................................................................26 4.3.5 EUT OPERATING CONDITION...............................................................................26 4.3.6 TEST RESULTS......................................................................................................27 5 INFORMATION ON THE TESTING LABORATORIES.............................................29 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB......................................................................................30 Report No.: RF110722C13 3 Report Format Version 4.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF110722C13 Original release Sep. 05, 2011 Report No.: RF110722C13 4 Report Format Version 4.0.0 1 CERTIFICATION PRODUCT : MICROWAVE MOTION SENSOR BRAND NAME : HAO PIN MODEL NO. : MRO8700 TEST SAMPLE : ENGINEERING SAMPLE APPLICANT : Hao Pin Technology Co. Ltd. TESTED : Aug. 03 to 12, 2011 STANDARDS : FCC Part 15, Subpart C (Section 15.245) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment (Model: MRO8700) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST 3
