ZUS-GC572797Induction Lamp Ballast

Induction Lamp Ballast Specification 1、Introduction Install the ballast and fit the induction lamp , then connect power. 2、Feature Model Rate Power (W) Input Voltage (V) Input Current (A) Frequency (Hz) Power factor Ambient Temperature (°C) Surface Temperature (°C) Outline Dimensions L×W×H (mm) ML80DH01 80W 220-240±10% 0.36-0.33 50/60 0.98 50 70 230×120×62 ML120DH01 120W 220-240±10% 0.56-0.50 50/60 0.99 50 70 230×120×62 ML150DH01 150W 220-240±10% 0.68-0.63 50/60 0.99 50 70 230×120×62 ML200DH01 200W 220-240±10% 0.91-0.83 50/60 0.99 50 70 230×120×62 ML250DH01 250W 220-240±10% 1.17-1.04 50/60 0.99 50 70 230×120×62 ML300DH01 300W 220-240±10% 1.36-1.25 50/60 0.99 50 70 230×120×62 3、Install Introduction l First fit the ballast on the housing , then connect the lamp and ballast. l Connect the prepared power cables to ballast . 4、Note l Power must be off before installation. l Transportation and installation of the ballast should be handle with care. l Ballast and induction lamp must be fit together exactly. Tc ：70°C Electronic Ballast for Induction Fluorescent Lamp 300W Red:L Yellow-Green: Blue:N ML300DH01 Un:220-240VAC In:1.36-1.25A fn:50/60Hz U-OUT:500V λ:0.99 ta:50°C Input Wire:18AWG(0.81mm ) Macro Light Limited 220VAC～ 240VAC Ballast 2 WARNING: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Shanghai Juying Electronics Technology Co., Ltd August 1, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _ Shanghai Juying Electronics Technology Co., Ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Induction Lamp Ballast WJZ-80-W220-F1, WJZ-120-W220-F1, WJZ-150-W220-F1, WJZ-200-W220-F1, WJZ-250-W220-F1, WJZ-300-W220-F1 We affirm that between SIEMIC and _ Shanghai Juying Electronics Technology Co., Ltd any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title Zeng Xiangxu General Manager Contact information / address : 602 Room, unit65, No.155 Liming Road, Minhang, Shanghai. P.R.China

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Shanghai Juying Electronics Technology Co., Ltd August 1, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZUS-GC572797 We hereby request confidential treatment of information accompanying this application as outlined below: - Block - Circuit - Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Zeng Xiangxu General Manager Contact information / address : 602 Room, unit65, No.155 Liming Road, Minhang, Shanghai. P.R.China

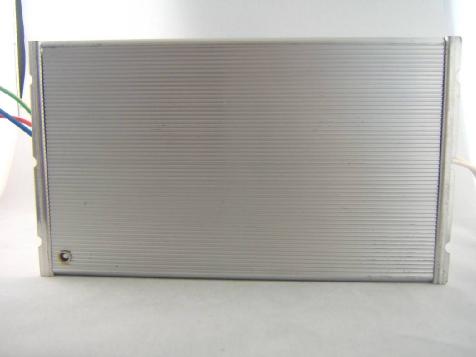

External Photo
