ZUT-GC990319Induction Lamp Ballast

SHANGHAI BITWISE Induction Lamp Ballast Specification 1、Introduction Install the ballast and fit the induction lamp , then connect power. 2、Feature Model Rate Power (W) Input Voltage (V) Input Current (A) Frequency (Hz) Power factor Ambient Temperat ure (°C) Surface Temperat ure (°C) Outline Dimensions L×W×H (mm) WJZ-80-W220-F1 80W 220-240±10% 0.36-0.33 50/60 0.98 50 70 230×120×62 WJZ-120-W220-F1 120W 220-240±10% 0.56-0.50 50/60 0.99 50 70 230×120×62 WJZ-150-W220-F1 150W 220-240±10% 0.68-0.63 50/60 0.99 50 70 230×120×62 WJZ-200-W220-F1 200W 220-240±10% 0.91-0.83 50/60 0.99 50 70 230×120×62 WJZ-250-W220-F1 250W 220-240±10% 1.17-1.04 50/60 0.99 50 70 230×120×62 WJZ-300-W220-F1 300W 220-240±10% 1.36-1.25 50/60 0.99 50 70 230×120×62 3、Install Introduction l First fit the ballast on the housing , then connect the lamp and ballast. l Connect the prepared power cables to ballast . 4、Note l Power must be off before installation. l Transportation and installation of the ballast should be handle with care. l Ballast and induction lamp must be fit together exactly. Electronic Ballast for Induction Fluorescent Lamp 300W WJZ-300-W220-F1 Un:220-240VAC In:1.36-1.25A fn:50/60Hz U-OUT:500V λ:0.99 ta:50°C tc:70°C Input Wire:18AWG(0.81mm ) 2 Ballast 220VAC～ 240VAC Red:L Yellow-Green: Blue:N SHANGHAI BITWISE ELECTROC MOTOR & APPLIANCES CO.,LTD. WARNING: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Shanghai Bitwise electric motor & appliances Co., ltd August 1, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _ Shanghai Bitwise electric motor & appliances Co., ltd hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Induction Lamp Ballast WJZ-80-W220-F1, WJZ-120-W220-F1, WJZ-150-W220-F1, WJZ-200-W220-F1, WJZ-250-W220-F1, WJZ-300-W220-F1 We affirm that between SIEMIC and Shanghai Bitwise electric motor & appliances Co., ltd any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title ChenYao General Manager Contact information / address : No.2017/3 Jiangchuan Rd, Minhang Shanghai, P.R.China

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Shanghai Bitwise electric motor & appliances Co., ltd August 1, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZUT-GC990319 We hereby request confidential treatment of information accompanying this application as outlined below: - Block - Circuit - Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title Chenyao General Manager Contact information / address : No.2017/3 Jiangchuan Rd, Minhang Shanghai, P.R.China

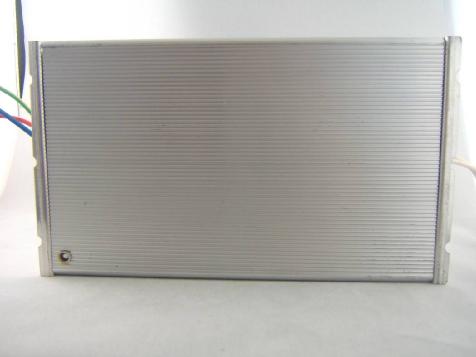

External Photo

FCC ID : ZUT-GC990319 This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Report No.: EESZD02150004 Page 1 of 14 FCC TEST REPORT Product Name : Induction Lamp Ballast Trade Name : Bitwise Model Number : WJZ-80-W220-F1, WJZ-120-W220-F1, WJZ-150-W220-F1, WJZ-200-W220-F1, WJZ-250-W220-F1, WJZ-300-W220-F1 Serial Number : N/A FCC ID : ZUT-GC990319 FCC Registered Test Site Number : 510007 Technical Data : 120-277V~ 50/60Hz, WJZ-80-W220-F1:80W, WJZ-120-W220-F1:120W WJZ-150-W220-F1:150W, WJZ-200-W220-F1:200W WJZ-250-W220-F1:250W, WJZ-300-W220-F1:300W Report Number : EESZD02150004 Date : July 15, 2011 Regulations : See below Prepared for: Shanghai Bitwise electric motor & appliances Co., ltd No.2017/3 Jiangchuan Rd, Minhang Shanghai, P.R.China Prepared by: CENTRE TESTING INTERNATIONAL CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Check No.: 10891816 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Standards Results FCC Part 18: 2009 PASS Report No.: EESZD02150004 Page 2 of 14 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION..................................................................................................................3 2. TEST SUMMARY................................................................................................................................4 3. MEASUREMENT UNCERTAINTY.......................................................................................................4 4. PRODUCT INFORMATION.................................................................................................................4 5. FACILITIES AND ACCREDITATIONS.................................................................................................4 6. FCC CONDUCTED EMISSION TEST..................................................................................................6 6.1 LIMITS OF FCC CONDUCTED EMISSION TEST.............................................................................6 6.2 BLOCK DIAGRAM OF TEST SETUP...............................................................................................6 6.3 PROCEDURE OF CONDUCTED EMISSION TEST..........................................................................6 6.4 TEST RESULT OF CONDUCTED EMISSION TEST........................................................................7 7. FCC RADIATED EMISSION TEST......................................................................................................9 7.1 LIMITS OF FCC RADIATED EMISSION TEST.................................................................................9 7.2 BLOCK DIAGRAM OF TEST SETUP...............................................................................................9 7.3 PROCEDURE OF RADIATED EMISSION TEST..............................................................................9 7.4 TEST RESULT OF RADIATED EMISSION TEST...........................................................................10 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP.....................................................................................12 APPENDIX 2 EXTERNAL PHOTOS OF EUT.............................................................................................13 Report No.: EESZD02150004 Page 3 of 13 1. GENERAL INFORMATION Applicant & Address: Shanghai Bitwise electric motor & appliances Co., ltd No.2017/3 Jiangchuan Rd, Minhang Shanghai, P.R.China Manufacturer Site: Shanghai Bitwise electric motor & appliances Co., ltd No.2017/3 Jiangchuan Rd, Minhang Shanghai, P.R.China Type of Test: DECLARATION OF CONFORMITY Product Name: Induction Lamp Ballast Trade Name: Bitwise FCC ID ZUT-GC990319 FCC Registered Test Site Number 510007 Model Number: WJZ-80-W220-F1, WJZ-120-W220-F1, WJZ-150-W220-F1, WJZ-200-W220-F1, WJZ-250-W220-F1, WJZ-300-W220-F1 Serial Number: N/A Date of test: February 15, 2011 to July 14, 2011 Condition of Test Sample: Normal The results of this test report are only valid for the mentioned equipment under test. The test report with all its sub-reports, e.g. tables, photographs and drawings, is copyrighted. Unauthorized utilization, especially without permission of the test laboratory, is not allowed and punishable. For copying parts of the test report, a written permission by the test laboratory is needed. The test results of this report relate only to the tested sample identified in this report. Prepared by : Gavin Song Reviewed by : Louisa Lu Approved by : Jimmy Li Manager Date : July 15, 2011 Report No.: EESZD02150004 Page 4 of 13 2. TEST SUMMARY The EUT has been tested according to the following specifications: Standard Test Item Test FCC 18.307 Conducted Emission Yes FCC 18.305 Radiated Emission Yes 3. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. Measurement items Value Conducted emission 2.6 dB Radiated emission 4.4 dB 4. PRODUCT INFORMATION Mode: WJZ-80-W220-F1, WJZ-120-W220-F1, WJZ-150-W220-F1, WJZ-200-W220-F1, WJZ-250-W220-F1, WJZ-300-W220-F1 Technical Data: 120-277V~ 50/60Hz, WJZ-80-W220-F1:80W, WJZ-120-W220-F1:120W WJZ-150-W220-F1:150W, WJZ-200-W220-F1:200W WJZ-250-W220-F1:250W, WJZ-300-W220-F1:300W Model difference: All of models are identical except the power. The model number of test sample is WJZ-300-W220-F1, and the test results are applicable to the others. 5. FACILITIES AND ACCREDITATIONS 5.1 TEST FACILITY All test facilities used to collect the test data are located at Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China. The site and apparatus are constructed in conformance with the requirements of ANSI C63.4, CISPR 16-1-1 and other equivalent standards Report No.: EESZD02150004 Page 5 of 13 5.2 TEST EQUIP…

Text truncated - open the document above for the full version.

Test photo
