ZVUVS-1000RFID READER

VS-1000 Reader User Manual Bottom Figure 1.1 VS-1000 Reader Front View Back Side 43 mm 1 Details on Front Face and Menu Navigation 1.1 Front Face Information Front Face Information Reference Figure Figure 1.1 LCD 8 rows, 16 characters per row. Power LED Indicator (Red color) When lighted: Normal State: On When operating: On / Blinks Activity LED Indicator (Blue color) When lighted: Normal State: Off  When operating: On / Blinks Keypad Buttons Enter/Accept button: To enter into a sub-menu, or execute a function, or accept a new value into the reader’s configuration. On button: To turn on the unit, press and hold this button for 2 seconds and then release this button √ Off button: To turn off the unit, press and hold this button until the LCD and the LED go off. X Cancel Esc/Back button: To back-up to a parent menu or to clear memory and restart a scanning action. Next Item: To scroll forward the items in a menu or to scroll forward a list of UIDs. Previous Item: To scroll backward the items in a menu or to scroll backward a list of UIDs.  Scan tags button: There are two such buttons on the side of the VS-1000. It is used to activate the RF power for scanning tags. 2 Getting Started – Install and charge the battery Step 1: Remove Battery Cover Slide down Step 2: Align the base of battery pack with the base of battery compartment before inserting the battery pack. 7.2 volts Battery Connector side base Step 3: Slide the battery pack up so that the connector clicks into place. Replace the Battery Cover. Step 4: Use an AC/DC adaptor to supply 12 VDC to charge the battery for at least 3 hours. Red LED will blink when charging is in progress. Red LED will stop blinking when charging is complete. 2.1 Switch the reader on and off To switch the reader on, press and hold the power key <√> until you see the red LED is on. If the LCD displays “Battery Low”, please charge the reader. To switch the reader off, press and hold the power key <√> for 2 seconds. 2.2 Settings Your reader has various settings, called Tag Selection, LCD Backlight, LCD Contrast and Passkey. Press any side button at “Main Menu”. When LCD prompts “Start Setting? Version xxxx”, presses <√> to activate the “Tag Selection” settings. Alternatively, press <X> to exit the setting without saving. The first setting activated will be Tag Selection. Use the buttons to select the type of tags, FSK, ASK, ICODE UID. The default setting is FSK. Press <√> to proceed to the next setting. Press <X> to go back to previous setting or previous screen. The next setting would be LCD Backlight. When the LCD prompts “LCD Backlight”, use the buttons to select the level of backlight. Press <√> to proceed to the next setting. Press <X> to go back to previous setting or previous screen. The next setting would be LCD Contrast. Use the  buttons to select the contrast level. Press <√> to proceed to the next setting. The last setting will be the PIN/Passkey. Use the buttons to enable or disable the use of Passkey. Passkey is disabled by default to skip the Bluetooth Pairing process and this is the recommended setting. Press <√> to proceed to the next screen “Save and Exit ?”. To save and exit the setting, press <√>. To change the settings, press <X> to go back to previous screen. 2.3 Standby Mode A blank screen overwrites the display when no function of the reader has been used for a certain period of time, unless the reader is connected to USB, Bluetooth or Charger. To deactivate the screen saver, press and hold the <√> button for one second. 3 Scan Functions 3.1 Offline mode Scan Functions BT Pairing... Press X to exit Batch Mode Tag Count 000 Batch Mode Tag Count 000 Scanning... Press “√” Wait for a few seconds TJS Volare US-1000 HH-MR2 Press OK Main Menu Press “X” Press and hold down  buttons Batch Mode Tag Count 001 Scanning... Hold down  buttons to continue scanning tags Release  buttons stop scanning tags Batch Mode Tag Count 001 3.2 Online mode Scan Functions using USB . Wait for command from PC to scan tags BT Pairing... Press X to exit USB is connected Stand-alone mode is disabled Online Mode Tag Count 000 Press “√” Wait for a few seconds TJS Volare US-1000 HH-MR2 Press OK Main Menu Plug USB cable to PC Online Mode Tag Count 001 Wait for PC to connect to VS-1000 The steps below identify the COM Port number of the USB port connected to VS-1000 Under “Device Manager”, under “Modems”, double-click “USB serial emulation #x” Click the “Advanced” tab, and then click “Advanced Port Settings” The USB COM Port number can be found here. Once the COM Port number is known, open access port with setting 115200, N, 8, 1 Send command “B0 00” to scan tags. The reader will scan tags and return “D0 15” 3.3 Scan Functions with Bluetooth Connection Wait for command from PC to scan tags BT Pairing... Press X to exit Online Mode Tag Count 000 Press “√” Wait for a few seconds TJS Volare US-1000 HH-MR2 Press OK Main Menu Online Mode Tag Count 001 Use BlueSoleil to connect PC to reader Please install the BlueSoleil program before using the reader. Bluetooth 1.1 Serial Port Profile is supported on Windows XP. Bluetooth Device Name used by the reader is “HH-MR2” followed by the Bluetooth Address. Double click the Blue-Soleil icon to open the window below. Wait for VS-1000 reader screen to display “BT pairing”, then press “F5” on PC. Then the HH-MR2 icon with its Bluetooth address will be displayed in the BlueSoleil window. Double click the HH-MR2 icon, and then the COM Port service icon will turn yellow. Double click the COM Port service icon to connect PC to VS-1000. Right click the HH-MR2 icon and then click “Status” to show COM Port number. The COM Port number is displayed in the “Remote Device Status” window. Once the COM Port number is known, open access port with setting 115200, N, 8, 1 Send command “B0 00”. Then the VS-1000 will scan tags and reply “D0 15” 4 Compliance Statement Regulatory Notes An RFID system comprises an RF transmission device, and…

Text truncated - open the document above for the full version.

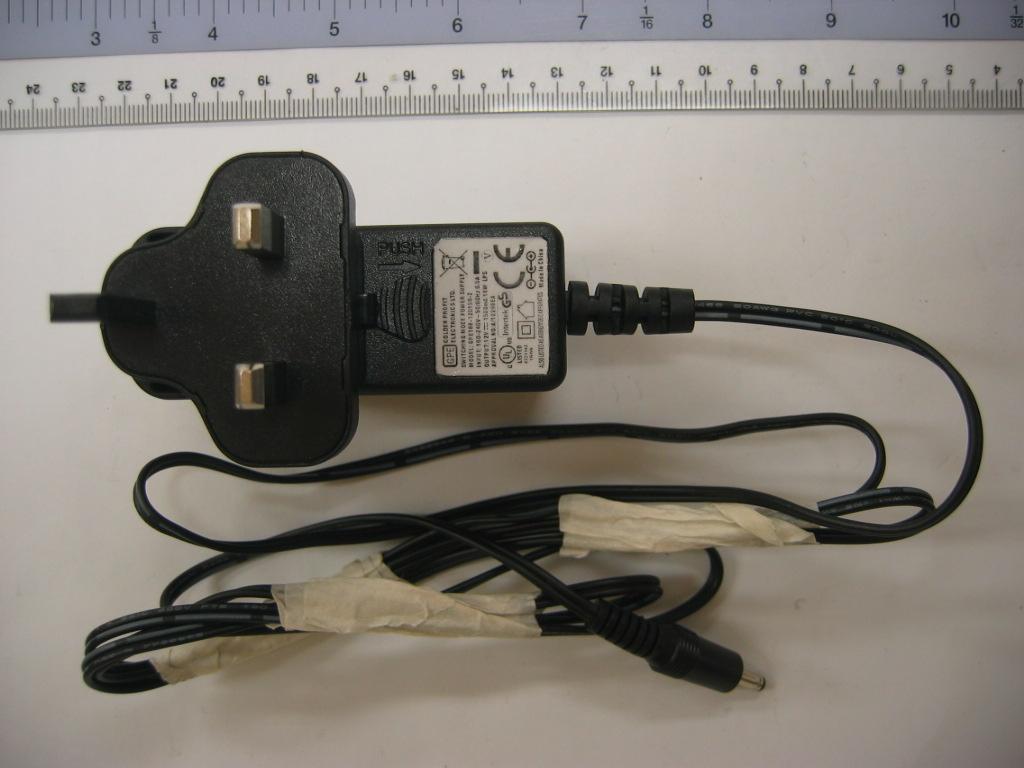

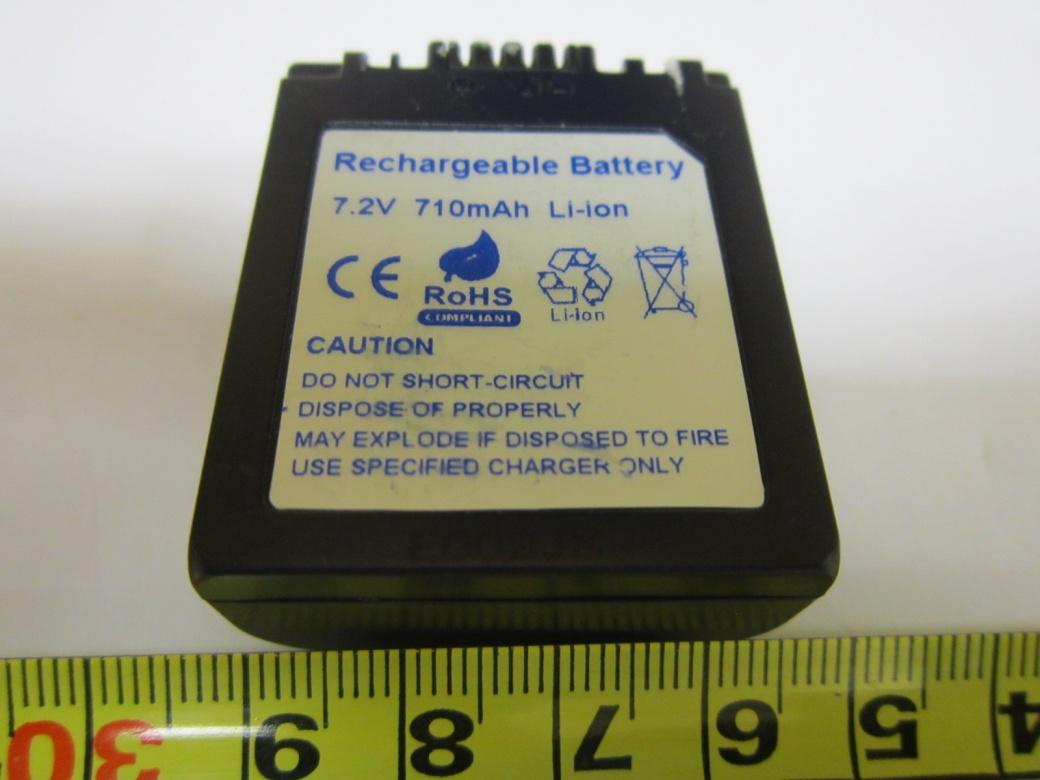

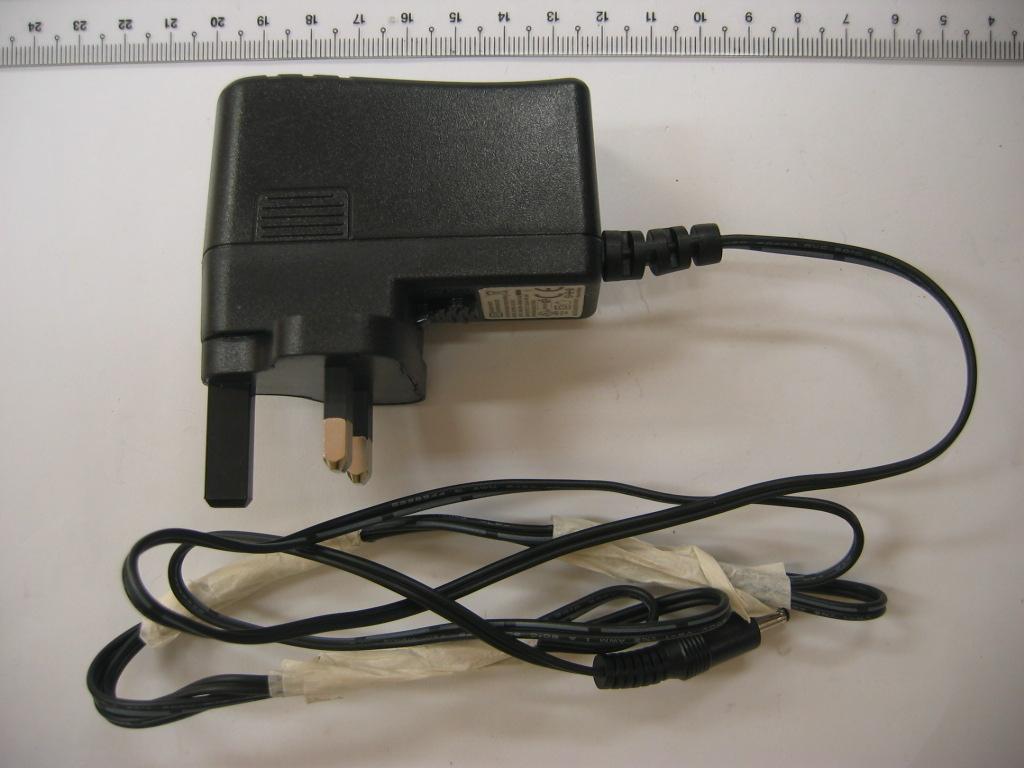

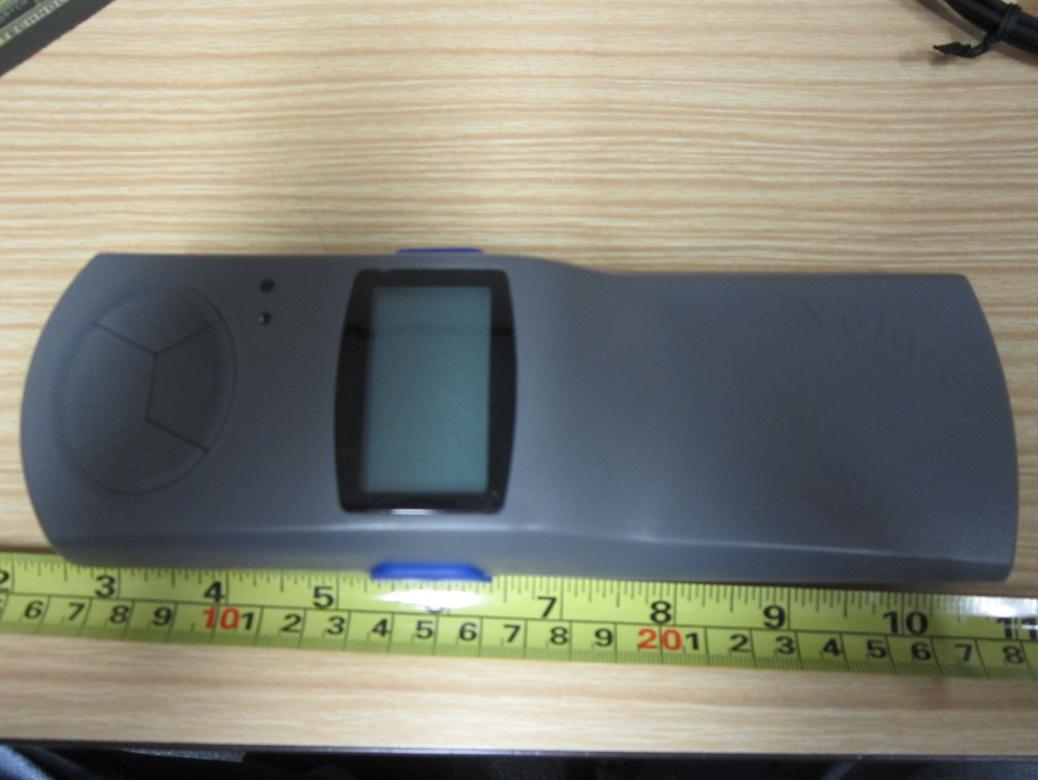

EXTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Front View Rear View EXTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Front View Rear View EXTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Rechargeable Battery LabelView

FCC label and location

INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 EUT Internal View1 INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Main-BoardPCB Component Side INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Main-BoardPCB Trace Side INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Sub-BoardPCB Component Side RF Module INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Sub-BaordPCB Trace Side INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Sub-Board 2PCB Component Side INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Sub-Board 2PCB Trace Side INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 Antenna BoardPCB Component Side INTERNAL PHOTOGRAPHS FCC ID: ZVUVS-1000 LCD MonitorPCB Trace Side

Test Report No. 7191013430-EEC11/01 dated 08 Sep 2011 Note: This report is issued subject to the Testing and Certification Regulations of the TÜV SÜD Group and the General Terms and Conditions of Business of TÜV SÜD PSB Pte Ltd. In addition, this report is governed by the terms set out within this report. LA-2007-0380-A LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C LA-2010-0464-D The results reported herein have been performed in accor dance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC- SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive, #04-01/05 The Franklin, Singapore 118223 Page 1 of 44 FORMAL REPORT ON TESTING IN ACCORDANCE WITH 47 CFR FCC Parts 15B & C : 2011 OF A RFID READER [ Model : VS-1000 ] [ FCC ID : ZVUVS-1000 ] TEST FACILITY TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, No. 1 Science Park Drive, Singapore 118221 TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, 13 Internatonal Business Park #01-01, Singapore 609932 FCC REG. NO. 99142 (3m and 10m Semi-Anechoic Chamber, Science Park) 160581 (3m and 10m Semi-Anechoic Chamber, International Business Park) IND. CANADA REG. NO. 2932I-1 (3m and 10m Semi-Anechoic Chamber, Science Park) 2932N-1 (10m Semi-Anechoic Chamber, International Business Park) PREPARED FOR TJS USA Inc. 24 School Street, Suite 501 Boston, Massachusetts 02108, USA Tel : 1 202 246 8349Fax : 1 617 263 1270 QUOTATION NUMBER 219132768 JOB NUMBER 7191013430 TEST PERIOD 08 Aug 2011 – 22 Aug 2011 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President TJS USA Inc.Page 2 of 44 RFID READER [ Model : VS-1000 ] [ FCC ID : ZVUVS-1000 ] Test Report No. 7191013430-EEC11/01 dated 08 Sep 2011 TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS CONDUCTED EMISSION TEST RADIATED EMISSIONS (SPURIOUS EMISSIONS INCLUSIVE RESTRICTED BANDS REQUIREMENT) RADIATED EMISSIONS (FUNDAMENTAL) FREQUENCY STABILITY VERSUS TEMPERATURE TEST FREQUENCY STABILITY VERSUS INPUT VOLTAGE TEST ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B- FCC LABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS TJS USA Inc.Page 3 of 44 RFID READER [ Model : VS-1000 ] [ FCC ID : ZVUVS-1000 ] Test Report No. 7191013430-EEC11/01 dated 08 Sep 2011 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail 47 CFR FCC Part 15: 2011 15.107(a), 15.207Conducted EmissionsPass 15.109(a), 15.205, 15.209, 15.225(d) Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.225(a)Radiated Emissions (Fundamental)Pass 15.225(e)Frequency Stability Versus Temperature Pass 15.225(e)Frequency Stability Versus Input Voltage Pass TJS USA Inc.Page 4 of 44 RFID READER [ Model : VS-1000 ] [ FCC ID : ZVUVS-1000 ] Test Report No. 7191013430-EEC11/01 dated 08 Sep 2011 TEST SUMMARY Notes 1. The Equipment Under Test (EUT) was configured to operate in the test mode at 13.56MHz 2. The measurements in section 15.225(e) were done based on conducted measurements. 3. The EUT is a Class B device when in non-transmitting state and meets the 47 CFR FCC Part15B Class B requirements. 4. All test measurement procedures are according to ANSI C63.4: 2003. Modifications No modifications were made. TJS USA Inc.Page 5 of 44 RFID READER [ Model : VS-1000 ] [ FCC ID : ZVUVS-1000 ] Test Report No. 7191013430-EEC11/01 dated 08 Sep 2011 PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) isaRFID READER. Manufacturer: TJS USA Inc. 24 School Street, Suite 501 Boston, Massachusetts 02108, USA Model Number: VS-1000 FCC ID: ZVUVS-1000 Serial Number: Nil Microprocessor: AT91SAM7 Operating / Transmitting Frequency : 13.56MHz. Bandwidth: 500kHz. Clock / Oscillator Frequency : RFID: 27.12MHz. Microprocessor: 18.432MHz. Modulation: Amplitude Shift Keying (ASK) Antenna Gain: 2.0 dBi Port / Connectors: Refer to manufacturer's user manual / operating manual. Rated Input Power: 110 V 60Hz Accessories: Power Adapter Model GPE188-120150Z TJS USA Inc.Page 6 of 44 RFID READER [ Model : VS-1000 ] [ FCC ID : ZVUVS-1000 ] Test Report No. 7191013430-EEC11/01 dated 08 Sep 2011 SUPPORTING DESCRIPTION DESCRIPTION Equipment Description (Including Brand Name) Model, Serial & FCC ID NumberCable Description (List Length, Type & Purpose) Lenovo S10M/N: 200152.00m unshielded power cable 2.00m USB cable S/N: EB10802918 FCC ID: DoC Li Shin International Power Adapter (Laptop) M/N: 0225A20402.00m unshielded power cable S/N: F20K57LF-A806 FCC ID: Nil HP Photosmart 7260M/N: Q3005A2.00m unshielded power cable 2.00m USB cable S/N: CN4683Z424 FCC ID: DoC HP Power Adapter (Printer) M/N: 0950-44012.00m unshielded power cable S/N: 4604620203 FCC ID: Nil TJS USA Inc.Page 7 of 44 RFID READER [ Model : VS-1000 ] [ FCC ID : ZVUVS-1000 ] Test Report No. 7191013430-EEC11/01 dated 08 Sep 2011 EUT OPERATING CONDITIONS 47 CFR FCCPart 15 1.Conducted Emissions 2. Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) 3. Radiated Emissions (Fundamental) 4. Frequency Stability Versus Temperature 5. Frequency Stability Versus Input Voltage The EUT was exercised by operating in maximum continuous transmission in manual mode, i.e transmitting at 13.56MHz continuously and with Bluetooth operating. TJS USA Inc.Page 8 of 44 RFID READER [ Model : VS-1000 ] [ FCC ID : ZVUVS-1000 ]…

Text truncated - open the document above for the full version.

Test setup photo RFID FCC ID: ZVUVS-1000 Conducted Emissions Test Setup (Front View) Conducted Emissions Test Setup (Rear View) 9kHz to 30MHz @10m Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) 30MHz to 1GHz @3m Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View)

Test setup photo BT FCC ID: ZVUVS-1000 Conducted Emissions Te st Setup (Front View) Conducted Emissions Test Setup (Rear View) Radiated Emissions Test Setup (Front View) Radiated Emissions Te st Setup (Rear View)
