ZW7KB-6135Slide Bluetooth Keyboard

Slide Bluetooth Keyboard Model: KB‐6135 FCC ID: ZW7KB‐6135 User Manual IPhone4 Wireless Bluetooth Keyboard User Guide Packing Contents: 1. Plastics shell W/Keyboard 2. USB Power Charging Cable 3. User Guide 1.0 Product Features: 1. Built-in Wireless Bluetooth 2.0 Silicone keyboard. 2. Stylish protective Plastics shell designed for iphone4. 3. Rechargeable lithium battery lasts for approximately 30 Hours per charge. 4. Special ipad home screen key for one-touch access to variety of applications. 5. Energy saving keyboard sleep mode 2.0 Keyboard Specifiacations 1. Bluetooth V2.0 interface Standard 2. Operating Distance : 10meters 3. Modulation System: GFSK 2.4G 4. Transmitting Power : Class 2 5. Operating Voltage:3.0-5.0 6. Working Current : <5.0MA 7. Standby Current :2.5MA 8. Sleeping Current: <200A 9. Charging Current :>100MA 10. Standby time : 45 days 11. uninterrupted working time: 30hours 12. Lithium Battery Life :3 years 13. Lithium Battery Specifications : 03*16*45 14. Charging time :2-2.5hours 15. Lithium Battery Capacity :200MA 16. Key Dynamics : 8010g 17. Key Life : 1 million strokes 18. Operating Temperature :-10+55 19. Humidity :20%-50% 3.0 Bleutooth Keyboard Pairing Operations Step1: Turn on the power switch .the Power and Bluetooth indicator light will be on for 5 seconds ,then the lights will go off Step2: Press on the “Connect” button ,The Bluetooth indicator light will be blinking ,and the power indicator will be on.The Keyboard is now ready to be connected to iphone4 Step3: Turn on and unlock iphone4 .click on the iphone4 “setting”icon. Step4: On the setting menu ,item “General” to access “bluettoth”to turn on the connection . iphone4 will automatically search for a Bluetooth_enabled device. Step5: Wireless keyboard found .click on the device to connect . Step6: Enter the Password code displayed on screen. And press “Enter”key. Step7: Wireless Keyboard connected successfully .”power”indicator light will stay on until the keyboard is switched off. special application: The wireless keyboard can be connected to iphone,4 ipad,and ipod Touch that had installed iOS 4.0 or later. For other Bluetooth enabled device ,please verify the Bluetooth standard&compatibility before attempting to connect to the keyboard. 4.0 Charging When the battery power is low ,the “power” indicator light will start blinking .it is time to recharge the keyboard. Step1: Connect the USB power cable to the keyboard charging interface Step2: Connect the charging cable A port into USB power or USB Power Adapter. The “charge”red indicator light will stay on ,when the keyboard is charging. Once it finished charging,the “charge”indicator light will turn off. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: ZW7KB-6135 IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Sep.09, 2011 Federal Communication Commission Authorization and Evaluation Division FCC ID: ZW7KB-6135 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, CHINFAI (HK) TECHNOLOGY CO.,LIMITED Contact person: Zanxiang Li Title: General Manager

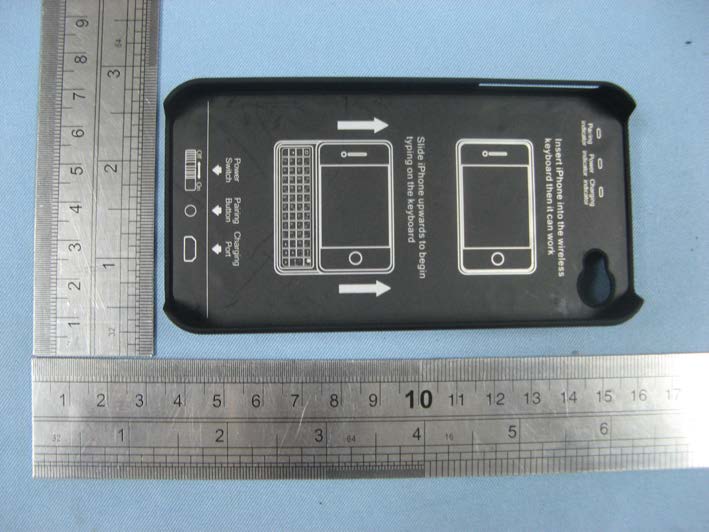

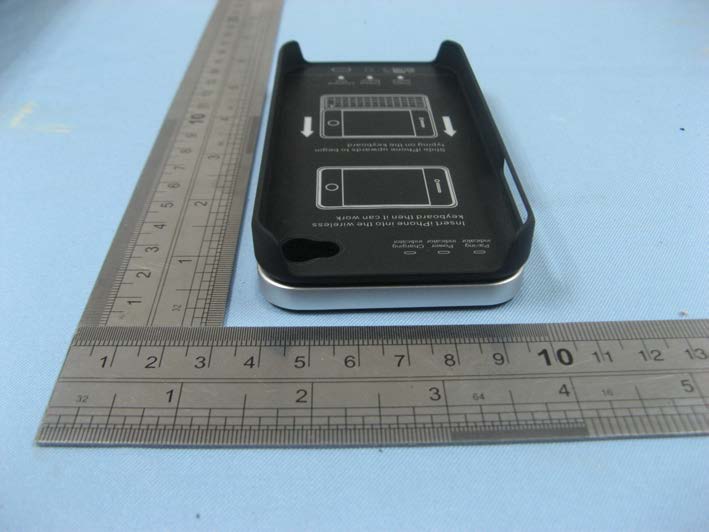

TOP VIEW OF EUT-1 TOP VIEW OF EUT-2 BOTTOM VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT

Slide Bluetooth Keyboard Model: KB‐613 5 FCC ID: ZW7KB‐6135 This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation.

OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF SAMPLE -1 INTERNAL VIEW OF SAMPLE -2 Bluetooth Antenna

FCC Test Report Report No.: AGC 05H110901F2 FCC ID : ZW7KB‐6135 PRODUCT DESIGNATION : Slide Bluetooth Keyboard BRAND NAME : CHINFAI TEST MODEL : KB‐6135 CLIENT : CHINFAI (HK) TECHNOLOGY CO.,LIMITED DATE OF ISSUE : Sep.15, 2011 STANDARD(S) : FCC Part 15 Rules Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC05H110901F2 Page 1 of 43 VERIFICATION OF COMPLIANCE Applicant CHINFAI (HK) TECHNOLOGY CO.,LIMITED Building2C-2D,yingfeng industrial zone, Huiyang economic development district, Huizhou city, Guangdong province Manufacturer CHINFAI (HK) TECHNOLOGY CO.,LIMITED Building2C-2D,yingfeng industrial zone, Huiyang economic development district, Huizhou city, Guangdong province Product Designation Slide Bluetooth Keyboard Brand Name CHINFAI Model Name KB-6135 FCC ID ZW7KB-6135 Report Number AGC05H110901F2 Date of Test Sep.09 to Sep.15, 2011 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.247. Tested By: Angela Li Sep.15, 2011 Reviewed By: Forrest Lei Sep.15, 2011 Authorized By: Solger Zhang Sep.15, 2011 Report No.: AGC05H110901F2 Page 2 of 43 TABLE OF CONTENTS 1. GENERAL INFORMATION ..................................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION ......................................................................................................................................... 4 1.2 TABLE OF CARRIER FREQUENCYS ..................................................................................................................... 4 1.3 RECEIVER INPUT BANDWIDTH .............................................................................................................................. 4 1.4 EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE .................................................................................. 5 1.5 EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ................................................................. 5 1.6 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................. 5 1.7 TEST METHODOLOGY .............................................................................................................................................. 5 1.8 TEST FACILITY ............................................................................................................................................................ 6 1.9 SPECIAL ACCESSORIES .......................................................................................................................................... 6 1.10 EQUIPMENT MODIFICATIONS ................................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION ....................................................................................................................................... 7 2.1 CONFIGURATION OF EUT SYSTEM ...................................................................................................................... 7 2.2 EQUIPMENT USED IN EUT SYSTEM ...................................................................................................................... 7 3. SUMMARY OF TEST RESULTS ........................................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ......................................................................................................................................... 8 THE FOLLOWING OPERATING MODES WERE APPLIED FOR THE RELATED TEST ITEMS. ............................ 8 5. PEAK OUTPUT POWER ......................................................................................................................................................... 9 5.1 MEASUREMENT PROCEDURE ...................................................................................................................................... 9 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ...................................................................................... 9 5.3 MEASUREMENT EQUIPMENT USED ......................................................................................................................... 10 5.4 LIMITS AND MEASUREMENT RESULT ..................................................................................................................... 10 6 20 DB BANDWIDTH ............................................................................................................................................................... 11 6.1 MEASUREMENT PROCEDURE .................................................................................................................................... 11 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................... 11 6.3 MEASUREMENT EQUIPMENT USED ......................................................................................................................... 11 6.4 LIMITS AND MEASUREMENT RESULTS .................................................................................................................. 11 7 CONDUCTED SPURIOUS EMISSION ................................................................................................................................. 13 7.1 MEASUREMENT PROCED…
