ZWCBH04ABluetooth Headset

BLUETOOTH STEREO HEADSET USER GUIDE I. Introduction II. How to use III. SPEC. I. Introduction 1. NEXT 2. PREVIEW 3. LED INDICATION 4. MULTI-FUNCTION BUTTOM( MFB ) 5. VOLUME UP 6. VOLUME DOWN 7. CHARGE PORT 8. MIC 9. EAR JACK LED INDACTION Flashing Blue. BH-04A is standby mode. Flashing Red. Battery is low. Power up Flashing Blue+Red. BH-04A is in paring mode and ready to connect to your device. Go to your device’s Bluetooth setting to conne ct. II. Power Up When battery is low. The led indication flash red. Plug into your wall charger or a USB port on you computer . When fully charged. The led indication turn blue. Note: It takes 2 hours to get you BH-04A 80% charged. A full charge takes 3 hours. III. How to use. A. Power on. Press+Hold the MFB for 3 seconds, BH-04A will power on. B. Enter Pairing Mode When BH-04A in the power off status. Press+Hold the MFB for 5 seconds, till Red and Blue Led blink alternately. And then release the MFB . The unit will into pair mode. C. Pairing With Your Mobile Device. Be sure your device’s Bluetooth in open and search status. And BH-04A was also in the pairing mode. You can find “BH-04A” on yo ur device list. D. Power Off Press+Hold the MFB for 3 seconds, BH-04A will power off. E. Answer/End a call Press the MFB on your BH-04A to both answer and end a call NOTE: Hold the MFB for 2 seconds will decline an incoming call. F. Make/Redial the call Use your phone to dial as usual. Listen and talk through BH-04 Press the MFB twice will redial last number. G. Play/Stop Music In Standby mode, Press the MFB to both play and stop music. When you listen the music, you can answer/make a call. The music will pause automatically until fi nish the call. H. Preview/Next Music Press the Press ”>” /Next “<” music, you can change the music by BH-04A I. Adjust the Volume Press+Hold “+” / “-“, you can adjust the volume by BH-04A. FCC statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to oper ate the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition wi thout restriction.

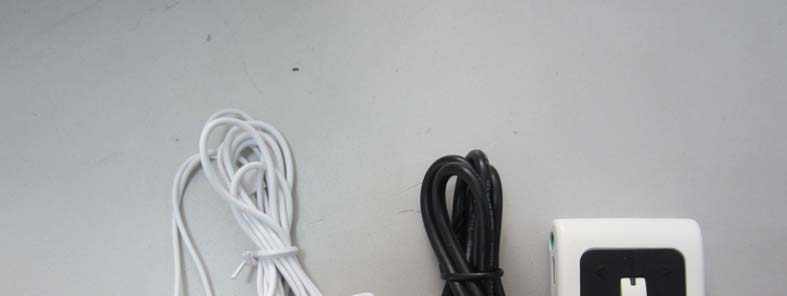

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-RE0046 Page 60 of 64 13. Photos of the EUT Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-RE0046 Page 61 of 64

Label Location M/N: BH-04A FCC ID: ZWCBH04A

Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-RE0046 Page 62 of 64 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-RE0046 Page 63 of 64 Dongguan Dongdian Testing Service Co., Ltd Report No: DDT-RE0046 Page 64 of 64 END OF REPORT

FCC CERTIFICATION TEST REPORT FOR Issued By: Dongguan Dongdian Testing Service Co., Ltd. Add: No. 17, Zongbu Road 2, Songshan Lake Sci&Tech, Industry Park, Dongguan City, Guangdong Province, China, 523808 Tel: +86-0769-22891499 http://www.dgddt.com Report No: DDT-RE0046 Issued Date: Jun.19.2012 Applicant : MAX NICE TRADINGLIMITED Address : FLAT 52,9/F.,SINO LND. PLAZA,NO.9, KAI CHEUNG RD., KOWLOONBAY,KLN. H.K. Equipment under Test : BLUETOOTH HEADSET Model No : BH-04A FCC ID : ZWCBH04A Manufacturer : ODSONIC COMPUTER CO., Address : 4F.#5 Buliding #58 FU QIAO First Industrial.FuYong Town.BaoAn Area,ShenZhen GuangDong P.R.C Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-RE0046 Page 2 of 64 TABLE OF CONTENTS Test report declares......................................................................................................................3 1. Summary of test results ............................................................................................................... 5 2. General test information .............................................................................................................. 6 2.1. Description of EUT ..................................................................................................................... 6 2.2. Accessories of EUT..................................................................................................................... 6 2.3. Assistant equipment used for test ................................................................................................ 6 2.4. Block diagram of EUT configuration for test ............................................................................. 6 2.5. Test environment conditions ....................................................................................................... 7 2.6. Test laboratory............................................................................................................................. 7 2.7. Measurement uncertainty ............................................................................................................ 7 3. Maximum Peak Output Power ....................................................................................................8 3.1. Test equipment ............................................................................................................................ 8 3.2. Block diagram of test setup ......................................................................................................... 8 3.3. Limits .......................................................................................................................................... 8 3.4. Test Procedure............................................................................................................................. 8 3.5. Test Result................................................................................................................................... 8 4. 20dB Bandwidth.......................................................................................................................... 9 4.1. Test equipment ............................................................................................................................ 9 4.2. Block diagram of test setup ......................................................................................................... 9 4.3. Limits .......................................................................................................................................... 9 4.4. Test Procedure............................................................................................................................. 9 4.5. Test Result................................................................................................................................. 10 4.6. Original test data ....................................................................................................................... 10 5. Carrier Frequency Separation.................................................................................................... 13 5.1. Test equipment .......................................................................................................................... 13 5.2. Block diagram of test setup ....................................................................................................... 13 5.3. Limits ........................................................................................................................................ 13 5.4. Test Procedure........................................................................................................................... 14 5.5. Test Result................................................................................................................................. 14 5.6. Original test data ....................................................................................................................... 14 6. Number Of Hopping Channel ...................................................................................................15 6.1. Test equipment .......................................................................................................................... 15 6.2. Block diagram of test setup ....................................................................................................... 15 6.3. Limits ........................................................................................................................................ 15 6.4. Test Procedure........................................................................................................................... 15 6.5. Test Result................................................................................................................................. 16 Dongguan Dongdian Testing Service Co., Ltd Report No:DDT-RE0046 Page 3 of 64 6.6. Original test da…
