ZX9GC556047Wireless Callbox

IntercomsOnline.com
Wireless Callbox - FCC ID ZX9GC556047 - IntercomsOnline.com
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Oct 19, 2011
Application Purpose
Original Equipment
Date of Application
Oct 19, 2011
Equipment Note
Wireless Callbox
Frequency Range
151.82000000 - 154.60000000
Company
IntercomsOnline.com
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

IO-MURS-738 User Manual MURS Multi-Mile Wireless Communication System User Guide Version 0.1 - 2 - Table of Contents FCC Warnings............................................................................................................................................................ 3 MURS Frequencies.................................................................................................................................................... 3 Callbox Power ............................................................................................................................................................ 4 Antenna Connector .................................................................................................................................................... 4 Antenna Mounting ...................................................................................................................................................... 4 Power and Gate Control Relay Connector ................................................................................................................ 4 Installation Instructions .............................................................................................................................................. 5 Callbox Mounting ....................................................................................................................................................... 5 To Initiate a Call ......................................................................................................................................................... 8 To Receive a Call....................................................................................................................................................... 8 Channel Selection ...................................................................................................................................................... 8 Transmitter Power...................................................................................................................................................... 9 Interference Eliminator Codes ................................................................................................................................... 9 Automatic Turnoff and Intercom Modes................................................................................................................... 11 Battery Power Alert .................................................................................................................................................. 12 Gate/Door Opening Relay........................................................................................................................................ 12 Relay Mode .............................................................................................................................................................. 13 Relay Closure Time Setting ..................................................................................................................................... 13 Volume Adjustment .................................................................................................................................................. 14 Monitor Tone Code Selection .................................................................................................................................. 14 Limited Product Warranty ........................................................................................................................................ 16 - 3 - The MURS Multi-Mile Wireless Communication System is for use at locked entrances or remote gates and it not only enables two-way voice communication, but you can also use its built in switch to unlock a door or gate that has an electric opener. Its metal housing and stainless steel front make it both vandal and weather resistant. You can use this callbox at residential gates, office building main entrances, or anywhere two-way communication is needed. The callbox also has a monitor mode that enables you to listen in to the sounds around the callbox for 15 seconds when it receives a 2-Tone signal from a radio. The callbox uses an externally mounted antenna that you can mount away from the callbox and as high as possible to increase the range the callbox will transmit. The back of the callbox has mounting holes for wall or gooseneck pole mounting, plus a cable routing hole so you can route the antenna cable, switch control wires, and power supply wires for a nice, clean appearance. FCC Warnings This device is intended to be used in such a way that a separation distance of at least 40 centimeters (15.748 inches) is maintained between the antenna and any part of the user’s body. Ensure that the antenna is mounted at least that far from the callbox, and for greater range, as high as possible. This device is certificated in accordance with Part 95, Subpart J of the Commission’s rules. MURS Frequencies MURS is short for Multi-Use Radio Service. This is service created by the FCC in the United States. It is a low power, short range service in the VHF (Very High Frequency) 150 MHz two way radio spectrum in which you do not need a license to operate a station. With MURS you can use the external antenna to improve range. You can add an unlimited number of MURS units together. - 4 - Callbox Power The callbox can be powered from any 9-12 Volt DC power source that supplies a minimum of 1 amp of current. This power could be a battery pack that contains 6 D-cell batteries, an AC to DC adapter, a 12-volt battery, or a solar- panel power source with a battery. Power and Gate Control Relay Connector The cable for external power and the relay routes out the bottom of the housing through a liquid-tight nylon cable gland, also known as a cord grip. This allows connection of a +12 VDC power source, and a 1-amp contact switch closure output. …

Text truncated - open the document above for the full version.

Cover Letter(s)

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 10/5/11 To whom it may concern: We, the undersigned, hereby authorize Worldwide Testing Services (Taiwan) Co., Ltd to act on our behalf in all matters relating to applications for equipment authorization FCC ID: ZX9GC556047 including the signing of all documents related to these matters. Any and all acts carried out by Worldwide Testing Services (Taiwan) Co., Ltd on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Tim Bruxvoort Title: President Company: IntercomsOnline.com

Cover Letter(s)

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 10/5/11 Request for Confidentiality Company name: IntercomsOnline.com FCC ID: ZX9 GC556047 FCC Part 95 Certification To whom it may concern: In accordance with 0.459 of CFR 47, IntercomsOnline.com hereby requests confidentiality of all attachments for the subject application. 1. Block diagram 2. Schematics 3. Operation Description. These documents contain detailed system and equipment description and related information about the product which IntercomsOnline.com considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, IntercomsOnline.com considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name: Tim Bruxvoort Title: President Company: IntercomsOnline.com

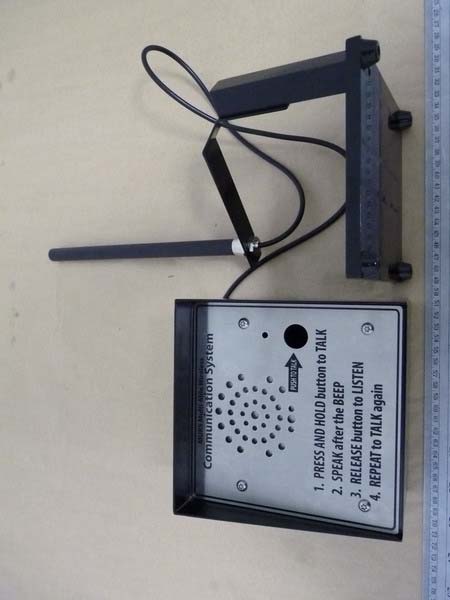

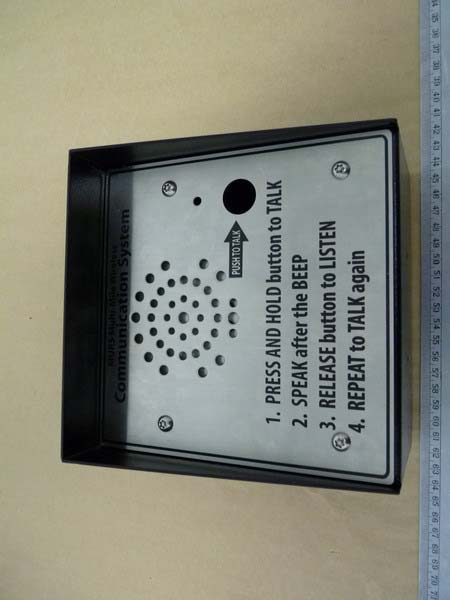

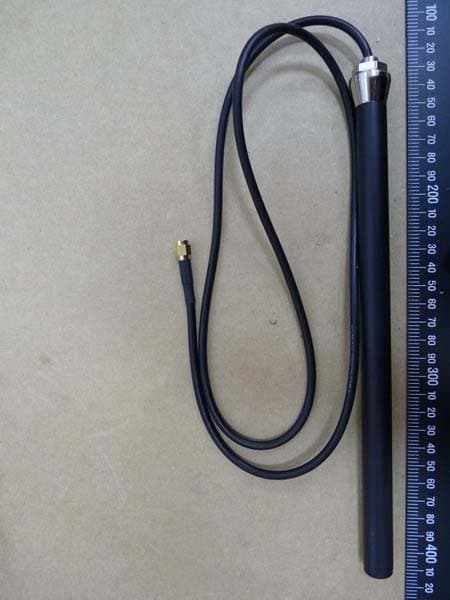

External Photos

Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 23 of 32 Pictures External Photos Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 24 of 32 Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 25 of 32 Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 26 of 32

Internal Photos

Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 27 of 32 Internal Photos Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 28 of 32 Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 29 of 32 Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 30 of 32 Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 31 of 32

RF Exposure Info

Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Page 34 of 36 13. Maximum Permissible Exposure 13.1 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a dist ance of 0.3 m normally can be maintained between the user and the device. 13.2 MPE Calculation Method E = Electric field (V/m) P = output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Page 35 of 36 Max output power (W) Antenna Gain Power Density(S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1.9408 3.0 0.1926 0.2 Complies From the peak EUT RF output power, the minimum mobile separation distance, d=0.4 m, as well as the gain of the used antenna, the RF power density can be obtained.

Test Report

of Applicant: IntercomsOnline.com Address: 8161 Highway 100, #194, Nashville, TN 37221, United States Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21108-11786-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 95 TEST REPORT for Wireless Callbox Model No.: MURS Multi-Mile Wireless Communication System FCC ID: ZX9GC556047 Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 41 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1 NOTES..........................................................................................................................................3 1.2 TESTING LABORATORY................................................................................................................4 1.2.1 L OCATION................................................................................................................................4 1.2.2 DETAILS OF ACCREDITATION STATUS.......................................................................................4 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................5 1.4 A PPLICATION DETAILS.................................................................................................................5 1.5 GENERAL INFORMATION OF TEST ITEM........................................................................................5 1.6 TEST STANDARDS.........................................................................................................................6 2. TECHNICAL TEST ...................................................................................................................7 2.1 S UMMARY OF TEST RESULTS........................................................................................................7 2.2 TEST ENVIRONMENT....................................................................................................................7 2.3 D ESCRIPTION OF TESTED SYSTEM................................................................................................7 2.4 TEST EQUIPMENT LIST.................................................................................................................8 2.5 GENERAL TEST PROCEDURE......................................................................................................12 3. TEST RESULTS (ENCLOSURE) ..........................................................................................13 4. RF POWER OUTPUT (CONDUCTED), FCC 2.1046; 95.639 ............................................14 4.1 T EST PROCEDURE.......................................................................................................................14 4.2 TEST RESULTS...........................................................................................................................14 4.3 LIMITS: ......................................................................................................................................17 5. RADIATED POWER ...............................................................................................................18 5.1 T EST PROCEDURE......................................................................................................................18 5.2 T EST RESULTS............................................................................................................................19 5.3 LIMITS: ......................................................................................................................................21 6. MODULATION DEVIATION, FCC 2.1047 (B), 95.631(J)..................................................22 6.1 T EST PROCEDURE.......................................................................................................................22 6.2 T EST RESULTS:...........................................................................................................................22 6.3 LIMITS: ......................................................................................................................................22 7. AUDIO FREQUENCY RESPONSE, FCC 2.1047 (A) ..........................................................23 7.1 TEST PROCEDURE.......................................................................................................................23 7.2 TEST RESULTS:...........................................................................................................................23 7.3 LIMITS: ......................................................................................................................................23 8. OCCUPIED BANDWIDTH/EMISSION MASK, FCC 2.1049 (C) ; 95.632 .......................24 8.1 T EST RESULTS...........................................................................................................................24 8.2 L IMIT.........................................................................................................................................27 9. RADIATED SPURIOUS EMISSION, FCC 2.1053; 95.635 .................................................28 9.1 T EST PROCEDURE.......................................................................................................................28 Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 41 9.2 TEST RESULTS...........................................................................................................................28 9.2.1 S PURIOUS EMISSION NEAR THE CARRIER: ...............................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Registration number: W6M21108-11786-C-1 FCC ID: ZX9GC556047 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 32 of 32 Set Up Photo of Radiated Emission

Contact Information

Applicant

Tim Lee Bruxvoort
[email protected]615-662-4141Fax: 615-247-9949

Technical Contact

Worldwide Testing Services (Taiwan) Co., Ltd.Tse-Ming Chang
[email protected]+886-2-6606-8877

6F., No. 58, Lane 188, Ruey Kuand Rd., Neihu · Taipei · Taiwan

Test Firm

Worldwide Testing Services (Taiwan) Co. Ltd.Chang Tse-Ming
[email protected]886266068877Fax: 886266068879

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
195J151.82 MHz - 154.6 MHz1.9408 W11K0F3E3.7150000000 ppm
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 40 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
