ZXO-TOCHGM0001Wristband

Striiv Band Quick Start Guide (M/N):TOCHGM0001 Includes: 1. Striiv Band device 2. USB Cable 3. Charging Cradle 4. Quick Start Guide Instructions: 1. Open Charging Cradle. 2. Line up charging pins of the Striiv Band with pins of Charging Cradle. 3. Set Striiv Band into Charging Cradle so that pins of the device and pins of the cradle are in contact. 4. Close the Charging Cradle. You will hear a click. 5. Plug the small end of USB Cable into Charging Cradle. 6. Plug the large end of the USB Cable into a compatible USB socket. 7. Allow Striiv Band device to charge for at least 90 minutes. NOTE: Operating temperature ranges from -4°F to 149°F (-20°C to 65°C). Relative humidity ranges from 0% to 93% RH. Striiv, Striiv , and TruMotion are trademarks or registered trademarks of Striiv, Inc. Apple® and iPhone® are registered trademarks of Apple Inc., registered in the United States and other countries. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Striiv, Inc. is under license. All other brands and product names are or may be trademarks of their respective owners. Last updated 8/06/2013. For future updates, go to www.striiv.com/legal 1. Limited Warranty. Striiv, Inc. (“Striiv”) warrants to the end user customer (“Customer”) of the Striiv electronic device (“Product”) that the Product hardware components (“Product Hardware”), when used in accordance with the documentation furnished by Striiv (“Documentation”), will be free in all material respects of defects in materials and workmanship (“Limited Warranty”), for a period of one (1) year after the date of purchase by Customer of the applicable Product from Striiv or Striiv authorized reseller (the “Warranty Period”). If the Product Hardware (or any component or portion thereof) fails to conform to the Limited Warranty, Striiv, at its own expense and as its sole obligation, and Customer’s sole and exclusive remedy, for breach of this warranty will either (at Striiv sole discretion) (a) repair or replace any defective Product Hardware; or (b) accept the return of the Product incorporating the defective Product Hardware and refund to Customer the fees actually paid by Customer to Striiv or Striiv authorized reseller for such Product. Replacement Products and Product Hardware may be refurbished and/or different models will be supplied, but will be functionally equivalent to the Products or Product Hardware being replaced. When a Product or Product Hardware is replaced, any replacement item becomes Customer’s property and the replaced Product or Product Hardware becomes Striiv property. Any Product that has either been repaired or replaced under this Limited Warranty will have warranty coverage for the longer of ninety (90) days or the remaining Warranty Period. This Limited Warranty is transferable from Customer to subsequent Product owners, but the Warranty Period will not be extended for any such transfer. 2. Process. Striiv warranty obligations are conditioned on Customer (a) notifying Striiv using the customer care contact information available at Striiv website (www.striiv.com/customercare), during the Warranty Period, of any failure of The Product to meet the Limited Warranty, including a detailed description of such alleged failure and proof of purchase information as requested by Striiv, (b) otherwise complying with Striiv then-current return merchandise authorization guidelines (if any), and (c) shipping the affected Product, at Customer’s cost, to Striiv or Striiv designated third party facility for repair or replacement. Before Customer ships Customer’s Product to Striiv for warranty service. Customer is responsible for making a separate backup copy of the contents of the Product. THE CONTENTS OF THE PRODUCT MAY BE DELETED AND THE STORAGE MEDIA REFORMATTED IN THE COURSE OF WARRANTY SERVICE. Customer’s Product will be returned to Customer configured as originally purchased, subject to applicable updates. Customer will be responsible for reinstalling all other software programs, data and passwords. Recovery and reinstallation of software programs and user data are not covered under this Limited Warranty. Striiv will have no warranty obligations with respect to a returned Product, if it determines, in its reasonable discretion, after analysis of that returned Product, that the Product is subject to an Exclusion (defined below). Striiv will bear all costs of return shipping to Customer, except, if (i) the Product is subject to an Exclusion, or (ii) Customer’s return shipping address is not located in a country in which Striiv, or Striiv authorized reseller(s), distributes Products, then Customer will bear all shipping costs. 3. Exclusions. Striiv will have no warranty obligation with respect to the following circumstances (“Exclusions”): (a) Product Hardware that has no defects in materials or workmanship, (b) Product non conformities that Striiv is unable to reproduce, (c) Products sold as “samples” or “AS IS”, (d) Products that have been subject to: (i) any modifications, alterations, repair, or servicing by any party other than Striiv or Striiv authorized representatives; (ii) handling, storage, installation, testing, maintenance, or use not in accordance with the applicable Documentation; (iii) abuse, negligence, neglect, accidents, or misuse; (e) hardware not manufactured or supplied by Striiv; (f) cosmetic damage; (g) normal wear and tear; (h) any breakdowns, fluctuations, or interruptions in electric power or the telecommunications network; (i) performance of the Product Hardware in combination with other items not manufactured, approved, or supplied by Striiv; or (j) any acts of God, including fire, flood, tornado, earthquake, hurricane, excessive snow, lightning; or (k) other disasters such as war, riot, or insurrection. 4. Disclaimers. EXCEPT TO THE EXTENT SET FORTH ABOVE IN THIS LIMITED WARRANTY, THE PRODUCTS ARE PROVIDED ON AN “AS IS” BASIS, AND STRIIV DISCLAIMS ALL WARRANTIES A…

Text truncated - open the document above for the full version.

Striiv Inc. 2400 Broadway Ave,Suite 220,Redwood City, California United States Confidentiality Request Letter Page 1 of 1 Rev 2.0 April 14, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: ZXO-TOCHGM0001 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic - BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Ma,Conlan/ Manager Contact information / address: 2400 Broadway Ave,Suite 220,Redwood City, California United States TEL: 6502514409 FAX: 6502989071 E-mail: [email protected]

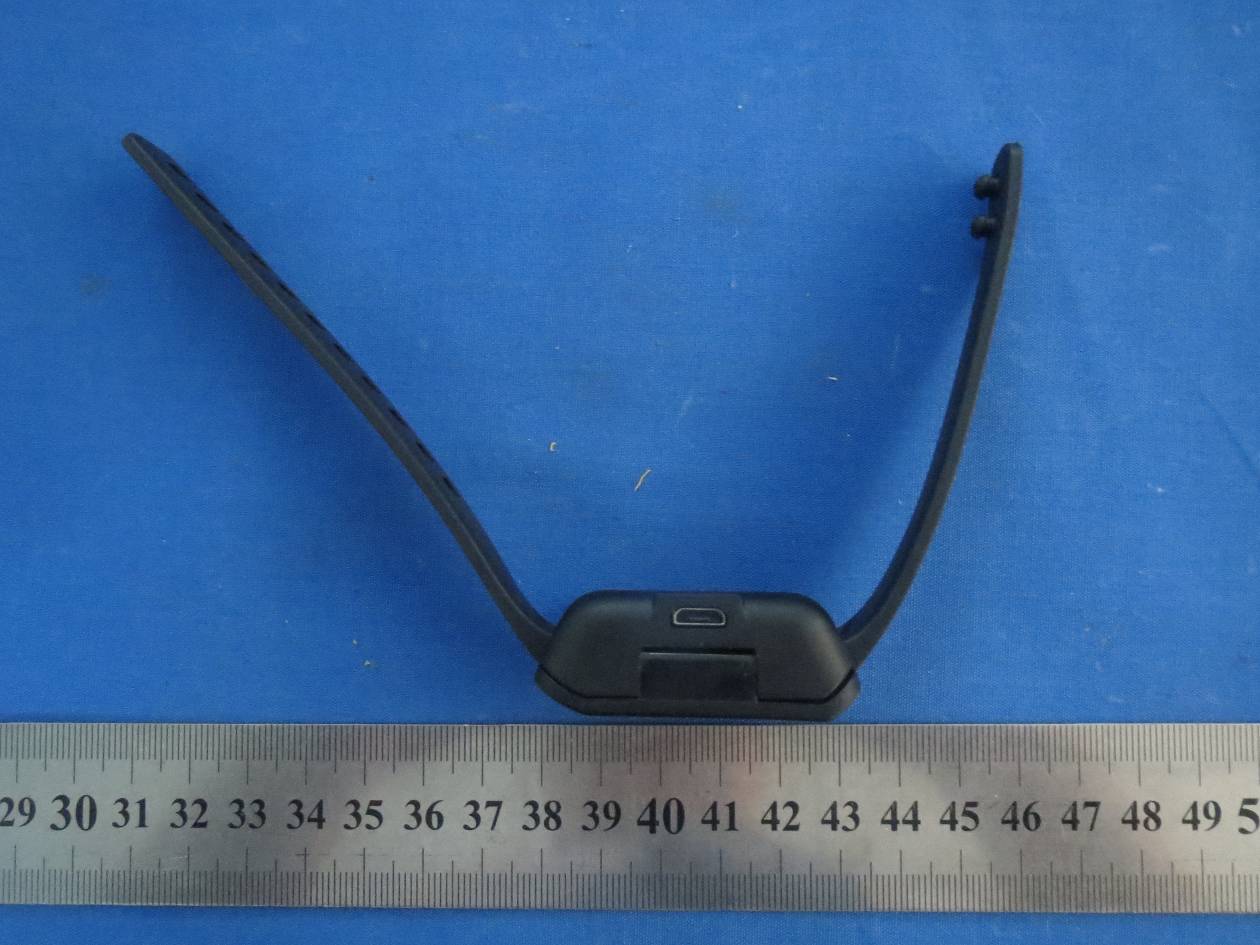

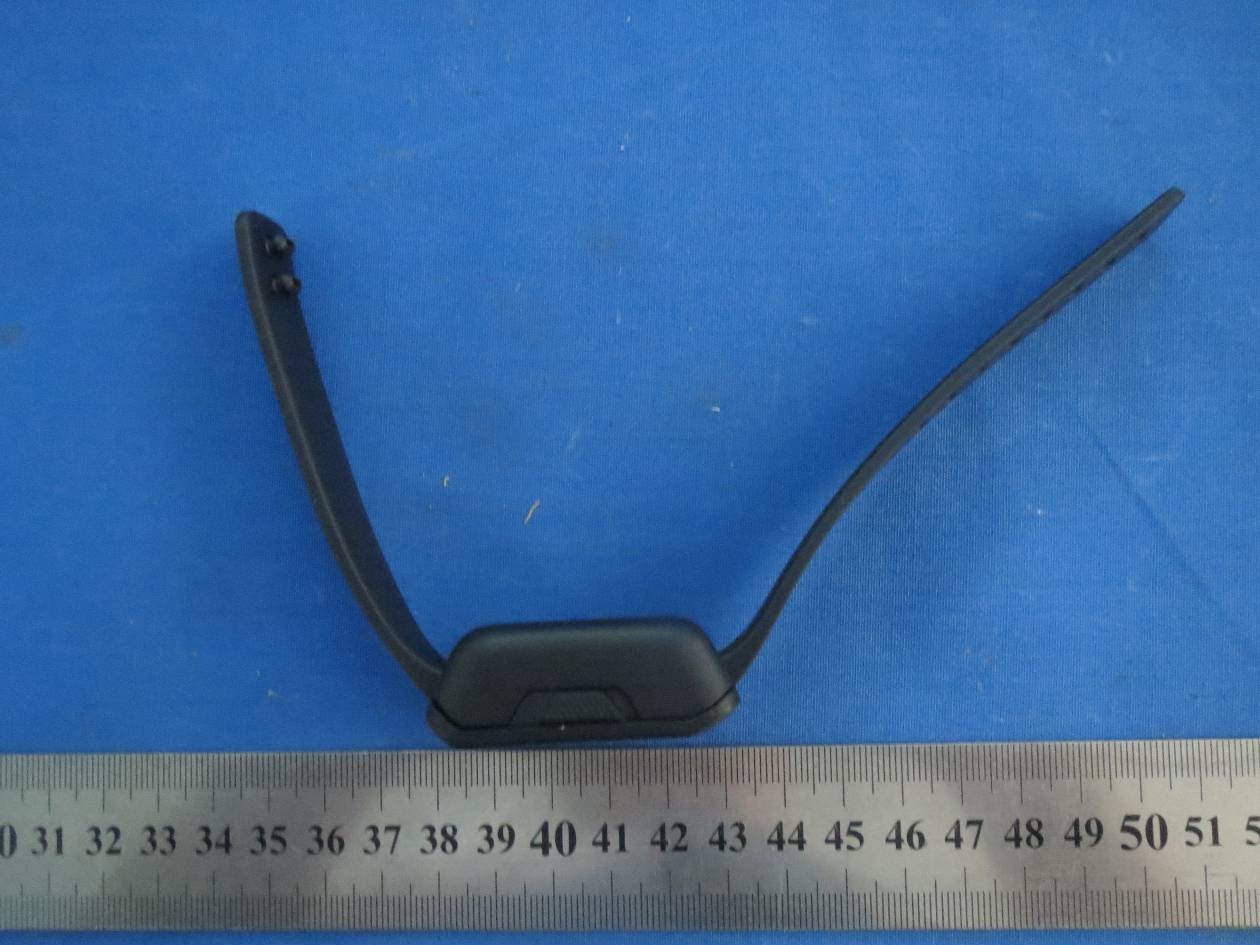

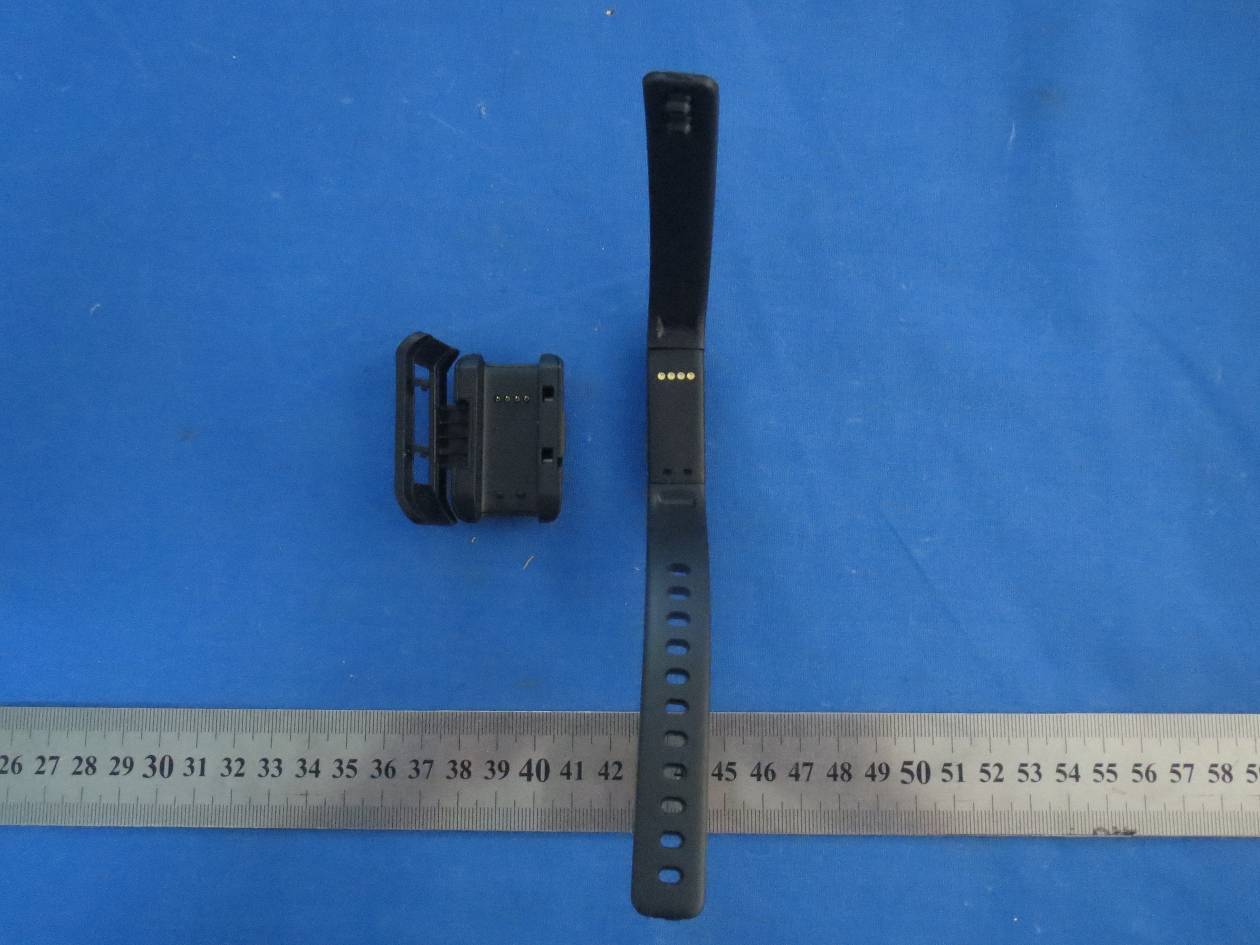

External Photo

FCC Certification Label FCC ID: ZXO-TOCHGM0001 Label Location on EUT label size:high 0.5cm, Wide:1.5 cm EUT View/ FCC ID Label Location

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Striiv Inc. 2400 Broadway Ave,Suite 220,Redwood City, California United States FCC ID: ZXO-TOCHGM0001 April 14, 2014 This Report Concerns: Original Report Equipment Type: Wristband Test Engineer: Lisa Chen Report No.: BSL13071011Y-1E4-98 Receive EUT Date/Test Date: April 04, 2014 / April 04, 2014 - April 14, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: ZXO-TOCHGM0001 BSL13071011Y-1E4-98 Page 2/25 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................12 7.1. Test Equipment ...............................................................................................................12 7.2. Test Procedure ................................................................................................................12 7.3. Radiated Test Setup ........................................................................................................12 7.4. Radiated Emission Limit.................................................................................................14 7.5. Radiated Emission Test Result .......................................................................................15 8. BAND EDGE .............................................................................................................................20 8.1. Test Equipment ...............................................................................................................20 8.2. Test Procedure ................................................................................................................20 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................20 8.4. Band Edge Test Result ....................................................................................................21 9. 20-DB BANDWIDTH ...............................................................................................................22 9.1. Test Equipment ...............................................................................................................22 9.2. Test Procedure ................................................................................................................22 9.3. Limit................................................................................................................................22 9.4. Test Result /Plots ............................................................................................................22 FCC ID: ZXO-TOCHGM0001 BSL13071011Y-1E4-98 Page 3/25 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific product/equipment given at the time of its testing. Th…

Text truncated - open the document above for the full version.

Conducted emissions test Radiated emissions test
