ZY9-HSSPKRSoundBall portable TV listening speaker

HSSPKR REV4 m(12.4.24) URGENT – remove protective plastic tips fr om both ends of OPTICAL cable . SoundBall 3.5MM female to RCA Audio adapter We recommend charging the speaker for 8 hours before first use. This will help extend the life of the rechargeable battery. speaker Indicator light will start flashing. Plug in charging cable to back of speaker. output supports Step 1: Look at the back or side of your TV to find the audio output connection options. Step 2: Plug the cable into the TV audio outputs on your TV to the matching input on the rear panel of the HearSound transmitter. Note: The optical and AUX cables are included in this package. Please remove tips from Optical cable before use. (best sound quality) (good sound quality) Transmitter (back) 2 line-in or AUX (better sound quality) Plug one end of an included charging cable into the DC IN 5V jack on the back of the transmitter. If your TV has a USB power outlet, plug the other end of the charging cable into this outlet. Otherwise, plug it into an AC outlet using the included USB power adapter. 3 2. IF YOU ARE STILL NOT RECEIVING AUDIO – You will need to adjust your audio settings of your TV (refer to your TV’s instruction manual to adjust audio settings. You are not receiving audio because your TV requires a setting change to output digital audio to Optical Out. Using your TV remote control , utilize your remote to go to settings usually using a MENU button and go to Audio Settings. There should be a setting for PCM or Digital Audio. If you can choose PCM choose this. Now check your headset – you should now be hearing audio. If you are still not able to receive audio please contact us at [email protected] and we will set up an appointment to walk you thru your set up. 3. TIP: If you are not receiving audio through your speaker and the indicator light is not solid blue, your system is not paired. To pair, press the hold button on the transmitter for at least 2 seconds and the indicator lights start flashing. Then you will press the tone button on the speaker until you hear a BEEP and let go. Then the indicator light on the speaker should start blinking. Once paired, both units will turn solid blue. Press the transitters source button to choose the input you are connected to (optical, coaxial or aux). 4 speaker Turn on the speaker by pressing and holding the Power button. Once the speaker is on press the volume + a few times to set the volume to about 50%. The light on the speaker should be blinking indicating that it is in pairing mode. After a few seconds both the Transmitter Light and the Speaker Light should be solid which means they are connected. You should now hear audio playing thru the speaker. Adjust the volume to the level that works best for you. FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 1/9/2025 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID：ZY9-HSSPKR Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the abovereference FCC ID. The applicant accepts to maintain an agent for service of process in the United States forno less than one year after either the grantee has permanently terminated all marketing and importation of theapplicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicialproceeding involving the equipment, whichever is later. The applicant further acknowledges it is ourresponsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd. Address: No. 331, Guiyue Road, Dafu Community, Guanlan Street, Longhua District, Shenzhen,China Signature: Contact Person: Daniel Liu FRN: 0028712032 Tel: 0755-29832500 Email: [email protected]

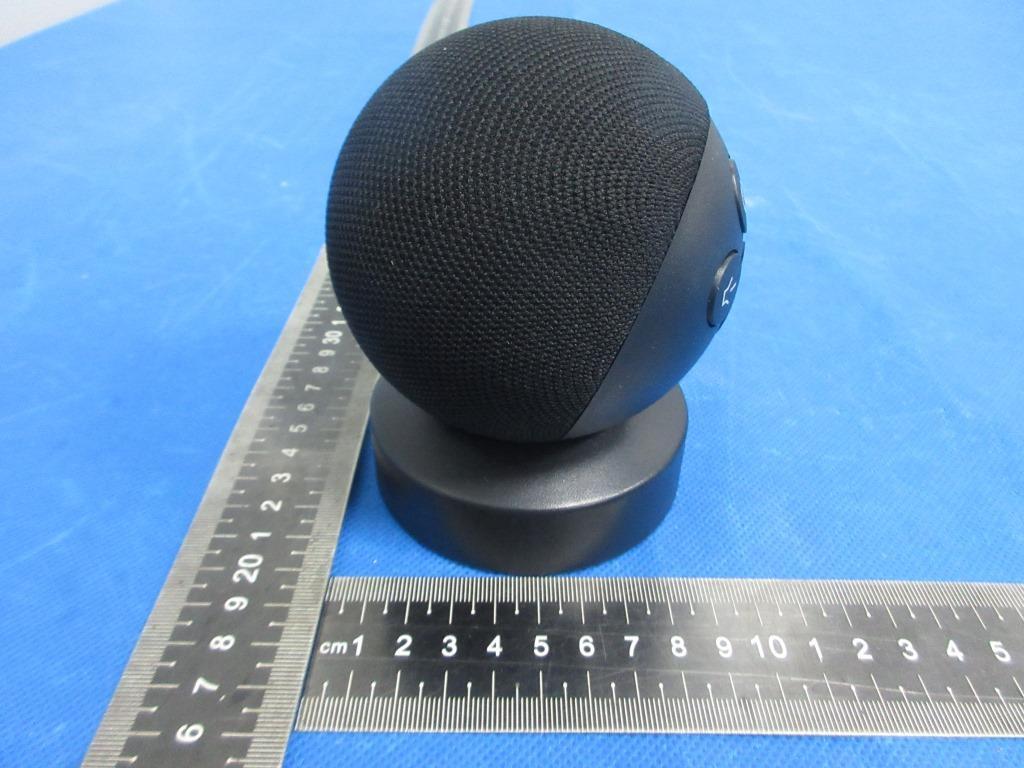

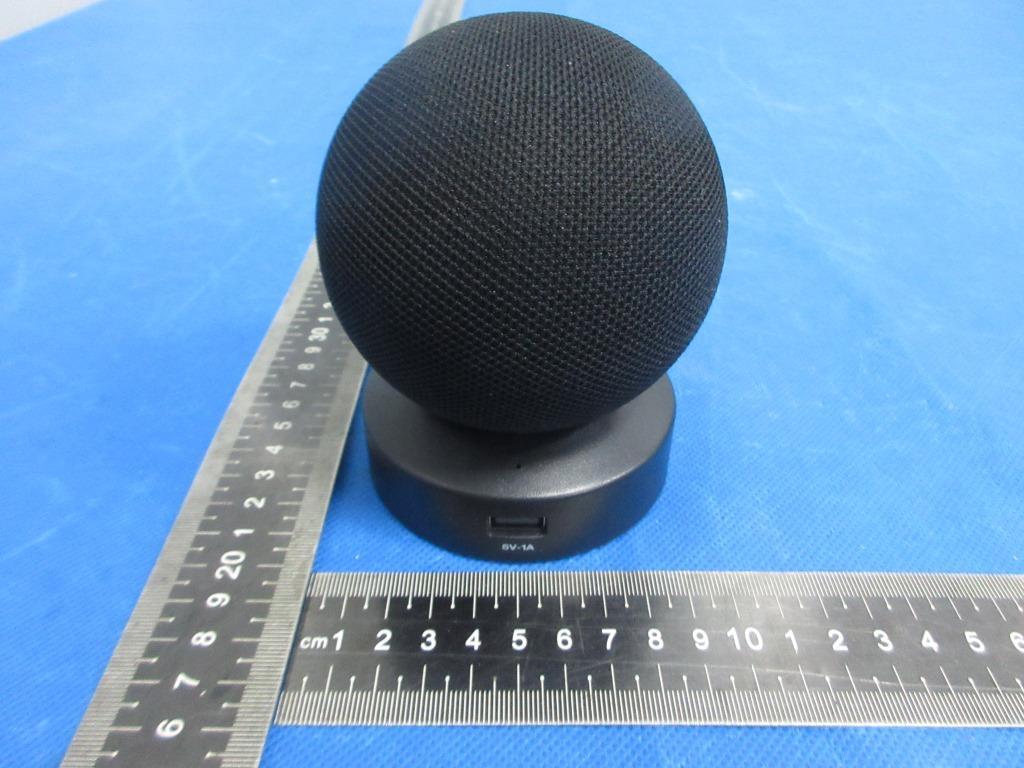

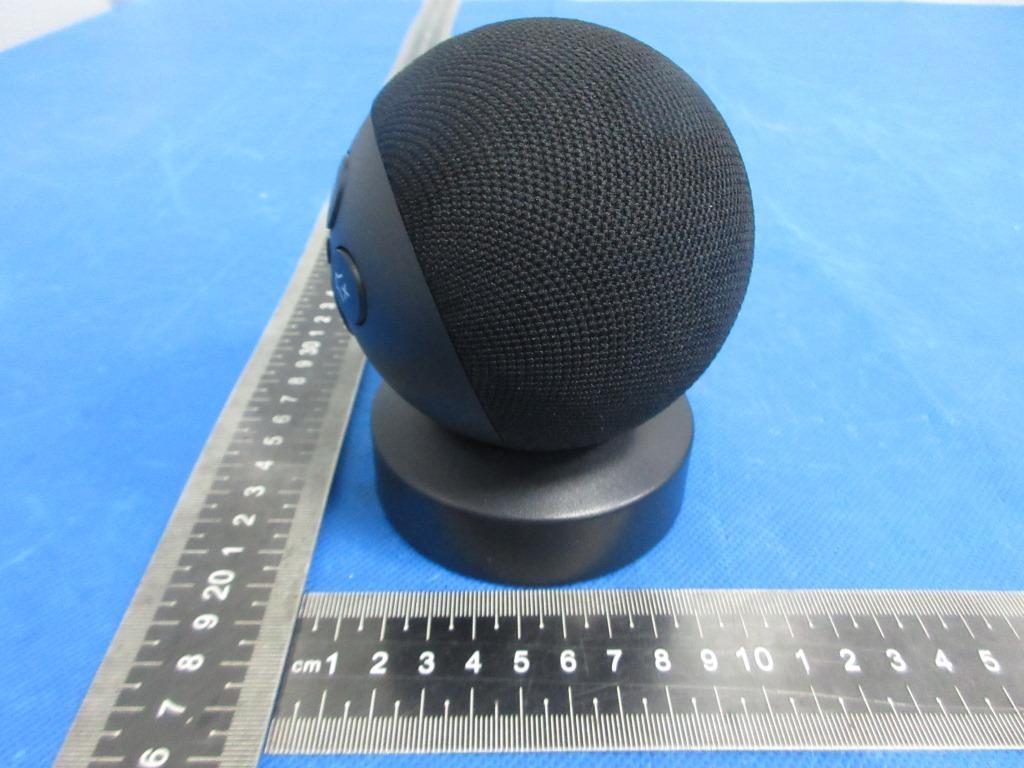

ATTACHMENT PHOTOGRAPHS OF EXT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

Model: HSSPKR Input: 5V 2A Output: 5V 1A FCC ID: ZY9-HSSPKR Made in China 2AC48GP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Model: HSHTVTXA Input: 5V 2A FCC ID: ZY9-HSHTVTXA Made in China 2AC48GP

ATTACHMENT PHOTOGRAPHS OF INT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 TX ANT Photo 9 Photo 10

FCC ID: ZY9-HSSPKR Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE: Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation SAR Exclusion threshold SAR test exclusion 2.402 -4.11 0.39-4±1-30.50<50.155353.00YES 2.440 -4.11 0.39-4±1-30.50<50.156583.00YES 2.480 -4.36 0.37-4±1-30.50<50.157853.00YES 2.402-3.980.40-3±1-20.63<50.195583.00YES 2.440-3.970.40-3±1-20.63<50.197123.00YES 2.480-4.230.38-4±1-30.50<50.157853.00YES BLE1M BLE2M Conclusion: For the max result : 0.19712 ≤ 3.0 for 1g SAR, SAR is not required. Signature: Date: 2025-01-09 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Sum mary Inv erted F Antenna Specification I TEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400M Hz 2450M Hz 2500M Hz 2400M Hz 2450M Hz 2500M Hz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi Polar ization Horizontal and Vertical Azim uth Beam Pattern Omni-directional Im pedance 50 Ohm Antenn a Length 38.20mm Manuf acture ZHUHAI JIELI TECHNOLOGY CO.,LTD 333 Kexin g Road, Xiangzhou District, Zhuhai City Ant enna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Report No.: S24120901501001 Version.1.3 Page 1 of 78 RADIO TEST REPORT FCC ID: ZY9-HSSPKR Product: SoundBall portable TV listening speaker Trade Mark: N/A Model No.: HSSPKR Family Model: N/A Report No.: S24120901501001 Issue Date: Dec. 30, 2024 Prepared for Shenzhen Great Power Innovation And Technology Enterprise Co., Ltd. No. 331, Guiyue Road, Dafu Community, Guanlan Street, Longhua District, Shenzhen Prepared by Shenzhen NTEK Testing Technology Co., Ltd. No. 24 Xinfa East Road, Xiangshan Community, Xinqiao Street, Baoan District, Shenzhen, Guangdong, People's Republic of China Tel. 0755-23200050 Website: http://www.ntek.org.cn Report No.: S24120901501001 Version.1.3 Page 2 of 78 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 5 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 6 3.1 FACILITIES..................................................................................................................................................... 6 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 6 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 6 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 7 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 9 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.1.1 Applicable Standard .................................................................................................................................. 14 7.1.2 Conformance Limit ................................................................................................................................... 14 7.1.3 Measuring Instruments ............................................................................................................................. 14 7.1.4 Test Configuration .................................................................................................................................... 14 7.1.5 Test Procedure ........................................................................................................................................... 14 7.1.6 Test Results ................................................................................................................................................ 15 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.2.1 Applicable Standard .................................................................................................................................. 17 7.2.2 Conformance Limit ................................................................................................................................... 17 7.2.3 Measuring Instruments ............................................................................................................................. 18 7.2.4 Test Configuration .................................................................................................................................... 18 7.2.5 Test Procedure ........................................................................................................................................... 19 7.2.6 Test Results ................................................................................................................................................ 20 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.3.1 Applicable Standard .................................................................................................................................. 26 7.3.2 Conformance Limit ................................................................................................................................... 26 7.3.3 Measuring Instruments ............................................................................................................................. 26 7.3.4 Test Setup .................................................................................................................................................. 26 7.3.5 Test Procedure ........................................................................................................................................... 26 7.3.6 Test Results ................................................................................................................................................ 26 7.4 DUTY CYCLE ...........................................…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
