ZYJ-RF23100030LPD pen

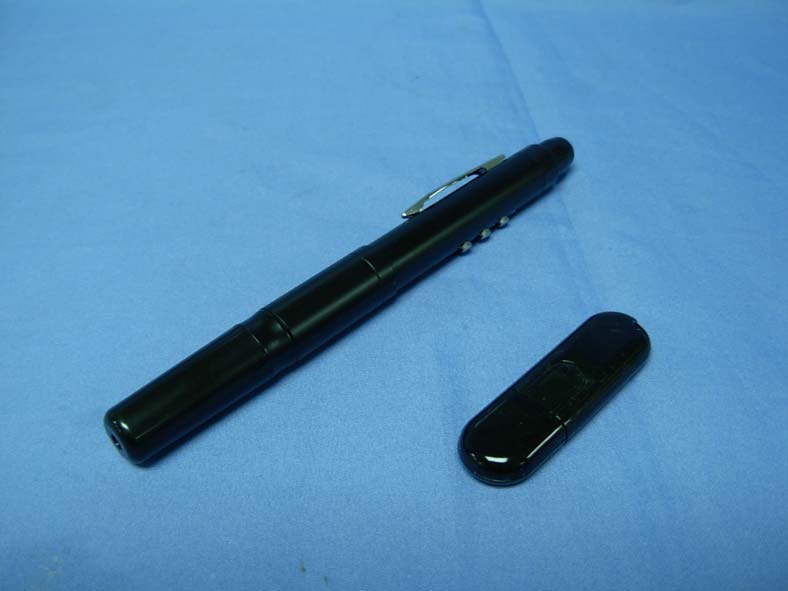

Report No：122136R-RFUSP44V01 Page: 41 of 48 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID : ZYJ-RF23100030 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. LPD pen Model No.: LPDP-01 FCC ID : ZYJ-RF23100030 S/N: Made in Taiwan

FCC ID : ZYJ-RF23100030 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. LPD pen Model No.: LPDP-01 FCC ID : ZYJ-RF23100030 S/N: Made in Taiwan

Report No：122136R-RFUSP44V01 Page: 42 of 48 (3) EUT Photo (TX) (4) EUT Photo Report No：122136R-RFUSP44V01 Page: 43 of 48 (5) EUT Photo (6) EUT Photo Report No：122136R-RFUSP44V01 Page: 44 of 48 (7) EUT Photo (8) EUT Photo Report No：122136R-RFUSP44V01 Page: 45 of 48 (9) EUT Photo (MB) (10) EUT Photo (ANT) Report No：122136R-RFUSP44V01 Page: 46 of 48 (11) EUT Photo (RX) (12) EUT Photo Report No：122136R-RFUSP44V01 Page: 47 of 48 (13) EUT Photo (14) EUT Photo Report No：122136R-RFUSP44V01 Page: 48 of 48 (15) EUT Photo (MB) (16) EUT Photo (ANT)

Report No：122136R-RFUSP44V01 Page: 1 of 48 Test Report Product Name：LPD pen Model No. ：LPDP-01 FCC ID. ：ZYJ-RF23100030 Applicant ： EVEREST Display Inc. Address ： 4F, No. 1, Li-Hsin Rd. 6, Science Based Industrial Park, 300. Hsinchu, Taiwan Date of Receipt：2012/02/07 Issued Date ：2012/05/17 Report No. ：122136R-RFUSP44V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：122136R-RFUSP44V01 Page: 2 of 48 Test Report Certification Issued Date : 2012/05/17 Report No. : 122136R-RFUSP44V01 Product Name ： LPD pen Applicant ： EVEREST Display Inc. Address ： 4F, No. 1, Li-Hsin Rd. 6, Science Based Industrial Park, 300. Hsinchu, Taiwan Manufacturer ： EVEREST Display Inc. Model No. ： LPDP-01 Trade Name ： EVEREST FCC ID. ： ZYJ-RF23100030 EUT Voltage : DC 3.7V Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.249: 2011 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( Ben Huang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No：122136R-RFUSP44V01 Page: 3 of 48 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................................4 1.1. EUT Description ............................................................................................................. 4 1.2. Operational Description .................................................................................................. 6 1.3. Test Mode .......................................................................................................................7 1.4. Tested System Details .................................................................................................... 8 1.5. Configuration of tested System ...................................................................................... 8 1.6. EUT Exercise Software .................................................................................................. 8 1.7. Test Facility..................................................................................................................... 9 2. Radiated Emission.................................................................................................................10 2.1. Test Equipment............................................................................................................. 10 2.2. Test Setup .................................................................................................................... 11 2.3. Limits ............................................................................................................................ 12 2.4. Test Procedure ............................................................................................................. 13 2.5. Test Specification.......................................................................................................... 13 2.6. Uncertainty ................................................................................................................... 13 2.7. Test Result....................................................................................................................14 2.8. Test Photo .................................................................................................................... 29 3. Band Edge................................................................................................................................31 3.1. Test Equipment............................................................................................................. 31 3.2. Test Setup .................................................................................................................... 31 3.3. Limits ............................................................................................................................ 32 3.4. Test Procedure ............................................................................................................. 32 3.5. Test Specification.......................................................................................................... 32 3.6. Uncertainty ................................................................................................................... 32 3.7. Test Result....................................................................................................................33 Attachement ......................................................................................................................................... 41 EUT Photograph........................................................................................................... 41 Report No：122136R-RFUSP44V01 Page: 4 of 48 1. General Information 1.1. EUT Description Product Name LPD pen Trade Name EVEREST Model No. LPDP-01 Frequency Range 2402~2478MHz Antenna Gain 2.11dBi Channel Number 77 Type of Modulation GFSK Channel Control Auto Antenna Type PCB antenna Working Frequency of Each Channel Channel FrequencyChannel FrequencyChannel Frequency Channel Frequency Channel 01 2402 MHz Channel 21 2422 MHz Channel 41 2442MHz Channel 61 2462 MHz Channel 02 2403 MHz Channel 22 2423 MHz Channel 42 2443MHz Channel 62 2463 MHz Channel 03 2404 MHz Channel 23 2424 MHz Channel 43 2444 MHz Channel 63 2464 MHz Channel 04 2405 MHz Channel 24 2425 MHz Channel 44 2445 MHz Channel 64 2465 MHz Channel 05 2406 MHz Channel 25 2426 MHz Channel 45 2446 MHz Channel 65 2466 MHz Channel 06 2407 MHz Channel 26 2427 MHz Channel 46 2447 MHz Channel 66 2467 MHz Channel 07 2408 MHz Channel 27 2428 MHz Channel 47 2448 MHz Channel 67 2468 MHz Channel 08 2409 MHz Channel 28 2429 MHz Ch…

Text truncated - open the document above for the full version.

Report No：122136R-RFUSP44V01 Page: 29 of 48 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup Report No：122136R-RFUSP44V01 Page: 30 of 48 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn)
