ZYVWINYEATOYS1RC Toy Transmitter

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 8 von 8 Page 8 of 8 User manual

Page 1 / 1 C:\Documents and Settings\Administrator\桌面\创高\9.2邮件\Authorization letter_M.doc WINYEA TOYS LIMITED ADD：Shanghua Town,Xiachen Industrial Park,Chenghai,Shantou,Guangdong,China To Whom It May Concern: Please be advised that Applicant Name: WINYEA TOYS LIMITED Address: Shanghua Town,Xiachen Industrial Park,Chenghai City: Shantou Country: China authorizes, Mr. Mika Chan, Project Engineer at TÜV Rheinland Hong Kong Ltd. to act on our behalf, until otherwise notified, for applications submitted to a Telecommunication Certification Body (TCB) recognized by the FCC. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signature: Name: Title: GENERAL MANAGER

Page 1 / 1 C:\Documents and Settings\Administrator\桌面\创高\9.2邮件\TELEFAX.doc WINYEA TOYS LIMITED ADD：Shanghua Town,Xiachen Industrial Park,Chenghai,Shantou,Guangdong,China Applicant Name: WINYEA TOYS LIMITED Address: Shang hua Town,Xiachen Industrial Park,Chenghai City: Shantou Country: China Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to 47 CFR Section 0.457 and 0.459, the applicant hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application for FCC ID: ZYVWINYEATOYS1 Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature: Name: Title: GENERAL MANAGER Date: 2011-09-06

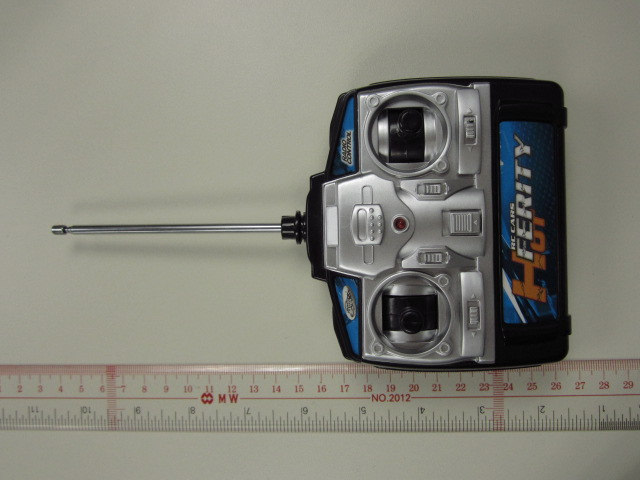

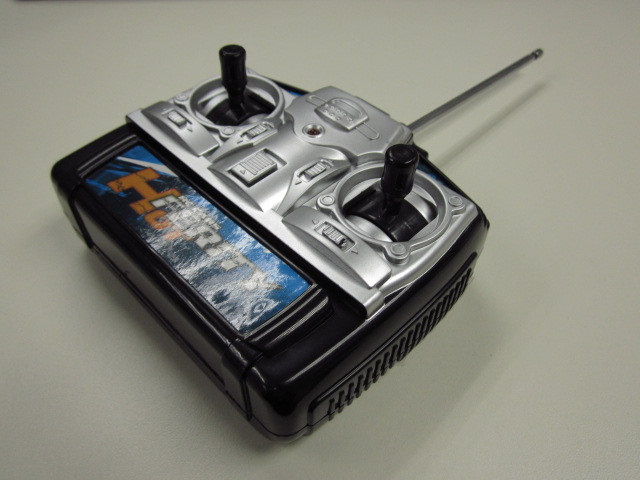

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 1 von 3 Page 1 of 3 External view External view www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 2 von 3 Page 2 of 3 External view External view www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 3 von 3 Page 3 of 3 External view

www.tuv.com Appendix 5 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 7 von 8 Page 7 of 8 FCC label and location

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 1 von 2 Page 1 of 2 Internal view Internal view www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 2 von 2 Page 2 of 2 Internal view Internal view

www.tuv.com Test Report No.: 14027930 001 Date: 15.09.2011 Page 2 of 11 Test Summary Radiated Emission of Carrier Frequency Result: Pass Spurious Radiated Emissions Result: Pass Bandwidth Measurement Result: Pass www.tuv.com Test Report No.: 14027930 001 Date: 15.09.2011 Page 3 of 11 Contents List of Test and Measurement Instruments.........................................................4 General Product Information ................................................................................5 Product Function and Intended Use.............................................................................................5 Ratings and System Details...........................................................................................................5 Independent Operation Modes......................................................................................................6 Submitted Documents ...................................................................................................................6 Related Submittal(s) Grants ..........................................................................................................6 Test Set-up and Operation Mode..........................................................................7 Principle of Configuration Selection ............................................................................................7 Test Operation and Test Software ................................................................................................7 Special Accessories and Auxiliary Equipment ............................................................................7 Countermeasures to achieve EMC Compliance ..........................................................................7 Test Methodology ..................................................................................................8 Radiated Emission..........................................................................................................................8 Field Strength Calculation .............................................................................................................8 Test Results ...........................................................................................................9 Radiated Emission of Carrier Frequency Subclause 15.227(a) ..............................................9 Spurious Radiated Emissions Subclause 15.227(b) ..............................................................10 Bandwidth Measurement .............................................................................................................11 Appendix 1 Test Protocol Appendix 2 Test Setup Appendix 3 EUT External Photo Appendix 4 EUT Internal Photo Appendix 5 FCCID Label, Block Diagram, Schematics, BOM and User manual www.tuv.com Test Report No.: 14027930 001 Date: 15.09.2011 Page 4 of 11 List of Test and Measurement Instruments Hong Kong Productivity Council (Registration number: 90656) Equipment Manufacturer Type S/N Due Date Semi-anechoic Chamber Frankonia Nil Nil 25-May-12 Test Receiver R & S ESU26 100050 26-May-12 Bi-conical Antenna R & S HK116 100241 05-May-13 Log Periodic Antenna R & S HL223 841516/020 06-May-13 Coaxial cable 50ohm Rosenberger RTK081-05S- 05S-10m LA2-001-10M / 001 08-Dec-11 Microwave amplifer 0.5- 26.5GHz, 25dB gain HP 83017A 3950M00241 03-Oct-11 High Pass Filter (cutoff freq. =1000MHz) Trilithic 23042 9829213 30-Oct-11 Horn Antenna EMCO 3115 9002-3351 11-May-13 FSP 30 Spectrum Analyser R & S FSP 30 100286 17-Sep-12 Active Loop Antenna EMCO 6502 9107-2651 19-Apr-12 www.tuv.com Test Report No.: 14027930 001 Date: 15.09.2011 Page 5 of 11 General Product Information Product Function and Intended Use The equipment under test (EUT) is a transmitter for a RC toy car operating at 27.145MHz. The EUT has 2 control rods. Control rods are used to command the forward, backward, left and right movement of the associated receiver. FCC ID: ZYVWINYEATOYS1 Models G100057, W3608N, W3609N, W3611N, W3613N, W3616N, W3606, W3608, W3609, W3611, W3613, W3616, W3606N, W3130, W3121N, W3123N, W3126N, W3128N, W3129N, W3131N, W3121N2, W3123N, W3126N, W3128N2, W3129N2, W3131N2, W3010, W3011, W3013, W3016, W3018, W3019, W3133, W3133N, W3133N2, W3021, W3023, W3026, W3028, W3029 Ratings and System Details Transmitter Frequency range : 27.145MHz Number of channels : 1 Type of antenna : External Telescopic Antenna Power supply : Battery operated 9V Ports : none Protection Class : III www.tuv.com Test Report No.: 14027930 001 Date: 15.09.2011 Page 6 of 11 Independent Operation Modes The basic operation modes are: - Transmitting control signal for the RC toy car. For further information refer to User Manual Submitted Documents The submitted documents are listed as follow: - Circuit diagram - Block diagram - User manual - Label artwork - Bill of material Related Submittal(s) Grants This is a single application for certification of the transmitter. www.tuv.com Test Report No.: 14027930 001 Date: 15.09.2011 Page 7 of 11 Test Set-up and Operation Mode Principle of Configuration Selection Emission: The equipment under test (EUT) was configured to measure its highest possible radiation level. The test modes were adapted accordingly in reference to the instructions for use. Test Operation and Test Software Test operation should refer to test methodology. - There was no special software to exercise the device. Special Accessories and Auxiliary Equipment The product has been tested together with the following additional accessories: - none Countermeasures to achieve EMC Compliance - none www.tuv.com Test Report No.: 14027930 001 Date: 15.09.2011 Page 8 of 11 Test Methodology Radiated Emission The radiated emission measurements were performed according to the procedures in ANSI C63.4-2003. The equipment under test (EUT) was placed at the middle of the 80 cm height turntable, and the turntable is 3 meters far from the measuring antenna. During the test…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 1 von 1 Page 1 of 1 Ref -10 dBmAtt 20 dB A RBW 3 kHz VBW 3 kHz SWT 75 ms * * * Start 26.96 MHzStop 27.28 MHz32 kHz/ 1 PK MAXH PRN -110 -100 -90 -80 -70 -60 -50 -40 -30 -20 -10 1 Marker 1 [T1 ] -23.56 dBm 27.145600000 MHz 2 Delta 2 [T1 ] -47.48 dB -185.600000000 kHz 3 Delta 3 [T1 ] -46.78 dB 134.400000000 kHz Date: 2.SEP.2011 10:29:35 Bandwidth measurement

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No.: 14027930 001 Seite 1 von 1 Page 1 of 1 Set-up for Radiation Emission (Transmitter) Set-up for Radiation Emission (Transmitter)
