ZZDDADI164585427Toy RC Monster Spinning car/Thunder

DADI PLASTIC TOYS INDUSTRY CO., LTD.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Feb 14, 2012
Application Purpose: Original Equipment
Date of Application: Feb 14, 2012
Equipment Note: Toy RC Monster Spinning car/Thunder
Frequency Range: 27.15300000 - 27.15300000
Company: DADI PLASTIC TOYS INDUSTRY CO., LTD.
Country: China

Documents & Files

Select a file to view

Schematics

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Innovage LLC Address: 19511 Pauling, Foothill Ranch CA, USA 92610 Phone, Fax : 949-587-9207 User Manual 1645854

Block Diagram

Block Diagram Filter RF power amplifier and Modulator Oscillator 27.153MHz Encoder Control key 27.153MHz ANT IC1 128KHz

Cover Letter(s)

2012-2-3

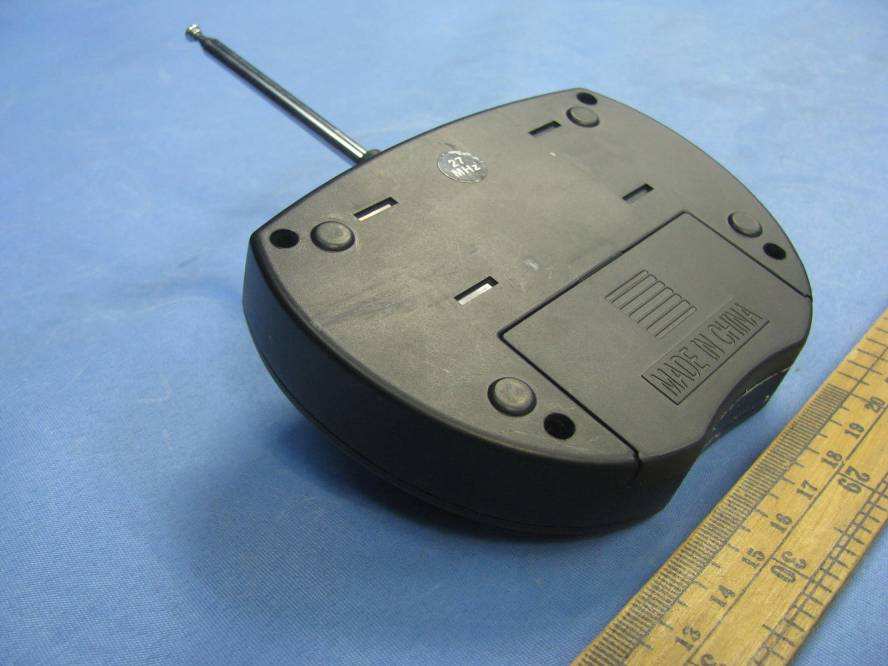

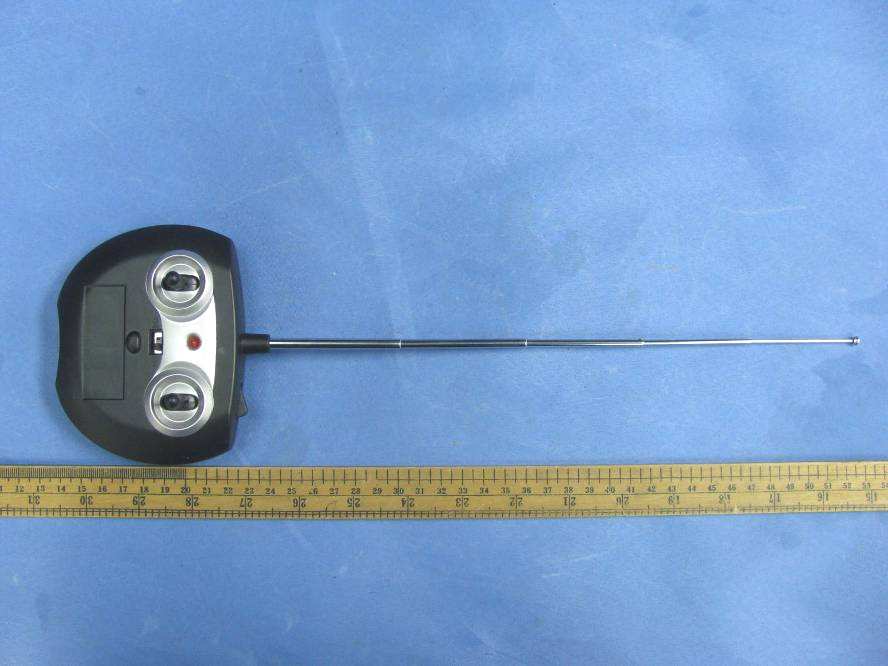

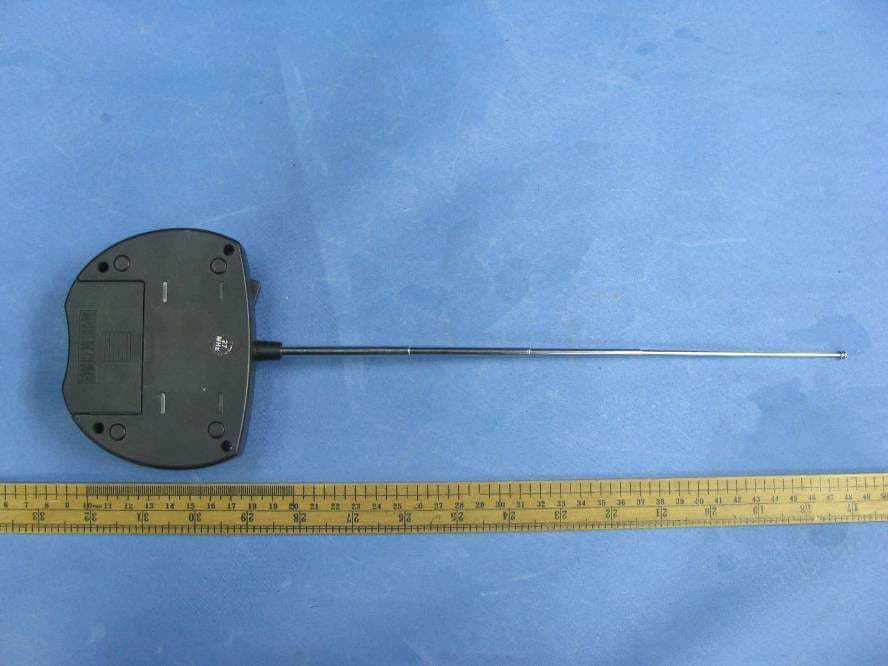

External Photos

ID Label/Location Info

Label Artwork and Location Label Size: 52*27mm

Internal Photos

Operational Description

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L3, C3, C6 RF power amplifier and modulation Modulate the carrier and amplify the modulated RF signal Q2 Oscillator Generate 27.153 MHz carrier Q1, T1 Encoder IC Generate code signal to modulator IC1 Type of antenna: Telescope antenna with unique antenna connector Type of modulation: Pulse modulation

Test Setup Photos

Radiated Photos
