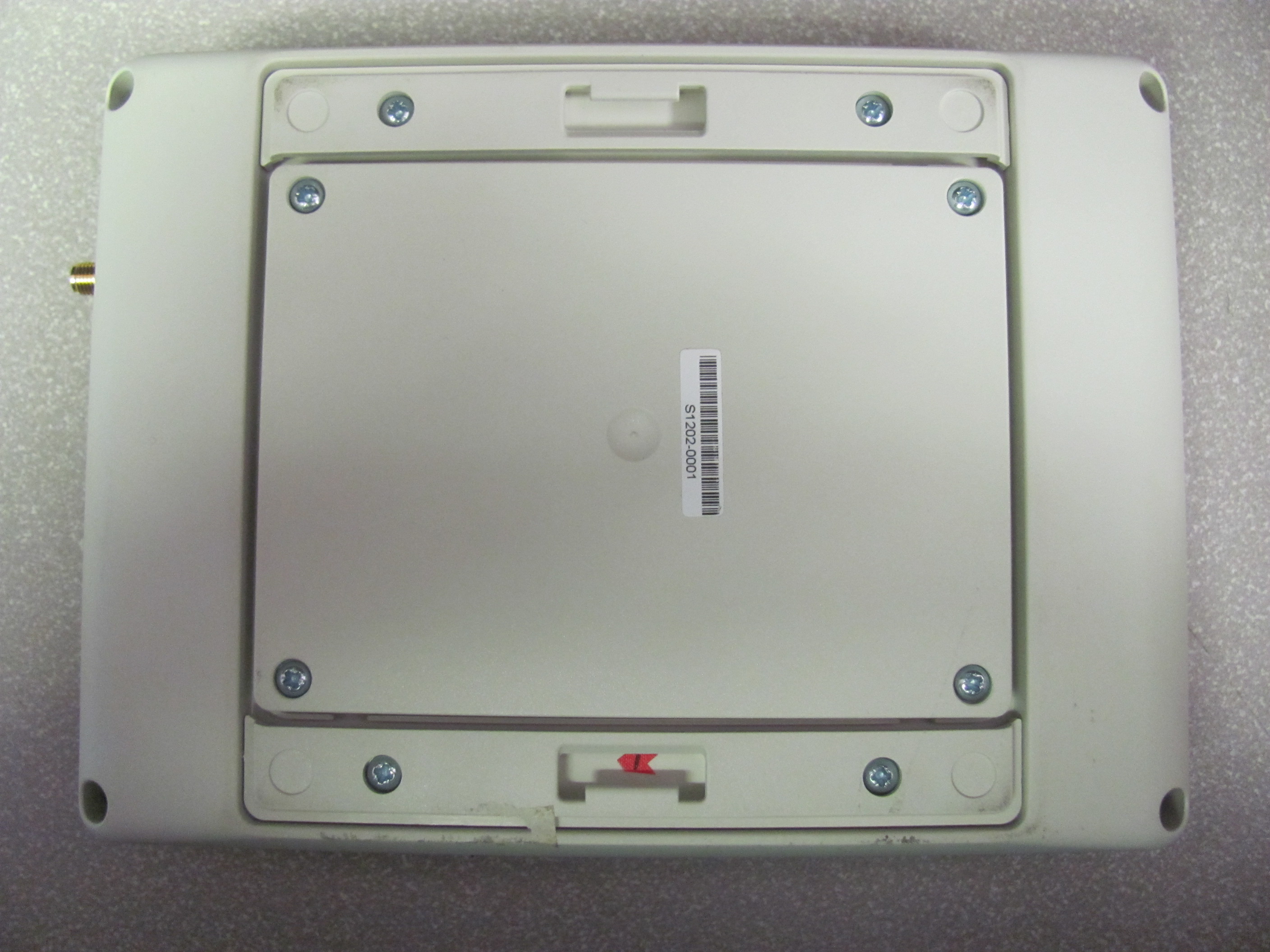

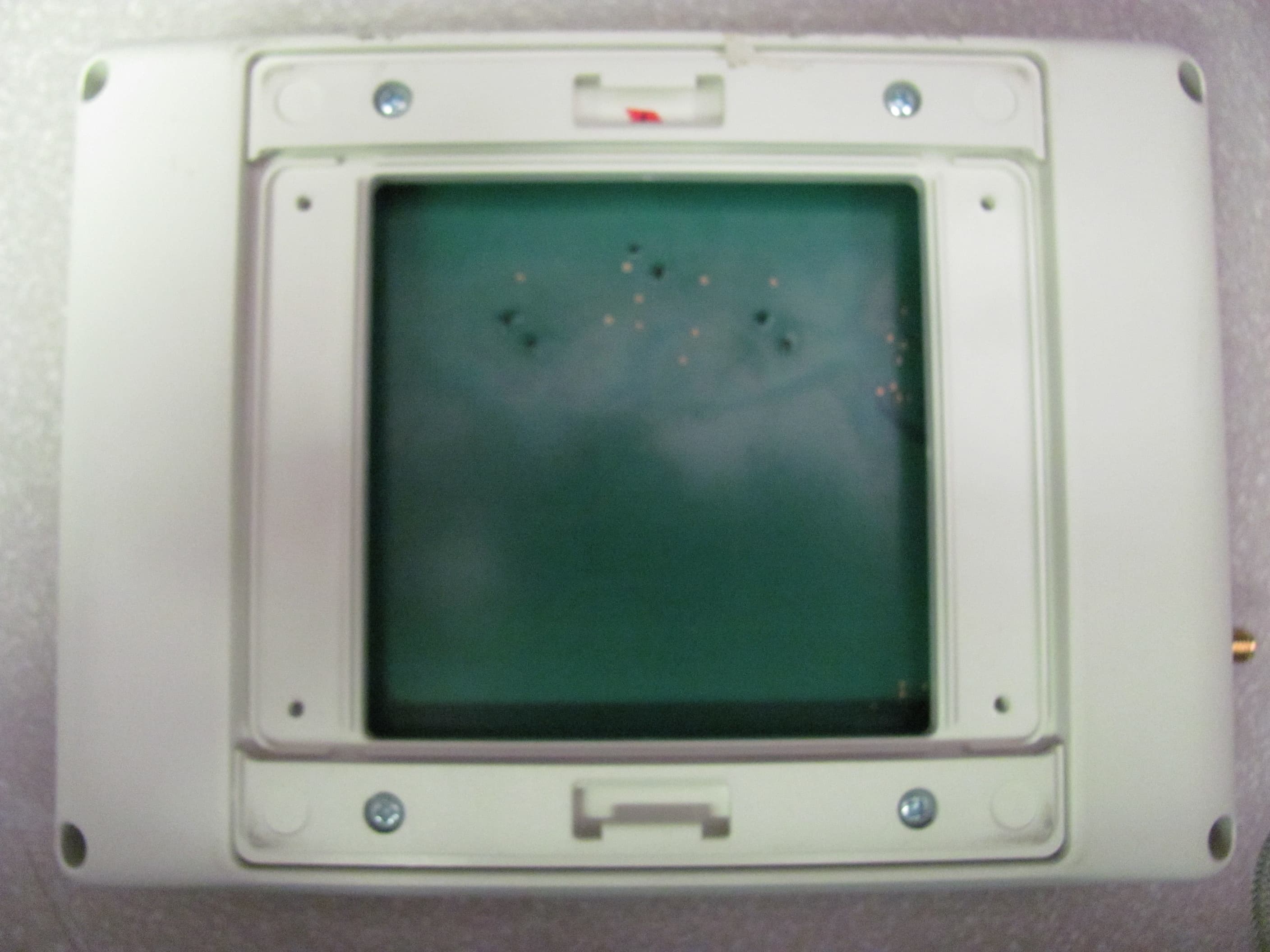

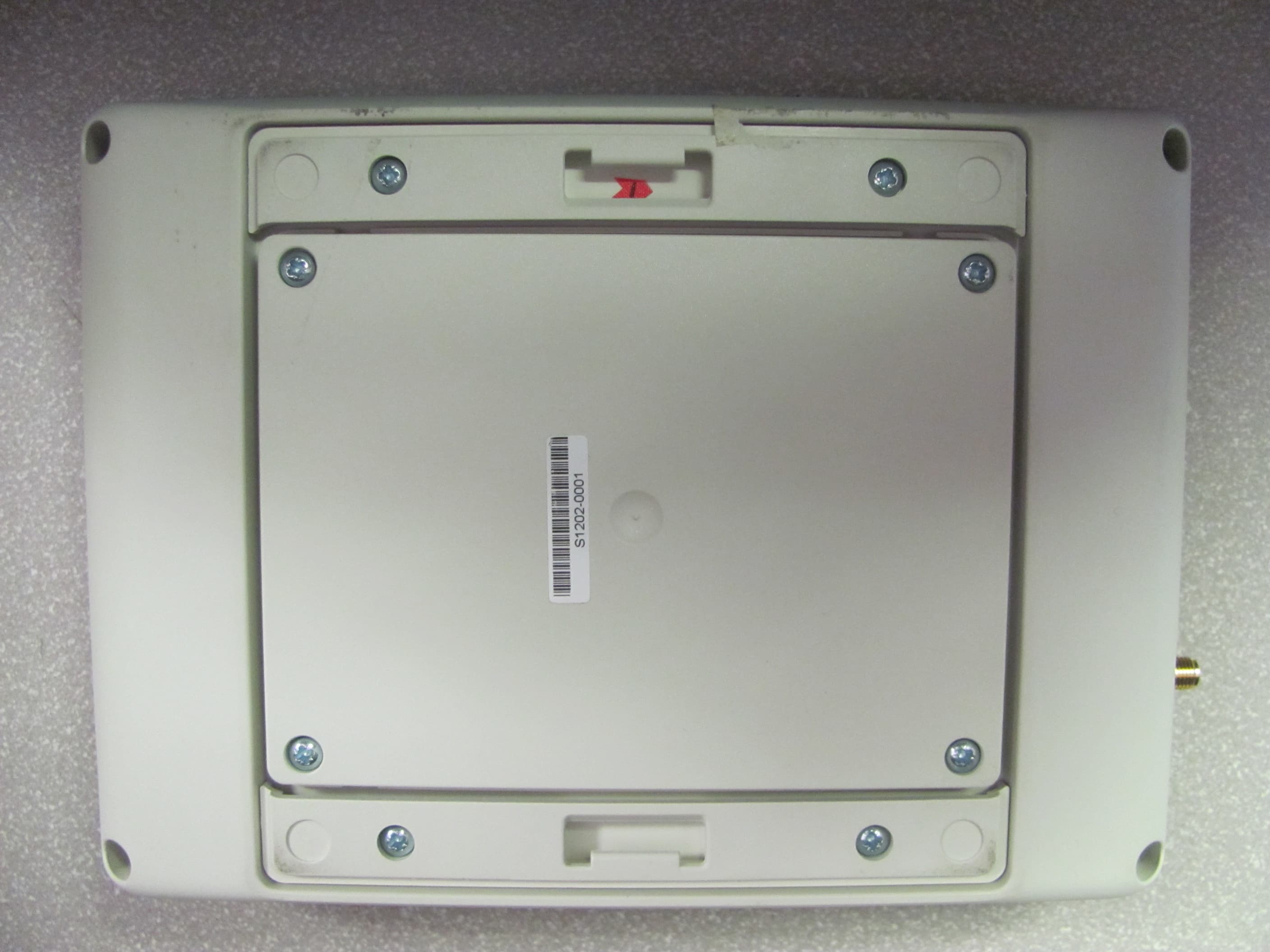

ZZK892439All Clear Radio Box

User Manual (January 2012) All Clear System™ Overview The All Clear System is an innovative product, designed to ensure the safety of financial institution employees and assets as well as providing quantitative data to track the institution’s daily Open and Close process for regulatory compliance and additional record keeping. The system uses a combination of an appliance installed in each location and a secure, technology‐based FOB to alert employees to any issues pertaining to the daily Open and Close of their financial institution. Each employee is assigned a FOB with a unique serial number and password for their protection. The FOB can be activated within 200‐feet of the financial institution, which enables employees to receive the most current status from a safe location. If a problem is detected during Open or Close process, not only does the All Clear System alert employees through the FOB but also notifies a list of contacts as defined by the financial institution’s security department. All Clear System was developed with the following focus –  Safety of the employees – according to information provided by the FBI – the type of incident the All Clear System is focused on – morning glory robberies – have the following statistics o 100% of the time hostages are taken o In a hostage situation, the fewer number of hostages taken, the safer the hostages being held are o A hostage situation in a financial institution results in injury or death in 19% of the cases  Protection of Bank Assets o The “take” in a morning glory robbery is 10 times the “take” of a note pass robbery and the chances of being caught are less o Reducing the impact of a hostage situation  Fewer workers compensation claims  Fewer lawsuits  Reducing number of employees lost through the trauma of the event  Compliance with laws o The Bank Protection Act requires that an opening and closing procedure be established. These procedures must  Be non‐obvious to the public  Be rotatable  Be auditable  Cover not only the opening of the institution in the morning but also have a procedure for protecting employees at the end of the day Installation / Configuration of All Clear System™ Components:  Cloud Based System for data collection and management  Branch Appliance w/includes the Radio Box  Personal FOB – serialized device which is assigned to employees Cloud Based Management – this system, located centrally, is used to:  Establish Institution and Brach parameters – these parameters are updated to each Branch Appliance in the institutions’ network. A secure USERID and Password is provided to the Institution’s Security Officer to manage the system.  Parameters which can be set for each institution / branch are as follows:  Institution Code: (Identifies the specific financial institution)  Branch Code: (Identifies the Branch of the financial institution)  Open Time: (The time the financial institution employees begin arriving)  Open Alarm Grace Period (minutes): (The designated time allotted by the institution for opener to safely inspect and verify safety of the institution)  All Clear Message: (Message displayed on the FOB to notify employees it is OK to enter institution)  Alarm Message: (Message displayed on the FOB to indicate a problem within the institution)  Panic Alarm: (Amount of time designated before panic message is sent indicating a problem with Open or Close of the location)  In‐Process Open Message: (Message displayed on the FOB to inform employees that Open or Close is in Process)  In‐Process Opener Message: (Message displayed on the FOB to identify the designated Opener)  In‐Process Close Message: (Message displayed on the FOB indicating the institution is being closed)  Night Mode Message: (Message displayed on the FOB to indicate financial institution is closed)  Past Open Time Message: (Message displayed on the FOB to indicate time has passed for beginning the process and it has not been initiated)  Delayed Open Code Message: (Message displayed on the FOB to indicate there is a problem completing the Open Process)  Wrong Code Message: (Message displayed on the FOB when the wrong open code is entered on the Branch Appliance during the opening process)  Employee Exit Message: (Message displayed on the FOB when employee exits for lunch or end of day.)  FOB Learned Message: (Message displayed to indicate FOB has been assigned to a specific employee)  Closer Delay Minutes: (Number of minutes a user has to indicated with their FOB they have reached a safe location)  Calendar: (days open / holidays)  Employee information: o Employee number o Employee security code o Abilities  Open Branch  Close Branch  Assign FOB  Reset Alarms  Notification Information o Who will receive notifications o Type of notification  Email (contact email needed)  Text Message (contact phone number and carrier needed)  Voice Message (contact phone number needed) Branch Appliance and Radio Box The Branch Appliance is a preconfigured system which is installed in each branch. The system requires a connection to the institution’s network to provide connectivity to the Cloud Based Management System. This connection is managed by the Branch Appliance and consists of a secure encrypted tunnel to the Cloud System. Once the Branch Appliance is installed, it will self‐configure based on the MAC address of the appliance. The necessary program updates, parameter files, and other information will be downloaded to the appliance. (Ongoing updates and changes are also performed using this method.) The Branch Appliance is configured to not allow connections from the outside, it must initiate all connections. Remote support is provided through a program initiated by a local user on the Branch Appliance. The Branch Appliance is connected to the Radio Box via a USB cable which provides both a data path and power for the Radio Box. FOB Assignment Each FOB has a unique serial number which, once activated by an institut…

Text truncated - open the document above for the full version.

Correspondence by Project Project Number: Correspondence NumberMemo ZZK892439-1 1. Please provide a diagram or photo showing the location of the FCC label Response: The revised label has been uploaded. 2. Please provide corrected schematics. The component R1 does not match the value shown in the internal photos. Response: The schematics have been revised.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interface that may cause undesired operation. RADIO BOX MODEL NO: 892439 FCC ID: ZZK892439 TM .75 x 1.75 BLACK PMS 653

Report Number: B20202D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report All Clear Radio Box Model: 892439 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 19 FCC PART 15 SUBPART B and C TEST REPORT for ALL CLEAR RADIO BOX MODEL: 892439 Prepared for ALL CLEAR SYSTEM, LLC 235 EAST CENTER STREET SUITE 200 KINGSPORT, TENNESSEE 37660 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 2, 2012 REPORT APPENDICES TOTAL BODY A B C D E PAGES 19 2 2 2 20 63 108 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B20202D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report All Clear Radio Box Model: 892439 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 19 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 6.3 Facility Environmental Characteristics 12 7. TEST PROCEDURES 13 7.1 RF Emissions 13 7.1.1 Conducted Emissions Test 13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 14 7.1.3 RF Emissions Test Results 16 7.2 Bandwidth of the Fundamental 17 8. CONCLUSIONS 19 Report Number: B20202D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report All Clear Radio Box Model: 892439 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 19 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated and Conducted Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B20202D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report All Clear Radio Box Model: 892439 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 19 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: All Clear Radio Box Model: 892439 S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Customer: All Clear System 235 East Center Street Suite 200 Kingsport, Tennessee 37660 Test Date(s): February 1, 2, 3, 6, and 28, 2012; and March 2, 2012 Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C section 15.207. 2 Radiated RF Emissions 10 kHz – 4180 MHz (Transmitter Portion) Complies with the limits of CFR Title 47, Part 15, Subpart C, sections 15.205, 15.209, and 15.231. 3 Radiated RF Emissions 10 kHz – 4180 MHz (Receiver and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B. *U = Expanded Uncertainty with a coverage factor of k=2 Report Number: B20202D2 FCC Part 15 Subpart B and FCC Section 15.231 Test Report All Clear Radio Box Model: 892439 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 19 1. PURPOSE This document is a qualification test report based on the emissions tests performed on the All Clear Radio Box, Model: 892439. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the …

Text truncated - open the document above for the full version.

Pulse Time (uS) 1 120 2 120 3 832 4 238 5 140 6 288 7 128 8 130 9 130 10 278 11 448 12 130 13 278 14 1040 15 132 16 182 17 1035 18 345 19 130 20 170 TOTAL: 6294 TOTAL with Blanking: 47100 Duty Cycle: 13.36% Peak to Avg Ratio -17.48

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE ALL CLEAR SYSTEM, LLC ALL CLEAR RADIO BOX, MODEL: 892439 The fundamental was maximized on the Lab D test site using a normal test setup with the AC Adapter of the laptop directly to the AC public mains (115 Vac). Next, the AC Adapter of the laptop was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The AC Adapter for the laptop was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Wavetek Multimeter Model: DM25XT, Serial Number: 40209875, Calibration Due Date: May 27, 2012. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
